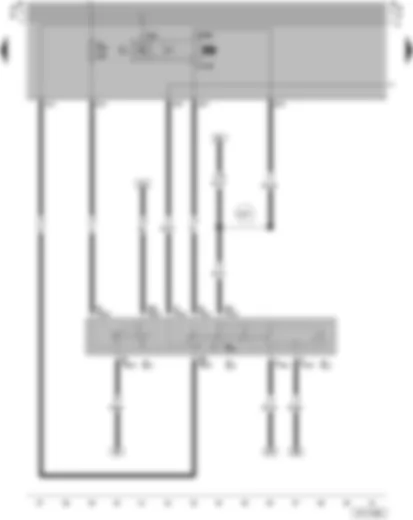

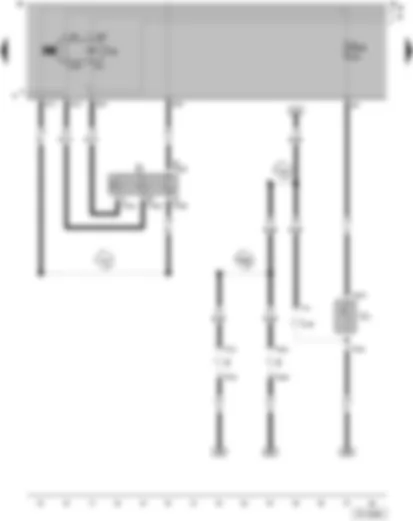

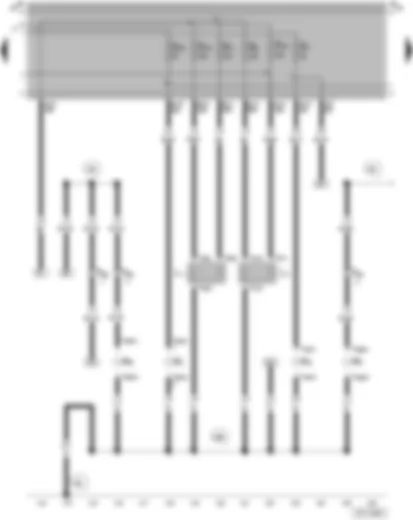

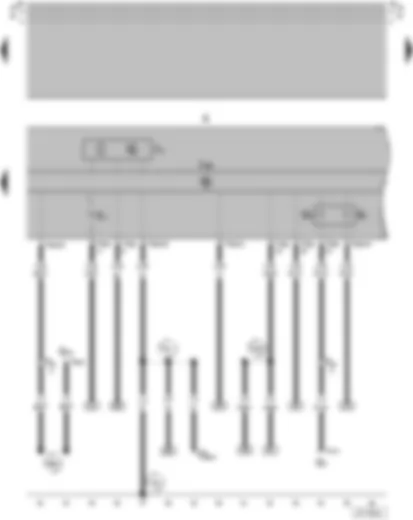

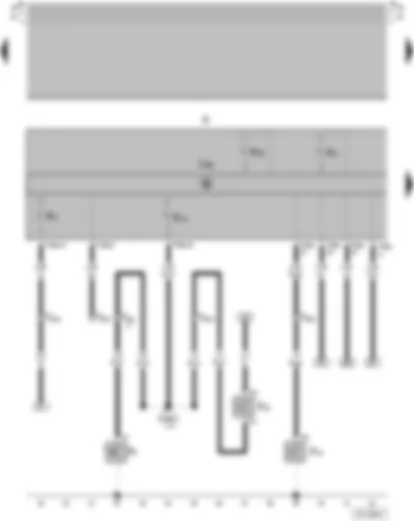

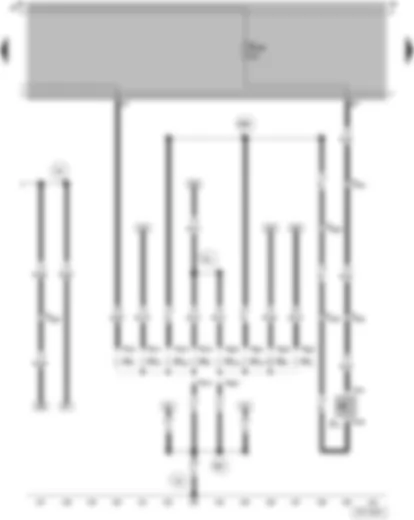

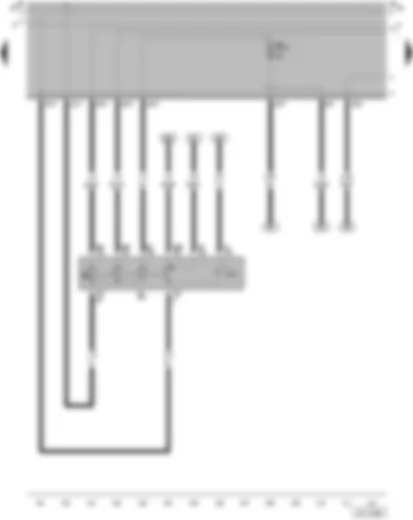

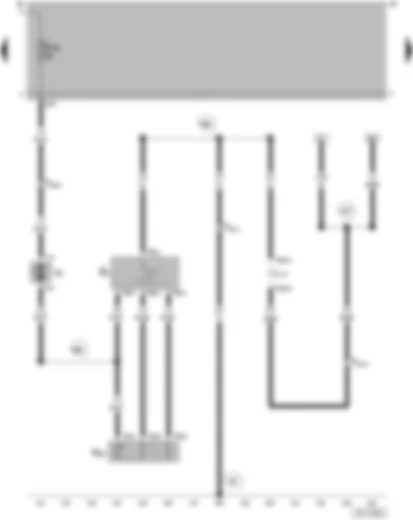

| A | Battery |
| B | Starter |
| C | Alternator |
| C1 | Voltage regulator |
| T1ag | Conector de encaixe, simples, no motor de partida |
| T2bo | Conector de encaixe, duplo, no gerador / alternador |
| T2j | Conector de encaixe, duplo, próx. à bateria |
| 1 | Earth point, battery body |
| 49 | Earth point, near battery |
| 500 | Screw connection -1- (30), on relay plate |
| 501 | Screw connection -2- (30), on relay plate |
| D26 | Positive connection (B+), in alternator wiring harness |
| P1 | Positive connection (30), in fuse holder/battery |
| D | Ignition/starter switch |
| J59 | X contact relief relay |
| L28 | Cigarette lighter light bulb |
| S225 | Fuse in fuse holder |
| T1k | Single connector, on cigarette lighter light bulb |
| T2p | 2-pin connector, on cigarette lighter |
| T2q | 2-pin connector, on number plate light |
| T2r | 2-pin connector, on number plate light |
| T7d | 7-pin connector, on ignition/starter switch |
| U1 | Cigarette lighter |
| X | Number plate light |
| A2 | Positive (+) connection (15), in dash panel wiring harness |
| W2 | Positive connection (58), in interior light wiring harness |
| W69 | Positive connection -2- (58), in rear wiring harness |
| F9 | Handbrake warning switch |
| F22 | Oil pressure switch (0.3 bar) |
| F34 | Brake fluid level warning contact |
| J285 | Control unit with display in dash panel insert |
| K | Dash panel insert |
| K2 | Alternator warning lamp |
| K3 | Oil pressure warning lamp |
| K14 | Handbrake warning lamp |
| K28 | Coolant temperature/coolant shortage warning lamp |
| T1b | Single connector, on oil pressure switch (0.3 bar) |
| T1l | Single connector, on handbrake warning switch |
| T1u | Single connector, on brake fluid level warning contact |
| T1v | Single connector, on brake fluid level warning contact |
| T6c | 6-pin connector, (red) next to relay plate |
| T6g | 6-pin connector, (lila) next to relay plate |
| T6i | 6-pin connector, (lila) next to relay plate |
| T6j | 6-pin connector, (red) next to relay plate |
| T26a | 26-pin connector, on dash panel insert |
| A89 | Connection 2 (54), in dash panel wiring harness |
| G1 | Fuel gauge |
| G2 | Coolant temperature sender |
| G3 | Coolant temperature gauge |
| G22 | Speedometer sender (hall sender on gearbox) |
| J285 | Control unit with display in dash panel insert |
| K | Dash panel insert |
| K1 | Main beam warning lamp |
| T3a | 3-pin connector, on speedometer sender (hall sender on gearbox) |
| T4i | 4-pin connector, on coolant temperature sender |
| T6i | 6-pin connector, (lilac) next to relay plate |
| T6j | 6-pin connector, (red) next to relay plate |
| T16a | 16-pin connector, behind shelf-driver's side, diagnosis connection |
| T26a | 26-pin connector, on dash panel insert |
| Y4 | Odometer display |
| 44 | Earth point, left A-pillar, bottom |
| 81 | Earth connection -1-, in dash panel wiring harness |
| A51 | Connection (56), in dash panel wiring harness |
| E40 | Connection (vehicle speed sensor), in injection system wiring harness |

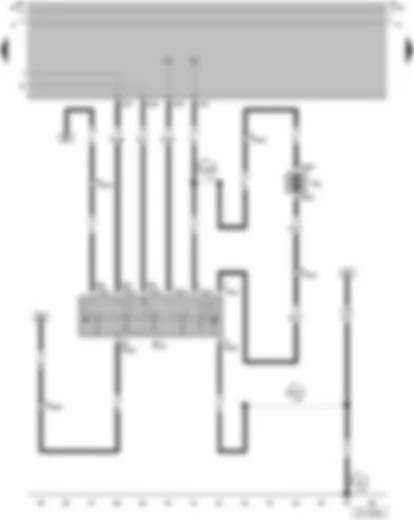

| E2 | Turn signal switch |
| E3 | Hazard warning light switch |
| E4 | Headlight dipper/flasher switch |
| J2 | Hazard warning light relay |
| K6 | Hazard warning light system warning lamp |
| S8 | Fuse in relay plate fuse holder |
| T4a | 4-pin connector, on turn signal switch |
| T5a | 5-pin connector, on headlight dipper/flasher switch |
| T7a | 7-pin connector, on turn signal switch |

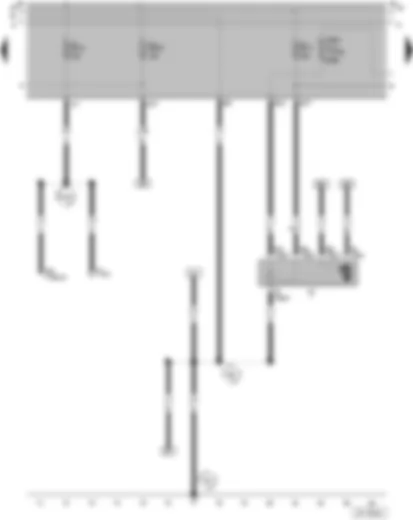

| A157 | Connection (49a), in dash panel wiring harness |
| S13 | Fuse in relay plate fuse holder |
| S17 | Fuse in relay plate fuse holder |
| S227 | Fuse in fuse holder |
| T5e | 5-pin connector, on windscreen wiper motor |
| T6i | 6-pin connector, (lilac) next to relay plate |
| T16a | 16-pin connector, behind shelf-driver's side, diagnosis connection |
| TV23 | Push-in bridge |
| V | Windscreen wiper motor |
| 44 | Earth point, left A-pillar, bottom |
| 82 | Earth connection -1-, in front left wiring harness |
| A164 | Positive connection -2- (30a), in dash panel wiring harness |
| E22 | Intermittent wiper switch |
| T2ak | 2-pin connector, on washer pump |
| T4a | 4-pin connector, on intermittent wiper switch |
| T5b | 5-pin connector, on intermittent wiper switch |
| T6a | 6-pin connector, (black) next to relay plate |
| V5 | Washer pump |
| 43 | Earth point, lower part of right A-pillar |
| 213 | Earth connection, in dash panel wiring harness |
| A158 | Connection (T), in dash panel wiring harness |

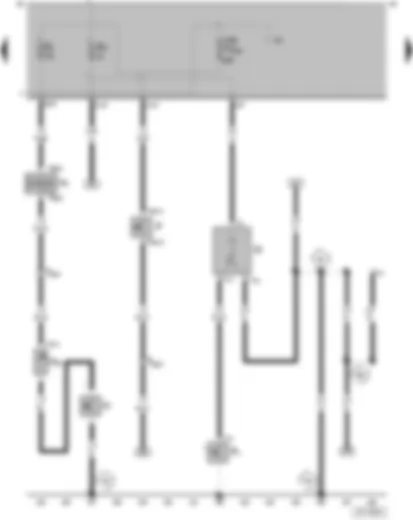

| L1 | Left twin filament bulb/sealed beam insert |
| L2 | Right twin filament bulb/sealed beam insert |
| M1 | Left side light bulb |
| M3 | Right side light bulb |
| M5 | Front left turn signal bulb |
| M7 | Front right turn signal bulb |
| S2 | Fuse in relay plate fuse holder |
| S5 | Fuse in relay plate fuse holder |
| S7 | Fuse in relay plate fuse holder |
| S15 | Fuse in relay plate fuse holder |
| S16 | Fuse in relay plate fuse holder |
| S20 | Fuse in relay plate fuse holder |
| T2af | 2-pin connector, on front left turn signal bulb |
| T2ag | 2-pin connector, on front right turn signal bulb |
| T2al | 2-pin connector, on high level brake light bulb |
| T2am | 2-pin connector, on rear window wiper |
| T3r | 3-pin connector, on right twin filament bulb/sealed beam insert |
| T3s | 3-pin connector, near starter |
| T6a | 6-pin connector, (black) next to relay plate |
| T6g | 6-pin connector, (lilac) next to relay plate |
| 44 | Earth point, lower part of left A-pillar |
| 108 | Earth connection -2-, in front left wiring harness |
| A5 | Positive connection (right turn signal), in dash panel wiring harness |
| A6 | Positive connection (left turn signal), in dash panel wiring harness |
| F4 | Reversing light switch |
| M2 | Right tail light bulb |
| M4 | Left tail light bulb |
| M6 | Rear left turn signal bulb |
| M8 | Rear right turn signal bulb |
| M9 | Left brake light bulb |
| M10 | Right brake light bulb |
| M16 | Left reversing light bulb |
| M17 | Right reversing light bulb |
| S228 | Fuse in fuse holder |
| T2k | 2-pin connector, on reversing light switch |
| T5g | 5-pin connector, on left light bulb |
| T5h | 5-pin connector, on right light bulb |
| T6c | 6-pin connector, (red) next to relay plate |
| T6g | 6-pin connector, (lilac) next to relay plate |
| T6j | 6-pin connector, (red) next to relay plate |
| 51 | Earth point, on right in luggage compartment |
| 333 | Earth connection -5-, in rear wiring harness |
| A5 | Positive connection (right turn signal), in dash panel wiring harness |
| W1 | Positive connection -1- (54) in rear wiring harness |
| W66 | Connection (RF), in rear wiring harness |

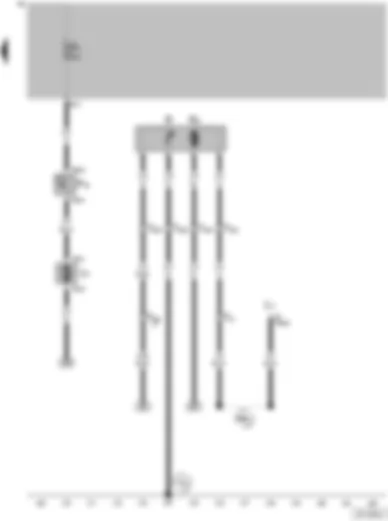

| E9 | Fresh air blower switch |
| L16 | Fresh air regulation light bulb |
| N23 | Fresh air blower series resistor |
| S224 | Fuse in fuse holder |
| T1x | Single connector, on fresh air blower |
| T1z | Single connector, on fresh air blower |
| T2ao | 2-pin connector, in tailgate/boot lid contact switch for anti-theft alarm |
| T3t | 3-pin connector, on fresh air regulation light bulb |
| T4o | 4-pin connector, behind painel, centre |
| T5f | 5-pin connector, on fresh air blower switch |
| V2 | Fresh air blower |
| 44 | Earth point, lower part of left A-pillar |
| 329 | Earth connection -1-, in blower box wiring harness |
| 330 | Earth connection -2-, in blower box wiring harness |
| A37 | Connection (58a), in dash panel wiring harness |
| F | Brake light switch |
| F2 | Driver door contact switch |
| H | Horn plate |
| H1 | Horn/dual tone horn |
| H23 | Horn activation contact ring |
| S1 | Fuse in relay plate fuse holder |
| S6 | Fuse in relay plate fuse holder |
| T1g | Single connector, on interior light, front |
| T1h | Single connector, on interior light, front |
| T1i | Single connector, on interior light, front |
| T1n | Single connector, near fuel tank |
| T1o | Single connector, on lower part of right A-pillar |
| T2aj | 2-pin connector, on horn/dual tone horn |
| T2an | 2-pin connector, on brake light switch |
| T6c | 6-pin connector, (red) next to relay plate |
| T6g | 6-pin connector, (lilac) next to relay plate |
| T7a | 7-pin connector, on turn signal switch |
| TV23 | Push-in bridge |
| W | Interior light, front |
| 42 | Earth point, next to steering column |
| 44 | Earth point, left A-pillar, bottom |
| 86 | Earth connection -1-, in rear wiring harness |
| 87 | Earth connection -2-, in rear wiring harness |
| F18 | Radiator fan thermal switch |
| G | Fuel gauge sender |
| G6 | Fuel pump (pre-supply pump) |
| J17 | Fuel pump relay |
| T1c | Single connector, near fuel gauge sender |
| T2f | 2-pin connector, on ventilador del líquido refrigerante |
| T3d | 3-pin connector, on radiator fan thermal switch |
| T4j | 4-pin connector, near fuel gauge sender |
| T6g | 6-pin connector, (lilac) next to relay plate |
| T9b | 9-pin connector, on fuel pump relay |
| S4 | Fuse in relay plate fuse holder |
| V7 | Ventilador del líquido refrigerante |
| 44 | Earth point, left A-pillar, bottom |
| E45 | Connection (87), in injection system wiring harness |
