Все схемы для электропроводки Lincoln Town Car Executive 1993 модели

Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала

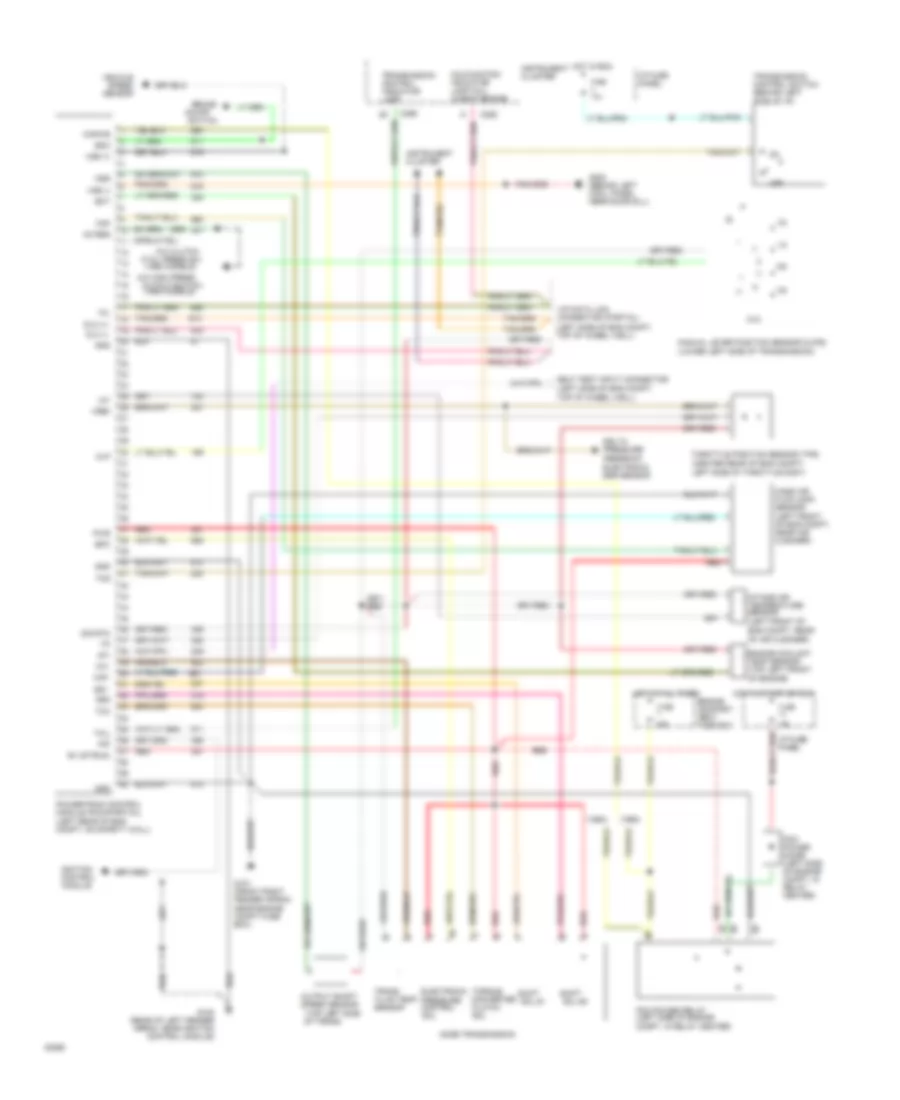

Электросхема коробки передач АКПП для Lincoln Town Car Executive 1993

Электросхема коробки передач АКПП для Lincoln Town Car Executive 1993 - Список элементов:

• (1993)
• (1994)
• (center rear of eng compt)
• (left front of eng compt, near air cleaner)
• (left rear of eng compt, on safety wall)
• (left side of eng compt, top of wheel well)
• (top left side
• 15a
• 30a
• A/c clutch
• A/c high press cutout switch (1994 models)
• Ac req
• Aode transmission
• B+ (st/run)
• Boo
• Brake
• C255
• C256
• Clutch
• Compt, in relay center)
• Converter
• Cycl press sw (1993 models)
• Delta pressure feedback electronic egr sensor
• Dlc (+)
• Dlc (-)
• Ect
• Electronic
• Eng compt, rear of air cleaner)
• Engine compart- ment fuse box
• Engine coolant temp sensor (top left front
• Epc
• Fluid temp
• Fuse
• Fuse 10a
• Fuse t
• G100 (rear of left fender apron, near ignition control module)
• G101 (front right fender apron,
• G200 (behind left cowl panel near door sill)
• Gnd
• Hot at all times
• Hot in run
• Hot in start or run
• I/p fuse panel
• Iat
• Ignition control module
• Instrument cluster
• Intake air temperature sensor (left front of
• Kapwr
• Left side of throttle dody)
• Maf
• Malfunction indicator lamp (mil) (check engine)
• Manual lever position sensor (mlps) (lower left side of transmission)
• Mass air flow (maf) sensor
• Mil
• Mlp
• Near engine compt fuse box)
• Of engine)
• Of trans)
• Off
• On/off switch
• Oss
• Output shaft speed sensor
• Pcm power diode (left side of engine compt, in relay center)
• Pcm power relay (left side of engine
• Pip
• Powertrain control module (pcm)(partial)
• Pressure control
• Pwr
• Red
• Self test input connector
• Sensor
• Shift
• Side of i/p)
• Sig rtn
• Sol
• Sol #1
• Sol #2
• Ss1
• Ss2
• Sti
• Tcc
• Tcil
• Tcs
• Tft
• Throttle position sensor (tps)
• Torque
• Trans
• Transmission control indicator lamp
• Transmission control switch (behind left
• Vehicle speed sensor
• Vip data link connector (partial) (left side of eng compt, top of wheel well)
• Vref
• Vss (+)
• Vss (-)

АНТЕННА ПИТАНИЯ

Электросхема антенны для Lincoln Town Car Executive 1993

Электросхема антенны для Lincoln Town Car Executive 1993 - Список элементов:

• (1992-94)
• Acc
• Antenna module (left side of trunk, above antenna motor)
• Bat
• C257
• C411
• Digital compact disc changer
• Fuse 10a
• Fuse 15a
• G402 (left front side of trunk, above wheelwell)
• Ground
• Hot at all times
• Hot in accy or run
• I/p fuse panel
• Ign
• Ignition switch
• Lock
• Off
• Power antenna motor (left side of trunk, behind wheel well)
• Radio
• Radio on input
• Red/pnk
• Run
• Start
• Start input

БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА

Электросхема багажника и лючка топливного бака для Lincoln Town Car Executive 1993

Электросхема багажника и лючка топливного бака для Lincoln Town Car Executive 1993 - Список элементов:

• (1990-91)
• (1990-92)
• (1992-93)
• (1993)
• (behind right cowl panel, behind insulator) remote keyless entry module
• C259
• C456
• Circuit breaker 20a
• Circuit breaker h 30a
• Door sill)
• Engine compartment fuse box
• Fuel filler door release solenoid (left side of trunk, near fuel door)
• Fuel filler door release switch (center of i/p, above radio)
• G203 (right cowl panel, near
• G402 (left front side of trunk, above wheelwell)
• Hot at all times
• Hot in run or accy
• I/p fuse panel
• Illumination
• Interior lights
• Power disrti- bution system
• System (rheostat)
• Trunk lid release output
• Trunk lid release solenoid (center rear of trunk lid, part of latch assembly)
• Trunk lid release switch (in left side of of glove box)
• Trunk release relay

Электросхема закрывания багажника для Lincoln Town Car Executive 1993

Электросхема закрывания багажника для Lincoln Town Car Executive 1993 - Список элементов:

• (1991-93) (1990)
• (left cowl panel, near door sill)
• (left front side of trunk, above wheelwell)
• 1-retract striker 2-extend striker
• 1990-91
• 1992-93
• A-lid released b-lid latched
• C255 c205
• Circuit breaker h 30a
• Engine compartment fuse box
• Fuse 15a
• G200
• G402
• Hot at all times
• I/p fuse panel
• Instrument cluster
• Lid position switch
• Pull-down switches
• Trunk ajar
• Trunk ajar input
• Trunk closed
• Trunk lid ajar switch (center rear of trunk lid, in latch assembly)
• Trunk lid pulldown motor/switch assembly (center rear of trunk, on side of latch assembly)

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

Электросхема подсветки для Lincoln Town Car Executive 1993

Электросхема подсветки для Lincoln Town Car Executive 1993 - Список элементов:

• (1993) (1994)
• (1994) (1993)
• (behind left cowl panel, near door sill) g200
• (behind right cowl panel, near door sill)
• Batt
• Batt saver output lt load
• C259 c259
• C260
• C260 c260
• C261 c261
• Clock
• Courtesy lts relay output
• Dimmer
• Dome
• Door jamb input
• Door sw in
• Engine compt lt
• Exterior lights
• Exterior lights system
• Front dome/ map switch & lamp
• Fuse 10a
• Fuse 20a
• G200 (behind left cowl panel, near door sill)
• G203
• G203 (behind right cowl panel, near door sill)
• Glove box lt
• Head
• Headlights (delayed exit relay)
• Hot at all times
• I/p cigar lighter lt
• I/p fuse panel
• Left curb illum lt
• Left front courtesy lt
• Left front courtesy lt sw
• Left illum entry latch switch
• Left lock cyl lt
• Left rear ashtray lt
• Left rear courtesy lt sw
• Left rear door courtesy lt
• Left vanity mirror lt
• Main light switch
• Nca
• Off
• Park
• Rear dome/ reading switch & lamp
• Remote keyless entry module (behind right cowl panel, behind insulator)
• Right curb illum lt
• Right front courtesy lt
• Right illum entry latch switch
• Right lock cyl lt
• Right rear ashtray lt
• Right rear courtesy lt sw
• Right rear door courtesy lt
• Right vanity mirror lt
• Trunk lid lt
• Trunk lt relay

Электросхема подсветки приборов для Lincoln Town Car Executive 1993

Электросхема подсветки приборов для Lincoln Town Car Executive 1993 - Список элементов:

• C227
• C254
• C255
• C256
• C281
• Clock
• Courtesy lights
• Electronic automatic temperature ctrl mdl (center of dash)
• Fuel filler door release sw
• Fuse 11 20a
• Fuse 7 5a
• G200 (behind left cowl panel, near door sill)
• G203 (behind right cowl panel, near door sill)
• Head
• Hot at all times
• I/p ash- tray lt
• I/p fuse panel
• Instrument cluster
• Main light switch
• Main lt sw lt
• Message center switch module
• Off
• Park
• Radio
• Rear window defrost control

Звуковой сигнал Гудок

Электросхема звукового сигнал Гудка для Lincoln Town Car Executive 1993

Электросхема звукового сигнал Гудка для Lincoln Town Car Executive 1993 - Список элементов:

• with anti-theft
• 87a
• Anti-theft system
• Clockspring assembly
• Control switch ground
• Cruise control system
• Engine compartment fuse box (right front of engine compt)
• Fuse l 15a
• High pitch horn (left front of engine compt)
• Horn relay
• Horn switches
• Hot at all times
• Low pitch horn (left front of engine compt)
• Nca
• Speed control amplifier (left rear of engine compt)

Магнитола Мультимедия

Электросхемы магнитолы для Lincoln Town Car Executive 1993

Электросхемы магнитолы для Lincoln Town Car Executive 1993 - Список элементов:

• (not used)
• (w/ cd changer)
• (w/ jbl system only)
• 12v pwr
• 12v pwr feed
• Amp mute
• Amplifier (below right side of rear package tray)
• Batt/memory
• C244
• C257
• C258
• C351
• C411
• C412
• C452
• C470
• C490
• Cd changer (optional)
• Cd-radio shield
• Engine compartment fuse box
• Fuse 10a
• Fuse 15a
• Fuse r 25a
• G200 (behind left kick panel)
• G203 (behind right kick panel)
• Gnd
• Hot at all times
• Hot in acc or run
• I/p fuse/ relay panel
• Instr dimming
• Interior lights system
• Left front door speaker
• Left rear speaker
• Lf sig (+)
• Lf sig (-)
• Lf spkr (+)
• Lf spkr (-)
• Lr sig (+)
• Lr sig (-)
• Lr spkr (+)
• Lr spkr (-)
• Mobile telephone transceiver (option by ford)
• Mute logic
• Nca
• Power antenna system
• Pwr
• Radio
• Radio on out
• Radio-amplifier shield
• Rf sig (+)
• Rf sig (-)
• Rf spkr (+)
• Rf spkr (-)
• Right front door speaker
• Right rear speaker
• Rr sig (+)
• Rr sig (-)
• Rr spkr (+)
• Rr spkr (-)
• Subwfr (-)
• Subwfr mute
• Subwfr out
• Subwoofer amplifier (w/ jbl system only) (below center of rear package tray)
• Subwoofer assembly (w/ jbl system)
• Subwrf (+)
• W/ ford cellular telephone
• W/o ford cellular telephone

Подогрев стекол и зеркал

Электросхема подогрева стекол и зеркал для Lincoln Town Car Executive 1993

Электросхема подогрева стекол и зеркал для Lincoln Town Car Executive 1993 - Список элементов:

• Engine compartment fuse box
• Fuse 10a
• Fuse 15a
• Fuse d 40a
• G200 (behind left cowl panel, near door sill)
• G203 (behind right cowl panel, near door sill)
• Hot at all times
• Hot in run
• I/p fuse panel
• Illum
• Interior lights system
• Left mirror heater
• Nca
• Off
• On ind
• Rear window defrost control
• Rear window defrost grid
• Right mirror heater
• Timing circuit

ПРИВОД ЗЕРКАЛ

Электронная Схема Зеркала С функцией день/ночь для Lincoln Town Car Executive 1993

Электронная Схема Зеркала С функцией день/ночь для Lincoln Town Car Executive 1993 - Список элементов:

• (right cowl panel, near door sill) g203
• 1990-91
• 1992-93
• Anti-theft system
• Electronic day/night mirror
• Exterior lights system
• Fuse 8 15a
• Hot in run
• I/p fuse panel
• Manual lever position sensor (lower left side of transmission)

Электросхема привода зеркал для Lincoln Town Car Executive 1993

Электросхема привода зеркал для Lincoln Town Car Executive 1993 - Список элементов:

• (behind left cowl panel) g200
• Direct- tional switch
• Fuse 17 10a
• Hot at all times
• I/p fuse panel
• L/r motor
• Left power/ heated mirror
• Left/ right switch
• Power mirror switch
• Red
• Right power/ heated mirror
• Up/dn motor

ПРИВОД СТЕКЛОПОДЪЕМНИКОВ

Электросхема стеклоподъемников для Lincoln Town Car Executive 1993

Электросхема стеклоподъемников для Lincoln Town Car Executive 1993 - Список элементов:

• (behind left cowl panel, near door sill) g200
• (front of right fender apron, near engine compartment fuse box) g101
• Circuit breaker f 30a
• Engine compartment fuse box (right front of engine compartment, front of wheel well)
• Fuse 6 10a
• G200 (behind left cowl panel, near door sill)
• Hot at all times
• Hot in acc or run
• I/p fuse panel (behind i/p, left of steering column)
• Left front switch
• Left front window motor
• Left rear switch
• Left rear window control switch
• Left rear window motor
• Lock- out
• Master window control switch
• Nca
• One touch down power window module (front of left front door)
• Power tops system (moonroof switch)
• R. sense
• Red
• Right front switch
• Right front window control switch
• Right front window motor
• Right rear switch
• Right rear window control switch
• Right rear window motor
• Solid state
• Un- lock
• Window lock switch
• Window regulator safety relay (right front of engine compartmrent, in engine compartment fuse box)

Противоугонная система Сигнализация

Электросхема противоугонной сигнализации для Lincoln Town Car Executive 1993

Электросхема противоугонной сигнализации для Lincoln Town Car Executive 1993 - Список элементов:

• 10a
• 20a
• 25a
• Acc
• Alarm indicator
• Anti-theft controller module (behind right cowl panel, near base of door sill)
• Anti-theft hood switch (rear of right fender apron)
• Anti-theft warning indicator
• Battery
• C2004
• C214
• C215
• C256
• C259
• C260
• C261
• Door ajar ground
• Door ajar input
• Door disarm input
• Door open input
• Engine compartment fuse box
• Flash lamps output
• Fuse 11
• Fuse 17
• Fuse 6
• Fuse p
• G200 (left cowl panel, near door sill)
• G203 (right cowl panel, near door sill)
• Ground
• Headlights system, exterior lights system & interior lights system (delayed exit relay)
• Horn output
• Horn enable
• Horns system (horn relay)
• Hot at all times
• Hot in accy or run
• I/p fuse panel
• Ign cyl tamper
• Ignition
• Ignition cylinder tamper switch
• Ignition switch
• Instrument cluster
• Keyless entry system (door lock motor circuit)
• Left front door ajar switch (top rear of left front door)
• Left front door disarm switch (left door lock cylinder)
• Left rear door ajar switch (top rear of left rear door)
• Lk all doors
• Lock doors
• Nca
• Off
• Remote keyless entry module (behind right cowl panel, behind insulator)
• Right front door ajar switch (top rear of right front door)
• Right front door disarm switch (right door lock cylinder)
• Right rear door ajar switch (top rear of right rear door)
• Run
• Start
• Start interrupt relay (behind right side of i/p, near air bag module)
• Starter interrupt
• Starting/ charging system (starter motor circuit)
• Trunk lid anti-theft switch (center rear of trunk lid)
• Trunk/hood tamper
• Unlk all doors
• Unlk driver's door
• Unlock doors input
• Warning lamps module

СИСТЕМЫ ПАМЯТИ

Электросхема памяти сидений для Lincoln Town Car Executive 1993

Электросхема памяти сидений для Lincoln Town Car Executive 1993 - Список элементов:

• (1992-93) (1990-91)
• (or red)
• 33 (or 325) (or 301)
• 54 (or 797)
• Acc
• C305
• C325
• C326
• C327
• Circuit breaker h 30a
• Driver's seat control switch
• Driver's seat motor assembly
• Driver's seat recliner motor
• Driver's seat recliner switch
• Drvr's seat front dn
• Drvr's seat front up
• Drvr's seat rear dn
• Drvr's seat rear up
• Entire seat
• Front height
• Front of seat
• Ft height motor ctrl
• Ft height pos
• Fuse 17 fuse 1 10a 15a
• Fwd
• Fwd/rwd
• Fwd/rwd motor ctrl
• Fwd/rwd pos
• G200 (behind left cowl panel, near door sill)
• Gnd
• Hall effect sens rtn
• Hall effect sensor
• Hot at all times
• I/p fuse panel
• Ignition switch
• Lock
• Mem 1
• Mem 2
• Mem seat pos 1 sw in
• Mem seat pos 2 sw in
• Mem seat set sw in
• Mem seat sw rtn
• Mem sw illum pwr
• Mem sw illum rtn
• Memory seat module (below left front seat)
• Memory seat switch
• Nca
• Off
• Pwr
• Rear height
• Rear of seat
• Recline dn
• Recline up
• Recliner motor ctrl
• Rr height motor ctrl
• Rr height pos
• Run
• Rwd
• Seat fwd
• Seat rwd
• Set
• Sta
• Start
• Start input

СИСТЕМЫ СИДЕНИЙ

Электросхема регулировки поясницы для Lincoln Town Car Executive 1993

Электросхема регулировки поясницы для Lincoln Town Car Executive 1993 - Список элементов:

• (left cowl panel, near door sill)
• 30a
• Circuit breaker h
• Driver's power lumbar motor
• Driver's power lumbar switch
• Engine compartment fuse box
• G200
• G203 (right cowl panel, near door sill)
• Hot at all times
• Passenger's power lumbar motor
• Passenger's power lumbar switch
• Red

Электросхема привода сидений для Lincoln Town Car Executive 1993

Электросхема привода сидений для Lincoln Town Car Executive 1993 - Список элементов:

• (left cowl panel near door sill)
• (right cowl panel near door sill)
• 30a
• Circuit breaker h
• Driver's seat control switch
• Driver's seat motor assembly
• Engine compartment fuse box
• Entire seat
• Front height motor
• Front of seat
• Fwd
• Fwd/rwd motor
• G200
• G203
• Hot at all times
• Passenger's seat control switch
• Passenger's seat motor assembly
• Rear height motor
• Rear of seat
• Rwd

схема глубокого кресла для Lincoln Town Car Executive 1993

схема глубокого кресла для Lincoln Town Car Executive 1993 - Список элементов:

• (right cowl panel, near door sill)
• 30a
• Circuit breaker h
• Engine compartment fuse box
• G203
• Hot at all times
• Nca
• Passenger's seat recliner motor
• Passenger's seat recliner switch
• Up down

Стартер Генератор

Электросхема Генератора для Lincoln Town Car Executive 1993

Электросхема Генератора для Lincoln Town Car Executive 1993 - Список элементов:

• Acc
• Battery
• C254
• C256
• Charge indicator input
• Engine compt fuse box
• Fuse j 10a
• G101 (right front fender apron)
• G117 (near starter motor)
• Hot at all times
• Ignition switch
• Instrument cluster
• Integral alternator regulator
• Lock
• Off
• Red
• Run
• Start

Электросхема стартера для Lincoln Town Car Executive 1993

Электросхема стартера для Lincoln Town Car Executive 1993 - Список элементов:

• Acc
• Anti-theft controller unit (behind right cowl panel)
• Battery
• C215
• Engine compt fuse box
• Fuse p 25a
• G101 (front of right front fender)
• G120 (lower right side of engine)
• Hot at all times
• Ignition switch
• Lock
• Manual lever position sensor (lower left side of transmission)
• Memory systems
• Off
• Power antenna system
• Red
• Run
• Start
• Start interrupt
• Start interrupt relay (behind right side of dash)
• Starter motor/ solenoid
• W/ anti-theft
• W/o anti-theft

Стеклоочистители и Стеклоомыватели Дворники

Электросхема стеклоочистителя, дворников и омывателя для Lincoln Town Car Executive 1993

Электросхема стеклоочистителя, дворников и омывателя для Lincoln Town Car Executive 1993 - Список элементов:

• (1991-92, standard cluster only)
• (behind left cowl panel, near door sill)
• (right front fender apron)
• 100k
• 3.3k ohms
• 36.27k ohms
• 4.08k
• 7.25k ohms
• C250
• C251
• C269
• Circuit breaker 2 8.25a
• Common
• G101
• G200
• G203 (behind right cowl panel)
• G203 (behind right cowl panel, near door sill)
• Gnd
• Hi speed
• Hot in acc or run
• I/p fuse panel
• Ignition
• Input
• Instrument cluster
• Int max
• Int min
• Lo speed
• Low washer fluid ind
• Motor switch
• Multi- function switch
• Off
• Ohms
• Parked
• Parking
• Red
• Run
• Washer pump
• Washer switch
• Windshield washer low fluid switch (in washer reservoir)
• Windshield washer pump (in washer reservoir)
• Windshield wiper motor (left side of safety wall)
• Wiper control module or interval governor (behind left side of i/p, above warning chime module)
• Wiper motor

ЦЕНТРАЛЬНЫЙ ЗАМОК

Электросхема системы безключевого доступа для Lincoln Town Car Executive 1993

Электросхема системы безключевого доступа для Lincoln Town Car Executive 1993 - Список элементов:

• (behind right cowl panel, behind insulator) remote keyless entry module
• (right cowl panel,near door sill) g203
• 1/2
• 1/2 in
• 10a
• 15a
• 20a
• 3/4
• 3/4 in
• 5/6
• 5/6 in
• 7/8
• 7/8 in
• 9/0
• 9/0 in
• Antenna
• Anti-theft controller module (right cowl panel, near door sill)
• Batt+
• Batt+ save
• Batt+ save in
• Circuit breaker h 30a
• Com
• Ctsy lps out
• Ctsy/dr sw in
• Dr ajar in
• Dr handle in
• Driver st sw
• Drivers door lock switch
• Drivers illuminated entry latch switch
• Engine compt fuse box
• Exterior lamps
• Fuse 11
• Fuse 17
• Fuse 6
• Fuse 8
• G200 (left cowl panel)
• G200 (left cowl panel, near door sill)
• G203 (right cowl panel)
• Gnd
• Horn output
• Horns
• Hot at all times
• Hot in acc or run
• Hot in run
• I/p fuse panel
• Ign
• Instrument cluster (door ajar switches)
• Interior lamps
• Keyless entry keypad switch assembly
• Keypad com
• Keypad lp
• Lamp
• Left front door lock motor
• Left rear door lock motor
• Lk drs out
• Lk in
• Lock
• Lt frt ctsy lp sw
• Lt rr ctsy lp sw
• Main lamp switch
• Manual lever position sensor (lower left side of transmission)
• Nca
• Park lps out
• Passengers door lock switch
• Passengers illuminated entry latch switch
• Program a
• Program b
• Red
• Reverse in
• Right front door lock motor
• Rke program connector (behind right side of i/p)
• Rt frt ctsy lp sw
• Rt rr ctsy lp sw
• Seat switch (under left front seat)
• Sig batt+
• Sig gnd
• Transmitter in
• Trnk lamp out
• Trnk lid out
• Trunk lid release solenoid
• Trunk lid release switch
• Unlk all dr
• Unlk in
• Unlk l dr
• Unlock
