Все схемы для электропроводки GMC Canyon 2005

Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала

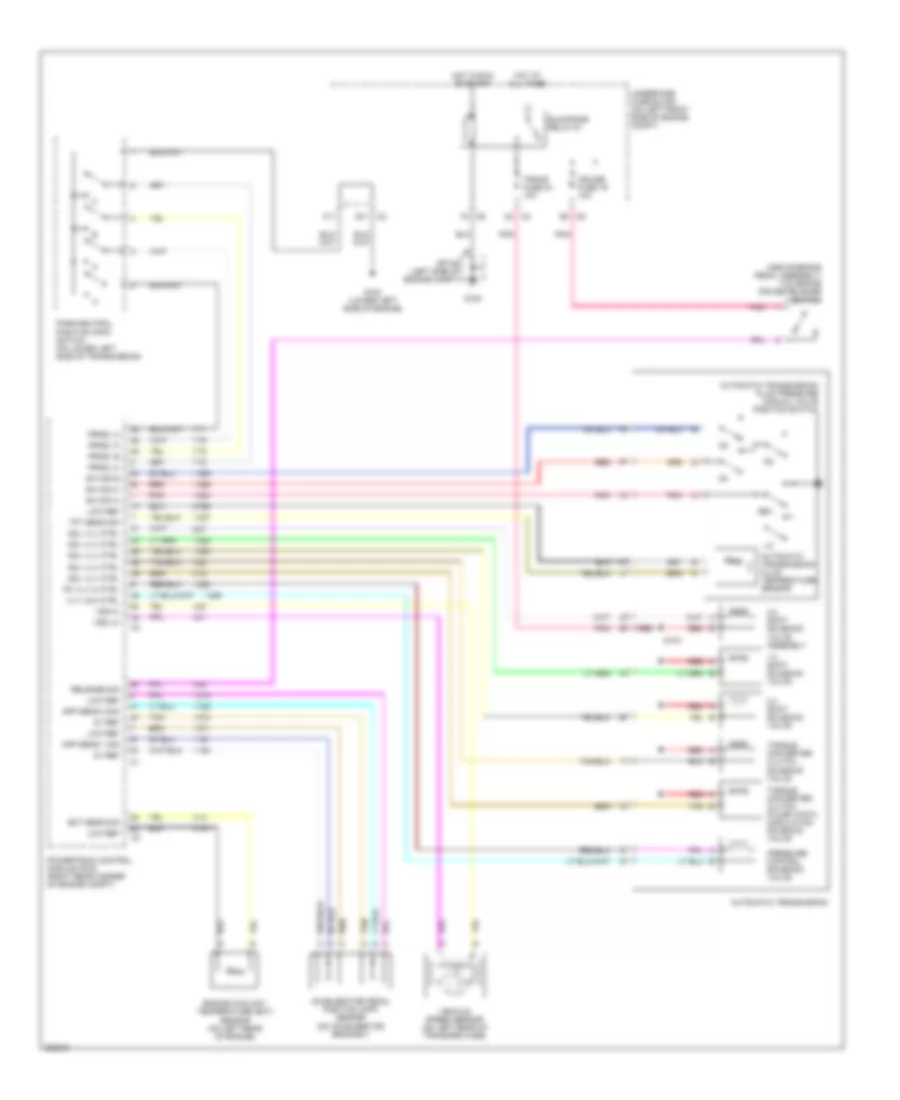

Электросхема автоматической коробки передач АКПП для GMC Canyon 2005

Электросхема автоматической коробки передач АКПП для GMC Canyon 2005 - Список элементов:

(above brake pedal assembly) tcc brake cruise release switch
1-2 shift solenoid valve
2-3 shift solenoid valve
3-2 shift solenoid valve assembly
5v ref
Accelerator pedal position (app) sensor (on accelerator bracket)
App sens 1 sig
App sens 2 sig
Automatic transmission
Automatic transmission fluid pressure manual valve position switch
Automatic transmission fluid temperature sensor
B3 c6
C11
C2 b11
C2 c2
Cruise fuse 19 10a
Ect sens sig
Engine coolant temperature (ect)
F3 c6
G102 (lower left side of engine)
G105
Hot at all times
Hot in run or start
Low ref
Park/neutral position (pnp) switch (on lower left side of transmission)
Pc vlv hi ctrl
Pnk
Powertrain control module (pcm) (right rear corner of engine compt)
Pressure control solenoid valve
Prndl a
Prndl b
Prndl c
Prndl p
Red
Release sig
Rev
Run/crank relay 61
S133
Sensor (on left rear of engine)
Sol vlv ctrl
Sp105 (left side of engine compt)
Sw sig a
Sw sig b
Sw sig c
Tan
Tft sens sig
Torque converter clutch pulse width modulation solenoid valve
Torque converter clutch solenoid valve
Trans fuse 24 10a
Underhood fuse block (on left front side of engine compt)
Vehicle speed sensor (on left rear of transfer case)
Vlv low ctrl
Vss hi
Vss lo

Электросхема раздатки для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема раздатки для GMC Canyon 2005 - Список элементов:

2-hi ind
2wd
2wd ind
2wd/4wd sig
4-hi ind
4-lo ind
4-lo sw sig
4hi
4hi ind
4lo
4lo ind
5v ref
A encoder sig
Accessory switch
Axle act ctrl
Axle sw sig
B encoder sig
B2 c2
Bat
Body control module bcm) (lower center of dash)
C encoder sig
C1 a24
C2 f11
C6 f1
Computer data lines system
Cruise fuse 19 10a
Encoder motor
Front axle actuator (on right center of front axle housing)
Frt ax fuse 15 15a
G103 (lower left side of engine)
G105
G106
Gnd
Ground
Hot at all times
Hot in run or start
Ign 1 voltage
Interior lights system
Logic
Mtr ctrl a
Mtr ctrl b
Nca
Neu ind ctrl
Neu sw sig
Neutral
Neutral ind
P encoder sig
Park lp relay 53
Pnk
Power distribution system
Powertrain control module (pcm) (right rear corner of engine compt)
Red
Rr pk lp2 fuse 29 10a
Run/crank relay 61
S200 (i/p harness, 6 cm from instrument cluster breakout)
Serial data
Sig hi
Sig lo
Signal encoder
Sp105 (left side of engine compt)
Sp106 (right side of engine compt)
Sw sig
Sw sig-low
Tan
Tccm fuse 36 10a
Transfer case 2/4 wheel indicator switch
Transfer case encoder motor (front of transfer case)
Transfer case neutral switch
Transfer case shift control module (part of transfer case)
Turn signal/ multifunction switch
Underhood fuse block (on left front side of engine compt)
Vehicle speed sensor (on left rear of transfer case)

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

Электросхема блока предохранителей и реле (1 из 4) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема блока предохранителей и реле (1 из 4) для GMC Canyon 2005 - Список элементов:

(body harn, 4cm from accelerator pedal position sensor breakout)
(on left front side of engine compartment) underhood fuse block
A/c fuse 5 10a
Abs 1 fuse 45 30a
Abs 2 fuse 44 40a
Aux fuse 2 20a
Auxiliary power outlet
B10
B11
Battery
Blower fuse 41 30a
Blower motor switch
Body control module
C204
Can vent fuse 69 10a
Cigar fuse 33 20a
Cluster fuse 38 10a
Crew cab w/ power window
Data link connector (dlc)
Digital radio receiver (if equipped)
Diode
Door lock fuse 21 20a
Driver door lock & window switch
Driver heated seat module
Driver lumbar adjuster/ heater switch
E11
Electronic brake control module
Evaporative emission (evap) canister vent solenoid
F12
From a aux fuse 2 (diagram 1 of 4)
From turn/ b haz rr fuse 28 (diagram 1 of 4)
Front passenger door lock & window switch
G106 (right side of engine compt)
Generator
Htd seat fuse 18 20a
Hvac control module
Ign 3 hvac relay
Instrument panel cluster (ipc)
Left rear door lock & window switch
Maxi fuse 66 100a
Nca
Onstar fuse 31 10a
Passenger heated seat module
Passenger lumbar adjuster/ heater switch
Pcm b fuse 30 10a
Powertrain control module (pcm)
Pwr/window fuse 42 30a
Radio
Radio fuse 32 15a
Rap relay
Red
Regular, extended cab w/ power window
Right rear door lock & window switch
S200
S300 (body harness, 5 cm from g300 breakout)
S301
S302
S313 (pass seat harn, 12.5cm from c318 breakout)
S315 (driver heater element harness)
S319 (passenger heater element harness)
Start fuse 30a
Start relay
Starter
Stop fuse 1 20a
Stop lamp switch
Tbc fuse 10a
Tccm fuse 36 10a
To door lock fuse 21 (diagram 1 of 4)
To powertrain relay 56 (diagram 2 of 4)
To rap relay 58 (diagram 1 of 4)
Transfer case shift control module (4wd)
Turn signal/ multi- function switch
Turn/ haz fr fuse 37 15a
Turn/ haz rr fuse 28 15a
Underhood fuse block (on left front side of engine compartment)
Vehicle communication interface module (vcim)
W/ 6-way power seat
W/ gps 1
Windshield wiper/washer switch
Wip/wash fuse 8 10a
Wiper fuse 25a
Wiper relay 57

Электросхема блока предохранителей и реле (2 из 4) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема блока предохранителей и реле (2 из 4) для GMC Canyon 2005 - Список элементов:

(automatic transmission harness) s133
(driver seat harness, 12.5 cm from c319 breakout) s312
(not used)
(w/ gps)
(w/ outside display)
1-2 shift solenoid (1-2 ss) valve
2-3 shift solenoid (2-3 ss) valve
3-2 shift solenoid (3-2 ss) valve
A/t
Accessory switch
Clutch switch (m/t)
Cruise fuse 19 10a
Driver lumbar adjuster/ heater switch
Driver seat adjuster switch
Fog lp fuse 9 15a
Fog lp relay 52
From fuel d pump relay 51 (diagram 2 of 4)
From wiper c fuse 14 (diagram 1 of 4)
Fuel pump relay
G105
Hdlp relay
Horn fuse 35 10a
Horn relay 55
Inflatable restraint sensing & diagnostic module (sdm)
Inside rearview mirror
Nca
Passenger seat adjuster switch
Pnk
Powertrain relay
Pwr/seat fuse 46 40a
Red
Run/ crank relay
Seat fuse holder 20a
Sir fuse 17 10a
Sp105 (left side of engine compt)
Tcc brake/ cruise release switch
To backup fuse 26 (diagram 3 of 4)
To body control module (diagram 4 of 4)
To park lp relay 53 (diagram 4 of 4)
To run/ crank relay 61 (diagram 2 of 4)
Torque converter clutch (tcc) solenoid valve
Torque converter clutch pulse width modulation (tcc pwm) solenoid valve
Trans fuse 24 10a
Transfer case shift control module
Turn signal/ multifuction switch
Underhood fuse block (on left front side of engine compt)
W/ 6-way power seat

Электросхема блока предохранителей и реле (3 из 4) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема блока предохранителей и реле (3 из 4) для GMC Canyon 2005 - Список элементов:

(fuel injector harn, 4cm from fuel injector 4 breakout) s104
(fuel injector harn, 5cm from fuel injector 4 breakout) s103
2.8l
3.5l
4wd
A/c comp relay
A/t
Abs fuse 16 10a
Back-up lamp switch
Bakup fuse 26 15a
C2 b2
C2 c3
C2 f4
C7 f3
Clutch start switch
Electronic brake control module (ebcm)
Erls fuse 27 15a
Evaporative emission (evap) canister purge solenoid
From ign g fuse 23 (diagram 3 of 4)
From trans e fuse 24 (diagram 2 of 4)
Front axle actuator
Frt ax fuse 15 15a
Fuel injector
G sensor
Ign fuse 23 15a
Ignition coil 1
Ignition coil 2
Ignition coil 3
Ignition coil 4
Ignition coil 5
Injector fuse 22 15a
Intake air temperature (iat)/mass air flow (maf) sensor
M/t
Park/ neutral position (pnp) switch
Pcm i fuse 25 10a
Pnk
Powertrain control module (pcm)
To erls fuse 27 (diagram 3 of 4)
Underhood fuse block (on left front side of engine compartment)

Электросхема блока предохранителей и реле (4 из 4) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема блока предохранителей и реле (4 из 4) для GMC Canyon 2005 - Список элементов:

(chassis harness, 40.5cm from fuel pump & sender assembly breakout) s400
A/c comp fuse 77 10a
A/c comp relay
A14
Acc
Accessory switch
Accessory voltage
Body control module (bcm)
C1 a48
C1 b7
C11
C2 a42
C2 c
Crew cab w/ power window
Driver door lock & window switch
F11
Fr pk lp fuse 40 10a
From f run/ crank relay 61 (diagram 2 of 4)
From run/crank relay 61 (diagram 2 of 4)
Front passenger door lock & window switch
Ign trans d fuse 10 10a
Ignition key resistor signal
Ignition switch
Key-in switch
Left front marker lamp
Left front park/turn signal lamp
Left license lamp
Left rear door lock & window switch
Left rear stop lamp
Left rear turn signal lamp
Left tail lamp assembly
Off
Off/run/ crank voltage
Outside rearview mirror switch
Park lp relay
Powertrain control module (pcm)
Right front marker lamp
Right front park/turn signal lamp
Right license lamp
Right rear door lock & window switch
Right rear stop lamp
Right rear turn signal lamp
Right tail lamp assembly
Rr pk lp fuse 39 15a
Rr pk lp2 fuse 29 10a
Run
Run/ crank voltage
S900 (license lamp harness, 44.5cm before right license lamp)
Start
Underhood fuse block (on left front side of engine compt)
W/ power window

БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ

Электросхема блоков управления кузовом (1 из 2) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема блоков управления кузовом (1 из 2) для GMC Canyon 2005 - Список элементов:

(under front passenger seat) g301
A/c req sig
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
Accessory voltage
Air conditioning system
Battery +
Beam select rly ctrl
Body control module (behind right kick panel)
Brake fluid level sen sig
Class 2 serial data
Computer data lines system
Courtesy lamp low ctrl
Courtesy lamp pwr
Courtesy lmp pwr
Door locks system
Door unlock ctrl
Engine controls system
Exterior lights system
Fog lamp rly ctrl
Ground
Headlamp rly ctrl
Headlights system
Horn rly ctrl
Horns system
Hot at all times
Ign 3 voltage
Instrument cluster system
Interior lights system
Left seat belt sw
Left trn sig lamp pwr
Lf door ajar sw sig
Lr door ajar sw sig
Lr turn sig lamps pwr
Mirrors system
Park brake sw sig
Park lamp power
Park lamp rly ctrl
Pass dr lock sw lock ctrl
Pnk
Power distribution system
Rap rly coil ctrl
Red
Right trn sig lamp pwr
Rr door ajar sw sig
Rr turn sig lamps pwr
Run/crnk voltage
S304
Starting/charging system
Tbc fuse 34 10a
Turn/haz fr fuse 37 15a
Turn/haz rr fuse 28 15a
Underhood fuse block (left front side of engine compt)
Windshield washer pmp ctrl
Wiper mtr prk sw sig
Wiper sw sig 2
Wiper/washer system

Электросхема блоков управления кузовом (2 из 2) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема блоков управления кузовом (2 из 2) для GMC Canyon 2005 - Список элементов:

A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
Acc
Accessory voltage
Ambient light sens low ref
Ambient light sens sig
Anti-lock brakes system
Anti-theft system
Body control module (behind right kick panel)
Cargo lamp sw sig
Class 2 serial data
Computer data lines system
Courtesy lamp low ctrl
Courtesy lamp pwr
Dome override sw sig
Exterior lights system
Flash to pass sw sig
Fog lamps enable
Front fog lamps ind ctrl
Hazard sw sig
Headlamps dim sw hi beam sig
Headlamps sw hi on sig
Headlamps sw off sig
Headlights system
Horn rly ctrl
Horns system
Hot at all times
I/p lamp dimmer sw sig
I/p lamps dim ctrl
Ign key resistor sig
Ignition switch
Int lamp sw sig
Interior lights system
Key-in switch
Lock
Low ref
Lr turn sig lamps pwr
Off
Off/run/crnk voltage
Park lamps rly ctrl
Red
Rr turn sig lamps pwr
Run
Run/crnk voltage
Security ind lamp
Shift interlock system
Shift sol pwr
Start
Tcs req ind ctrl
Traction ctrl sw sig
Turn sig sw sig
Windshield washer pmp ctrl
Wiper sw sig 1
Wiper/washer system

БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ

Электросхема блокировки селектора для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема блокировки селектора для GMC Canyon 2005 - Список элементов:

A/t shift lock control solenoid (under center console, left side of shifter)
A31 c2
B2 c7
Body control module (lower center of dash)
Btsi
C1 a7
G106
Hot at all times
Logic
S200
Splice pack sp106 (right side of engine compt)
Tbc fuse 34 10a
Underhood fuse block (left front side of engine compt)

ВНЕШНЕЕ ОСВЕЩЕНИЕ

Электросхема заднего хода для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема заднего хода для GMC Canyon 2005 - Список элементов:

(chassis harness, 75.5 cm before c402) s404
A/t
Backup fuse 26 15a
Backup lamp switch (left side of engine compartment, on top of transmission)
Exterior lamps circuit
G105
Hot at all times
Hot in run or start
Inside rearview mirror
Left backup lamp
Left tail lamp assembly
M/t
Nca
Park/ neutral position (pnp) switch (on lower left side of transmission)
Pnk
Right backup lamp
Right tail lamp assembly
Run/ crank relay 61
S401
Sp105 (left side of engine compt)
Under- hood fuse block (on left front side of engine compt)
Underhood fuse block (on left front side of engine compartment) c7
W/ light sensitive rearview mirror

Электросхема внешнего освещения (1 из 2) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема внешнего освещения (1 из 2) для GMC Canyon 2005 - Список элементов:

A10
A19
A24
A45
A48
Auto
Body control module (lower center of dash)
Bulb out
E11
Fr pk lp fuse 40 10a
G105
G106 (right side of engine compt)
Haz sw sig
Hazard switch
Headlamp & panel dimmer switch
Hot at all times
Left
Left cargo lamp
Left front marker lamp
Left front park/ turn signal lamp
Low ref
Off
Park
Park lamp relay 53
Prk lmp rly
Prk lmp sw
Right
Right cargo lamp
Right front marker lamp
Right front park/ turn signal lamp
S200
Sp105 (left side of engine compt)
Stop fuse 1 20a
Stoplamp switch (above brake pedal assembly)
To rr pk lp 2 fuse 29 (diagram 2 0f 2)
Trn sig sw
Turn signal/ multi-function switch
Turn/ haz fr fuse 37 15a
Turn/ haz rr fuse 28 15a
Under- hood fuse block (on left front side of engine compt)
Underhood fuse block (on left front side of engine compartment)

Электросхема внешнего освещения (2 из 2) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема внешнего освещения (2 из 2) для GMC Canyon 2005 - Список элементов:

(chassis harness, 13 cm from c401 & c402 breakout) s402
(license lamp harness, 44.5 cm before right license lamp) s900
A (not used) c401
Electronic brake control module (ebcm) (on inner left frame rail, beside transmission)
From a fr pk lp fuse 40 (diagram 1 0f 2)
G105
Instrument panel cluster
Left backup lamp
Left license lamp
Left rear stop lamp
Left rear turn signal lamp
Left tail lamp assembly
Left turn ind
Logic
Nca
Powertrain control module (pcm) (right rear corner of engine compt)
Right backup lamp
Right license lamp
Right rear stop lamp
Right rear turn signal lamp
Right tail lamp assembly
Right turn ind
Rr pk lp 2 fuse 29 10a
Rr pk lp fuse 39 15a
S400
S401
S403 (chassis harness, 14 cm from c401 & c402 breakout)
S901
Sp105 (left side of engine compartment)
Stp lmp vlt
Under- hood fuse block (on left front side of engine compt)

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

Электросхема подсветки для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема подсветки для GMC Canyon 2005 - Список элементов:

A10
A11
A12
A13
A30
A32
A38
A39
A40
A41
A44
A46
A47
Body control module (bcm) (behind right kick panel)
Cargo lamp switch
Cargo lp sw
Crew cab
Dome lamp
Dome lp sw
Dome on switch
Dome override switch
Driver door jamb switch
Front passenger door jamb switch
G105
G300 (under driver seat)
G301 (under front passenger seat)
Headlamp & panel dimmer switch
Inside rearview mirror
Left cargo lamp
Left center high mounted stop lamp
Left courtesy footwell lamp
Left rear door jamb switch
Lf door ajar
Low ref
Lr door ajar
Override sw
Rf door ajar
Right cargo lamp
Right center high mounted stop lamp
Right courtesy footwell lamp
Right rear door jamb switch
Rr door ajar
S304
Splice pack sp105 (left side of engine compartment)
W/ onstar
W/o onstar

Электросхема подсветки приборов для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема подсветки приборов для GMC Canyon 2005 - Список элементов:

(4 bulbs)
(5 bulbs)
A10
A24
A28
A29
A35
A36
A39
A48
Accessory switch
Auto
Battery
Body control module (bcm) (lower center of dash)
C11
Computer data lines system
Crew cab
Dim control
Driver door lock & window switch
F11
Fr pk lp fuse 40 10a
Front passenger door lock & window switch
G105
G106
Hazard switch
Headlamp & panel dimmer switch
Hot at all times
Hvac control module
Illum
Instrument panel cluster
Instrument panel lamps dimming control
Left rear window switch
Logic
Low ref
Off
Outside rearview mirror switch
Park
Parklamp sig
Pk lp ctrl
Pk lp relay
Right rear window switch
Rr pk lp 2 fuse 29 10a
S200
S500
Serial data
Splice pack sp105 (left side of engine compt)
Splice pack sp106 (right side of engine compt)
Tbc fuse 34 10a
Underhood fuse block (left front side of engine compt)

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

Электросхема подключение массы заземления (1 из 3) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема подключение массы заземления (1 из 3) для GMC Canyon 2005 - Список элементов:

(3.5l) ignition coil 5
4wd
A/c clutch diode
A/c compressor clutch
A/t
A11
B11
Battery
Beam sel relay 47
Brake fluid level switch
C11
Crew cab w/ power window
D11
Driver convenience iii sales package
Driver door lock & window switch
E11
Electronic brake control module (ebcm)
F11
Front axle actuator
Fuel pump relay 51
G100 (next to rear side of battery)
G101 (lower left side of engine)
G102 (lower left side of engine)
G103 (lower left side of engine)
G104 (left side of engine)
G105 (left side of engine compt)
Ignition coil 1
Ignition coil 2
Ignition coil 3
Ignition coil 4
Inside rearview mirror
Intake air temperature (iat)/mass air flow (maf) sensor
Left rear window switch
Manual a/c
Outside rearview mirror switch
Park/ neutral position (pnp) switch
Powertrain control module (pcm)
Run/ crank relay 61
S500 (driver door harn, 5cm from left front door tweeter speaker breakout)
Splice pack sp 105
To splice pack sp 105 (diagram 2 of 3)
To splice pack sp 106 (diagram 2 of 3)
Transfer case 2/4 wheel indicator switch
Transfer case encoder motor
Transfer case neutral switch
Underhood fuse block (on left front side of engine compartment)
W/ onstar
Wind- shield wiper motor
Windshield washer fluid pump
Wiper 2 relay 63
Wiper relay 57

Электросхема подключение массы заземления (2 из 3) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема подключение массы заземления (2 из 3) для GMC Canyon 2005 - Список элементов:

(4wd) transfer case shift control module
C1 h
Crew cab w/ power window
Driver heated seat module
Driver heater element seat cushion
Driver heater seat module
Driver lumbar adjuster/heater switch
Driver seat adjuster switch
Electronic brake control module (ebcm)
Fog lamp relay
From splice pack b sp 105 (diagram 1 of 3)
From splice pack sp 105 (diagram 1 of 3)
From splice pack sp 106 (diagram 3 of 3)
Front passenger door lock & window switch
Fuel pump & sender assembly
G106 (right side of engine compt)
Horn assembly
Hvac control module
Left back-up lamp
Left cargo lamp
Left center high mounted stop lamp (chmsl)
Left front fog lamp
Left front marker lamp
Left front park/turn signal lamp
Left license lamp
Left rear stop- lamp
Left rear turn signal lamp
Left tail lamp assembly
Nca
Passenger heater element seat back
Passenger heater element seat cushion
Passenger heater seat module
Passenger lumbar adjuster/heater switch
Passenger seat adjuster switch
Right back-up lamp
Right cargo lamp
Right center high mounted stop lamp (chmsl)
Right front fog lamp
Right front marker lamp
Right front park/turn signal lamp
Right license lamp
Right rear stop- lamp
Right rear turn signal lamp
Right rear window switch
Right tail lamp assembly
S306 (driver seat harn, 5cm from c319 breakout)
S314 (passenger seat harn, 5cm from c319 breakout)
S317 (passenger heater element harn)
S318 (passenger heater element harn)
S321 (driver heater element harn)
S322 (driver heater element harn)
S901 (license lamp harn, 24cm from c400 breakout)
Splice pack sp 105
Splice pack sp 106
Underhood fuse block (on left front side of engine compartment)
W/ driver power seat
W/ passenger power seat
W/ power window

Электросхема подключение массы заземления (3 из 3) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема подключение массы заземления (3 из 3) для GMC Canyon 2005 - Список элементов:

A/t shift lock control solenoid
Accessory switch
Auxiliary power outlet 1
Auxiliary power outlet 2
B10
Body control module (bcm)
C1 a12
C1 b3
Crew cab
Data link connector (dlc)
Digital radio receiver
Driver door jamb switch
Driver seat belt switch
Evaporator temperature sensor
From splice pack c sp 106 (diagram 3 of 3)
Front passenger door jamb switch
G300 (under driver seat)
G301 (under front passenger seat)
G302 (between front seat)
Hazard switch
Headlamp dimmer switch
Hvac control module
Inflatable restraint sensing & diagnostic module (sdm)
Inside rear view mirror
Instrument panel cluster (ipc)
Left rear door jamb switch
Manual a/c
Nca
Passenger seat belt switch
Pnk
Radio
Right rear door jamb switch
S200 (i/p harn, 6cm from instrument cluster breakout)
S201 (i/p harn, 7cm from c204 breakout)
Splice pack sp 106
Transfer case shift control switch
Turn signal/ multifunction switch
Vehicle communication interface module (vcim)
W/ 4wd
W/ kc5
W/ onstar

Звуковой сигнал Гудок

Электросхема звукового сигнал Гудка для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема звукового сигнал Гудка для GMC Canyon 2005 - Список элементов:

A25
A40
A5 c7
B11
Body control module (bcm) (behind right kick panel)
F1 c1
G105
Ground distribution system
Horn assembly
Horn fuse 35 10a
Horn relay 55
Horn rly ctrl
Horn switch
Horn switch input
Hot at all times
Inflatable restraint steering wheel module coil
Nca
Sp105 (left side of engine compt)
Underhood fuse block (on left front side of engine compt)

Магнитола Мультимедия

Электросхема магнитолы для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема магнитолы для GMC Canyon 2005 - Список элементов:

A10
A11
A12
Antenna
Audio comm sig
B10
B11
B12
Bare
Coax
Common sig
Computer data lines system
Digital radio antenna
Digital radio receiver (if equipped) (center of dash)
Drain wire
G300 (under driver seat)
Ground
Hot at all times
Left aud sig
Left audio sig
Left front door speaker
Left front door tweeter speaker
Left rear door speaker
Lf out +
Lf out -
Lr out +
Lr out -
Radio
Radio fuse 32 15a
Rf out +
Rf out -
Right aud sig
Right front door speaker
Right front door tweeter speaker
Right rear door speaker
Rr out +
Rr out -
S201
Satellite in
Serial data
Tan
Underhood fuse block (left front side of engine compartment)
Vehicle communication interface module (w/ onstar) (right side of dash)

ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG

Электросхема подушек безопасности SRS AirBag (1 из 2) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема подушек безопасности SRS AirBag (1 из 2) для GMC Canyon 2005 - Список элементов:

Accessory switch
Computer data lines system
Control
Cruise fuse 19 10a
Disbl sw signal
G302 (between front seats)
Ground
High control
Hot w/ run/crank relay energized
Hot with park lamp relay energized
Ignition 1
Inflatable restraint i/p module (right side of dash)
Inflatable restraint sensing/diagnostic module (beneath center console)
Inflatable restraint steering wheel module (top of steering wheel)
Inflatable restraint steering wheel module coil (steering wheel)
Left front seat belt pretensioner (in left rear door)
Low control
Low reference
Nca
Off
Pnk
Power distribution system
Red
Right front seat belt pretensioner
Rr pk lp2 fuse 29 10a
Seat belt sw
Serial data
Shorting bar
Signal
Sir fuse 17 10a
Stage 1
Stage 2
Tan
Underhood fuse block (on left front side of engine compartment)
Voltage

Электросхема подушек безопасности SRS AirBag (2 из 2) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема подушек безопасности SRS AirBag (2 из 2) для GMC Canyon 2005 - Список элементов:

A38
A39
A42
Air bag ind
Body control module (lower center of dash)
Data link connector (dlc) (lower left side of dash)
Driver seat belt switch (open w/ seat belt buckled) (at driver side seat belt latch)
Ign
Instrument panel cluster
Ipc class 2 serial data
Left inflatable restraint front end sensor (on left underside of front frame crossmember)
Left inflatable restraint roof rail module (in roof above driver door)
Left inflatable restraint side impact sensor (sis) (lower rear of driver door)
Left seat position switch
Nca
Right inflatable restraint front end sensor (on right underside of front frame crossmember)
Right inflatable restraint roof rail module (in roof above front passenger door)
Right inflatable restraint side impact sensor (sis) (lower rear of front passenger door)
Right seat position switch
S311 (body harness, 24.5 cm from g302 breakout)
Shorting bar
Tan

ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ

Электросхема предупреждающей системы для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема предупреждающей системы для GMC Canyon 2005 - Список элементов:

A10
A14
A32
A38
A39
A42
A44
Auto
Body control module (bcm) (lower center of dash)
C3 c7
Chime
Class 2 serial data
Computer data lines system
Driver door jamb switch
Driver seat belt switch
G300 (under driver seat)
G301 (under front passenger seat)
Headlamp & panel dimmer switch
Hot at all times
Ign trans d fuse 10 10a
Ignition switch
Inflatable restraint sensing & diagnostic module (sdm) (below passenger's seat)
Instrument panel cluster (ipc)
Key-in switch
Left rear door jamb switch (crew cab)
Left seat belt sw
Left seat belt switch
Left turn ind
Lf dr ajar sw sig
Logic
Low ref
Lr dr ajar sw sig
Lr turn sig lmps pwr
Nca
Off
Off/run/crank voltage
Park
Passenger door jamb switch
Pk lmp sw sig
Rf dr ajar sw sig
Right rear door jamb switch (crew cab)
Right turn ind
Rr dr ajar sw sig
Rr turn sig lmps pwr
S303
S304
S311 (body harness, 24.5 cm from g302 breakout)
Seat belt ind
Underhood fuse block (on left front side of engine compt)

ПРИБОРНАЯ ПАНЕЛЬ

Электросхема панели приборов для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема панели приборов для GMC Canyon 2005 - Список элементов:

(chassis harness, 39 cm before fuel pump & sender assembly)
(right rear corner of engine compt) powertrain control module (pcm)
(under driver seat) g300
A19
A25
A31
A38
A39
A41
A42
A44
A45
A47
Abs ind
Air bag ind
Battery
Belt sw
Body control module (lower center of dash)
Brake fluid level switch (on brake fluid reservoir)
Brake ind
Brk fluid lvl
Chime
Cluster fuse 38 10a
Computer data lines system
Coolant temperature
Cruise ind
Driver seat belt switch (at driver side seat belt latch)
Driver seat)
Drl ind
Ect sense
Engine controls system
Engine coolant
Engine oil pressure (eop) sensor (right front of engine)
Fuel
Fuel level
Fuel pump & sender assembly (top of fuel tank)
G105
G300 (under
Ground
High beam ind
Hot at all times
Illumination (4 bulbs)
Instrument panel cluster
L turn ind
Left turn ind
Low ref
Mil
Odometer
Oil
Oil press
Oil pressure ind
Park brake switch (lower left end of dash)
Pnk
Prk brk sw
Prnd321
R turn ind
Right turn ind
S201
S303
S310
Seat belt ind
Security ind
Security/ctd ind
Serial data
Service engine soon ind
Sp105 (left side of engine compt)
Speedometer
Tachometer
Temperature (ect) sensor (left rear of engine)
Trip
Trip reset
Underhood fuse block (on left front side of engine compt)
Up shift ind (m/t)
Volts

ПРИВОД ЗЕРКАЛ

Электросхема автозатемнения зеркала заднего вида для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема автозатемнения зеркала заднего вида для GMC Canyon 2005 - Список элементов:

Ambient air temperature sensor
Back up lamp voltage
Courtesy lamps voltage
Cruise fuse 19 10a
Exterior lights system
G105
G300 (under driver seat)
Ground
Hot w/ run/crank relay energized
Ign 1
Inside rearview mirror
Interior lights system
Low ref
Pnk
Power distribution system
S303
Sens sig
Sp105 (left side of engine compartment)
Underhood fuse block (on left front side of engine compt)
W/ on star

Электросхема привода зеркал для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема привода зеркал для GMC Canyon 2005 - Список элементов:

A29
Body control module (lower center of dash)
Crtsy lmps pwr
Driver outside rearview mirror
Front passenger outside rearview mirror
G105
Ground distribution system
Horiz
Hot at all times
Illum
Interior lights system
Left
Nca
Outside rearview mirror switch
Right
S500
Sp105 (left side of engine compt)
Turn/haz fr fuse 37 15a
Underhood fuse block (on left front side of engine compt)
Vert

ПРИВОД СТЕКЛОПОДЪЕМНИКОВ

Электросхема стеклоподъемников, 2 двери для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема стеклоподъемников, 2 двери для GMC Canyon 2005 - Список элементов:

(not used)
C6 f5
Door lock fuse 21 20a
Down
Down relay
Driver door lock & window switch
Driver window motor (in lower front of door)
Front passenger door lock & window switch
Front passenger window motor (in lower front of door)
G105
G106
Hot at all times
Hot w/ rap relay energized
Logic
Pwr/ window fuse 42 30a
Rf down
Rf up
S500
Sp105 (left side of engine compt)
Sp106 (right side of engine compt)
Tan
Underhood fuse block (on left front side of engine compartment)
Up relay

Электросхема стеклоподъемников, 4 двери для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема стеклоподъемников, 4 двери для GMC Canyon 2005 - Список элементов:

(body harness, 4 cm from accelerator pedal position breakout) s307
C4 a
C6 f5
Door lock fuse 21 20a
Down
Down relay
Driver door lock & window switch
Driver window motor (in lower front of door)
Dwn
Front passenger door lock & window switch
Front passenger window motor
G105
G106
Hot at all times
Hot w/ rap relay energized
Left rear window motor
Left rear window switch
Logic
Lr down
Lr up
Pwr/ window fuse 42 30a
Rf down
Rf up
Right rear window motor
Right rear window switch
Rr down
Rr up
S302
S500
Sp105 (left side of engine compartment)
Sp105 (left side of engine compt)
Sp106 (right side of engine compartment)
Tan
Underhood fuse block (on left front side of engine compartment)
Up relay
W/l

Противоугонная система Сигнализация

Электросхема противоугонной сигнализации для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема противоугонной сигнализации для GMC Canyon 2005 - Список элементов:

(2.8l)
(3.5l)
(fuel injector harness, 5 cm from fuel injector 4 breakout)
2.8l
3.5l
A14
A19
A2 c6
A24
A32
A38
A39
A40
A42
A44
A47
Acc
B3 c7
Battery +
Body control module (bcm) (lower center of dash)
C2 f4
Class 2 data
Class 2 serial data
Cluster fuse 38 10a
Crew cab
Data link connector (dlc) (lower left side of dash)
Driver door jamb switch (inside right front door)
Exterior lights system
Front passenger door jamb switch (inside right front door)
Fuel inj 1
Fuel inj 2
Fuel inj 3
Fuel inj 4
Fuel inj 5
Fuel injector
Fuel injector (3.5l)
G300 (under driver seat)
G301 (under front passenger seat)
Ground
Horn rly ctrl
Horns system
Hot at all times
Hot in run & start
Ign key resistor sig
Ignition switch
Injector fuse 22 15a
Instrument panel cluster (ipc)
Key-in switch
Left rear door jamb switch (inside left rear door)
Lf door ajar
Lock
Lr door ajar
Off
Off/run/crnk volt
Park lamp rly ctrl
Pnk
Powertrain control module (pcm) (right rear corner of engine compt)
Rf door ajar
Right rear door jamb switch (inside right rear door)
Rr door ajar
Run
S103
S104 (fuel injector harness, 4 cm from fuel injector 4 breakout)
S303
Security ind
Security/ c.t.d. ind
Start
Tbc fuse 34 10a
Theft resistor
Turn/ haz fr fuse 37 15a
Turn/ haz rr fuse 28 15a
Underhood fuse block (on left front side of engine compt)

СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS

Электросхема антиблокировочной тормозной системы АБС (ABS) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема антиблокировочной тормозной системы АБС (ABS) для GMC Canyon 2005 - Список элементов:

2wd
A17
A26
A31
A39
A45
Abs 1 fuse 45 30a
Abs 2 fuse 44 40a
Abs fuse 16 10a
Abs ind
Accessory switch
B c5
Bat
Body control module (bcm)
Brake fluid level switch (on brake fluid reservoir)
Brake fluid lvl sens sig
Brake ind
C2 b
C2 h
Class 2 (ebcm)
Class 2 serial data
Computer data lines system
Del torque sig (2wd)
Delivered torque signal
E11 c7
Electronic brake control module (ebcm) (on inner left frame rail, beside transmission)
G sensor (4wd) (below driver seat)
G105
G106
Grd
Hot at all times
Hot in run or start
Ign
Ign 1 voltage
Instrument panel cluster
Interior lights system
Left front wheel speed sensor (on left front hub)
Lf spd sens sply volt
Lf whl spd sens sig
Lng rate sig (4wd)
Logic
Low ref (4wd
Park brake switch (lower left end of dash)
Park brk sw sig
Pnk
Powertrain control module (pcm) (right rear corner of engine compt)
Red
Req torque sig (2wd)
Requested torque signal
Rf spd sens sply volt
Rf whl spd sens sig
Right front wheel speed sensor (on right front hub)
S100 (body harness, 14.5 cm from accelerator pedal position switch breakout)
Sp105 (left side of engine compt)
Sp106 (right side of engine compt)
Stop fuse 1 20a
Stop lamp switch (above brake pedal assembly)
Stop lmp sply voltage
Tan
Tcs req indicator ctrl
Trac ctrl sw sig
Underhood fuse block (on left front side of engine compt)
Vss

СИСТЕМА КОНДИЦИОНЕРА

Электросхема компрессора для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема компрессора для GMC Canyon 2005 - Список элементов:

5v ref
A/c comp fuse 77 10a
A/c comp relay
A/c compressor clutch (left front of engine)
A/c refrigerant pressure sensor (right rear of engine compt)
A/c req sig
A42
A43
A47
Body control module (lower center of dash)
C7 f5
Computer data lines system
Evaporator temperature sensor (lower right side of dash)
G101 (lower left side of engine)
G106
Hot at all times
Hot in run or start
Hvac control module (under dash)
Ign fuse 23 15a
Logic
Low ref
Powertrain control module (pcm) (right rear corner of engine compt)
Press sens sig
Rly ctrl
S200 (6 cm from instrument cluster breakout)
Serial data
Sp106 (right side of engine compt)
Underhood fuse block (left front side of engine compt)

схема нагревателя для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

схема нагревателя для GMC Canyon 2005 - Список элементов:

(14 cm from recirculation actuator breakout toward blower motor resistor assembly) s202
A/c fuse 5 10a
A26
B c4
Blower fuse 41 30a
Blower motor (below right side of dash)
Blower motor resistor assembly (on rear of hvac case)
Blower motor switch
Body control module (lower center of dash)
Dimmer sw sig
F10 c7
G106
Gnd
High
Hot at all times
Hvac control module (under dash)
Ign 3 hvac relay
Ign 3 voltage
Interior lights system
Logic
Low
Off
Off blr mtr ctrl
Power distribution system
S200 (6 cm from instrument cluster breakout)
Sp106 (right side of engine compt)
Tan
Underhood fuse block (left front side of engine compt)

Электросхема кондиционера с ручный управлением для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема кондиционера с ручный управлением для GMC Canyon 2005 - Список элементов:

(14 cm from recirculation actuator breakout toward blower motor resistor assembly) s202
(6 cm from instrument cluster breakout)
5v ref
A/c comp fuse 77 10a
A/c comp relay
A/c compressor clutch (left front of engine)
A/c fuse 5 10a
A/c refrigerant pressure sensor (right rear of engine compt)
A/c req sig
A26
A42
A43
A47
B c4
Blower fuse 41 30a
Blower motor (below right side of dash)
Blower motor resistor assembly (lower right side of dash, near blower motor)
Blower motor switch
Body control module (lower center of dash)
C7 f5
Computer data lines system
Dimmer sw sig
Dr ctrl a
Dr ctrl b
Engine coolant temperature (ect) sensor (on left rear of engine)
Evaporator temperature sensor (lower right side of dash)
F10 c7
G101 (lower left side of engine)
G106
Gnd
High
Hot at all times
Hot in run or start
Hvac control module (under dash)
Ign 3 hvac relay
Ign 3 voltage
Ign fuse 23 15a
Interior lights system
Logic
Low
Low ref
Nca
Off
Off blr mtr ctrl
Power distribution system
Powertrain control module (pcm) (right rear corner of engine compt)
Press sens sig
Recirculation actuator (right side of dash)
Rly ctrl
S200
Sens sig
Serial data
Sp106 (right side of engine compt)
Tan
Underhood fuse block (left front side of engine compt)

СИСТЕМА КРУИЗКОНТРОЛЯ

Электросхема системы круизконтроля для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема системы круизконтроля для GMC Canyon 2005 - Список элементов:

5 volt reference
Class 2 serial data
Cluster fuse 38 10a
Clutch switch (if equipped) (lower left side of dash)
Coast
Computer data lines system
Cpp switch signal
Cruise control switch
Cruise fuse 19 10a
Cruise indicator
E11
G105
Hot at all times
Hot in run or start
Ignition
Instrument panel cluster (ipc)
Logic
Low reference
Pnk
Power distribution system
Powertrain control module (pcm) (right rear corner of engine compt)
Resume/ accel
Run/crank relay
S100 (body harness, 14.5 cm from accelerator pedal position switch breakout)
Set/
Sp105 (left side of engine compt)
Stop fuse 1 20a
Stop lamp switch (above brake pedal assembly)
Tac motor control-1
Tac motor control-2
Tcc brake switch/cruise control release signal
Tcc brake/cruise release switch (above brake pedal assembly)
Throttle actuator control (tac) motor
Throttle body
Throttle position (tp) sens 1
Throttle position (tp) sens 2
Tp sensor 1 signal
Tp sensor 2 signal
Turn signal/multifunction switch
Underhood fuse block (on left front side of engine compartment)
Vehicle speed sensor (vss) (on left rear of transfer case)
Vss high signal
Vss low signal

СИСТЕМА ПЕРЕДАЧИ ДАННЫХ

Электросхема линии передачи данных CAN для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

Электросхема линии передачи данных CAN для GMC Canyon 2005 - Список элементов:

(center of dash) digital radio receiver
(right side of engine compt)
2wd
4wd
A38
A39
A41
A42
A44
A47
Aux fuse 2 20a
Body control module (bcm) (lower center of dash)
Class 2 serial data
Data link connector (lower left side of dash)
Electronic brake control module (inner left frame rail, beside transmission)
G106
G300 (under driver seat)
Hot at all times
Inflatable restraint sensing & diagnostic module (beneath center console)
Instrument panel cluster
Power distribution system
Powertrain control module (right rear of engine compt)
Radio
S200
S201
Splice pack sp106
Transfer case shift control module (part of transfer case)
U2k
Underhood fuse block (left front side of engine compt)
Vehicle communication interface module (if equipped) (right side of dash)

СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ

2.8L VIN 8

2.8L VIN 8, Электросхема системы управления двигателем (1 из 5) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

2.8L VIN 8, Электросхема системы управления двигателем (1 из 5) для GMC Canyon 2005 - Список элементов:

(body harness, 14.5 cm from accelerator pedal position switch breakout) s100
(chassis harness, 39 cm before fuel pump & sender assembly)
(part of transfer case) (4wd) transfer case shift control module
4wd lo sw
A/c comp rly
A/c press
A/c refrigerant pressure sensor (right rear of engine compt)
Accelerator pedal position (app) sensor (on accelerator bracket)
Accy voltage
Air conditioning system
App 1
App 1 +5v ref
App 1 low ref
App 2
App 2 +5v ref
App 2 low ref
App sens 1
App sens 2
Arp +5v ref
Arp low ref
Battery b+
Can vent fuse 69 10a
Class 2 data
Cluster fuse 38 10a
Computer data lines system
Cpp sw sig
Cruise control system
Cruise ctrls
Diag enable
E11
Evap vent sol
Evaporative emission (evap) canister vent solenoid (front of fuel tank)
Exterior lights system
Ftp +5v ref
Fuel lvl sens
Fuel pump rly
Fuel tank press
Fuel tank pressure (ftp) sensor (at top left rear of fuel tank)
Hot at all times
Hot in run & start
Ignition 1
Instrument panel cluster
Low ref
Malfunction indicator lamp (mil)
Mil ctrl
Pcm 1 fuse 25 10a
Pcm b fuse 30 10a
Pnk
Pnp/clutch sig
Powertrain control module (pcm) (right rear corner of engine compt)
S310
Starter rly
Starting/charging system
Stop fuse 1 20a
Stop lamp
Stop lamp switch (above brake pedal assembly)
Tan
Tcc brk sw
Underhood fuse block (on left front side of engine compartment)
Vehicle spd sig

2.8L VIN 8, Электросхема системы управления двигателем (2 из 5) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

2.8L VIN 8, Электросхема системы управления двигателем (2 из 5) для GMC Canyon 2005 - Список элементов:

(2wd)
(on inner left frame rail, beside transmission) electronic brake control module (ebcm)
Acc
Accy input
Accy output
Body control module (bcm) (lower center of dash)
Etc fuse 20 15a
Fuel pmp fuse 13 15a
Fuel pump & sender assembly (top of fuel tank)
Fuel pump relay
G105
Heated oxygen sensor (ho2s) 1 (right side of engine, on exhaust manifold)
Heated oxygen sensor (ho2s) 2 (in exhaust pipe, adjacent to transmission)
Hot at all times
Ignition switch
Lock
Nca
O2 sensor fuse 79 10a
Off
Pnk
Power- train relay
Run
S401
Splice pack sp105 (left side of engine compt)
Start
Underhood fuse block (on left front side of engine compartment)

2.8L VIN 8, Электросхема системы управления двигателем (3 из 5) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

2.8L VIN 8, Электросхема системы управления двигателем (3 из 5) для GMC Canyon 2005 - Список элементов:

(2wd)
(on left rear of transfer case) vehicle speed sensor (vss)
(right front of engine) engine oil pressure (eop) sensor
1-2 sol
2-3 sol
3-2 sol
A/t fluid pressure manual valve position switch
Automatic transaxle
Del torque
Evap purge
Fluid temp sensor
Ho2s 2 hi
Ho2s 2 htr
Ho2s 2 low
Low oil sw
Low ref
Oil press
Park/neutral position (pnp) switch (lower left side of transmission)
Pc sol
Pnk
Powertrain control module (pcm) (right rear corner of engine compt)
Pressure control solenoid
Red
Req torque
Rev
S133
Tan
Tcc pwm sol
Tcc sol
Tfp sw a
Tfp sw b
Tfp sw c
Tft sens
Tr sw a
Tr sw b
Tr sw p
Tr sw sig
Vss sig hi
Vss sig low

2.8L VIN 8, Электросхема системы управления двигателем (4 из 5) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

2.8L VIN 8, Электросхема системы управления двигателем (4 из 5) для GMC Canyon 2005 - Список элементов:

B11
C11
Control
D11
E11
Erls fuse 27 15a
Evaporative emission (evap) canister purge solenoid (top of engine rear of throttle body)
F11
G102 (lower left side of engine)
G103 (lower left side of engine)
Ground
Hot in run & start
Iat
Ign fuse 23 15a
Ignition
Ignition coils
Injector fuse 22 15a
Intake air temperature (iat)/ mass air flow (maf) sensor (in air intake duct, top right of engine)
Maf
Nca
Plug
Pnk
Spark plug
Tan
Trans fuse 24 10a
Underhood fuse block (on left front side of engine compartment)

2.8L VIN 8, Электросхема системы управления двигателем (5 из 5) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

2.8L VIN 8, Электросхема системы управления двигателем (5 из 5) для GMC Canyon 2005 - Список элементов:

(left rear of engine block, below starter) crankshaft position (ckp) sensor
(lower left side of engine) g103
(top right front of engine) camshaft position (cmp) sensor
(top right side of engine, on intake manifold) manifold absolute pressure (map) sensor
A11
B11
Camshaft position (cmp) actuator solenoid (on top right front of engine)
Ckp low ref
Ckp sig
Cmp +12v ref
Cmp low ref
Cmp sig
Cpa +5v ref
Cpa low ref
Ect low ref
Ect sens
Engine coolant temperature (ect) sensor (on left rear of engine)
Fuel inj 1
Fuel inj 2
Fuel inj 3
Fuel inj 4
Fuel injectors (top of engine, attached to fuel rail)
G102 (lower left side of engine)
Gen field
Gen turn-on
Generator
Ground
Ho2s 1 high
Ho2s 1 htr
Ho2s 1 low
Iat low ref
Iat sens
Ic 1 ctrl
Ic 2 ctrl
Ic 3 ctrl
Ic 4 ctrl
Knock sens
Knock sensor (top left rear of engine)
Ks low ref
Maf sens
Map +5v ref
Map low ref
Map sens
Nca
Pnk
Powertrain control module (pcm) (right rear corner of engine compt)
Red
S104 (fuel injector harness, 4 cm from fuel injector 4 breakout)
Tac mtr 1
Tac mtr 2
Tan
Throttle body
Tp 1 +5v ref
Tp 1 low ref
Tp 2 +5v ref
Tp 2 low ref
Tp sens 1
Tp sens 2
Underhood fuse block (on left front side of engine compartment)

3.5L VIN 6

3.5L VIN 6, Электросхема системы управления двигателем (1 из 5) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

3.5L VIN 6, Электросхема системы управления двигателем (1 из 5) для GMC Canyon 2005 - Список элементов:

(body harness, 14.5 cm from accelerator pedal position switch breakout)
(chassis harness, 39 cm before fuel pump & sender assembly)
(part of transfer case) (4wd) transfer case shift control module
4wd lo sw
A/c comp rly
A/c press
A/c refrigerant pressure sensor (right rear of engine compt)
Accelerator pedal position (app) sensor (on accelerator bracket)
Accy voltage
Air conditioning system
App 1
App 1 +5v ref
App 1 low ref
App 2
App 2 +5v ref
App 2 low ref
App sens 1
App sens 2
Arp +5v ref
Arp low ref
Battery b+
Can vent fuse 69 10a
Class 2 data
Cluster fuse 38 10a
Computer data lines system
Cpp sw sig
Cruise control system
Cruise ctrls
Diag enable
E11
Evap vent sol
Evaporative emission (evap) canister vent solenoid (front of fuel tank)
Exterior lights system
Ftp +5v ref
Fuel lvl sens
Fuel pump rly
Fuel tank press
Fuel tank pressure (ftp) sensor (top left rear of fuel tank)
Hot at all times
Hot in run & start
Ignition 1
Instrument panel cluster
Low ref
Malfunction indicator lamp (mil)
Mil ctrl
Pcm 1 fuse 25 10a
Pcm b fuse 30 10a
Pnk
Pnp/clutch sig
Powertrain control module (pcm) (right rear corner of engine compt)
S100
S310
Starter rly
Starting/charging system
Stop fuse 1 20a
Stop lamp
Stop lamp switch (above brake pedal assembly)
Tan
Tcc brk sw
Underhood fuse block (on left front side of engine compartment)
Vehicle spd sig

3.5L VIN 6, Электросхема системы управления двигателем (2 из 5) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

3.5L VIN 6, Электросхема системы управления двигателем (2 из 5) для GMC Canyon 2005 - Список элементов:

(2wd)
Acc
Accy input
Accy output
Body control module (bcm) (lower center of dash)
Electronic brake control module (ebcm) (on inner left frame rail, beside transmission)
Etc fuse 20 15a
Fuel pmp fuse 13 15a
Fuel pump & sender assembly (top of fuel tank)
Fuel pump relay
G105
Heated oxygen sensor (ho2s) 1 (right side of engine, on exhaust manifold)
Heated oxygen sensor (ho2s) 2 (in exhaust pipe, next to transmission)
Hot at all times
Ignition switch
Lock
Nca
O2 sensor fuse 79 10a
Off
Pnk
Power- train relay
Run
S401
Splice pack sp105 (left side of engine compt)
Start
Underhood fuse block (on left front side of engine compartment)

3.5L VIN 6, Электросхема системы управления двигателем (3 из 5) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

3.5L VIN 6, Электросхема системы управления двигателем (3 из 5) для GMC Canyon 2005 - Список элементов:

(2wd)
1-2 sol
2-3 sol
3-2 sol
A/t fluid pressure manual valve position switch
Automatic transaxle
Del torque
Engine oil pressure (eop) sensor (right front of engine)
Evap purge
Fluid temp sensor
Ho2s 2 hi
Ho2s 2 htr
Ho2s 2 low
Low oil sw
Low ref
Oil press
Park/neutral position (pnp) switch (on lower left side of transmission)
Pc sol
Pnk
Powertrain control module (pcm) (right rear corner of engine compt)
Pressure control solenoid
Red
Req torque
Rev
S133
Tan
Tcc pwm sol
Tcc sol
Tfp sw a
Tfp sw b
Tfp sw c
Tft sens
Tr sw a
Tr sw b
Tr sw c
Tr sw p
Vehicle speed sensor (vss) (rear of transfer case)
Vss sig hi
Vss sig low

3.5L VIN 6, Электросхема системы управления двигателем (4 из 5) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

3.5L VIN 6, Электросхема системы управления двигателем (4 из 5) для GMC Canyon 2005 - Список элементов:

(left front side of engine compartment) underhood fuse block
B11
C11
Control
D11
E11
Erls fuse 27 15a
Evaporative emission (evap) canister purge solenoid (top of engine rear of throttle body)
F11
G102 (lower left side of engine)
G103 (lower left side of engine)
Ground
Hot in run & start
Iat
Ign fuse 23 15a
Ignition
Ignition coils
Injector fuse 22 15a
Intake air temperature (iat)/ mass air flow (maf) sensor (in air intake duct, top right of engine)
Maf
Nca
Plug
Pnk
Spark plug
Tan
Trans fuse 24 10a
Underhood fuse block (on left front side of engine compartment)

3.5L VIN 6, Электросхема системы управления двигателем (5 из 5) для GMC Canyon 2005

Obțineți acces la toate schemele de cablare auto

3.5L VIN 6, Электросхема системы управления двигателем (5 из 5) для GMC Canyon 2005 - Список элементов:

(left rear of engine block, below starter) crankshaft position (ckp) sensor
(lower left side of engine) g103
(top left front of engine) camshaft position (cmp) sensor 2
(top right front of engine) camshaft position (cmp) sensor 1
(top right side of engine, on intake manifold) manifold absolute pressure (map) sensor
A11
B11
Camshaft position (cmp) actuator solenoid bank 1 exhaust (top right front of engine)
Ckp low ref
Ckp sig
Cmp 1 sig
Cmp 2 sig
Cmp1 +12v ref
Cmp1 low ref
Cmp2 +12v ref
Cmp2 low ref
Cpa +5v ref
Cpa low ref
Ect low ref
Ect sens
Engine coolant temperature (ect) sensor (left rear of engine)
Fuel inj 1
Fuel inj 2
Fuel inj 3
Fuel inj 4
Fuel inj 5
Fuel injectors (top of engine, attached to fuel rail)
G102 (lower left side of engine)
Gen field
Gen turn-on
Generator
Ground
Ho2s 1 high
Ho2s 1 htr
Ho2s 1 low
Iat low ref
Iat sens
Ic 1 ctrl
Ic 2 ctrl
Ic 3 ctrl
Ic 4 ctrl
Ic 5 ctrl
Knock sens
Knock sensor (ks)
Ks 1 low ref
Maf sens
Map +5v ref
Map low ref
Map sens
Nca
Pnk
Pnk a
Powertrain control module (pcm) (right rear corner of engine compt)
Red
S103 (fuel injector harness, 5 cm from fuel injector 4 breakout)
Tac mtr 1
Tac mtr 2
Tan
Throttle body
Tp 1 +5v ref
Tp 1 low ref
Tp 2 +5v ref
Tp 2 low ref
Tp sens 1
Tp sens 2
Underhood fuse block (left front side of engine compartment)
