Электросхемы Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Isuzu Rodeo Sport 2002

Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала

2.2L

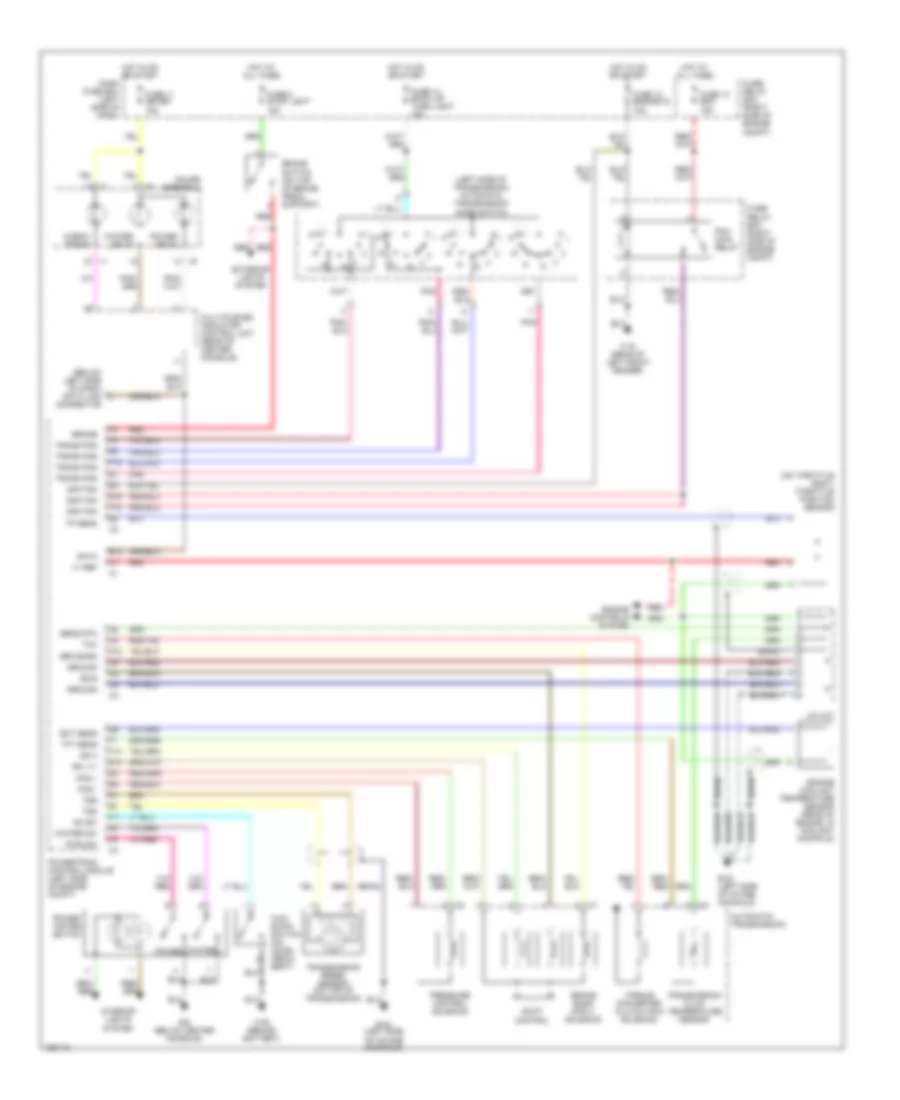

2.2L, Электросхема автоматической коробки передач АКПП для Isuzu Rodeo Sport 2002

2.2L, Электросхема автоматической коробки передач АКПП для Isuzu Rodeo Sport 2002 - Список элементов:

• (below left side of dash) data link connector
• (left side of transmission) automatic transmission mode switch
• (on throttle body) throttle position sensor
• Automatic transmission
• B-6 (below center console)
• B13
• Braid
• Brake
• Brake switch (on top of brake pedal support)
• Brk band
• C-16 (rear of left front fender)
• C-36 (behind battery)
• Check trans
• D10
• Dash fuse box (left side of dash)
• Data
• E-28 (left side of intake manifold)
• E14
• E16
• Ect sens
• Engine controls system
• Engine coolant temperature sensor (rear of engine, in coolant manifold)
• Exterior lights system
• F11
• F14
• F15
• F16
• Fuse 11 meter 15a
• Fuse 12 engine ig 15a
• Fuse 13 ecm 15a
• Fuse 14 back up/ turn light 15a
• Fuse 6 stop light 15a
• Fuse/ relay box (right side of engine compt)
• Gauge assembly
• Ground
• Hot at all times
• Hot in on or start
• I-1
• I-9
• Ignition
• Interior lights system
• J/c c-37
• Kd sw
• Kick down switch (on accel pedal brkt)
• M-6
• M-7
• Multi-plexed indicator control unit (rear of center console)
• Pcm main relay
• Pcs +
• Pcs -
• Pnk
• Power
• Power drive
• Power/ winter switch
• Powertrain control module (left side of engine compt)
• Pressure control solenoid
• Pwr sw
• Red
• Sens rtn
• Shift control
• Sol v+
• Ss a
• Ss b
• Tcc
• Tft sens
• Torque converter clutch pwm solenoid
• Tp sens
• Trans pos
• Transmission fluid temperature sensor
• Transmission speed sensor (on top of transmission)
• Tss
• V+ ref
• Winter
• Winter drive
• Winter sw

3.2L

3.2L, Электросхема Полного привода 4WD, изменение на лету для Isuzu Rodeo Sport 2002

3.2L, Электросхема Полного привода 4WD, изменение на лету для Isuzu Rodeo Sport 2002 - Список элементов:

• (below center console) b-6
• 4wd control unit (under center console)
• 4wd ind
• 4wd ind ctrl
• 4wd motor actuator
• 4wd mtr ctrl
• 4wd out
• 4wd switch
• 4wd transfer switch
• Anti-lock brakes
• Axle engaged
• C-16 (rear of left front fender)
• Dash fuse box (behind dash, left of steering column)
• E-30 (right side of intake manifold)
• Front axle actuator (left side of front axle)
• Frt axle act
• Frt axle engage
• Fuse 11 meter 15a
• Fuse 14 back up/ turn light 15a
• Gnd
• Ground
• High/4l in
• Hot in on
• Hot in on or start
• I-1
• Ign
• Ignition
• Illum
• Interior lights system
• Meter assembly
• Off
• On/off in
• Red
• Shift-on-the-fly controller (lower left center of dash)
• Trans complete

3.2L, Электросхема автоматической коробки передач АКПП для Isuzu Rodeo Sport 2002

3.2L, Электросхема автоматической коробки передач АКПП для Isuzu Rodeo Sport 2002 - Список элементов:

• (left side of intake manifold) e-28
• (left side of transmission) automatic transmission mode switch
• (rear of left front fender) c-16
• (right side of intake manifold)
• A/t oil temp ind
• A/t oil temperature sensor
• Automatic transmission
• B-6 (below center console)
• Battery
• Braided
• Brake
• Brake switch (on top of brake pedal support)
• Brake/tcc
• Brk band
• Check trans ind
• Dash fuse box (left side of dash)
• Data
• Data link connector (below left side of dash)
• E-22
• E-28 (left side of intake manifold)
• E-30
• E-52
• E-54
• Ect in
• Engine controls system
• Engine coolant temperature sensor (right front of engine)
• Etc grd
• Exterior lights system
• Fuse 11 meter 15a
• Fuse 12 engine ig 15a
• Fuse 13 ecm b/u 15a
• Fuse 14 back up/ turn light 15a
• Fuse 17 ecm 30a
• Fuse 6 stop light 15a
• Fuse/ relay box (right side of engine compt)
• Gauge assembly
• Ground
• Hot at all times
• Hot in on or start
• I-1
• I-9
• Ignition
• Interior lights system
• Multi-plexed indicator control unit (rear of center console)
• Pcm main relay
• Pnk
• Power
• Power drive ind
• Power/ winter switch
• Powertrain control module (left rear of engine compt)
• Pressure control solenoid
• Psc+
• Psc-
• Pwr sw
• Red
• Ref volt
• Shift solenoid a
• Shift solenoid b
• Sol v+
• Ssa
• Ssb
• Tcc +
• Tcc -
• Tft +
• Tft -
• Throttle position sensor 1
• Throttle position sensor 2
• Throttle valve assembly (on throttle body assembly)
• Torque converter clutch solenoid
• Tps1 grd
• Tps1 sig
• Tps2 grd
• Tps2 sig
• Trans pos
• Transmission speed sensor (on top of transmission)
• Tss
• Winter
• Winter drive ind
• Winter sw
