Электросхемы ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ Hyundai Elantra SE 2008

ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ

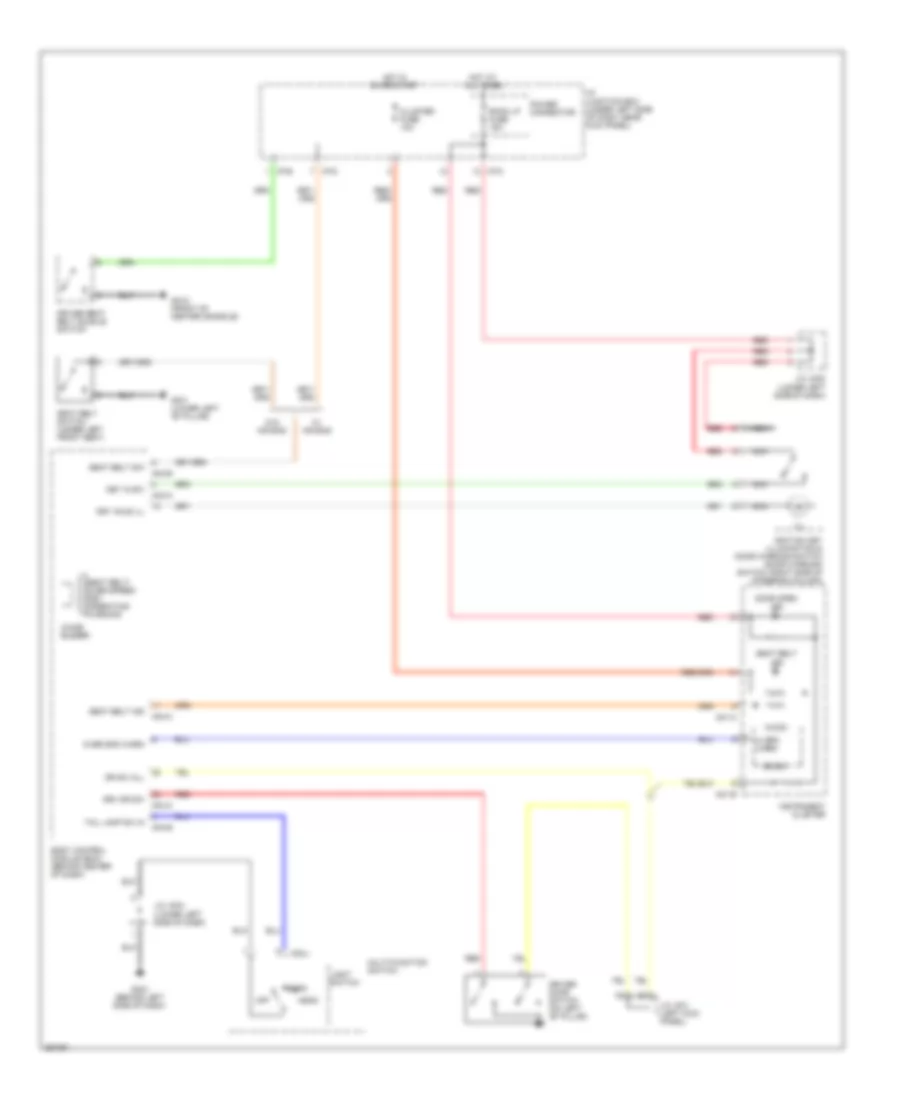

Электросхема сигнала для Hyundai Elantra SE 2008

Электросхема сигнала для Hyundai Elantra SE 2008 - Список элементов:

• Body control module (bcm) (behind center of dash)
• Chime buzzer
• Cluster fuse 10a
• Door open ind
• Dr sw
• Dr sw all
• Driver door switch (on left "b" pillar)
• Driver seat belt buckle switch
• Drv dr sw
• Ga12 (front of center console)
• Gf31 (lower left "b" pillar)
• Gm21 (behind left side of dash)
• Head
• Hi spd warn
• Hot at all times
• Hot in on or start
• I/p junction box (under left side of dash, near kick panel)
• I/p-c
• I/p-d
• I/p-e
• Ignition key illumination & door warning switch (door warning switch: right side of steering column)
• Ill
• Instrument cluster
• J/c jf01 (left kick panel)
• J/c jm02 (lower left side of dash)
• J/c jm04 (lower left side of dash)
• Key hole ill
• Key in sw
• Light switch
• M01-a
• M01-b
• M02-l
• M04-a
• M04-b
• M04-c
• Micom
• Multi-function switch
• Nca
• Off
• Over spd warn
• Park
• Power connector
• Red
• Room lp fuse 15a
• Seat belt ind
• Seat belt sw
• Seat belt switch (under left front seat)
• Seat belt/ over speed/ key operating warning
• Tail lamp sw in
• W/ air bag
• W/o air bag

Электросхема системы контроля давления в шинах для Hyundai Elantra SE 2008

Электросхема системы контроля давления в шинах для Hyundai Elantra SE 2008 - Список элементов:

• (behind left side of dash) gm21
• (lower left side of dash) j/c jm04
• Batt volt
• Check ind
• Cluster fuse 10a
• Computer data lines system
• Cruise control system
• Gnd
• Hot at all times
• Hot in on or start
• I/p junction box (under left side of dash, near kick panel)
• I/p-c
• Instrument cluster
• J/c jm02 (lower left side of dash)
• J/c jm03 (under left side of dash)
• K-line
• Mo1-a
• Mo1-b
• On/start in
• Pnk
• Power connector
• Red
• Room lp fuse 15a
• Tpms ind
• Tpms module (behind center of dash)
• Tpms tread ind
• Tread ind
• Vss
