Электросхемы Система Фар Hyundai Tucson GL 2005

Система Фар

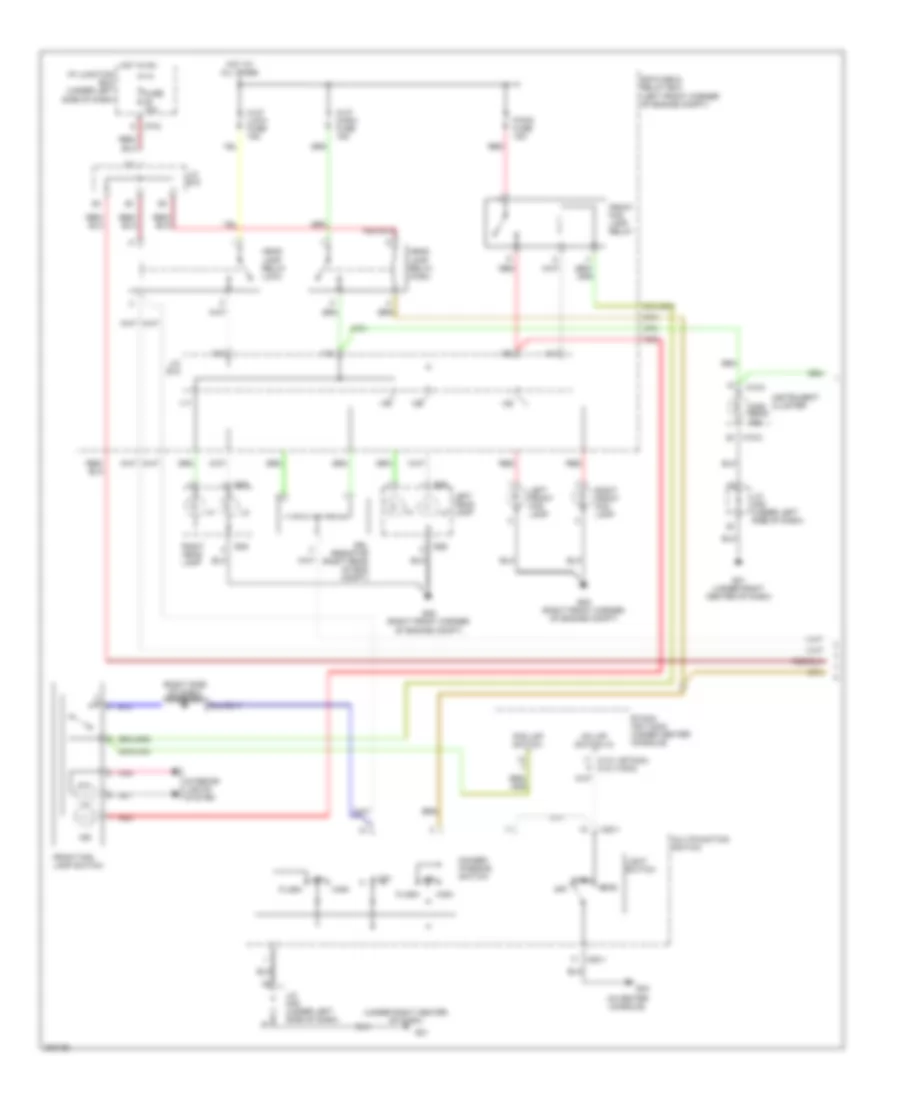

Электросхема фар, С автолампы для Hyundai Tucson GL 2005

Электросхема фар, С автолампы для Hyundai Tucson GL 2005 - Список элементов:

• (in center console)
• (right side of dash) diode z02
• (under right center of dash)
• Auto
• Auto light & photo sensor
• Auto light sensor
• Dimmer/ passing switch
• E/r fuse & relay box (left front corner of engine compt)
• E26
• E45
• Etacm (or tacm) (under center console)
• F/fog fuse 15a
• Flash
• Fog lmp switch
• Front fog lamp relay
• Front fog lamp switch
• Fuse 10a
• G01
• G01 (under right center of dash)
• G03
• G09 (right front corner of engine compt)
• H/lp (high) fuse 15a
• H/lp (low) fuse 15a
• Hd lmp switch in
• Head
• Head lamp relay (high)
• Head lamp relay (low)
• High
• High beam ind
• Hot at all times
• Hot in on
• Hot in on or start
• I/p junction box (under left side of dash)
• I/p-a
• I/p-g
• Ill
• Ind
• Instrument cluster
• Interior lights system
• J/c e18
• J/c m09 (under left side of dash)
• Left front fog lamp
• Left head lamp
• Light switch
• Low
• M13-1 (etacm) m12 (tacm)
• M15-3
• M20-1
• M30
• Multifunction switch
• Off
• Park
• Pnk
• Red
• Right front fog lamp
• Right head lamp

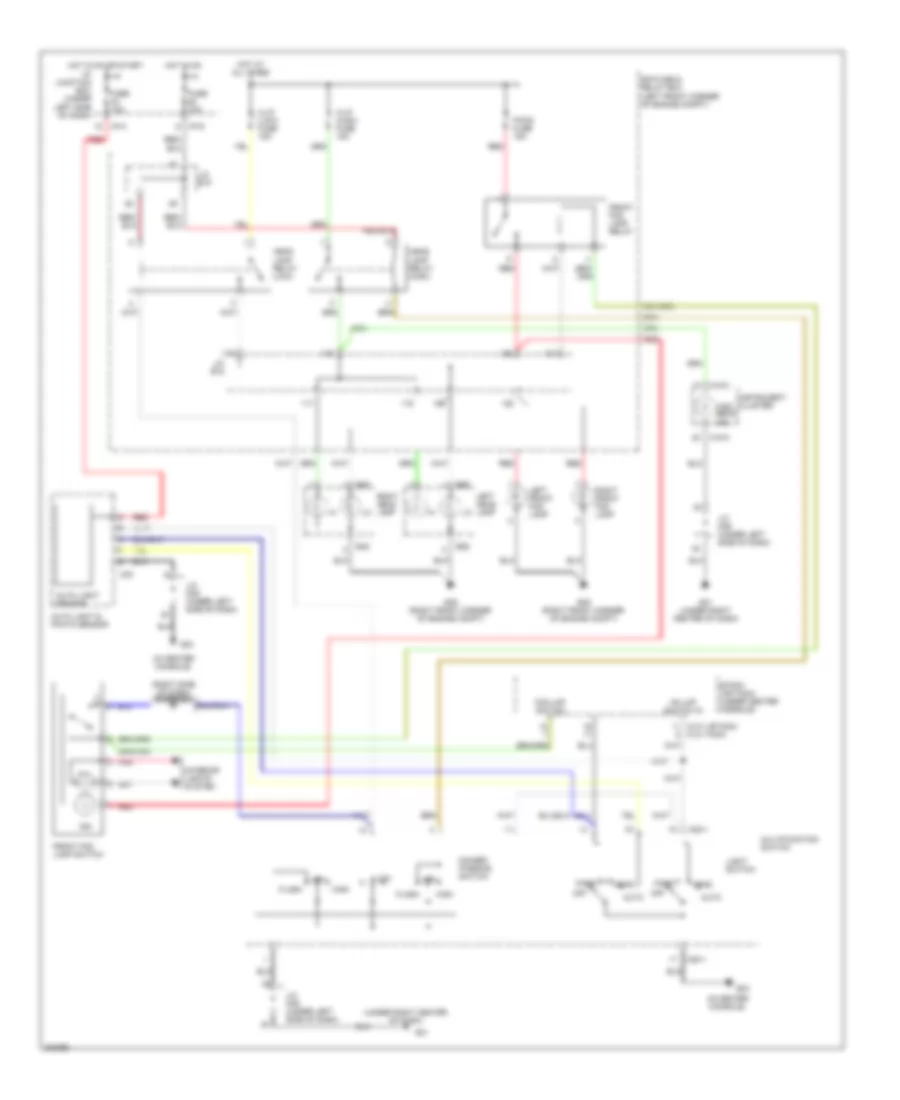

Электросхема фар, С DRL (1 из 2) для Hyundai Tucson GL 2005

Электросхема фар, С DRL (1 из 2) для Hyundai Tucson GL 2005 - Список элементов:

• (in center console)
• (right side of dash) diode z02
• (under right center of dash)
• Dimmer/ passing switch
• Drl resistor (right rear of eng compt)
• E/r fuse & relay box (left front corner of engine compt)
• E26
• E45
• Etacm (or tacm) (under center console)
• F/fog fuse 15a
• Flash
• Fog lmp switch
• Front fog lamp relay
• Front fog lamp switch
• Fuse 10a
• G01
• G01 (under right center of dash)
• G03
• G09 (right front corner of engine compt)
• H/lp (high) fuse 15a
• H/lp (low) fuse 15a
• Hd lmp switch in
• Head
• Head lamp relay (high)
• Head lamp relay (low)
• High
• High beam ind
• Hot at all times
• Hot in on
• I/p junction box (under left side of dash)
• I/p-g
• Ill
• Ind
• Instrument cluster
• Interior lights system
• J/c e18
• J/c m09 (under left side of dash)
• Left front fog lamp
• Left head lamp
• Light switch
• Low
• M13-1 (etacm) m12 (tacm)
• M15-3
• M20-1
• Multifunction switch
• Off
• Park
• Pnk
• Red
• Right front fog lamp
• Right head lamp

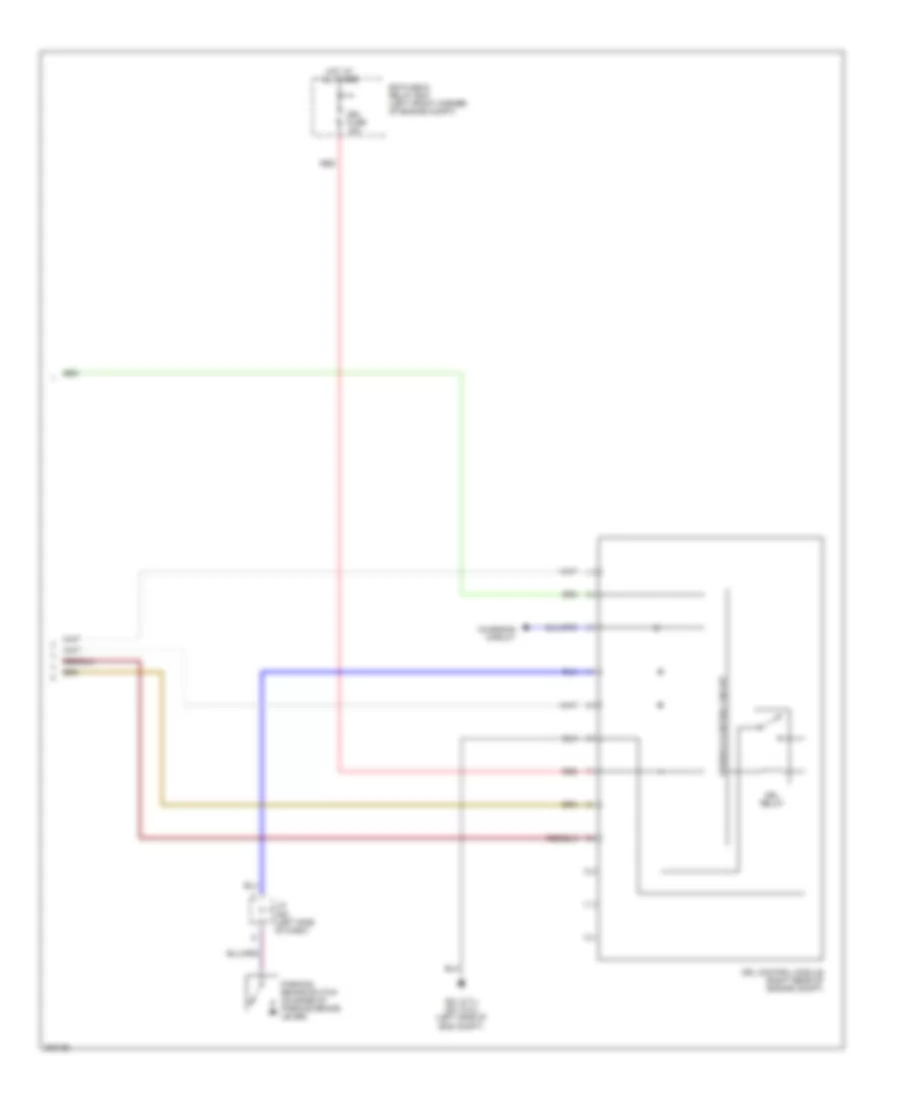

Электросхема фар, С DRL (2 из 2) для Hyundai Tucson GL 2005

Электросхема фар, С DRL (2 из 2) для Hyundai Tucson GL 2005 - Список элементов:

• Charging circuit
• Drl control module (right rear of engine compt)
• Drl fuse 15a
• Drl relay
• E/r fuse & relay box (left front corner of engine compt)
• G21 (2.7l) g27 (2.0l) (left side of eng compt)
• Hot at all times
• J/c m08 (left side of dash)
• Parking brake switch (on base of parking brake lever)
• Power & control circuit
• Red

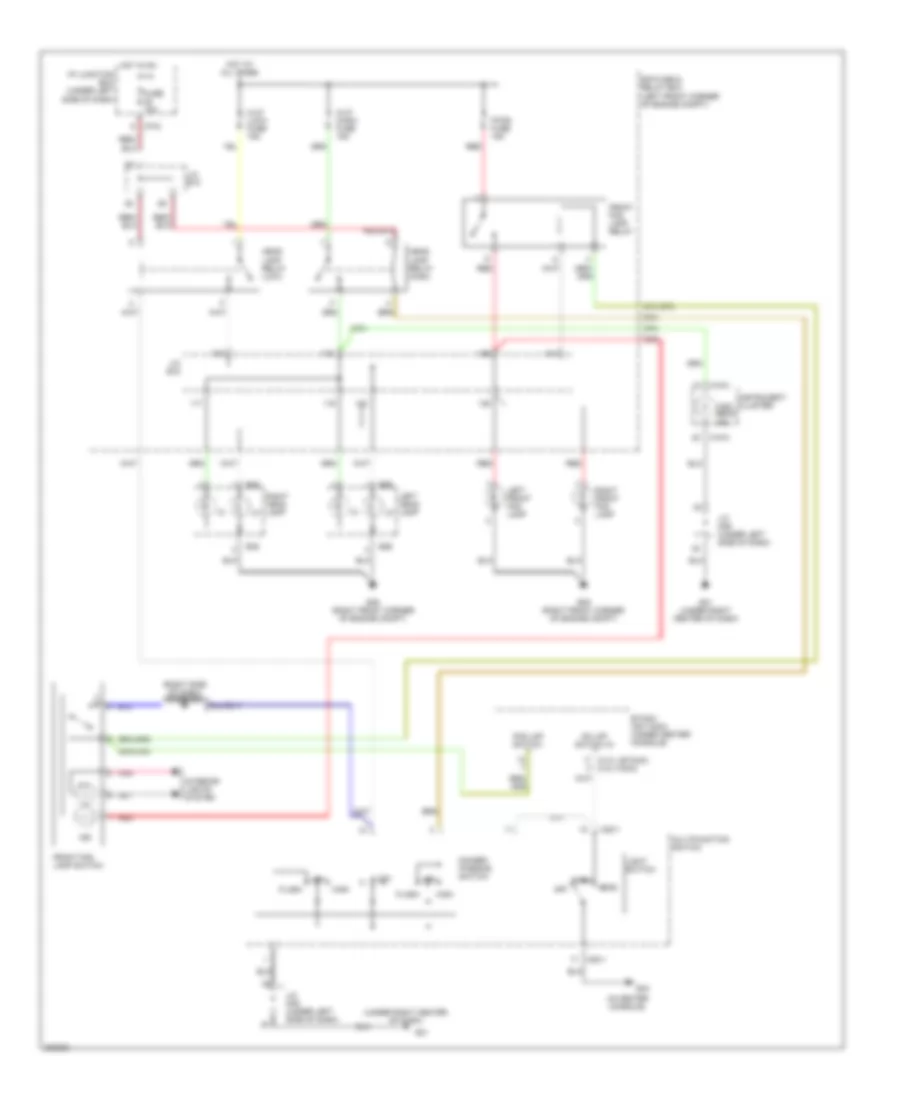

Электросхема фар, без DRL для Hyundai Tucson GL 2005

Электросхема фар, без DRL для Hyundai Tucson GL 2005 - Список элементов:

• (in center console)
• (right side of dash) diode z02
• (under right center of dash)
• Dimmer/ passing switch
• E/r fuse & relay box (left front corner of engine compt)
• E26
• E45
• Etacm (or tacm) (under center console)
• F/fog fuse 15a
• Flash
• Fog lmp switch
• Front fog lamp relay
• Front fog lamp switch
• Fuse 10a
• G01
• G01 (under right center of dash)
• G03
• G09 (right front corner of engine compt)
• H/lp (high) fuse 15a
• H/lp (low) fuse 15a
• Hd lmp switch in
• Head
• Head lamp relay (high)
• Head lamp relay (low)
• High
• High beam ind
• Hot at all times
• Hot in on
• I/p junction box (under left side of dash)
• I/p-g
• Ill
• Ind
• Instrument cluster
• Interior lights system
• J/c e18
• J/c m09 (under left side of dash)
• Left front fog lamp
• Left head lamp
• Light switch
• Low
• M13-1 (etacm) m12 (tacm)
• M15-3
• M20-1
• Multifunction switch
• Off
• Park
• Pnk
• Red
• Right front fog lamp
• Right head lamp
