Электросхемы ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Hyundai Tucson GL 2005

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

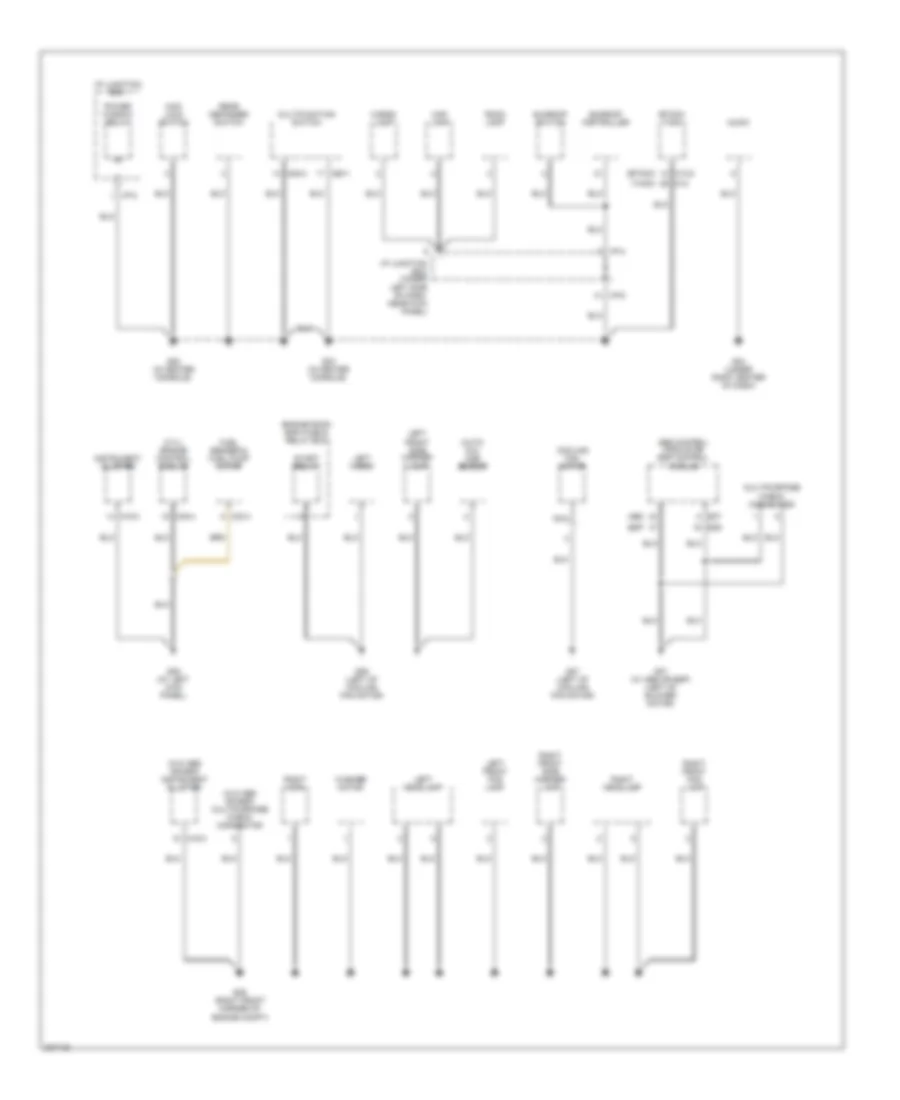

Электросхема подключение массы заземления (1 из 4) для Hyundai Tucson GL 2005

Электросхема подключение массы заземления (1 из 4) для Hyundai Tucson GL 2005 - Список элементов:

42

• (2.7l) immobilizer control module
• (etacm)
• (tacm)
• A/c control module
• Ambient sensor
• Auto
• Auto a/c
• Auto light & photo sensor
• Blower relay
• Blower switch
• Cigarette lighter
• Data link connector
• Digital clock
• Door lock relay
• Door unlock relay 1
• Door unlock relay 2
• Driver seat buckle switch
• Etacm/ tacm
• Evaporator temperature sensor
• Flasher unit
• G01 (under right center of dash)
• Glove box switch
• High blower relay
• I/p relay box
• Instrument cluster
• Joint connector m09 (under left side of dash)
• M12
• M13-1
• M15-1
• M15-3
• Manual
• Manual a/c
• Mode switch
• Multi- function switch
• Nca
• Passenger seat buckle switch
• Power transistor
• Rheostat
• Temperature actuator
• Thermo- static switch
• Water temperature sensor
• Windshield defogger switch

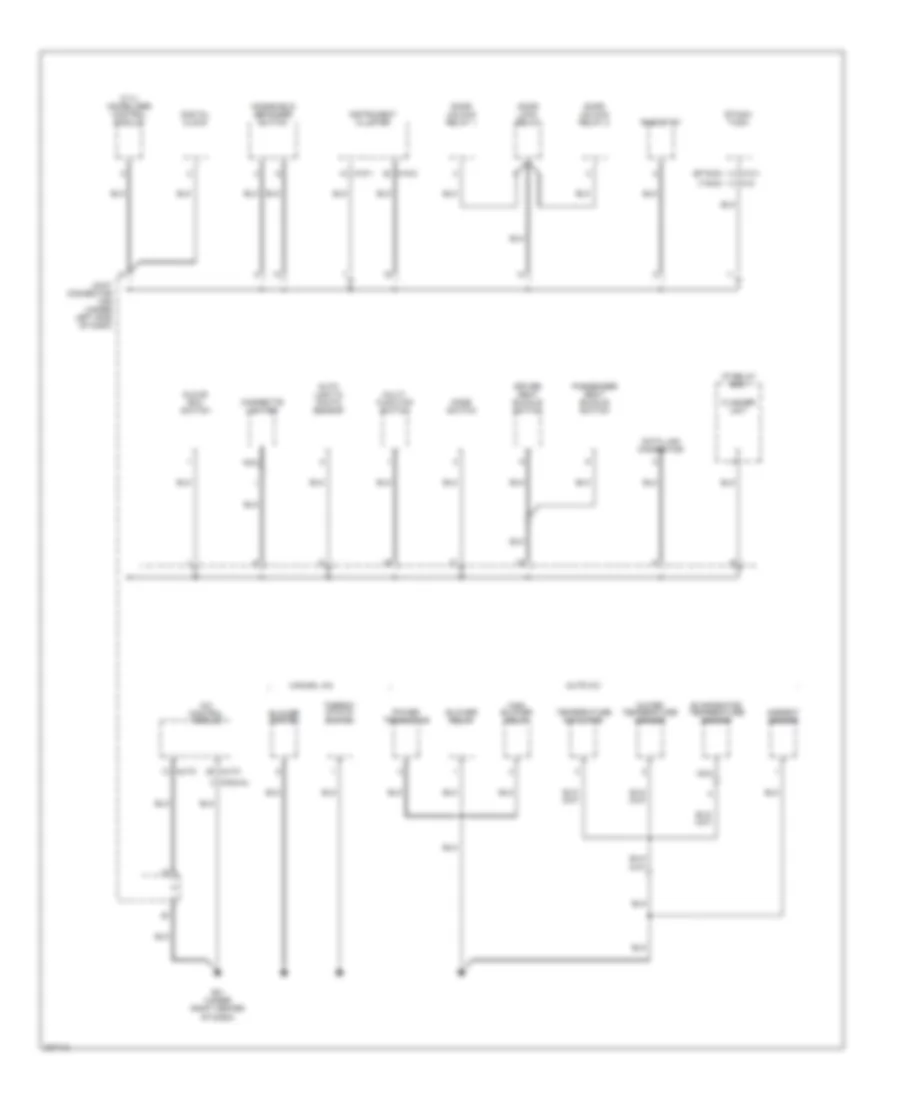

Электросхема подключение массы заземления (2 из 4) для Hyundai Tucson GL 2005

Электросхема подключение массы заземления (2 из 4) для Hyundai Tucson GL 2005 - Список элементов:

57

• (2.7l) engine control module
• (auto a/c) aqs sensor
• (etacm)
• (tacm)
• (w/o abs or esp) instrument cluster
• (w/o abs or esp) multipurpose check connector
• 4wd lock switch
• Abs
• Abs control module or esp control module
• Audio
• C30-4
• Cargo lamp
• Cooling fan motor
• E37
• E39
• Engine room (e/r) fuse & relay box
• Esp
• Etacm/ tacm
• Fuel sender & fuel pump motor
• G02 (in center console)
• G03 (in center console)
• G04 (under right center of dash)
• G05 (at left kick panel)
• G06 (left of cooling fan motor)
• G07 (left of cooling fan motor)
• G07 (w/ abs or esp) (left of blower motor)
• G09 (right front corner of engine compt)
• I/p junction box
• I/p junction box (under left side of dash, near kick panel)
• I/p-c
• I/p-d
• I/p-h
• Instrument cluster
• Left front fog lamp
• Left front side marker lamp
• Left headlamp
• Left horn
• M12
• M13-2
• M15-3
• M20-1
• M20-2
• Map lamp
• Multifunction switch
• Multipurpose check connector
• Nca
• Power window relay
• Rear defogger switch
• Right front fog lamp
• Right front side marker lamp
• Right headlamp
• Right horn
• Room lamp
• Start relay
• Sunroof controller
• Sunroof switch
• Washer motor

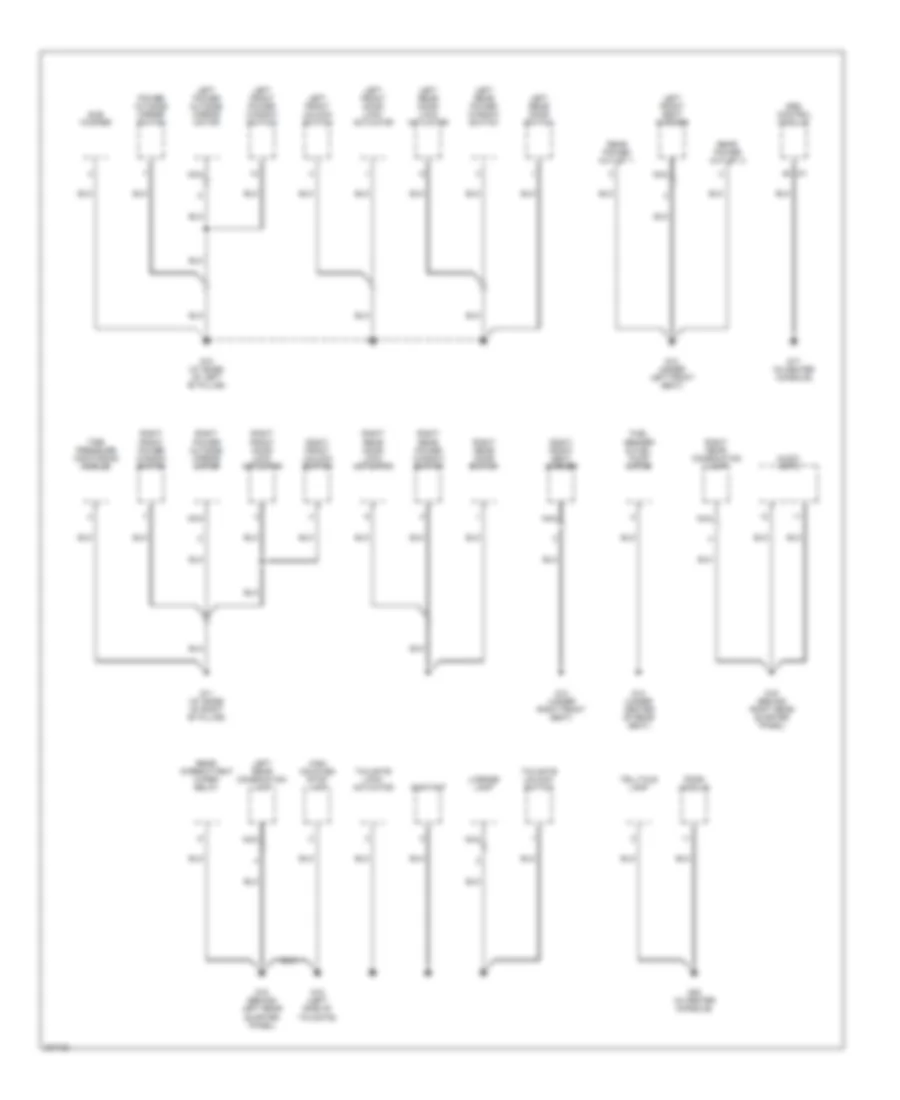

Электросхема подключение массы заземления (3 из 4) для Hyundai Tucson GL 2005

Электросхема подключение массы заземления (3 из 4) для Hyundai Tucson GL 2005 - Список элементов:

46

• Audio amp 2
• Contact
• Fuel sender & fuel pump motor
• G10 (at base of left "b" pillar)
• G11 (at base of right "b" pillar)
• G12 (under left front seat)
• G13 (under right front seat)
• G14 (under center of rear seat)
• G15 (behind left rear quarter panel)
• G16 (behind right rear quarter panel)
• G17 (in center console)
• G18 (left side of tailgate)
• G20 (in center console)
• High mounted stop lamp
• I01
• Left front door lock actuator
• Left front power window switch
• Left front seat warmer
• Left front unlock switch
• Left power outside mirror motor
• Left rear combination lamp
• Left rear door lock actuator
• Left rear door switch
• Left rear power window switch
• License lamp
• Nca
• Pods module
• Power outside mirror switch
• Rear intermittent wiper relay
• Rear power outlet 1
• Rear power outlet 2
• Right front door lock actuator
• Right front power window switch
• Right front seat warmer
• Right front unlock switch
• Right power outside mirror motor
• Right rear combination lamp
• Right rear door lock actuator
• Right rear door switch
• Right rear power window switch
• Srs control module
• Sub woofer
• Tailgate lock actuator
• Tailgate unlock switch
• Telltale lamp
• Tire pressure monitoring module

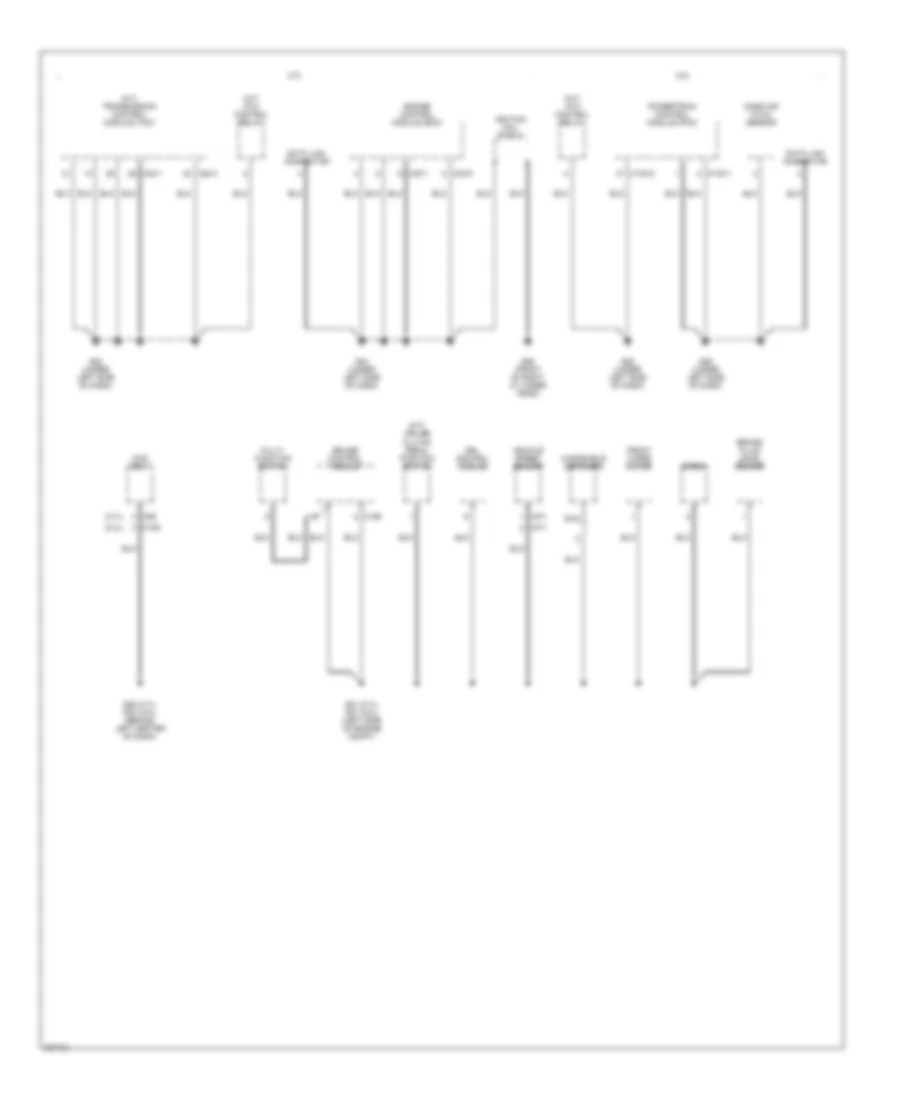

Электросхема подключение массы заземления (4 из 4) для Hyundai Tucson GL 2005

Электросхема подключение массы заземления (4 из 4) для Hyundai Tucson GL 2005 - Список элементов:

40

• (2.0l)
• (2.7l)
• (a/t)
• (a/t) atm control relay
• (a/t) transmission control module (tcm)
• (m/t)
• (m/t) cruise clutch pedal position switch
• 2.0l
• 2.7l
• 4wd ecu
• Brake fluid level sensor
• C130-1
• C130-2
• C156
• C158
• C24-1
• C24-3
• C30-1
• C30-5
• C58
• Cruise control module
• Data link connector
• Drl control module
• Engine control module (ecm)
• Front wiper motor
• G21 (2.7l) g27 (2.0l) (left side of engine compt)
• G22 (under left side of dash)
• G24 (under left side of dash)
• G25 (2.7l) g30 (2.0l) (behind left center of dash)
• G26 (front of right cylinder head)
• G28 (under left side of dash)
• G29 (under left side of dash)
• Ignition coil shield
• Mass air flow sensor
• Multi- function switch
• Nca
• Powertrain control module (pcm)
• Siren
• Vehicle speed sensor
• Windshield defogger
