Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Hyundai Tucson GL 2005

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

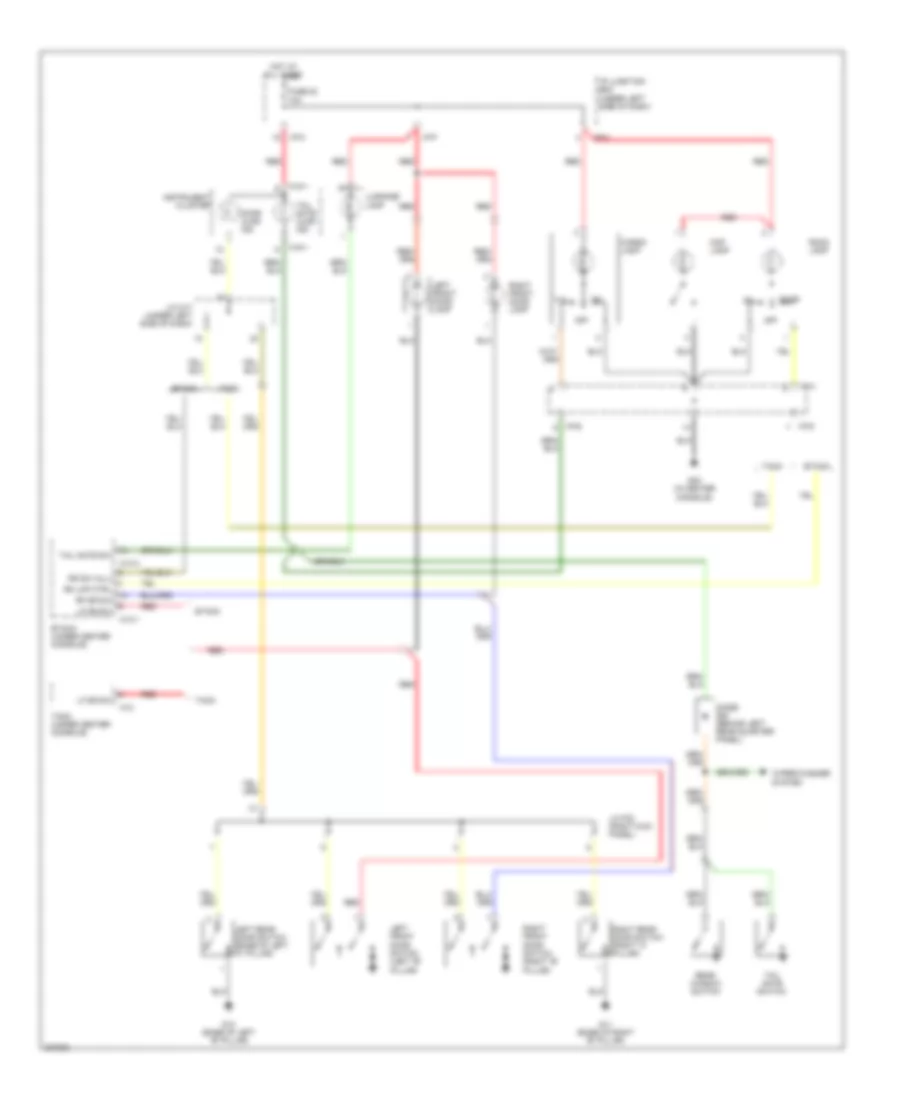

Электросхема подсветки для Hyundai Tucson GL 2005

Электросхема подсветки для Hyundai Tucson GL 2005 - Список элементов:

• 10a
• Cargo lamp
• Diode z06 (behind left rear quarter- panel)
• Door
• Door ajar ind
• Dr sw (all)
• Etacm
• Etacm (under center console)
• Fuse 22
• G03 (in center console)
• G10 (base of left "b" pillar)
• G11 (base of right "b" pillar)
• Hot at all times
• I/p junction box (under left side of dash)
• I/p-c
• I/p-d
• I/p-e
• I/p-f
• I/p-h
• Instrument cluster
• J/c f02 (right kick panel)
• J/c m17 (under left side of dash)
• Left front door lamp
• Left front door switch (left "b" pillar)
• Left rear door switch (base of left "c" pillar)
• Lf dr sw
• Luggage lamp
• M12
• M13-1
• M13-3
• M15-1
• Map lamp
• Off
• Rear window switch
• Red
• Rf dr sw
• Right front door lamp
• Right front door switch (right "b" pillar)
• Right rear door switch (right "c" pillar)
• Rm lmp ctrl
• Room lamp
• T/g
• Tacm
• Tacm (under center console)
• Tail gate ajar ind
• Tail gate sw
• Tail gate switch
• Wiper/washer system

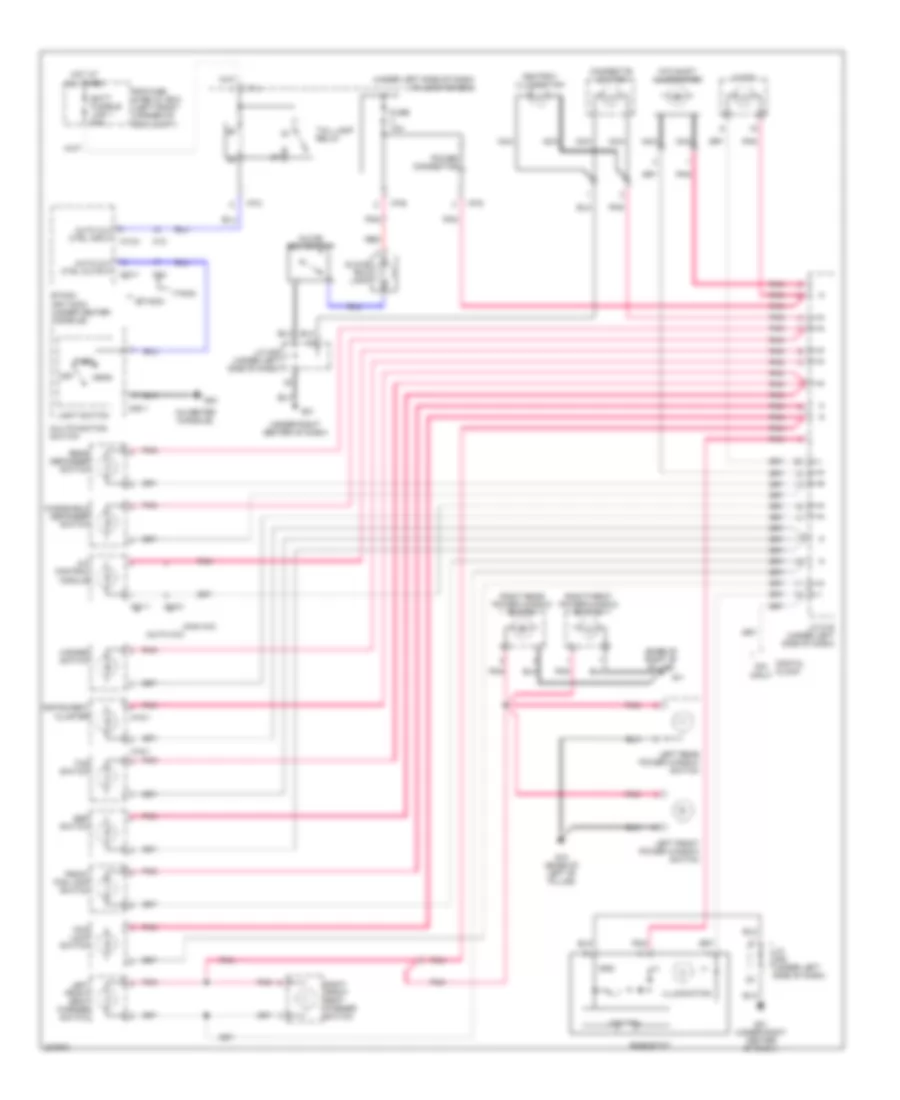

Электросхема подсветки приборов для Hyundai Tucson GL 2005

Электросхема подсветки приборов для Hyundai Tucson GL 2005 - Список элементов:

• (+)
• (-)
• (auto a/c)
• (base of right "b" pillar)
• (etacm)
• (in center console)
• (man a/c)
• (tacm)
• (under left side of dash) i/p junction box
• (under right center of dash)
• 4wd lock switch
• A/c control module
• Ashtray illumination
• Atm shift illumination
• Audio
• Auto cut ctrl input m13-2
• Auto cut ctrl output m13-1
• Batt fusible link 1 50a
• Cigarette lighter
• Control
• Digital clock
• Dim input
• E/r fuse & relay box (left front corner of eng compt)
• Esp switch
• Etacm (or tacm) (under center console)
• Front fog lamp switch
• Fuse 10a
• G01
• G01 (under right center of dash)
• G03
• G10 (base of left "b" pillar)
• G11
• Glove box lamp
• Glove box switch
• Gnd
• Hazard switch
• Head
• Hot at all times
• I/p-c
• I/p-d
• I/p-e
• I/p-j
• Illumination
• Instrument cluster
• J/c m09 (under left side of dash)
• J/c m16 (under left side of dash)
• Left front power window switch
• Left front seat warmer switch
• Left rear power window switch
• Light switch
• M12
• M15-1
• M20-1
• M41-1
• M43-2
• Multifunction switch
• Nca
• Off
• Park
• Pnk
• Power connector
• Rear defogger switch
• Red
• Rheostat
• Right front power window switch
• Right front seat warmer switch
• Right rear power window switch
• Tail lamp relay
• Tcs switch
• Windshield defogger switch
