Электросхемы Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Dodge Cab amp; Chassis R3500 2004

Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала

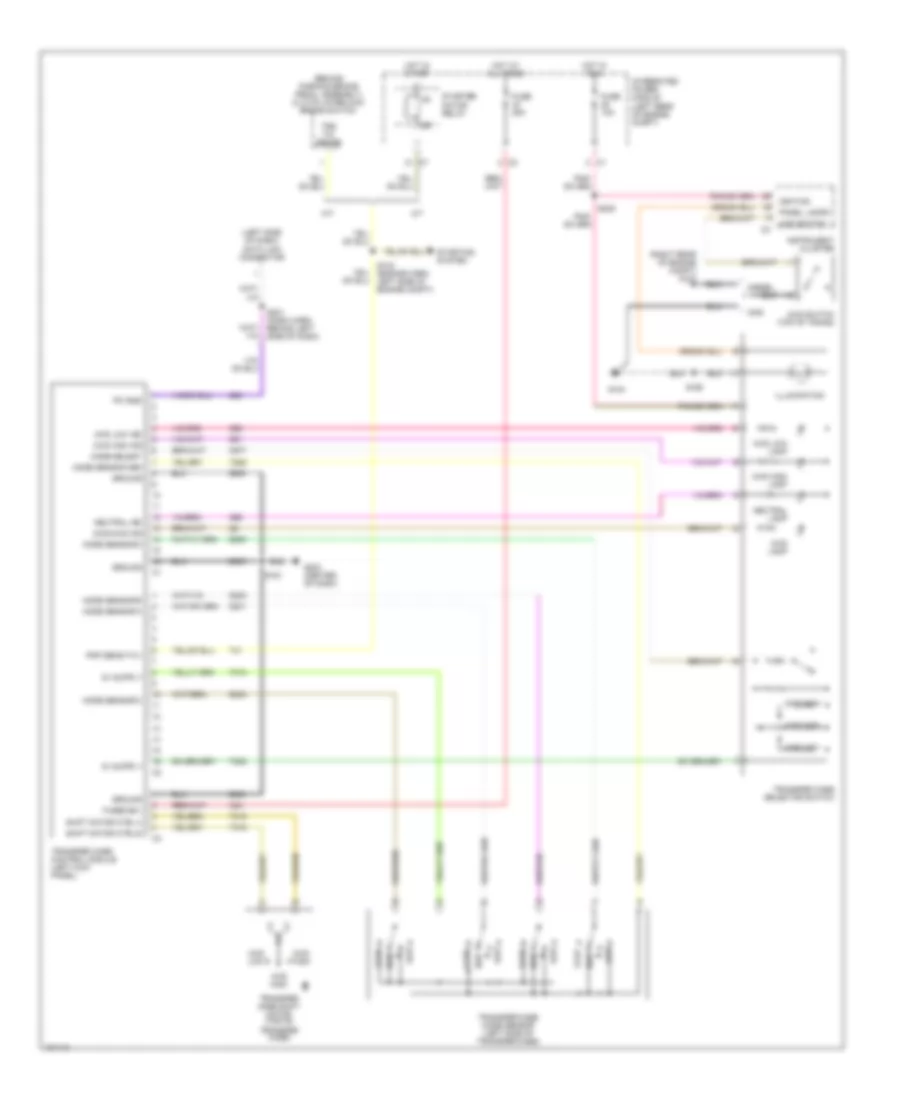

Электросхема раздатки для Dodge Cab amp; Chassis R3500 2004

Электросхема раздатки для Dodge Cab amp; Chassis R3500 2004 - Список элементов:

• (behind parking brake pedal assembly) clutch interlock brake switch
• (left side of dash) data link connector
• (right rear of engine compt) g107
• 2wd high
• 2wd lamp
• 2wd/awd ind
• 4wd
• 4wd high
• 4wd high ind
• 4wd high lamp
• 4wd low
• 4wd low ind
• 4wd low lamp
• 4wd switch
• 4wd switch (top of trans)
• A/t
• A34
• D200
• D201
• D202
• D203
• D25
• Diesel
• Fuse 10a
• Fuse 25a
• Fused (b+)
• G104
• G203 (center of dash)
• G91
• G92
• G95
• Gas
• Ground
• Hot at all times
• Hot in run
• Hot in start
• Ignition
• Illumination
• Instrument cluster
• Integrated power module (left rear of engine compt)
• K977
• Lock
• Low
• M/t
• Mode select
• Mode sensor a
• Mode sensor b
• Mode sensor c
• Mode sensor d
• Mode sensor gnd
• Neutral ind
• Neutral lamp
• Panel lamps
• Pci bus
• Pnp sens (t41)
• S123 (engine harn, left side of engine compt)
• S160
• S161
• S205
• S231 (dash harn, behind left side of dash)
• Shift motor ctrl a
• Shift motor ctrl b
• Starter motor relay
• Starting system
• T313
• T315
• T316
• T322
• T41
• T885
• Transfer case control module (left kick panel)
• Transfer case mode sensor (left side of transfer case)
• Transfer case selector switch
• Transfer case shift motor (top of transfer case)
• Trs t41 sense
• Z905

5.7L

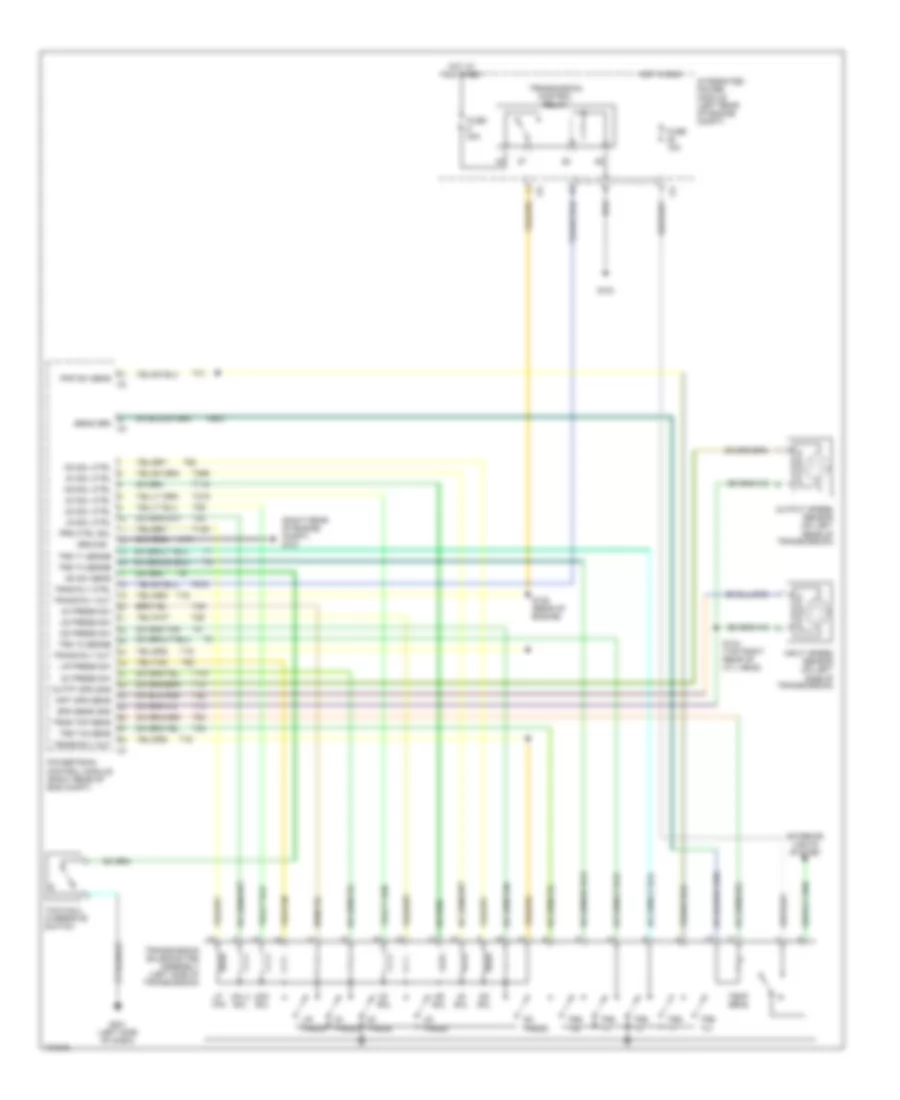

5.7L, Электросхема автоматической коробки передач АКПП для Dodge Cab amp; Chassis R3500 2004

5.7L, Электросхема автоматической коробки передач АКПП для Dodge Cab amp; Chassis R3500 2004 - Список элементов:

• (a/t)
• (right rear of engine compt) g107
• 2c press
• 2c press sw
• 2c sol
• 2c sol ctrl
• 4c press
• 4c press sw
• 4c sol
• 4c sol ctrl
• Exterior lights system
• Fuse 15a
• Fuse 20a
• G104
• G201 (left side of dash)
• Ground
• Hot at all times
• Hot in run
• Inpt spd sens
• Input speed sensor (on left side of transmission)
• Integrated power module (left rear of engine compt)
• K900
• L/r press
• L/r press sw
• Lp vfs
• Lr sol ctrl
• Lr-lu sol
• Ms sol
• Ms sol ctrl
• Od press
• Od press sw
• Od sol
• Od sol ctrl
• Od sw sens
• Outpt spd sns
• Output speed sensor (on left rear of transmission)
• Pnp sw sens c3
• Powertrain control module (right rear of eng compt)
• Prs ctrl sol
• S125 (rear of engine)
• S134 (top right rear of cyl head)
• Sens grd c2
• Spd sens gnd
• T118
• T13
• T14
• T140
• T147
• T16
• T20
• T219
• T259
• T29
• T41
• T42
• T48
• T50
• T515
• T52
• T54
• T59
• T60
• Temp sens
• Tow/haul overdrive switch
• Trans rly out
• Trans rly out c4
• Transmission control relay
• Transmission solenoid/trs assembly (left side of transmission)
• Trns rly ctrl
• Trns tmp sens
• Trs t1
• Trs t1 sense
• Trs t2
• Trs t2 sense
• Trs t3
• Trs t3 sense
• Trs t41
• Trs t42
• Trs t42 sens
• Ud press
• Ud press sw
• Ud sol ctrl
• Udc sol
• Z908

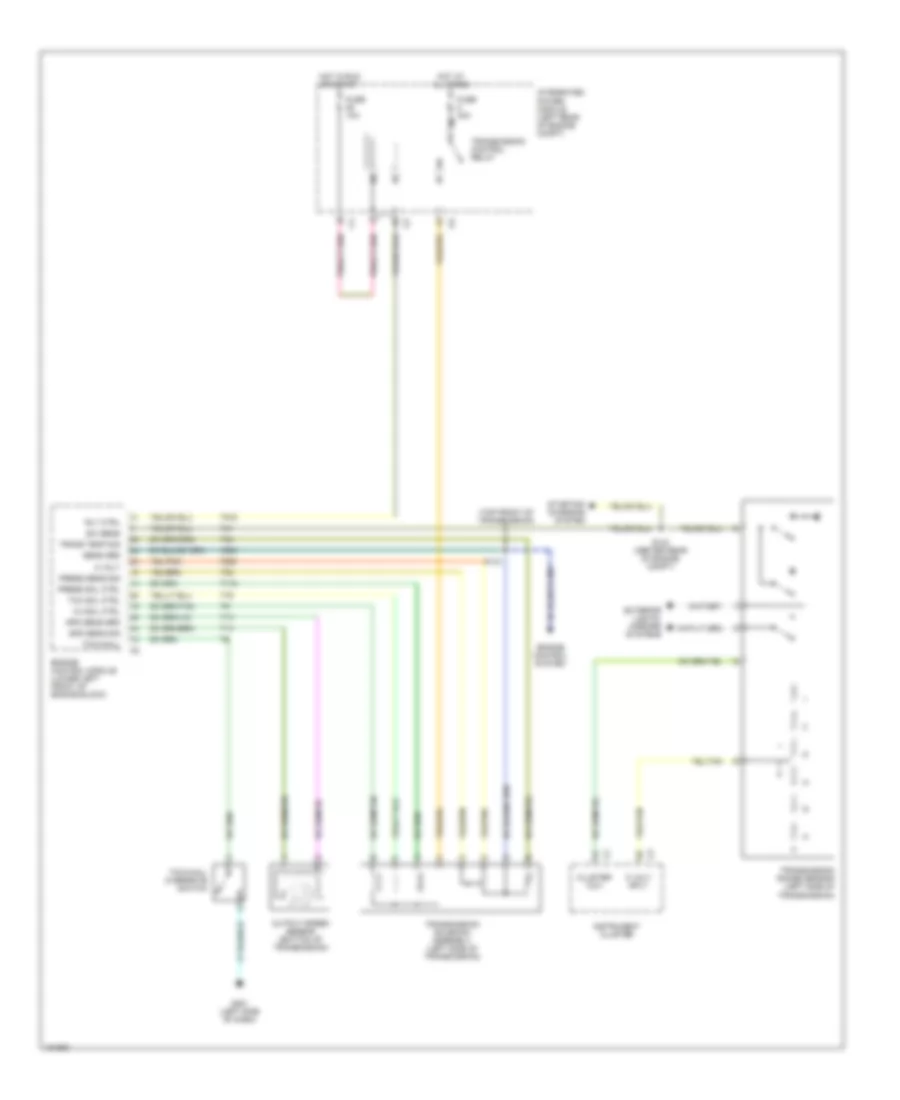

5.9L ДИЗЕЛЬ

5.9L дизель, Электросхема автоматической коробки передач АКПП для Dodge Cab amp; Chassis R3500 2004

5.9L дизель, Электросхема автоматической коробки передач АКПП для Dodge Cab amp; Chassis R3500 2004 - Список элементов:

• (top front of transmission)
• 3-4 sol ctrl
• 5 volt
• 5 volt sply
• Cluster mux
• Engine control module (lower left front of engine block)
• Engine control system
• Exterior lights, mirrors systems
• F856
• Fuse 10a
• Fuse 40a
• G201 (left side of dash)
• Hot at all times
• Hot in run or start
• Instrument cluster
• Integrated power module (left rear of engine compt)
• K900
• Output speed sensor (bottom of transmission)
• Press sens sig
• Press sol ctrl
• Rly ctrl
• S124 (center rear of engine compt)
• S144
• Sens grd
• Spd sens grd
• Spd sens sig
• Startng/ charging system
• Sw sens
• T118
• T13
• T14
• T38
• T41
• T515
• T54
• T75
• Tcc sol ctrl
• Tow/haul
• Tow/haul overdrive switch
• Trans temp sig
• Transmission control relay
• Transmission range sensor (left side of transmission)
• Transmission solenoid assembly (left side of transmission)
