Электросхемы Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Dodge Grand Caravan 2007

Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала

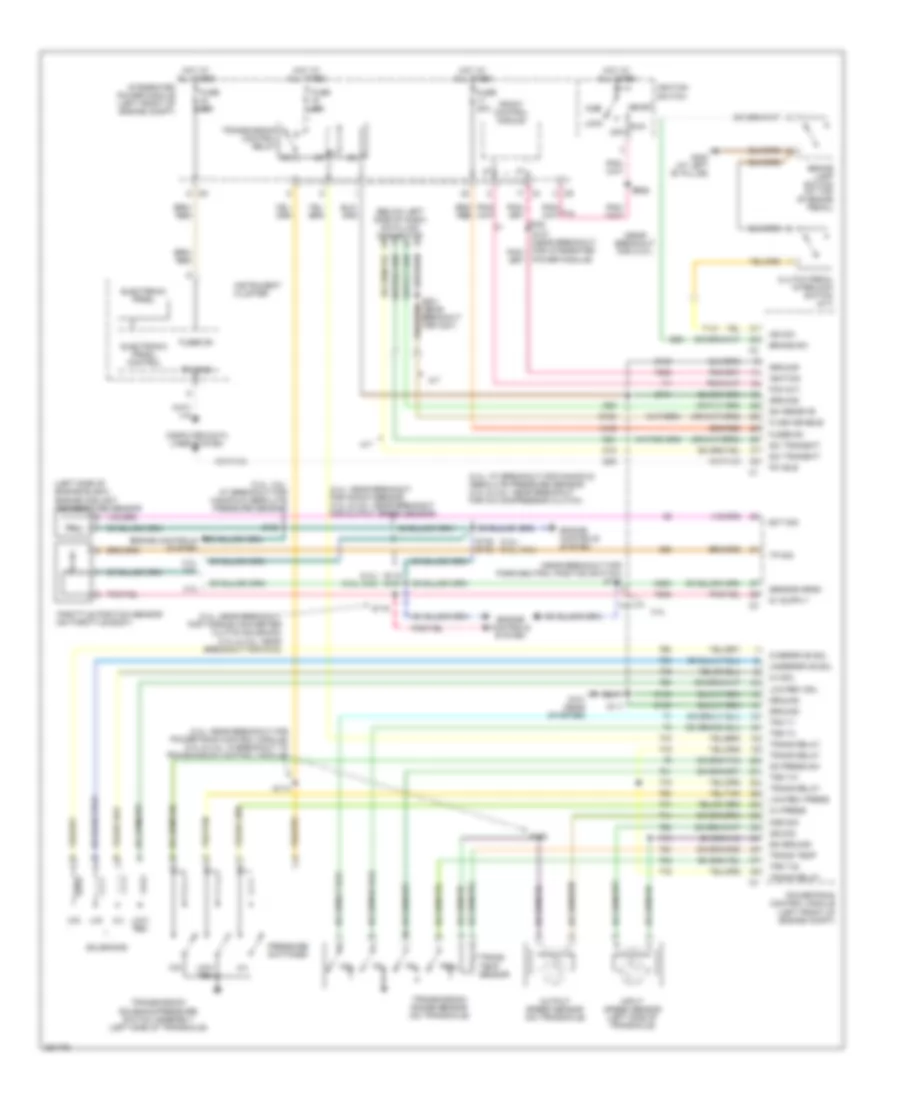

Электросхема автоматической коробки передач АКПП для Dodge Grand Caravan 2007

Электросхема автоматической коробки передач АКПП для Dodge Grand Caravan 2007 - Список элементов:

• (2.4l) (3.3l, 3.8l)
• (2.4l: at breakout for manifold absolute pressure sensor) (3.3l & 3.8l: near breakout for a/c compressor clutch)
• (2.4l: near breakout for knock sensor) (3.3l & 3.8l: near breakout for output speed sensor)
• (2.4l: near breakout for powertrain control module) (3.3l & 3.8l: in breakout to transmission control module)
• (2.4l: near breakout for torque converter clutch solenoid) (3.3l & 3.8l: near breakout for g103)
• (3.3l, 3.8l: at breakout for manifold absolute pressure sensor)
• (below left side of dash) data link connector
• (left side of engine block) engine coolant temperature sensor
• (near breakout for c101)
• (near breakout for park/neutral position switch) s113
• 2-4
• 2-4 press
• 2-4 sol
• 2.4l
• 2/4
• 3.3l, 3.8l
• A/t
• A109
• Acc
• B29
• Brake lamp switch (at top of brake pedal)
• Brake sw
• Clutch pedal interlock switch (m/t)
• Computer data lines system
• D123
• D15
• D20
• D21
• D25
• Ect sig
• Electronic prndl
• Electronic prndl control
• Engine controls system
• F202
• F855
• Fcm out
• Flash enable
• Front control module
• Fuse 20a
• Fused b+
• G101 (near starter)
• G300 (at left "b" pillar)
• Ground
• Hot at all times
• Ign sw
• Ignition
• Ignition switch
• Input speed sensor (left side of transaxle)
• Instrument cluster
• Integrated power module (left front of engine compt)
• Iss sig
• K22
• K900
• Lock
• Low/ rev
• Low/rev press
• Low/rev sol
• Nol
• O/d
• Od press sw
• Off
• Oss sig
• Output speed sensor (on transaxle)
• Overdrive sol
• P3l
• Pci bus
• Power module)
• Powertrain control module (left front of engine compt)
• Pressure switches
• Prnl
• Run
• S111
• S114
• S115
• S116
• S118 s121
• S125
• S125 s142
• S326
• Sci receive
• Sci transmit
• Solenoids
• Ss ground
• Start
• T13
• T14
• T141
• T15
• T16
• T19
• T20
• T41
• T42
• T47
• T50
• T52
• T54
• T59
• T60
• Throttle position sensor (on throttle body)
• Tp sig
• Tra t1
• Trans relay
• Trans temp
• Trans temp sensor
• Transmission control relay
• Transmission range sensor (on transaxle)
• Transmission solenoid/pressure switch assembly (left side of transaxle)
• Trs t3
• Trs t41
• Trs t42
• U/d
• Underdrive sol
• Z130
• Z131
• Z133
