Электросхемы Стартер Генератор Dodge Colt 1992

Стартер Генератор

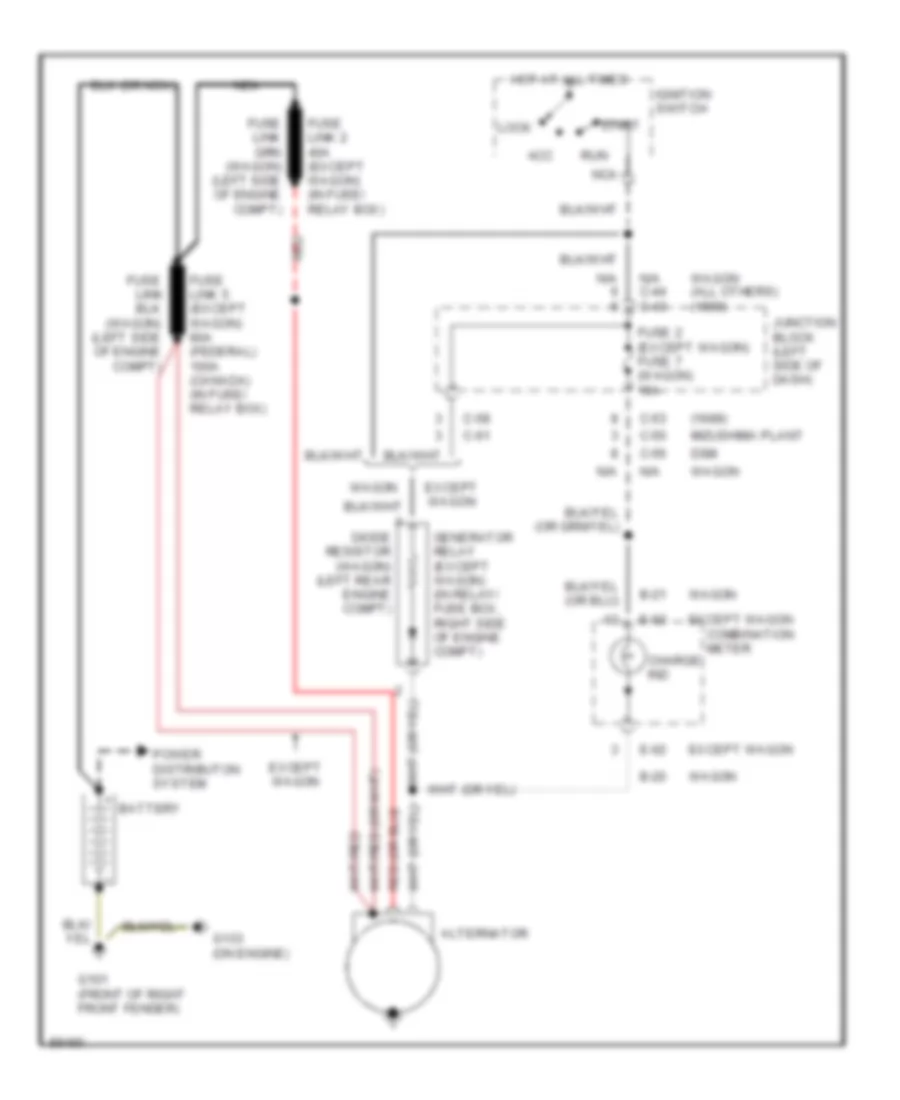

Электросхема Генератора для Dodge Colt 1992

Электросхема Генератора для Dodge Colt 1992 - Список элементов:

• (1989)
• Acc
• Alternator
• B-20
• B-21
• Battery
• C-50
• C-53
• C-56
• C-58
• C-61
• Charge ind
• Combination meter
• Diode resistor (wagon) (left rear engine compt)
• Dsm
• E-02
• Except wagon
• Fuse 2 (except wagon) fuse 7 (wagon) 10a
• Fuse link 2 40a (except wagon) (in fuse/ relay box)
• Fuse link 5 (except wagon) 80a (federal) 100a (canada) (in fuse/ relay box)
• G101 (front of right front fender)
• G133 (on engine)
• Generator relay (except wagon) (in relay/ fuse box, right side of engine compt)
• Hot at all times
• Ignition switch
• Junction block (left side of dash)
• Lock
• Mizushima plant
• N/a
• N/a c-44 c-43
• Nca
• Power distributon system
• Red
• Run
• Start
• Wagon
• Wagon (all others) (1989)

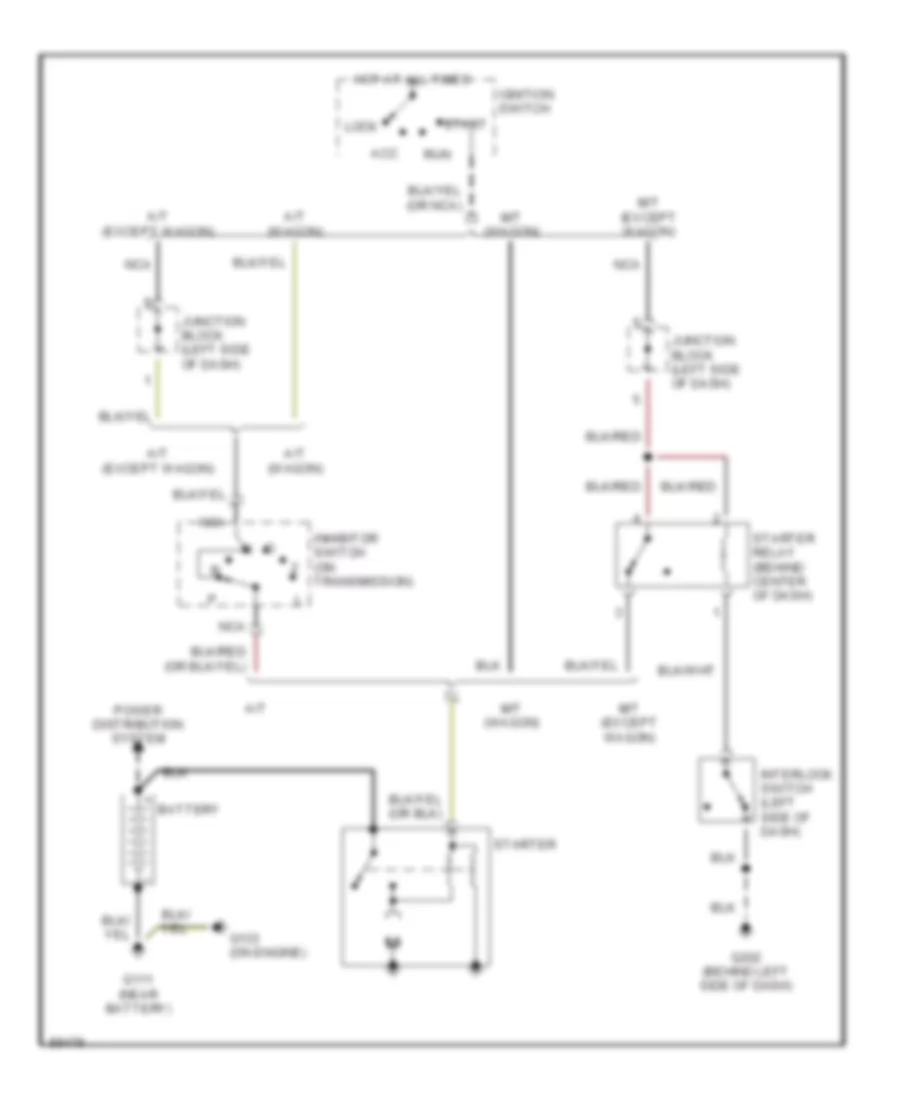

Электросхема стартера для Dodge Colt 1992

Электросхема стартера для Dodge Colt 1992 - Список элементов:

• A/t
• A/t (except wagon)
• A/t (wagon)
• Acc
• Battery
• G111 (near battery)
• G133 (on engine)
• G202 (behind left side of dash)
• Hot at all times
• Ignition switch
• Inhibitor switch (on transmission)
• Interlock switch (left side of dash)
• Junction block (left side of dash)
• Lock
• M/t (except wagon)
• M/t (wagon)
• Nca
• Power distribution system
• Run
• Start
• Starter
• Starter relay (behind center of dash)
