Электросхемы Стартер Генератор Dodge Pickup W350 1990

Стартер Генератор

Электросхема Генератора для Dodge Pickup W350 1990

Электросхема Генератора для Dodge Pickup W350 1990 - Список элементов:

• (1990-91)
• (1992-93)
• 1990-91 diesel
• 1990-91 gas
• 1990-93 gas 1992-93 diesel
• 1992-93
• 1992-93 diesel
• 1992-93 gas
• Acc
• Auto shutdown relay (left side shield)
• Battery
• Daytime running lamp module (1990-91)
• Engine controls system
• G110 (left front of engine)
• G111 (left yolk, front of battery)
• G133 (on engine)
• Generator
• Hot at all times
• Ignition switch
• K20
• Nca
• Off
• Power distribution system
• Powertrain control module left fender side shield)
• Run
• Start
• Voltage regulator (center of dash panel)

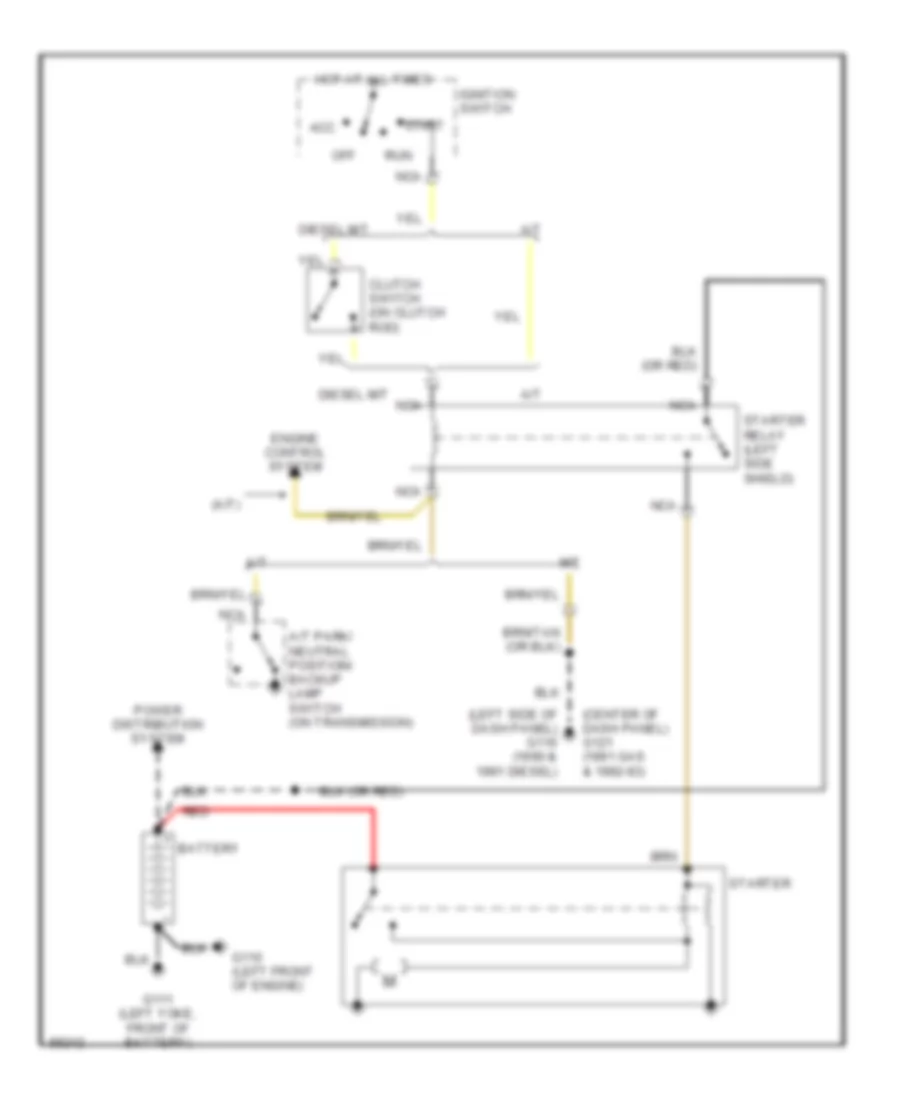

Электросхема стартера для Dodge Pickup W350 1990

Электросхема стартера для Dodge Pickup W350 1990 - Список элементов:

• (a/t)
• (center of dash panel) g121 (1991 gas & 1992-93)
• (left side of dash panel) g116 (1990 & 1991 diesel)
• A/t
• A/t park/ neutral position/ backup lamp switch (on transmission)
• Acc
• Battery
• Clutch switch (on clutch rod)
• Diesel m/t
• Engine control system
• G110 (left front of engine)
• G111 (left yoke, front of battery)
• Hot at all times
• Ignition switch
• M/t
• Nca
• Off
• Power distribution system
• Red
• Run
• Start
• Starter
• Starter relay (left side shield)
