Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Dodge Cab amp; Chassis R2500 1996

ВНЕШНЕЕ ОСВЕЩЕНИЕ

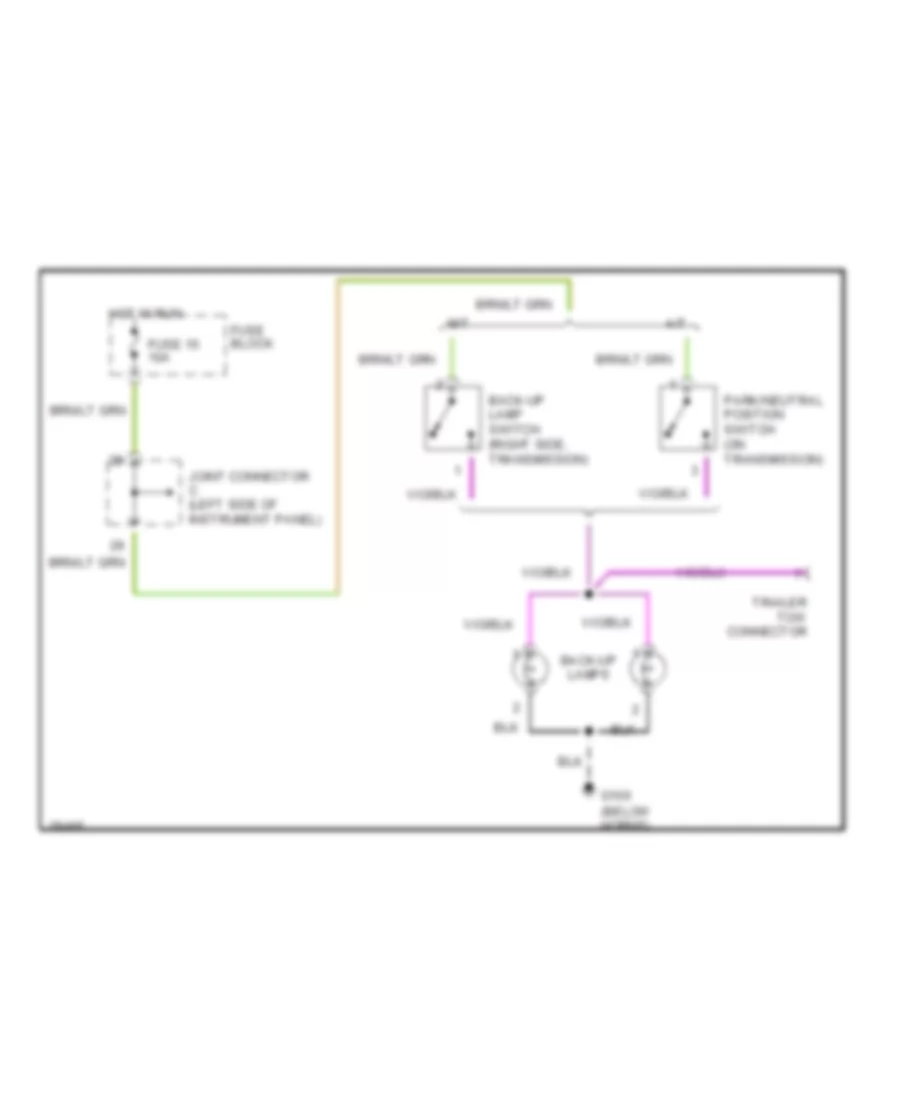

Электросхема заднего хода для Dodge Cab amp; Chassis R2500 1996

Электросхема заднего хода для Dodge Cab amp; Chassis R2500 1996 - Список элементов:

• (below horns)
• (on transmission)
• (right side, transmission)
• A/t
• Back-up lamp switch
• Back-up lamps
• Fuse 15 10a
• Fuse block
• G100
• Hot in run
• Joint connector c (left side of instrument panel)
• M/t
• Park/neutral position switch
• Trailer tow connector

Электросхема внешнего освещения (1 из 2) для Dodge Cab amp; Chassis R2500 1996

Электросхема внешнего освещения (1 из 2) для Dodge Cab amp; Chassis R2500 1996 - Список элементов:

• (below horns)
• (i/p right center support)
• C216
• Center high- mount stop lamps
• Fuse 18 15a
• Fuse 20 15a
• Fuse 6 15a
• Fuse block
• Fuse c 15a
• G100
• G100 (left fender side shield)
• G206
• G308 (below left rear speaker)
• Ground joint
• Hazard
• Hazard flasher (mounted in fuse block)
• Hazard switch
• Head
• Headlamp switch
• Hot at all times
• Hot in accy or run
• Instrument cluster
• Joint connector a (rear of fuse block)
• Joint connector b (near rear of fuse block)
• Left park/turn signal lamp
• Left tail/ stop/turn signal lamp
• Left turn indicator
• License lamps (w/single rear wheels)
• Normal
• Off
• Park
• Pnk/red
• Power distribution center
• Right park/turn signal lamp
• Right tail/ stop/turn signal lamp
• Right turn indicator
• Stop lamp switch (on bracket)
• Turn signal and hazard flasher switch (part of multi- function switch, located on steering column)
• Turn signal flasher (mounted in fuse block)
• Turn signal switch
• W/ trailer tow

Электросхема внешнего освещения (2 из 2) для Dodge Cab amp; Chassis R2500 1996

Электросхема внешнего освещения (2 из 2) для Dodge Cab amp; Chassis R2500 1996 - Список элементов:

• (below horns)
• (if equipped)
• (left fender
• (power
• Back-up
• Backup lamps circuit
• Battery
• Brakes trailer
• Center identification lamp
• Center)
• Distribution
• Electric trailer brakes provision
• Fuse 7 40a
• G100
• G908 (front center of headliner)
• Ground
• Hot at all times
• Left forward fender lamp
• Left license lamp
• Left outboard clearance lamp
• Left outboard identification lamp
• Left rear fender lamp
• Left tailgate lamp
• Left turn
• Power distribution center
• Red/tan
• Right forward fender lamp
• Right license lamp
• Right outboard clearance lamp
• Right outboard identification lamp
• Right rear fender lamp
• Right tailgate lamp
• Right turn
• Side shield)
• Tail
• Tow relay
• Trailer
• Trailer tow connector (if equipped)
• W/ optional dual rear wheels only
