Электросхемы СИСТЕМЫ СИДЕНИЙ Audi 90 Quattro 1991

СИСТЕМЫ СИДЕНИЙ

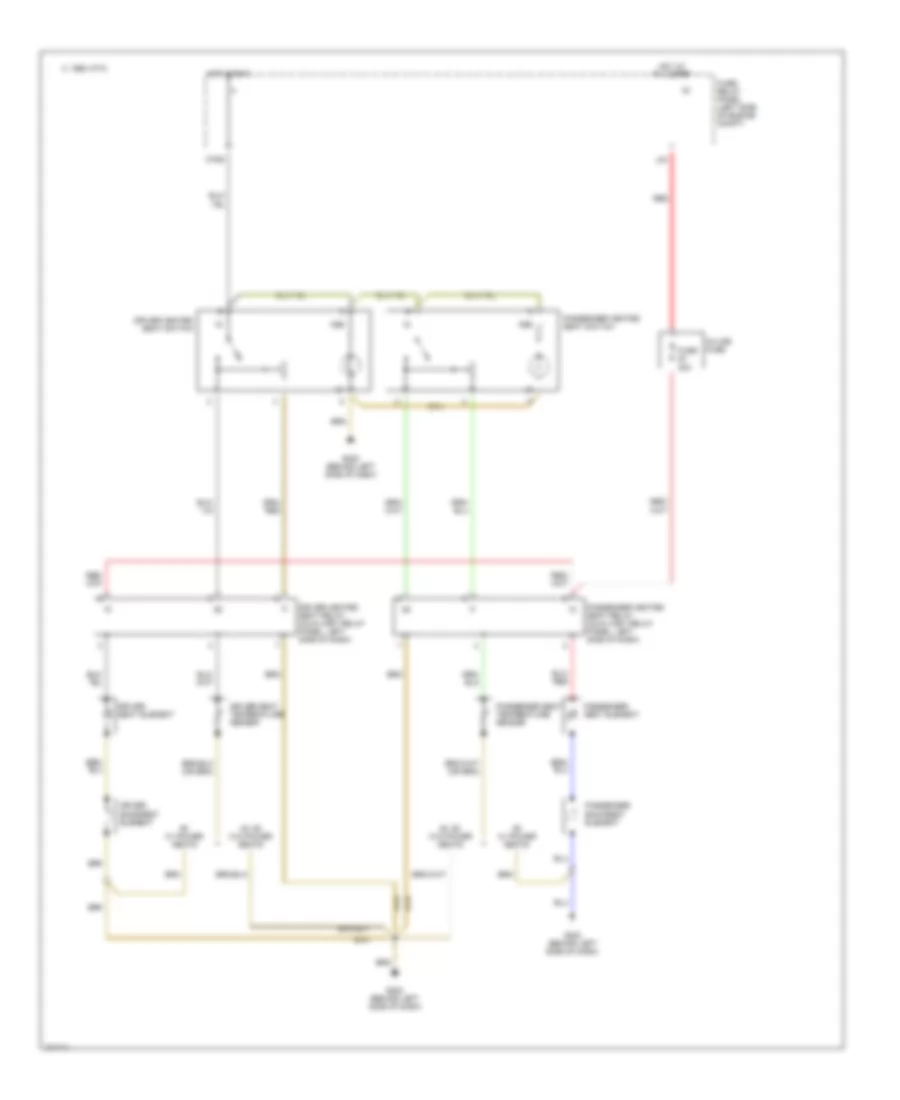

Электросхема подогрева сидений для Audi 90 Quattro 1991

Электросхема подогрева сидений для Audi 90 Quattro 1991 - Список элементов:

• 1995 vftc c
• 58b
• 80, 90 w/o power seats
• Driver backrest element
• Driver heated seat relay (auxiliary relay panel, left side of dash)
• Driver heated seat switch
• Driver seat element
• Driver seat temperature sensor
• Fuse 30a
• Fuse/ relay panel (left side of engine compt)
• G202 (behind left side of dash)
• Hot at all times
• Hot in run
• In-line fuse
• L30
• M75s
• Passenger backrest element
• Passenger heated seat relay (auxiliary relay panel, left side of dash)
• Passenger heated seat switch
• Passenger seat element
• Passenger seat temperature sensor
• Red
• W/ power seats

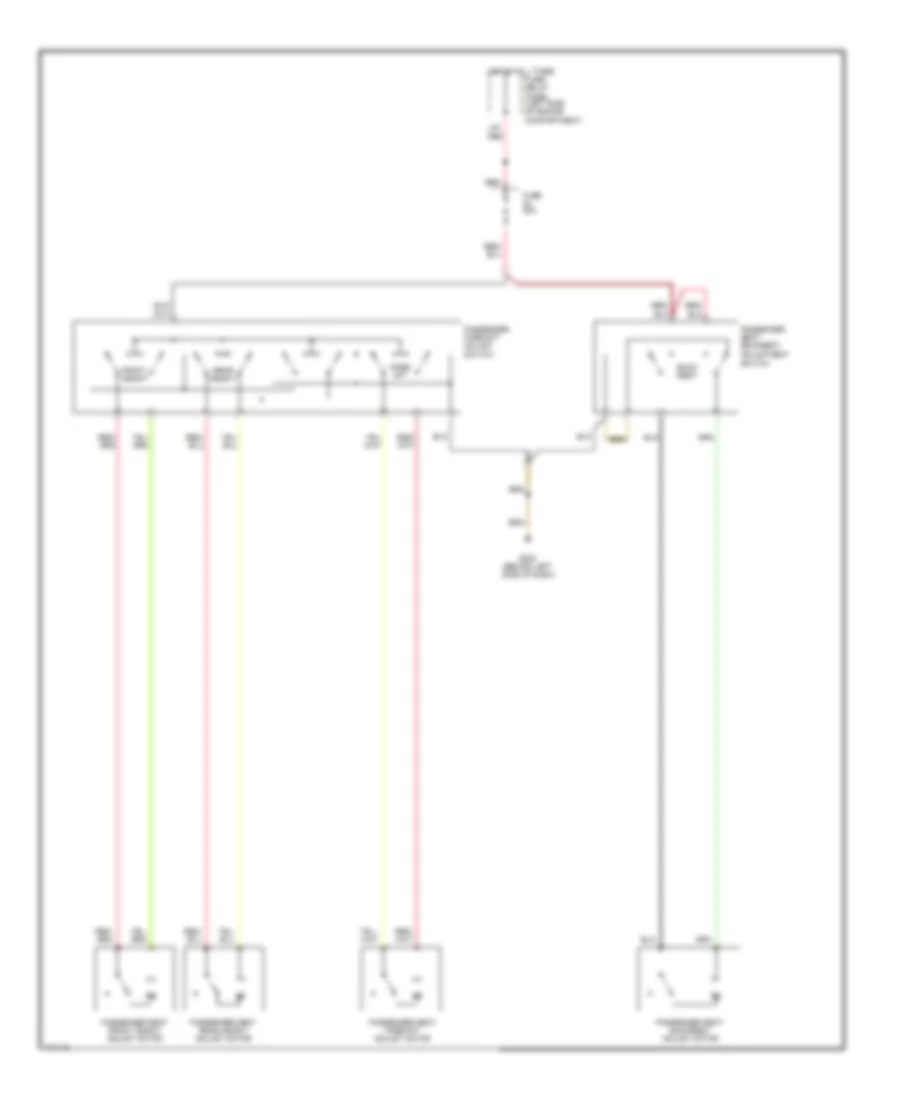

Электросхема привода пассажирского сиденья для Audi 90 Quattro 1991

Электросхема привода пассажирского сиденья для Audi 90 Quattro 1991 - Список элементов:

• Back rest
• Fore/ aft
• Front height
• Fuse 30a
• Fuse/ relay panel (left side of engine compartment)
• G202 (behind left side of dash)
• Hot at all times
• L30 red
• Passenger fore/aft adjust switch
• Passenger seat backrest adjust motor
• Passenger seat backrest adjustment
• Passenger seat fore/aft adjust motor
• Passenger seat front height adjust motor
• Passenger seat rear height adjust motor
• Rear height
• Red
• Switch
