Электросхемы ПРИВОД ЗЕРКАЛ Jeep Compass Limited 2007

ПРИВОД ЗЕРКАЛ

Электросхема автозатемнения зеркала заднего вида для Jeep Compass Limited 2007

Электросхема автозатемнения зеркала заднего вида для Jeep Compass Limited 2007 - Список элементов:

• (body harness, below left side instrument panel) s307
• (right side of instrument panel) (if equipped) hands free module
• B (+)
• Back-up lamp switch output
• C11
• Electronics
• Exterior lights system
• G250 (right kick panel)
• Ground
• Hot at all times
• Ignition switch output (run-start)
• Inside rearview mirror
• Microphone 1 in (+)
• Microphone 2 in (+)
• Microphone feed
• Microphone in (-)
• Microphone in (-) c2
• S208
• Sensor ground
• Totally integrated power module (left side engine compt)
• Voice recognition/ phone switch signal
• X712
• X722
• X730
• X792
• X793
• X835

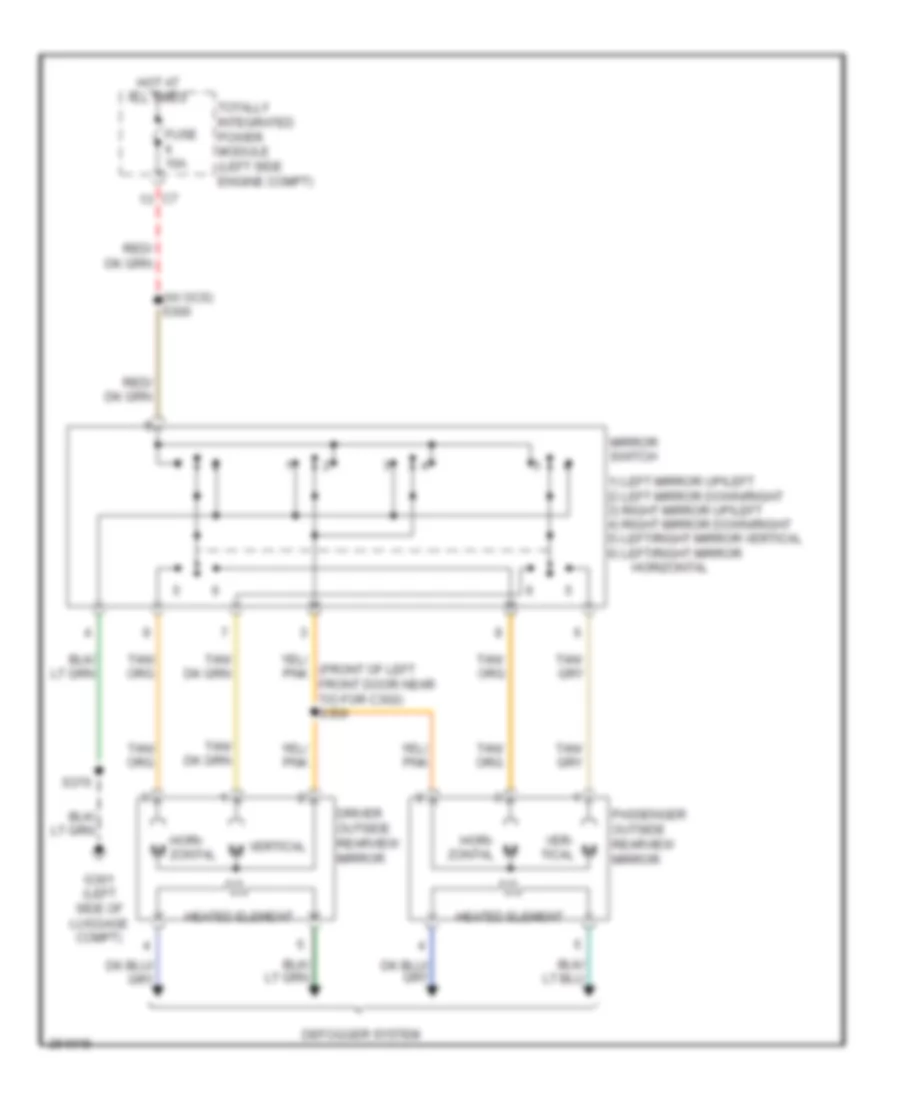

Электросхема привода зеркал для Jeep Compass Limited 2007

Электросхема привода зеркал для Jeep Compass Limited 2007 - Список элементов:

• (front of left front door near t/o for c302) s350
• (w/ ocs) s300
• 1) left mirror up/left 2) left mirror down/right 3) right mirror up/left 4) right mirror down/right 5) left/right mirror vertical 6) left/right mirror
• Defogger system
• Driver outside rearview mirror
• Fuse 10a
• G301 (left side of luggage compt)
• Heated element
• Hori- m zontal
• Hori- zontal
• Horizontal
• Hot at all times
• Mirror switch
• Passenger outside rearview mirror
• S370
• Totally integrated power module (left side engine compt)
• Ver- tical
• Vertical m
