Электросхемы Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Honda Element LX 2010

Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала

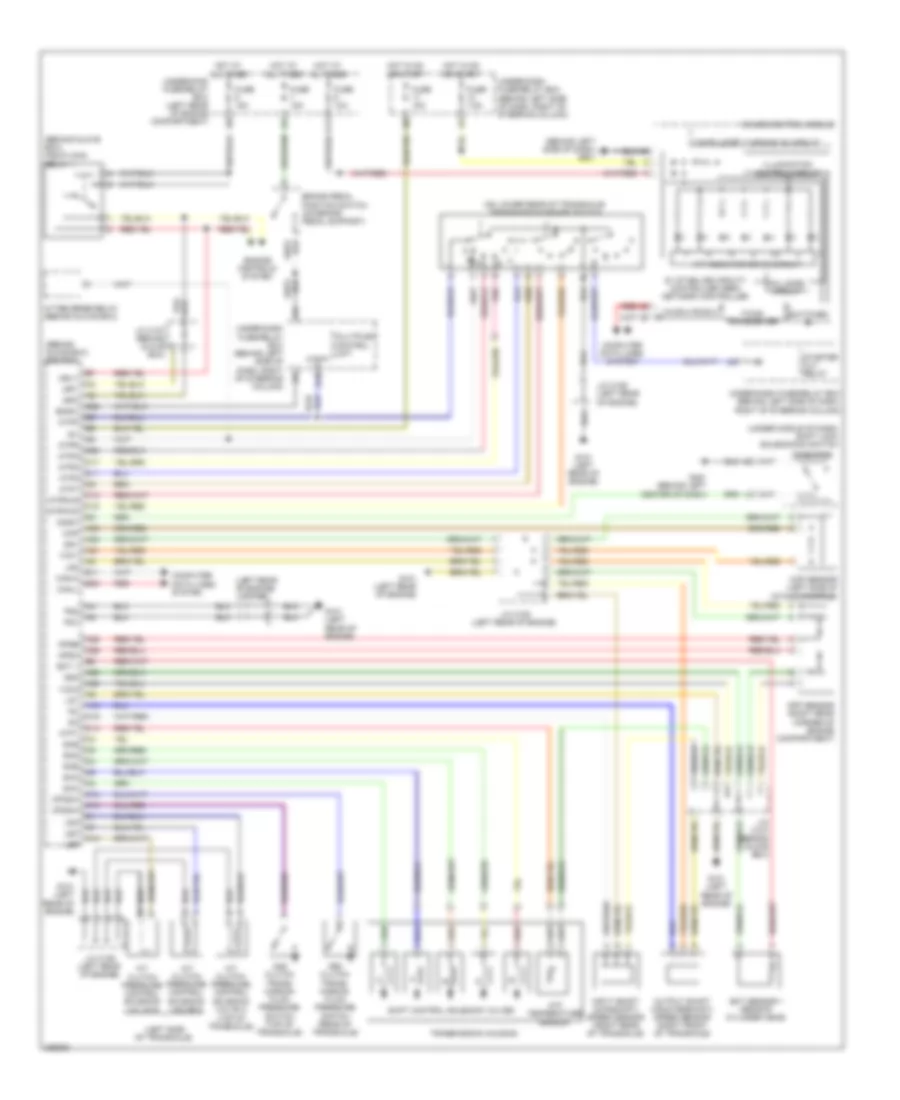

Электросхема коробки передач АКПП для Honda Element LX 2010

Электросхема коробки передач АКПП для Honda Element LX 2010 - Список элементов:

114

• (behind glove box) ecm/pcm
• (behind glove box) pgm-fi main relay 1
• (behind left side of dash) g501
• (left rear of engine) j/c c106
• (left side of transaxle)
• (on lower rear of transaxle) transmission range switch
• (top of transaxle)
• (under middle of dash) shift lock solenoid/d3 switch
• 2nd clutch trans- mission fluid pressure switch (top of transaxle)
• 3rd clutch trans- mission fluid pressure switch (rear of transaxle)
• 5v stabilize circuit/ controller area network controller
• A/t clutch pressure control solenoid valve a
• A/t clutch pressure control solenoid valve b
• A/t clutch pressure control solenoid valve c
• A/t indicator drive circuit
• A/t reverse relay (behind glove box)
• A18
• A20
• A21
• A23
• A24
• A25
• A26
• A30
• App sensor (right rear corner of engine compartment)
• Apsa
• Apsb
• Atf temperature sensor
• Atft
• Atp-p
• Atp1
• Atp2
• Atpd
• Atpfwd
• Atpn
• Atpp
• Atpr
• Atprvs
• Bksw
• Brake pedal position switch (on brake pedal support)
• C10
• C11
• C12
• C13
• C14
• C15
• C17
• C18
• C19
• C20
• Can-h
• Can-l
• Compulsory turning on circuit
• Computer data lines system
• D10
• D11
• D3 switch
• D3sw
• E11
• E22
• E24
• Ect 1
• Ect sensor 1 (rear of cylinder head)
• Engine controls system
• Engine)
• F-can transceiver
• Fail safe circuit
• Fuse 10a
• Fuse 15a
• Fuse 7.5a
• G101 (left rear of engine)
• G451 (behind left center of dash)
• Gauge control module
• Hot at all times
• Hot in on or start
• Ig1
• Igp1
• Igp2
• Illumination control circuit
• Input shaft (mainshaft) speed sensor (right rear of transaxle)
• J/c c105 (left rear of engine)
• J/c c106 (left rear of engine)
• J/c c107 (behind glove box)
• Lg1
• Lg2
• Lsa
• Lsb
• Lsc
• Map
• Map sensor (left side of intake manifold)
• Mrly
• Multiplex control unit
• Op2sw
• Op3sw
• Output shaft (countershaft) speed sensor (right front of transaxle)
• Pg1
• Pg2
• Pnk
• Red
• Sg1
• Sg2
• Sha
• Shb
• Shc
• Shd
• She
• Shift control solenoid valves
• Starter cut relay
• Switched b+
• Transmission housing
• Under-dash fuse/relay box (behind left side of dash, right of steering column)
• Underhood fuse/relay box (left rear of engine compartment)
• Vcc1
• Vcc2
