Электросхемы СИСТЕМА КРУИЗКОНТРОЛЯ Ford Explorer Limited 2012

СИСТЕМА КРУИЗКОНТРОЛЯ

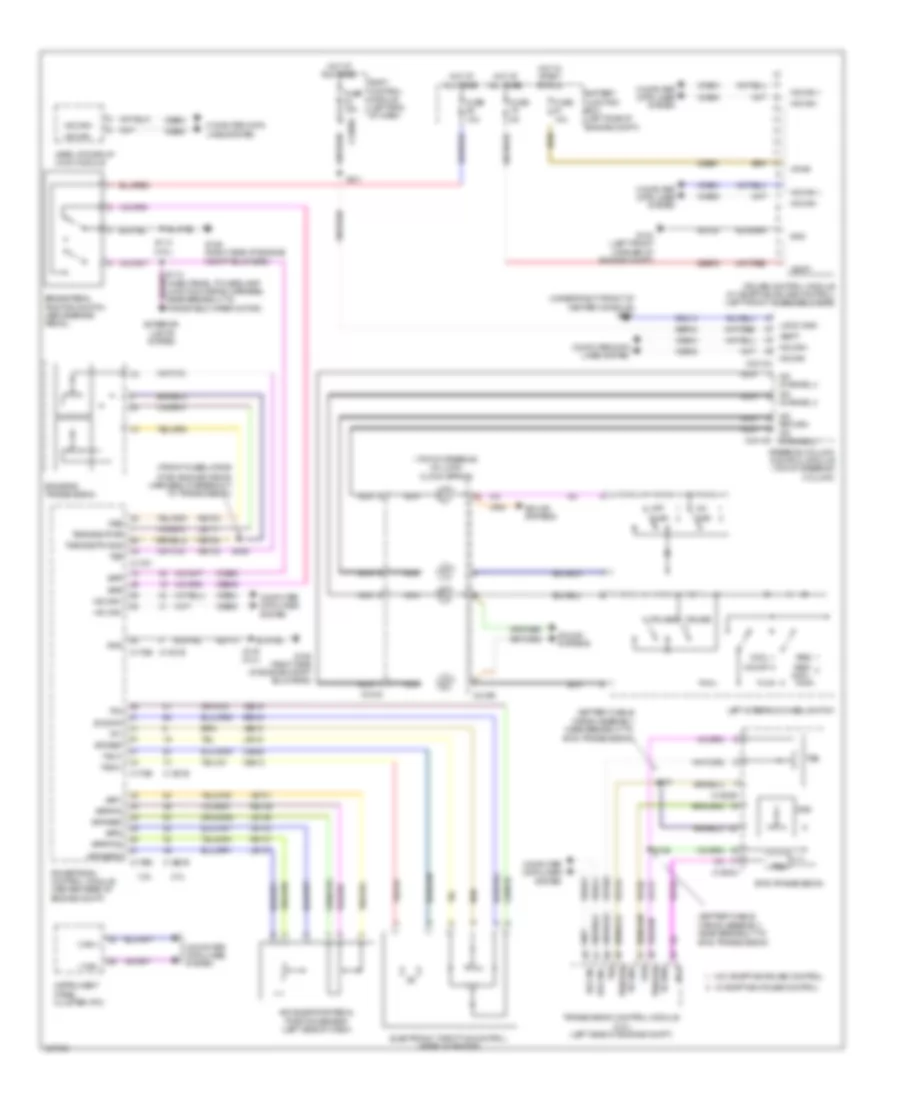

Электросхема системы круизконтроля для Ford Explorer Limited 2012

Электросхема системы круизконтроля для Ford Explorer Limited 2012 - Список элементов:

132

• (battery cable
• (front wheel drive
• (fwd) engine wiring harness, in breakout to transmission)
• (top of steering column) clock spring
• (under right front of center console) g201
• 2.0l
• 3.5l
• 6f35 transmission
• 6f50/6f55 transmission
• A/d
• A/d channel 2
• A/d channel 4
• Accelerator pedal position sensor (left side of dash)
• App1
• App2
• Apprtn
• Apprtn2
• Appverf2
• Appvref
• Battery junction box (left side of engine compt)
• Body control module (left end of dash)
• Bpp
• Bps
• Brake pedal position switch (above brake pedal)
• C1381b
• C1381e
• C1520a
• C1520b
• C175b
• C175e
• C175t
• C218b
• C218c
• C2280a
• C2414a
• C2414d
• Cbb91
• Ccb08
• Ce412
• Ce426
• Ces09
• Channel 3
• Cncl
• Computer data lines system
• Cruise +
• Cruise -
• Cruise control module (w/ adaptive cruise control) (left front of engine compt)
• Electronic throttle control (rear of engine)
• Etcref
• Etcrtn
• Exterior lights system
• Fuse 10a
• Fuse 15a
• Fuse 5a
• G103 (left front corner of engine compt)
• G106 (right side of engine compt bulkhead)
• Gap+
• Gap-
• Gd113
• Gd120
• Gd214
• Gnd
• Head up display (hud) module
• Hot at all times
• Hot in start or run
• Hs can +
• Hs can -
• Hs can+
• Hs can-
• I can +
• I can -
• Instrument panel cluster (ipc)
• Le111
• Le134
• Le136
• Le137
• Left steering wheel switch
• Logic gnd
• Nca
• Off
• On/off
• Oss
• Powertrain control module (center rear of engine compt)
• Re134
• Re136
• Re137
• Res
• Res/ cncl
• Ret04
• Ret24
• Ret33
• Return
• S106
• S107
• S112 (dash panel to headlamp junction wiring harness, near breakout to windshield wiper motor)
• S114 (3.5l)
• S116 (2.0l)
• S159
• S211
• Sbb79
• Sbp23
• Sound systems
• Steering column control module (top of steering column)
• Tacm+
• Tacm-
• Tp1
• Tp2
• Tr gnd tss/oss/
• Tr pwr tss/oss/
• Tr-p
• Transmission control module (2.0l) (left side of engine compt)
• Trs
• Tss
• Tss/oss/tr gnd
• Tss/oss/vpwr
• Vbatt
• Vdb04
• Vdb05
• Vdbo4
• Vdbo5
• Ve701
• Ve702
• Ve818
• Ve819
• Vet26
• Vet32
• Vet333
• Vpwr
• W/ adaptive cruise control
• W/o adaptive cruise control
• Wiring assembly near breakout to 6f35 transmission)
• Wiring assembly, near breakout to 6f35 transmission)
