Электросхемы СИСТЕМЫ ПАМЯТИ Oldsmobile Bravada 2002

СИСТЕМЫ ПАМЯТИ

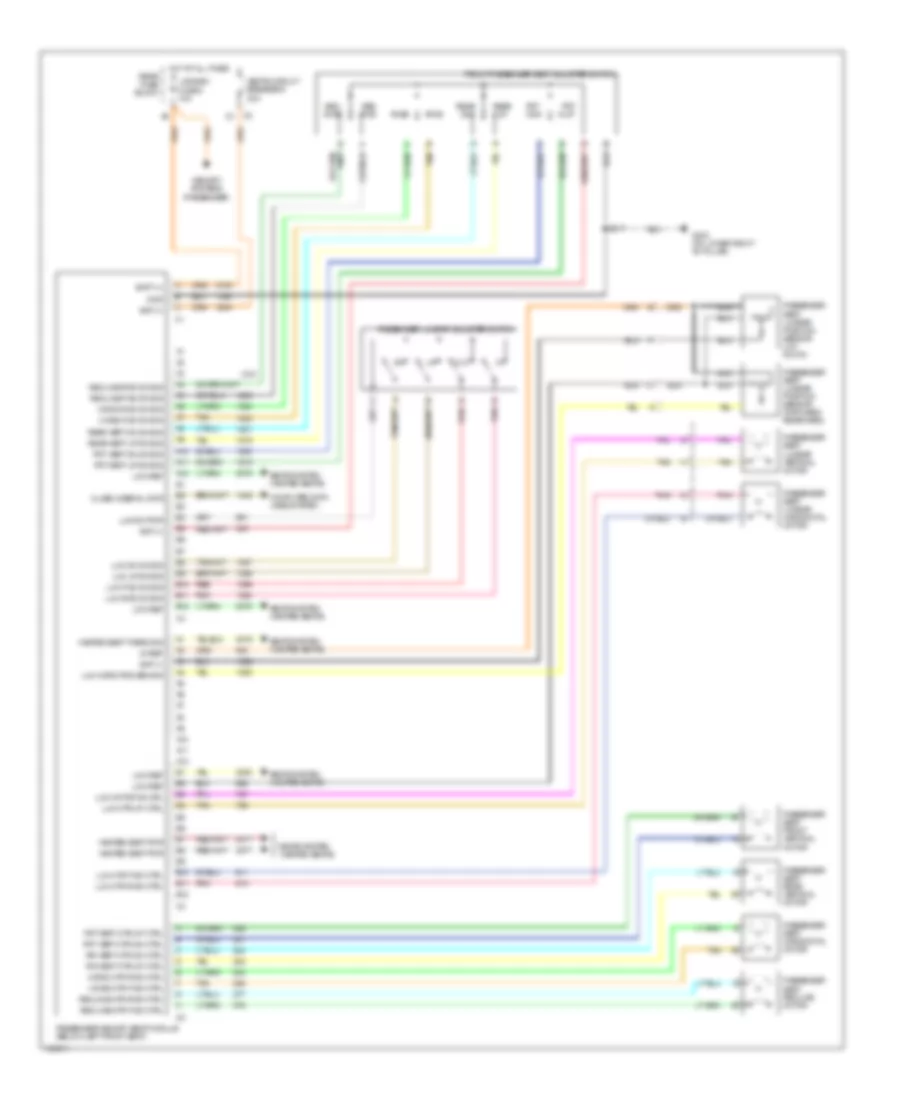

Электросхема памяти сидений водителя для Oldsmobile Bravada 2002

Электросхема памяти сидений водителя для Oldsmobile Bravada 2002 - Список элементов:

85

• (below driver's seat) s313
• 5v ref
• A10
• A11
• A12
• B10
• B11
• B12
• Bat (+)
• Batt (+)
• C2 c1
• Class 2 serial data
• Computer data lines system
• D tan
• Driver lumbar adjuster switch
• Driver memory seat module (below left front seat)
• Driver seat adjuster switch
• Driver seat front position sensor
• Driver seat front vertical motor
• Driver seat horizontal motor
• Driver seat horizontal position sensor
• Driver seat lumbar horizontal motor
• Driver seat lumbar position sensor (forward/ rearward)
• Driver seat lumbar position sensor (up/ down)
• Driver seat lumbar vertical motor
• Driver seat rear position sensor
• Driver seat rear vertical motor
• Driver seat recline motor
• Driver seat recline position sensor
• Frt dn
• Frt up
• Frt vert dn sw sig
• Frt vert mtr dn ctrl
• Frt vert mtr pos sen
• Frt vert mtr up ctrl
• Frt vert up sw sig
• Fwd
• G302 (on left "b" pillar)
• Gnd
• Heated seat pwr
• Heated seat therm sig
• Horiz fwd sw sig
• Horiz mtr fwd ctrl
• Horiz mtr pos sen sig
• Horiz mtr rwd ctrl
• Horiz rwd sw sig
• Hot at all times
• Lgm/dsm fuse 6 10a
• Low ref
• Lum dn sw sig
• Lum fwd sw sig
• Lum horiz pos sen sig
• Lum motor dn crl
• Lum mtr fwd ctrl
• Lum mtr rwd ctrl
• Lum mtr up ctrl
• Lum rwd sw sig
• Lum sw pwr
• Lum up sw sig
• Memory systems (passenger)
• Nca
• Out
• Pnk
• Rear dn
• Rear fuse block
• Rear up
• Rear vert dn sw sig
• Rear vert up sw sig
• Rec fwd
• Rec rwd
• Recline fwd sw sig
• Recline mtr fwd ctrl
• Recline mtr pos sen sig
• Recline mtr rwd ctrl
• Recline rwd sw sig
• Red
• Rr vert mtr dn ctrl
• Rr vert mtr up ctrl
• Rwd
• S302
• S314
• Seats circuit breaker 8 30a
• Seats system (heated seats)
• Tan
• Vert mtr pos sen sig

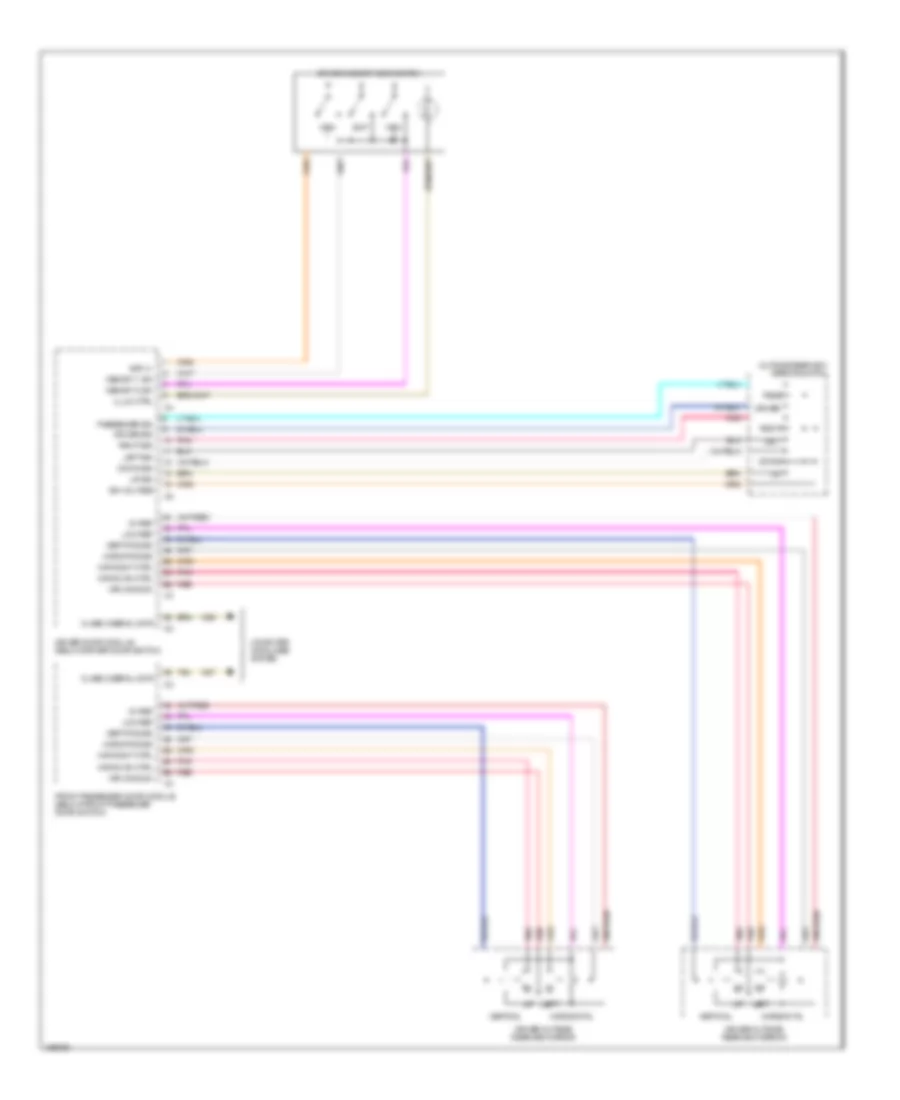

Электросхем памяти регулировки зеркал заднего вида для Oldsmobile Bravada 2002

Электросхем памяти регулировки зеркал заднего вида для Oldsmobile Bravada 2002 - Список элементов:

37

• 5v ref
• Bat (+)
• Class 2 serial data
• Computer data lines system
• Down
• Down sig
• Driver
• Driver door module (below driver door switch)
• Driver memory seat switch
• Driver outside rearview mirror
• Driver sig
• Exit
• Front passenger door module (below front passenger door switch)
• Horiz pos sig
• Horizontal
• Ign voltage
• Illum ctrl
• Left
• Left sig
• Low ref
• Mem
• Memory 1 sw
• Memory 2 sw
• Mir common
• Mir down ctrl
• Mir right ctrl
• Outside rearview mirror switch
• Pass
• Passenger sig
• Pnk
• Red
• Right
• Right sig
• Tan
• Up sig
• Vert pos sig
• Vertical

Электросхема памяти сидений пассажира для Oldsmobile Bravada 2002

Электросхема памяти сидений пассажира для Oldsmobile Bravada 2002 - Список элементов:

75

• 5v ref
• A10
• A11
• A12
• B10
• B11
• B12
• Bat (+)
• Batt (+)
• C2 d1
• Class 2 serial data
• Computer data lines system
• D tan
• Front passenger seat adjuster switch
• Frt dn
• Frt up
• Frt vert dn sw sig
• Frt vert mtr dn ctrl
• Frt vert mtr up ctrl
• Frt vert up sw sig
• Fwd
• G303 (on lower right "b" pillar)
• Gnd
• Heated seat pwr
• Heated seat therm sig
• Horiz fwd sw sig
• Horiz mtr fwd ctrl
• Horiz mtr rwd ctrl
• Horiz rwd sw sig
• Hot at all times
• Lgm/dsm fuse 6 10a
• Low ref
• Lum dn sw sig
• Lum fwd sw sig
• Lum horiz pos sen sig
• Lum motor dn crl
• Lum mtr fwd ctrl
• Lum mtr rwd ctrl
• Lum mtr up ctrl
• Lum rwd sw sig
• Lum sw pwr
• Lum up sw sig
• Memory systems (passenger)
• Nca
• Out
• Passenger lumbar adjuster switch
• Passenger memory seat module (below left front seat)
• Passenger seat front vertical motor
• Passenger seat horizontal motor
• Passenger seat lumbar horizontal motor
• Passenger seat lumbar position sensor (forward/ rearward)
• Passenger seat lumbar position sensor (up/ down)
• Passenger seat lumbar vertical motor
• Passenger seat rear vertical motor
• Passenger seat recline motor
• Pnk
• Rear dn
• Rear fuse block
• Rear up
• Rear vert dn sw sig
• Rear vert up sw sig
• Rec fwd
• Rec rwd
• Recline fwd sw sig
• Recline mtr fwd ctrl
• Recline mtr rwd ctrl
• Recline rwd sw sig
• Red
• Rr vert mtr dn ctrl
• Rr vert mtr up ctrl
• Rwd
• S317
• Seats circuit breaker 8 30a
• Seats system (heated seats)
• Tan
