Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК GMC Sierra 1500 2000

ЦЕНТРАЛЬНЫЙ ЗАМОК

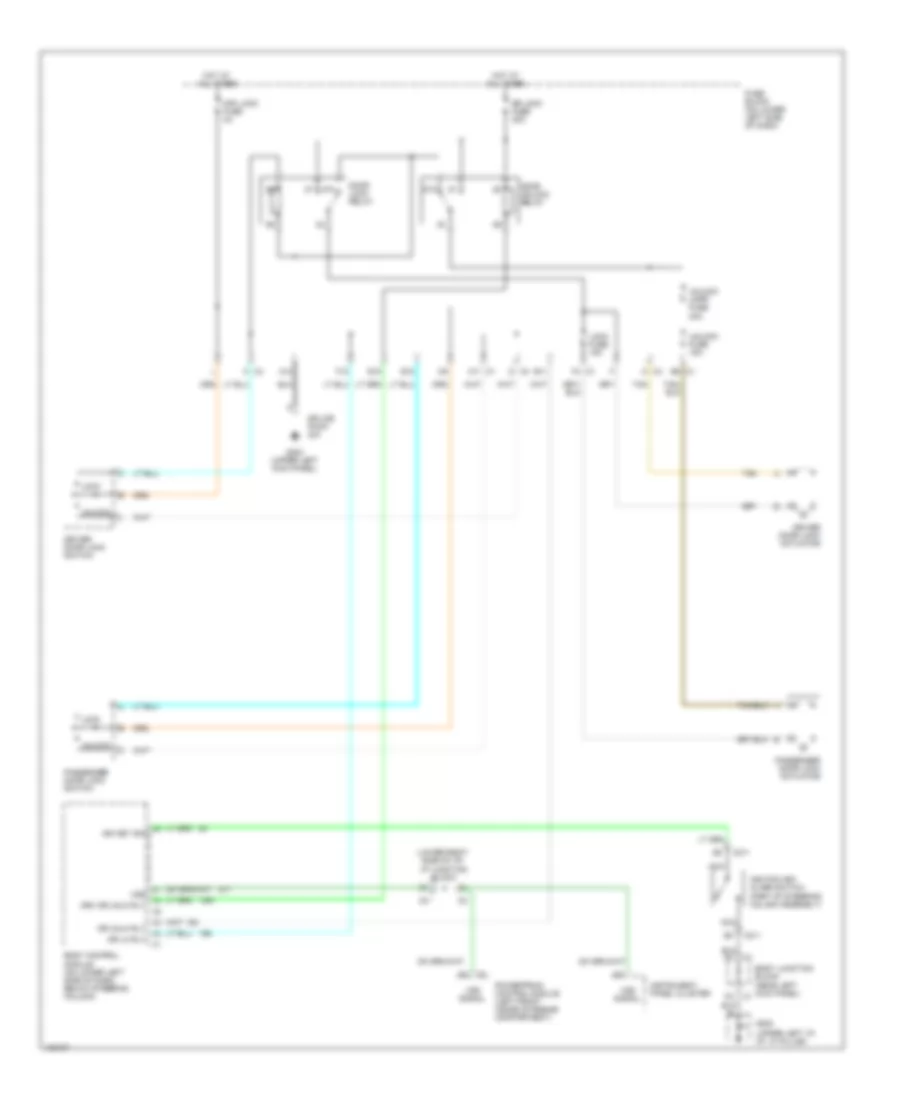

Электросхема центрального замка, стандартная комплектация для GMC Sierra 1500 2000

Электросхема центрального замка, стандартная комплектация для GMC Sierra 1500 2000 - Список элементов:

46

• (lower right side of i/p) i/p junction block
• (upper left i/p, at "a" pillar)
• 87a
• A12
• B11
• B12
• Body control module (on lower left side of dash, below steering column)
• Body junction block (near left kick panel)
• C1 a11
• C1 b8
• C1 f4
• C211
• C4 a
• C4 d
• C4 m
• Door lock relay
• Door unlock relay
• Dr lk rly
• Dr lock fuse 20a
• Dr unlk rly
• Driver door lock actuator
• Driver door lock switch
• Drv dr unlk rly
• E10
• F12
• Fuse block (on lower left side of dash)
• G200
• G200 (upper left kick panel)
• Hot at all times
• Ign key sig
• Ignition key alarm switch (part of steering column assembly)
• Instrument panel cluster
• Lock
• Lock fuse 15a
• Mir/ lock fuse 3a
• Nca
• Passenger door lock actuator
• Passenger door lock switch
• Powertrain control module (left front inside of engine compartment)
• Splice pack
• Tan
• Unlock
• Unlock fuse 15a
• Unlock jmpr fuse 30a
• Vss
• Vss signal

Электросхема центрального замка, Высокая конфигурация для GMC Sierra 1500 2000

Электросхема центрального замка, Высокая конфигурация для GMC Sierra 1500 2000 - Список элементов:

58

• (lower right side of i/p) i/p junction block
• (upper left kick panel)
• 87a
• A12
• B11
• B12
• Battery
• Body control module (on lower left side of dash, below steering column)
• Body junction block (near left kick panel)
• C1 a11
• C1 a12
• C1 b8
• C1 f2
• C1 f4
• C11
• C211
• C4 a
• C4 d
• C4 m
• Door lock relay
• Door unlock relay
• Dr lock fuse 20a
• Driver door lock actuator
• Driver door unlock relay
• Driver window/door lock switch
• E10
• F10
• F12
• Fuse block (on lower left side of dash)
• G200
• G200 (upper left kick panel)
• Ground
• Hot at all times
• I/p junction block (on lower right side of i/p)
• Ign key switch
• Ignition key alarm switch (part of steering column assembly)
• Instrument panel cluster
• Lf dr unlk in
• Lock
• Lock fuse 15a
• Lock in
• Mir/lock fuse 3a
• Nca
• Passenger door lock actuator
• Passenger window/door lock switch
• Powertrain control module (left front inside of engine compartment)
• Remote control door lock receiver (behind top center of dash)
• Serial data
• Splice pack
• Srl data
• Tan
• Tbc fuse 10a
• Underhood junction block (on left side of engine compt)
• Unlock
• Unlock fuse 15a
• Unlock in
• Vss
• Vss signal
