Электросхемы СИСТЕМЫ ПАМЯТИ GMC Cab amp; Chassis Sierra 3500 2006

СИСТЕМЫ ПАМЯТИ

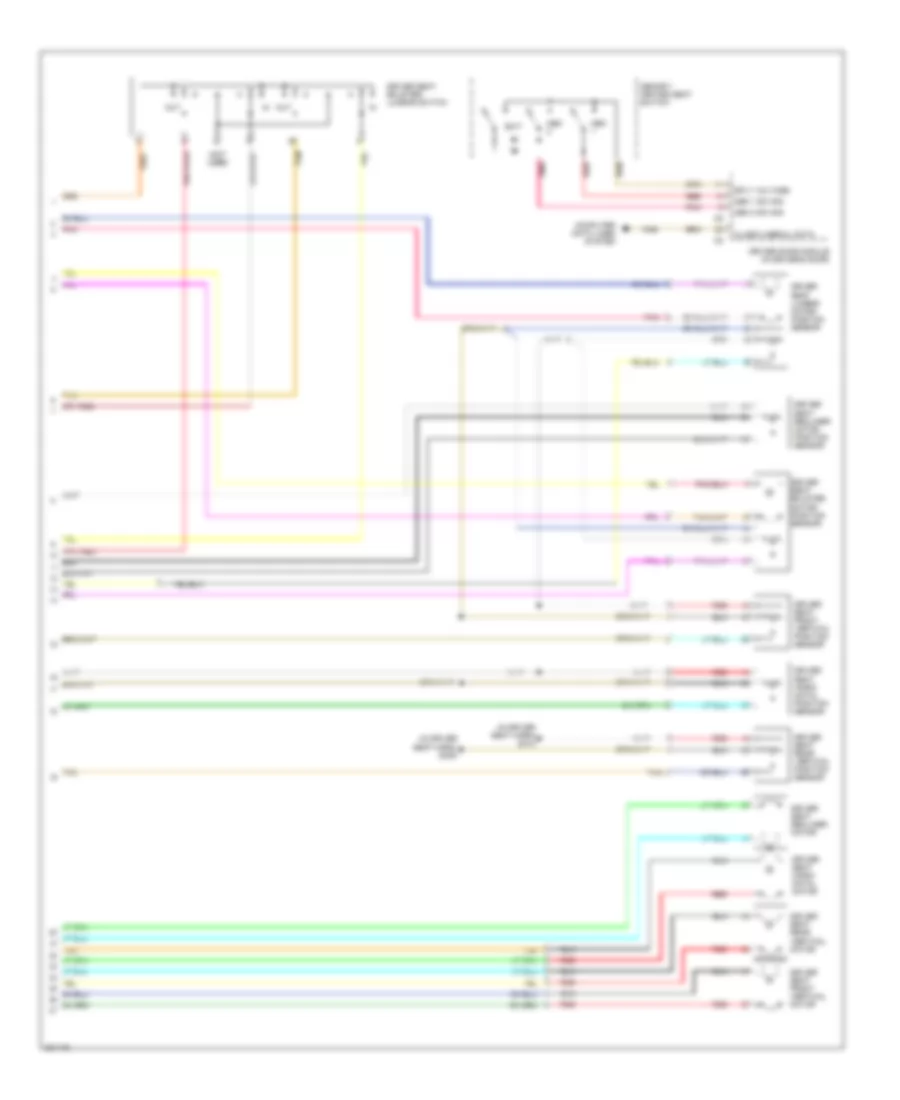

Электросхем памяти регулировки зеркал заднего вида для GMC Cab amp; Chassis Sierra 3500 2006

Электросхем памяти регулировки зеркал заднего вида для GMC Cab amp; Chassis Sierra 3500 2006 - Список элементов:

48

• 5 volt ref
• Battery
• Class 2 serial data
• Computer data lines system
• Ddm fuse 15a
• Driver door module (in driver's door)
• Driver outside rearview mirror
• Electro- chromic
• Exit
• Folding motor
• Front passenger door module (in passenger's door)
• G200 (near right "a" pillar)
• Ground
• Heating element
• Horizontal
• Hot at all times
• I/p fuse block (lower left side of dash)
• I/p junction block (lower right side of dash)
• I/p junction block (right side of dash)
• I/p relay block (near left kick panel)
• Left
• Low ref
• Lt doors circuit breaker 25a
• Mem
• Mem 1 sw sig
• Mem 2 sw sig
• Memory/ heated seat switch
• Mir htr low ref
• Mir htr sply voltage
• Mir mtr dwn ctrl
• Mir mtr extend ctrl
• Mir mtr retract ctrl
• Mir mtr rt ctrl
• Mir position sens sig
• Mir sens low ref
• Mir signal
• Mtr position sens sig
• Passenger outside rearview mirror
• Pdm fuse 10a
• Pnk
• Red
• Rt door circuit breaker 25a
• Rt/dwn mtr common
• S202
• Sply voltage
• Tan
• Vert posit sens sig
• Vertical

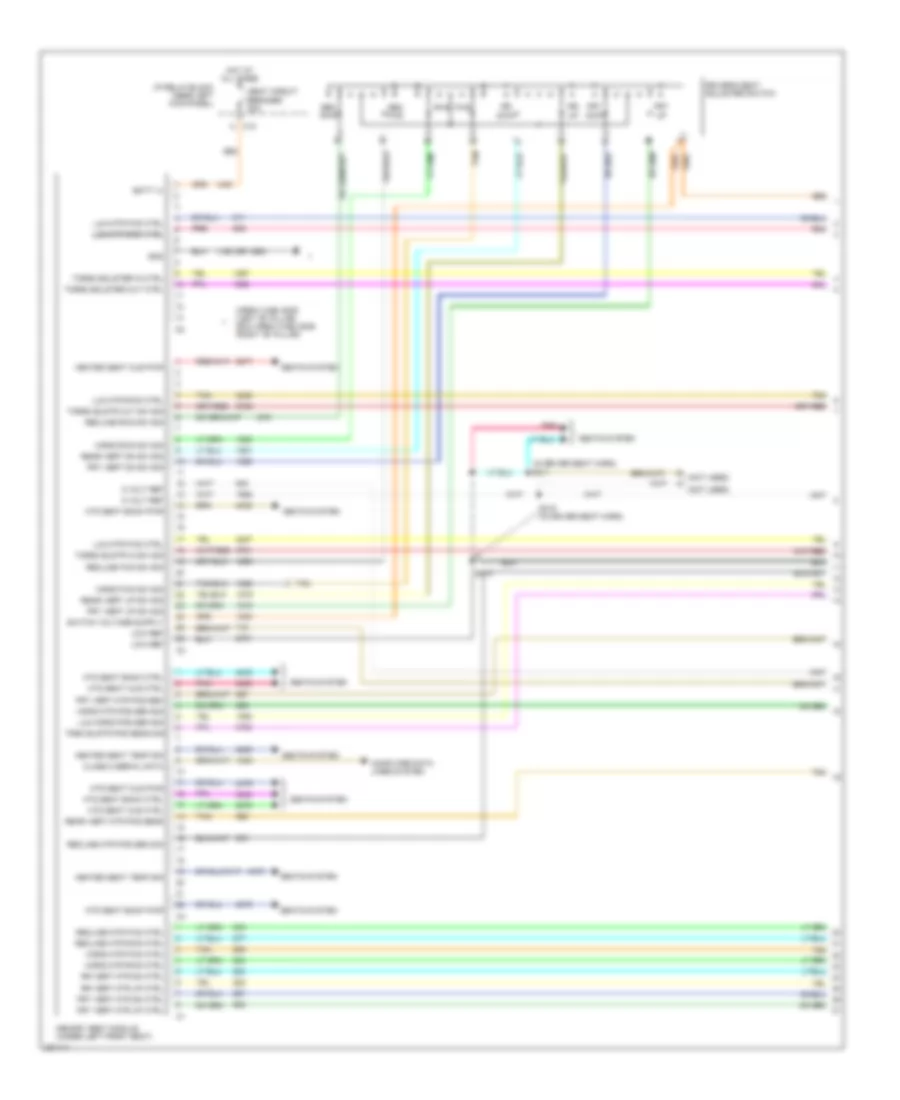

Электросхема памяти сидений (1 из 2) для GMC Cab amp; Chassis Sierra 3500 2006

Электросхема памяти сидений (1 из 2) для GMC Cab amp; Chassis Sierra 3500 2006 - Список элементов:

66

• (crew cab) g305 (left "b" pillar) (exc crew cab) g306 (right "b" pillar)
• (in driver seat harn)
• (not used)
• 1150 (or 1250)
• 5 volt ref
• Batt (+)
• C10 h
• Class 2 serial data
• Computer data lines system
• Driver's seat adjuster switch
• Frt dwn
• Frt up
• Frt vert dn sw sig
• Frt vert mtr dn ctrl
• Frt vert mtr pos sen
• Frt vert mtr up ctrl
• Frt vert up sw sig
• Fwd
• Gnd
• Heated seat cus pwr
• Heated seat temp sig
• Horiz fwd sw sig
• Horiz mtr fwd ctrl
• Horiz mtr pos sen sig
• Horiz mtr rwd ctrl
• Horiz rwd sw sig
• Hot at all times
• Htd seat back ctrl
• Htd seat back pwr
• Htd seat cus ctrl
• Htd seat cus pwr
• I/p relay block (near left kick panel)
• Low ref
• Lum horiz pos sen sig
• Lum mtr fwd ctrl
• Lum mtr rwd ctrl
• Lum mtr rwd ctrl lum mtr rwd ctrl
• Memory seat module (under left front seat)
• Pnk
• Pnk pnk
• Rear vert dn sw sig
• Rear vert mtr pos sens
• Rear vert up sw sig
• Rec fwd
• Rec rwd
• Recline fwd sw sig
• Recline mtr fwd ctrl
• Recline mtr pos sen sig
• Recline mtr rwd ctrl
• Recline rwd sw sig
• Rr dwn
• Rr up
• Rr vert mtr dn ctrl
• Rr vert mtr up ctrl
• Rwd
• S311
• S314
• S315 (in driver seat harn)
• Seat circuit breaker 30a
• Seats system
• Tan
• Torso blstr in sw sig
• Torso blstr out sw sig
• Torso bolster in ctrl
• Torso bolster out ctrl
• Trso blstr pos sens sig

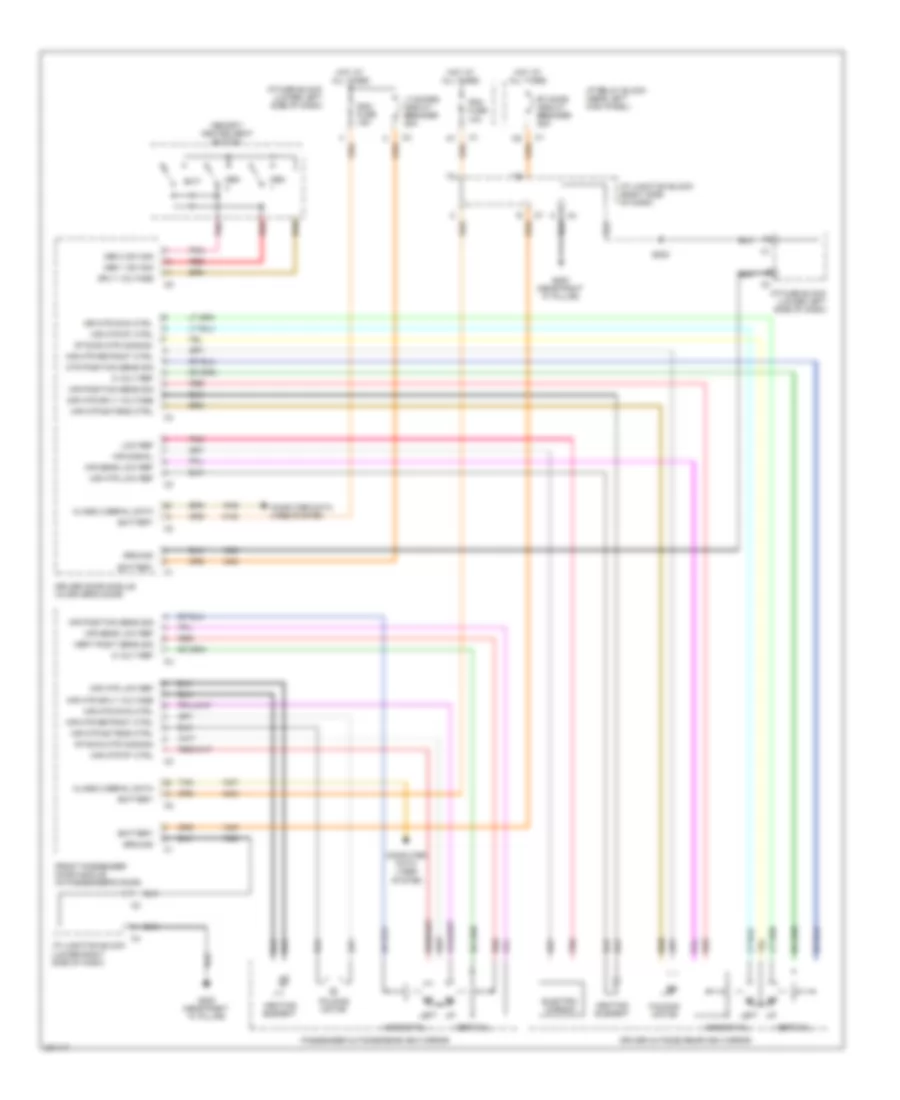

Электросхема памяти сидений (2 из 2) для GMC Cab amp; Chassis Sierra 3500 2006

Электросхема памяти сидений (2 из 2) для GMC Cab amp; Chassis Sierra 3500 2006 - Список элементов:

27

• (in driver seat harn) s309
• (in driver seat harn) s310
• C (not used)
• Class 2 serial data
• Computer data lines system
• Driver door module (in driver's door)
• Driver seat bolster motor/ position sensor
• Driver seat bolster/ lumbar switch
• Driver seat front vertical motor
• Driver seat front vertical position sensor
• Driver seat horiz- ontal motor
• Driver seat horiz- ontal position sensor
• Driver seat lumbar motor/ position sensor
• Driver seat rear vertical motor
• Driver seat rear vertical position sensor
• Driver seat recliner motor
• Driver seat recliner motor position sensor
• Exit
• Mem
• Mem 1 sw sig
• Mem 2 sw sig
• Memory/ heated seat switch
• Out
• Pnk
• Red
• Sply voltage
• Tan
