Электросхемы СИСТЕМЫ ПАМЯТИ GMC Cab amp; Chassis Sierra 3500 HD 2011

СИСТЕМЫ ПАМЯТИ

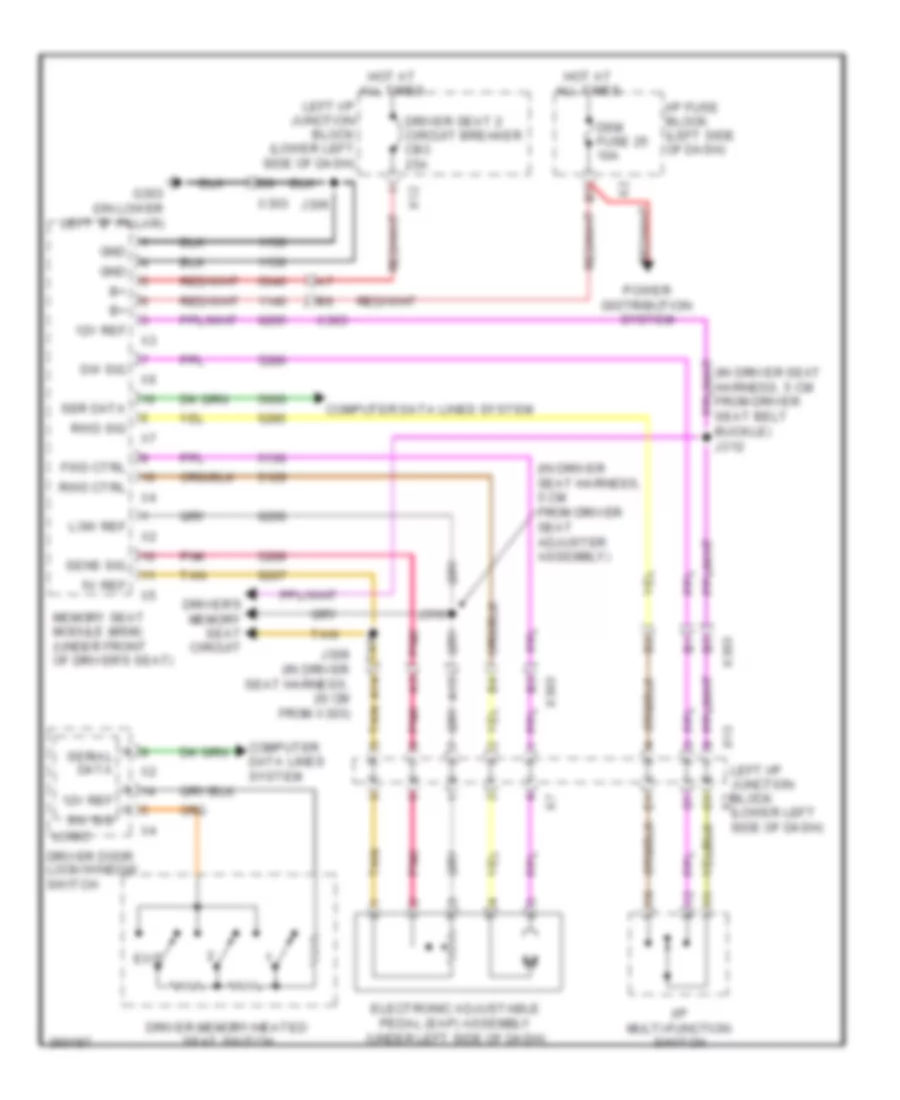

Электросхема регулировки положения педалей для GMC Cab amp; Chassis Sierra 3500 HD 2011

Электросхема регулировки положения педалей для GMC Cab amp; Chassis Sierra 3500 HD 2011 - Список элементов:

41

• (in driver seat harness, 5 cm from driver seat adjuster assembly)
• (lower left side of dash)
• 12v ref
• 5v ref
• A15
• Buckle) j312
• Computer data lines system
• Driver door lock/window switch
• Driver memory/heated seat switch
• Driver seat 2 circuit breaker cb3 25a
• Driver's memory seat circuit
• Dsm fuse 25 10a
• Electronic adjustable pedal (eap) assembly (under left side of dash)
• Exit
• Fwd ctrl
• G303 (on lower left "b" pillar)
• Gnd
• Hot at all times
• I/p fuse block (left side of dash)
• I/p multi-function switch
• J306
• J309 (in driver seat harness, 20 cm from x303)
• J310
• Left i/p junction block (lower left side of dash)
• Left i/p junction block x2
• Logic
• Low ref
• Memory seat module (msm) (under front of driver's seat)
• Pnk
• Power distribution system
• Rwd ctrl
• Rwd sig
• Sens sig
• Ser data
• Serial data
• Sw sig
• Tan
• Tan a14
• X12
• X13
• X303

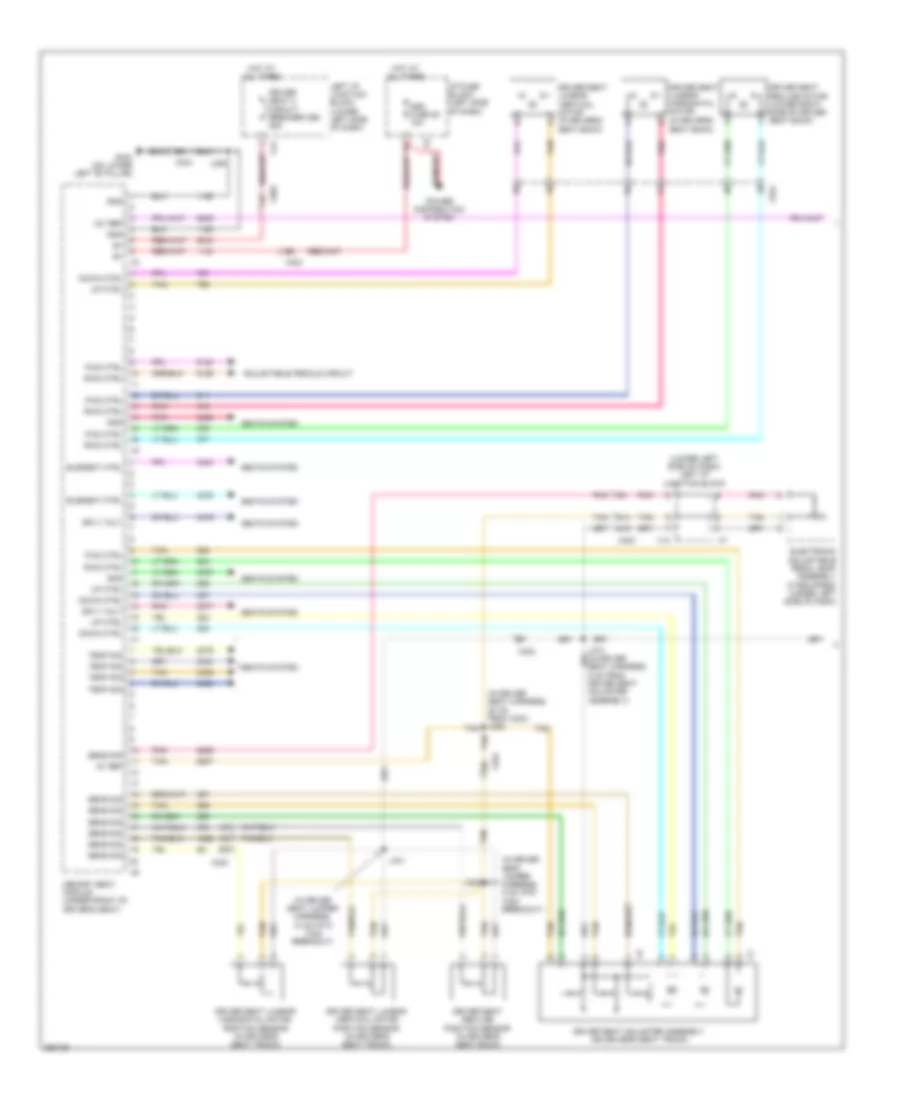

Электросхема памяти водительского сиденья (1 из 2) для GMC Cab amp; Chassis Sierra 3500 HD 2011

Электросхема памяти водительского сиденья (1 из 2) для GMC Cab amp; Chassis Sierra 3500 HD 2011 - Список элементов:

46

• (in driver seat harness, 20 cm from x303) j309
• (in driver seat jumper harness, 10 cm into x324 breakout)
• (in driver seat jumper harness, 5 cm into x324 breakout)
• (in driver's seat back)
• (lower left side of dash) left i/p junction block
• 12v ref
• 5 cm from driver seat adjuster assembly)
• 5v ref
• A14
• A15
• Adjustable pedals circuit
• Down ctrl
• Driver seat 2 circuit breaker cb3 25a
• Driver seat adjuster assembly (on driver's seat track)
• Driver seat lumbar horizontal motor
• Driver seat lumbar horizontal motor position sensor (in driver's seat track)
• Driver seat lumbar vertical motor (in driver's seat back)
• Driver seat lumbar vertical motor position sensor (in driver's seat track)
• Driver seat recline motor (lower right side of driver seat back)
• Driver seat recline position sensor (in driver's seat back)
• Dsm fuse 25 10a
• Electronic adjustable pedal (eap) assembly (if equipped) (under left side of dash)
• Element ctrl
• Fwd ctrl
• G303 (on lower left "b" pillar)
• Gnd
• Hot at all times
• I/p fuse block (left side of dash)
• J306
• J340
• J341
• Left i/p junction block (lower left side of dash)
• Memory seat module (under front of driver's seat)
• Pnk
• Power distribution system
• Rwd ctrl
• Seats system
• Sens sig
• Sply volt
• Tan
• Temp sig
• Up ctrl
• X12
• X13
• X303
• X324

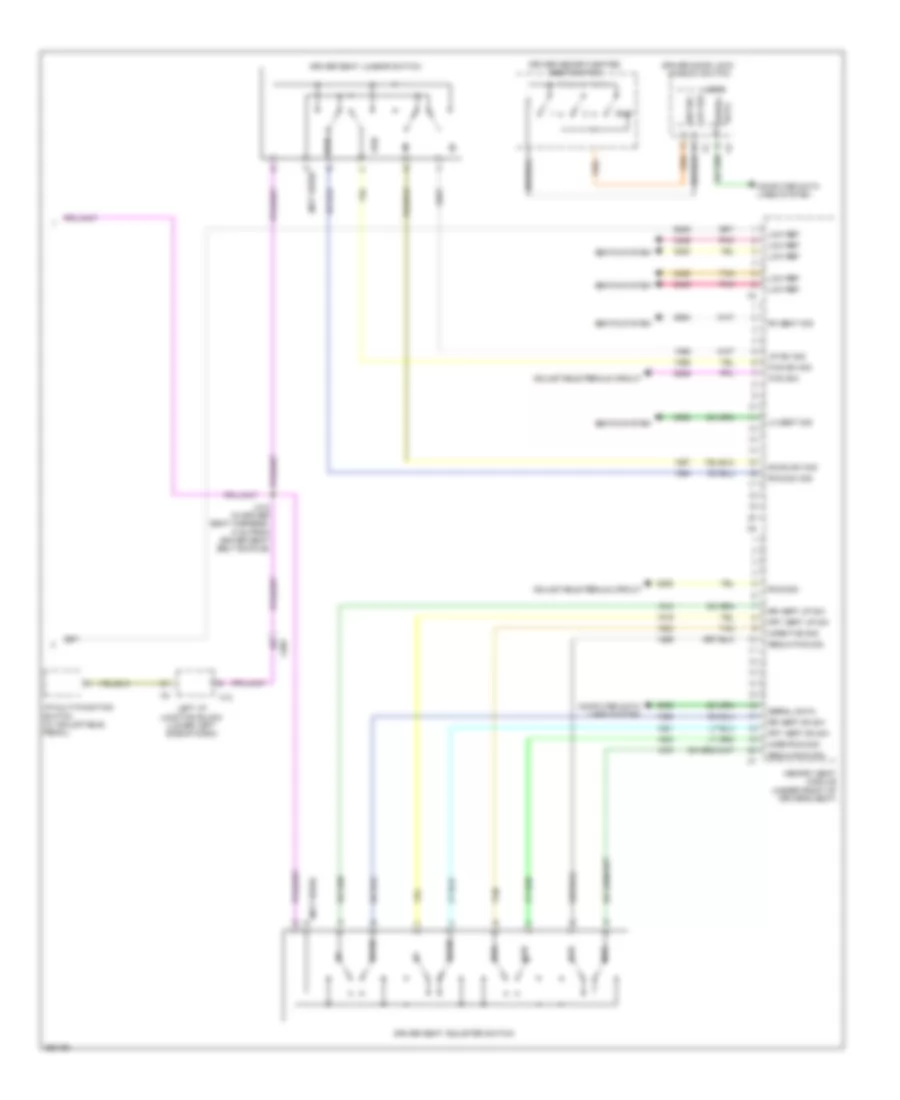

Электросхема памяти водительского сиденья (2 из 2) для GMC Cab amp; Chassis Sierra 3500 HD 2011

Электросхема памяти водительского сиденья (2 из 2) для GMC Cab amp; Chassis Sierra 3500 HD 2011 - Список элементов:

42

• (not used) b
• 12v ref
• Adjustable pedals circuit
• Computer data lines system
• Down
• Down sw sig
• Driver door lock/ window switch
• Driver memory/heated seat switch
• Driver seat adjuster switch
• Driver seat lumbar switch
• E (not used)
• Exit
• Frt vert dn sw
• Frt vert up sw
• Fwd
• Fwd sig
• Fwd sw sig
• Horz fwd sig
• Horz rwd sig
• I/p multi-function switch (w/ adjustable pedal)
• J312 (in driver seat harness, 5 cm from driver seat belt buckle)
• Left i/p junction block (lower left side of dash)
• Lh seat sig
• Logic
• Low ref
• Memory seat module (under front of driver's seat)
• Pnk
• Recln fwd sig
• Recln rwd sig
• Rh seat sig
• Rr vert dn sw
• Rr vert up sw
• Rwd
• Rwd sig
• Rwd sw sig
• Seats system
• Serial data
• Sw sig
• Tan
• Up sw sig
• X13
• X303

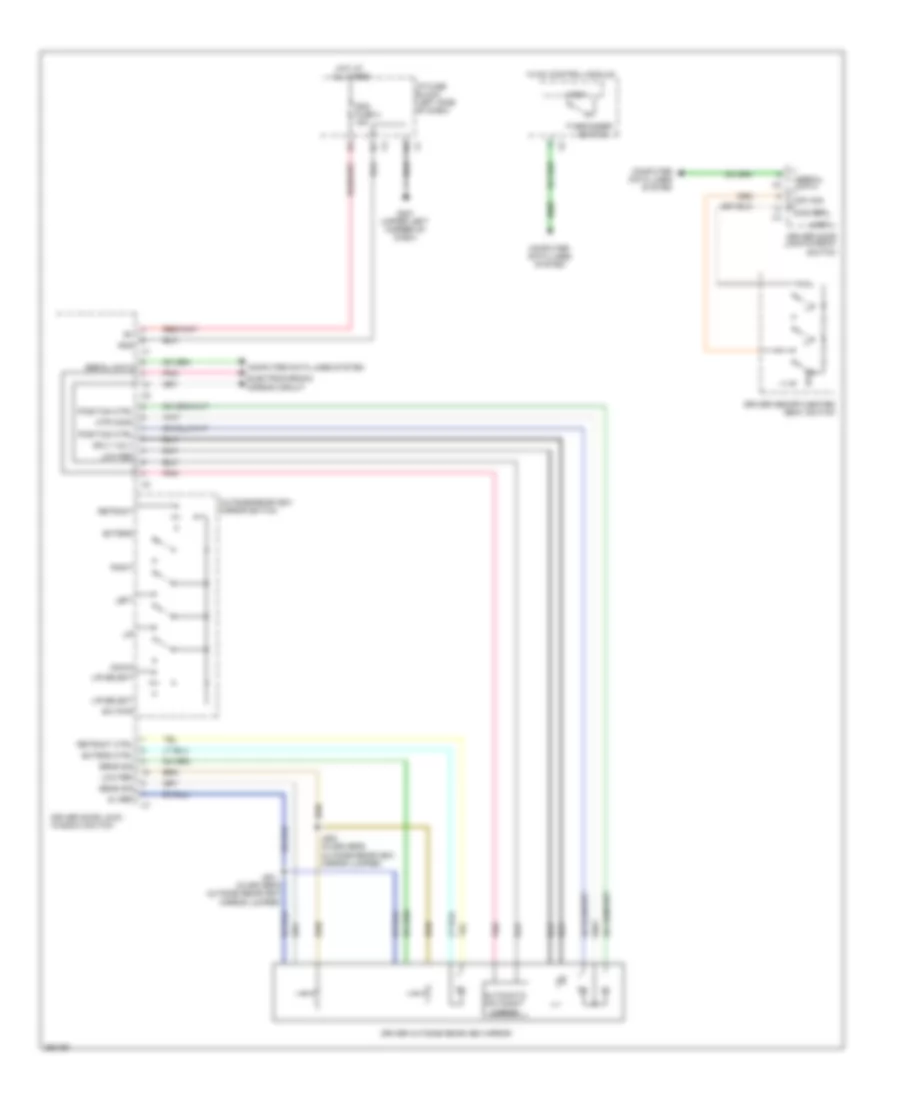

Электросхем памяти регулировки зеркал заднего вида (1 из 2) для GMC Cab amp; Chassis Sierra 3500 HD 2011

Электросхем памяти регулировки зеркал заднего вида (1 из 2) для GMC Cab amp; Chassis Sierra 3500 HD 2011 - Список элементов:

38

• 12v ref
• 5v ref
• Automatic day/night mirror
• Computer data lines system
• Ddm fuse 4 15a
• Defogger switch
• Down
• Driver door lock/ window switch
• Driver door lock/window switch
• Driver memory/heated seat switch
• Driver outside rearview mirror
• Electrochromic mirror circuit
• Exit
• Extend
• Extend ctrl
• G201 (upper left corner of dash)
• Gnd
• Hot at all times
• Hvac control module
• I/p fuse block (left side of dash)
• J500 (in driver's outside rearview mirror jumper)
• J501 (in driver's outside rearview mirror jumper)
• L/r select
• Left
• Logic
• Low ref
• Mtr comm
• Outside rearview mirror switch
• Pnk
• Position ctrl
• Retract
• Retract ctrl
• Right
• Sens sig
• Serial data
• Sply volt
• Sw pwr
• Sw sig

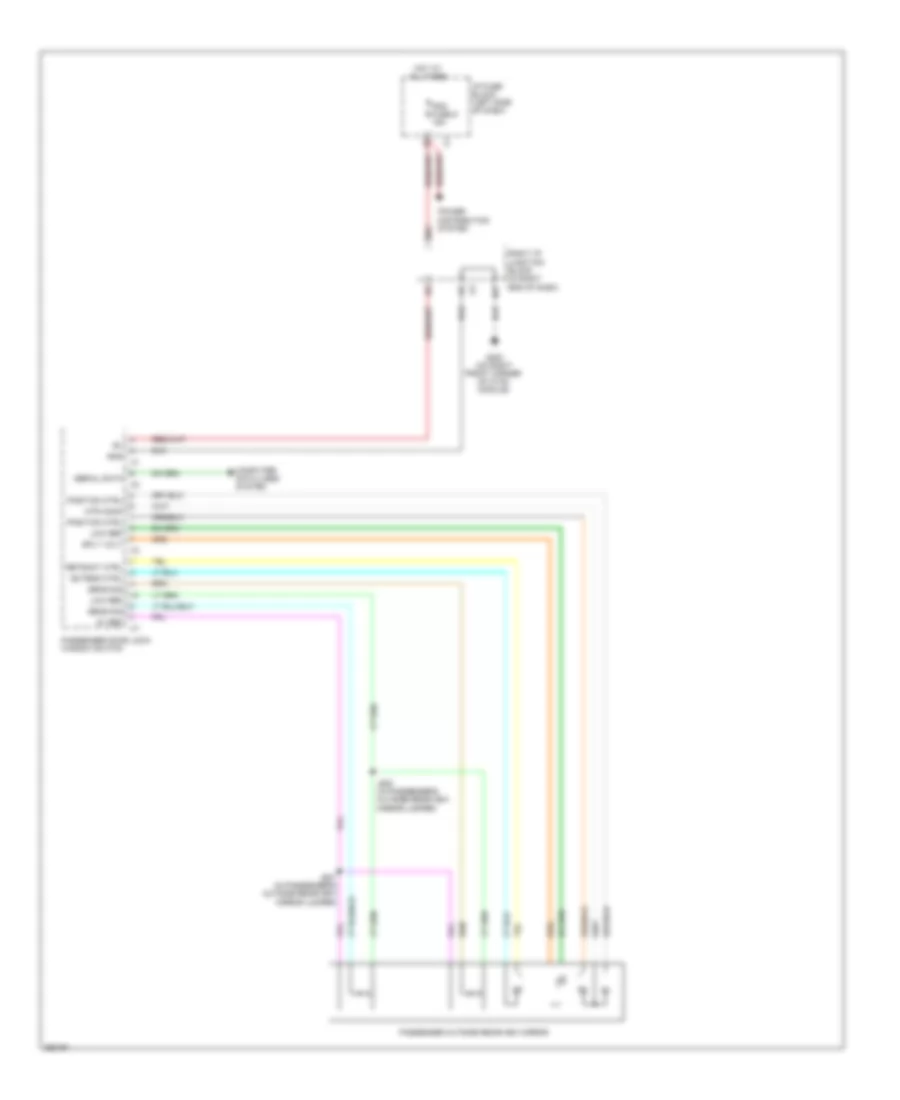

Электросхем памяти регулировки зеркал заднего вида (2 из 2) для GMC Cab amp; Chassis Sierra 3500 HD 2011

Электросхем памяти регулировки зеркал заднего вида (2 из 2) для GMC Cab amp; Chassis Sierra 3500 HD 2011 - Список элементов:

23

• 3b2
• 4a7
• 5v ref
• Computer data lines system
• Extend ctrl
• G200 (on right front corner of hvac module)
• Gnd
• Hot at all times
• I/p fuse block (left side of dash)
• J600 (in passenger's outside rearview mirror jumper)
• J601 (in passenger's outside rearview mirror jumper)
• Low ref
• Mtr comm
• Passenger door lock/ window switch
• Passenger outside rearview mirror
• Pdm fuse 9 15a
• Position ctrl
• Power distribution system
• Retract ctrl
• Right i/p junction block (in right end of dash)
• Sens sig
• Serial data
• Sply volt
