ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

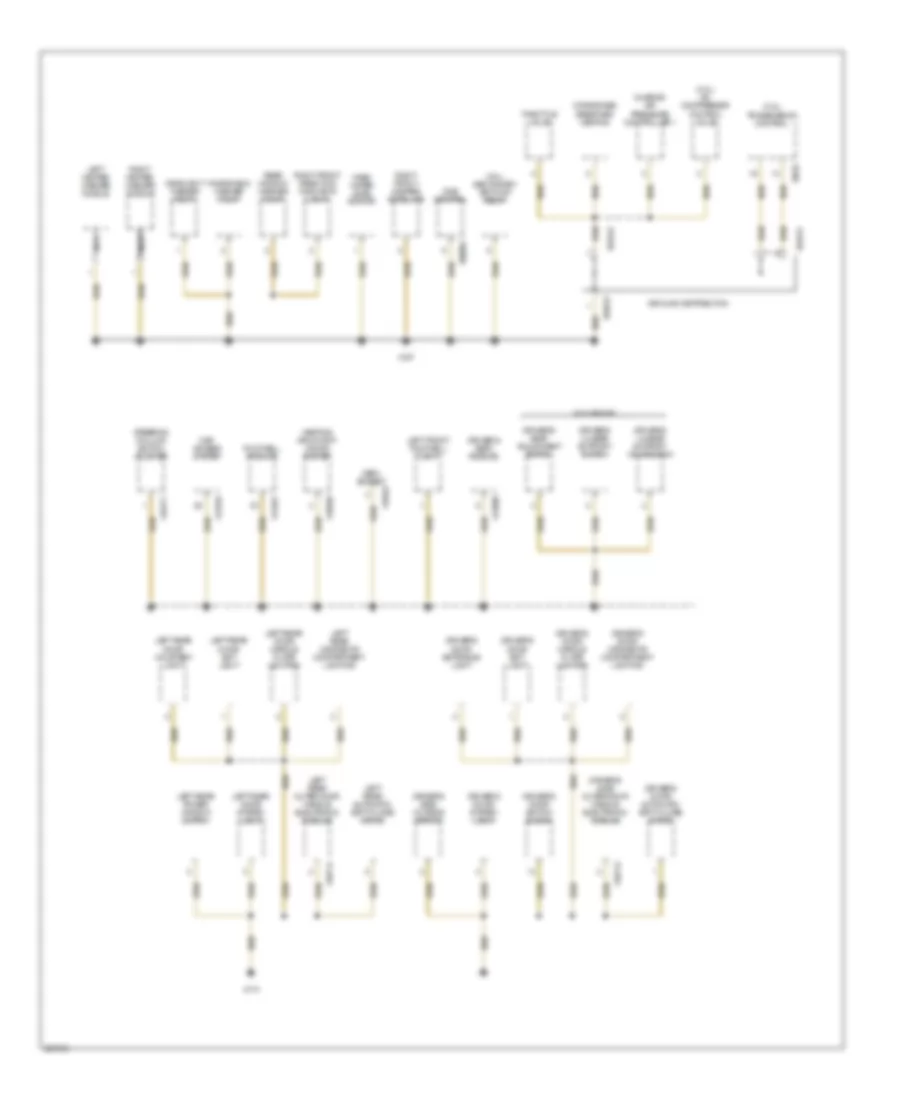

Электросхема подключение массы заземления (1 из 5) для BMW X5 30i 2008

Электросхема подключение массы заземления (1 из 5) для BMW X5 30i 2008 - Список элементов:

42

• Active steering
• Anti-theft alarm system horn
• Automatic trunk lid interior button
• Auxiliary water pump
• Fuel pump control (ekps)
• Independent auxiliary heater
• Independent heating coolant changeover valve
• Left fog light
• Left front damper satellite
• Left front direction indicator light
• Left headlight
• Left horn
• Nca
• Parking bark control module
• Reversing camera
• Reversing camera shield
• Right fog light
• Right headlight
• Right horn
• Secondary air hot-film air mass meter
• Secondary air pump
• Trailer module
• Trailer socket
• Trunk lid lift
• Trunk lid/ tailgate automatic soft-close drive
• W/ xenon headlights
• W/o xenon headlights
• Water valve
• Wiper motor
• X10375
• X13420
• X13663
• X13718
• X14088
• X14089
• X14090
• X151 (right side of rear compt floor)
• X165 (left side of engine compt)
• X166 (right side of engine compt)
• X609
• X630
• X642

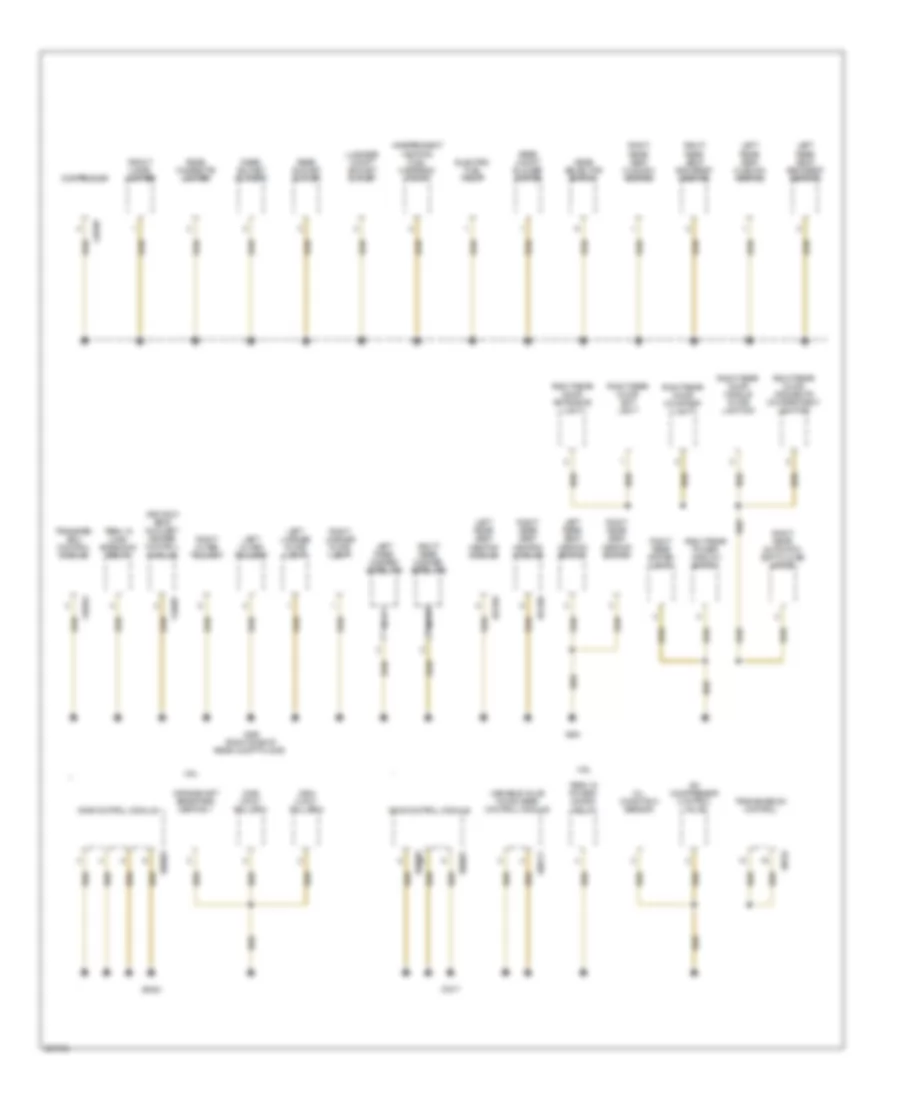

Электросхема подключение массы заземления (2 из 5) для BMW X5 30i 2008

Электросхема подключение массы заземления (2 из 5) для BMW X5 30i 2008 - Список элементов:

60

• (3.0l) a/c compressor control valve
• (3.0l) secondary air pump relay
• (3.0l) transmission control
• Car access system
• Charge- air pressure controller 1
• Crankcase breather heating
• Dme control
• Driver's door automatic soft-close drive
• Driver's door entrance light
• Driver's door exit light
• Driver's door handle plate lighting
• Driver's door oddments compartment lighting
• Driver's door switch block
• Driver's door system lock
• Driver's lumbar support switch
• Driver's lumbar support valve block
• Driver's seat adjustment switch
• Driver's seat module
• Driver's side outer door handle electronic module
• Driver's side outside mirror
• Footwell module
• Ground distribution
• Headlight washer pump
• Heating/ air condit- ioning system
• Left front footwell light
• Left heated washer nozzle
• Left rear automatic soft-close drive
• Left rear door courtesy light
• Left rear door exit light
• Left rear door handle plate lighting
• Left rear door system lock
• Left rear oddments compartment lighting
• Left rear outer door handle electronic module
• Left rear power window switch
• Nca
• Obdii socket
• Rear window washer pump
• Right front damper satellite
• Right front direction indicator light
• Right heated washer nozzle
• Steering column switch cluster
• Throttle valve
• W/o memory
• Wash water level switch
• Windshield washer pump
• X10171
• X10712
• X10714
• X13376
• X13989
• X14261
• X167
• X16826
• X173
• X19527
• X60004
• X64541
• X64542
• X64543
• X8532

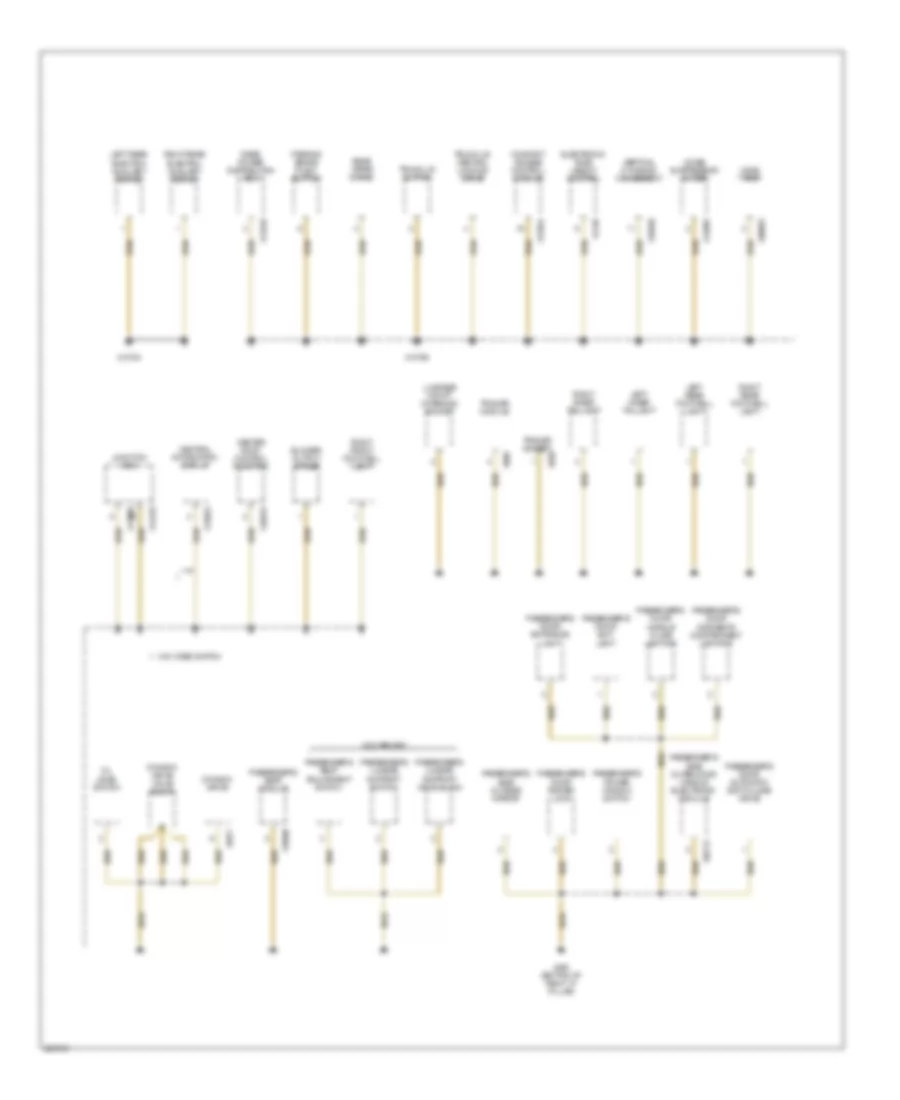

Электросхема подключение массы заземления (3 из 5) для BMW X5 30i 2008

Электросхема подключение массы заземления (3 из 5) для BMW X5 30i 2008 - Список элементов:

84

• Amplifier
• Auc sensor
• Box
• Brake fluid level switch
• Brake light switch
• Car access system
• Ccc/ m-ask
• Cd changer
• Central information display
• Coolant level switch
• Crash safety
• Digital tuner
• Driver's seat adjustment switch
• Driver's seat belt buckle contact
• Driver's seat module
• Driver's seat occupancy electronics
• Dsc sensor
• Dvd changer
• Eject box
• Footwell module
• Head-up display
• Headset socket
• Heating/ air condit- ioning system
• Hifi amplifier
• Hood contact switch
• Instrument cluster control module
• Junction
• Left headlight
• Module
• Navigation
• Nca
• Obdii socket
• Park distance control
• Passenger's seat adjustment switch
• Passenger's seat belt buckle contact
• Passenger's seat module
• Passenger's seat occupancy detection
• Rear compt air condit- ioning control module
• Rear compt display
• Rear seat enter- tainment
• Right headlight
• Satellite receiver
• Seat position sensor
• Steering column switch cluster
• Telephone transceiver
• Tire pressure control
• Trunk lid lift
• Video module
• Voice control system
• W/ video switch
• X10012 (bottom of right "a" pillar)
• X10266
• X10389
• X1108
• X13016
• X1312
• X13376
• X13420
• X13421
• X13812
• X13819
• X13821
• X13822
• X13989
• X13990
• X14062
• X14133
• X14260
• X14261
• X14272
• X1441
• X15607
• X16
• X16844
• X18034
• X18069
• X18180
• X1830
• X18773
• X1880
• X18803
• X19527
• X300
• X608

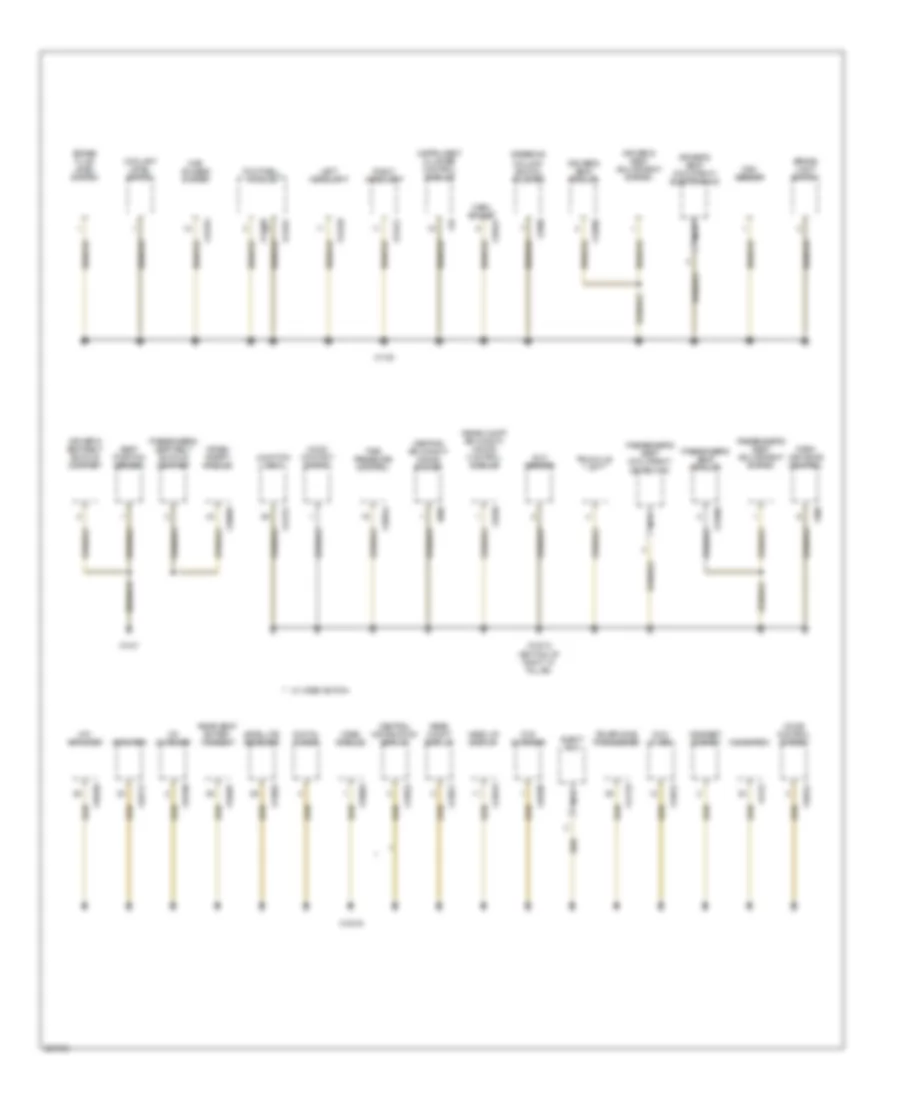

Электросхема подключение массы заземления (4 из 5) для BMW X5 30i 2008

Электросхема подключение массы заземления (4 из 5) для BMW X5 30i 2008 - Список элементов:

61

• Blower output stage
• Box
• Center roof control function
• Central information display
• Comfort access control module
• Dynamic drive
• Dynamic drive valve block
• Electronic ride height control
• Junction box
• Left inner taillight
• Left rear electric auxiliary heater
• Left rear footwell light
• Luggage compt charging socket
• Noise suppressor filter
• Oil level switch
• Parking brake push- button
• Passenger's door automatic soft-close drive
• Passenger's door entrance light
• Passenger's door exit light
• Passenger's door handle plate lighting
• Passenger's door oddments compartment lighting
• Passenger's door system lock
• Passenger's lumbar support switch
• Passenger's lumbar support valve block
• Passenger's power window switch
• Passenger's seat adjustment switch
• Passenger's seat module
• Passenger's side outer door handle electronic module
• Passenger's side outside mirror
• Rear power distribution
• Rear wiper drive
• Right front footwell light
• Right inner taillight
• Right rear electric auxiliary heater
• Right rear footwell light
• Trailer module
• Trailer socket
• Trunk lid button
• Trunk lid central locking drive
• Vertical dynamics management
• W/o memory
• W/o video switch
• Wave trap
• X10712
• X11006
• X11018
• X13354
• X13784
• X13790
• X13822
• X13990
• X14095
• X14270
• X1448
• X16815
• X16820
• X1877
• X30055
• X490 (bottom of right "a" pillar)
• X609
• X630

Электросхема подключение массы заземления (5 из 5) для BMW X5 30i 2008

Электросхема подключение массы заземления (5 из 5) для BMW X5 30i 2008 - Список элементов:

62

• 3.0l
• 3rd row seat auxiliary heater control module
• 4.8l
• A/c compressor control valve
• Controller
• Crankshaft breather heating 1
• Disa cont- roller 1
• Disa cont- roller 2
• Dme control module
• Electric fuel pump
• Front cigar lighter
• Gear selector switch
• Independent heating fuel metering pump
• Left license plate light
• Left outer taillight
• Left rear damper satellite
• Left rear seat backrest heating
• Left rear seat cushion heating
• Left rear seat heating module
• Left rear seat heating switch
• Luggage compt socket outlet
• Nca
• Oil condition sensor
• Outlet ii
• Rear cigarette lighter
• Rear compt blower motor
• Rear socket
• Rear socket outlet
• Right license plate light
• Right outer taillight
• Right rear automatic soft-close drive
• Right rear damper satellite
• Right rear door courtesy light
• Right rear door entrance light
• Right rear door exit light
• Right rear door handle plate lighting
• Right rear door oddments compartment lighting
• Right rear power window switch
• Right rear seat backrest heating
• Right rear seat cushion heating
• Right rear seat heating module
• Right rear seat heating switch
• Right rear system lock
• Term 15 load- shedding relay
• Term 15 power- saving relay
• Transfer box control module
• Transmission control
• Variable valve timing gear control module
• X01265
• X01266
• X10387
• X10594
• X16887
• X494
• X498 (right side of rear compt floor)
• X60001
• X60003
• X60005
• X60211
• X6454
• X7517
• X8532
