ВНЕШНЕЕ ОСВЕЩЕНИЕ

Электросхема заднего хода для Suzuki SX4 LE 2010

Электросхема заднего хода для Suzuki SX4 LE 2010 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file

Электросхема заднего хода для Suzuki SX4 LE 2010 - Список элементов:

  • (hatchback)
  • (sedan)
  • (sedan) (at right rear wheel well)
  • A/t
  • Back fuse 10a
  • Backup light switch (top of transmission)
  • E325
  • G19 g20 (hatchback) (base of right "d" pillar)
  • G21 (sedan: at left rear wheel well) (hatchback: base of left "d" pillar)
  • Hatchback
  • Hot in on or start
  • Junction block assembly (left side of dash)
  • L315
  • Left backup light
  • M/t
  • Red
  • Right backup light
  • Transaxle range sensor (on transaxle assembly)
  • Transmissions system

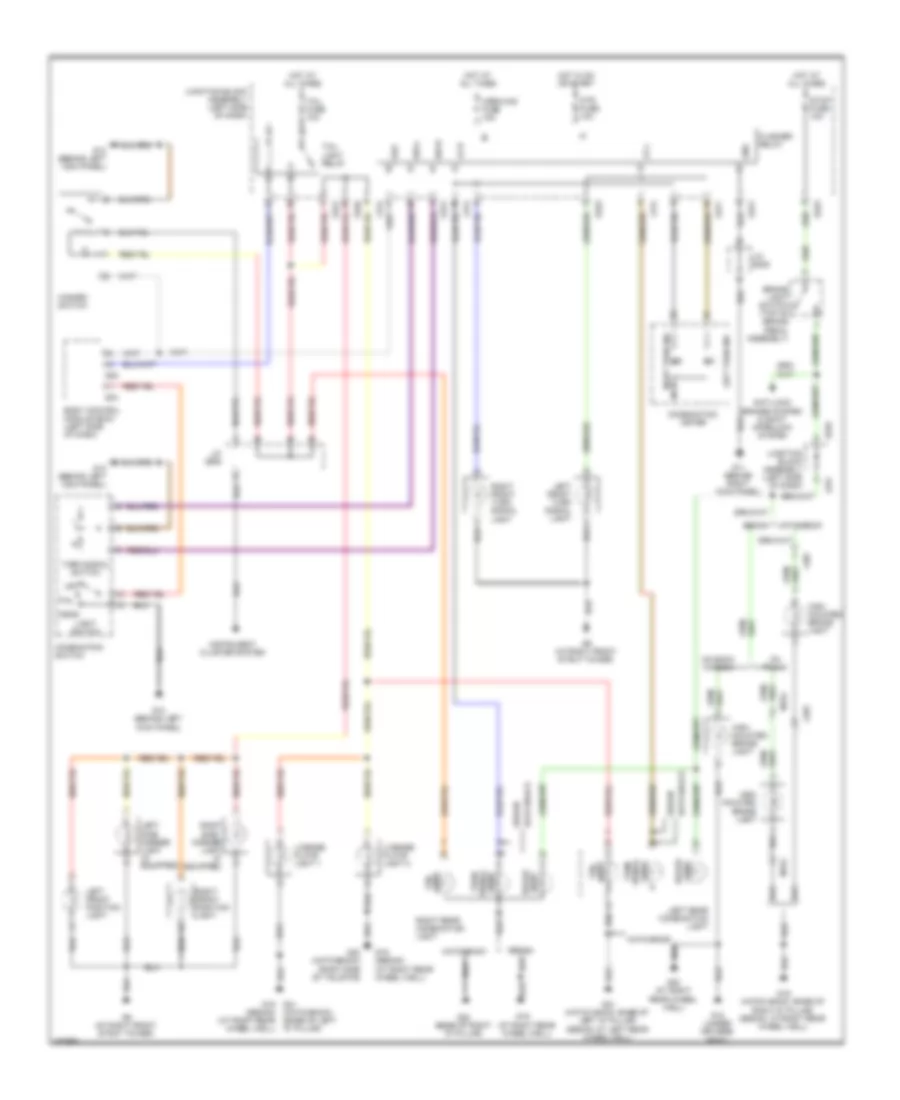

Электросхема внешнего освещения для Suzuki SX4 LE 2010

Электросхема внешнего освещения для Suzuki SX4 LE 2010 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема внешнего освещения для Suzuki SX4 LE 2010 - Список элементов:

  • (at right rear wheel well)
  • (hatchback) (base of left "d" pillar)
  • Anti-lock brakes system & shift interlock system
  • Body control module (bcm) (left side of dash)
  • Brake light switch (top of brake pedal assembly)
  • Combination
  • Combination switch
  • E323
  • E325
  • Flasher relay
  • G04
  • G05
  • G11 (behind right kick panel)
  • G13 (behind left kick panel)
  • G18 (under driver's seat)
  • G19
  • G19 (hatch back: base of right "d" pillar) (sedan: at right rear wheel well)
  • G19 (sedan) (at right rear wheel well)
  • G20 (at right rear wheel well)
  • G20 (base of right "d" pillar)
  • G21 (hatch back: base of left "d" pillar) (sedan: at left rear wheel well)
  • G21 g19 (sedan) (at right rear wheel well)
  • G23 (hatchback) (right side of tailgate)
  • G271
  • G272
  • G9 (at right front strut tower)
  • Gnd
  • Hatchback
  • Haz
  • Hazard switch
  • Head
  • High mounted brake light
  • Horn-haz fuse 15a
  • Hot at all times
  • Hot in on or start
  • Instrument cluster system
  • J/c g306
  • J/c g309
  • Junction block assembly (left side of dash)
  • L314
  • L315
  • L393
  • Left front position light
  • Left front turn signal light
  • Left rear combination light
  • Left side marker light (if equipped)
  • Left turn ind
  • License plate light 1
  • License plate light 2
  • Light brake
  • Light signal
  • Light signal turn
  • Light switch
  • Light tail
  • Lp-l
  • Lp-r
  • M152
  • Marker light (if equipped)
  • Meter
  • Mtr fuse 10a
  • Off
  • On back window
  • On trunk
  • Right
  • Right front position light
  • Right front turn signal light
  • Right rear combination light
  • Right turn ind
  • Sedan
  • Side
  • Stop fuse 10a
  • Sw-l
  • Sw-r
  • Tail
  • Tail fuse 10a
  • Tail light relay
  • Turn
  • Turn signal switch
