Электросхемы ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Mazda B4000 2005

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

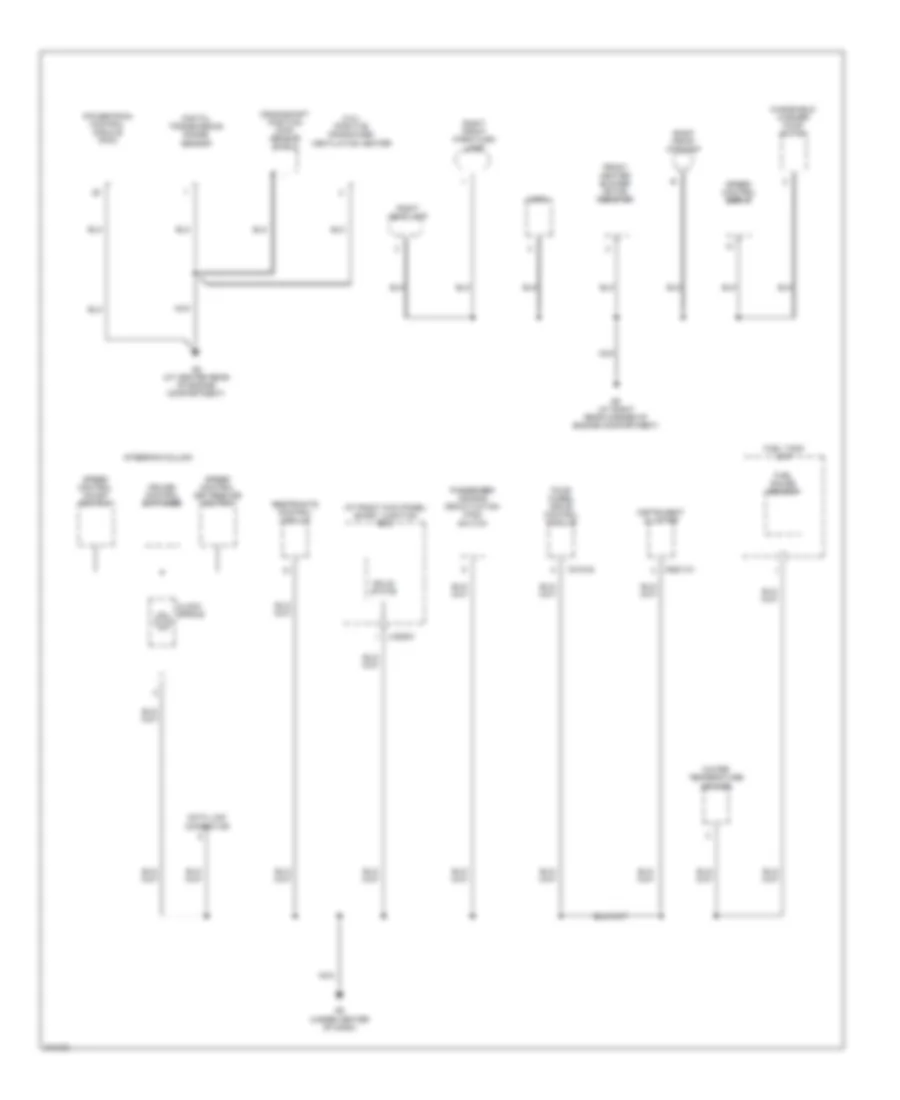

Электросхема подключение массы заземления (1 из 3) для Mazda B4000 2005

Электросхема подключение массы заземления (1 из 3) для Mazda B4000 2005 - Список элементов:

35

• (behind left headlamp) g1
• (left rear of engine compt) battery junction box
• 0740-102
• 2.3l
• A/c clutch solenoid
• A/c compressor clutch diode
• A/c high pressure switch
• Battery
• Blower motor relay
• Brake fluid level switch
• C-311
• Engine cooling fan motor
• Front function selection switch assembly
• Fuel pump
• Fuel tank unit
• G3 (at left rear corner of engine compartment)
• G4 (behind left headlamp)
• G6 (behind left headlamp)
• Left back-up lamp
• Left front foglamp
• Left front park/turn lamp
• Left headlamp
• Left license plate lamp
• Left rear stop/park lamp
• Left rear turn lamp
• Mass airflow (maf)/intake air temperature (iat) sensor
• Not used
• Pcm power relay
• Powertrain control module (pcm)
• Right back-up lamp
• Right license plate lamp
• Right rear stop/park lamp
• Right rear turn lamp
• Trailer tow connector
• Windshield wiper motor

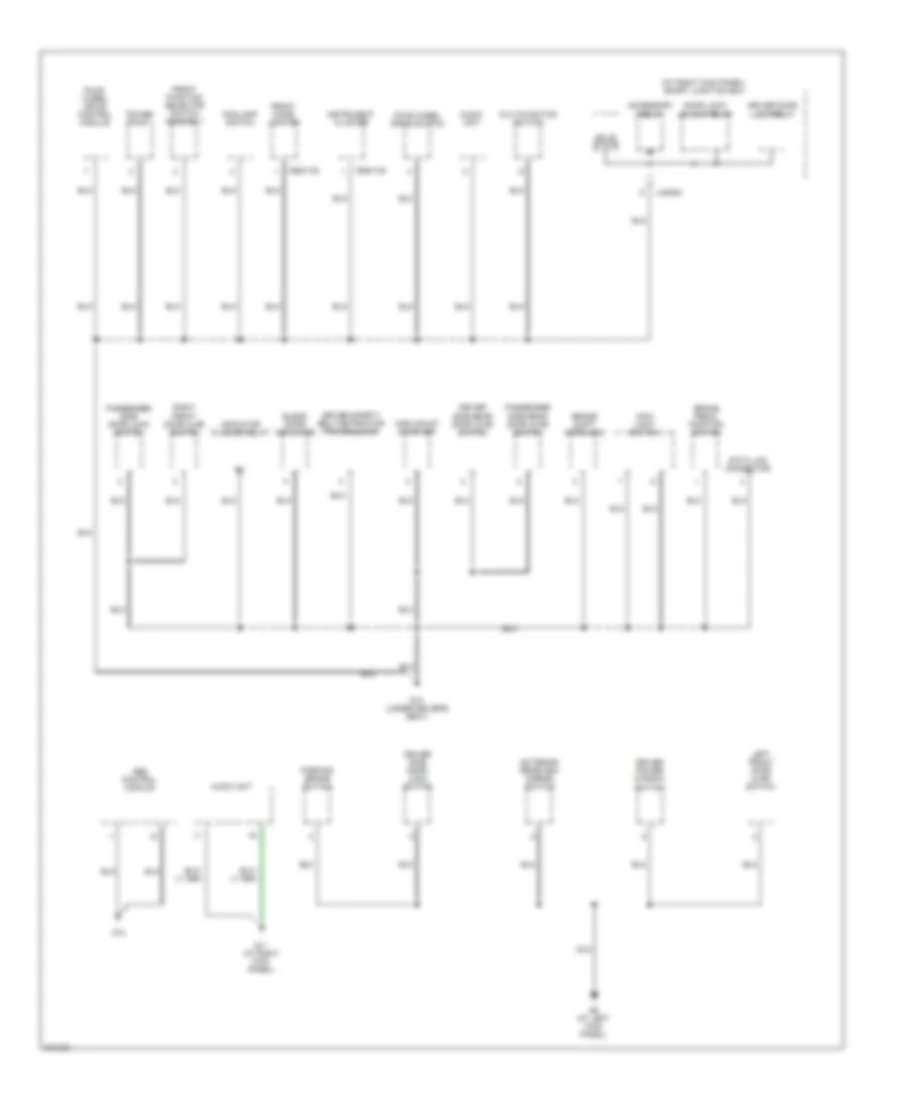

Электросхема подключение массы заземления (2 из 3) для Mazda B4000 2005

Электросхема подключение массы заземления (2 из 3) для Mazda B4000 2005 - Список элементов:

33

• (3.0l) positive crankcase ventilation heater
• (at right kick panel) smart junction box
• 0318-02
• 0922-101
• Clock spring
• Crankshaft position (ckp) sensor shield
• Cruise control switches
• Data link connector
• Digital transmission range sensor
• Four- wheel drive control module
• Front heater blower motor resistor
• Fuel gauge sensor
• Fuel tank unit
• G2 (at center rear of engine compartment)
• G5 (at right rear corner of engine compartment)
• G8 (under center of dash)
• Horn
• Instrument cluster
• J-2280c
• Nca
• Passenger air bag deactivation (pad) switch
• Powertrain control module (pcm)
• Restraints control module
• Right front foglamp
• Right front park/turn lamp
• Right headlamp
• Solid state
• Speed control on/off switch
• Speed control servo
• Speed control set/resume switch
• Steering column
• Water temperature sender
• Windshield washer pump motor

Электросхема подключение массы заземления (3 из 3) для Mazda B4000 2005

Электросхема подключение массы заземления (3 из 3) для Mazda B4000 2005 - Список элементов:

40

• (at right kick panel) smart junction box
• 0920-102
• 0922-102
• Abs control module
• Accessory relay
• Audio unit
• Blend door actuator
• Brake pedal position switch
• Brake shift interlock
• Data link connector
• Door lock/ unlock relay
• Driver door lock relay
• Driver power window switch
• Driver safety belt retractor pretensioner
• Driver side door lock switch
• Driver side rear door ajar switch
• Exterior rearview mirror switch
• Fog lamp switch
• Four wheel drive switch
• Four- wheel drive control module
• Front cigar lighter
• Front function selector switch assembly
• G10 (under driver's seat)
• G11 (at right kick panel)
• G12
• G9 (at left kick panel)
• High mount stoplamp
• Indicator flasher relay
• Instrument cluster
• J-2280c
• Left front door ajar switch
• Main light switch
• Multifunction switch
• Nca
• Parking brake switch
• Passenger side door lock switch
• Passenger side rear door ajar switch
• Power point
• Right front door ajar switch
• Solid state
