ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ

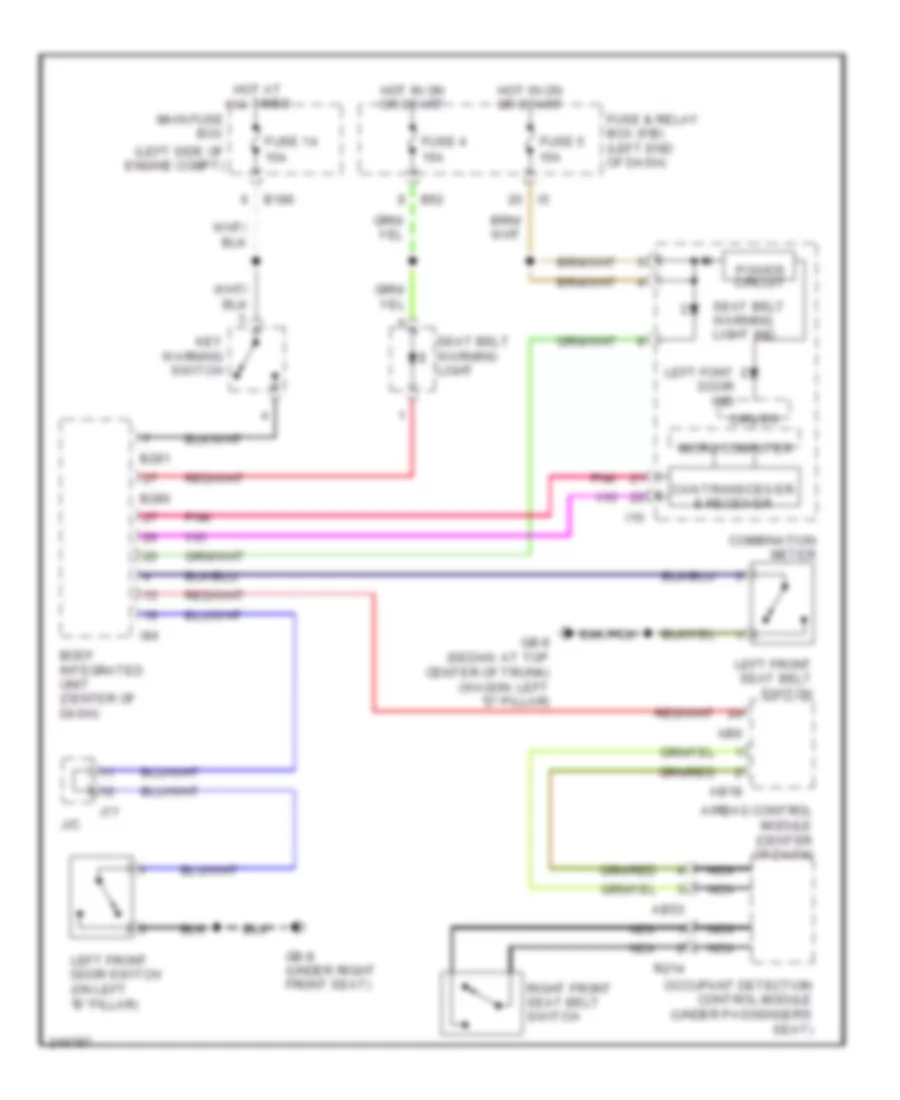

Электросхема сигнала для Subaru Legacy Limited 2005
Электросхема сигнала для Subaru Legacy Limited 2005 - Список элементов:
- (left side of engine compt)
- Ab18
- Ab53
- Ab6
- Airbag control module (center of dash)
- B186
- B280
- B281
- B52
- Body integrated unit (center of dash)
- Can transceiver & receiver
- Combination meter
- Driver
- Fuse & relay box (f/b) (left end of dash)
- Fuse 14 15a
- Fuse 4 15a
- Fuse 5 15a
- Gb-8 (under right front seat)
- Gb-9 (sedan: at top center of trunk) (wagon: left "d" pillar)
- Hot at all times
- Hot in on or start
- I10
- I77
- I84
- J/c
- Key warning switch
- Left font door ind
- Left front door switch (on left "b" pillar)
- Left front seat belt switch
- Main fuse box
- Micro computer
- Nca
- Occupant detection control module (under passenger's seat)
- Pnk
- Power circuit
- R214
- Right front seat belt switch
- Seat belt warning light
- Seat belt warning light ind

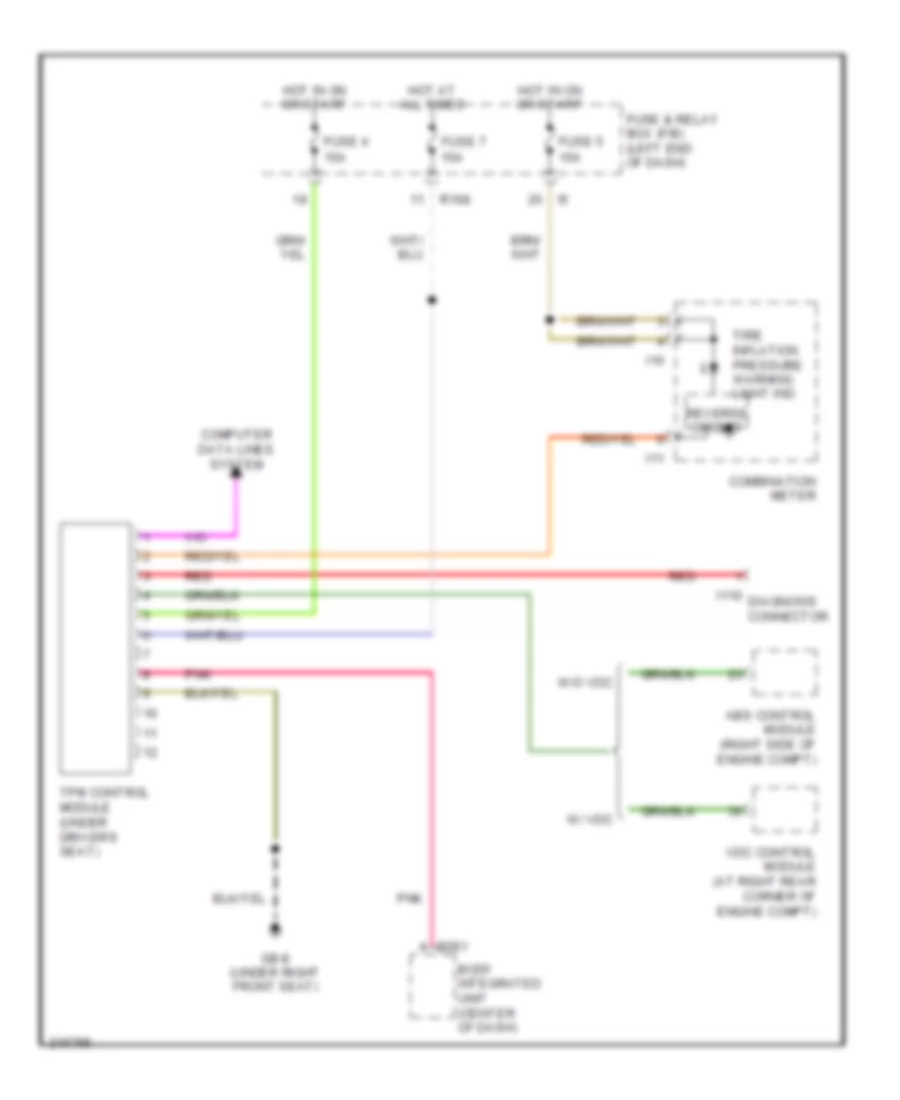

Электросхема системы контроля давления в шинах для Subaru Legacy Limited 2005
Электросхема системы контроля давления в шинах для Subaru Legacy Limited 2005 - Список элементов:
- Abs control module (right side of engine compt)
- B281
- Body integrated unit (center of dash)
- Combination meter
- Computer data lines system
- Fuse & relay box (f/b) (left end of dash)
- Fuse 4 15a
- Fuse 5 15a
- Fuse 7 15a
- Gb-8 (under right front seat)
- Hot at all times
- Hot in on or start
- I10
- I11
- I110 diagnosis connector
- Pnk
- R168
- Red
- Reverse circuit
- Tire inflation pressure warning light ind
- Tpm control module (under driver's seat)
- Vdc control module (at right rear corner of engine compt)
- W/ vdc
- W/o vdc
