Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Chevrolet Suburban K2500 1996

ВНЕШНЕЕ ОСВЕЩЕНИЕ

Электросхема заднего хода для Chevrolet Suburban K2500 1996

Электросхема заднего хода для Chevrolet Suburban K2500 1996 - Список элементов:

• (left side of trans.) backup lamp switch
• A/t
• C218
• Convenience center (under left side of i/p)
• G415 (left frame rail, behind bumper)
• Hot in run, bulb test or start
• I/p fuse block
• Left backup lamp
• M/t
• Mirrors system
• Park/neutral position switch (left top of trans.)
• Pnk
• Right backup lamp
• Trailer tow backup lamps (w/ trailer tow pkg.) (wire lead is to be spliced to trailer wiring harness or attached to trailer wire plug)
• Turn b/u fuse 16 20a

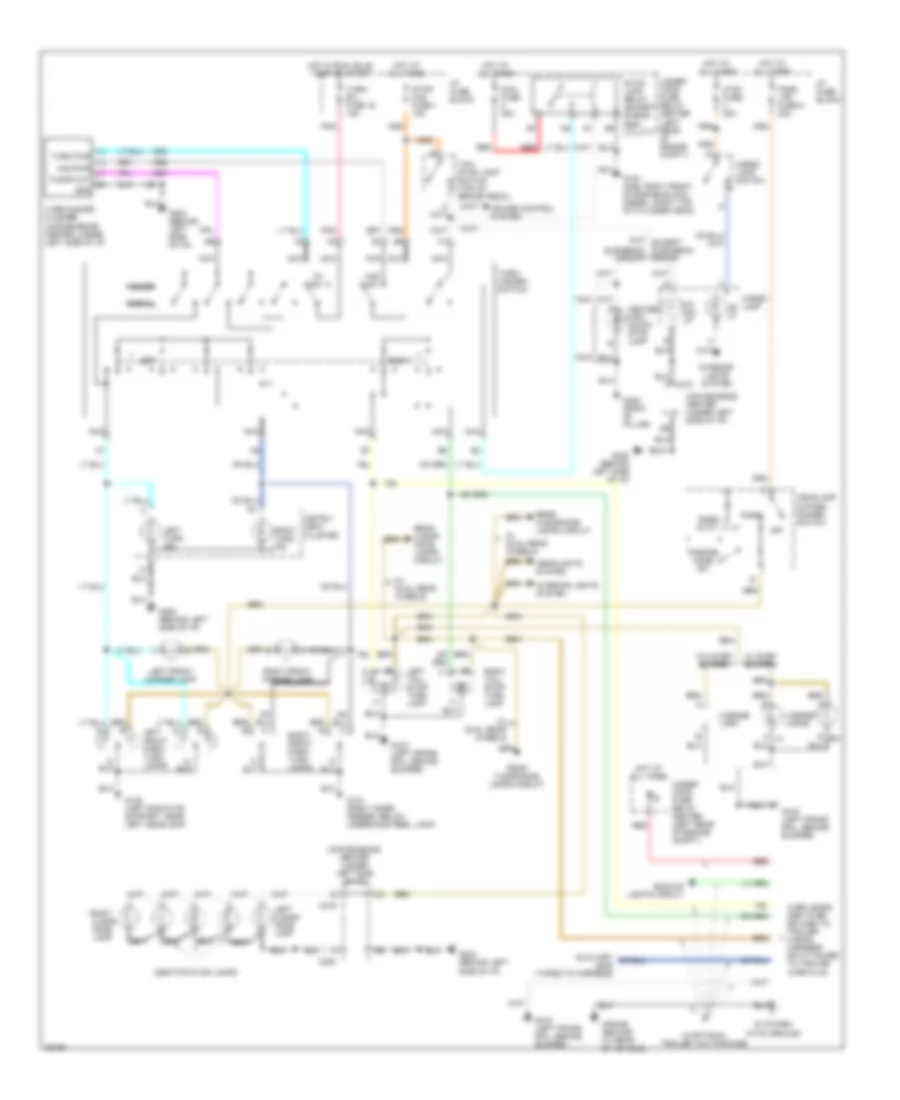

Электросхема внешнего освещения для Chevrolet Suburban K2500 1996

Электросхема внешнего освещения для Chevrolet Suburban K2500 1996 - Список элементов:

• (frame ground: at rear of vehicle)
• Ance lamp
• Auxiliary lead (taped to harness)
• Backup lights circuit
• C219
• C220
• Cargo lamp
• Cargo lamp switch
• Center high mount stop lamp
• Ch- msl lp
• Clear-
• Convenience center (under left side of i/p)
• Cr lp
• Cruise control system
• Ctsy fuse 20a
• G108 (left radiator support, near left headlamp)
• G120 (gas: right front of engine block; diesel: right top of cylinder head)
• G1o1 (right inner fender, below underhood reel lamp)
• G202 (behind left side of i/p)
• G305 (right "b" pillar)
• G415 (left frame rail, behind bumper)
• H9 turn pwr h8 haz pwr h7 flshr out g8 gnd
• Haz sw
• Hazard
• Headlamp & panel dimmer switch
• Headlights system
• Hot at all times
• Hot in run, bulb test or start
• I/p fuse block
• Identification lamps
• Instru- ment cluster
• Interior lights system
• Left
• Left clear- ance lamp
• Left front marker lamp
• Left front park/ turn lamps
• Left tail/ stop/ turn lamp
• Left turn ind.
• License lamp
• License lamps
• Maxi fuse 30a
• Nca
• Normal
• Off
• Parade mode sw
• Park
• Park lps fuse 9 20a
• Platform hitch ground
• Pnk
• Rear clear- ance lamps circuit
• Rear clearance lamps circuit
• Red
• Rheo- stat
• Right
• Right front marker lamp
• Right front park/ turn lamps
• Right tail/ stop/ turn lamp
• Right turn ind.
• Stop- lamp relay (except subur- ban/ utility)
• Stop/ haz fuse 1 15a
• Suburban/ utility
• Tcc/ stop lamp switch (top of brake pedal)
• Tn sw
• Turn- b/u fuse 16 15a
• Turn/ hazard switch
• Turn/hazard flasher (convenience center: under left side of i/p)
• Under- hood fuse relay center (left rear of engine compt.)
• Under- hood fuse- relay center (left rear of engine compt.)
• W/ dual rear wheels
• W/ step bumper
• W/o step bumper
• W/optional trailer tow package
• Wire leads are to be spliced to trailer wiring harness or attached to trailer wire plug.

задняя схема ламп разрешения для Chevrolet Suburban K2500 1996

задняя схема ламп разрешения для Chevrolet Suburban K2500 1996 - Список элементов:

• C406
• C408
• End- gate mark- er lamps
• Endgate cround
• Exterior lamps circuit
• G415 (left frame rail, behind bumper)
• Headlamp & panel dimmer switch
• Hot at all times
• I/p fuse block
• Left front clear- ance lamp
• Left rear clear- ance lamp
• Left rear fender
• Left tail/ stop/ turn lamp
• Off
• Parade mode sw
• Park
• Park lps fuse 9 20a
• Rheo- stat
• Right front clear- ance lamp
• Right rear clear- ance lamp
• Right rear fender
• Right tail/ stop/ turn lamp
