Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК Toyota Camry SE 2005

ЦЕНТРАЛЬНЫЙ ЗАМОК

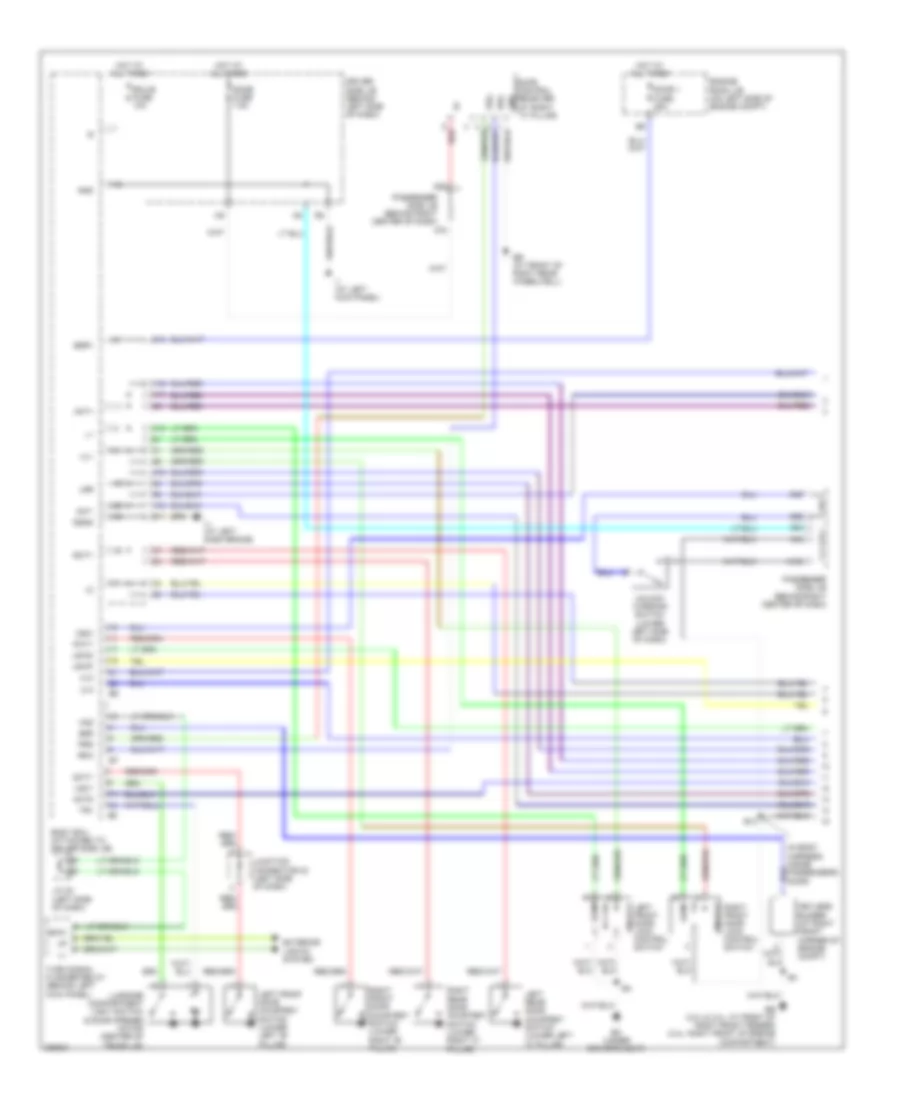

Электросхема центрального замка (1 из 2) для Toyota Camry SE 2005

Электросхема центрального замка (1 из 2) для Toyota Camry SE 2005 - Список элементов:

• A104
• A44
• A50
• A64
• A70
• Act+
• Act-
• Actd
• B11
• B13
• B26
• B46
• Bdr1
• Bo (under driver's seat)
• Body ecu (attached to driver side j/b)
• Br (at front of right rear wheelwell)
• Bzr
• Dcty
• Dome fuse 7.5a
• Door 1 fuse 25a
• Door control receiver (at right ``c" pillar)
• Driver side j/b (behind left side of dash)
• Eb (3.0l & 3.3l: at front of right front fender) (2.4l: right front of engine compartment)
• Ecu-b fuse 10a
• Ehw
• Engine room j/b (on left side of engine compt)
• Exterior lights system
• G14
• Gnd
• H10
• H11
• H12
• Haz
• Hot at all times
• Ii (at left kick panel)
• Ij (at left dash brace)
• J/c 22 (left side of dash)
• Junction connector 23 (left side of dash)
• K10
• K16
• Keyless buzzer (at right front corner of engine compt)
• Ksw
• Left front door courtesy switch (lower left "b" pillar)
• Left rear door courtesy switch (lower left "c" pillar)
• Lgcy
• Lock
• Lsr
• Lswd
• Lswp
• Luggage compartment light switch & door opener motor (center of trunk lid)
• Passenger side j/b (behind right center of dash)
• Pcty
• Prg
• Rcty
• Rda
• Red
• Right front door courtesy switch (lower right "b" pillar)
• Right front door lock control switch
• Right rear door courtesy switch (lower right "c" pillar)
• Sgnd
• Tr+
• Turn signal flasher relay (behind left kick panel)
• Ul1
• Ul2
• Ul3
• Unlock
• Unlock left front door lock control switch
• Unlock warning switch (lower left side of dash)

Электросхема центрального замка (2 из 2) для Toyota Camry SE 2005

Электросхема центрального замка (2 из 2) для Toyota Camry SE 2005 - Список элементов:

• (at left front door)
• (under driver's seat) bo
• Br (at front of right rear wheelwell)
• Junction connector 7 & 8 (behind right side of dash)
• Left front door key lock & unlock switch, door lock motor & door unlock detection switch
• Left rear door lock motor & door unlock detection switch (at left rear door)
• Lssr
• Right front door lock motor & door unlock detection switch & door key lock & unlock switch (at right front door)
• Right rear door lock motor & door unlock detection switch (at right rear door)
