Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Электросхема автоматической коробки передач АКПП для Hyundai Elantra GLS 2000 Электросхема автоматической коробки передач АКПП для Hyundai Elantra GLS 2000 - Список элементов: 77 a/t pulse generator (on rear of transaxle) (behind left kick panel) rom pack controller (center of dash) (center of dash, under radio) (gl) (gls) (left side of dash) data link connector (dlc) (left side of transaxle) (rear of left front fender) 101-1 101-2 101-3 104-1 104-2 104-3 2 input A/c on input A/t oil temper- ature sensor (on left side of transaxle) A/t shift lever Air conditioning system B/alarm fuse 10a Battery Cruise control module Damper clutch control solenoid valve Dash fuse box Diag output Drive input E59-1 E59-2 Eng rpm input Engine compart- ment relay & fuse box Engine control module (ecm) (behind dash, on left of steering column) Engine controls system Exterior lights system Fuse 10a G104 G206 Ground Hot at all times Hot in on Hot in on or start Ignition Instrument cluster Instrument cluster system Kickdn sw Kickdown servo switch (in center front of transaxle) L input Mil req line Nca Neutral input O/d off indicator O/d sw input Off Oil temp Overdrive switch Park input Pnk Pressure control solenoid valve a Pressure control solenoid valve b Pulse gen a Pulse gen b Red Reverse input Rom pack Sensor gnd Shift control solenoid valve a Shift control solenoid valve b Shift control solenoid valve c Sol vlv ctrl Starting/ charging system Tp sensor Transaxle control module (tcm) (left rear corner of eng compt) Transaxle range switch Transaxle valve body Veh spd Vehicle speed sensor (reed switch) W/ cruise control W/o cruise control
БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Электросхема блока предохранителей и реле (1 из 5) для Hyundai Elantra GLS 2000 Электросхема блока предохранителей и реле (1 из 5) для Hyundai Elantra GLS 2000 - Список элементов: 45 A/c compressor A/c fuse 1 10a A/c fuse 2 10a A/c relay A/c switch Abs bleeding connector Abs control module B/alarm fuse 10a Battery Battery ground Blower motor Blower relay Condenser fan motor Condenser fan relay Dash fuse box (under left side of dash, at kick panel) Diode z06 E31-1 E31-2 Engine compartment relay & fuse box (in right front corner of engine compartment, behind battery) Engine control relay From fusible link a (diagram 1 of 5) Fuel pump relay Fuse 2 15a Fusible link c 30a (pnk) Fusible link e 50a (red) Fusible link g 30a (pnk) Fusible link h 30a (pnk) Fusible link i 30a (pnk) Fusible link k 30a (pnk) Generator Horn fuse 10a Horn relay Left front door lock actuator Nca Power connector (l) Power window relay Radiator fan motor Radiator fan relay Red Start motor Start solenoid To dash fuse box (fuse 4, 10a) (diagram 4 of 5) To engine control module (ecm) (diagram 5 of 5) To fusible link f (diagram 2 of 5) To fusible link g (diagram 1 of 5) Электросхема блока предохранителей и реле (2 из 5) для Hyundai Elantra GLS 2000 Электросхема блока предохранителей и реле (2 из 5) для Hyundai Elantra GLS 2000 - Список элементов: 53 (gl) (gls) (pnk) A/c switch A/t shift lever Audio Canada Cigar lighter illumination Cruise switch Drl relay Engine compartment relay & fuse box (in right front corner of engine compartment, behind battery) From fusible link b (diagram 1 of 5) Front fog lamp switch Front foglight relay Fusible link f 30a (pnk) Fusible link j 30a Hazard switch illumination Head- light relay High beam ind I01-2 i04-2 Instrument cluster Io1-1 Io4-3 Left front park/turn signal lamp Left head lamp fuse 10a Left headlamp Left license lamp Left rear combination lamp Left rear window switch Left side marker lamp Left tail lamp fuse 10a License lamp Nca Pnk Power window main switch Rear wiper & washer switch (wagon) Rear/defogger switch illumination Rheostat Right front park/turn signal lamp Right front window switch Right head lamp fuse 10a Right headlight Right rear combination lamp Right rear window switch Right tail lamp fuse 10a Sedan Start relay Taillight relay To ignition switch (diagram 3 of 5) Usa W/ drl W/o drl Wagon Электросхема блока предохранителей и реле (3 из 5) для Hyundai Elantra GLS 2000 Электросхема блока предохранителей и реле (3 из 5) для Hyundai Elantra GLS 2000 - Список элементов: 49 (diagram 2 of 5) (gl) (gls) (gls) (gl) (not used) (under left side of dash, at kick panel) dash fuse box A/t A/t shift & key lock control module A/t shift lever switch Abs active module Abs bleeding connector Abs control module Abs fuse 10a Acc Audio C01 Cigarette lighter Cruise control module (a/t) Electronic time & alarm control module (etacm) Engine compartment relay & fuse box (in right front corner of engine compartment, behind battery) Engine control module (ecm) From fusible link j e Fuse 10a Fuse 15a Fuse 17 15a (wagon) I01-1 I01-2 i04-1 I04-1 I04-3 Ignition coil Ignition switch Instrument cluster Interior lights system Lock M/t M38 Nca Power connector (m) Power door mirror switch Rear washer motor Rear wiper motor Rear wiper relay Srs control module Start Start relay To dash fuse box (fuse 8, 15a) diagram 4 of 5) To hazard switch (diagram 5 of 5) To headlight relay (diagram 4 of 5) Trans- axle range switch Электросхема блока предохранителей и реле (4 из 5) для Hyundai Elantra GLS 2000 Электросхема блока предохранителей и реле (4 из 5) для Hyundai Elantra GLS 2000 - Список элементов: 30 (diagram 3 of 5) (w/o cruise) (w/ cruise) A/c switch A/t shift lever Blower relay Cruise control module Cruise switch Dash fuse box (under left side of dash, at kiick panel) Drl control module Electronic time & alarm control module (etacm) Engine compartment relay & fuse box (in right front corner of engine compartment, behind battery) From dash fuse box (fuse 16, 10a) h From fusible link e (diagram 1 of 5) From ignition switch (via dash fuse box) (diagram 3 of 5) Front washer motor Front wiper motor Fuse 10a Fuse 15a Fuse 30a Hazard switch Headlight relay Ignition key lock solenoid & door warning switch Left sunroof relay M38 Nca Passenger compartment relay box (under left side of dash, left of steering column) Power window relay Rear defogger relay Right sunroof relay Stoplight switch Электросхема блока предохранителей и реле (5 из 5) для Hyundai Elantra GLS 2000 Электросхема блока предохранителей и реле (5 из 5) для Hyundai Elantra GLS 2000 - Список элементов: 32 (gl) (gls) A/t A/t shift & key lock control module Audio Back-up lamp switch C01 Data link connector (dlc) E59-1 E59-2 Engine control module (ecm) From dash fuse box (fuse 9, 10a) (diagram 3 of 5) From engine compartment relay & fuse box (b/alarm fuse, 10a) (diagram 1 of 5) Hazard switch I01-2 I04-2 Ignition key lock solenoid & door warning switch Instrument cluster Luggage room lamp M/t Map lamps Nca Overhead console assembly Pre- excitation resistor Room lamp Sedan Transaxle control module (tcm) Transaxle range (tr) switch Trunk lamp W/o sunroof W/sunroof Wagon
БЛОК УПРАВЛЕНИЯ КУЗОВОМ Электросхема блока управления кузовом для Hyundai Elantra GLS 2000 Электросхема блока управления кузовом для Hyundai Elantra GLS 2000 - Список элементов: 37 Auto parking B/alarm fuse 10a Chime bell (below left side of dash, right of steering column) Chime bell ctrl Dash fuse box (under left side of dash, at kick panel) Defogger rly ctrl Defogger sw input Defogger system Door switch input Door warning sw Door warning switch E31-2 Electronic time & alarm control module (etacm) (under center of dash, below radio) Engine compartment relay & fuse box (in right front corner of engine compt) Engine running in Fuse 10 10a Fuse 8 15a G203 (right kick panel) Generator Ground Hot at all times Hot at on Hot at on or start Intermittent Intermittent (time) Left front door switch Nca Power Pre-excitation resistor (in engine compartment relay & fuse box) Seat belt ind ctrl Seat belt sw input Start/on input Starting/ charging system Warning systems Washer sw input Wiper motor Wiper/washer system
БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ Электросхема блокировки селектора для Hyundai Elantra GLS 2000 Электросхема блокировки селектора для Hyundai Elantra GLS 2000 - Список элементов: 20 (w/ cruise) (w/o cruise) (w/o cruise) (w/ cruise) A/t shift & key lock control module (under left side of dash, near kick panel) A/t shift lever A/t shift lock solenoid Dash fuse box (under left side of dash, at kick panel) Fuse 14 10a Fuse 3 15a Fuse 9 10a G200 (left kick panel) G203 (right kick panel) Hot at all times Hot in acc or on Hot in on or start Ignition key lock & door warning switch (below ignition switch) Key interlock switch Nca Parking position switch Red Stoplight switch (on brake pedal bracket)
ВНЕШНЕЕ ОСВЕЩЕНИЕ Электросхема заднего хода для Hyundai Elantra GLS 2000 Электросхема заднего хода для Hyundai Elantra GLS 2000 - Список элементов: 18 (sedan) (sedan) g407 (center rear of trunk) (wagon) A/t Back-up light switch (on transaxle) Dash fuse box (under left side of dash, at kick panel) Fuse 9 10a G404 (wagon) (left rear side of luggage room) Hot in on & start Left back- up lamp Left rear combination lamp M/t Nca Red Right back- up lamp Right rear combination lamp Transaxle range (tr) switch (on left side of transaxle) Transmissions system (tcm) внешняя осветительная сеть, седан (1 из 2) для Hyundai Elantra GLS 2000 внешняя осветительная сеть, седан (1 из 2) для Hyundai Elantra GLS 2000 - Список элементов: 42 (right radiator support) Cruise control system Dash fuse box (under left side of dash, at kick panel) Diode z05 (left kick panel) Drl control module (on left front inner fender panel) Engine compartment relay & fuse box (in right front corner of engine compartment, behind battery) Fuse 3 15a Fusible link f 30a (pnk) G109 G206 (dash panel) G407 (center rear of trunk) G904 (left "c" pillar) Head Headlights system (drl) High mounted stop lamp Hot at all times Instrument cluster system Interior lights system Left front park/turn signal lamp Left rear combin- ation lamp Left tail lamp fuse 10a License lamp Light switch Multi- function switch Nca Nca nca Off Park Pnk Red Right front park/turn signal lamp Right rear combin- ation lamp Right tail lamp fuse 10a Stop Stoplight switch (on brake pedal bracket) Tail Taillight relay Turn W/ cruise W/ drl W/o cruise W/o drl внешняя осветительная сеть, седан (2 из 2) для Hyundai Elantra GLS 2000 внешняя осветительная сеть, седан (2 из 2) для Hyundai Elantra GLS 2000 - Список элементов: 32 (dash panel) (gl) (gls) (left kick panel) Coil control Dash fuse box (under left side of dash, at kick panel) Flasher unit Fuse 4 10a Fuse 9 10a G200 G206 Ground Hazard switch Hot at all times Hot in on or start I01-1 I01-2 I04-1 I04-2 Illumination Instrument cluster Interior lights system Left Left turn indicator Multifunction switch Nca Off Passenger compartment relay box (under left side of dash, left of steering column) Power Right Right turn indicator Turn switch внешняя осветительная сеть, Универсал (1 из 2) для Hyundai Elantra GLS 2000 внешняя осветительная сеть, Универсал (1 из 2) для Hyundai Elantra GLS 2000 - Список элементов: 46 (right radiator support) Cruise control system Dash fuse box (under left side of dash, at kick panel) Diode z05 (left kick panel) Drl control module (on left front inner fender panel) Engine compartment relay & fuse box (in right front corner of engine compartment, behind battery) Fuse 3 15a Fusible link f 30a (pnk) G109 G203 (right kick panel) G206 (dash panel) G404 (left rear side of luggage room) G406 (center of hatch door) Head Headlights system (drl) High mounted stop lamp Hot at all times Instrument cluster system Interior lights system Left front park/turn signal lamp Left license lamp Left rear combin- ation lamp Left side marker lamp Left tail lamp fuse 10a Light switch Multi- function switch Nca Nca nca Off Park Pnk Red Right front park/turn signal lamp Right license lamp Right rear combin- ation lamp Right side marker lamp Right tail lamp fuse 10a Stop Stoplight switch (on brake pedal bracket) Tail Taillight relay Turn W/ cruise W/ drl W/o cruise W/o drl внешняя осветительная сеть, Универсал (2 из 2) для Hyundai Elantra GLS 2000 внешняя осветительная сеть, Универсал (2 из 2) для Hyundai Elantra GLS 2000 - Список элементов: 32 (dash panel) (gl) (gls) (left kick panel) Coil control Dash fuse box (under left side of dash, at kick panel) Flasher unit Fuse 4 10a Fuse 9 10a G200 G206 Ground Hazard switch Hot at all times Hot in on or start I01-1 I01-2 I04-1 I04-2 Illumination Instrument cluster Interior lights system Left Left turn indicator Multifunction switch Nca Off Passenger compartment relay box (under left side of dash, left of steering column) Power Right Right turn indicator Turn switch
ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Электросхема подсветки, С Люк для Hyundai Elantra GLS 2000 Электросхема подсветки, С Люк для Hyundai Elantra GLS 2000 - Список элементов: 23 (not used) B/alarm fuse 10a Courtesy Electronic time & alarm control module (etacm) (below radio) Engine compartment relay & fuse box (in right front corner of engine compt, behind battery) G200 (left kick panel) Hot at all times Instrument cluster system Left front door switch Left rear door switch Luggage room lamp Map Nca Off Overhead console lamps Right front door switch Right rear door switch Sedan Tailgate switch Tan Trunk lamp Trunk lamp switch Wagon Электросхема подсветки, без Люк для Hyundai Elantra GLS 2000 Электросхема подсветки, без Люк для Hyundai Elantra GLS 2000 - Список элементов: 22 (not used) B/alarm fuse 10a Door Electronic time & alarm control module (etacm) (below radio) Engine compartment relay & fuse box (in right front corner of engine compt, behind battery) G200 (left kick panel) Hot at all times Instrument cluster system Left front door switch Left rear door switch Luggage room lamp Map lamps Nca Off Right front door switch Right rear door switch Room lamp Sedan Tailgate switch Trunk lamp Trunk lamp switch Wagon Электросхема подсветки приборов для Hyundai Elantra GLS 2000 Электросхема подсветки приборов для Hyundai Elantra GLS 2000 - Список элементов: 48 (gl) (gls) (w/ drl) (w/o drl) A/c switch A/t shift lever Audio Cigarette lighter Cruise switch Digital clock Dim input Diode z04 (left kick panel) Diode z05 (left kick panel) Drl control module (left front inner fender panel) Drl relay Engine compartment relay & fuse box (in right front corner of eng compt, behind battery) Exterior lights system Front foglight switch Fusible link f 30a (pnk) G203 (right kick panel) G206 (dash panel) G404 (left rear side of luggage room) (wagon) G904 (left "c" pillar) (sedan) Gls gl Hazard switch Head Hot at all times I01-2 I04-2 Illumination Instrument cluster Io1-1 Io4-3 Left rear window switch Left t/lamp fuse 10a Light switch Multifunction switch Nca Off Park Power window main switch Rear defogger switch Rear wiper & washer switch Red Rheostat Right front window switch Right rear window switch Taillight relay
ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Электросхема подключение массы заземления (1 из 3) для Hyundai Elantra GLS 2000 Электросхема подключение массы заземления (1 из 3) для Hyundai Elantra GLS 2000 - Список элементов: 50 (diagram (left 2 of 3) A/t pulse generator shield Abs bleeding connector Abs control module Accele- ration sensor Brake fluid level sensor Camshaft position sensor Camshaft position sensor shield Condenser fan motor Crankshaft position sensor shield Data link connector Diode z06 Drl control module E59-1 E59-2 Engine compartment relay & fuse box Engine control module Engine control module (ecm) Engine coolant temperature sensor Front heated oxygen sensor shield Front wiper motor Fuel tank pressure sensor G100 (front of left front fender) G104 (rear of left front fender) G109 (right radiator support) G200 (left kick panel) Headlight relay Horn Ignition coil shield Intake air temperature sensor Kick Knock sensor Knock sensor shield Left front fog lamp Left front park/turn signal lamp Mass airflow sensor Multi- function switch Nca Panel) Pnk Radiator fan motor Rear heated oxygen sensor shield Right front fog lamp Right front park/turn signal lamp Start relay Throttle position sensor To g206 Transaxle control module (tcm) Электросхема подключение массы заземления (2 из 3) для Hyundai Elantra GLS 2000 Электросхема подключение массы заземления (2 из 3) для Hyundai Elantra GLS 2000 - Список элементов: 49 (gl) (gls) A/c switch A/t shift & key lock control module A/t shift lever Abs active module Audio Blower switch Cigarette lighter Cruise clutch pedal position switch Cruise control module Cruise switch Data link connector Driver seat belt switch Electronic time & alarm control module (etacm) Flasher unit From g100 (diagram 1 of 3) Front fog lamp switch G200 (left kick panel) G203 (right kick panel) G206 (center of dash) I04-1 i01-1 I04-2 i01-3 Instrument cluster Left sunroof relay Luggage Map lamps Multi- function switch Multifunction switch Nca Overhead console assembly Passenger compartment relay box Power door mirror switch Power window relay Rear defogger switch Rear wiper & washer switch Rheostat Right front window switch Right rear window switch Right side marker lamp Right sunroof relay Room lamp Starter clutch pedal position switch Sunroof motor Thermo- static switch To g904 (sedan) or g404 (wagon) (diagram 3 of 3) W/ air bag W/ sunroof W/o sunroof Wagon Электросхема подключение массы заземления (3 из 3) для Hyundai Elantra GLS 2000 Электросхема подключение массы заземления (3 из 3) для Hyundai Elantra GLS 2000 - Список элементов: 33 (center of hatch door) (sedan) (wagon) Audio From g200 (diagram 2 of 3) Fuel sender & fuel pump motor G200 (left kick panel) G302 (below center console) G404 (left rear side of luggage room) G406 G407 (center rear of trunk) G904 (left "c" pillar) G905 (right "c" pillar) (sedan) High mounted stop lamp Left front door lock actuator Left license lamp Left rear combination lamp Left rear window switch Left side marker lamp License lamp Nca Power window main switch Rear window defogger Rear wiper motor Rear wiper relay Right license lamp Right rear combination lamp Sedan Sedan wagon Srs control module W/ spoiler W/0 spoiler Wagon
Звуковой сигнал Гудок Электросхема звукового сигнал Гудка для Hyundai Elantra GLS 2000 Электросхема звукового сигнал Гудка для Hyundai Elantra GLS 2000 - Список элементов: 14 (not used) Clock spring Engine compartment relay & fuse box (in right front corner of engine compartment, behind battery) G109 (right radiator support) G206 (dash panel) Horn Horn fuse 10a Horn relay Horn switches Hot at all times M26-4 Multifunction switch Nca Steering wheel
Магнитола Мультимедия Электросхемы магнитолы для Hyundai Elantra GLS 2000 Электросхемы магнитолы для Hyundai Elantra GLS 2000 - Список элементов: 35 Antenna Audio B/alarm fuse 10a Bat input Dash fuse box Engine compartment relay & fuse box Filter grd Fuse 14 10a G200 (left kick panel) G206 (center of dash) Grd Hot at all times Hot in on or acc Ign input Ill (+) Ill (-) Interior lights system Left front speaker Left rear speaker Left tweeter speaker Lf (+) Lf (-) Lr (+) Lr (-) M43 M43-1 Nca Red Rf (+) Rf (-) Right front speaker Right rear speaker Right tweeter speaker Rr (+) Rr (-)
ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG Электросхема подушек безопасности SRS AirBag для Hyundai Elantra GLS 2000 Электросхема подушек безопасности SRS AirBag для Hyundai Elantra GLS 2000 - Список элементов: 34 (gl) (gls) (gls) (gl) (partial) (on left side of dash) (under rear console) g302 Clock- spring Dash fuse box (under left side of dash, at kick panel) Data link connector (dlc) Driver air bag Driver pretensioner Fuse 1 10a Fuse 12 15a Ground High Hot at on or start I01-1 i04-3 I01-3 I04-3 Initiator (high side) Initiator (low side) Instrument cluster Low Multifunction switch Nca Pass high side Pass low side Passenger air bag Passenger pretensioner Serial data in/out Srs control module (air bag) (under rear console) Srs indicator Srs warning lamp Start/on input Steering wheel
ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ Электросхема предупреждающей системы для Hyundai Elantra GLS 2000 Электросхема предупреждающей системы для Hyundai Elantra GLS 2000 - Список элементов: 48 (gl) (gls) Acoustic warning chime buzzer (behind left side of dash) B/alarm fuse 10a Chime bell Chime bell (right of steering column) Dash fuse box Diode z04 (lower left side of dash) Diode z05 (lower left side of dash) Diode z07 Door ajar ind Door switch input Door warn switch Driver seat belt switch Drl control module (on left front inner fender) Drl relay Electronic time & alarm control module (under center of dash, below radio) Engine compartment relay & fuse box Fuse 10 10a Fusible link f 30a (pnk) G203 (right kick panel) G206 (dash panel) Ground Head Hot at all times Hot in on or start I04-1 i01-1 I04-1 i01-2 I04-2 i01-2 I04-3 i01-3 Ignition key lock solenoid & door warning Instrument cluster Instrument cluster system Interior lights system Left front door switch Left t/lamp fuse 10a Light switch M26-3 Multifunction switch Nca Off Park Power Red Seat belt ind Seat belt switch Taillight relay W/ drl W/o drl
ПРИБОРНАЯ ПАНЕЛЬ Электросхема панели приборов, GL Model для Hyundai Elantra GLS 2000 Электросхема панели приборов, GL Model для Hyundai Elantra GLS 2000 - Список элементов: 67 "abs" system indicator "brake" system indicator "o/d off" indicator (dash panel) g206 (left "c" pillar) g904 (sedan) g404 (wagon) (left rear side of luggage room) Anti-lock brakes system B/alarm fuse 10a Brake fluid level sensor (in brake fluid reservoir) Charge warning indicator Cruise control system Cruise indicator Dash fuse box (under left side of dash, at kick panel) Digital clock Diode z01 (under dash, right of steering column) Door ajar indicator Drl control module (on left front inner fender panel) Engine compartment relay & fuse box (in right front corner of engine compartment, behind battery) Engine control module (ecm) (behind dash, left of steering column) Engine controls system Engine coolant temperature gauge Engine coolant temperature sender (on rear of engine, near coolant outlet) Exterior lights system Fuel gauge Fuel sender Fuel sender & fuel pump motor Fuse 1 10a Fuse 10 10a Fuse 13 15a G200 (left kick panel) G206 (dash panel) Gauge sender Head Headlights system High beam indicator Hot at acc or on Hot at all times Hot at on or start I04-1 I04-2 I04-3 Illumination (5 bulbs) Instrument cluster Interior lights system Left turn indicator Light switch Low fuel indicator Malfunction indicator lamp (mil) "check engine" Multifunction switch Nca Off Oil pressure indicator Oil pressure switch (lower left rear of engine) Park Parking brake switch Pnk Red Reed switch Right turn indicator Seat belt indicator Speedometer Srs "air bag" indicator Starting/charging system Thermistor Transmissions system Trunk ajar indicator Vehicle speed input Warning systems Электросхема панели приборов, GLS Model для Hyundai Elantra GLS 2000 Электросхема панели приборов, GLS Model для Hyundai Elantra GLS 2000 - Список элементов: 72 "abs" system indicator "brake" warning indicator "o/d off" indicator (dash panel) g206 (left "c" pillar) g904 (sedan) g404 (wagon) (left rear side of luggage room) Anti lock brakes system Anti-lock brakes system B/alarm fuse 10a Brake fluid level sensor (in brake fluid reservoir) Charge warning indicator Cruise control system Cruise indicator Dash fuse box (under left side of dash, at kick panel) Digital clock Diode z01 (under dash, right of steering column) Door ajar indicator Drl control module (on left front inner fender panel) E59-2 Engine compartment relay & fuse box (in right front corner of engine compartment, behind battery) Engine control module (ecm) (behind dash, left of steering column) Engine controls system Engine coolant temperature gauge Engine coolant temperature sender (on rear of engine, near coolant outlet) Engine speed input Exterior lights system Fuel gauge Fuel sender Fuel sender & fuel pump motor Fuse 1 10a Fuse 10 10a Fuse 13 15a G200 (left kick panel) G206 (dash panel) Gauge sender Head Headlights system High beam indicator Hot at all times Hot at on or start Hot in acc or on I01-1 I01-2 I01-3 Illumination (5 bulbs) Instrument cluster Interior lights system Left turn indicator Light switch Low fuel indicator Malfunction indicator lamp (mil) "check engine" Multifunction switch Nca Off Oil pressure indicator Oil pressure switch (lower left rear of engine) Park Parking brake switch (a/t) Pnk Red Reed switch Right turn indicator Seat belt indicator Speedometer Srs "air bag" indicator Starting/charging system Tachometer Thermistor Transaxle control module (tcm) (on left rear corner of engine compartment) Transmissions system Trunk ajar indicator Vehicle speed input Warning systems
ПРИВОД ЗЕРКАЛ Электросхема привода зеркал для Hyundai Elantra GLS 2000 Электросхема привода зеркал для Hyundai Elantra GLS 2000 - Список элементов: 16 (left kick panel) g200 Dash fuse box (under left side of dash, at kick panel) Down Fuse 13 15a Hot in acc or on Left Left power door mirror Left/right Left/right switch Master selector switch Nca Power door mirror switch Right Right power door mirror Up/down Up/down switch
ПРИВОД ЛЮКА И КРЫШИ Электросхемы привода люка или крыши для Hyundai Elantra GLS 2000 Электросхемы привода люка или крыши для Hyundai Elantra GLS 2000 - Список элементов: 21 (front of sun roof opening) sun roof motor Close Courtesy lights circuit Dash fuse box (under left side of dash, at kick panel) Fuse 16 10a Fuse 6 15a Hot at all times Hot at on Left sun roof relay (open/tilt down) (in center of roof, above headliner) Limit switch Nca Open Overhead console assembly Right sun roof relay (close/tilt up) (in center of roof, above headliner) Roof closed Roof down Roof open Roof up Sun roof switch Tilt down Tilt up
ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Электросхема стеклоподъемников для Hyundai Elantra GLS 2000 Электросхема стеклоподъемников для Hyundai Elantra GLS 2000 - Список элементов: 32 (left "c" pillar) (sedan) g904 (left kick panel) g200 (left rear side of luggage room) (wagon) g404 Control unit Dash fuse box (under left side of dash, at kick panel) Down Engine compartment relay & fuse box (in right front corner of engine compartment, behind battery) Express down Fuse 10a Fusible link c 30a (pnk) Hot at all times Hot in on Illum Interior lights system Left front window motor Left front window switch Left rear window motor Left rear window switch Lock Lock switch Nca Off Off down Passenger compartment relay box (under left side of dash, left of steering column) Pnk Power window main switch Power window relay Right front window motor Right front window switch Right rear window motor Right rear window switch Un- lock
СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS Электросхема антиблокировочной тормозной системы АБС (ABS) для Hyundai Elantra GLS 2000 Электросхема антиблокировочной тормозной системы АБС (ABS) для Hyundai Elantra GLS 2000 - Список элементов: 46 (gl) (gls) (gls) (gl) (right radiator support) g109 Abs active module (under front of floor console) Abs bleeding connector (at left side of engine compartment, forward of strut tower) Abs control module (in right front corner of engine compartment) Abs fuse 10a Abs indicator Abs pump motor Abs solenoids Abs/ebd warn ind ctrl Brake warning indicator Dash fuse box (under left side of dash, at kick panel) Data link connector (dlc) (partial) (on left side of dash) Diagnosis Engine compartment relay & fuse box (in right front corner of engine compartment, behind battery) Fuse 10a Fuse 15a Fusible link h 30a (pnk) Fusible link i 30a (pnk) G100 (front of left front fender) G203 (right kick panel) Ground Hot at all times Hot in on or start I01-1 I01-2 I01-3 I04-1 I04-3 Indicator control circuit Instrument cluster Left front wheel sensor (on wheel hub) Left rear wheel sensor (on wheel hub) Nca Note: abs control module contains: abs solenoids & abs pump motor Red Right front wheel sensor (on wheel hub) Right rear wheel sensor (on wheel hub) Solid state Start/on input Stop lamp sw input Stoplight switch (on brake pedal bracket) W/cruise control W/o cruise control Wheel speed input
Система антизапотевания Электросхема систем антизапотевания для Hyundai Elantra GLS 2000 Электросхема систем антизапотевания для Hyundai Elantra GLS 2000 - Список элементов: 21 Dash fuse box (under left side of dash, at kick panel) Defogger relay control Defogger switch Electronic time & alarm control module (under center of dash, below radio) Fuse 10 10a Fuse 5 30a G203 (right kick panel) G406 (center of hatch door) G905 (right "c" pillar) Hot at all times Hot in on or start Illumination Interior lights system Off Power Rear defogger indicator Rear defogger relay (sedan: under rear package shelf) (wagon: in left rear of luggage room) Rear defogger switch Rear window defogger Sedan Wagon
СИСТЕМА КОНДИЦИОНЕРА Электросхема кондиционера с ручный управлением для Hyundai Elantra GLS 2000 Электросхема кондиционера с ручный управлением для Hyundai Elantra GLS 2000 - Список элементов: 64 (behind center of dash) g206 (front of left front fender, near battery) g100 (in right front corner of engine compartment, behind battery) engine compartment relay & fuse box (left kick panel) g200 (open below 200 kpa (29 psi) or above 3140 kpa (455 psi) (right front of engine compartment) g101 (right kick panel) g203 0.4 ohms 0.8 ohms 1.85 ohms 1995 vftc c A/c compressor A/c fuse 1 10a A/c fuse 2 10a A/c pressure switch (in front of engine compartment, on receiver-drier) A/c relay A/c rly ctrl A/c sw on input A/c switch A/c therm & press in Blower motor (under right side of dash) Blower relay Blower resistor (under right side of dash, in blower motor housing) Blower switch Cdnsr fan rly ctrl Condenser fan motor (on right front of engine compartment) Condenser fan relay Dash fuse box (under left side of dash, at kick panel) Diode z06 (taped inside control harness, lower left side of dash) E59-1 Engine compartment relay & fuse box (in right front corner of engine compartment, behind battery) Engine control module (ecm) (behind dash, left of steering column) Engine control relay (behind dash, left of steering column) Engine controls system Engine cool temp input Engine coolant temperature (ect) sensor (on rear of engine, near coolant outlet) Engine relay ctrl Fresh Fuse 10a Fusible link b 20a Fusible link d 20a Fusible link g 30a Fusible link k 30a G203 (right kick panel) Ground Hot at all times Hot in on Illumination Ind Interior lights system L ml Nca Off Pnk Rad fan rly ctrl Radiator fan motor (on left front of engine compartment) Radiator fan relay Rec Red Sensor ground Solenoid Temp fuse Thermostatic switch (w/thermistor) (behind right side of dash) Transaxle control module (tcm) (on left rear corner of engine compartment)
СИСТЕМА КРУИЗКОНТРОЛЯ Электросхема системы круизконтроля для Hyundai Elantra GLS 2000 Электросхема системы круизконтроля для Hyundai Elantra GLS 2000 - Список элементов: 71 (dash panel) g206 (front of left front fender) g100 (left kick panel) g200 (on brake pedal bracket) stoplight switch (on left side of dash) A/t A/t shift lever Acc Control valve Cruise Cruise clutch pedal position switch (closed w/clutch pedal depressed) (near clutch pedal bracket) Cruise control actuator (right rear corner of engine compartment) Cruise control module (in center of dash, under radio) Cruise control switch Cruise ctrl ind Cruise on input Cruise switch Dash fuse box (under left side of dash, at kick panel) Data link connector (dlc) (partial) Diagnosis Diode z03 (under dash, right of steering column) E59-2 Engine compartment relay & fuse box (in right front corner of engine compartment, behind battery) Engine control module (ecm) (behind dash, left of steering column) Fuse 10 10a Fuse 16 10a Fuse 3 15a G203 (right kick panel) Gls Ground Hot at all times Hot at on Hot at on or start Ignition switch Ill Ind Instrument cluster Interior lights system Io1-1 Io1-2 Io1-3 Io4-1 Io4-2 Io4-3 Lock M/t Multifunction switch N d Nca O/d off O/d on input O/d on output Off On input Over drive switch P/n position input (a/t) clutch pedal position input (m/t) Red Reed switch (input to speedometer) Release valve Resume/ accel Resume/accel in Set/ coast Set/coast in Start Start relay Stop lamp sw Transaxle control module (tcm) (on left rear corner of engine compartment) Transaxle range (tr) switch (on left side of transaxle) Vacuum motor Vehicle speed in Vss input
СИСТЕМА ОХЛАЖДЕНИЯ Электросхема системы охлаждения для Hyundai Elantra GLS 2000 Электросхема системы охлаждения для Hyundai Elantra GLS 2000 - Список элементов: 23 A/c press in A/c sw in Air conditioning system Condenser fan motor Condenser fan relay Eng rly ctrl Eng temp in Engine compartment relay & fuse box Engine control module (ecm) (behind dash, left of steering column) Engine control relay (behind dash, left of steering column) Engine controls system Engine coolant temperature sensor (rear of engine near coolant outlet) Fusible link b 20a Fusible link d 20a Fusible link g 30a G109 (right radiator support) Hot at all times Nca Pnk Radiator fan motor Radiator fan relay Red Rly ctrl
СИСТЕМА ПЕРЕДАЧИ ДАННЫХ Электросхема компьютерной линии передачи данных CAN для Hyundai Elantra GLS 2000 Электросхема компьютерной линии передачи данных CAN для Hyundai Elantra GLS 2000 - Список элементов: 37 (behind left kick panel) rom pack connector (dash panel) (gl) (gls) (gls) (gl) (left side of engine compt) abs bleeding connector A/t Abs control module (right front corner of engine compt) B/alarm fuse 10a Cruise control module (in center of dash, under radio) Cruise control system Data input/ output Data link connector (dlc) (on left side of dash) Diag Diode z03 (right of steering column) Dlc E59-1 E59-2 Engine compartment relay & fuse box Engine control module (ecm) (left of steering steering column) Engine controls system G206 Hot at all times I01-3 i04-2 I04-2 i01-2 Indicator Instrument cluster K-line (diag) L-line (diag) Pnk Reed switch Reprogram Sig grd Srs control module (under rear console) Transaxle control module (tcm) (left rear corner of engine compt) Vehicle speed Vss in Vss input
СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ
2.0L 2.0L, Электросхема системы управления двигателя (1 из 3) для Hyundai Elantra GLS 2000 2.0L, Электросхема системы управления двигателя (1 из 3) для Hyundai Elantra GLS 2000 - Список элементов: 63 (gl) (gls) (gls) (gl) (left "c" pillar) (sedan) g904 (wagon) g404 (left side of trunk) A/c relay cntrl Air conditioning system B/alarm fuse 10a Battery voltage Camshaft position (cmp) sensor (right front of engine) Can close valve Canister close valve (behind left side of front bumper) Canister purge control valve (left rear of engine compt) Check connector (behind left kick panel) Cmp sensor signal Cond fan rel cntrl Cooling fans system Crankshaft pos sens Crankshaft position (ckp) sensor (left rear of engine) Cruise control system Dash fuse box (under left side of dash, at left kick panel) Eng speed output Engine cntrl relay Engine compartment relay & fuse box (right front corner corner of eng compt) Engine control module (ecm) (behind dash, left of steering column) Engine control relay (behind dash, left of steering column) Front o2 sens htg Front o2 sensor Front o2 sensor gnd Fuel pump Fuel pump motor (below center of rear seat) Fuel pump relay Fuse 10a G202 (left side of dash) Ground Hot at all times Hot in run or start I01-3 i04-3 I04-1 i01-1 Idle actr close Idle actr open Ign coil cntrl Inj 1 cntrl Inj 2 cntrl Inj 3 cntrl Inj 4 cntrl Instrument cluster Instrument cluster system Maf sensor ground Maf sensor sig Malfunction indicator Memory power Mil indicator Nca Passenger compartment relay box (under left side of dash, left of steering column) Pcv cntrl Pnk Rad fan rel cntrl Rear o2 sens htg Rear o2 sensor Rear o2 sensor gnd Red Tp sensor output Vehicle speed input 2.0L, Электросхема системы управления двигателя (2 из 3) для Hyundai Elantra GLS 2000 2.0L, Электросхема системы управления двигателя (2 из 3) для Hyundai Elantra GLS 2000 - Список элементов: 14 (left side of dash) Condenser Front heated oxygen sensor (on front exhaust pipe, between catalytic converters) G10 G202 Idle speed control actuator (top right center of engine) Ignition coil (top left side of engine) Injectors Mass airflow (maf) sensor (in air intake duct) Nca Pnk Rear heated oxygen sensor (below exhaust manifold) Red Spark plugs 2.0L, Электросхема системы управления двигателя (3 из 3) для Hyundai Elantra GLS 2000 2.0L, Электросхема системы управления двигателя (3 из 3) для Hyundai Elantra GLS 2000 - Список элементов: 47 (left side of dash) 0rg A/c switch on input A/c themo and press A/t A/t only Acc Acceleration sens Acceleration sensor (left rear of engine compt) Air condi- tioning system Computer data lines system Dash fuse box (under left side of dash, at left kick panel) Data link connector (dlc) (on left side of dash) Diagnosis Diode z02 (lower left side of dash) Drive position switch E59-1 E59-2 Eng cool temp in Engine control module (ecm) (behind dash, left of steering column) Engine coolant temperature (ect) sensor (rear of engine, near coolant oulet) Fuel tank pressure sensor (below rear of vehicle, near center of rear crossmember) Fuel tnk pres sens sig Fuse 10a G202 Hot at all times Iat sensor input Ig1 Ignition switch Intake air temperature sensor (in air cleaner housing) Knock sens sig Knock sensor (right side of engine block) Lock M/t Mil request line Nca Pnk Reprogramming line Sensor ground Start Start/on input Sw for character map Throttle position sensor (on throttle body assembly) Torque reduction sig Tp sensor sig Transaxle control module (tcm) (left rear corner of engine compt) Transaxle range switch (left side of transaxle)
Система Фар Электросхема фар, С DRL (1 из 2) для Hyundai Elantra GLS 2000 Электросхема фар, С DRL (1 из 2) для Hyundai Elantra GLS 2000 - Список элементов: 40 (center of dash) g206 (front of left front fender) g100 (gl) (gls) Dimmer/ passing switch Diode z04 (taped inside main wire harness, lower left side of dash) Diode z05 (taped inside main wire harness, lower left side of dash) Drl relay Drl resistor (underside of left front fender, near wheelwell) Engine compartment relay & fuse box (in right front corner of engine compartment, behind battery) Flash Fusible link f 30a (pnk) Head High High beam indicator Hot at all times I01-2 I04-2 Instrument cluster Instrument cluster system (digital clock) Interior lights system Left headlamp fuse 10a Left headlight Left taillamp fuse 10a Light switch Low M26-2 M26-3 Multifunction switch Nca Off Park Pnk Red Right headlamp fuse 10a Right headlight Taillight relay To drl control module (diagram 2 of 2) To front fog fuse (diagram 2 of 2) To headlight relay (diagram 2 of 2) Электросхема фар, С DRL (2 из 2) для Hyundai Elantra GLS 2000 Электросхема фар, С DRL (2 из 2) для Hyundai Elantra GLS 2000 - Список элементов: 37 (front of left front fender) g100 (left kick panel) g200 Dash fuse box (under left side of dash, at kick panel) Diode z13 Drl control module (on left front inner fender panel) E31-2 Engine compartment relay & fuse box (in right front corner of engine compartment, behind battery) From diode z05 (diagram 1 of 2) From drl resistor (diagram 1 of 2) From instrument cluster (diagram 1 of 2) From left headlamp (diagram 1 of 2) From multifunction switch (dimmer/passing switch) (diagram 1 of 2) From multifunction switch (light switch (diagram 1 of 2) From taillight relay (diagram 1 of 2) Front fog fuse 15a Front foglight relay Front foglight switch Fuse 10a G100 (front of left front fender) G109 (right radiator support) Generator Headlight relay Hot at on Illumination Indicator Instrument cluster system (brake warning circuit) Interior lights system Lamp Left front fog lamp Nca Parking brake switch (on base of parking brake lever) Pnk Power & control circuit Red Relay Right front fog lamp Starting/ charging system Электросхема фар, без DRL для Hyundai Elantra GLS 2000 Электросхема фар, без DRL для Hyundai Elantra GLS 2000 - Список элементов: 46 (center of dash) g206 (front of left front fender) g100 (gl) (gls) (in right front corner, of engine compartment, behind battery) engine compartment relay & fuse box Dash fuse box (under left side of dash, at kick panel) Diode z09 (under dash, right of steering column) Flash Front fog fuse 15a Front foglight relay Front foglight switch Fuse 10a Fusible link f 30a (pnk) G100 (front of left front fender) G109 (right radiator support) Head Head lamp dimmer/ passing switch Head- light relay High High beam indicator Hot at all times Hot at on Illum Ind Instrument cluster Instrument cluster system (digital clock) Interior lights system Io1-2 Io4-2 Left front fog lamp Left headlamp Left headlamp fuse 10a Light switch Low M26-2 M26-3 Multifunction switch Nca Off Park Pnk Red Right front fog lamp Right headlamp Right headlamp fuse 10a Taillight relay
Стартер Генератор Электросхема Генератора для Hyundai Elantra GLS 2000 Электросхема Генератора для Hyundai Elantra GLS 2000 - Список элементов: 24 (gl) (gls) (in right front corner of engine compartment, behind battery) engine compartment relay & fuse box Battery Battery ground Charge indicator Dash fuse box (under left side of dash, at kick panel) E31-1 E31-2 Electronic time & alarm control module (etacm) (under center of dash, below radio) Engine running input Fuse 10 10a Fuse 9 10a Generator b Headlights system (drl control module) (if equipped) Hot at on or start I01-1 I01-3 I04-1 I04-2 Instrument cluster Pre- excitation resistor Red Starting circuit (start motor) Электросхема стартера для Hyundai Elantra GLS 2000 Электросхема стартера для Hyundai Elantra GLS 2000 - Список элементов: 23 (front of left front fender) g100 (left kick panel) g200 A/t Acc Battery Battery ground Cruise control module (in center of dash, under radio) Engine compartment relay & fuse box (in right front corner of engine compartment, behind battery) Fusible link j 30a (pnk) Ignition switch Lock M/t Motor N d Nca P/n position input (a/t) clutch pedal position input (m/t) Red Start Start motor Start relay Start solenoid Starter clutch pedal position switch (on clutch pedal bracket) Transaxle range (tr) switch (on left side of transaxle)

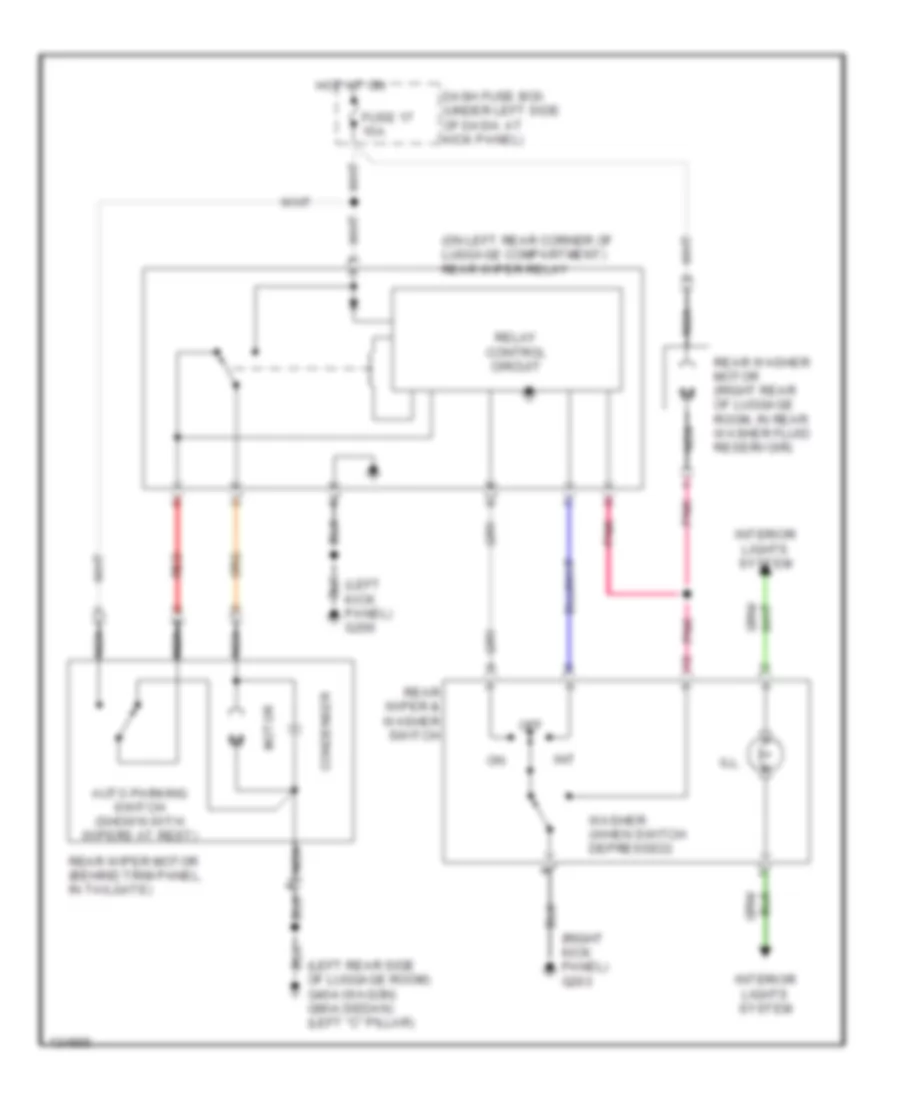

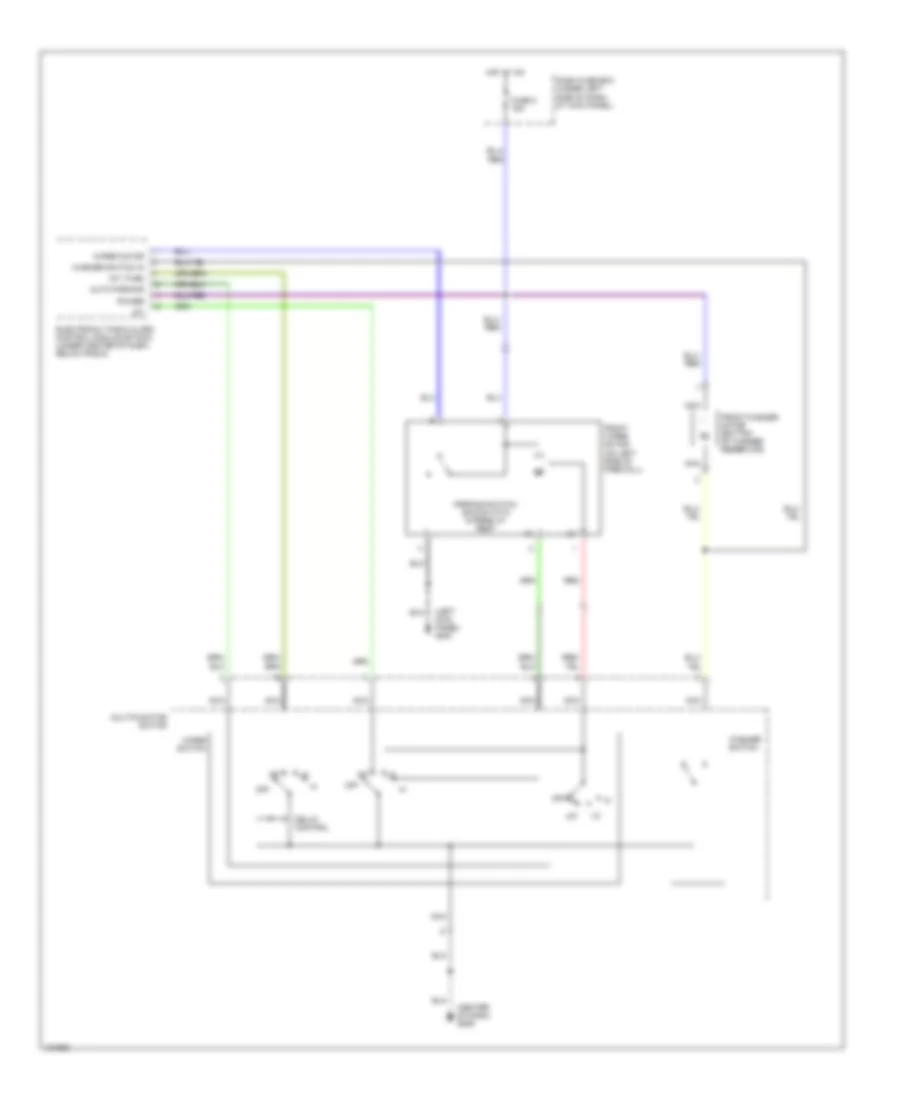

Стеклоочистители и Стеклоомыватели Дворники Электросхема передних стеклоочистителей дворников и омывателя лобового стекла для Hyundai Elantra GLS 2000 Электросхема передних стеклоочистителей дворников и омывателя лобового стекла для Hyundai Elantra GLS 2000 - Список элементов: 22 (center of dash) g206 (left kick panel) g200 Auto parking Dash fuse box (under left side of dash, at kick panel) Delay control Electronic time & alarm control module (etacm) (under center of dash, below radio) Front washer motor (bottom of washer reservoir) Front wiper motor (on left side of firewall) Fuse 8 15a Hot at on Int Int (time) Multifunction switch Nca Off Parking switch: shown with wipers at rest Power Red Washer switch Washer switch in Wiper motor Wiper switch Электросхема заднего стеклоочистителя дворника и омывателя, Универсал для Hyundai Elantra GLS 2000 Электросхема заднего стеклоочистителя дворника и омывателя, Универсал для Hyundai Elantra GLS 2000 - Список элементов: 22 (left kick panel) g200 (left rear side of luggage room) g404 (wagon) g904 (sedan) (left "c" pillar) (on left rear corner of luggage compartment) rear wiper relay (right kick panel) g203 Auto parking switch (shown with wipers at rest) Condenser Dash fuse box (under left side of dash, at kick panel) Fuse 17 15a Hot at on Ill. Int Interior lights system Motor Nca Off Pnk Rear washer motor (right rear of luggage room, in rear washer fluid reservoir) Rear wiper & washer switch Rear wiper motor (behind trim panel, in tailgate) Red Relay control circuit Washer (when switch depressed)
ЦЕНТРАЛЬНЫЙ ЗАМОК Электросхема центрального замка для Hyundai Elantra GLS 2000 Электросхема центрального замка для Hyundai Elantra GLS 2000 - Список элементов: 19 (left "c" pillar) g904 (sedan) (left rear side of luggage room) g404 (wagon) Actuator switches Dash fuse box (under left side of dash, at kick panel) Door lock key or door lock knob Fuse 2 15a Hot at all times Left front door lock actuator Left rear door lock actuator Limit switch Limit switch (shown with door locked) Lock Lock/ unlock input Locking circuit Relay Right front door lock actuator Right rear door lock actuator Tailgate lock actuator (if equipped) Unlock
