Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала
2.0L

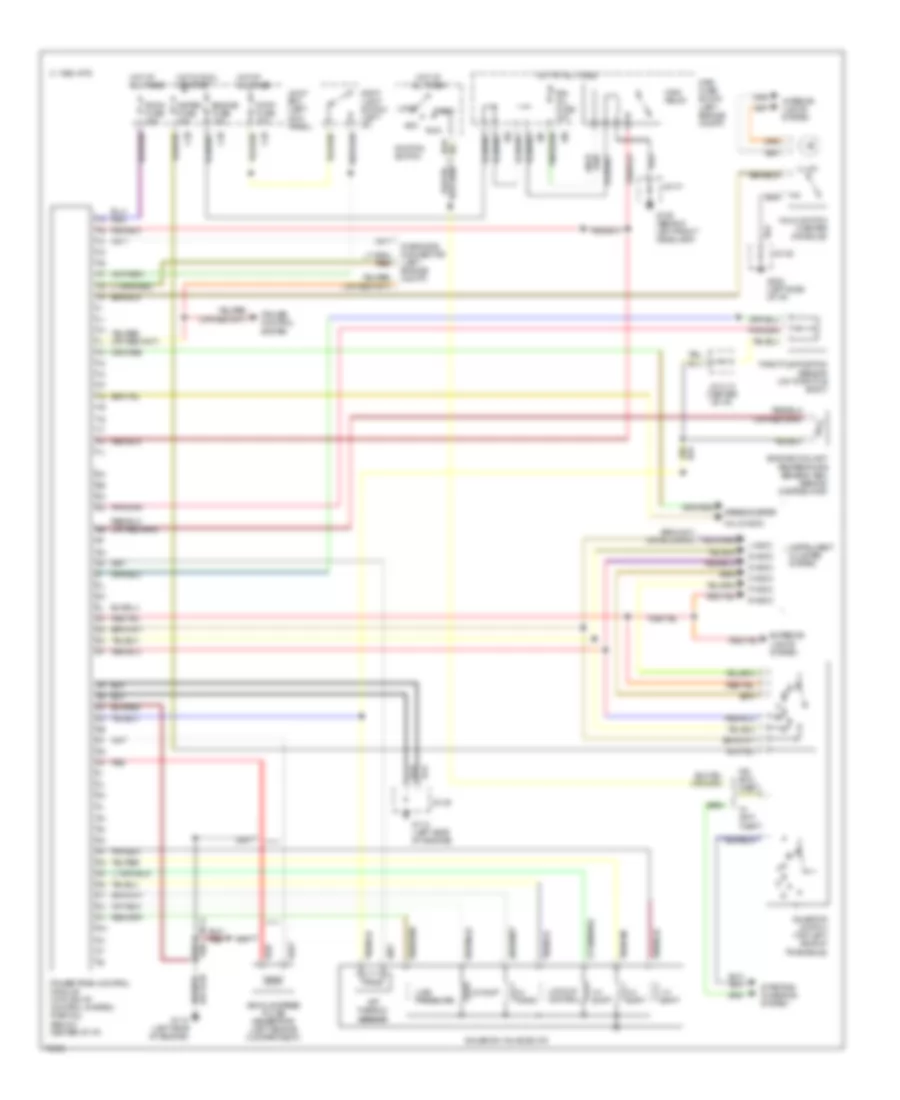

2.0L, Электросхема коробки передач АКПП для Mazda 626 DX 1993
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO
2.0L, Электросхема коробки передач АКПП для Mazda 626 DX 1993 - Список элементов:
- 1-2 shift
- 1995 vftc c
- 2-3 shift
- 3-2 timing
- 3-4 shift
- Acc
- Atf thermo- sensor sensor
- C01
- C02
- C03
- Cruise control system
- D indic
- Diagnosis connector (left engine compt)
- Egi inj fuse 30a
- Engine coolant temperature sensor (egi) (behind distributor)
- Engine fuse 15a
- Exterior lights system
- G106 (behind left front headlamp)
- G112 (left side of engine)
- G202 (left side of i/p)
- Hold indic
- Hold switch (center console)
- Hot at all times
- Hot at all times
- Hot in run or start
- Ignition switch
- Illum.
- Inhibitor switch (top left side of transaxle)
- Instrument cluster system
- Interior lights system
- J/c x-13 (center of i/p)
- J/c-01
- J/c-02
- J/c-03
- Joint box (left kick panel)
- L indic
- Line pressure
- Lock
- Lockup
- Lockup control
- Main fuse block (left engine compt)
- Main relay
- Meter fuse 15a
- N indic
- Nca
- P indic
- P r
- Powertrain control module (with ec-at control system) (partial) (below center of i/p)
- R indic
- Red
- Room fuse 15a
- Run
- S indic
- Solenoid valve (ec-at)
- Speedometer
- Start
- Starting/ charging system
- Stop fuse 20a
- Stop light switch (left i/p)
- Throttle position sensor (on throttle body)
- Vehicle speed pulse generator (left engine compartment)
- W/ anti- theft
- W/o anti- theft
- X04
- X06
- X07
2.5L
2.5L, Электросхема коробки передач АКПП для Mazda 626 DX 1993
2.5L, Электросхема коробки передач АКПП для Mazda 626 DX 1993 - Список элементов:
- **
- (behind center of i/p)
- (mx6) (626)
- * 1993 models
- ** * *
- ** 1994 models
- 1-2 shift
- 1995 vftc c
- 2-3 shift
- 3-2 timing
- 3-4 shift
- A/c system
- Acc run
- Atf thermo- sensor sensor sensor sensor sensor
- B3-05
- C01
- C03
- Cruise control unit (behind left i/p)
- D indic
- Diagnosis connector (left engine compartment)
- Distributor
- Ec-at control module
- Exterior lights system
- G112 (left side of engine)
- G202 (behind left i/p)
- Hold indic
- Hold switch (center console)
- Hot at all times
- Hot in on or start
- Ignition switch
- Illum.
- Inhibitor switch (top rear of transaxle)
- Instrument cluster system
- Interior lights system
- J/c x-13 (behind center of i/p)
- J/c x-13 j/c x-22
- J/c-02
- Jc x-24 (left i/p)
- Joint box (left i/p)
- L indic
- Line press- ure
- Lock
- Lockup control
- Meter fuse 15a
- Models
- N indic
- P indic
- P r
- Pnk
- Powertrain control module (center of i/p)
- Pulse generator (left engine compartment)
- R indic
- Red
- Room fuse 15a
- S indic
- Solenoid valve (ec-at)
- Speedometer
- Start
- Starting/ charging system
- Stop fuse 20a
- Stop light switch (left i/p)
- Throttle position sensor (on throttle body)
- W/ anti- theft
- W/ anti-theft
- W/o anti- theft
- W/o anti-theft
АНТЕННА ПИТАНИЯ
Электросхема антенны для Mazda 626 DX 1993
Электросхема антенны для Mazda 626 DX 1993 - Список элементов:
- Audio unit
- Down
- G301
- Hot at all times
- Hot in acc or run
- Hot in run or start
- Joint box (behind left side of i/p)
- Joint connector (below right front seat)
- Meter fuse 8 15a
- Power antenna assembly
- Power antenna motor
- Power antenna relay
- Radio fuse 4 15a
- Room fuse 2 15a
Звуковой сигнал Гудок
Электросхема звукового сигнал Гудка для Mazda 626 DX 1993
Электросхема звукового сигнал Гудка для Mazda 626 DX 1993 - Список элементов:
- Clock spring assembly
- Horn relay (left side of engine compartment)
- Horn switch
- Hot at all times
- Joint box (left kick panel)
- Left horn (left front side of engine compartment)
- Nca
- Right horn (left front side of engine compartment)
- Stop fuse 1 20a
- Theft deterrent system
Магнитола Мультимедия
Электросхемы магнитолы для Mazda 626 DX 1993
Электросхемы магнитолы для Mazda 626 DX 1993 - Список элементов:
- 1995 vftc c
- Audio unit
- G206 (center of i/p)
- Hot at all times
- Hot in accy or on
- Interior lights system
- J-01
- J-02
- J-03
- Joint box (left side of dash, above kick panel)
- Left door speaker
- Left front speaker
- Left rear speaker
- Power antenna system
- Radio fuse 4 15a
- Right door speaker
- Right front speaker
- Right rear speaker
- Room fuse 2 15a
Подогрев стекол и зеркал
Электросхема подогрева стекол и зеркал для Mazda 626 DX 1993
Электросхема подогрева стекол и зеркал для Mazda 626 DX 1993 - Список элементов:
- 10 1l 1j
- C 1996 vftc
- Central processing unit (in joint box) (behind left side of i/p)
- Defog fuse 40a
- Engine fuse 10 15a
- Fs atx
- Fs mtx
- G202
- G300 (below left front seat)
- G301
- Heated outside mirror
- Hot at all times
- Hot in run or start
- Interior lights system
- Joint box (behind left side of i/p)
- Junction connector (below right front seat)
- Junction connector (left side of i/p)
- Left power outside mirror
- Main fuse block (left side of engine compartment)
- Powertrain control module (under front end of center console)
- Rear window defroster
- Rear window defroster relay (left side of engine compartment)
- Rear window defroster switch
- Right power outside mirror
- W/heated mirrors
- W/o heated mirrors
ПРИВОД ЗЕРКАЛ
Электросхема привода зеркал для Mazda 626 DX 1993
Электросхема привода зеркал для Mazda 626 DX 1993 - Список элементов:
- 2 door
- 4 door
- C 1996 vftc
- Defogger system
- Down
- G202
- G300 (below left front seat)
- Heated outside mirror
- Hot in acc or run
- Joint box (behind left side of i/p)
- Joint connector (left side of i/p)
- Left
- Left power outside mirror motor
- Left/right
- Power outside mirror switch
- Radio fuse 4 15a
- Right
- Right power outside mirror motor
- Up/down
ПРИВОД СТЕКЛОПОДЪЕМНИКОВ
Электросхема стеклоподъемников для Mazda 626 DX 1993
Электросхема стеклоподъемников для Mazda 626 DX 1993 - Список элементов:
- Close
- G300 (below left front seat)
- Hot in run
- Joint box (behind left side of i/p)
- Left front power window motor
- Left rear power window motor
- Left rear power window switch
- Open
- Power window fuse 11 30a
- Power window main switch
- Power- cut switch
- Red
- Right front power window motor
- Right front power window switch
- Right rear power window motor
- Right rear power window switch
СИСТЕМА ОХЛАЖДЕНИЯ
2.0L
2.0L, Электросхема системы охлаждения, A/T для Mazda 626 DX 1993
2.0L, Электросхема системы охлаждения, A/T для Mazda 626 DX 1993 - Список элементов:
- (in main fuse block, on left front inner fender panel)
- B1-03
- C 1996 vftc
- Cooling fan relay no. 2 (in main fuse block, on left front inner fender panel)
- Cooling fan relay no.1
- Cooling fan fuse 40a
- Cooling fan motor (left front side of engine compartment)
- Cooling fan relay no.3 (in main fuse block, on left front inner fender panel)
- Engine fuse 10 15a
- G106
- Hot at all times
- Hot in run or start
- Joint box (left side of i/p)
- Joint connector (behind left headlamp)
- Joint connector (in main fuse block, on left front inner fender panel)
- Main fuse block (left front inner fender panel, behind battery)
- Powertrain control module (under front end of center console)
2.0L, Электросхема системы охлаждения, M/T для Mazda 626 DX 1993
2.0L, Электросхема системы охлаждения, M/T для Mazda 626 DX 1993 - Список элементов:
- B2-01
- C 1996 vftc
- Coolant fan relay no.1 (in main fuse block, on left front inner fender panel)
- Cooling fan fuse 40a
- Cooling fan motor (left front side of engine compartment)
- Engine fuse 10 15a
- G106
- Hot at all times
- Hot in run or start
- Joint box (left side of i/p)
- Joint connector (behind left headlamp)
- Joint connector (in main fuse block, on left front inner fender panel)
- Main fuse block (on left front inner fender panel, behind battery)
- Powertrain control module (under front end of center console)
2.5L
2.5L, Электросхема системы охлаждения для Mazda 626 DX 1993
2.5L, Электросхема системы охлаждения для Mazda 626 DX 1993 - Список элементов:
- 1994 vftc c
- B3-02
- B3-03
- B6-01
- B6-02
- B6-03
- B6-03
- B6-04
- Coolant fan relay no. 2 (in main fuse block, on left side of engine compartment)
- Coolant fan relay no.1 (in main fuse block, on left side of engine compartment)
- Cooling fan 40a
- Cooling fan fuse 40a
- Cooling fan motor (left front side of engine compartment)
- Cooling fan relay no.3 (in main fuse block, on left side of of engine compartment)
- Engine fuse no. 10 15a
- Hot at all times
- Hot in run or start
- Jb-02
- Jc-01
- Joint box
- Joint connector (in main fuse block, on left side of engine compartment)
- Joint connector (left front side of engine compartment)
- Main fuse block
- Powertrain control module module (under front end of center console)
- X-04
- X-06
СИСТЕМЫ СИДЕНИЙ
Электросхема привода сидений для Mazda 626 DX 1993
Электросхема привода сидений для Mazda 626 DX 1993 - Список элементов:
- Backward
- C 1996 vftc
- Forward
- Front- lift switch
- G407
- Hot at all times
- Joint connector (center rear of trunk)
- Main fuse block (left side of engine compartment)
- Power seat fuse 30a
- Power seat lift motor
- Power seat slide motor
- Power seat switch
- Power seat tilt motor
- Rear- lift switch
- Red
- Slide switch
Стартер Генератор
Электросхема Генератора для Mazda 626 DX 1993
Электросхема Генератора для Mazda 626 DX 1993 - Список элементов:
- Abs control unit (behind left i/p)
- Alternator
- Battery
- Charge
- Egi inj fuse 30a
- Hot in run or start
- Indicator
- Instrument cluster
- Joint box (left kick panel)
- Main fuse 100a
- Main fuse block (left front fender)
- Meter fuse 15a
- Starter
Электросхема стартера, A/T для Mazda 626 DX 1993
Электросхема стартера, A/T для Mazda 626 DX 1993 - Список элементов:
- Acc
- Battery
- Blower motor relay
- Central processing unit (joint box)
- Cruise control unit
- Engine fuse 15a
- Hot in run or start
- Ig key fuse 40a
- Ignition switch
- Instrument clusters system
- J/c 6 (main fuse block)
- J/c 7 (main fuse block)
- Joint box (left kick panel)
- Main fuse 100a
- Main fuse block (left front fender
- Off
- Park/neutral switch (on transaxle)
- Power- train control module
- Powertrain control module
- Start
- Starter
- Starter cut relay (main fuse block)
- W/ anti- theft
- W/o anti- theft
Электросхема стартера, M/T для Mazda 626 DX 1993
Электросхема стартера, M/T для Mazda 626 DX 1993 - Список элементов:
- Acc
- Battery
- Blower motor relay
- Central processing unit (joint box)
- Clutch switch (on bracket, above clutch pedal)
- Engine fuse 15a
- Hot in run or start
- Ig key fuse 40a
- Ignition switch
- Instrument clusters system
- J/c 6 (main fuse block)
- J/c 7 (main fuse block)
- Joint box (left kick panel)
- Main fuse 100a
- Main fuse block (left front fender
- Off
- Powertrain control module
- Start
- Starter
- Starter cut relay (main fuse block)
- W/ anti- theft
- W/o anti- theft
Стеклоочистители и Стеклоомыватели Дворники
Электросхема стеклоочистителя, дворников и омывателя для Mazda 626 DX 1993
Электросхема стеклоочистителя, дворников и омывателя для Mazda 626 DX 1993 - Список элементов:
- C 1996 vftc
- G106
- High
- Hot in run
- Int
- Intermittent relay
- J/c 1 (behind left headlamp)
- Joint box (behind left side of i/p)
- Low
- Mist
- Off
- Washer switch
- Windshield washer motor (in washer fluid reservoir)
- Windshield wiper & washer switch
- Windshield wiper motor (left rear corner of engine compartment)
- Wiper fuse 13 20a
- Wiper switch
ЦЕНТРАЛЬНЫЙ ЗАМОК
Электросхема центрального замка для Mazda 626 DX 1993
Электросхема центрального замка для Mazda 626 DX 1993 - Список элементов:
- 1996 vftc c
- Central processing unit (in joint box) (behind left side of i/p)
- Door lock fuse 3 30a
- Door lock timer unit (behind right side of i/p)
- G300 (below left front seat)
- Hot at all times
- Joint box (behind left side of i/p)
- Left rear power door lock motor
- Lock
- Lock relay
- Power door lock main switch
- Red
- Right front power door lock motor
- Right rear power door lock motor
- Solid state
- Unlock
- Unlock relay
- W/ theft deterrent
