Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала
2.3L

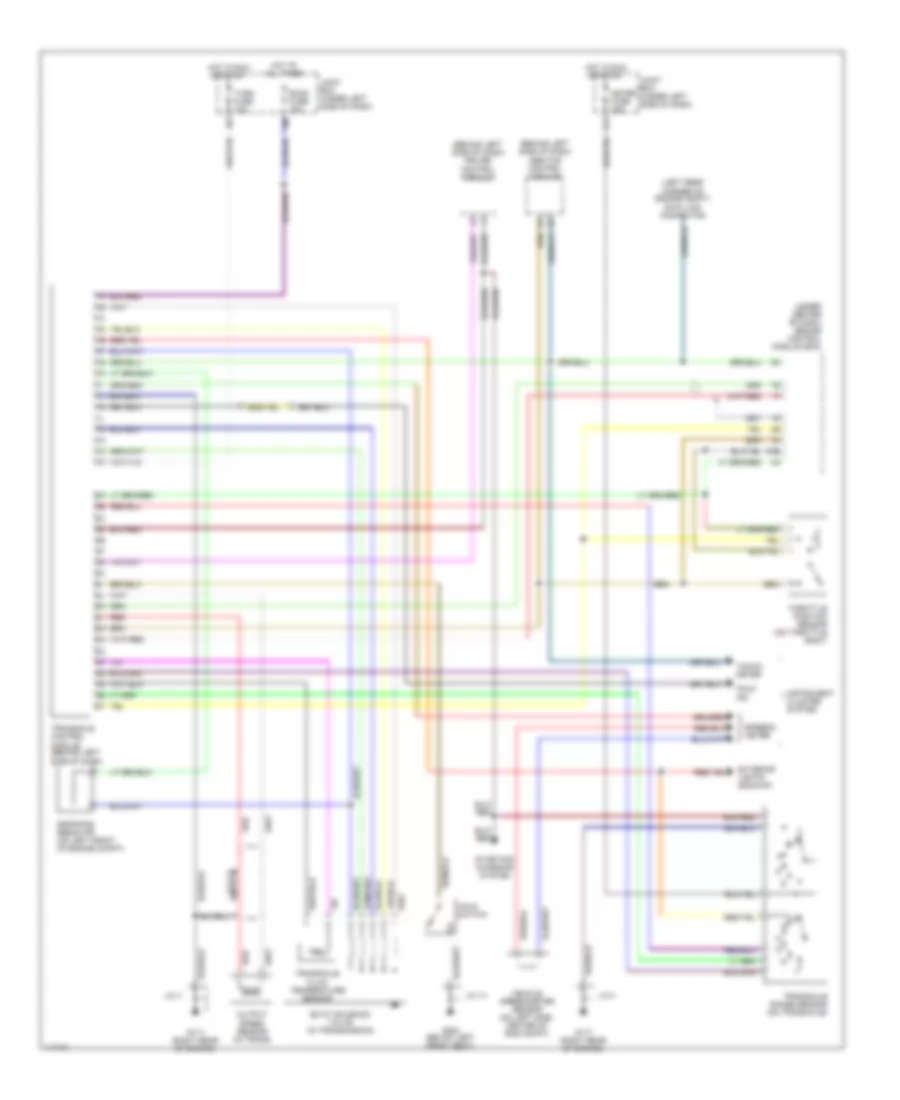

2.3L, Электросхема автоматической коробки передач АКПП для Mazda Millenia 1997
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 2.3L, Электросхема автоматической коробки передач АКПП для Mazda Millenia 1997 - Список элементов:
- (behind left side of dash) abs/tcs control module
- (behind left side of dash) cruise control module
- (left rear corner of engine compt) data link connector
- (under center of dash) engine control module (ecm)
- 3ab
- Dropping resistor (on left front of engine compt)
- Ec-at solenoid valve (in transmission)
- Exterior lights (backup)
- G117 (right rear of engine)
- G300 (below left front seat)
- Hold ind
- Hold switch
- Hot at all times
- Hot in run or start
- Instrument cluster system
- J/c 14
- J/c 4
- Joint box (under left side of dash)
- Meter fuse 15a
- Output speed sensor (in trans)
- P r
- Red
- Room fuse 15a
- Speedo- meter
- Starting/ charging system
- Tacho- meter
- Throttle position sensor (on throttle body)
- Transaxle control module (behind left side of dash)
- Transaxle fluid temperature sensor
- Transaxle range sensor (on transaxle)
- Turn fuse 10a
- Vehicle speedometer sensor (on left side, center of eng compt)
2.5L
2.5L, Электросхема автоматической коробки передач АКПП для Mazda Millenia 1997
2.5L, Электросхема автоматической коробки передач АКПП для Mazda Millenia 1997 - Список элементов:
- 3ab
- 4ab
- 4af
- 4aj
- 4an
- Anti-lock brakes system
- Brake switch (on brake pedal support bracket)
- Ec-at solenoid valve (in transmission)
- Egi inj fuse 30a
- Engine controls system
- Engine coolant temperature sensor (on top of engine)
- Engine fuse 15a
- Exterior lights (backup)
- G110
- G110 (front of engine)
- G300 (below left front seat)
- Hold ind
- Hold switch
- Hot at all times
- Hot in run or start
- Hot in start
- Input/turbine speed sensor (on left side of engine compt, in transmission)
- Instrument cluster system
- J/c 14
- J/c 4 (lower left front of engine)
- J/c 5
- Joint box (under left side of dash)
- Main fuse block (on left front inner fender panel)
- Main relay (on main fuse block)
- Meter fuse 15a
- Noise suppressor (near brake pedal)
- P r
- Powertrain control module (pcm) (under center of dash)
- Red
- Room fuse 15a
- Speedo- meter
- Start sign fuse 10a
- Starting/ charging system
- Stop fuse 20a
- Throttle position sensor (on throttle body)
- Transaxle fluid temperature sensor
- Transaxle range switch (on transaxle)
- Vehicle speedometer sensor (left side center of eng compt)
БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА
Электросхема багажника и лючка топливного бака для Mazda Millenia 1997
Электросхема багажника и лючка топливного бака для Mazda Millenia 1997 - Список элементов:
- (1995)
- (1995-96)
- (1997)
- (in joint box (behind left side of i/p)
- 10q
- Central processing unit
- Fuel indicator module
- Fuel-filler lid opener (left side trunk)
- G300 (below left front seat)
- G407 (center rear of trunk)
- Hot at all times
- Instrument cluster
- Joint box (under left side of dash)
- Opener fuse 15a
- Trunk & fuel-filler lid opener switch
- Trunk lid cancel switch (center of i/p)
- Trunk lid opener (center of trunk)
- Trunk lid opener relay (1995-96 right front of trunk) (1997 behind right rear seat)
БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ
Электросхема блока предохранителей и реле для Mazda Millenia 1997
Электросхема блока предохранителей и реле для Mazda Millenia 1997 - Список элементов:
- (not used)
- 10a
- 10f
- 10j
- 10q
- 11c
- 11j
- 11m
- A/c
- A/c amplifier
- A/c amplifier, max-hi relay
- A/c fuse 10a
- Abs fuse 60a
- Abs/tcs control unit
- Acc
- Ad fan fuse 30a
- Anti-lock brakes
- Audio fuse 20a
- Audio unit
- Battery
- Blower fuse 15a
- Blower relay
- Btn fuse 60a
- Charging
- Cigar fuse 15a
- Cigarette lighter
- Cooling fan fuse 30a
- Cooling fans
- Courtesy lights
- Defog fuse 40a
- Defoggers
- Door lock fuse 30a
- Door lock timer unit
- Egi inj fuse 30a
- Engine control module
- Engine controls, charging
- Engine fuse 15a
- Flasher unit
- Fog fuse 15a
- Fog lights
- G201 (right side of i/p)
- Hazard fuse 15a
- Head fuse 40a
- Headlights
- Headlights, exterior lights, interior lights
- Heater fuse 40a
- Horn fuse 10a
- Horns
- Ig key fuse 60a
- Ignition switch
- Instrument cluster
- Interior and spot lights
- Joint box
- Lock
- Main fuse 120a
- Main fuse box
- Meter fuse 15a
- Noise suppressor
- Opener fuse 15a
- P seat fuse 30a
- P/window fuse 30a
- Power seats
- Power window main switch
- Radio fuse 10a
- Rdef fuse 15a
- Rear defogger relay, shift lock actuator, power outside mirror switch
- Red
- Room fuse 15a
- Run
- S warm fuse 20a
- Sas unit
- Shift lock actuator
- Solar ventilation control unit, seat warmer relay
- Sound system
- Start
- Start fuse 15a
- Starter
- Starter cut relay
- Starter relay
- Starting
- Stop fuse 20a
- Sun roof fuse 15a
- Sunroof relay
- Tail fuse 20a
- Tilt relay
- Transmission control module
- Trunk compartment light
- Turn fuse 10a
- Turn switch
- Wiper fuse 20a
- Wiper motor
- Wiper/ washer switch
БЛОК УПРАВЛЕНИЯ КУЗОВОМ
Электросхема блока управления кузовом для Mazda Millenia 1997
Электросхема блока управления кузовом для Mazda Millenia 1997 - Список элементов:
- 10c
- 10d
- 10h
- A/c system (solar ventilation control unit)
- Anti-theft system (hood switch)
- Anti-theft system (security light)
- Anti-theft system (starter cut relay)
- Central processing unit (cpu) (on joint box)
- Door lock system (door lock switch)
- Door lock system (door lock timer unit)
- Door lock system (keyless unit)
- Door lock system (left door key cylinder switch)
- Door lock system (left front door lock actuator)
- Door lock system (right door key cylinder switch)
- Electronic power steering system (tilt relay)
- Electronic power steering system (tilt sensor)
- Electronic power steering system (tilt switch)
- Engine controls system (engine control module)
- Exterior lights system (back-up lights)
- Exterior lights system (flasher unit)
- G202
- G407 (center rear of trunk)
- Head light system (drl relay)
- Headlights system (fog light switch)
- Headlights system (front fog light relay)
- Headlights system (headlight relay)
- Headlights system (tns relay)
- Horn system (horn relay)
- Hot at all times
- Hot in run and acc
- Hot in run and start
- Instrument cluster system (instrument cluster)
- Interior lights system (courtesy lights)
- Interior lights system (interior and spot lights)
- Interior lights system (trunk compartment light)
- J/c 8 (left side of i/p)
- Joint box (under left side of dash)
- Key reminder switch
- Left front door switch
- Left rear door switch
- Meter fuse 10a
- Pnk
- Radio fuse 10a
- Red
- Right front door switch
- Right rear door switch
- Room fuse 15a
- Transmission range sensor
- Trunk key cylinder switch
- Trunk,tailgate,fuel door release system (trunk lid opener relay)
- Warning system (buckle switch)
БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ
Электросхема блокировки селектора для Mazda Millenia 1997
Электросхема блокировки селектора для Mazda Millenia 1997 - Список элементов:
- (behind left side of dash) key interlock resistor
- (below right front seat)
- (under left side of dash)
- Anti-lock brakes cruise control engine controls
- Brake switch (left side of i/p)
- Central processing unit (on joint box)
- G301
- Hot at all times
- Hot in run and start
- J/c 13
- Joint box
- Joint box (behind left
- Key interlock solenoid (behind left side of dash)
- Limit switch
- Noise suppressor
- Not p range switch
- P range switch
- Pnk
- Rear defroster fuse 15a
- Room fuse 15a
- Shift- lock actuator (below center console)
- Side of i/p)
- Stop fuse 20a
ВНЕШНЕЕ ОСВЕЩЕНИЕ
Электросхема заднего хода для Mazda Millenia 1997
Электросхема заднего хода для Mazda Millenia 1997 - Список элементов:
- (center rear of trunk) g407
- 10h
- Hot in run and start
- Jc-15 (center rear of trunk)
- Joint box (left kick panel)
- Meter fuse 15a
- Right backup light
- Transmission control module
- Transmission range sensor
Электросхема внешнего освещения для Mazda Millenia 1997
Электросхема внешнего освещения для Mazda Millenia 1997 - Список элементов:
- (front of right fender) j/c 2
- (rear of left fender) j/c 2
- (right kick panel) g203
- 10p
- Anti-lock brake system
- Brake switch (on brake pedal support bracket)
- Central processing unit (cpu)
- Cruise control system
- Engine controls system
- Flasher unit (behind left side of dash)
- G100 (front of left fender)
- G101
- G104
- G203 (right kick panel)
- G301
- G407 (center rear of trunk)
- Hazard fuse 15a
- Hazard warning switch
- Head
- Headlight switch
- High mount brake light (one or two bulbs)
- Hot at all times
- Hot in run and start
- Instrument cluster
- J/c 2 (rear of left fender)
- J/c 3 (front of right fender)
- J/c 7 (center of dash)
- Jc-13 (below left front seat)
- Jc-15 (center rear of trunk)
- Joint box (under left side of dash)
- Left combi- nation brake light
- Left combi- nation taillight
- Left front marker light
- Left front park light
- Left front turn/ hazard light
- Left inboard combi- nation brake light
- Left inboard taillight
- Left license light
- Left rear turn/ hazard light
- Left turn ind
- Main fuse block (left front inner fender panel)
- Nca
- Noise suppressor (under dash near brake pedal)
- Off
- Right combi- nation brake light
- Right combi- nation taillight
- Right front marker light
- Right front park light
- Right front turn/ hazard light
- Right inboard combi- nation brake light
- Right inboard taillight
- Right license light
- Right rear turn/ hazard light
- Right turn ind
- Shift interlock system
- Solid state
- Stop fuse 20a
- Tail fuse 20a
- Tns
- Tns relay (main fuse block)
- Turn fuse 10a
- Turn switch
ВНУТРЕННЕЕ ОСВЕЩЕНИЕ
Электросхема подсветки для Mazda Millenia 1997
Электросхема подсветки для Mazda Millenia 1997 - Список элементов:
- 10d
- 10j
- 10q
- Central processing unit (cpu)
- Door
- G202
- G203 (right kick panel)
- G407 (center rear of trunk)
- Hot at all times
- Interior light
- Jc-08 (left side of i/p)
- Joint box (under left side of dash)
- Key reminder switch
- Left front courtesy light
- Left rear courtesy light
- Left rear personal light
- Left vanity mirror light
- Off
- Opener fuse 15a
- Red
- Right front courtesy light
- Right rear courtesy light
- Right rear personal light
- Right vanity mirror light
- Room fuse 15a
- Solar ventilation control module (left rear of luggage compt)
- Solar ventilation switch
- Spot lights
- Trunk compartment light
- Trunk compartment light switch
Электросхема подсветки приборов для Mazda Millenia 1997
Электросхема подсветки приборов для Mazda Millenia 1997 - Список элементов:
- 10n
- A/c amplifier illumination
- Audio unit illumination
- Exterior light system (headlight switch)
- Exterior lights system
- Fog light switch & cruise control main switch illumination
- G203 (right kick panel)
- Glove compartment light
- Glove compartment light switch
- Hazard warning switch illumination
- Hot at all times
- Illum fuse 10a
- Instrument cluster illumination
- J/c (under left side of dash)
- Joint box (under left side of dash)
- Left front seat warmer switch illumination
- Main fuse block (left front inner fender panel)
- Panel light control switch
- Panel light control unit
- Red
- Right front seat warmer switch illumination
- Selector illumination
- Solar ventilation switch illumination
- Tail fuse 15a
- Tns relay (on main fuse block)
ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ
Электросхема подключение массы заземления для Mazda Millenia 1997
Электросхема подключение массы заземления для Mazda Millenia 1997 - Список элементов:
- 2.3l
- 2.5l
- Audio unit, audio amplifier center speaker amplifier speaker wire shields
- Brake fluid level sensor tilt relay cruise control switch sas unit
- Cam position sensor (2.3l) knock sensor shield (2.3l) crank position sensor shield (2.3l) engine control module (2.3l) transaxle control module (2.3l) main relay, fuel gauge sending unit (2.3)
- Coolant fan motor left headlight left parking light
- Coolant fan relay 3 washer fluid level sensor windshield washer motor right headlight right fog light right front marker light left front marker light right front turn signal condenser fan relay 2 hood switch
- Data link connector left fog light left front marker light left front turn signal
- Data link connector transaxle range switch (2.3l) a/c amplifier data link connector 2 (2.3l) distributor (2.5l) ignition coils (2.3l) left & right rear heated oxygen sensor shield (2.3l) fuel injectors (2.3l)
- Fuel gauge sending unit (2.5l)
- G100 (front of left fender)
- G101
- G104
- G110(2.5l)
- G117(2.3l) g110(2.5l)
- G202
- G203
- G203 (right kick panel)
- G206 (center of i/p)
- G300
- G301
- G407 (center rear of trunk)
- High mount stop lights shift lock actuator ventilation fan 1 & 2 solar ventilation control unit left and right power seat switches ambient temperature switch door lock timer unit right front door key cylinder switch
- High mount stop lights, hold switch power window main switch, door lock timer unit power outside mirror switch
- Instrument cluster, intermittent wiper relay data link connector 2 fog light switch, hazard warning switch cigarette lighter, headlight switch panel light control module glove compartment light switch right & left front seat warmer switches cruise control main switch, flasher unit data link connector, a/c power transistor solar ventilation switch, a/c max high relay
- J/c 10 (left side of i/p)
- J/c 11 (right kick panel)
- J/c 13 (below right front seat)
- J/c 14 (below left front seat)
- J/c 15 (center rear of trunk)
- J/c 16 (right front of trunk)
- J/c 17 (near radio)
- J/c 2 (rear of left fender)
- J/c 3 (front of right fender)
- J/c 4 (2.3l) (right rear of engine)
- J/c 4 (2.5l) (lower left front of engine)
- J/c 5 (2.3l) (left rear of engine)
- J/c 6 (center of dash)
- J/c 7 (center of dash)
- J/c 8 (left side of i/p)
- J/c 9 (right kick panel)
- License plate lights right and left taillights rear turn and hazard warning lights left and right stop lights left and right backup lights trunk compartment light switch trunk key cylinder switch trunk lid opener fuel filler lid opener
- Right rear personal light central processing unit solar cell abs hydrolic unit abs control module abs relay cruise control module sas unit brake fluid level sensor right & left vanity mirror left rear personal light interior & spotlight switch
- Tcs off switch, hold switch seat warmer relay left and right front lock link switches left and right rear lock link switches door lock switch, keyless unit left front door key cylinder switch fuel pump, left front door lock motor
- Transaxle range switch (2.5l) data link connector shield (2.5l) data link connector (2.5l) engine control module (2.5l) mass air flow sensor (2.5l) distributor (2.5l) left & right rear heated oxygen sensor shield (2.5l) knock sensor shield (2.5l)
Звуковой сигнал Гудок
Электросхема звукового сигнал Гудка для Mazda Millenia 1997
Электросхема звукового сигнал Гудка для Mazda Millenia 1997 - Список элементов:
- Central processing unit
- Clock spring
- Horn switch
- Horn fuse 10a
- Horn relay (on main fuse block)
- Hot at all times
- Joint box (under left side of dash)
- Left horn (near left headlight)
- Main fuse box (left front inner fender panel)
- Nca
- Passenger side air bag module (under right side of dash)
- Right horn (near right headlight)
Магнитола Мультимедия
Стандартная комплектация для Mazda Millenia 1997
Стандартная комплектация для Mazda Millenia 1997 - Список элементов:
- Audio unit
- G206 (center of dash)
- Hot at all times
- Hot in acc & run
- Interior lights system
- Jc-07 (center of dash)
- Joint box (under left side of dash)
- Left door speaker
- Left rear speaker
- Pnk
- Radio fuse 10a
- Red
- Right door speaker
- Right rear speaker
- Room fuse 15a
Электросхема премиум магнитолы для Mazda Millenia 1997
Электросхема премиум магнитолы для Mazda Millenia 1997 - Список элементов:
- 1996 vftc c
- Audio amplifier
- Audio fuse 20a
- Audio unit
- Center speaker
- Center speaker amplifier
- G206 (center of dash)
- Hot at all times
- Hot in acc or run
- Interior lights system
- Jc-07 (center of dash)
- Jc-17 (center of dash)
- Joint box (under left side of dash)
- Left door speaker
- Left rear speaker
- Main fuse block (left front inner fender panel
- Nca
- Pnk
- Radio fuse 10a
- Red
- Right door speaker
- Right rear speaker
- Room fuse 15a
- Shields
Подогрев стекол и зеркал
Электросхема подогрева стекол и зеркал для Mazda Millenia 1997
Электросхема подогрева стекол и зеркал для Mazda Millenia 1997 - Список элементов:
- (behind right rear seat)
- Air conditioning amplifier (behind left side of i/p)
- Condenser
- Defog fuse 40a
- Engine control module (2.3l) (under center of i/p)
- Hot at all times
- Hot in run or start
- Joint box (under left side of dash)
- Main fuse block (left front inner fender panel)
- Noise filter
- Powertrain control module (2.5l) (under center of i/p)
- R. def fuse 15a
- Rear window defroster
- Rear window defroster relay
ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG
Электросхема подушек безопасности SRS AirBag для Mazda Millenia 1997
Электросхема подушек безопасности SRS AirBag для Mazda Millenia 1997 - Список элементов:
- Air bag ind.
- Clock- spring
- Data link connector (left rear corner of engine compt)
- Driver side air bag module
- Engine fuse 15a
- G200 (left kick panel)
- G203 (right kick panel)
- Hot in run or start
- Instru- ment cluster
- Jb-01
- Jb-07
- Joint box
- Meter fuse 15a
- Passenger side air bag module
- Red
- Sas unit (under center of dash)
ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ
Электросхема предупреждающей системы для Mazda Millenia 1997
Электросхема предупреждающей системы для Mazda Millenia 1997 - Список элементов:
- (under left side of dash) joint box
- 10c
- Buckle switch
- Central processing unit (cpu)
- Door ind
- G203
- G301
- Hot at all times
- Hot in run or start
- Instrument cluster
- J/c 13 (below right front seat)
- J/c 8 (left side of i/p)
- Key reminder switch
- Left front door switch
- Left front power seat switch
- Left rear door switch
- Meter fuse 15a
- Pnk
- Right front door switch
- Right rear door switch
- Room fuse 15a
- Seat belt ind
ПРИБОРНАЯ ПАНЕЛЬ
Электросхема панели приборов для Mazda Millenia 1997
Электросхема панели приборов для Mazda Millenia 1997 - Список элементов:
- (2.5l) g110 (front of engine)
- 4w abs ind
- 6j pnk
- 7d pnk
- A/c amplifier
- Air bag ind
- Anti-lock brakes
- Beam ind
- Brake fluid level sensor (left rear of engine)
- Brake ind
- Buckle switch
- Central processing unit (cpu)
- Charge ind
- Conn 1
- Conn 2
- Conn 3
- Cruise control
- Cruise ind
- Door ind
- Engine controls
- Exterior lights
- Fuel gauge
- Fuel gauge sender unit
- Fuel ind
- Fuel indicator module
- Fuel tank unit
- G101 (front of right fender)
- G117 (2.3l) (rear of engine)
- G203 (right kick panel)
- G301 (below right front seat)
- Headlights
- Hold ind
- Hot in run and start
- Illum (3 used)
- Instrument cluster
- Interior lights
- Jc-03
- Jc-04 (2.3l)
- Jc-05 (2.5l)
- Jc-09
- Jc-13
- Joint box
- Left door switch
- Left front power seat switch
- Left turn ind
- Meter fuse 15a
- Mil ind
- Oil ind
- Oil pressure switch (front of engine)
- Parking brake switch
- Pnk
- Red
- Right door switch
- Right turn ind
- Seat belt ind
- Speedometer
- Starting/charging
- Tachometer
- Tcs ind
- Tcs off ind
- Temperature gauge
- Transaxle control module, cruise control module, engine control module
- Vehicle speedometer sensor (on transaxle)
- Washer fluid level sensor (right front corner of engine compt)
- Washer ind
- Water temperature sender unit (top center of engine)
ПРИВОД ЗЕРКАЛ
Электросхема привода зеркал для Mazda Millenia 1997
Электросхема привода зеркал для Mazda Millenia 1997 - Список элементов:
- Down
- G300
- Hot in acc or run
- J/c 14 (below left front seat)
- Joint box (under left side of dash)
- Left
- Left power outside mirror
- Left/right
- Power outside mirror switch
- R. def fuse 15a
- Right
- Right power outside mirror
- Up/down
ПРИВОД ЛЮКА И КРЫШИ
Электросхемы привода люка или крыши для Mazda Millenia 1997
Электросхемы привода люка или крыши для Mazda Millenia 1997 - Список элементов:
- (near front end of sunroof) sunroof relay
- Close
- Down
- Hot in run
- Joint box (under left side of dash)
- Limit switch 1
- Limit switch 2
- Open
- Slide
- Sliding sunroof motor (near front end of sunroof)
- Sunroof fuse 15a
- Sunroof switch (near front end of sunroof)
- Tilt
ПРИВОД СТЕКЛОПОДЪЕМНИКОВ
Электросхема стеклоподъемников для Mazda Millenia 1997
Электросхема стеклоподъемников для Mazda Millenia 1997 - Список элементов:
- 10u
- 1996 vftc c
- Down
- G300 (below left front seat)
- Hot in run
- Jc-12
- Joint box
- Left front power window regulator
- Left rear power window regulator
- Left rear power window sub- switch
- P/window fuse 30a
- Power cut switch
- Power window main switch
- Red
- Right front power window regulator
- Right front power window sub- switch
- Right rear power window regulator
- Right rear power window sub- switch
Противоугонная система Сигнализация
Электросхема противоугонной сигнализации для Mazda Millenia 1997
Электросхема противоугонной сигнализации для Mazda Millenia 1997 - Список элементов:
- (below left front seat)
- (center rear of trunk) g407
- 10j
- 1996 vftc c
- Central processing unit (cpu)
- Exterior lights system (hazard warning switch)
- Flasher unit (behind (left side of dash)
- G101
- G202
- G300
- Hood switch (on right side of inner fender panel)
- Horn relay (on main fuse block)
- Hot at all times
- Hot in acc or run
- Hot in run or start
- I-29
- J/c 3 (front of right fender)
- J/c 8 (left side of i/p)
- J/c-07 (under left side of dash)
- Jb-11
- Jc-13 (below right front seat)
- Joint box (under left side of dash)
- Key reminder switch (in steering column)
- Left front door key cylinder switch (unlock:on)
- Left front door lock switch
- Left front door switch
- Left front lock- link switch
- Left horn
- Left rear door switch
- Lock
- Meter fuse 15a
- Pnk
- Radio fuse 10a
- Red
- Right front door key cylinder switch
- Right front door switch
- Right horn
- Right rear door switch
- Room fuse 15a
- Security indicator
- Starting/charging system (starter cut relay)
- Trunk compartment light
- Trunk compartment light switch
- Trunk key cylinder switch
- Un- lock
СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS
Электросхема антиблокировочной тормозной системы АБС (ABS), С Регулирование тягового усилия для Mazda Millenia 1997
Электросхема антиблокировочной тормозной системы АБС (ABS), С Регулирование тягового усилия для Mazda Millenia 1997 - Список элементов:
- (on brake pedal bracket) noise suppressor
- 1aj
- 2.3l
- 2.5l
- Abs fuse 60a
- Abs hydraulic unit (left rear of engine compt)
- Abs ind
- Abs motor
- Abs relay (left rear corner of engine compt)
- Abs/tcs control unit (left kick panel)
- Brake switch (on brake pedal bracket)
- Data link connector (left rear of engine compt)
- Engine control module (below center console)
- Engine fuse 15a
- Fail-safe relay
- G202 (left side of i/p)
- G300 (below left front seat)
- Hot at all times
- Hot in run or start
- Instrument cluster
- Joint box
- Left front abs wheel speed sensor
- Left rear abs wheel speed sensor
- Lf solenoid
- Lr solenoid
- Main fuse block
- Meter fuse 15a
- Motor relay
- Pnk
- Red
- Rf solenoid
- Right front abs wheel speed sensor
- Right rear abs wheel speed sensor
- Rr solenoid
- Stop fuse 20a
- Tcs ind
- Tcs off ind
- Tcs off switch
Электросхема антиблокировочной тормозной системы АБС (ABS), без Регулирование тягового усилия для Mazda Millenia 1997
Электросхема антиблокировочной тормозной системы АБС (ABS), без Регулирование тягового усилия для Mazda Millenia 1997 - Список элементов:
- Abs control unit (left kick panel)
- Abs fuse 60a
- Abs hydraulic unit (left rear of
- Abs ind
- Abs motor
- Abs relay (left rear corner of engine compt)
- Brake switch (on brake pedal bracket)
- Data link connector (left rear corner of engine compartment)
- Engine compt)
- Engine fuse 15a
- Fail-safe relay
- G202 (left side of i/p)
- Hot at all times
- Hot in run or start
- Instrument cluster
- Joint box
- Left front abs wheel speed sensor
- Left rear abs wheel speed sensor
- Lf solenoid
- Lr solenoid
- Main fuse block
- Meter fuse 15a
- Motor relay
- Noise suppressor (on brake pedal bracket)
- Pnk
- Red
- Rf solenoid
- Right front abs wheel speed sensor
- Right rear abs wheel speed sensor
- Rr solenoid
- Stop fuse 20a
СИСТЕМА КОНДИЦИОНЕРА
2.3L
2.3L, Электросхема кондиционера A/C (1 из 2) для Mazda Millenia 1997
2.3L, Электросхема кондиционера A/C (1 из 2) для Mazda Millenia 1997 - Список элементов:
- 1995 vftc c
- A/c amplifier (center of i/p)
- Air intake actuator (right side of i/p)
- Air mix actuator (center of i/p)
- Airflow mode actuator (center of i/p)
- Ambient temperature sensor (right front
- Data link connector (left rear of engine compt)
- Defogger
- Evaporator temperature sensor (center
- G100 (left front of engine compt)
- Hot at all times
- Hot in acc or on
- Information display
- Instrument cluster (speedometer)
- Interior lights system
- Interior lights system (tns relay)
- Jb-07
- Joint box
- Junction connector (center of i/p)
- Of engine compt)
- Of i/p)
- Passenger compartment temperature sensor (right side
- Position feedback
- Radio fuse 10a
- Rear
- Red
- Refrigerant pressure switch (right side of engine compt)
- Relay
- Room fuse 15a
- Solar temperature sensor (right side
- Water temperature sensor (center
2.3L, Электросхема кондиционера A/C (2 из 2) для Mazda Millenia 1997
2.3L, Электросхема кондиционера A/C (2 из 2) для Mazda Millenia 1997 - Список элементов:
- 1995 vftc c
- A/c fuse 10a
- A/c relay (right front of engine compt)
- Ad fan fuse 30a
- Blower fuse 15a
- Blower motor
- Blower relay (in main fuse block)
- Condenser fan
- Coolant fan motor
- Coolant fan relay 1 (in relay box)
- Coolant fan relay 2 (in relay box)
- Coolant fan relay 3 (in relay box)
- Cooling fan fuse 30a
- Engine control module (center of i/p)
- Engine fuse 15a
- G100 (left front of engine compt)
- G101 (right front of engine compt)
- G203 (right kick panel)
- Heater fuse 40a
- Hot at all times
- Hot in run
- Hot in run or start
- Jb-01
- Jb-04
- Jb-07
- Joint box
- Magnetic clutch
- Main fuse block
- Max-hi relay (right side of i/p)
- Power transistor (right side of i/p)
- Relay 1 (right front of engine compt)
- Relay 2 (right front of engine compt)
- Relay box
солнечная схема вентиляции для Mazda Millenia 1997
солнечная схема вентиляции для Mazda Millenia 1997 - Список элементов:
- (left kick panel)
- A/c fuse 10a
- Ambient temp switch (behind left side of rear seat)
- C 1995 vftc
- G200
- G203 (right kick panel)
- G316 (right front door sill)
- Hot at all times
- Hot in run
- Jb-10
- Joint box
- Key reminder switch
- Room fuse 15a
- Solar cell (front of headliner)
- Solar ventilation control module (behind right side of rear seat)
- Solar ventilation switch
- Ventilation fan 1 (behind right side of rear seat)
- Ventilation fan 2 (behind left side of rear seat)
2.5L
2.5L, Электросхема кондиционера A/C (1 из 2) для Mazda Millenia 1997
2.5L, Электросхема кондиционера A/C (1 из 2) для Mazda Millenia 1997 - Список элементов:
- 1995 vftc c
- A/c amplifier (center of i/p)
- Air intake actuator (right side of i/p)
- Air mix actuator (center of i/p)
- Airflow mode actuator (center of i/p)
- Ambient temperature sensor (right front
- Data link connector (left rear of engine compt)
- Defogger
- Evaporator temperature sensor (center
- G100 (left front of engine compt)
- Hot at all times
- Hot in acc or on
- Information display
- Instrument cluster (speedometer)
- Interior lights system
- Interior lights system (tns relay)
- Jb-07
- Joint box
- Junction connector (center of i/p)
- Of engine compt)
- Of i/p)
- Passenger compartment temperature sensor (right side
- Position feedback
- Radio fuse 10a
- Rear
- Red
- Refrigerant pressure switch (right side of engine compt)
- Relay
- Room fuse 15a
- Solar temperature sensor (right side
- Water temperature sensor (center
2.5L, Электросхема кондиционера A/C (2 из 2) для Mazda Millenia 1997
2.5L, Электросхема кондиционера A/C (2 из 2) для Mazda Millenia 1997 - Список элементов:
- 1995 vftc c
- A/c fuse 10a
- A/c relay (right front of engine compt)
- Ad fan fuse 30a
- Blower fuse 15a
- Blower motor
- Blower relay (in main fuse block)
- Condenser fan
- Coolant fan motor
- Coolant fan relay (in relay box)
- Cooling fan fuse 30a
- Engine fuse 15a
- G100 (left front of engine compt)
- G101 (right front of engine compt)
- G203 (right kick panel)
- Heater fuse 40a
- Hot at all times
- Hot in run
- Hot in run or start
- Jb-01
- Jb-02
- Jb-07
- Joint box
- Magnetic clutch
- Main fuse block
- Max-hi relay (right side of i/p)
- Power transistor (right side of i/p)
- Powertrain control module (center of i/p)
- Relay 1 (right front of engine compt)
- Relay 2 (right front of engine compt)
солнечная схема вентиляции для Mazda Millenia 1997
солнечная схема вентиляции для Mazda Millenia 1997 - Список элементов:
- (left kick panel)
- A/c fuse 10a
- Ambient temp switch (behind left side of rear seat)
- C 1995 vftc
- G200
- G203 (right kick panel)
- G316 (right front door sill)
- Hot at all times
- Hot in run
- Jb-10
- Joint box
- Key reminder switch
- Room fuse 15a
- Solar cell (front of headliner)
- Solar ventilation control module (behind right side of rear seat)
- Solar ventilation switch
- Ventilation fan 1 (behind right side of rear seat)
- Ventilation fan 2 (behind left side of rear seat)
СИСТЕМА КРУИЗКОНТРОЛЯ
Электросхема системы круизконтроля для Mazda Millenia 1997
Электросхема системы круизконтроля для Mazda Millenia 1997 - Список элементов:
- (left side of i/p)
- 2.3l
- 2.5l
- Brake switch (behind left side of i/p)
- Cancel
- Clock spring
- Clutch
- Cruise actuator (2.3l engine) (left rear corner of engine compartment)
- Cruise actuator (2.5l engine) (left rear corner of engine compartment)
- Cruise control main switch/ front fog light switch
- Cruise control switch
- Cruise control unit (left kick panel)
- Cruise ind
- Data link connector (left rear of engine compartment)
- G202
- G203 (right kick panel)
- Hot at all times
- Instrument cluster
- Jc-08
- Jc-09
- Joint box (left side of i/p)
- Meter fuse 15a
- Noise suppressor (on brake pedal bracket)
- Powertrain control module (below center console)
- Red
- Resume/accel
- Set/coast
- Speed output
- Starting/ charging (starter cut relay)
- Stop fuse 20a
- Transmission control module (left kick panel)
СИСТЕМА ОХЛАЖДЕНИЯ
2.3L
2.3L, Электросхема системы охлаждения для Mazda Millenia 1997
2.3L, Электросхема системы охлаждения для Mazda Millenia 1997 - Список элементов:
- (right front of engine compt) condenser fan relay 1
- (right front of engine compt) condenser fan relay 2
- Ad fan fuse 30a
- Condenser fan
- Coolant fan motor
- Coolant fan relay 1 (in relay box)
- Coolant fan relay 2 (in relay box)
- Coolant fan relay 3 (in relay box)
- Cooling fan fuse 30a
- Engine control module (center of i/p)
- Engine fuse 10a
- G100 (left of eng compt)
- G101 (right front of engine compt)
- Hot at all times
- Hot in run or start
- Jb-04
- Joint box
- Main fuse block
- Relay box
2.5L
2.5L, Электросхема системы охлаждения для Mazda Millenia 1997
2.5L, Электросхема системы охлаждения для Mazda Millenia 1997 - Список элементов:
- Ad fan fuse 30a
- Condenser fan
- Condenser fan relay 1 (right front of engine compt)
- Condenser fan relay 2 (right front of engine compt)
- Coolant fan motor
- Coolant fan relay (in relay box)
- Cooling fan fuse 30a
- Engine control module (center of i/p)
- Engine fuse 15a
- G100 (left front of engine compt)
- G101 (right front of engine compt)
- Hot at all times
- Hot in run or start
- Jb-02
- Jb-03
- Joint box
- Main fuse block
СИСТЕМА ПЕРЕДАЧИ ДАННЫХ
2.3L
2.3L, Электросхема компьютерной линии передачи данных CAN для Mazda Millenia 1997
2.3L, Электросхема компьютерной линии передачи данных CAN для Mazda Millenia 1997 - Список элементов:
- (left kick panel)
- (under center of dash)
- 1af
- 1f 2b
- 1r 2a
- A/c amplifier (behind left side of dash)
- Air bag ind.
- Antilock brake control module (behind left side of dash)
- Cruise control module (behind left side of dash)
- Data link connector (left rear corner of engine compt)
- Data link connector 2 (under left side of dash)
- Engine control module (under center of dash)
- F/b
- Fab
- Fac
- Fbs
- Fsc
- Fuel pump relay (left rear corner of engine compt)
- G104
- G117
- G203 (right kick panel)
- Gnd
- Hot at all times
- Hot in run or start
- Ig-
- Instrument cluster
- Instrument cluster tranmissions anti-lock brakes
- J/c 2 (rear of right fender)
- J/c 4 (right rear of engine)
- Joint box
- Meter fuse 15a
- Red
- Room fuse 15a
- Sas unit (airbag)
- Tac
- Tbs
- Ten
- Tsc
- W/ traction control
2.5L
2.5L, Электросхема компьютерной линии передачи данных CAN для Mazda Millenia 1997
2.5L, Электросхема компьютерной линии передачи данных CAN для Mazda Millenia 1997 - Список элементов:
- (left kick panel)
- (right of steering column) j/c-07
- (under center of dash)
- 1af
- 1f 2b
- 1r 2a
- A/c amplifier (behind left side of dash)
- Air bag ind.
- Antilock brake control module (behind left side of dash)
- Cruise control module (behind left side of dash)
- Data link connector (left rear corner of engine compt)
- Data link connector 2 (under left side of dash)
- Distributor (on engine)
- Engine control module (under center of dash)
- F/b
- Fab
- Fac
- Fbs
- Fsc
- Fuel pump relay (left rear corner of engine compt)
- G104
- G114
- G117
- G203 (right kick panel)
- Gnd
- Hot at all times
- Hot in run or start
- Ig-
- Instrument cluster
- J/c 2 (rear of right fender)
- J/c 4 (right rear of engine)
- J/c 5 (left rear of engine)
- Joint box
- Meter fuse 15a
- Red
- Room fuse 15a
- Sas unit (airbag)
- Tac
- Tbs
- Ten
- Tsc
- W/ traction control
СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ
2.3L
2.3L, Электросхема системы управления двигателя (1 из 3) для Mazda Millenia 1997
2.3L, Электросхема системы управления двигателя (1 из 3) для Mazda Millenia 1997 - Список элементов:
- (left front corner of eng compt)
- (left rear corner of eng compt) fuel pump relay
- (left rear corner of eng compt) main relay
- 4aa
- 4ab
- 4ac
- 4ae
- 4af
- 4ag
- 4ah
- 4ai
- 4aj
- 4ak
- 4al
- 4am
- 4an
- Abv solenoid valve (vacuum) (right rear of eng compt)
- Abv solenoid valve (vent) (right rear of eng compt)
- Bypass air solenoid valve (right rear of eng compt)
- Canister drain cut valve (left side of trunk)
- Charge air cooler bypass solenoid valve (right rear of eng compt)
- Egi fuse 30a
- Egr solenoid valve (vacuum) (right rear of eng compt)
- Egr solenoid valve (vent) (right rear of eng compt)
- Engine control module (below center of dash)
- Engine fuse 15a
- Fuel pump (in fuel tank)
- Fuel pump resistor and relay (speed)
- G117 (right rear of eng)
- G301
- Hot at all times
- Hot in run or start
- Jb-02 h
- Jb-04 b
- Jb-07 s
- Joint box (left side of i/p)
- Joint connector (jc-12) (below right front seat)
- M jb-03
- Main fuse block (left side of eng compt)
- Map sensor solenoid valve (right rear of eng compt)
- Prc solenoid valve (top right side of eng)
- Purge solenoid valve (top right side of eng)
- Red
- Room fuse 15a
2.3L, Электросхема системы управления двигателя (2 из 3) для Mazda Millenia 1997
2.3L, Электросхема системы управления двигателя (2 из 3) для Mazda Millenia 1997 - Список элементов:
- (below i/p, left side of console) data link connector
- (left front of eng) idle air control valve
- (left rear corner of eng compt) data link connector
- (right front of eng) camshaft position sensor
- Condenser (top left of eng)
- G117 (right rear of eng)
- G203 (right kick panel)
- Ignition coil no.1
- Ignition coil no.2
- Ignition coil no.3
- Ignition coil no.4
- Ignition coil no.5
- Ignition coil no.6
- Jc-04
- Joint connector x-38 (center of i/p)
- Left fuel injectors
- Mass air flow sensor (between air cleaner assembly and throttle body)
- No.1
- No.2
- No.3
- No.4
- No.5
- No.6
- Red
- Right fuel injectors
2.3L, Электросхема системы управления двигателя (3 из 3) для Mazda Millenia 1997
2.3L, Электросхема системы управления двигателя (3 из 3) для Mazda Millenia 1997 - Список элементов:
- (air cleaner) (on air cleaner housing)
- (canada)
- (dynamic chamber) (right rear of eng)
- (lysholm compressor) (on top right side of eng)
- (on top front of engine)
- 1aa
- 1ab
- 1ac
- 1ad
- 1ae
- 1af
- 1ah
- 1aj
- 3ab
- Abs/tcs control unit (left side of i/p)
- Air conditioning system
- Brake switch (on brake pedal)
- Cooling fans system
- Crankshaft position sensor (on front of engine)
- Egr valve position sensor (right rear of eng)
- Engine control module (below center of dash)
- Engine coolant temperature sensor (top right side of eng)
- Fuel tank pressure sensor (on fuel tank)
- Headlights system
- Hot at all times
- Hot in run or start
- Hot in start
- Instrument cluster
- Instrument cluster system
- Intake air temperature sensors
- Jb-03
- Jb-04
- Jb-07
- Joint box (left side of i/p)
- Joint connector jc-06 (center of i/p)
- Joint connector jc-07 (center of i/p)
- Joint connector x-36 (center of i/p)
- Joint connector x-37 (center of i/p)
- Knock sensor
- Left front heated oxygen sensor (left front of eng)
- Left rear heated oxygen sensor (left front of eng)
- Main fuse block (left side of eng compt)
- Malfunction indicator (check engine)
- Manifold absolute pressure sensor (right rear corner of eng compt)
- Meter fuse 15a
- Nca
- Red
- Right front heated oxygen sensor (right rear of eng)
- Right rear heated oxygen sensor (right rear of eng)
- Speedometer
- St. sign fuse 10a
- Steering pressure switch (right rear corner of eng compt)
- Stop fuse 20a
- Tach- ometer
- Throttle position sensor (on throttle body)
- Transmission control module (left side of i/p)
- Vehicle speed meter sensor (left side of eng on trans- axle)
2.5L
2.5L, Электросхема системы управления двигателя (1 из 2) для Mazda Millenia 1997
2.5L, Электросхема системы управления двигателя (1 из 2) для Mazda Millenia 1997 - Список элементов:
- (below left
- (canada)
- 1aa
- 1ab
- 1ac
- 1ad
- 1ae
- 1af
- 1ah
- 1aj
- 4aa
- 4ab
- 4ac
- 4ae
- 4af
- 4ag
- 4ah
- 4ai
- 4aj
- 4ak
- 4al
- 4am
- 4an
- Air conditioning system
- Anti-lock brakes system
- Brake switch (on brake pedal support)
- Crankshaft position sensor (top front of engine)
- Data link connector (below left side of i/p)
- Data link connector (left rear corner of eng compt)
- Distributor (rear of engine)
- Egi inj fuse 30a
- Engine fuse 15a
- Front of eng)
- Fuel pump
- Fuel pump relay (main fuse block) (left side of engine compt)
- G104 (rear of left front fender)
- G110
- G300 (below left front seat)
- Headlights system
- Hot at all times
- Hot in run or start
- Iia fuse 15a
- Instrument cluster
- Instrument cluster system
- Jb-02 h
- Jb-03 m
- Jb-04 d
- Jb-07 s
- Jb-o1 k
- Jc-04
- Jc-05 (upper left front of eng)
- Jc-06 (below center of dash)
- Joint box
- Junction conn x-14 (main fuse block) (left side of engine compt)
- Left fuel injectors
- Main fuse block (left side of engine compt)
- Main relay (main fuse block) (left side of engine compt)
- Mal- function ind
- No. 1
- No. 2
- No. 3
- No. 4
- No. 5
- No. 6
- Powertrain control module (pcm) (below center of i/p)
- Red
- Right fuel injectors
- Room fuse 15a
- Speedo
- Starting/ charging system
- Stop fuse 20a
- Vehicle speed sensor (rear of vehicle, in transaxle)
2.5L, Электросхема системы управления двигателя (2 из 2) для Mazda Millenia 1997
2.5L, Электросхема системы управления двигателя (2 из 2) для Mazda Millenia 1997 - Список элементов:
- (below left front seat)
- 3ab
- Canister drain cut valve (left side of trunk)
- Ec-at solenoid valve (left rear of engine)
- Egr boost sensor (center rear of eng compt)
- Egr boost sensor solenoid valve (left front of eng compt)
- Egr solenoid valve (vacuum) (center rear of engine compt)
- Egr solenoid valve (vent) (center rear of engine compt)
- Egr valve position sensor (right rear of engine compt)
- Engine coolant temp sensor (front of engine)
- Exterior lights system
- Fuel tank pressure sensor (on fuel tank)
- G110
- G300
- Hold switch (below center console)
- Hot in run or start
- Idle air control valve (top rear of engine)
- Input/turbine speed sensor (on transaxle)
- Instrument cluster system
- Intake air temp sensor (rear of engine)
- Jb-07 x
- Jc-04 (lower left front of eng)
- Jc-05 (upper left front of eng)
- Joint box
- Knock sensor (top of engine)
- Left front heated oxygen sensor (left rear of engine)
- Left rear heated oxygen sensor (left rear of engine compt)
- Mass air flow sensor (rear of engine)
- Meter fuse 15a
- Nca
- Pnk
- Power steering pressure switch (front right side of eng)
- Powertrain control module (pcm) (below center of i/p)
- Prc solenoid valve (left front of eng compt)
- Purge solenoid valve (center rear of engine compt)
- Red
- Right front heated oxygen sensor (rear of engine compt)
- Right rear heated oxygen sensor (rear of engine compt)
- Throttle position sensor (top of engine)
- Transaxle fluid temp sensor
- Transaxle range switch (on transaxle)
- Vris solenoid valve no. 2 (right rear of engine compt)
- Vris solenoid valve no.1 (right rear of engine compt)
СИСТЕМА УСИЛИТЕЛЯ РУЛЯ
схема рулевой колонки наклона питания для Mazda Millenia 1997
схема рулевой колонки наклона питания для Mazda Millenia 1997 - Список элементов:
- Central processing unit (in joint box)
- Door lock fuse 30a
- G203
- Hot at all times
- J/c 9 (right kick panel)
- Joint box (under left side of dash)
- Red
- Tilt motor (below steering column)
- Tilt relay (behind left side of dash near steering column)
- Tilt sensor (at steering column)
- Tilt switch (under left side of dash)
Система Фар
Электросхема фар, С DRL для Mazda Millenia 1997
Электросхема фар, С DRL для Mazda Millenia 1997 - Список элементов:
- Beam ind
- Blower fuse 15a
- Central processing unit (cpu) (on joint box, under left side of dash)
- Drl relay (on main fuse block)
- Drl resistor (2.3l,right rear engine compt) (2.5l, right front engine compt)
- Engine control system (idl up fuse)
- Engine controls system
- Exterior lights system (tns relay)
- Flash
- Fog fuse 15a
- Fog light switch
- Front fog light relay (on main fuse block)
- G100 (left front fender)
- G101
- G104
- G203 (right kick panel)
- Head
- Head fuse 40a
- Headlight relay (left front inner fender panel near wheel well)
- Headlight switch
- Hot at all times
- Hot in start or run
- Instrument cluster
- Jc-02 (rear of left front fender)
- Jc-03 (right front fender)
- Joint box (under left side of dash)
- Left front fog light
- Left headlight
- Main fuse block (left front inner fender panel)
- Nca
- Off
- Park
- Red
- Right front fog light
- Right headlight
Электросхема фар, без DRL для Mazda Millenia 1997
Электросхема фар, без DRL для Mazda Millenia 1997 - Список элементов:
- Beam ind
- Central processing unit (cpu) (on joint box, under left side of dash)
- Engine control system (idl up fuse)
- Exterior lights system (tns relay)
- Flash
- Fog fuse 15a
- Fog light switch
- Front fog light relay (on main fuse block)
- G100 (left front fender)
- G101
- G104
- G203 (right kick panel)
- Head
- Head fuse 40a
- Headlight relay (left front inner fender panel, near wheel well)
- Headlight switch
- Hot at all times
- Instrument cluster
- Jc-02 (rear of left front fender)
- Jc-03 (right front fender)
- Left front fog light
- Left headlight
- Main fuse block (left front inner fender panel)
- Nca
- Off
- Park
- Red
- Right front fog light
- Right headlight
СИСТЕМЫ СИДЕНИЙ
Электросхема подогрева сидений для Mazda Millenia 1997
Электросхема подогрева сидений для Mazda Millenia 1997 - Список элементов:
- (1995) (1996-97)
- (1995-96)
- (1997)
- 10b
- A/c fuse 10a
- G203 (right kick panel)
- G309 (left front door sill)
- G316 (right front door sill)
- Hot at all times
- Hot in run and start
- J/c 13 (below left front seat)
- J/c 14 (below left front seat)
- Joint box (under left side of dash)
- Left front seat warmer switch
- Left power seat switch
- Left seat warmer
- Main fuse box (left front inner fender panel)
- Right front seat warmer switch
- Right seat warmer
- S warm fuse 15a 20a
- Seat warmer relay (behind right rear seat)
Электросхема привода сидений для Mazda Millenia 1997
Электросхема привода сидений для Mazda Millenia 1997 - Список элементов:
- 1995-96
- Down
- Front lift
- Front lifter motor
- Fwd
- G301
- G316 (right front door sill)
- Hot at all times
- J/c 13 (below right front seat)
- Left front power seat switch
- Main fuse block (left front inner fender panel)
- Nca
- P seat fuse 30a
- Rear lift
- Rear lifter motor
- Reclining
- Reclining motor
- Red
- Right front power seat switch
- Rwd
- Slide
- Slide motor
- Sliding motor
- Warning system (buckle switch)
Стартер Генератор
Электросхема Генератора для Mazda Millenia 1997
Электросхема Генератора для Mazda Millenia 1997 - Список элементов:
- (left front of engine compt) left front heated oxygen sensor
- 2.3l only
- Acc
- Battery
- Charge indicator
- Egi inj fuse 30a
- Engine fuse 15a
- Generator
- Ig key fuse 60a
- Ignition switch
- Instrument cluster
- Joint box (left kick panel)
- Joint box (left side of dash)
- Main fuse 120a
- Main fuse block (on battery)
- Meter fuse 15a
- Nca
- Off
- Start
- Starter
Электросхема стартера для Mazda Millenia 1997
Электросхема стартера для Mazda Millenia 1997 - Список элементов:
- 2.5l only
- Acc
- Battery
- Central processing unit
- Cruise control system
- Engine controls system
- Engine fuse 15a
- G110
- Ig key fuse 60a
- Ignition switch
- Instrument cluster system
- J/c 5 (left front of engine)
- Joint box (left kick panel)
- Main fuse 120a
- Main fuse block (on battery)
- Nca
- Off
- St sign fuse 10a
- Start fuse 15a
- Starter
- Starter cut relay (left front fender)
- Starter relay (left front fender)
- Transmission range switch (under center console)
Стеклоочистители и Стеклоомыватели Дворники
Электросхема стеклоочистителя, дворников и омывателя для Mazda Millenia 1997
Электросхема стеклоочистителя, дворников и омывателя для Mazda Millenia 1997 - Список элементов:
- (combination switch) windshield wiper & washer switch)
- 1996 vftc c
- Blk
- G101 (front of right front fender)
- G203 (right kick panel)
- Hot in run
- Int
- Intermittent wiper relay (behind left side of i/p)
- Jc-03
- Joint box
- Off
- Red
- Washer switch
- Windshield washer motor (in washer fluid reservoir)
- Windshield wiper motor (left rear of engine compartment)
- Windshield wiper switch
- Wiper fuse 20a
ЦЕНТРАЛЬНЫЙ ЗАМОК
Электросхема центрального замка для Mazda Millenia 1997
Электросхема центрального замка для Mazda Millenia 1997 - Список элементов:
- 10a
- 10j
- 10q
- Central processing unit (cpu)
- Door lock fuse 30a
- Door lock switch
- Door lock timer unit (behind rear seat, on right side)
- G300 (below left front seat)
- G301 (below right front seat)
- G407 (center rear of trunk)
- Hot at all times
- I-29
- Jc-12
- Jc-13
- Joint box
- Joint box (left side of i/p)
- Keyless unit (behind rear seat, on left side)
- Left front door key cylinder switch
- Left front door lock actuator
- Left rear door actuator
- Lock
- Opener fuse 15a
- Red
- Relay
- Right front door actuator
- Right front door key cylinder switch
- Right rear door actuator
- Room fuse 15a
- Trunk key cylinder switch (in trunk lid)
- Un- lock
- Unlock
