Разделы схем — 23 (всего 34)
Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ ВНЕШНЕЕ ОСВЕЩЕНИЕ ВНУТРЕННЕЕ ОСВЕЩЕНИЕ ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Звуковой сигнал Гудок Магнитола Мультимедия Подогрев стекол и зеркал ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ ПРИБОРНАЯ ПАНЕЛЬ ПРИВОД ЗЕРКАЛ ПРИВОД СТЕКЛОПОДЪЕМНИКОВ СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS СИСТЕМА КОНДИЦИОНЕРА СИСТЕМА КРУИЗКОНТРОЛЯ СИСТЕМА ПЕРЕДАЧИ ДАННЫХ СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ Система Фар Стартер Генератор Стеклоочистители и Стеклоомыватели Дворники ЦЕНТРАЛЬНЫЙ ЗАМОК
Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Электросхема автоматической коробки передач АКПП для Suzuki Vitara JX 2000 Электросхема автоматической коробки передач АКПП для Suzuki Vitara JX 2000 - Список элементов: 54 (in underdash fuse/relay box) main relay (top right rear of eng) g117 4wd ind 4wd low switch (center rear of eng compt) 4wd pump assembly (at front center of eng compt) 4wd switch (center rear of eng compt) Batt fuse 15a Brake- light switch (behind left side of dash) C51-1 C51-2 C51-3 Cruise control system Dome fuse 15a E122 E28 E61 Ect sensor (on top of eng) Exterior lights system G10 G107 (behind right headlamp) G11 G12 G17 G203 Hot at all times Hot in on or start Ig meter fuse 20a Input sensor (at rear of eng) Instrument cluster Interior lights system J/c e60 (right kick panel) Mode select switch N r Nca No 1 No 2 O/d cut switch Od/off ind Pcm (behind glove box) Pnk Power ind Red Shift interlock relay Shift interlock system Shift solenoid (in tramsmission) Speed sensor (transmission) (center rear of eng compt) Start/ charging system Stop horn fuse 15a e28 Tach- ometer Tcc Throttle position sensor (top left side of eng) Transmission range switch (on right side of eng compt) Turn back fuse 10a Under- dash fuse/ relay box
БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Электросхема блока предохранителей и реле для Suzuki Vitara JX 2000 Электросхема блока предохранителей и реле для Suzuki Vitara JX 2000 - Список элементов: 66 (not used) 15a 25a 30a A/c fuse (in underhood fuse/relay box) Abs fuse 50a Acc Acc fuse 15a Air bag cassette fuse (behind left side of dash) Air conditioning system Anti- lock brake system Batt fuse 80a Battery Charging system Cigar fuse 30a Cigar lighter Defogger, headlights air conditioning systems Dome fuse 15a Door lock fuse 20a Door locks system E120 E121 E122 E123 E124 E18 E26 Engine controls, cruise control systems Engine controls, door locks, instrument cluster, interior lights, warning, sound systems Exterior lights system Fi fuse 15a Fog fuse 15a G200 (left kick panel) H/l l fuse 15a H/l r fuse 15a Hazzard fuse 15a Headlight relay Headlights, exterior lights systems Heater fuse (in under- dash fuse/relay box) Htr fuse 60a Ig fuse 60a Ig meter fuse 20a Ignition switch Instrument cluster system Interior lights system J/c Lamp fuse 30a Lock Mirrors, sound systems Power window fuse 30a Power windows system Q03 Rear defg fuse 15a Red Run Start Starting system Stop horn fuse 15a Tail fuse 15a Transmissions, exterior lights systems Transmissions, exterior lights, cruise control, horns, system Turn back fuse 10a Underdash fuse/relay box (lower left side of dash) Underhood fuse/relay box (right side of engine compt) Wiper washer fuse 15a Wiper/ washer system
БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ Электросхема блокировки селектора для Suzuki Vitara JX 2000 Электросхема блокировки селектора для Suzuki Vitara JX 2000 - Список элементов: 18 Brake- light switch (left side of dash) C51-1 E28 E61 G109 (right radiator support) G203 (right kick panel) Hot at all times Hot in on or start J/c (e42) (right side of dash) Pcm (behind glove box) Shift lock relay (under- hood fuse/ relay box) Shift lock solenoid (center floor console) Stop horn fuse 20a Transmission range switch (right side of engine compt) Turn back fuse 10a Underdash fuse/relay box W/ cruise control W/o cruise control
ВНЕШНЕЕ ОСВЕЩЕНИЕ Электросхема заднего хода для Suzuki Vitara JX 2000 Электросхема заднего хода для Suzuki Vitara JX 2000 - Список элементов: 14 A/t Back- up Back-up light switch E28 G405 (right rear of cargo compartment) Hot in on or start Left tail- light M/t Red Right tail- light Transmission range switch (right side of engine compt) Transmissions system (a/t) Turn back fuse 10a Underdash fuse/relay box Электросхема внешнего освещения для Suzuki Vitara JX 2000 Электросхема внешнего освещения для Suzuki Vitara JX 2000 - Список элементов: 51 (left kick panel) g200 Anti- lock brake system Brake Brake- light switch (behind left side of dash) Combi- nation switch Combination meter Combination switch E27 E28 G10 G108 (left radiator support) G109 (right radiator support) G11 G12 G17 G200 (left kick panel) G203 (right kick panel) G405 (right rear of cargo compartment) G411 (left center of cargo door) Hazard fuse 15a Hazard switch Head Headlight relay 2 High mount stop light Hot at all times Hot in run or start Interior lights system L32 Left front clear- ance light Left front turn signal light Left license plate lights Left side marker light Left taillight Left turn ind Light switch Off Right front clear- ance light Right front turn signal light Right license plate lights Right side marker light Right taillight Right turn ind Stop horn fuse 15a Tail Tail fuse 15a Trailer connector Turn back fuse 10a Turn signal relay Turn signal switch Under- dash fuse/relay box Underdash fuse/relay box
ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Электросхема подсветки для Suzuki Vitara JX 2000 Электросхема подсветки для Suzuki Vitara JX 2000 - Список элементов: 24 (1999-00) (2001) (right rear of cargo compt) 10a Back door switch Center room light Diode 4 (left rear wheelwell) Dome fuse 15a Door Door lock & keyless entry controller E28 G203 (right kick panel) G405 Hot at all times Left front door switch Left rear door switch Off Rear room light (4 door only) Right front door switch Right rear door switch Spot light Underdash fuse/relay box W/ keyless entry W/o keyless entry Электросхема подсветки приборов для Suzuki Vitara JX 2000 Электросхема подсветки приборов для Suzuki Vitara JX 2000 - Список элементов: 28 1999-00 Ashtray light Cigar lighter Clock Combi- nation switch Combination meter E28 G10 G12 G200 (left kick panel) Hazard switch Head Headlight relay 2 Heater illumi- nation Hot at all times Illumination controller L32 Light switch Mode select switch Off Radio Rear defogger switch Red/ Shift illumi- nation Tail Tail fuse 15a Under- dash fuse/relay box Warning buzzer
ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Электросхема подключение массы заземления для Suzuki Vitara JX 2000 Электросхема подключение массы заземления для Suzuki Vitara JX 2000 - Список элементов: 22 4wd pump assembly, shift lock relay, horn, right front clearance light, right side marker light, right front turn signal light Air bag module, diagnosis connector Battery Dual pressure switch, condenser fan motor Ecm/pcm Front wiper motor, front washer motor, rear washer motor, brake fluid level switch, left front clearance light, left side marker light, front turn signal light, cruise control actuator assembly Fuel pump speed sensor, instrument cluster, a/c amplifier, ignition coils Fuel pump, back door lock motor, seat belt switch, rear lights, center room light G105 (rear of right front fender) G107 (behind right headlight) G108 (left radiator support) G109 (right radiator support) G115 (rear of engine) G120 (right side of engine) G200 (left kick panel) G203 (right kick panel) G302 (below front of center console) G405 (right rear of cargo compartment) G411 (left center of cargo door) Ignition switch, data link connector, rear defogger timer, door lock controller, driver's side front door key switch, door lock main switch, keyless controller, power window main switch, mirror switch, illumination controller, instrument cluster, auto light controller, drl controller, clock, radio, spot light, heater fan switch, abs control module, clutch switch, cigar lighter Noise suppressor, 4wd low switch, 4wd switch, shift lock solenoid, o/d cut switch, mode select switch, combination switch, passenger side front door key switch, headlight relay, turn signal relay, heater relay Rear defogger, back door lock motor, high mounted stoplight
Звуковой сигнал Гудок Электросхема звукового сигнал Гудка для Suzuki Vitara JX 2000 Электросхема звукового сигнал Гудка для Suzuki Vitara JX 2000 - Список элементов: 9 (right radiator support) g109 E28 Horn Horn relay (in underhood fuse/relay box) Horn switch Hot at all times Keyless controller (lower left side of dash) Stop horn fuse 15a Underdash fuse/relay box
Магнитола Мультимедия Электросхемы магнитолы для Suzuki Vitara JX 2000 Электросхемы магнитолы для Suzuki Vitara JX 2000 - Список элементов: 16 Cigar radio fuse 20a Dome fuse 15a E28 G17 G200 (left kick panel) G22 G23 Hot at all times Hot in acc or run Interior lights system Left front speaker Left rear speaker Radio Right front speaker Right rear speaker Underdash fuse/relay box
Подогрев стекол и зеркал Электросхема подогрева стекол и зеркал для Suzuki Vitara JX 2000 Электросхема подогрева стекол и зеркал для Suzuki Vitara JX 2000 - Список элементов: 12 (left center of cargo door) g411 (left kick panel) g200 G17 Hot in on Illumination Interior lights system On ind Rear defg fuse 15a Rear defogger Rear defogger switch Rear defogger timer Underdash fuse/relay box
ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG Электросхема подушек безопасности SRS AirBag для Suzuki Vitara JX 2000 Электросхема подушек безопасности SRS AirBag для Suzuki Vitara JX 2000 - Список элементов: 28 (behind right taillight assembly) g998 (lower center of dash) g206 1999 & 2000 vitara 1999, 2000 & 2001 vitara 2001 vitara & grand vitara Air bag Air bag cassette fuse (behind left side of dash) Air bag control module (at lower center of dash) Air bag indicator Combination meter Connection detection pin Contact coil Data link connector (dlc) (partial) (below left side of dash, right of steering column) Diagnosis connector (behind lower left side Driver inflator Fuse 28 15a G11 G17 Grand vitara Hot in on or start Ig meter fuse 21 20a Instrument cluster system (seat belt indicator) J/c l17 (on left side of steering column) Nca Of dash) Passenger inflator Seat belt switch (in driver's seat belt buckle) Underdash fuse/relay box (at lower left side of dash)
ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ Электросхема предупреждающей системы для Suzuki Vitara JX 2000 Электросхема предупреждающей системы для Suzuki Vitara JX 2000 - Список элементов: 23 (1999-00) (2001) Combination meter Dome fuse 15a 10a E28 Exterior lights system G10 G11 G12 G17 G200 (left kick panel) G405 (right rear of cargo compt) Head- light relay Hot at all times Hot in run or start Ig meter fuse 20a Ignition switch Key reminder switch Left front door switch Seat belt ind Seat belt switch (in driver's belt buckle) Tail fuse 15a Underdash fuse/ relay box Warning buzzer
ПРИБОРНАЯ ПАНЕЛЬ Электросхема часов для Suzuki Vitara JX 2000 Электросхема часов для Suzuki Vitara JX 2000 - Список элементов: 10 Cigar radio fuse 20a Clock Dome fuse 15a E28 G17 G200 (left kick panel) Hot at all times Hot in acc or run Interior lights system Underdash fuse/relay box Электросхема панели приборов для Suzuki Vitara JX 2000 Электросхема панели приборов для Suzuki Vitara JX 2000 - Список элементов: 59 (left front of engine) oil pressure switch 4wd indic Abs circuit Abs indic Acc Air bag indic Anti-lock brake system Brake fluid level switch (on brake fluid reservoir) Brake indic Charge indic Combination meter Cruise Cruise control system Dome fuse 15a (1999-00) 20a (2001) Drl controller (behind left side of dash) E28 E61 Ecm/ pcm (behind glove box) Engine controls system Exterior lights system Fuel gauge Fuel pump & gauge unit (center rear of vehicle) G10 G108 (left radiator support) G11 G115 (rear of engine) G12 G14 G17 G200 (left kick panel) G203 (right kick panel) Headlights system Hi beam indic Hot at all times Hot in on or start Ig meter fuse 20a Ignition switch Illumination Interior lights system Left turn indic Lock O/d off indic Oil indic Power indic Red Right turn indic Run Seat belt indic Service engine soon indic Speedometer Start Starting/charging system Tachometer Temperature gauge Transmission system Underdash fuse/relay box Warning buzzer Warning system Water temperature gauge sensor (top of engine)
ПРИВОД ЗЕРКАЛ Электросхема привода зеркал для Suzuki Vitara JX 2000 Электросхема привода зеркал для Suzuki Vitara JX 2000 - Список элементов: 13 Cigar radio fuse 20a Down G17 G200 (left kick panel) Hot in acc or run Left Left mirror motor Left switch Mirror switch Right Right mirror motor Right switch Underdash fuse/relay box
ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Электросхема стеклоподъемников для Suzuki Vitara JX 2000 Электросхема стеклоподъемников для Suzuki Vitara JX 2000 - Список элементов: 19 2 door 4 door Auto circuit E28 G200 (left kick panel) Hot in run Left front power window motor Left rear power window motor (4-door) Left rear power window sub-switch (4-door) Lock Off Power window fuse 30a Power window main switch Red Right front power window motor Right front power window sub-switch Right rear power window motor (4-door) Right rear power window sub-switch (4-door) Underdash fuse/relay box
СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS Электросхема антиблокировочной тормозной системы АБС (ABS) для Suzuki Vitara JX 2000 Электросхема антиблокировочной тормозной системы АБС (ABS) для Suzuki Vitara JX 2000 - Список элементов: 37 1999-00 2wd 4wd 4wd switch Abs circuit Abs control module (left rear corner of engine compt) Abs fuse 50a Brake- light switch (behind left side of dash) C51-2 Combination meter Data link connector (right of steering column) Dome fuse 10a E124 E27 E28 E61 Ecm/pcm (behind glove box) Exterior lights system G-sensor (at center floor console) G11 G12 G17 G200 (left kick panel) G203 (right kick panel) Hot at all times Hot in run Hot in run or start Ig meter fuse 20a Left front speed sensor Left rear speed sensor Rear defg fuse 15a Right front speed sensor Right rear speed sensor Stop horn fuse 15a Transmission system Underdash fuse/relay box Underhood fuse/relay box
СИСТЕМА КОНДИЦИОНЕРА схема нагревателя для Suzuki Vitara JX 2000 схема нагревателя для Suzuki Vitara JX 2000 - Список элементов: 26 1995 vftc c Bi/level Def Def/heat E61 Ecm/pcm (behind glove box) G203 (right kick panel) Heat Heater fan motor (right side of dash) Heater fan switch Heater fuse 30a Heater relay (behind glove box) Heater resistor (behind glove box) Hot at all times Hot in run Hot in run or start Ig meter fuse 20a Interior lights system J/c e46 (left side of dash) Mode actuator (at lower center of dash) Mode control switch Off Pnk Rear defg fuse 15a Underdash fuse/relay box (at lower left side of dash) Vent Электросхема кондиционера с ручный управлением для Suzuki Vitara JX 2000 Электросхема кондиционера с ручный управлением для Suzuki Vitara JX 2000 - Список элементов: 39 (left side of dash) g202 A/c amplifier (behind center of dash) A/c compressor A/c fuse 25a A/c on Bi/level Compressor relay (in underhood fuse/ relay box) Condenser fan motor (at front of engine compt) Condenser fan relay (in underhood fuse/relay box) Def Def/heat Dual pressure switch (on receiver- drier) E39 E61 Ecm/pcm (behind glove box) G107 (behind right headlamp) G115 (rear of eng) G203 (right kick panel) Heat Heater fan motor (right side of dash) Heater fan switch Heater fuse 30a Heater relay (behind glove box) Heater resistor (behind glove box) Hot at all times Hot in run Hot in run or start Ig meter fuse 20a Interior lights system Mode actuator (at lower center of dash) Mode control switch Nca Off Pnk Rear defg fuse 15a Thermistor Underdash fuse/relay box (at lower left side of dash) Underhood fuse/relay box (at right side of engine compt) Vent
СИСТЕМА КРУИЗКОНТРОЛЯ Электросхема системы круизконтроля для Suzuki Vitara JX 2000 Электросхема системы круизконтроля для Suzuki Vitara JX 2000 - Список элементов: 37 A/t Brake- light switch (behind left side of dash) C51-2 Cancel Clutch switch (behind left side of dash) Coast/ set Combination meter Combination switch Cruise control actuator assembly (left side of engine compt) Cruise ind Cruise main switch Cruise switch E122 E28 E61 Ecm/pcm (behind glove box) Engine control system Fi fuse 15a G108 (left radiator support) G11 G17 G200 (left kick panel) Hot at all times Hot in run or start Ig meter fuse 20a Ignition switch Interior lights system M/t Main relay (in underdash fuse/relay box) Resume/ accel Shift interlock system Starter Stop horn fuse 15a Transmission range switch Underdash fuse/relay box Underhood fuse/relay box Vehicle speed sensor (center rear of engine compt)
СИСТЕМА ПЕРЕДАЧИ ДАННЫХ Электросхема компьютерной линии передачи данных CAN для Suzuki Vitara JX 2000 Электросхема компьютерной линии передачи данных CAN для Suzuki Vitara JX 2000 - Список элементов: 16 (below left side of dash) diagnosis connector (air bag) (right of steering column) 1999-00 Abs control module (left rear of engine compt) Air bag control module (lower center of dash) Data link connector Dome fuse 10a E28 E61 Ecm/pcm (behind glove box) Engine control system G115 (rear of engine) G200 (left kick panel) G302 (below front of center console) Hot at all times Underdash fuse/relay box
СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ
1.6L 1.6L, Электросхема системы управления двигателя (1 из 3) для Suzuki Vitara JX 2000 1.6L, Электросхема системы управления двигателя (1 из 3) для Suzuki Vitara JX 2000 - Список элементов: 26 (1.6l) (2.0l) (at left rear of eng) egr valve (at right side of eng) evap canister air valve (at right side of eng) tank pressure control solenoid vacuum valve (on left side of eng) iac valve (on right side of eng) evap solenoid purge valve C51-2 C51-3 California Ckp sensor (on right front of eng) Ecm/pcm (behind glove box) Federal Fuel injectors G117 (top right rear of eng) Heated oxygen sensor 1 (on exhaust system) Heated oxygen sensor 2 (on exhaust system) Iat sensor (on air cleaner box) N/a Nca Pnk Power steering pressure switch (on power steering pump) Red Speed sensor (at center rear of eng compt) Speedo- meter Starting/ charging system 1.6L, Электросхема системы управления двигателя (2 из 3) для Suzuki Vitara JX 2000 1.6L, Электросхема системы управления двигателя (2 из 3) для Suzuki Vitara JX 2000 - Список элементов: 37 (1.6l) (2.0l) (at front center of eng compt) 4wd pump assembly (in tramsmission) shift solenoid (on right side of eng) manifold differential pressure sensor (on top of eng) ect sensor (top left side of engine) throttle position sensor (top right rear of engine) 2.0l only 4wd ind Airflow meter (on rear of eng) Cmp sensor (on left side of eng) E28 Fuse 20a G10 G107 (behind right headlamp) G11 G117 G12 G17 Hot in on or start Ignition coils Instrument cluster L32 Nca No 1 No 2 Noise suppressor (at right rear of eng compt, near battery) Od/off ind Pnk Power ind Red Service eng soon Tach- ometer Tcc To spark plug Underdash fuse/relay box 1.6L, Электросхема системы управления двигателя (3 из 3) для Suzuki Vitara JX 2000 1.6L, Электросхема системы управления двигателя (3 из 3) для Suzuki Vitara JX 2000 - Список элементов: 38 (at rear of eng) input sensor (below left side of dash, right of steering column) (center rear of eng compt) 4wd low switch (center rear of eng compt) 4wd switch (center rear of eng compt) speed sensor (transmission) (center rear of vehicle) tank pressure sensor (in underdash fuse/relay box) fuel pump relay (in underdash fuse/relay box) main relay A/c system Anti-lock brakes system Brake- light switch (behind left side of dash) C51-1 Cruise control system Data link connector Defogger system E122 E28 E61 Ecm/pcm (behind glove box) Exterior lights system Exterior lights system (back up light) Fuel pump and gauge (in fuel tank) Fuse 10a Fuse 15a Fuse 15a e28 G203 G404 (right rear wheelwell) Hot at all times Instrument cluster system J/c e60 (right kick panel) Mode select switch Nca O/d cut switch Off Red Shift inter- lock system Transmission range switch (on right side of eng compt) Under- dash fuse/ relay box
2.0L 2.0L, Электросхема системы управления двигателя (1 из 3) для Suzuki Vitara JX 2000 2.0L, Электросхема системы управления двигателя (1 из 3) для Suzuki Vitara JX 2000 - Список элементов: 26 (1.6l) (2.0l) (at left rear of eng) egr valve (at right side of eng) evap canister air valve (at right side of eng) tank pressure control solenoid vacuum valve (on left side of eng) iac valve (on right side of eng) evap solenoid purge valve C51-2 C51-3 California Ckp sensor (on right front of eng) Ecm/pcm (behind glove box) Federal Fuel injectors G117 (top right rear of eng) Heated oxygen sensor 1 (on exhaust system) Heated oxygen sensor 2 (on exhaust system) Iat sensor (on air cleaner box) N/a Nca Pnk Power steering pressure switch (on power steering pump) Red Speed sensor (at center rear of eng compt) Speedo- meter Starting/ charging system 2.0L, Электросхема системы управления двигателя (2 из 3) для Suzuki Vitara JX 2000 2.0L, Электросхема системы управления двигателя (2 из 3) для Suzuki Vitara JX 2000 - Список элементов: 37 (1.6l) (2.0l) (at front center of eng compt) 4wd pump assembly (in tramsmission) shift solenoid (on right side of eng) manifold differential pressure sensor (on top of eng) ect sensor (top left side of engine) throttle position sensor (top right rear of engine) 2.0l only 4wd ind Airflow meter (on rear of eng) Cmp sensor (on left side of eng) E28 Fuse 20a G10 G107 (behind right headlamp) G11 G117 G12 G17 Hot in on or start Ignition coils Instrument cluster L32 Nca No 1 No 2 Noise suppressor (at right rear of eng compt, near battery) Od/off ind Pnk Power ind Red Service eng soon Tach- ometer Tcc To spark plug Underdash fuse/relay box 2.0L, Электросхема системы управления двигателя (3 из 3) для Suzuki Vitara JX 2000 2.0L, Электросхема системы управления двигателя (3 из 3) для Suzuki Vitara JX 2000 - Список элементов: 38 (at rear of eng) input sensor (below left side of dash, right of steering column) (center rear of eng compt) 4wd low switch (center rear of eng compt) 4wd switch (center rear of eng compt) speed sensor (transmission) (center rear of vehicle) tank pressure sensor (in underdash fuse/relay box) fuel pump relay (in underdash fuse/relay box) main relay A/c system Anti-lock brakes system Brake- light switch (behind left side of dash) C51-1 Cruise control system Data link connector Defogger system E122 E28 E61 Ecm/pcm (behind glove box) Exterior lights system Exterior lights system (back up light) Fuel pump and gauge (in fuel tank) Fuse 10a Fuse 15a Fuse 15a e28 G203 G404 (right rear wheelwell) Hot at all times Instrument cluster system J/c e60 (right kick panel) Mode select switch Nca O/d cut switch Off Red Shift inter- lock system Transmission range switch (on right side of eng compt) Under- dash fuse/ relay box
Система Фар Электросхема фар для Suzuki Vitara JX 2000 Электросхема фар для Suzuki Vitara JX 2000 - Список элементов: 39 (1999-00) (2001) Autolight controller (top right side of dash) Brake ind Charge ind Combination meter Combination switch Dimmer/passing switch Diode (behind glove box) Drl controller (behind left side of dash, right of steering column) E122 E27 Exterior lights system G11 G12 G17 G200 (left kick panel) G203 (right kick panel) Generator H/l l fuse 15a H/l r fuse 15a Head Headlight relay 1 (in under- dash fuse/ relay box) Hi beam ind Hot at all times Hot in run Hot in run or start Ig meter fuse 20a Keyless controller (lower left side of dash) Left head- light Light switch Off Park Parking brake switch (at center floor console) Pass Rear defg fuse 15a Red Right head- light Underdash fuse/relay box Underhood fuse/relay box
Стартер Генератор Электросхема Генератора для Suzuki Vitara JX 2000 Электросхема Генератора для Suzuki Vitara JX 2000 - Список элементов: 15 Batt fuse 80a Battery Charge ind Combination meter E27 G105 (rear of right front fender) G11 G12 G17 Generator Hot in run or start Ig meter fuse 20a Starter Underdash fuse/relay box Underhood fuse/relay box Электросхема стартера для Suzuki Vitara JX 2000 Электросхема стартера для Suzuki Vitara JX 2000 - Список элементов: 17 A/t Acc Batt fuse 80a Battery Clutch start switch (on pedal bracket E121 E18 Engine controls system G105 (rear of right front fender) Ig fuse 60a Ignition switch Lock M/t Start Starter Transmission range switch (right side of engine compt) Underhood fuse/relay box

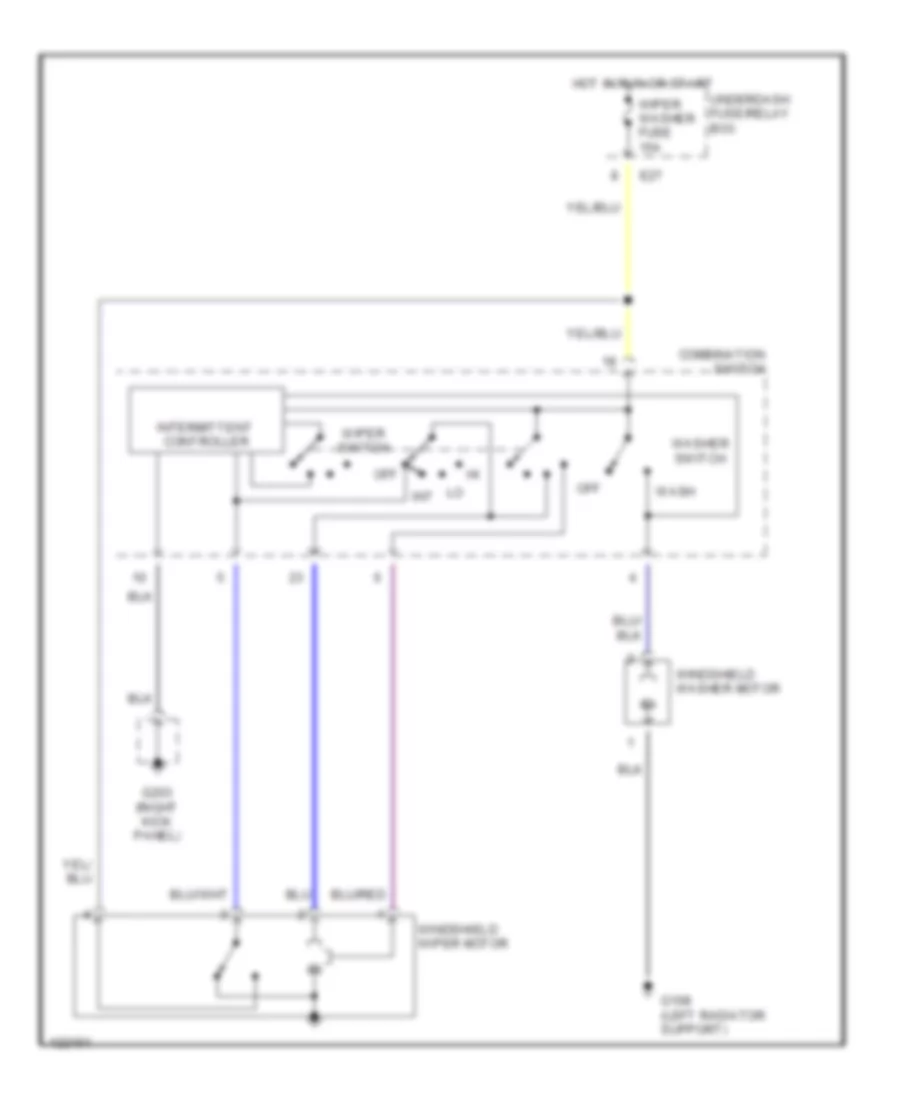

Стеклоочистители и Стеклоомыватели Дворники Электросхема передних стеклоочистителей дворников и омывателя лобового стекла для Suzuki Vitara JX 2000 Электросхема передних стеклоочистителей дворников и омывателя лобового стекла для Suzuki Vitara JX 2000 - Список элементов: 15 Combination switch E27 G108 (left radiator support) G203 (right kick panel) Hot in run or start Intermittent controller Lo int Off Underdash fuse/relay box Wash Washer switch Windshield washer motor Windshield wiper motor Wiper switch Wiper washer fuse 15a Электросхема заднего стеклоочистителя дворника и омывателя для Suzuki Vitara JX 2000 Электросхема заднего стеклоочистителя дворника и омывателя для Suzuki Vitara JX 2000 - Список элементов: 14 (left radiator support) g108 G17 Hot in run or start Interior lights system L32 Off Park Rear washer motor Rear wiper & washer switch Rear wiper motor Run Underdash fuse/relay box Wash Wiper washer fuse 15a
ЦЕНТРАЛЬНЫЙ ЗАМОК Электросхема центрального замка для Suzuki Vitara JX 2000 Электросхема центрального замка для Suzuki Vitara JX 2000 - Список элементов: 34 (2 door) (2 door) (4 door) (4 door) Diode (left rear wheelwell) Dome fuse 15a Door lock controller (behind left side of dash) Door lock fuse 20a Door lock main switch Driver side front door key switch E28 G17 G200 (left kick panel) G203 (right kick panel) G405 (right rear of cargo compartment) G411 (left center of cargo door) Headlights system Horn system Hot at all times Hot in run or start Ig meter fuse 20a Keyless controller (lower left side of dash) Left front door lock motor Left front door switch Left rear door lock motor Lock O06 O08 Option connector (center of dash) Passenger side front door key switch Pnk Right front door lock motor Right rear door lock motor Un- lock Underdash fuse/relay box
