Разделы схем — 28 (всего 67)
Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ ВНЕШНЕЕ ОСВЕЩЕНИЕ ВНУТРЕННЕЕ ОСВЕЩЕНИЕ ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Звуковой сигнал Гудок Магнитола Мультимедия Подогрев стекол и зеркал ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ ПРИБОРНАЯ ПАНЕЛЬ ПРИВОД ЗЕРКАЛ ПРИВОД ЛЮКА И КРЫШИ ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Противоугонная система Сигнализация СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS СИСТЕМА КОНДИЦИОНЕРА СИСТЕМА КРУИЗКОНТРОЛЯ СИСТЕМА ОХЛАЖДЕНИЯ СИСТЕМА ПЕРЕДАЧИ ДАННЫХ СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ Система Фар СИСТЕМЫ СИДЕНИЙ Стартер Генератор Стеклоочистители и Стеклоомыватели Дворники ЦЕНТРАЛЬНЫЙ ЗАМОК

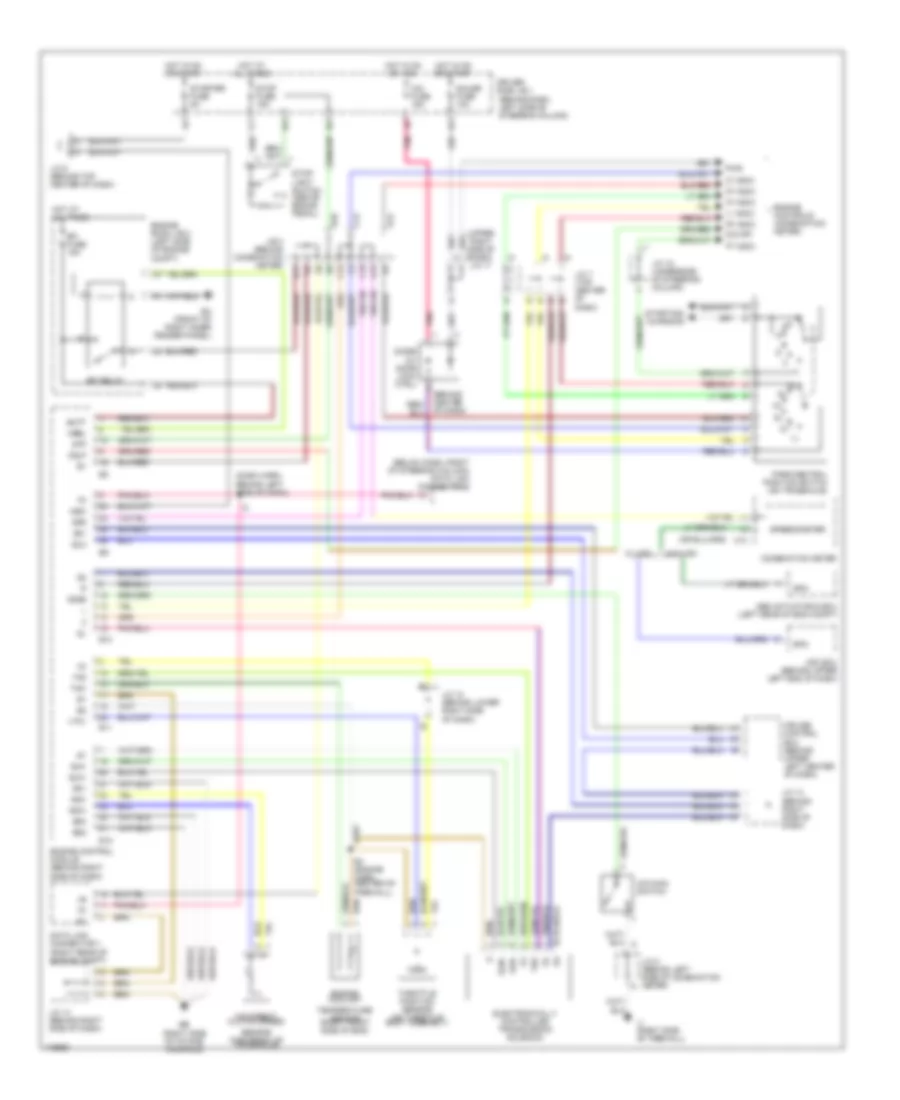

Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Электросхема автоматической коробки передач АКПП для Toyota Sienna XLE 2003 Электросхема автоматической коробки передач АКПП для Toyota Sienna XLE 2003 - Список элементов: 89 "2" indic "d" indic "l" indic "n" indic "p" indic "r" indic (behind dash, left side of steering column) (below dash, right of steering column) data link connector 3 (dash harn, behind left side of dash) (upper right side of dash) j/c 17 A13 Abs actuator & ecu (left rear of eng compt) B11 B18 Batt C10 C12 C13 C18 Cig fuse 15a Combination meter Cruise control ecu (behind upper left center of dash) D12 Data link connector 1 (right rear of engine compt) Diode (w/ door lock ctrl) Driver side j/b 1 E01 E10 E11 E12 E4 (engine harn, center of firewall) Ea (front of right inner fender panel) Eb (right side of intake manifold) Efi fuse 15a Efi relay Electronically controlled transmission solenoid Engine control module (behind right side of dash) Engine controls (combination meter) Engine coolant Engine room j/b 2 (left side of engine compt) Eo2 Eo3 Gauge fuse 10a Hot at all times Hot in on or acc Hot in on or start Idlo Ij (right side of firewall) J/b 3 (behind combination meter) J/c 12 (behind lower right side of dash) J/c 13 (behind right side of dash) J/c 14 (behind right side of dash) J/c 18 (underside of steering column) J/c 2 (behind left side of combination meter) J/c 6 (behind top center of dash) J/c 7 (top center of dash) Mrel Nc2+ Nc2- Nsw O/d direct clutch speed O/d main switch O/d off Od1 Odlp Odms Of dash) Park/neutral position switch (on transaxle) Pnk Pwr Sensor (top front of transaxle) Sln+ Sln- Spd Speedometer Spo Starter fuse 5a Starting/ charging Stop fuse 15a Stop- light switch (above brake pedal) Stp Temperature sensor (right front side of eng) Tho Throttle position sensor (on throttle body assembly) Thw Vsc ecu (behind upper left end of dash) Vta1 W/ vsc W/o vsc
БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА схема раздвижной двери питания (1 из 2) для Toyota Sienna XLE 2003 схема раздвижной двери питания (1 из 2) для Toyota Sienna XLE 2003 - Список элементов: 64 (on underside of steering column) j/c 18 (under left "b" pillar) bk A16 Act+ Act- B8 (in body harness, above left rear wheelwell) Bk (under left "b" pillar) Buzzer C12 C17 Cig fuse 15a Clutch Csw D14 D15 D16 Door lock motor Driver side j/b 1 (behind dash, left of steering column) Dsw Ecu-b Ecu-b fuse 15a Ed (near left strut tower) Engine room j/b 2 (on left side of engine compt) Gauge fuse 10a Gnd Hot at all times Hot in acc or on Hot in on or start I13 I16 Ind Integration relay (on driver side j/b 1) J/b 3 (behind instrument cluster) J/c 17 (behind upper right side of dash) J/c 2 & 3 (behind left side of instrument cluster) J/c 7 (behind top center of dash) J/c 8 (behind top center of dash) Latch switch Left front power slide door control switch Left rear power slide door control switch Left slide door ecu (below left taillight) Left slide door junction connector (at base of left "b" pillar) Lsds Motor Msw Optical sensor Pnk Power fuse 30a Pwr sld fuse 30a R/b 7 (on left front of engine compt) Ract Red Release actuator Rke S12 S13 S29 S30 S33 S34 Sld Spd W/ vsc W/o vsc схема раздвижной двери питания (2 из 2) для Toyota Sienna XLE 2003 схема раздвижной двери питания (2 из 2) для Toyota Sienna XLE 2003 - Список элементов: 56 (at right rear quarterpanel) bo (behind instrument cluster) (behind instrument cluster) j/b 3 (behind top center of dash) j/c 8 (behind upper right side of dash) j/c 5 (forward of right rear fenderwell) j/c 23 (on underside of steering column) j/c 18 A13 B13 Bo (at right rear quarterpanel) Buzzer C10 C19 Clutch Combination meter Csw Diode (w/ door lock: behind upper left center of dash) Door lock motor Dsw Ecub Ed (near left strut tower) Fuel lid courtesy switch Gnd If (at left kick panel) Ih (at right dash brace) Ii (at right kick panel) Ind J/b 3 J/c 15 & 16 (behind upper right side of dash) J/c 2 & 3 (behind left side of instrument cluster) J/c 7 (behind top center of dash) J15 J16 Latch switch Motor Msw Optical sensor Park/neutral position switch (on transaxle) Pnk Power door ind Power slide door main switch Ract Red Release actuator Right front power slide door control switch Right rear power slide door control switch Right slide door ecu (on right "c" pillar, near base of rear side window) Right slide door junction connector (at base of right "b" pillar) Rke S14 S15 S19 S20 S31 S32 Spd
БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Электросхема блока предохранителей и реле (1 из 3) для Toyota Sienna XLE 2003 Электросхема блока предохранителей и реле (1 из 3) для Toyota Sienna XLE 2003 - Список элементов: 82 (diagram 2 of 3) (diagram 3 of 3) (on left side of engine compt) engine room j/b 2 (on left side of engine compt) engine room r/b 1 A b A w/o tow package A/c amplifier, a/c switch A/c condenser fan motor A/c fuse 5a A/f heater relay A/f htr fuse 25a Alt fuse 140a Alt-s fuse 5a Am2 fuse 30a Battery Blower motor C10 Cds fuse 30a 40a Combination meter, clock, a/c control assembly, courtesy diodes, daytime running light relay (main), garage door opener, interior & courtesy lights, Combination meter, left slide door ecu Data link connector 1, engine control module, vsv, heated oxygen sensor (bank 1 sensor 2), idle air control valve, mass airflow meter, circuit open relay, transponder key amplifier Dim relay Dome fuse 10a Driver side r/b 5 (behind left side of dash) Ecu-b fuse 10a Efi fuse 15a Efi relay Engine control module Engine room j/b 2 (on left side of engine compt) Engine room r/b 1 (left side of eng compt) Fan 1 relay Fan 3 relay From c radio 1 fuse (diagram 1 of 3) Front heater relay Fusible link block (on left side of engine compt) Generator Hazard fuse 10a Hazard switch Head relay Headlights Horn fuse 10a Horn relay Horn switch Horns Htr fuse 50a Inp fuse 100a Integration relay, theft deterrent ecu, wireless door lock ecu, personal J12 Junction connector 1 (near left headlight) K10 K11 Left head fuse 15a Left head lower fuse 10a Left low beam head- light Light, ignition key cylinder light Main Main fuse 40a Main relay 1 Passenger side r/b 4 (at right kick panel) R/b 7 (on left front of eng compt) Radiator fan motor Radio & player, stereo component amplifier Radio 1 fuse 20a Rdi fuse 30a Rdi fuse 40a Rear heater relay Red Relay 2 Right head fuse 15a Right head lower fuse 10a Right low beam head- light Rr a/c fuse 40a S/htr fuse 20a Seat heater relay Short pin Theft deterrent ecu To abs fuse To am1 fuse (diagram 2 of 3) To hazard fuse (diagram 1 of 3) To i4 splice To ignition switch (diagram 2 of 3) W/ tow package b Электросхема блока предохранителей и реле (2 из 3) для Toyota Sienna XLE 2003 Электросхема блока предохранителей и реле (2 из 3) для Toyota Sienna XLE 2003 - Список элементов: 79 (behind dash, left of steering column) driver side j/b 1 (under left center pillar) bk A/c pressure switches, a/c control assembly, a/c amplifier, rear hi relay, defogger relay, fan relays 2 & 3, mg clt relay, main relay 1, rear lo relay, rear m1 & m2 relays, rear relay, front & rear heater relays, rear window defogger switch, rear clr relay, water temperature switch 1, air inlet control servo motor, air vent mode control servo motor Abs actuator & ecu, cruise control ecu, theft deterrent ecu, power window master switch Acc Acc main relay (on driver side j/b 1) Active light relay, diode (park/neutral position switch), generator, back-up light relay, left/right slide door ecu, daytime running light relay (main), inner mirror, seat heater relay Am1 fuse 40a Back-up light switch, center air bag sensor assembly, clock, diode (park/ neutral positon switch), park/neutral position switch Center air bag sensor assembly, circuit open relay, combination meter, engine control module Cig fuse 15a Cigarette lighter Clock, interior lights system (instrument illumination circuit) Combination meter, D pnk Data link connector 3 Def fuse 30a Defogger relay Door fuse 25a Driver side j/b 1 (behind dash, left of steering column) Ecu-ig fuse 15a Ed (near the left front suspension support) Engine control module, left & right tail lights, front parking lights, license plate light Engine control module, park/neutral position switch From alt fuse (diagram 1 of 3) From am2 fuse (diagram 1 of 3) From inp fuse (diagram 1 of 2) From power outlet fuse (diagram 2 of 3) From radio 2 fuse (diagram 2 of 3) Front & rear wiper & washer switches, front & rear wiper motors, front & rear washer motors, rear wiper relay Front power outlet G12 G13 Gauge fuse 10a H10 Hazard switch Heater fuse 10a If (left kick panel) Ign fuse 5a Ignition coils, fuel injectors, noise filter Ignition switch Ii (right kick panel) Integration relay J/c 16 (behind upper right side of dash) J10 J11 Junction connector (behind upper right side of dash) Junction connector j3 (behind left side of dash) Left side of side) b4 Lock Mirror heater fuse 10a Moon roof control switch & relay, power window master switch, right front power window control switch Obd fuse 7.5a Panel fuse 7.5a Pnk Power fuse 30a Power quarter window switch Power relay Power seat switch, right slide door ecu, power window master switch Power- outlet fuse 15a Pwr- vent fuse 15a Radio & player, stereo component amplifier, radio satellite switch Radio 2 fuse 7.5a Rear power outlet Rear window defogger Red Remote control mirror switch Remote control mirrors, engine control module S13 Start Starter fuse 5a Stop fuse 15a Stoplight switch Tail fuse 10a Tail light relay Theft deterrent ecu, integration relay To acc main relay (diagram 2 of 3) Turn fuse 7.5a Wiper fuse 25a Электросхема блока предохранителей и реле (3 из 3) для Toyota Sienna XLE 2003 Электросхема блока предохранителей и реле (3 из 3) для Toyota Sienna XLE 2003 - Список элементов: 15 Abs 2 fuse 25a Abs 3 fuse 25a Abs fuse 60a Abs mtr relay, abs actuator & ecu Abs sol relay Fog fuse 20a Foglight relay From alt fuse (diagram 1 of 3) Generator Left slide door ecu Pwr sld fuse 30a R/b 7 (left front of engine compt) Rear clr relay Rr clr fuse 40a Vsc ecu
БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ Электросхема блоков управления кузовом, С Замки Двери с механическим приводом для Toyota Sienna XLE 2003 Электросхема блоков управления кузовом, С Замки Двери с механическим приводом для Toyota Sienna XLE 2003 - Список элементов: 66 Acc Act+ Act- Actd Anti-theft system Auto Bcty Bm (at left rear quarterpanel) Bzr Cig fuse 15a Csb Cse Cso D19 Dcty Dome fuse 10a Door fuse 25a Door locks system Dout Driver side j/b 1 (behind dash, left of steering column) Engine room j/b 2 (on left side of engine compt) Exterior lights system Gauge fuse 10a H11 Headlights system Hot at all times Hot in on or acc Hot in on or start Hot w/ tail- light relay energized Hrly I13 I16 Ij (at right side of firewall) Integration relay Interior lights system Interior lights, door locks & anti-theft systems J/b 3 (behind instrument cluster) J12 Junction connector 18 (on underside of steering column) Ksw Lsds Lswd Lswp P/w Pani Pcty Pkbl Pnk Power windows system Prg Rda Red S12 Scty Sld Tail fuse 10a Trly Trunk, tailgate, fuel doors system Ul1 Ul2 Ul3 V10 V11 Warning system Wrn Wrnp Электросхема блоков управления кузовом, без центральные замки для Toyota Sienna XLE 2003 Электросхема блоков управления кузовом, без центральные замки для Toyota Sienna XLE 2003 - Список элементов: 34 Acc Cig fuse 15a Dcty Dome fuse 10a Driver side j/b 1 (behind dash, left of steering column) Engine room j/b 2 (on left side of engine compt) Exterior lights system Gauge fuse 10a H11 Headlights system Hot at all times Hot in on or acc Hot in on or start Hot w/ tail- light relay energized Hrly I13 Ij (at right side of firewall) Integration relay Interior lights system Interior lights, door locks & anti-theft systems J12 Junction connector 18 (on underside of steering column) Ksw Pcty Pkbl Red S12 Scty Tail fuse 10a Trly V10 Warning system Wrn Wrnp
ВНЕШНЕЕ ОСВЕЩЕНИЕ Электросхема заднего хода для Toyota Sienna XLE 2003 Электросхема заднего хода для Toyota Sienna XLE 2003 - Список элементов: 20 (in body harness, at left side of tailgate) b11 Back-up light relay (near driver side j/b 1) Back-up light switch (park/neutral position switch) (on transaxle) Cig fuse 15a Diode (park/neutral position switch) (behind upper left center of dash) Driver side j/b 1 (behind dash, left of steering column) Gauge fuse 10a Hot in acc or on Hot in on or start Ij (at right side of firewall) Junction connector 17 (behind upper right side of dash) Junction connector 22 (on right rear corner of vehicle) Junction connector 7 (behind top center of dash) Left back-up light Left rear combination light Pnk Right back-up light Right rear combination light W/ keyless entry W/o keyless entry Электросхема внешнего освещения для Toyota Sienna XLE 2003 Электросхема внешнего освещения для Toyota Sienna XLE 2003 - Список элементов: 67 "b" pillar) (at right side of firewall) ij (behind upper right side of dash) j/c 17 (w/ keyless entry) (w/o keyless entry) B11 (in body harness, at left side of tailgate) B14 (in body harness, at right rear quarter- panel) Bk (under left Bm (at left rear quarterpanel) C10 C11 C12 Comb- ination meter Combination switch Combnation switch D11 Driver side j/b 1 (behind dash, left of steering column) Ea (at front of right inner fender panel) Ed (near left strut tower) Engine room j/b 2 (on left side of engine compt) From driver side j/b 1 (diagram 1 of 1) Fusible link block (on left side of engine compartment, inside engine room j/b 2) Hazard fuse 10a Hazard switch Head High mounted stoplight Hot at all times Hot in on or start I11 Inp fuse 100a Integration relay (on driver side j/b 1) J/b 3 (behind instrument cluster) J/c 2 & 3 (behind left side of instrument cluster) J/c 2 & 3 (behind left side of j3 instrument cluster) J/c 20 (behind left rear wheelwell) J/c 21 (behind left rear wheelwell) J/c 22 (on right rear corner of vehicle) J/c 3 (behind left side of instrument cluster) J/c 5 (behind upper right side of dash) Left Left front turn/ park light Left rear combination light License Light ctrl switch Off Park Plate light R10 R11 Right Right front turn/ park light Right rear combination light Stop Stop fuse 15a Stoplight switch (on bracket, above brake pedal) Tail Tail fuse 10a Tail- light relay To j/c 17 (diagram 1 of 1) To left rear combination light (diagram 1 of 1) To right rear combination light (diagram 1 of 1) Trly Turn Turn fuse 7.5a Turn signal flasher (behind left side of dash) Turn signal ind Turn signal switch
ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Электросхема подсветки, С Дверные Замки (1 из 2) для Toyota Sienna XLE 2003 Электросхема подсветки, С Дверные Замки (1 из 2) для Toyota Sienna XLE 2003 - Список элементов: 34 (in body harness, at center of windshield header) b1 Bl (w/ moon roof) (at left side of roof side panel) Diode (dome 4) (behind upper left center of dash) Dome fuse 10a Door Dout Driver side j/b 1 (behind dash, left of steering column) Engine room j/b 2 (on left side of engine compt) Gauge fuse 10a Hot at all times Hot in on or start I13 Ig (w/o moon roof) (at left side of firewall) Integration relay Interior light 1 (w/ vanity light) Interior light 1 (w/o vanity light) Interior light 2 J12 Junction connector 18 (on underside of steering column) Junction connector 9 (behind top center of dash) Left front door courtesy light Left vanity light (w/ vanity light) M2 red Off Pcty Personal light (w/ vanity light) Personal light (w/o vanity light) Red Right front door courtesy light Right vanity light (w/ vanity light) V10 red W/ vanity lights W/ fade out type W/o moon roof Электросхема подсветки, С Дверные Замки (2 из 2) для Toyota Sienna XLE 2003 Электросхема подсветки, С Дверные Замки (2 из 2) для Toyota Sienna XLE 2003 - Список элементов: 37 A10 B10 (in body harness, at left rear quarterpanel) B12 Back door courtesy switch Bcty C10 Combination meter D19 Dcty Diode (courtesy 2) (on left rear of vehicle, naer left rear wheelwell) Diode (courtesy 3) (behind upper left center of dash) Diode (dome 5) (behind upper left center of dash) Door fuse 25a Driver side j/b 1 (behind dash, left of steering column) Hot at all times I1 (in dash harenss, at left side of dash) I13 I16 Ignition key cylinder light Ij (at right side of firewall) Integration relay J/b 3 (behind instrument cluster) Junction connector 18 (on underside of steering column) Junction connector 22 (on right rear corner of vehicle) Junction connector 5 (behind upper right side of dash) Junction connector 6 (behind top center of dash) Left front door courtesy switch Left slide door courtesy light Left slide door courtesy switch Luggage compartment light Open door warning light Red Right front door courtesy switch Right slide door courtesy light Right slide door courtesy switch Scty Wrn Электросхема подсветки, без Дверные Замки (1 из 2) для Toyota Sienna XLE 2003 Электросхема подсветки, без Дверные Замки (1 из 2) для Toyota Sienna XLE 2003 - Список элементов: 40 (in body harness, at center of windshield header) b1 (on underside of steering column) junction connector 18 Bl (w/ moon roof) (at left side of roof side panel) D18 Dcty Dome fuse 10a Door Driver side j/b 1 (behind dash, left of steering column) Engine room j/b 2 (on left side of engine compt) Except fade out type Gauge fuse 10a Hot at all times Hot in on or start I13 Ig (w/o moon roof) (at left side of firewall) Ignition key cylinder light Ij (at right side of firewall) Integration relay Interior light 1 (w/ vanity light) Interior light 1 (w/o vanity light) Interior light 2 J/b 3 (behind instrument cluster) J12 Junction connector 18 (on underside of steering column) Junction connector 9 (behind top center of dash) Left front door courtesy light Left vanity light (w/ vanity light) M2 red Off Pcty Personal light (w/ vanity light) Personal light (w/o vanity light) Red Red red Right front door courtesy light Right vanity light (w/ vanity light) Scty V10 red W/o moon roof W1 red Электросхема подсветки, без Дверные Замки (2 из 2) для Toyota Sienna XLE 2003 Электросхема подсветки, без Дверные Замки (2 из 2) для Toyota Sienna XLE 2003 - Список элементов: 33 (in body harness, at left rear quarterpanel) b10 A10 A16 B12 B15 Back door courtesy switch C10 C14 C17 Combination meter D15 D16 D17 D19 Diode (courtesy 2) (on left rear of vehicle, near left rear wheelwell) Diode (dome 1) (behind upper left center of dash) Diode (dome 2) (behind upper left center of dash) Diode (dome 3) (behind upper left center of dash) Door fuse 25a Driver side j/b 1 (behind dash, left of steering column) Hot at all times I1 (in dash harness, at left side of dash) J/b 3 (behind instrument cluster) Junction connector 22 (on right rear corner of vehicle) Junction connector 6 (behind top center of dash) Left front door courtesy switch Left slide door courtesy light Left slide door courtesy switch Luggage compartment light switch Open door warning light Red Right front door courtesy switch Right slide door courtesy switch Электросхема подсветки приборов для Toyota Sienna XLE 2003 Электросхема подсветки приборов для Toyota Sienna XLE 2003 - Список элементов: 59 (4 spkr) (8 spkr) (automatic a/c) (w/ door lock control) (w/o door lock control) A/c control assembly A/c switch A24 A25 Ashtray illumination Bk (under left "b" pillar) Blower switch Bo (at right rear quarterpanel) C11 C12 Clock Combi- nation meter illu- mination (combi- nation meter) Driver side j/b 1 (behind dash, left of steering column) Ed (near left strut tower) Front heater blower switch Fusible link block (on left side of engine compt, inside engine room j/b 2) Hazard switch Head Hot at all times I9 (in dash harness, at center of dash) If (at left kick panel) Ij (at right side of firewall) Ill- Inp fuse 100a Instrument panel j/b Integration trly Junction connector 2 (behind left side of instrument cluster) Junction connector (behind left rear wheelwell) Junction connector (forward of right rear fenderwell) Junction connector 11 (behind upper right side of dash) Junction connector 3 (behind left side of instrument cluster) Junction connector 4 (behind upper left side of dash) Junction connector 5 (behind upper right side of dash) Junction connector 9 (behind top center of dash) Left front power slide door control switch Left front seat heater switch Left rear power slide door control switch Light control switch (combination switch) Off Panel fuse 7.5a Power quarter window switch Power slide door main switch Radio & player Rear a/c switch (automatic a/c) Rear heater blower switch (manual a/c) Rear window defogger switch Relay (on driver side j/b 1) Rheostat Right front power slide door control switch Right front seat heater switch Right rear power slide door control switch Tail Tail fuse 10a Taillight relay
ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Электросхема подключение массы заземления (1 из 3) для Toyota Sienna XLE 2003 Электросхема подключение массы заземления (1 из 3) для Toyota Sienna XLE 2003 - Список элементов: 66 (eng harn, left front corner of eng compt) (eng harn, top front of engine) e5 (on left front of engine compt) r/b 7 (on left side of engine compt) engine room r/b 1 (on right rear of engine compt) r/b 8 Abs actuator & ecu B4 (body harness, inside left front door) B5 (body harness, inside right front door) Cigarette lighter Combination meter Data link connector 1 Data link connector 3 Daytime running light relay (main) Drl relay E11 E12 Ea (front side of right fender apron) Eb (right side of surge tank) Ec (rear side of surge tank) Ee (front side of left fender apron) Efi relay Engine control module Engine hood courtesy switch Engine room j/b 2 (on left side of engine compt) Fan 1 relay Fan 2 relay Front power outlet Front right door lock control switch Heated oxygen sensor (bank 1 sensor 2) Idle air control valve If (left kick panel) Ignition coil & ignitor 1 Ignition coil & ignitor 2 Ignition coil & ignitor 3 Ignition coil & ignitor 4 Ignition coil & ignitor 5 Ignition coil & ignitor 6 Ii (right kick panel) J/c 13 (behind lower right side of dash) J/c 14 (behind lower right side of dash) J/c 8 (behind top center of dash) J10 J15 j/c 15, j/c 16 (behind upper right side of dash) J16 Left front door key lock & unlock switch Left front door lock motor & detection switch Left remote control mirror Main relay 1 Main relay 2 Power slide door main switch Power window master switch Radiator fan motor Rear clr relay Remote control mirror switch Rheostat Right foglight Right front door key lock & unlock switch Right front door lock motor & detection switch Right front turn signal & parking light Right remote control mirror Theft deterrent ecu Theft deterrent indicator light W/ tow package W/o tow package Washer level warning switch Water temp switch 1 Электросхема подключение массы заземления (2 из 3) для Toyota Sienna XLE 2003 Электросхема подключение массы заземления (2 из 3) для Toyota Sienna XLE 2003 - Список элементов: 77 (at right kick panel) passenger side r/b 4 (behind left side of instrument cluster) j/c 2 & j/c 3 (on left side of engine compt) engine room j/b 2 (on right rear of eng compt) r/b 8 (w/ power slide door) s14 (w/o power slide door) s14 A/c amplifier A/f heater relay Abs actuator & ecu Abs sol relay Acc main relay B10 Back-up light relay Bl (left side of roof side panel) Blower motor controller Blower resistor Blower switch Brake fluid level switch C10 C11 C22 Center air bag sensor assembly Clock Combination meter Cruise control actuator Cruise control ecu Cruise control switch D22 Data link connector 3 Driver side j/b 1 (behind dash, left of steering column) Driver side r/b 5 Ed (near the left front suspension support) Front heater blower switch Front heater relay Front wiper motor Garage door opener I11 (dash harn, right side of dash) I9 (dash harn, right side of dash) Ig (left side of dash) Ij (right side of dash) Inner mirror Integration relay Interior light 1 J/b 3 (behind instrument cluster) J/c 7 (behind top center of dash) Keyless buzzer Left foglight Left front power slide door control switch Left front turn signal light & parking light Left vanity light Light control & dimmer switches Moon roof control switch & relay Moon roof motor & limit switch Noise filter O/d main switch Personal light Power quarter window switch Power relay Rear heater relay Rear window defogger switch Right buckle switch Right front power slide door control switch Right side door junction connector Right vanity light Starter relay Tire pressure warning standardization switch To steering sensor (diagram 3 of 3) Transponder key amplifier Turn signal flasher Unlock warning switch Vsc actuator W/ moon roof W/ moon roof a W/o moon roof W/o moon roof b Wiper & washer switch Wireless door lock ecu Электросхема подключение массы заземления (3 из 3) для Toyota Sienna XLE 2003 Электросхема подключение массы заземления (3 из 3) для Toyota Sienna XLE 2003 - Список элементов: 67 (4 speaker) (8 speaker) (dash harn, behind left side of dash) (w/ power slide door) (w/o power slide door) A/c control assembly A25 Active light relay Air vent mode control servo motor B8 (body harn, left quarter panel) Back door courtesy switch Back door key lock/ unlock switch Back door unlock detection switch Bk (under left center pillar) Blower resistor transistor (cooler) Blower resistor transistor (heater) Bm (left rear quarter panel) Bo (right rear quarter panel) C10 Combination meter Driver's seat heater Driver's seat heater switch From ed (diagram 2 of 3) Front passenger's seat heater Front passenger's seat heater switch Fuel pump Fuel sender High mounted stop- light I16 I6 (dash harn, left side of dash) Ih (right instrument panel brace) Integration relay J/c 15, j/c 16 (behind upper right side of dash) J/c 22 (right rear corner of vehicle) J/c 23 (forward of right rear fenderwell) J15 J16 Left buckle switch Left rear combination light Left rear power slide control switch Left rear power slide door control switch Left side door junction connector Left slide door ecu License plate light Power seat switch Radio & player Rear a/c switch Rear heater blower switch Rear hi relay Rear power outlet Rear window defogger Rear wiper motor Right rear combination light Right rear power slide door control switch Right slide door ecu Right slide door junction connector S12 S14 S29 S31 Seat heater relay Steering sensor Stereo component amplifier Trac off switch Translate ecu Volume switch Vsc ecu
Звуковой сигнал Гудок Электросхема звукового сигнал Гудка для Toyota Sienna XLE 2003 Электросхема звукового сигнал Гудка для Toyota Sienna XLE 2003 - Список элементов: 14 Combination switch Engine room j/b 2 (on left side of engine compartment) High horn Horn Horn fuse 10a Horn relay Horn switch Hot at all times Junction connector 18 (on underside of steering column) K10 Low horn Sh- Theft deterrent ecu (behind center of dash) Theft deterrent horn (on right rear of engine compt)
Магнитола Мультимедия Электросхема магнитолы, С Встроенный Усилитель для Toyota Sienna XLE 2003 Электросхема магнитолы, С Встроенный Усилитель для Toyota Sienna XLE 2003 - Список элементов: 33 (at right dash brace) Acc+b Bu+b Driver side j/b 1 (behind dash, left of steering column) Engine room j/b 2 (on left side of engine compt) Fl+ Fl- Fr+ Fr- Gnd Hot at all times Hot in on or acc Ill Interior lights system J/c 9 (behind top center of dash) K11 Left front door speaker Left rear speaker Pnk R22 Radio & player Radio 1 fuse 20a Radio 2 fuse 7.5a Radio satellite switch (combination switch) Red Right front door speaker Right rear speaker Rl+ Rl- Rr+ Rr- Tx+ Tx- Электросхема магнитолы, С Отдельный Усилитель для Toyota Sienna XLE 2003 Электросхема магнитолы, С Отдельный Усилитель для Toyota Sienna XLE 2003 - Список элементов: 54 +b2 A j15 A j16 Acc Amp Amp+ Ant Beep C j15 C j16 Driver side j/b 1 (behind dash, left of steering column) Engine room j/b 2 (on left side of engine compt) Fl+ Fl- Fr+ Fr- Glass antenna amplifier (behind left center of dash) Gnd Gnd(s) Hot at all times Hot in on or acc Ih (at right dash brace) Illum Interior lights system J/c 15 & 16 (behind upper right side of dash) J/c 9 (behind top center of dash) K11 Left front door speaker Left front tweeter speaker Left rear speaker Mute Nca Pnk R22 Radio & player Radio 1 fuse 20a Radio 2 fuse 7.5a Radio satellite switch (combination switch) Red Right front door speaker Right front tweeter speaker Right rear speaker Rl+ Rl- Rr+ Rr- Sgnd Stereo component amplifier (behind center of dash) Tx+ Tx- Wfl+ Wfl- Wfr+ Wfr-
Подогрев стекол и зеркал Электросхема подогрева стекол и зеркал для Toyota Sienna XLE 2003 Электросхема подогрева стекол и зеркал для Toyota Sienna XLE 2003 - Список элементов: 26 A25 C21 Def fuse 30a Defogger relay Driver side j/b 1 (behind dash, left of steering column) Ed (near left strut tower) Heater fuse 10a Hot at all times Hot in on or start If (at left kick panel) Ii (at right kick panel) Interior lights system J/b 3 (behind instrument cluster) J/c 22 (on right rear corner of vehicle) bn (at right side of tailgate) J/c 7 (behind top center of dash) J12 J13 Left mirror heater (left remote control mirror) Mirror-heater fuse 10a R15 R16 Rear window defogger Rear window defogger switch (a/c control assembly) (automatic a/c) Rear window defogger switch (manual a/c) Right mirror heater (right remote control mirror) Solid state
ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG Электросхема подушек безопасности SRS AirBag для Toyota Sienna XLE 2003 Электросхема подушек безопасности SRS AirBag для Toyota Sienna XLE 2003 - Список элементов: 71 (at left side of firewall) ig (at right side of firewall) ij (front passenger air bag assembly) air bag squib (in dash harness, at right side of dash) i2 (near left strut tower) ed (steering wheel pad) air bag squib (under left "b" pillar) bk Acc Center air bag sensor assembly (below center of dash) Cig fuse 15a Combination meter Connection detection pin Data link connector (dlc) 1 (partial) (on right rear of engine compartment) Data link connector (dlc) 3 (partial) (below dash, right of steering column) Driver side j/b 1 (behind dash, left of steering column) Ecu-b fuse 10a Engine control module (behind right side of dash) Engine room j/b 2 (on left side of engine compartment) Esl Esr F/ps Gsw2 Hot at all times Hot in acc or on Hot in on or start Ig2 Ign fuse 5a J/c 2 J/c 2 & 3 (behind left side of combination meter) J/c 21 (behind left rear wheelwell) J/c 23 (forward of right rear fenderwell) J/c 3 J/c 6 (behind top center of dash) J/c 8 (behind top center of dash) Lbe+ Left buckle switch (inside of left front seat belt buckle assembly) Left front air bag sensor (behind left headlight) Left pretensioner (at base of left "b" pillar) Left side air bag sensor (in lower area of left sliding door) Left side air bag squib Pl+ Pl- Pnk Pnk c Pr+ Pr- Rbe+ Red Right buckle switch Right front air bag sensor (behind right headlight) Right pretensioner (at base of right "b" pillar) Right side air bag sensor (in lower area of right sliding door) Right side air bag squib Seat belt occupant detection sensor Sfl+ Sfl- Sfr+ Sfr- Sil Sl+ Sl- Spiral cable Sr+ Sr- Srs warning light Ssl+ Ssl- Ssr+ Ssr- Vupl Vupr
ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ Электросхема предупреждающей системы для Toyota Sienna XLE 2003 Электросхема предупреждающей системы для Toyota Sienna XLE 2003 - Список элементов: 52 (behind upper left center of dash) diode (dome 1) (on driver side j/b 1) integration relay Acc B j2 B j3 Bk (under left "b" pillar) Bkl Buckle switch C10 Cig fuse 15a Clock Combination meter Dcty Diode (buckle switch) (behind upper left center of dash) Dome fuse 10a Door ind Driver side j/b 1 (behind dash, left of steering column) Ed (near left strut tower) Engine room j/b 2 (on left side of engine compt) Front passenger seat belt warning light Gauge fuse 10a Hot at all times Hot in acc or on Hot in on or start I13 I16 Ij (at right side of firewall) Integration relay J/c 17 (behind upper right side of dash) J/c 18 (on underside of steering column) J/c 2 & 3 (behind left side of instrument cluster) J/c 21 (behind left rear wheelwell) J/c 23 (forward of right rear fenderwell) J/c 6 (behind top center of dash) J12 Ksw Left buckle switch (inside of left front seat belt buckle assembly) Left front door courtesy switch Pbkl Pnk Red Seat belt warning light Seat belt warning occupant detection sensor (inside of front passenger seat) Sensor Unlock warning switch V10 W/ door lock control W/ vsc W/o door lock control W/o vsc Wrn Wrnp
ПРИБОРНАЯ ПАНЕЛЬ Электросхема часов для Toyota Sienna XLE 2003 Электросхема часов для Toyota Sienna XLE 2003 - Список элементов: 18 (behind left side of instrument cluster) j/c 2 Cig fuse 15a Clock Dome fuse 10a Driver side j/b 1 (behind dash, left of steering column) Engine room j/b 2 (on left side of engine compt) Hot at all times Hot in acc or on Hot w/ taillight relay energized I11 Ij (at right side of firewall) J/c 18 (on underside of steering column) J/c 6 (behind top center of dash) J12 Panel fuse 7.5a Pnk Red V10 Электросхема панели приборов для Toyota Sienna XLE 2003 Электросхема панели приборов для Toyota Sienna XLE 2003 - Список элементов: 100 (on parking brake lever) parking brake switch (on right front of engine) water temperature sender (or red) (w/ vsc) (w/o vsc) A red a A10 A11 A12 A13 A14 A15 A16 Abs actuator & ecu (on left rear of engine compt) Abs ind Anti-lock brakes system B10 B11 B12 B13 B19 Brake fluid level warning switch (on brake fluid reservoir) Brake ind Brl Bulb check relay C10 C11 C12 C13 Charge ind Combination meter Cruise control system Cruise ind Daytime running light relay (main) (behind dash, right of steering column) Dome fuse 10a Door ind Driver side j/b 1 (behind dash, left of steering column) Ebdw Ec (at rear of intake manifold) Ecu-b fuse 10a Ed (near left strut tower) Engine controls system Engine controls, cruise control, air conditioning & trunk, tailgate, fuel doors systems Engine room j/b 2 (on left side of engine compt) Exterior lights system Fuel gauge Fuel ind Fuel sender Gauge fuse 10a Headlights system High beam ind Hot at all times Hot in on or start Hot w/ taillight relay energized I11 Ign fuse 5a Ih (at right dash brace) Ij (at right side of firewall) Interior lights system J/b 3 (behind instrument cluster) J/c 17 (behind upper right side of dash) J/c 18 (on under- side of steering column) J/c 18 (on underside of steering column) J/c 2 & 3 (behind left side of instrument cluster) J/c 6 (behind top center of dash) J/c 8 (behind top center of dash) J12 J2 a J2 b J3 a J3 b Malfunction ind lamp Meter illum O/d off ind Oil ind Oil pressure switch (on left front of engine block) Panel fuse 7.5a Pwr Red Seat belt ind Slip ind Speedometer Srs ind Starting/charging system Tachometer Tire press ind Trac off ind Translate ecu (behind upper left side of dash) Trunk, tailgate, fuel doors system Turn l ind Turn r ind V10 Vsc ecu (behind upper left side of dash) Vsc ind W/ vsc W/o vsc Warning system Washer ind Water temp Wiper/washer system
ПРИВОД ЗЕРКАЛ Электросхема затемняющегося зеркала заднего вида для Toyota Sienna XLE 2003 Электросхема затемняющегося зеркала заднего вида для Toyota Sienna XLE 2003 - Список элементов: 11 (behind dash left of steering column) Bl (at left side of roof side panel) Driver side j/b 1 Driver side j/b 1 (behind dash left of steering column) Gauge fuse 10a Hot in on or start Ig (at left side of firewall) Ig ig Inner mirror W/ moon roof W/o moon roof Электросхема привода зеркал для Toyota Sienna XLE 2003 Электросхема привода зеркал для Toyota Sienna XLE 2003 - Список элементов: 21 Cig fuse 15a D j16 Defogger system Down Driver side j/b 1 (behind dash, left of steering column) Hot in acc or on If (at left kick panel) Ii (at right kick panel) J15 Junction connector 11 (behind upper right side of dash) Junction connector 15 & 16 (behind e j15 Junction connector 15 (behind upper right side of dash) Left Left remote control mirror Operation switch Pnk Remote control mirror switch Right Right remote control mirror Select switch Upper right side of dash)
ПРИВОД ЛЮКА И КРЫШИ схема лунной крыши для Toyota Sienna XLE 2003 схема лунной крыши для Toyota Sienna XLE 2003 - Список элементов: 26 A10 Bl (at left side of roof side panel) D19 Dcty Door fuse 25a Driver side j/b 1 (behind dash, left of steering column) Gauge fuse 10a Hot at all times Hot in on or start I13 Ij (at right side of firewall) Integration relay J/b 3 (behind instrument cluster) Left front door courtesy switch Limit switches Moon roof control switch & relay (on front center of windshield header) Moon roof motor & limit switch (on center underside front of roof) Motor P/w Pcty Power relay Power fuse 30a Red Right front door courtesy switch Slide open Tilt up
ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Электросхема стеклоподъемников для Toyota Sienna XLE 2003 Электросхема стеклоподъемников для Toyota Sienna XLE 2003 - Список элементов: 41 (at left kick panel) (behind left rear wheelwell) j/c 20 A10 B j2 Cls D19 Dcty Door fuse 25a Down Driver side j/b 1 (behind dash, left of steering column) Ecu-ig fuse 15a Ed (near left strut tower) G12 G13 Gauge fuse 10a Hot at all times Hot in on or start I13 Ij (at right side of firewall) Integration relay J/b 3 (behind left side of instrument cluster) J/c 2, j/c 3 (behind left side of instrument cluster) J/c 9 (behind top center of dash) J3 b Left front door courtesy switch Left front power window motor Left power vent window motor Open P/w Pcty Power fuse 30a Power quarter window switch Power relay Power window master switch Pwr-vent fuse 15a Red Right front door courtesy switch Right front power window control switch Right front power window motor Right power vent window motor Top center
Противоугонная система Сигнализация Электросхема открывания авто для Toyota Sienna XLE 2003 Электросхема открывания авто для Toyota Sienna XLE 2003 - Список элементов: 76 +b1 +b2 A10 B9 (in body harn, at top of left rear wheelwell) Back door courtesy switch Back door unlock detection switch Bk (under left "b" pillar) Bn (at right side of tailgate) Cty D18 Dcty Dome fuse 10a Door fuse 25a Door locks system Driver side j/b 1 (behind dash, left of steering column) Dswd Dswh Dswl Dswp Ea (at front of right inner fender panel) Ecu-ig fuse 15a Engine control module Engine hood courtesy switch (on front of engine compt) Engine room j/b 2 (on left side of engine compt) Exterior lights system Head Headlights system Horn Horn fuse 10a Horns system Hot at all times Hot in on or start I11 I16 If (at left kick panel) Ii (at right kick panel) Ij (at right side of firewall) Imld Ind Integration relay J/b 3 (behind instrument cluster J/c 15 (behind upper right side of dash) J/c 18 (on under- side of steering column) J/c 2 & 3 (behind left side of instrument cluster) J/c 22 (on right rear corner of vehicle) J/c 4 (behind upper left side of dash) J/c 5 (behind upper right side of dash) J/c 9 (behind top center of dash) J12 Ksw Left front door courtesy switch Left slide door courtesy switch Left slide door junction connector (unlock detection switch) (at base of left "b" pillar) Lswd Lswp Lswr Pani Pcty Red Right front door courtesy switch Right slide door courtesy switch Right slide door junction connector (unlock detection switch) (at base of right "b" pillar) S12 S13 S14 S15 Scty Sh- Tail Theft deterrent ecu (behind center of dash) Theft deterrent horn (on right rear of engine compt) Theft deterrent indicator light Ul2 Ul3 W/ power slide door W/o power slide door Электросхема иммобилайзера для Toyota Sienna XLE 2003 Электросхема иммобилайзера для Toyota Sienna XLE 2003 - Список элементов: 27 (behind left side of instrument cluster) j/c 3 (w/ forced entry) Batt Code Ea (at front of right inner fender panel) Ed (near left strut tower) Ee (at front of left inner fender panel) Efi fuse 15a Efi relay Engine control module (behind right side of dash) Engine room j/b 2 (on left side of engine compt) Forced entry circuit Gnd Hot at all times I11 Ij (at right side of firewall) Imld J/b 3 (behind instrument cluster) J/c 2 & 3 (behind left side of instrument cluster) J/c 6 (behind top center of dash) Ksw Mrel Pwr Rxck Transponder key amplifier (behind left side of dash) Txct Unlock warning switch (w/ forced entry)
СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS Электросхема антиблокировочной тормозной системы АБС (ABS), С VSC (1 из 3) для Toyota Sienna XLE 2003 Электросхема антиблокировочной тормозной системы АБС (ABS), С VSC (1 из 3) для Toyota Sienna XLE 2003 - Список элементов: 51 (at right dash brace) ih Abs 2 fuse 25a Abs 3 fuse 25a Abs 4 fuse 5a Abs fuse 60a Abs ind Abs mtr relay Abs sol relay Brake ind Buzzer C10 C11 Combination meter Data link connector 1 (on right rear of engine compt) Data link connector 3 (below dash, right of steering column) Ea (at front of right inner fender panel) Ebdw Ed (near left strut tower) Engine room j/b 2 (on left side of engine compt) Fss Gnd2 Gyaw Hot at all times I2 (in dash harness, at right side of dash) Ind J10 Junction connector 17 (behind upper right side of dash) Junction connector 18 (on underside of steering column) Lbl Master cylinder pressure sensor (on master cylinder, on left rear of engine compartment) Nca Pkb Pmc R/b 7 (on left front of engine compartment) R/b 8 (on right rear of engine compt) Red Sil Slip ind Sp1 Speedometer Ss1 Ss2 Trac off ind Vcm Vsc buzzer (inside steering column) Vsc ecu (behind upper left side of dash) Vsc ind Vscw Yaw Ygnd Yiga Электросхема антиблокировочной тормозной системы АБС (ABS), С VSC (2 из 3) для Toyota Sienna XLE 2003 Электросхема антиблокировочной тормозной системы АБС (ABS), С VSC (2 из 3) для Toyota Sienna XLE 2003 - Список элементов: 54 (at right side of firewall) ij (behind instrument cluster) j/b 3 (in dash harness, at right side of dash) (near left strut tower) ed A/t indicator light switch (park/neutral position switch) (on transaxle) A11 A17 A18 B13 B17 B18 Brake fluid level warning switch (on brake fluid reservoir) Brl Ccs Cig fuse 15a Cruise control ecu (behind upper left center of dash) D13 Diode (park/neutral Driver side j/b 1 (behind dash, left of steering column) Ecu-ig fuse 15a Eng+ Eng- Engine control module (behind right side of dash) Ess Gauge fuse 10a Gnd Hot at all times Hot in on or acc Hot in on or start Ig1 J/b 3 (behind instrument cluster) Junction connector 17 (behind upper right side of dash) Junction connector 18 (on underside of steering column) Junction connectors 2 & 3 (behind left side of instrument cluster) Lbl Lvl2 Nca Neo Pkb Pkb2 Pnk Position switch) (w/ door lock control) (behind upper left center of dash) Red Rss Ss1 Ss2 Steering sensor (inside steering column) Stop fuse 15a Stoplight switch (on bracket, above brake pedal) Translate ecu (behind upper left side of dash) Trc+ Trc- Vsc+ Vsc- Электросхема антиблокировочной тормозной системы АБС (ABS), С VSC (3 из 3) для Toyota Sienna XLE 2003 Электросхема антиблокировочной тормозной системы АБС (ABS), С VSC (3 из 3) для Toyota Sienna XLE 2003 - Список элементов: 49 (at left side of firewall) ig (in body harness, in left quarter- panel) (in dash harness, at right side of dash) Batt Csw D/g Ed (near left strut tower) Fl+ Fl- Fr+ Fr- Gl1 Gnd1 Gnda Gyw2 Ig1 Iga J/b 3 (behind instrument cluster) Junction connector 6 (behind top center of dash) Left front abs speed sensor (mounted on hub assembly of left front wheel) Left rear abs speed sensor (mounted on hub assembly of left rear wheel) Nca Parking brake switch (on parking brake lever) Pnk Red Right front abs speed sensor (mounted on hub assembly of right front wheel) Right rear abs speed sensor (mounted on hub assembly of right rear wheel) Rl+ Rl- Rr+ Rr- Sflh Sflr Sfrh Sfrr Smc1 Smc2 Src1 Src2 Srlh Srlr Srrh Srrr Stp Trac off switch Vsc actuator (on left rear of engine compartment) Vsc ecu (behind upper left side of dash) Yaw rate sensor (between front seats, under carpet) Yaw2 Электросхема антиблокировочной тормозной системы АБС (ABS), без VSC для Toyota Sienna XLE 2003 Электросхема антиблокировочной тормозной системы АБС (ABS), без VSC для Toyota Sienna XLE 2003 - Список элементов: 74 (at left side of firewall) ig (in body harness, in left quarter- panel) +bm +bs A11 Abs actuator & ecu (on left rear of engine compt) Abs fuse 60a Abs warning ind B j3 B13 B17 B18 Brake ind Brl C10 C11 Cig fuse 15a Combination meter D/g Data link connector 1 (on right rear of engine compt) Data link connector 3 (below dash, right of steering column) Diode (park/neutral position switch) (w/ wireless door lock control) (behind upper left center of dash) Driver side j/b 1 (behind dash, left of steering column) Ea (at front of right inner fender panel) Ecu-ig fuse 15a Ed (near left strut tower) Ee (at front of left inner fender panel) Engine room j/b 2 (on left side of engine compt) Fl+ Fl- Fr+ Fr- Gauge fuse 10a Gnd1 Gnd2 Headlights system Hot at all times Hot in on or acc Hot in on or start I2 (in dash harness, at right side of dash) Ig1 Ij (at right side of firewall) Init J/b 3 (behind instrument cluster) J10 J2 b Junction connector 17 (behind upper right side of dash) Junction connector 6 (behind top center of dash) Junction connectors 2 & 3 (behind left side of instrument cluster) Left front abs speed sensor (mounted on hub assembly of left front wheel) Left rear abs speed sensor (mounted on hub assembly of left rear wheel) Nca Park/neutral position switch (on transaxle) Pkb Pnk R/b 7 (on left front of engine compt) Red Right front abs speed sensor (mounted on hub assembly of right front wheel) Right rear abs speed sensor (mounted on hub assembly of right rear wheel) Rl+ Rl- Rr+ Rr- Sil Speedo- meter Spo Stop fuse 15a Stoplight switch (on bracket, above brake pedal) Stp Tire pressure ind Tire pressure warning standardization switch (on left side of dash) W/ wireless door lock control W/o wireless door lock control Wtir
СИСТЕМА КОНДИЦИОНЕРА Электросхема кондиционера, Задний счет для Toyota Sienna XLE 2003 Электросхема кондиционера, Задний счет для Toyota Sienna XLE 2003 - Список элементов: 74 (at front of right inner fender panel) ea (at left rear quarterpanel) bm (at right rear quarterpanel) bo (in dash harness, at right side of dash) i11 (near left strut tower) ed A/c control assembly A23 A24 A25 Auto Blower motor (rear cooling) (on rear cooling unit) Blower motor (rear heater) (on rear heater unit) Blower resistor transistor (cooler) (at right rear corner of vehicle) Blower resistor transistor (heater) (under right center seat) Blwc Blwh Blwr Bmc C20 C21 D20 Dome fuse 10a Driver side j/b 1 (behind dash, left of steering column) Driver side r/b 5 (behind dash, left of steering column) Engine room j/b 2 (on left side of engine compartment) Front blower heater switch Fusible link block (on left side of engine compartment, inside engine room j/b 2) Gnd Heater fuse 10a Hot at all times Hot in on or start Hrc Hrh I11 (in dash harness, at right side of dash) Ig+ Illum Interior lghts system J/b 3 (behind instrument cluster) J12 Junction connector 17 (behind upper right side of dash) Junction connector 18 (on underside of steering column) Junction connector 23 (forward of right rear fenderwell) Junction connector 3 (behind left side of instrument cluster) Junction connector 6 (behind top center of dash) Junction connector 8 (behind top center of dash) Mhc Mhh Pnk R/b 7 (on left front of engine compartment) R/b 8 (on right rear of engine compt) Ra/c Rbat Rear a/c switch Rear heater intake air temperature sensor (under right center seat) Rear heater relay Red Rhi Rlo Rmi Rr a/c fuse 40a Rr clr fuse 40a Rr clr relay Rrat Rrhi Rrlo Rrme Rron Servo motor (on rear cooling unit) Tinh Tph Tset V10 Vmc Vmh Электросхема кондиционера, С Буксируя Пакет (1 из 3) для Toyota Sienna XLE 2003 Электросхема кондиционера, С Буксируя Пакет (1 из 3) для Toyota Sienna XLE 2003 - Список элементов: 74 (at right side of firewall) ij (near left strut tower) ed A/c control assembly A23 A24 A25 Ac1 Acon Aif Air Air inlet control servo motor (behind upper right side of dash) Air vent mode control servo motor (behind left center of dash) Alt fuse 140a Auto B/l Blower motor (behind right side of dash) Blw Blwc Blwh C20 D20 D21 Def Defogger system Driver side j/b 1 (behind dash, left of steering column) Face Fdef Foot Front blower motor controller Front heater blower switch Front heater relay Fusible link block (on left side of engine compartment, inside engine room j/b 2) Gnd Heater fuse 10a Hot at all times Hot in on or start Hrc Hrh Htr fuse 50a I2 (in dash harness, at right side of dash) Ig+ Illum Instrument cluster system Interior lights system J/b 3 (behind instrument cluster) Junction connector 17 (behind upper right side of dash) Junction connector 2 (behind left side of instrument cluster) Junction connector 8 (behind top center of dash) Lock Mfrs Mhc Mhh Mrs Passenger side r/b 4 (at right kick panel) Pnk Psw Rbat Rear a/c circuit Red Rrat Rrhi Rrlo Rrme Rron Spd Taco Tam Tinh Tpd Tph Tpi Tset Vmc Vmh Электросхема кондиционера, С Буксируя Пакет (2 из 3) для Toyota Sienna XLE 2003 Электросхема кондиционера, С Буксируя Пакет (2 из 3) для Toyota Sienna XLE 2003 - Список элементов: 30 (behind top center of dash) junction connector 7 A/c A/c ambient temperature sensor (on right front of engine compartment) A/c magnetic clutch & lock sensor (on left front of engine) A/c room temperature sensor (on left center of dash) A/c solar sensor (on upper left side of dash) A/c thermistor (behind lower right side of dash) A/c triple pressure switch (dual & single) (on right front of engine compt) Acmg Air mix control servo motor (behind center of dash) Dome fuse 10a Driver side j/b 1 (behind dash, left of steering column) Dual Engine control module (behind right side of dash) Engine room j/b 2 (on left side of engine compt) Hot at all times I11 (in dash harness, at right side of dash) J12 Junction connector 17 (behind upper right side of dash) Junction connector 18 (on underside of steering column) Junction connector 6 (behind top center of dash) Mg clt relay Pnk R/b 8 (on right rear of engine compartment) Rear a/c evaporator temperature sensor (on center of roof) Red Single Tach Thwo V10 Электросхема кондиционера, С Буксируя Пакет (3 из 3) для Toyota Sienna XLE 2003 Электросхема кондиционера, С Буксируя Пакет (3 из 3) для Toyota Sienna XLE 2003 - Список элементов: 26 (at front of left inner fender panel) ee (at front of right inner fender panel) ea (at rear of intake manifold) (at right side of intake manifold) A/c condenser fan motor (on right front of engine compartment) Cds fuse 30a Diode (a/c magnetic clutch) (on right rear of engine compartment) E3 (in engine harness, behind left headlight) Engine room j/b 2 (on left side of engine compartment) Engine room r/b 1 (on left side of engine compartment) Fan 1 relay Fan 2 relay Fan 3 relay I12 (in dash harness, at right side of dash) J13 Junction connector 14 (behind lower right side of dash) Junction connector 8 (behind top center of dash) Main 1 relay Main 2 relay Pnk Radiator fan motor (on left front of engine compartment) Rdi fuse 30a Red Short pin Water temperature switch 1 (on right front of engine compartment) Water temperature switch 2 (on rear of engine) Электросхема кондиционера, без Буксируя Пакет (1 из 3) для Toyota Sienna XLE 2003 Электросхема кондиционера, без Буксируя Пакет (1 из 3) для Toyota Sienna XLE 2003 - Список элементов: 74 (at right side of firewall) ij (near left strut tower) ed A/c control assembly A23 A24 A25 Ac1 Acon Aif Air Air inlet control servo motor (behind upper right side of dash) Air vent mode control servo motor (behind left center of dash) Alt fuse 140a Auto B/l Blower motor (behind right side of dash) Blw Blwc Blwh C20 D20 D21 Def Defogger system Driver side j/b 1 (behind dash, left of steering column) Face Fdef Foot Front blower motor controller Front heater blower switch Front heater relay Fusible link block (on left side of engine compartment, inside engine room j/b 2) Gnd Heater fuse 10a Hot at all times Hot in on or start Hrc Hrh Htr fuse 50a I2 (in dash harness, at right side of dash) Ig+ Illum Instrument cluster system Interior lights system J/b 3 (behind instrument cluster) Junction connector 17 (behind upper right side of dash) Junction connector 2 (behind left side of instrument cluster) Junction connector 8 (behind top center of dash) Lock Mfrs Mhc Mhh Mrs Passenger side r/b 4 (at right kick panel) Pnk Psw Rbat Rear a/c circuit Red Rrat Rrhi Rrlo Rrme Rron Spd Taco Tam Tinh Tpd Tph Tpi Tset Vmc Vmh Электросхема кондиционера, без Буксируя Пакет (2 из 3) для Toyota Sienna XLE 2003 Электросхема кондиционера, без Буксируя Пакет (2 из 3) для Toyota Sienna XLE 2003 - Список элементов: 29 (behind top center of dash) junction connector 7 A/c A/c ambient temperature sensor (on right front of engine compartment) A/c magnetic clutch & lock sensor (on left front of engine) A/c room temperature sensor (on left center of dash) A/c solar sensor (on upper left side of dash) A/c thermistor (behind lower right side of dash) A/c triple pressure switch (dual & single) (on right front of engine compt) Acmg Air mix control servo motor (behind center of dash) Dome fuse 10a Driver side j/b 1 (behind dash, left of steering column) Dual Engine control module (behind right side of dash) Engine room j/b 2 (on left side of engine compt) Hot at all times I11 (in dash harness, at right side of dash) J12 Junction connector 17 (behind upper right side of dash) Junction connector 18 (on underside of steering column) Junction connector 6 (behind top center of dash) Mg clt relay R/b 8 (on right rear of engine compartment) Rear a/c evaporator temperature sensor (on center of roof) Red Single Tach Thwo V10 Электросхема кондиционера, без Буксируя Пакет (3 из 3) для Toyota Sienna XLE 2003 Электросхема кондиционера, без Буксируя Пакет (3 из 3) для Toyota Sienna XLE 2003 - Список элементов: 21 (at front of left inner fender panel) ee (at front of right inner fender panel) ea (at rear of intake manifold) (at right side of intake manifold) A/c condenser fan motor (on right front of engine compartment) Cds fuse 30a Diode (a/c magnetic clutch) (on right rear of engine compartment) Engine room j/b 2 (on left side of engine compartment) Engine room r/b 1 (on left side of engine compartment) Fan 1 relay Fan 2 relay Fan 3 relay J13 Junction connector 14 (behind lower right side of dash) Junction connector 8 (behind top center of dash) Main 1 relay Radiator fan motor (on left front of engine compartment) Rdi fuse 30a Red Water temperature switch 1 (on right front of engine compartment) Water temperature switch 2 (on rear of engine) Электросхема кондиционера с ручный управлением, Задний счет (1 из 2) для Toyota Sienna XLE 2003 Электросхема кондиционера с ручный управлением, Задний счет (1 из 2) для Toyota Sienna XLE 2003 - Список элементов: 51 (at right side of firewall) ij (behind instrument cluster) j/b 3 (near left strut tower) ed (under left "b" pillar) bk A/c amplifier (behind right side of dash, above kick panel) A/c fuse 5a A/c switch A/mp Ac1 Act Blower motor (on rear cooling unit) Blower resistor (on rear cooling unit) Blower switch C20 Cool D21 Driver side j/b 1 (behind dash, left of steering column) Driver side r/b 5 (behind dash, left side of steering column) Engine room j/b 2 (on left side of engine compartment) F-a/c F-te Fan Front a/c circuit Front heater relay Fusible link block (on left side of engine compartment, inside engine room j/b 2) Gnd Heater fuse 10a Hot Hot at all times Hot in on or start Htr fuse 50a Ign Illum Interior lights system Junction connector 2 & 3 (behind left side of instrument cluster) Junction connector 8 (behind top center of dash) Led Lock Mcool Mgc Mhot Mode switch Off Passenger side r/b 4 (at right kick panel) Prs R-hvr Rr a/c fuse 40a Servo motor (under center of center seat) Sg1 Sg2 Volume switch Электросхема кондиционера с ручный управлением, Задний счет (2 из 2) для Toyota Sienna XLE 2003 Электросхема кондиционера с ручный управлением, Задний счет (2 из 2) для Toyota Sienna XLE 2003 - Список элементов: 29 (at left rear quarterpanel) bm (at right side of firewall) ij (in body harness, at left "b" pillar) b3 (in body harness, at right rear quarterpanel) b13 (in body harness, at right side of tailgate) b12 (in body harness, in roof above left sliding door) (in body harness, in roof above left sliding door) b2 (in dash harness, at left side of dash) i5 (near left strut tower) ed B13 (in body harness, at right rear quarterpanel) Driver side r/b 5 (behind dash, left of steering column) Front heater blower switch Illum Interior lights system Junction connector 3 (behind left side of instrument cluster) Off Passenger side r/b 3 (on right rear corner of vehicle) Rear Rear cooling blower motor (on rear cooling unit) Rear cooling blower resistor (on rear cooling unit) Rear heater blower motor (on rear heater unit) Rear heater blower resistor (on rear heater unit) Rear heater blower switch Rear heater relay Rear hi relay (on right rear of vehicle) Rear lo relay Rear m1 relay Rear m2 relay Rear relay Электросхема кондиционера с ручный управлением, С Буксируя Пакет (1 из 2) для Toyota Sienna XLE 2003 Электросхема кондиционера с ручный управлением, С Буксируя Пакет (1 из 2) для Toyota Sienna XLE 2003 - Список элементов: 53 (at right side of firewall) ij A/c A/c amplifier (behind right side of dash, above kick panel) A/c fuse 5a A/c magnetic clutch & lock sensor (on left front of engine) A/c switch A/c thermistor (behind lower right side of dash) A/c triple pressure switch (dual & single) (on right front of engine compt) Ac1 Acmg Act Air inlet control servo motor (behind upper right side of dash) Air inlet control switch (rear window defogger switch) Alt fuse 140a Blower motor (behind right side of dash) Blower resistor (behind right side of dash, on blower housing) Blower switch C20 D20 D21 Driver side j/b 1 (behind dash, left of steering column) Driver side r/b 5 (behind dash, left of steering column) Dual Engine control module (behind right side of dash) F-a/c F-te Fan Front heater relay Fusible link block (on left side of engine compartment, inside engine room j/b 2) Gnd Heater fuse 10a Hot at all times Hot in on or start Htr fuse 50a Ign Illum Interior lights system J/b 3 (behind instrument cluster) Junction connector 17 (behind upper right side of dash) Junction connector 2 & 3 (behind left side of instrument cluster) Junction connector 7 (behind top center of dash) Junction connector 8 (behind top center of dash) Led Lock Mgc Mode switch Off Passenger side r/b 4 (at right kick panel) Pnk Prs Sg1 Single Tach Электросхема кондиционера с ручный управлением, С Буксируя Пакет (2 из 2) для Toyota Sienna XLE 2003 Электросхема кондиционера с ручный управлением, С Буксируя Пакет (2 из 2) для Toyota Sienna XLE 2003 - Список элементов: 26 (at front of left inner fender panel) ee (at front of right inner fender panel) ea (at rear of intake manifold) (at right side of intake manifold) (near left strut tower) ed A/c condenser fan motor (on right front of engine compartment) Cds fuse 40a E3 (in engine harness, behind left headlight) Engine room j/b 2 (on left side of engine compartment) Engine room r/b 1 (on left side of engine compartment) Fan 1 relay Fan 2 relay Fan 3 relay I12 (in dash harness, at right side of dash) J13 Junction connector 14 (behind lower right side of dash) Junction connector 2 & 3 (behind left side of instrument cluster) Main 1 relay Main 2 relay Pnk Radiator fan motor (on left front of engine compartment) Rdi fuse 40a Red Short pin Water temperature switch 1 (on right front of engine compartment) Water temperature switch 2 (on rear of engine) Электросхема кондиционера с ручный управлением, без Буксируя Пакет (1 из 2) для Toyota Sienna XLE 2003 Электросхема кондиционера с ручный управлением, без Буксируя Пакет (1 из 2) для Toyota Sienna XLE 2003 - Список элементов: 52 (at right side of firewall) ij A/c A/c amplifier (behind right side of dash, above kick panel) A/c fuse 5a A/c magnetic clutch & lock sensor (on left front of engine) A/c switch A/c thermistor (behind lower right side of dash) A/c triple pressure switch (dual & single) (on right front of engine compt) Ac1 Acmg Act Air inlet control servo motor (behind upper right side of dash) Air inlet control switch (rear window defogger switch) Alt fuse 140a Blower motor (behind right side of dash) Blower resistor (behind right side of dash, on blower housing) Blower switch C20 D20 D21 Driver side j/b 1 (behind dash, left of steering column) Driver side r/b 5 (behind dash, left of steering column) Dual Engine control module (behind right side of dash) F-a/c F-te Fan Front heater relay Fusible link block (on left side of engine compartment, inside engine room j/b 2) Gnd Heater fuse 10a Hot at all times Hot in on or start Htr fuse 50a Ign Illum Interior lights system J/b 3 (behind instrument cluster) Junction connector 17 (behind upper right side of dash) Junction connector 2 & 3 (behind left side of instrument cluster) Junction connector 7 (behind top center of dash) Junction connector 8 (behind top center of dash) Led Lock Mgc Mode switch Off Passenger side r/b 4 (at right kick panel) Prs Sg1 Single Tach Электросхема кондиционера с ручный управлением, без Буксируя Пакет (2 из 2) для Toyota Sienna XLE 2003 Электросхема кондиционера с ручный управлением, без Буксируя Пакет (2 из 2) для Toyota Sienna XLE 2003 - Список элементов: 21 (at front of left inner fender panel) ee (at front of right inner fender panel) ea (at rear of intake manifold) (at right side of intake manifold) (near left strut tower) ed A/c condenser fan motor (on right front of engine compartment) Cds fuse 30a Engine room j/b 2 (on left side of engine compartment) Engine room r/b 1 (on left side of engine compt) Fan 1 relay Fan 2 relay Fan 3 relay J13 Junction connector 14 (behind lower right side of dash) Junction connector 2 & 3 (behind left side of instrument cluster) Main 1 relay Radiator fan motor (on left front of engine compartment) Rdi fuse 30a Red Water temperature switch 1 (on right front of engine compartment) Water temperature switch 2 (on rear of engine)
СИСТЕМА КРУИЗКОНТРОЛЯ Электросхема системы круизконтроля для Toyota Sienna XLE 2003 Электросхема системы круизконтроля для Toyota Sienna XLE 2003 - Список элементов: 55 (w/ vsc) (w/o vsc) A13 Abs & traction ecu (translate ecu) B10 B14 B18 C10 C22 Cancel Ccs Cig fuse 15a Combination meter Combination switch Cruise Cruise control actuator (on left side of engine compartment) Cruise control ecu (behind upper left center of dash) Cruise control ind Cruise control switch D13 Data link connector 1 (on right rear of engine compt) Data link connector 3 (below dash, right of steering column) Diode (park/neutral position switch) (w/ door lock) (behind upper left center of dash) Driver side j/b 1 (behind dash, left of steering column) E10 Ecc Ect Ecu-ig fuse 15a Electronically controlled transmission solenoid (on left side of transaxle) Engine control module (behind right side of dash) Gauge fuse 10a Gnd Hot at all times Hot in acc or on Hot in on or start I2 (in dash harness, at right side of dash) Idl Idlo Ig (at left side of firewall) Ih (at right dash brace) J/b 3 (behind instrument cluster) Junction connector 13 (behind lower right side of dash) Junction connector 17 (behind upper right side of dash) Junction connector 18 (on underside of steering column) Od1 Park/neutral position switch (on transaxle) Pnk Res/ accel Set/ coast Spd Stop fuse 15a Stoplight switch (on bracket, above brake pedal) Stp W/ vsc W/o vsc
СИСТЕМА ОХЛАЖДЕНИЯ Электросхема системы охлаждения, С Буксируя Пакет для Toyota Sienna XLE 2003 Электросхема системы охлаждения, С Буксируя Пакет для Toyota Sienna XLE 2003 - Список элементов: 44 (in dash harness, at right side of dash) i12 (on left side of engine compt) engine room j/b 2 A/c amplifier (behind right side of dash, above kick panel) A/c condenser fan motor (on right front of engine compt) A/c magnetic clutch diode (on right rear of engine compt) A/c single pressure switch (on right front of engine compt) Act Alt fuse 140a Automatic a/c Cds fuse 40a Driver side j/b 1 (behind dash, left of steering column) E11 E3 (in engine harness, behind left headlight) E4 (in engine harness, at center of firewall) Ea (at front of Eb (at right side of intake manifold) Ee (at front of left inner fender panel) Engine control module (behind right side of dash) Engine controls system Engine coolant temparature sensor (on right front side of engine) Engine room r/b 1 (on left side of engine compt) Fan Fan 1 relay Fan 2 relay Fan 3 relay Fusible link block (on left side of engine compt, inside engine room j/b 2) Heater fuse 10a Hot at all times Hot in on or start J13 Junction connector 14 (behind lower right side of dash) Junction connector 8 (behind top center of dash) Main 1 relay Main 2 relay Manual a/c Pnk Radiator fan motor (on left front of engine compt) Rdi fuse 40a Red Right inner fender panel) Short pin Thw Water temperature switch 1 (on right front of engine compt) Water temperature switch 2 (on rear of engine) Электросхема системы охлаждения, без Буксируя Пакет для Toyota Sienna XLE 2003 Электросхема системы охлаждения, без Буксируя Пакет для Toyota Sienna XLE 2003 - Список элементов: 38 A/c amplifier (behind right side of dash, above kick panel) A/c condenser fan motor (on right front of engine compt) A/c magnetic clutch diode (on right rear of engine compt) A/c single pressure switch (on right front of engine compt) Act Alt fuse 140a Automatic a/c Cds fuse 30a Driver side j/b 1 (behind dash, left of steering column) E11 E4 (in engine harness, at center of firewall) Ea (at front of right inner fender panel) Eb (at right side of intake manifold) Ee (at front of left inner fender panel) Engine control module (behind right side of dash) Engine controls system Engine coolant temparature sensor (on right front side of engine) Engine room j/b 2 (on left side of engine compt) Engine room r/b 1 (on left side of engine compt) Fan Fan 1 relay Fan 2 relay Fan 3 relay Fusible link block (on left side of engine compt, inside engine room j/b 2) Heater fuse 10a Hot at all times Hot in on or start J13 Junction connector 14 (behind lower right side of dash) Junction connector 8 (behind top center of dash) Main 1 relay Manual a/c Radiator fan motor (on left front of engine compt) Rdi fuse 30a Red Thw Water temperature switch 1 (on right front of engine compt) Water temperature switch 2 (on rear of engine)
СИСТЕМА ПЕРЕДАЧИ ДАННЫХ Электросхема линии передачи данных CAN для Toyota Sienna XLE 2003 Электросхема линии передачи данных CAN для Toyota Sienna XLE 2003 - Список элементов: 34 (at rear of intake manifold) ec (at right side of firewall) ij Abs actuator & ecu (on left rear of engine compt) B11 Bat Center air bag sensor assembly (below center of dash) Combination meter Cruise control ecu (behind upper left center of dash) D/g Data link connector 1 (on right rear of engine compt) Data link connector 3 (below dash, right of steering column) Driver side j/b 1 (behind dash, left of steering column) E4 (in eng harness, at center of firewall) Efi fuse 15a Efi relay Engine control module (behind right side of dash) Engine room j/b 2 (on left side of engine compt) Hot at all times I11 I2 (in dash harness, at right side of of dah) J/b 3 (behind instrument cluster) J/c 14 (behind lower right side of dash) J/c 17 (behind upper right side of dash) J/c 18 (w/ vsc) (on underside of steering column) J/c 2 & 3 (behind left side of instrument cluster) J/c 6 (behind top center of dash) J/c 8 (behind top center of dash) J10 Obd fuse 7.5a Red Red red Sil Translate ecu (w/ vsc) (behind upper left side of dash) Vsc ecu (behind upper left side of dash)
СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ
3.0L 3.0L, Электросхема системы управления двигателем (1 из 4) для Toyota Sienna XLE 2003 3.0L, Электросхема системы управления двигателем (1 из 4) для Toyota Sienna XLE 2003 - Список элементов: 79 (engine harn, front of engine) (engine harn, right side of engine) (right side of dash) (right side of dash) j/c 12 Acis Afl+ Afl- Afr+ Afr- Below right side of dash) i10 Conn e11 Conn e12 Crankshaft position sensor (front of engine) Cruise control ecu E01 E02 E03 E04 E05 E2g Eb (right side of surge tank) Ec (rear side of surge tank) Electronically controlled transmission solenoid (on left side of transaxle) Engine control module (behind right side of dash) Evp1 Htl Htr I10 Idle air control valve (on throttle body assembly) Igf Igniter and ignition coils Igt1 Igt2 Igt3 Igt4 Igt5 Igt6 Injector 1 Injector 2 Injector 3 Injector 4 Injector 5 Injector 6 J/c (right side of dash) J/c 12 J/c 13 (behind right side of dash) J/c 14 (behind right side of dash) Knkl Knkr Knock sensor (top of engine) Left camshaft position sensor (rear of left cyl head) Left vvt solenoid (left rear of engine) Mass airflow meter (on left side of engine compt, part of air intake assembly) Nc2+ Nc2- Nca Ne+ Ne- Noise filter (on center right side of fire- wall) O/d direct clutch speed sensor (top front of transaxle) Oc1+ Oc1- Oc2+ Oc2- Pnk Power steering oil pressure switch (right front of engine) Red Right camshaft position sensor (rear of right cyl head) Right vvt solenoid (center rear of engine) Rso Sln+ Sln- Tha Tho Thw Tpc Vta1 Vv1+ Vv2+ 3.0L, Электросхема системы управления двигателем (2 из 4) для Toyota Sienna XLE 2003 3.0L, Электросхема системы управления двигателем (2 из 4) для Toyota Sienna XLE 2003 - Список элементов: 46 (base of left "b" pillar) (behind right side of dash at ecu) a/f heater relay (behind right side of dash) (dash harn, behind right side of dash) (dash harn, lower right end of dash) (engine harn, right side of engine) A/f htr fuse 25a Acc Air fuel ratio sensor (bank 1, sensor 1) (right exhaust manifold) Air fuel ratio sensor (bank 2, sensor 1) (left exhaust manifold) Am2 B11 C10 Cir opn relay Driver side j/b 1 (behind dash, left of steering column) Ea (front of right front fender) Ec (rear side of surge tank) Ee (front of left front fender) Efi fuse 15a Efi relay Engine room j/b 2 (left side of engine compt) Engine room r/b 1 (left side of engine compt) Fuel pump (in fuel tank) Heated oxygen sensor (bank 1, sensor 2) (on exhaust pipe) Hot at all times I11 I13 (dash harn, lower right end of dash) Ig2 Ign fuse 5a Ignition switch Ij (right kick panel) J/b 3 (behind instrument cluster) J/c 13 (behind right side of dash) J/c 14 J/c 6 (behind top center of dash) J/c 7 (behind top center of dash) Lock Nca P/n Park/ neutral position switch (on transaxle) Red St2 Start Starter fuse 5a Starting system (st relay) Vsv (intake air control 2) (top of engine) 3.0L, Электросхема системы управления двигателем (3 из 4) для Toyota Sienna XLE 2003 3.0L, Электросхема системы управления двигателем (3 из 4) для Toyota Sienna XLE 2003 - Список элементов: 44 (behind right side of dash) j/c12 (left front shock tower) (right dash brace) ih A/t indicator light switch (integral to park/ neutral position switch (on transaxle) Anti-lock brake system B13 C10 C11 C12 C13 Cig fuse 15a Combination meter D n D12 Diode (p/n) (w/ door lock control) (behind center of dash, taped to harness) Driver side j/b 1 (behind dash, left of steering column) Engine coolant temperature sensor (on right front side of engine) Gauge fuse 10a Hot in on or acc Hot in on or start I8 (dash harn, center of dash) Ij (right kick panel) J/b 3 (behind inst cluster) J/c 17 (behind upper right side of dash) J/c 18 (underside of steering column) J/c 2 J/c 2 (behind left side, top of dash) J/c 2, 3 (behind left side, top of dash) J/c 3 J/c 7 (behind top center of dash) J/c 7 (top center of dash) Malf ind lamp O/d main switch O/d off ind Ptnk Speedo- meter Tacho- meter Throttle position sensor (on throttle body assembly) Vapor pressure sensor (left side of firewall) Vcc Vsv (canister closed valve) (left rear of eng compt) Vsv (evap) (top of engine) Vsv (intake air control) (top center of engine) Vsv (vapor pressure sensor) (left rear of eng compt) 3.0L, Электросхема системы управления двигателем (4 из 4) для Toyota Sienna XLE 2003 3.0L, Электросхема системы управления двигателем (4 из 4) для Toyota Sienna XLE 2003 - Список элементов: 78 A red A/c A/c system A13 Acmg Anti-lock brakes system Anti-theft system B18 Bat Batt C18 Ccv Code Conn e10 Conn e8 Conn e9 Cooling fans system Cruise control system Data link connector 1 (right rear of engine compt) Data link connector 3 (below dash, right of steering column) Driver side j/b 1 (behind dash, left of steering column) Ec (right side of surge tank) Ed (left front shock tower) Els Els2 Eng+ Eng- Engine control module (behind right side of dash) Eom F/ps Hot at all times Hot w/defogger relay energized Hot w/taillight relay energized Hts I11 (dash harn, behind right side of dash) I12 (dash harn, behind left side of dash) Idlo Igsw Ij (right kick panel) Imld J/b 3 (behind instrument cluster) J/c 14 (behind right side of dash) J/c 2 J/c 2, 3 (behind left side, top of dash) J/c 3 J/c 3 (behind left side, top of dash) J/c 6 (behind top center of dash) J10 J11 Ksw Mirror- heater fuse 10a Mrel Neo Nsw Obd fuse 7.5a Od1 Odlp Odms Oxs Ptnk Red Red a Rxck Sil Spd Sta Stop fuse 15a Stoplight switch (on bracket, above brake pedal) Stp Tach Tail fuse 10a Thwo Tpc Transponder key amplifier (behind left side of dash) Trc+ Trc- Txct Unlock warning switch
Система Фар Электросхема фар (1 из 2) для Toyota Sienna XLE 2003 Электросхема фар (1 из 2) для Toyota Sienna XLE 2003 - Список элементов: 69 (at right side of firewall) ij (in dash harness, at left side of dash) i14 (near left strut tower) ed (w/o vsc) Abs actuator & ecu (on left rear of engine compt) Anti-lock brakes system Auto Automatic light control sensor (on top left side of dash) B19 Brake fluid level warning switch (on brake fluid reservoir) Brake indicator Brk C10 C11 Chg- Cltb Clte Clts Combination meter Combination switch Csb Cse Cso Daytime running light relay (main) (behind dash, right of steering column) Dcty Dim Dimmer switch Dome fuse 10a Driver side j/b 1 (behind dash, left of steering column) Drl Engine room j/b 2 (on left side of engine compartment) Exterior lights system Flash Fog Foglight switch Gauge fuse 10a H-lp Head Head relay High High beam indicator Hot at all times Hot in on or start Hrly I11 Ij (at right side of firewall) Ind Integration relay J/b 3 (behind instrument cluster) J12 Junction connector 17 (behind upper right side of dash) Junction connector 18 (on underside of steering column) Junction connector 2 & 3 (behind left side of instrument cluster) Left front door courtesy switch Light control switch Low Main fuse 40a Off Parking brake switch (on parking brake lever) Pkb Red Starting/ charging system Tail Trly V10 W/ door lock control W/ vsc W/o door lock control W/o vsc Электросхема фар (2 из 2) для Toyota Sienna XLE 2003 Электросхема фар (2 из 2) для Toyota Sienna XLE 2003 - Список элементов: 28 A14 A15 C10 D22 Daytime running light diode 2 (behind upper left center of dash) Dim relay Drl relay E1 (in engine harness, behind left headlight) Ea (at front of right inner fender panel) Ee (at front of left inner fender panel) Engine room j/b 2 (on left side of engine compartment) Fog fuse 20a Foglight relay (behind right side of dash) H-lp lh lo fuse 10a H-lp rh lo fuse 10a Head left fuse 15a Head right fuse 15a Hot at all times Ig (at left side of firewall) J/b 3 (behind instrument cluster) Junction connector 1 (on left front of engine compt, near left headlight) Junction connector 7 (behind top center of dash) Left foglight Left headlight R/b 7 (on left front of engine compt) Red Right foglight Right headlight
СИСТЕМЫ СИДЕНИЙ Электросхема подогрева сидений для Toyota Sienna XLE 2003 Электросхема подогрева сидений для Toyota Sienna XLE 2003 - Список элементов: 23 (at left rear quarterpanel) bm (at right rear quarterpanel) bo (behind instrument cluster) j/b 3 (behind upper right side of dash) junction connector 17 (near left strut tower) ed (under left "b" pillar) bk D20 Driver side j/b 1 (behind dash, left of steering column) Driver's seat heater Driver's seat heater switch Engine room r/b 1 (on left side of engine compt) Front passenger's seat Front passenger's seat heater Front passenger's seat heater switch Gauge fuse 10a Hot at all times Hot in on or start Ill Interior lights system Junction connector 23 (forward of right rear fenderwell) Junction connector 8 (behind top center of dash) S/htr fuse 20a Seat heater relay (behind left side of dash) Электросхема привода сидений для Toyota Sienna XLE 2003 Электросхема привода сидений для Toyota Sienna XLE 2003 - Список элементов: 14 Bk (under left "b" pillar) Bm (at left rear quarterpanel) Down Driver side j/b 1 (behind dash, left of steering column) Front Hot at all times Power fuse 30a Power seat motor Power seat switch Rear Rear vertical Reclining Red Slide
Стартер Генератор Электросхема Генератора для Toyota Sienna XLE 2003 Электросхема Генератора для Toyota Sienna XLE 2003 - Список элементов: 24 (behind upper right side of dash) Acc Alt fuse 140a Alt-s fuse 5a Am1 fuse 40a Am2 fuse 30a Battery Battery ground Charge warning light Chg- Comb- ination meter Daytime running light relay (main) (behind dash, right of steering column) Driver side j/b 1 (behind dash, left of steering column) Engine room j/b 2 (on left side of engine compt) Fusible link block (on left side of engine compt, inside engine room j/b 2) Gauge fuse 10a Generator Ign fuse 5a Ignition switch Inp fuse 100a Junction connector 5 Nca Off Start Электросхема стартера для Toyota Sienna XLE 2003 Электросхема стартера для Toyota Sienna XLE 2003 - Список элементов: 24 Acc Am2 fuse 30a Battery Battery ground Driver side j/b 1 (behind dash, left of steering column) Engine control module (behind right side of dash) Engine room j/b 2 (on left side of engine compt) Fusible link block (on left side of engine compt, inside engine room j/b 2) Ig (at left side of firewall) Ignition switch J11 Junction connector 6 (behind top center of dash) Junction connector 7 (behind top center of dash) Main fuse 40a Nca Nsw Off Park/neutral position switch (on transaxle) Red Sta Start Starter Starter fuse 5a Starter relay
Стеклоочистители и Стеклоомыватели Дворники Электросхема передних стеклоочистителей дворников и омывателя лобового стекла для Toyota Sienna XLE 2003 Электросхема передних стеклоочистителей дворников и омывателя лобового стекла для Toyota Sienna XLE 2003 - Список элементов: 28 (w/o vsc) A j3 C10 C11 C14 Combi- nation meter Combination switch Driver side j/b 1 (behind dash, left of steering column) Ea (at front of right inner fender panel) Front washer motor (on right front corner of engine compt, in washer fluid reservoir) Front wiper motor (on left side of firewall) Gauge fuse 10a Hot in on or start I11 Ig (at left side of firewall) Ij (at right side of firewall) Int J/c 17 (behind upper right side of dash) J/c 18 (on underside of steering column) J/c 2 & 3 (behind left side of instrument cluster) Off Solid state W/ vsc Washer ind Washer level warning switch (in washer fluid reservoir) Washer switch Wiper fuse 25a Wiper switch Электросхема заднего стеклоочистителя дворника и омывателя для Toyota Sienna XLE 2003 Электросхема заднего стеклоочистителя дворника и омывателя для Toyota Sienna XLE 2003 - Список элементов: 19 A j2 A j3 Combination switch Driver side j/b 1 (behind dash, left of steering column) Hot in on or start I11 Ij (at right side of firewall) Int J/c 2 & 3 (behind left side of instrument cluster) J/c 20 (behind left rear wheelwell) J/c 22 (on right rear corner of vehicle) Off Rear washer motor (on washer fluid reservoir) Rear wiper & washer switch Rear wiper motor (on center of back door) Rear wiper relay (on left rear quarterpanel, above wheelwell) Washer 1 Washer 2 Wiper fuse 25a
ЦЕНТРАЛЬНЫЙ ЗАМОК Электросхема центрального замка, С вход без ключа для Toyota Sienna XLE 2003 Электросхема центрального замка, С вход без ключа для Toyota Sienna XLE 2003 - Список элементов: 81 (behind center of dash) (w/ anti-theft) theft deterrent ecu (behind instrument cluster) j/b 3 (behind top center of dash) (behind upper right side of dash) junction connector 11 (in body harness, at left "c" pillar) A red A10 A16 Act+ Act- Actd B15 Back door key lock & unlock switch Back door lock motor (above center of rear bumper assembly) Bm (at left rear quarter- panel) Bzr C12 C17 D14 D15 D16 D19 Dcty Dome fuse 10a Door fuse 25a Door lock motor Driver side j/b 1 (behind dash, left of steering column) Ed (near left strut tower) Engine room j/b 2 (on left side of engine compt) Gauge fuse 10a Hot at all times Hot in on or start I13 I16 If (at left kick panel) Ii (at right kick panel) Ij (at right side of firewall) Integration relay J/b 3 (behind instr- ument cluster) J/b 3 (behind instrument cluster) J/c 22 (on right rear corner of vehicle) J/c 5 (behind upper right side of dash) J12 J15 J16 Junction connector 15 & 16 (behind upper right side of dash) Junction connector 18 (on underside of steering column) Junction connector 3 (behind left side of instrument cluster) Junction connector 4 (behind upper left side of dash) Junction connector 6 Keyless buzzer (behind left front corner lamp) Ksw Left front door courtesy switch Left front door key unlk lock & unlock switch Left front door lock motor & unlock detection switch Left front door lock unlk control switch (power window master switch) Left slide door junction connector (at base of left "b" pillar) Lock Lsds Lswd Lswp Pcty Prg Rda Red Right front door courtesy switch Right front door key unlk lock & unlock switch Right front door lock motor & unlock detection switch Right front door lock unlk control switch Right slide door junction connector (at base of right "b" pillar) Ul1 Ul2 Ul3 Unlk Unlock warning switch V10 red a W/ anti-theft W/ power slide door W/o anti-theft W/o power slide door Wireless door lock ecu (behind center of dash) Электросхема центрального замка, без Вход Без ключа для Toyota Sienna XLE 2003 Электросхема центрального замка, без Вход Без ключа для Toyota Sienna XLE 2003 - Список элементов: 76 (at left kick panel) if (at left rear quarterpanel) bm (behind center of dash) (w/ anti-theft) theft deterrent ecu (behind upper right side of dash) j/c 5 (behind upper right side of dash) junction connector 11 (in body harness, at left "c" pillar) +b1 +b2 A10 A16 Act+ Act- Actd B15 Back door key lock & unlock switch Back door lock motor (above center of rear bumper assembly) C12 C17 D14 D15 D16 D18 D19 Dcty Dome fuse 10a Door fuse 25a Door lock motor Driver side j/b 1 (behind dash, left of steering column) Ed (near left strut tower) Engine room j/b 2 (on left side of engine compt) G2 red Gauge fuse 10a Hot at all times Hot in on or start I13 I16 If (at left kick panel) Ii (at right kick panel) Integration relay J/b 3 (behind instr- ument cluster) J/b 3 (behind instrument cluster J/b 3 (behind instrument cluster) J/c 22 (on right rear corner of vehicle) J/c 5 (behind upper right side of dash) J15 J16 Junction connector 15 & 16 (behind upper right side of dash) Junction connector 3 (behind left side of instrument cluster) Junction connector 4 (behind upper left side of dash) Junction connector 6 (behind top center of dash) Ksw Left front door courtesy switch Left front door key unlk lock & unlock switch Left front door lock motor & unlock detection switch Left front door lock unlk control switch (power window master switch) Left slide door junction connector (at base of left "b" pillar) Lock Lsds Lswd Lswp Pcty Red Right front door courtesy switch Right front door key unlk lock & unlock switch Right front door lock motor & unlock detection switch Right front door lock unlk control switch Right slide door junction connector (at base of right "b" pillar) Ul1 Ul2 Ul3 Unlk Unlock warning switch W/ anti-theft W/ power slide door W/o anti-theft W/o power slide door
