Разделы схем — 33 (всего 144)
Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ ВНЕШНЕЕ ОСВЕЩЕНИЕ ВНУТРЕННЕЕ ОСВЕЩЕНИЕ ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Звуковой сигнал Гудок Магнитола Мультимедия Навигация GPS Парктроники Подогрев стекол и зеркал ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ ПРИБОРНАЯ ПАНЕЛЬ ПРИВОД ЗЕРКАЛ ПРИВОД ЛЮКА И КРЫШИ ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Противоугонная система Сигнализация СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS СИСТЕМА КОНДИЦИОНЕРА СИСТЕМА КРУИЗКОНТРОЛЯ СИСТЕМА ОХЛАЖДЕНИЯ СИСТЕМА ПЕРЕДАЧИ ДАННЫХ СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ СИСТЕМА УСИЛИТЕЛЯ РУЛЯ Система Фар СИСТЕМЫ ПАМЯТИ СИСТЕМЫ ПОДВЕСКИ СИСТЕМЫ СИДЕНИЙ Стартер Генератор Стеклоочистители и Стеклоомыватели Дворники ЦЕНТРАЛЬНЫЙ ЗАМОК
Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Электросхема автоматической коробки передач АКПП для Volkswagen Touareg TDI 2010 Электросхема автоматической коробки передач АКПП для Volkswagen Touareg TDI 2010 - Список элементов: 31 (below left side of dash) access/start control module (under left side of dash) (under vehicle) multi-function transmission range switch Computer data lines system Fuse 15a Fuse 5a Fuse panel c G33 (behind right end of dash) G35 (under front passenger's seat) Hot at all times Instrument cluster Instrument cluster control module Multi- function ind Nca Shift interlock system Shift lock p solenoid (in center console) Solenoid valves Steering column electronic systems control module Steering wheel tiptronic switch T10s T6aa T6c T81 Tiptronic switch (under transmission selector lever) Transmission Transmission control module (under front passenger's seat) Transmission fluid temperature sensor Transmission input speed rpm sensor Transmission output speed sender Vehicle electrical system control module W/ multi-function steering wheel дифференциальная схема замка для Volkswagen Touareg TDI 2010 дифференциальная схема замка для Volkswagen Touareg TDI 2010 - Список элементов: 26 (front of left rear drive shaft flange) differential lock motor & lock position sensors (or red) 40a 57a Computer data lines system Different- ial motor Differential control module Differential lock control module (left rear wheel housing) Differential position & oil temperature sensors Fuse 10a Fuse 30a Fuse 40a Fuse 5a Fuse panel b Fuse panel c G33 (behind right end of dash) G35 (under front passenger's seat) G50 (left side of luggage compt) Hot at all times Instrument cluster system Interior lights system T10t T10u T2fe T4a Transfer case operating unit
БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА Электросхема багажника и лючка топливного бака для Volkswagen Touareg TDI 2010 Электросхема багажника и лючка топливного бака для Volkswagen Touareg TDI 2010 - Список элементов: 44 (behind left kick panel) g639 (behind left side of instrument cluster) g32 (left side of luggage compt) g50 14a 15a 22a 30a 87a Closing assist relay Comfort system central control module (right rear cargo area) Computer data lines system Driver's door control module (in driver's door) E-box (dash- left) (behind left side of dash) Fuel filler/ rear lid remote unlocking button Fuel tank lid unlock motor Fuse 15a Fuse 20a Fuse 30a Fuse panel b Fuse panel c G50 (left side of luggage compt) G51 (right side of luggage compt) Hot at all times Interior lights system Rear lid control module (base of left "d" pillar) Rear lid handle unlock switch Rear lid hydraulic motor Rear lid hydraulic sensor Rear lid lock button Rear lid lock unit Rear lid remote lock key switch & rear window lock unit Rear lid unlock motor (in tailgate) T10ab T10ae T10ar T10as T10s T10y T12b T12c T23 T32f T4s Trunk lid closed position switch
БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Электросхема блока предохранителей и реле (1 из 8) для Volkswagen Touareg TDI 2010 Электросхема блока предохранителей и реле (1 из 8) для Volkswagen Touareg TDI 2010 - Список элементов: 83 (not used) 10a 11a 12a 14a 15a 16a 17a 18a 33a 34a 35a 36a 44a 56a Amplifier (w/ dynamic sound/ volkswagen sound) Battery Battery switch- off relay Comfort system central control module Digital satellite radio tuner Driver's door control module Driver's heated seat adjuster Driver's seat adjustment control head (w/o memory) E-box (dash-left) From fuse 43 (diagram 4 of 8) From fuse panel d (diagram 5 of 8) From fuse panel d (diagram 7 of 8) Front blower regulation motor (bitron) (w/ climatronic) Front passenger's heated seat adjuster Fuse 10a Fuse 15a Fuse 20a Fuse 250a Fuse 25a Fuse 30a Fuse 40a Fuse 5a Fuse 60a Fuse panel b Fuse panel c Fuse panel d Headlamp washer relay Interior monitoring sensor Left rear heated seat regulating switch Left washer nozzle heater Level control system control head Main battery switch Nca Optional equipment/dvd connector Radio, radio & navigation display control module Rear blower regulation motor Rear view camera system control module Red Right rear heated seat regulating switch Right washer nozzle heater Solar cell separation relay Steering column electronic systems control module T10ae T10al T10p T16a T16e T16p T17 T17ca T23 T23a T2t T4b T4i T4s T6da T8ag T8in Terminal 30 wire junction 3 To fuse 1 (diagram 5 of 8) To fuse 2 (diagram 2 of 8) To fuse relay panel (diagram 6 of 8) To secondary battery charge relay (diagram 7 of 8) To terminal 30 wire junction 2 (diagram 7 of 8) Tv tuner Vehicle electrical system control module Vehicle inclination sensor Электросхема блока предохранителей и реле (2 из 8) для Volkswagen Touareg TDI 2010 Электросхема блока предохранителей и реле (2 из 8) для Volkswagen Touareg TDI 2010 - Список элементов: 79 (not used) 10a 20a 21a 22a 23a 24a 25a 31a 32a 33a 34a 35a 36a 53a 54a 56a 57a Abs control module Climatronic control module Comfort system central control module Converter w/ socket 12v-115v/ 230v Differential control module E-box (dash-left) From terminal 30 wire junction 3 (diagram 1 of 8) Front heated seats control module Front hood switch Front passenger's door control module Front passenger's seat adjustment control head Front passenger's seat fuse 2 Fuse 10a Fuse 150a Fuse 15a Fuse 20a Fuse 25a Fuse 30a Fuse 40a Fuse 5a Fuse panel c Fuse panel d G51 (right side of luggage compt) Left heated windshield relay Nca Operating electronics & telephone control module Optional equipment/ dvd connector Parking aid control module Passenger memory seat control module Rear a/c control head (4-zone) Red Right windshield heater relay Roof display unit T10ag T10i T10n T12cb T12g T12h T14p T16cb T16p T20 T23 T48 T4at T4ba T6d T6db T8in To fuse panel c (diagram 3 of 8) Towing recognition control module Vehicle electrical system control module Vehicle position recognition control module W/ auxiliary heater W/ dual battery W/ electric trailer hitch pivot W/ memory W/ one battery W/o auxiliary heater W/o memory Электросхема блока предохранителей и реле (3 из 8) для Volkswagen Touareg TDI 2010 Электросхема блока предохранителей и реле (3 из 8) для Volkswagen Touareg TDI 2010 - Список элементов: 50 14a 15a 16a 18a 19a 26a 27a 29a 3.0l turbo diesel 3.6l 30a 4 pin connector Air bag control module Closing assist relay Comfort system central control module Driver's automatic safety belt solenoid E-box (dash-left) Engine control module (ecm) From access/start control module (diagram 6 of 8) From fuse panel d (diagram 2 of 8) Front passenger's air bag disabled indicator lamp Front passenger's automatic safety belt solenoid Fuse 10a Fuse 15a Fuse 20a Fuse 25a Fuse 30a Fuse 5a Fuse panel b Fuse panel c Instrument cluster control module Level control system control module Luggage compartment light Luggage compartment light (w/ dynamic sound/ volkswagen sound) Mass air flow sensor Rear window defogger relay Red Right rear door control module Seat occupied recognition control module T10ak T10d T12c T26a T32a T4ac T4bw T94 T94aa Transmission control module (tcm) Vehicle electronic system control module Электросхема блока предохранителей и реле (4 из 8) для Volkswagen Touareg TDI 2010 Электросхема блока предохранителей и реле (4 из 8) для Volkswagen Touareg TDI 2010 - Список элементов: 44 38a 39a 40a 41a 42a 43a 47a 48a 49a 50a 51a 52a A/t Abs control module Asr/esp button Automatic day/night interior mirror Backup switch (m/t) Differential control module E-box (dash-left) From fuse panel b (diagram 6 of 8) Fuse 10a Fuse 15a Fuse 5a Fuse panel c Garage door opener control head Garage door opener control module Headlamp range/ cornering lamp control module Left heated windshield relay Level control system control module Multi- function transmission range switch Optional equipment/ dvd connector Right headlamp assembly Right headlamp power output stage Right windshield heater relay Shift lock p solenoid T10s T14j T5h T6aa T8in Tiptronic switch To fuse 44 (diagram 1 of 8) Towing recognition control module Transmission control module (tcm) Электросхема блока предохранителей и реле (5 из 8) для Volkswagen Touareg TDI 2010 Электросхема блока предохранителей и реле (5 из 8) для Volkswagen Touareg TDI 2010 - Список элементов: 63 (not used) 10a 11a 12a 20a 22a 23a 24a 25a 30a 39a 40a 41a 42a 44a 45a 57a Access/ start control module Antenna selection control module Data link connector Differential lock control module Driver's seat adjustment control head (w/o memory) Driver's seat adjustment control module Driver's seat fuse 1 E-box (dash left) E-box (dash-left) From terminal 30 wire junction 3 (diagram 1 of 8) Fuse 10a Fuse 150a Fuse 15a Fuse 25a Fuse 30a Fuse 40a Fuse 5a Fuse panel b Fuse panel d Instrument cluster control module Left rear door control module Level control system compressor realy Memory seat/ steering column adjustment control module (w/ climatronic) Power sunroof control module Rain/ light recognition sensor Rear heated seats control module Rear lid control module Rear window defogger relay Red Steering column/ safety belt height adjustment control module T10p T32a T4az T4b T4x T4y T6a T6p T81 Tire pressure monitoring control module To e-box (dash left) (diagram 8 of 8) To fuse panel b (diagram 1 of 8) To fuse panel b (diagram 8 of 8) To fuse/ relay panel (diagram 6 of 8) Vehicle electrical system control module Windshield wiper motor Электросхема блока предохранителей и реле (6 из 8) для Volkswagen Touareg TDI 2010 Электросхема блока предохранителей и реле (6 из 8) для Volkswagen Touareg TDI 2010 - Список элементов: 51 3.6l 47a 48a 49a 50a 51a 52a 53a 54a Access/ start control module Air quality sensor (w/ climatronic) Anti theft immobilizer reading module, access/start authorization switch & ignition switch key lock solinoid Comfort system central control module Data link connector Differential lock control module E-box (dash-left) From fuse panel b (diagram 5 of 8) From fuse panel d (diagram 1 of 8) Fuse 10a Fuse 15a Fuse 5a Fuse panel b Fuse/ relay panel Ground for automatic distance control Headlamp adjuster Lane change assistance control module Lane change assistance control module 2 Left headlamp assembly Left headlamp beam adjustment motor Left headlamp power output stage Light switch Oil level thermal sensor Positive crankcase ventilation (pcv) heating element (3.6l) Rear window wiper motor Red Right headlamp beam adjustment motor Servotronic control module Steering column electronic systems control module T10ab T10av T10f T14p T16a T23 T6bt T6u T81 To fuse panel b (diagram 3 of 8) To fuse panel c (diagram 4 of 8) W/ cornering lamp W/ halogen headlamp Электросхема блока предохранителей и реле (7 из 8) для Volkswagen Touareg TDI 2010 Электросхема блока предохранителей и реле (7 из 8) для Volkswagen Touareg TDI 2010 - Список элементов: 46 11a 13a 15a 19c 19e 20a 3.0l turbo diesel 3.6l 65a Automatic glow time control module Auxiliary battery Auxiliary battery fuse Auxiliary fuel pump relay Auxiliary water heater relay Coolant fan (fc) control module Coolant fan (fc) control module 2 Coolant fan control module E-box (right plenum chamber) (left rear of engine compt) Engine control module (ecm) From battery switch-off relay (diagram 1 of 8) From fuse panel b (diagram 8 of 8) From fuse panel d (diagram 1 of 8) Fuel cooling pump relay Fuse 10a Fuse 150a Fuse 15a Fuse 20a Fuse 250a Fuse 30a Fuse 60a Fuse panel d G49 G79 Generator Nca Red Secondary battery charge relay Starter T16p T94aa Terminal 30 wire junction Terminal 30 wire junction 2 Terminal 30 wire junction 4 To e-box right plenum chamber) (diagram 8 of 8) To fuse panel b (diagram 1 of 8) Vehicle electrical system control module Электросхема блока предохранителей и реле (8 из 8) для Volkswagen Touareg TDI 2010 Электросхема блока предохранителей и реле (8 из 8) для Volkswagen Touareg TDI 2010 - Список элементов: 49 12v socket 12v socket 2 12v socket 3 12v socket 4 15a 16a 20a 3.6l w/ auxiliary heater 4e d A/c relay Access/ start control module Auxiliary engine coolant (cc) pump relay Cigarette lighter Coolant fan control (fc) control module Coolant fan control (fc) control module 2 E-box (dash-left) E-box (right plenum chamber) (left rear of engine compt) Engine control module (ecm) From fuse panel b (diagram 5 of 8) From o From terminal 30 wire connector (diagram 7 of 8) Fuse 10a Fuse 15a Fuse 20a Fuse 30a Fuse 5a Fuse 60a Fuse panel b Fuse panel d (diagram 5 of 8) G32 (behind left side of instrument cluster) G33 (behind right end of dash) G51 (right side of luggage compt) G638 (top of right kick panel) Heater control module (w/ auxiliary heater) Interior lights system J2m Nca Rear cigarette lighter Recirculation pump relay (3.6l) Red Residual heat relay Sockets relay T14g T81 T94 To fuse panel d (diagram 7 of 8) W/ single battery W/o auxiliary battery & heater W/o smoker package
БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ схема управляющего модуля электронных систем рулевой колонки (1 из 2) для Volkswagen Touareg TDI 2010 схема управляющего модуля электронных систем рулевой колонки (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 51 (behind left side of instrument cluster) g32 (if equipped) (w/ tiptronic) 33a 53a Airbag control module (under center console) Airbag spiral spring/return spring w/ slip ring Automatic distance control button (if equipped) Board computer reset button Computer data lines system Control module for multi- function steering wheel (on steering column) Cruise control main switch Cruise control set button Driver assistance systems button Driver's air bag igniter Driver's air bag igniter 2 Engine controls system Fuse 15a Fuse 5a Fuse panel b G678 Heated steering wheel sensor Hot at all times Hot w/ power suppy relay (terminal 15) energized Increase speed button Increase volume button Left multi-function buttons Menu selection return button Menu selection rotary knob Menu selection- advance button Mute switch button Nca Reduce speed button Reduce volume button Right multi-function buttons Signal horn activation Steering angle sensor (top of steering column) Steering column adjustment switch Steering column electronic systems control module Steering wheel tiptronic switch T12p T12q T14h T16a T4k T8v Telephone connection button Temporary cruise control switch-off button Tiptronic down shift Tiptronic upshift Transmissions system схема управляющего модуля электронных систем рулевой колонки (2 из 2) для Volkswagen Touareg TDI 2010 схема управляющего модуля электронных систем рулевой колонки (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 20 (left side of engine compt) g640 51a Computer data lines system Fuse 5a Fuse panel b Ground for automatic distance control Headlight dimmer/ flasher switch Instrument cluster Instrument cluster control module Multi- function ind Nca Park lamp switch Rear window wiper switch Steering angle sensor (top of steering column) Steering column electronic systems control module T14p Turn signal switch Windshield wiper intermittent regulator Windshield wiper intermittent switch Windshield wiper switch схема управляющего модуля электрической системы транспортного средства (1 из 2) для Volkswagen Touareg TDI 2010 схема управляющего модуля электрической системы транспортного средства (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 30 (behind left side of instrument cluster) g32 12a 16a 20a Electronic suspension system Engine controls & power distribution systems Exterior lights system Fuse 10a Fuse 15a Fuse 20a Fuse 30a Fuse panel b Fuse panel c G32 (behind left side of instrument cluster) Headlights system Horns system Hot at all times Interior lights system Interior lights, seats & power distribution systems Red Seats system T4b T6a T6c T6d T6e T6q T6r Vehicle electrical system control module (under left side of dash) Wiper/washer system схема управляющего модуля электрической системы транспортного средства (2 из 2) для Volkswagen Touareg TDI 2010 схема управляющего модуля электрической системы транспортного средства (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 29 17a 26a 27a 35a Access/start control module (below left side of dash) Computer data lines system Door locks & anti-theft systems Exterior lights system Fuse 10a Fuse 30a Fuse 5a Fuse panel b Fuse panel d G32 (behind left side of instrument cluster) Headlights system Hot at all times Instrument cluster system Interior lights & exterior lights systems Interior lights system Mirrors system Power distribution system Red Starting/charging system T16p T26a T2t T6u Trunk, tailgate, fuel doors system Vehicle electrical system control module (under left side of dash)
БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ Электросхема блокировки селектора для Volkswagen Touareg TDI 2010 Электросхема блокировки селектора для Volkswagen Touareg TDI 2010 - Список элементов: 21 29a 52a Abs control module (right rear of engine compt) Access/start control module (below left side of dash) Brake pressure release solenoid Brake pressure sensor 1 Computer data lines system Fuse 5a Fuse panel c G33 (behind right end of dash) G35 (under front passenger's seat) Hot at all times Multi-function transmission range (tr) switch (under vehicle) Selector lever park position lock switch (under center console) Shift lock p solenoid Shift lock solenoid (in center console) T10s T47b T6aa Tiptronic switch (under transmission selector lever) Transmission control module (under front passenger's seat)
ВНЕШНЕЕ ОСВЕЩЕНИЕ Электросхема заднего хода для Volkswagen Touareg TDI 2010 Электросхема заднего хода для Volkswagen Touareg TDI 2010 - Список элементов: 25 1t10y 31a 52a Access/start control module (below left side of dash) Automatic day/night interior mirror Backup light Comfort system central control module (right rear cargo area) Computer data lines system Fuse 15a Fuse 5a Fuse panel c G35 (under front passenger's seat) G51 (right side of luggage compt) Hot at all times Left taillight assembly Multi-function transmission range switch (under vehicle) Right taillight assembly T10ab T10s T12b T23 T26a T81 Transmission control module (under front passenger's seat) Vehicle electrical system control module (under left side of dash) Электросхема внешнего освещения (1 из 2) для Volkswagen Touareg TDI 2010 Электросхема внешнего освещения (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 48 15a Abs control module (right rear of engine compt) Backup Backup lights circuit Brake pressure release solenoid Brake pressure sensor Brake/ tail Comfort system central control module (right rear cargo area) Computer data lines system Emergency flasher switch Front turn signal Fuse 15a Fuse panel b G32 (behind left side of instrument cluster) G50 (w/ external spare wheel) (left side of luggage compt) G51 (right side of luggage compt) G51 (w/o external spare wheel) (right side of luggage compt) G644 (right side of engine compt) G667 (left rear of roof) High mount brake light Hot at all times Interior lights system Light switch Park Rear fog Right headlight assembly Right license plate light Right rear taillight assembly Right taillight assembly T10ab T10y T12b T12c T23 T26a T2be T6as T6c T6d T6e T6q T6r T8w Tail Turn Vehicle electrical system control module (under left side of dash) W/ external spare wheel W/o external spare wheel Электросхема внешнего освещения (2 из 2) для Volkswagen Touareg TDI 2010 Электросхема внешнего освещения (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 58 (top of right 14a 33a 34a 53a Backup Backup lights circuit Brake/ tail Computer data Computer data lines system Defogger system Driver's outside mirror Driver's side door control module (in driver's door) Front passenger's outside mirror Front passenger's side door control module (in front passenger's door) Front turn signal Fuse 15a Fuse 30a Fuse 5a Fuse panel b Fuse panel c G32 (behind left side of instrument cluster) G50 (w/ exterior spare wheel) (left side of luggage compt) G51 (right side of luggage compt) G51 (w/o exterior spare wheel) (right side of luggage compt) G638 G639 (behind left kick panel) G640 (left side of engine compt) G666 (right rear of roof) Heater Hot at all times Kick panel) Lamp entry Left headlight assembly Left license plate light Left rear taillight assembly Left taillight assembly Lines system Nca Park Park light switch Rear fog Spare wheel Steering column electronic systems control module T10ab T10ae T10ag T16a T16m T16n T2bd T4at T4s T6ml Tail Turn signal Turn signal switch W/ exterior Электросхема розетки подключения прицепа для Volkswagen Touareg TDI 2010 Электросхема розетки подключения прицепа для Volkswagen Touareg TDI 2010 - Список элементов: 34 (or red) (right side of luggage compt) (right side of luggage compt) g51 19a 4-pin connector 41a 7-pin connector Abs control module (right rear of engine compt) Comfort system central control module (right rear cargo area) Computer data lines system Electric trailer hitch pivot button (if equipped) Fuse 10a Fuse 15a Fuse 20a Fuse 25a Fuse panel c G32 (behind left side of instrument cluster) G51 G51 (right side of luggage compt) Hot at all times Nca Red T12b T12g T12h T16ce T23 T6cd Towing sensor control module (right side of cargo area) Trailer hitch motor position sensor/ swiveling ball head motor (if equipped) Trailer socket W/ electric trailer hitch pivot W/ trailer socket W/o trailer socket
ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Электросхема подсветки (1 из 2) для Volkswagen Touareg TDI 2010 Электросхема подсветки (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 41 20a 27a Computer data lines system Driver's illuminated mirror make-up light Front Front interior light Front passenger's illuminated make-up mirror light Fuse 10a Fuse 30a Fuse panel b G32 (behind left side of instrument cluster) G33 (behind right end of dash) G35 (under front passenger's seat) G638 (top of right kick panel) G639 (behind left kick panel) G79 (base of left "b" pillar) Glove compartment button Glove compartment light Hot at all times Instrument illumination circuit Interior light front Interior monitoring sensor Interior monitoring switch Left front footwell illumination Left rear footwell illumination Left rear reading light Passenger's map/ reading light Reading light driver's map/ Red Right front footwell illumination Right rear footwell illumination Right rear reading light T10i T10n T10p T16p T26a T4b T6d Vehicle electrical system control module (under left side of dash) Vehicle inclination sensor Электросхема подсветки (2 из 2) для Volkswagen Touareg TDI 2010 Электросхема подсветки (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 71 (behind left kick panel) g639 (top of right kick panel) g638 (w/ dynamic sound/ volkswagen sound) luggage compartment light 10a 14a 15a 16a 34a Authorization Automatic day/ night interior mirror Comfort system central control module (right rear cargo area) Computer data lines system Driver's door central locking lock unit Driver's door control module (in driver's door) Driver's inside door handle illumination Driver's outside mirror Entry lamp Fiber optics for ambient illumination for front right panel trim Fiber optics for ambient of front left panel trim Front interior light assembly Front passenger's door central locking lock unit Front passenger's door control module (in front passenger's front door) Front passenger's inside door handle illumination Fuse 10a Fuse 25a Fuse 30a Fuse panel b Fuse panel c G639 (behind left kick panel) Hot at all times Instrument illumination circuit Left front entry light Left rear central locking lock unit Left rear door control module (in left rear door) Left rear door warning light Left rear inside door handle illumination Luggage compartment light Nca Passengers outside mirror Rear lid courtesy lamp Red Right front entry light Right rear central locking lock unit Right rear door control module (in right rear door) Right rear door warning light Right rear inside door handle illumination T10ae T10ag T10aj T10ak T12b T12c T12l T12m T12n T12o T16m T16n T16o T16q T21 T21a T23 T32f T32g T4ac T4at T4s T4x Trunk, tailgate, fuel doors system W/ access/start Электросхема подсветки приборов (1 из 2) для Volkswagen Touareg TDI 2010 Электросхема подсветки приборов (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 55 (7 bulbs) (base of left "b" pillar) (base of left "d" pillar) parking aid control module 12v socket Asr/esp button Center instru- ment panel vent illumin- ation Cigarette lighter Computer data lines system Emer- gency flasher switch Front interior light assembly G32 (behind left side instrument of cluster) G32 (behind left side of instrument cluster) G33 (behind right end of dash) G51 (right side of luggage compt) G638 G639 (behind left kick panel) G639 (behind right end of dash) G720 (base of right "b" pillar) G79 Garage door opener control head Headlights system Instrument panel illumination dimmer switch Left instrument panel vent illumination Left rear air vent illumination Left rear heated seat regulating switch Left rear reading light Level control system control head Light switch Mirror adjustment switch illumination Nca Parking aid button Rear center air vent illumin- ation Rear cigarette lighter Right end of dash) g33 Right instru- ment panel vent illumin- ation Right rear air vent illumi- nation Right rear heated seat regulating switch Right rear reading light Sunroof switch Sunroof switch illumination T10as T10i T16p T20 T26a T4b T6c T6e Transfer case operating unit Trunk lid closed position switch Vehicle electrical system control module (under left side of dash) W/ level control system W/ synthetic leather fabric seat covers W/o level control system W/o synthetic leather fabric seat covers Электросхема подсветки приборов (2 из 2) для Volkswagen Touareg TDI 2010 Электросхема подсветки приборов (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 40 14a 15a Computer data lines system Courtesy lamps circuit Driver heated seat adjuster switch Driver side window regulator switch Driver's door control module (in driver's door) Driver's interior locking button Front passenger's door control module (in front passenger's front door) Front passenger's heated seat adjuster switch Front passenger's interior locking button Fuel filler/rear lid remote unlocking button Fuse 25a Fuse 30a Fuse panel b Fuse panel c G32 (behind left side of instrument cluster) Hot at all times Left rear door control module (in left rear door) Left rear inside door handle illumination Left rear interior locking button Left rear window switch Passenger door window regulator switch Red Right rear door control module Right rear inside door handle illumination Right rear interior locking button Right rear window switch T10ae T10ag T10aj T10ak T16o T16q T32f T32g T4ac T4at T4s T4x
ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Электросхема подключение массы заземления (1 из 6) для Volkswagen Touareg TDI 2010 Электросхема подключение массы заземления (1 из 6) для Volkswagen Touareg TDI 2010 - Список элементов: 62 (automatic a/c ) front blower regulation sensor (bitron) (bitron) front blower regulation motor (climatronic) rear a/c control module (if equipped) converter w/ socket 12v-230v (w/ auxiliary heater) auxiliary engine coolant heating rf receiver (w/o level control system) asr/esp button (w/o outside spare wheel) 12v socket 2 12v socket 3 12v socket 4 Access/start authorization button Air quality sensor Center instrument panel vent illumi- nation Climatronic control module Comfort system center control module Converter w/ socket 12v-115v Front heated seats control module Fuel tank lid unlock motor G33 (behind right end of dash) G51 (right side of luggage compt) Glove compartment light Left license plate light Left rear heated seat regulating switch Left taillamp assembly Level control system control head Level control system control module Outside mirror heating switch Rear center air vent illumi- nation Rear cigarette lighter Rear lid handle unlocking switch Rear lid lock unit Rear lid unlock motor Rear window lock switch Rear window unlock switch Rear window wiper motor Right instrument panel vent illumi- nation Right license plate light Right rear combination light Right rear heated seat regulating switch Right taillamp assembly Selector lever park position lock switch Shift lock p solenoid Shift lock solenoid Suppressor filter T10ab T10y T12b T12cb T12g T12h T16cb T17 T2ca T6aa T6as T6cd Tiptronic switch Towing recognition control module Trailer socket Transfer case operating unit Trunk lid closed position switch Vehicle incli- nation sensor Электросхема подключение массы заземления (2 из 6) для Volkswagen Touareg TDI 2010 Электросхема подключение массы заземления (2 из 6) для Volkswagen Touareg TDI 2010 - Список элементов: 48 (3.6l w/ additional water) recirculation pump relay (center front of roof) (w/ 190a generator) generator switch-in relay 2b d 4-pin connector 87a 8a d Access/start control module Brake fluid level warning switch Cigarette lighter Closing assist relay D 1h D 9f Databus on board diagnostics interface Driver's heated seat adjuster E 1f E 8a E-box (dash-left) E-box right plenum chamber Emergency flasher switch Front passenger's heated seat adjuster G32 (behind left side of instrument cluster) G689 Headlamp range/ cornering lamp control module Headlamp washer relay Heated windshield Instrument cluster Left front footwell illumination Left instrument panel vent illumination Light switch Nca Oil level thermal sensor Parking aid switch Residual heat relay Servotronic control module Solar cell separation relay Steering column electronic systems control module Steering column/ safety belt height adjustment control module T10f T16a T16p T16q T32a T6a T6c Vehicle electrical system control module W/ tiptronic Windshield wiper switch Электросхема подключение массы заземления (3 из 6) для Volkswagen Touareg TDI 2010 Электросхема подключение массы заземления (3 из 6) для Volkswagen Touareg TDI 2010 - Список элементов: 53 (w/ memory) driver's seat adjustment control module 4az Automatic day/night interior mirror Brake system vacuum pump Clutch pedal starter interlock switch Data link connector (dlc) Driver side door control module Driver's backrest heating element Driver's heated seat temperature sensor Driver's safety belt switch Driver's seat adjustment control head Driver's seat backrest side bolster heater Driver's seat side bolster heater Driver's side air bag igniter Fiber optics for ambient of front left panel trim Front interior light assembly G614 (right side of engine compt) G639 (behind left kick panel) G79 (base of left "b" pillar) Garage door opener control head Garage door opener control module Interior monitoring sensor Left make- up mirror light Left rear air vent illumination Left rear backrest heating element Left rear door control module Left rear footwell illumination Left rear reading light Left rear seat heating element & left rear heated seat temperature sensor Memory seat/ steering column adjustment control module Nca Power sunroof control module Rain/light recog- nition sensor Right make- up mirror light Right rear reading light Roof display unit Second battery charge relay Secondary air injection (air) pump motor Sunroof switch illumi- nation T10ae T10aj T10j T10p T2ab T2df T4bn T4s T4x T6da Tire pressure monitoring control module Vehicle position recognition control module W/ auxiliary water W/o auxiliary water Электросхема подключение массы заземления (4 из 6) для Volkswagen Touareg TDI 2010 Электросхема подключение массы заземления (4 из 6) для Volkswagen Touareg TDI 2010 - Список элементов: 57 (w/ level control system) left rear brake pad wear sensor Closing assist motor Differential control module Differential lock control module Front passenger's backrest heating element Front passenger's safety belt switch Front passenger's seat adjustment control head Front passenger's seat backrest bolster heater Front passenger's seat heating element & front passenger's heated seat temperature sensor Front passenger's seat side bolster heater Front passenger's side air bag igniter G35 (under front passenger's seat) G50 (left side of luggage compt) G644 (right side of engine compt) Headlight washer pump J10av Lane change assistance control module Lane change assistance control module 2 Left & right license plate light Left front fog light Left license plate light Left washer nozzle heater Level control system compressor motor Metering pump Multi-function transmission range (tr) switch Nca Operating electronics & telephone control module Parking aid control module Passenger's memory seat control module Rear blower regulation sensor Rear lid control module Right front fog light Right headlight assembly Right license plate light Right rear footwell illumination Right washer nozzle heater Spare tire unlock button Spare wheel locking motor T10n T10s T14 T17ca T2bd T2be T2dg T2dh T2se T4ba T4bo T4i T6an T6db T6n T8w Ti0n Transmission control module (tcm) Valet lock button Электросхема подключение массы заземления (5 из 6) для Volkswagen Touareg TDI 2010 Электросхема подключение массы заземления (5 из 6) для Volkswagen Touareg TDI 2010 - Список элементов: 57 (3.0l) fuel level sensor (3.0l) high pressure sensor (3.0l) recirculation pump (left front of engine compt) (w/ auxiliary heater) engine coolant (ec) switch off valve (w/ auxiliary heater) heater control module 12v socket 2 Alarm horn Antenna selection control module Battery Coolant fan control (fc) module Coolant fan control (fc) module 2 Driver's safety belt switch Driver's side air bag igniter Fiber optics for ambient illumination for front right panel trim Front hood switch Front passenger's door control module Fuel level sensor 2 Fuel pump (fp) control module G12 G34 (below driver's seat) G39 (under left side of rear bench seat) G52 (left side of rear lid) G53 (right side of rear lid) G608 (in center plenum) G638 (top of right kick panel) G640 (left side of engine compt) G647 (left rear of engine compt) G666 (right rear of roof) G667 (left rear of roof) G720 (base of right "b" pillar) Ground for automatic distance control Heated rear seats control module High tone horn High-mount brake light Hood alarm switch Left backup/ brake/tail lamp assembly Left headlight assembly Low tone horn Nca Rear window opening button Right front footwell illumination Right rear air vent illumination Right rear backrest heating element Right rear door control module Right rear seat heating element & right rear heated seat temperature sensor T10ag T10ak T14g T14p T2bb T2m T4ac T4at T6as W/ auxiliary water heater Windshield wiper control module Электросхема подключение массы заземления (6 из 6) для Volkswagen Touareg TDI 2010 Электросхема подключение массы заземления (6 из 6) для Volkswagen Touareg TDI 2010 - Список элементов: 46 (3.0l) automatic glow time control module (3.0l) auxiliary fuel pump (3.0l) egr cooler pump (3.0l) engine speed sensor shield (3.0l) fuel cooler pump (3.0l) redused gil pressure switch (3.0l) throttle valve control module 3.0l 3.6l Abs control module Air bag spiral spring/ return spring w/ slip ring Amplifier Cd changer Digital satellite radio tuner Engine control module (ecm) External audio source connector shield G18 (right rear of engine, near starter) G606 G610 (under front of center console) G645 (right rear of engine compt) G646 (right rear of engine compt) G678 (steering wheel) Ignition coil 1 w/ power output stage Ignition coil 2 w/ power output stage Ignition coil 3 w/ power output stage Ignition coil 4 w/ power output stage Ignition coil 5 w/ power output stage Ignition coil 6 w/ power output stage Multi-function steering wheel control module Multimedia system control module Nca Positive crankcase ventilation (pcv) heating element Radio/ navigation display control module Radio/ navigation display unit control module shield Rear view camera system control module Recirculation pump T10ac T12ce T16e T23a T8ag T8v T94 T94aa Turbocharger (tc) 2 control module Tv tuner
Звуковой сигнал Гудок Электросхема звукового сигнал Гудка для Volkswagen Touareg TDI 2010 Электросхема звукового сигнал Гудка для Volkswagen Touareg TDI 2010 - Список элементов: 28 Air bag spiral spring/ return spring (w/ slip ring) Computer data lines system Fuse 30a Fuse panel b G32 (behind left side of instrument cluster) G640 (left side of engine compt) High tone horn (left front of vehicle) Horn signal activation Hot at all times Left multi- function button Low tone horn (right front of vehicle) Multi-function steering wheel control module Nca Right multi- function button Steering column electronic system control module T12p T12q T14h T14p T16a T26a T2t T4b T6c T8v Vehicle electrical system control module (under left side of dash) W/ multi-function steering wheel W/o multi-function steering wheel
Магнитола Мультимедия мультимедийная интерфейсная схема для Volkswagen Touareg TDI 2010 мультимедийная интерфейсная схема для Volkswagen Touareg TDI 2010 - Список элементов: 14 10a Computer data lines system External audio source connection Fuse 5a Fuse panel c G606 Hot at all times Multimedia system control module Nca Radio T12ce T12e T30 Usb connection base plate Электросхема магнитолы, Система Delta С 10 Каналов (1 из 2) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, Система Delta С 10 Каналов (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 39 (or nca) 11a Antenna amplifier Antenna selection control module (center rear of roof) Cd changer Computer data lines system Digital satellite radio tuner (if equipped) External audio source connector (if equipped) Fuse 10a Fuse 20a Fuse 5a Fuse panel b Fuse panel c G610 (under front of center console) G666 (right rear of roof) Hot at all times Left rear window antenna Multimedia interface circuit Nca Operating electronics & telephone control module (under front passenger's seat) Radio Red Right rear window antenna 2 Satellite tuner antenna T12d T12e T16e T1y T54c T8a T8ag T8p W/ cd changer W/ external audio source connector W/ mutimedia interface W/ sdars tuner W/o multimedia interface W/o sdars tuner Wiper motor control module Электросхема магнитолы, Система Delta С 10 Каналов (2 из 2) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, Система Delta С 10 Каналов (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 47 (behind left side of instrument cluster) g32 (not used) (on steering column) multi-function steering wheel control module (under front of center console) g610 12a 33a Air bag spiral spring/return spring w/ slip ring Amplifier (right side of cargo area) Computer data lines system Fuse 15a Fuse 30a Fuse panel b Fuse panel c G678 (steering wheel) Hot at all times Increase volume button Left front bass speaker Left front midrange speaker Left front treble speaker Left rear bass speaker Left rear treble speaker Multi-function buttons Mute switch button Nca Red Reduce volume button Right Right front bass speaker Right front midrange speaker Right front treble speaker Right rear bass speaker Right rear treble speaker Steering column electronic systems control module T12p T12q T16a T23a T24 T4ac T4at T4s T4x T5d T5e T5g T5i T8v Электросхема магнитолы, Система Delta С 10 Пассивных Спикеров (1 из 2) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, Система Delta С 10 Пассивных Спикеров (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 40 (or nca) 11a Antenna amplifier Antenna selection control module (center rear of roof) Cd changer Computer data lines system Digital satellite radio tuner (if equipped) External audio source connector (if equipped) Fuse 10a Fuse 20a Fuse 5a Fuse panel b Fuse panel c G610 (under front of center console) G666 (right rear of roof) Hot at all times Left rear window antenna Multimedia interface circuit Nca Operating electronics & telephone control module (under front Passenger's seat) Radio Red Right rear window antenna 2 Satellite tuner antenna T12d T12e T16e T1y T54c T8a T8ag T8p W/ cd changer W/ external audio source connector W/ mutimedia nterface W/ sdars tuner W/o mutimedia nterface W/o sdars tuner Wiper motor control module Электросхема магнитолы, Система Delta С 10 Пассивных Спикеров (2 из 2) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, Система Delta С 10 Пассивных Спикеров (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 36 (behind left side of instrument cluster) g32 (on steering column) multi-function steering wheel control module 33a Air bag spiral spring/return spring w/ slip ring Computer data lines system Fuse 15a Fuse panel b G678 (steering wheel) Hot at all times Increase Left front bass speaker Left front midrange speaker Left front treble speaker Left rear bass speaker Left rear midrange speaker Mute Nca Red Reduce volume button Right front bass speaker Right front midrange speaker Right front treble speaker Right multi-function buttons Right rear bass speaker Right rear midrange speaker Steering column electronic systems control module Switch button T12p T12q T16a T4ac T4at T4s T4x T8v Volume button Электросхема магнитолы, Система Delta С 8 Каналов (1 из 2) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, Система Delta С 8 Каналов (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 41 (if equipped) (or nca) 11a Antenna amplifier Antenna selection control module (center rear of roof) Cd changer Computer data lines system Digital satellite radio tuner (if equipped) External audio source connector Fuse 10a Fuse 20a Fuse 5a Fuse panel b Fuse panel c G610 (under front of center console) G666 (right rear of roof) Hot at all times Left rear window antenna Multimedia interface circuit Nca Operating electronics & telephone control module (under front Passenger's seat) Radio Red Right rear window antenna 2 Satellite tuner antenna T12d T12e T16e T1y T54c T8a T8ag T8p W/ cd changer W/ external audio source connector W/ mutimedia interface W/ sdars tuner W/o mutimedia interface W/o sdars tuner Wiper motor control module Электросхема магнитолы, Система Delta С 8 Каналов (2 из 2) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, Система Delta С 8 Каналов (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 49 (behind left side of instrument cluster) g32 (not used) (on steering column) multi-function steering wheel control module (under front of center console) g610 12a 33a Air bag spiral spring/return spring w/ slip ring Amplifier (right side of cargo area) Center midrange speaker Computer data lines system Fuse 15a Fuse 30a Fuse panel b Fuse panel c G678 (steering wheel) Hot at all times Increase volume button Left front bass speaker Left front midrange speaker Left front treble speaker Left rear bass speaker Left rear midrange speaker Multi-function buttons Mute switch button Nca Red Reduce volume button Right Right front bass speaker Right front midrange speaker Right front treble speaker Right rear bass speaker Right rear midrange speaker Steering column electronic systems control module T12p T12q T16a T23a T24 T4ac T4at T4s T4x T5d T5e T5g T5i T8v Used) (not Электросхема магнитолы, RNS С 10 Каналов (1 из 2) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, RNS С 10 Каналов (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 30 11a Am/ fm Antenna amplifier Cd changer Computer data lines system Dab Digital radio antenna External audio source connector (if equipped) Fuse 20a Fuse panel c G610 (under front of center console) Hot at all times Left rear window antenna Navigation system antenna/ telephone antenna Nca Operating electronics & telephone control module (under front passenger's seat) Red Right rear window antenna 2 Sat/ r Satellite tuner antenna T12d T12e T16e T1g T1y T54c T8a Telephone microphone Tv/radio/navigation display control module Wiper motor control module Электросхема магнитолы, RNS С 10 Каналов (2 из 2) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, RNS С 10 Каналов (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 50 (behind left side of instrument cluster) g32 (center of steering wheel) multi-function steering wheel control module (not used) (under front of center console) g610 12a 33a Air bag spiral spring/return spring w/ slip ring Amplifier (right side of cargo area) Computer data lines system Fuse 15a Fuse 30a Fuse panel b Fuse panel c G678 (steering wheel) Hot at all times Increase volume button Left front bass speaker Left front midrange speaker Left front treble speaker Left rear bass speaker Left rear treble speaker Multi-function buttons Mute switch button Nca Red Reduce volume button Right Right front bass speaker Right front midrange speaker Right front treble speaker Right rear bass speaker Right rear treble speaker Steering column electronic systems control module T12p T12q T16a T23a T24 T4ac T4at T4s T4x T50 T5d T5e T5g T5i T8v Telephone connection button Used) (not Электросхема магнитолы, RNS С 10 Пассивных Спикеров (1 из 2) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, RNS С 10 Пассивных Спикеров (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 31 11a 3at/ r Am/ fm Antenna amplifier Cd changer Computer data lines system Dab Digital radio antenna External audio source connector (if equipped) Fm 2 Fuse 20a Fuse panel c G610 (under front of center console) Hot at all times Left rear window antenna Navigation system antenna/ telephone antenna Nca Operating electronics & telephone control module (under front passenger's seat) Red Right rear window antenna 2 Satellite tuner antenna T12d T12e T16e T1g T1y T54c T8a Telephone microphone Tv/radio/navigation display control module Wiper motor control module Электросхема магнитолы, RNS С 10 Пассивных Спикеров (2 из 2) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, RNS С 10 Пассивных Спикеров (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 38 (behind left side of instrument cluster) g32 (center of steering wheel) multi-function steering wheel control module 33a Air bag spiral spring/return spring w/ slip ring Computer data lines system Fuse 15a Fuse panel b G678 (steering wheel) Hot at all times Increase Left front bass speaker Left front midrange speaker Left front treble speaker Left rear bass speaker Left rear midrange speaker Multi-function buttons Mute Nca Red Reduce volume button Right Right front bass speaker Right front midrange speaker Right front treble speaker Right rear bass speaker Right rear midrange speaker Steering column electronic systems control module Switch button T12p T12q T16a T4ac T4at T4s T4x T8v Telephone connection button Volume button Электросхема магнитолы, RNS С 8 Каналов (1 из 2) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, RNS С 8 Каналов (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 31 11a Am/ fm Antenna amplifier Cd changer Computer data lines system Dab Digital radio antenna External audio source connector (if equipped) Fm2 Fuse 20a Fuse panel c G610 (under front of center console) Hot at all times Left rear window antenna Navigation system antenna/ telephone antenna Nca Operating electronics & telephone control module (under front passenger's seat) Red Right rear window antenna 2 Sat/ r Satellite tuner antenna T12d T12e T16e T1g T1y T54c T8a Telephone microphone Tv/radio/navigation display control module Wiper motor control module Электросхема магнитолы, RNS С 8 Каналов (2 из 2) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, RNS С 8 Каналов (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 49 (behind left side of instrument cluster) g32 (not used) (on steering column) multi-function steering wheel control module (under front of center console) g610 12a 33a Air bag spiral spring/return spring w/ slip ring Amplifier (right side of cargo area) Center midrange speaker Computer data lines system Fuse 15a Fuse 30a Fuse panel b Fuse panel c G678 (steering wheel) Hot at all times Increase volume button Left front bass speaker Left front midrange speaker Left front treble speaker Left rear bass speaker Left rear midrange speaker Multi-function buttons Mute switch button Nca Red Reduce volume button Right Right front bass speaker Right front midrange speaker Right front treble speaker Right rear bass speaker Right rear midrange speaker Steering column electronic systems control module T12p T12q T16a T23a T24 T4ac T4at T4s T4x T5d T5e T5g T8v Telephone connection button Tsi Электросхема магнитолы, RNS2 С 10 Пассивных Спикеров (1 из 3) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, RNS2 С 10 Пассивных Спикеров (1 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 26 11a Antenna amplifier Cd changer Computer data lines system Fuse 20a Fuse panel c G610 (under front of center console) Hot at all times Left rear window antenna Navigation system antenna/ telephone antenna Nca Operating electronics & telephone control module (under front passenger's seat) Radio/navigation display control module Red Right rear window antenna 2 T12d T12e T16e T1g T54c T8a Telephone microphone W/ cd changer W/ rear view camera W/ sdars tuner Wiper motor control module Электросхема магнитолы, RNS2 С 10 Пассивных Спикеров (2 из 3) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, RNS2 С 10 Пассивных Спикеров (2 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 26 Computer data lines system Digital satellite radio tuner (if equipped) External audio source connector (if equipped) Fuse 10a Fuse panel c G606 G610 (under front of center console) Hot at all times Multimedia system control module Nca Radio/navigation display control module Rear view camera system control module (behind luggage compt right side trim panel) Red Satellite tuner antenna T10al T12ce T18e T1y T8ag T8p W/ multimedia interface W/ rear view camera W/ sdars tuner W/o multimedia interface W/o rear view camera W/o sdars tuner Электросхема магнитолы, RNS2 С 10 Пассивных Спикеров (3 из 3) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, RNS2 С 10 Пассивных Спикеров (3 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 37 (behind left side of instrument cluster) g32 (on steering column) multi-function steering wheel control module 33a Air bag spiral spring/return spring w/ slip ring Computer data lines system Fuse 15a Fuse panel b G678 (steering wheel) Hot at all times Increase Left front bass speaker Left front midrange speaker Left front treble speaker Left rear bass speaker Left rear midrange speaker Multi-function buttons Mute Nca Red Reduce volume button Right Right front bass speaker Right front midrange speaker Right front treble speaker Right rear bass speaker Right rear midrange speaker Steering column electronic systems control module Switch button T12p T12q T16a T4ac T4at T4s T4x T8v Volume button Электросхема магнитолы, RNS2, С С 10 каналами (1 из 3) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, RNS2, С С 10 каналами (1 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 26 11a Antenna amplifier Cd changer Computer data lines system Fuse 20a Fuse panel c G610 (under front of center console) Hot at all times Left rear window antenna Navigation system antenna/ telephone antenna Nca Operating electronics & telephone control module (under front passenger's seat) Radio/navigation display control module Red Right rear window antenna 2 T12d T12e T16e T1f T1g T8a W/ sdars tuner W/0 multimedia interface W/multimedia interface W/o sdars tuner Wiper motor control module Электросхема магнитолы, RNS2, С С 10 каналами (2 из 3) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, RNS2, С С 10 каналами (2 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 43 (behind left side of instrument cluster) g32 (center of steering wheel) multi-function steering wheel control module 33a Air bag spiral spring/return spring w/ slip ring Computer data lines system Digital satellite radio tuner (if equipped) External audio source connector (if equipped) Fuse 10a Fuse 15a Fuse panel b Fuse panel c G610 (under front of center console) G678 (steering wheel) Hot at all times Increase Multi-function buttons Multimedia interface control module Mute Nca Radio/navigation display control module Rear view camera system control module (behind luggage compt right side trim panel) Red Reduce volume button Right Satellite tuner antenna Steering column electronic systems control module Switch button T10al T12p T12q T16a T18e T1y T8ag T8p T8v Volume button W/ external audio source connector W/ multimedia interface W/ rear view camera W/ sdars tuner W/0 multimedia interface W/o rear view camera Электросхема магнитолы, RNS2, С С 10 каналами (3 из 3) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, RNS2, С С 10 каналами (3 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 32 (not used) (under front of center console) g610 12a Amplifier (right side of cargo area) Computer data lines system Fuse 30a Fuse panel c Hot at all times Left front bass speaker Left front midrange speaker Left front treble speaker Left rear bass speaker Left rear treble speaker Nca Red Right front bass speaker Right front midrange speaker Right front treble speaker Right rear bass speaker Right rear treble speaker T23a T24 T4ac T4at T4s T4x T50 T5d T5e T5g Tsi Used) (not Электросхема магнитолы, RNS2, С С 8 каналами (1 из 3) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, RNS2, С С 8 каналами (1 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 27 11a Antenna amplifier Cd changer Computer data lines system Fuse 20a Fuse panel c G610 (under front of center console) Hot at all times Left rear window antenna Navigation system antenna/ telephone antenna Nca Operating electronics & telephone control module Radio/navigation display control module Red Right rear window antenna 2 T12d T12e T16e T1f T1g T54c T8a W/ multimedia interface W/ sdars tuner W/o multimedia interface W/o sdars tuner Wiper motor control module Электросхема магнитолы, RNS2, С С 8 каналами (2 из 3) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, RNS2, С С 8 каналами (2 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 43 (behind left side of instrument cluster) g32 (center of steering wheel) multi-function steering wheel control module 33a Air bag spiral spring/return spring w/ slip ring Computer data lines system Digital satellite radio tuner (if equipped) External audio source connector (if equipped) Fuse 10a Fuse 15a Fuse panel b Fuse panel c G610 (under front of center console) G678 (steering wheel) Hot at all times Increase Multi-function buttons Multimedia interface control module Mute Nca Radio/navigation display control module Rear view camera system control module (behind luggage compt right side trim panel) Red Reduce volume button Right Satellite tuner antenna Steering column electronic systems control module Switch button T10al T12p T12q T16a T18e T1v T8ag T8p T8v Volume button W/ external audio source connector W/ multimedia interface W/ rear view camera W/ sdars tuner W/o multimedia interface W/o rear view camera Электросхема магнитолы, RNS2, С С 8 каналами (3 из 3) для Volkswagen Touareg TDI 2010 Электросхема магнитолы, RNS2, С С 8 каналами (3 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 32 (not used) (under front of center console) g610 12a Amplifier (right side of cargo area) Center midrange speaker Computer data lines system Fuse 30a Fuse panel c Hot at all times Left front bass speaker Left front midrange speaker Left front treble speaker Left rear bass speaker Left rear midrange speaker Nca Red Right front bass speaker Right front midrange speaker Right front treble speaker Right rear bass speaker Right rear midrange speaker T23a T24 T4ac T4at T4s T4x T50 T5e T5g T5i Used) (not
Навигация GPS Парктроники Электросхема предупреждения съезда с полосы движения для Volkswagen Touareg TDI 2010 Электросхема предупреждения съезда с полосы движения для Volkswagen Touareg TDI 2010 - Список элементов: 24 48a Computer data lines system Control module instrument cluster Driver assistance systems button Fuse 5a Fuse panel b G50 (left side of luggage compt) Instrument cluster Lane change assistance control module (behind left end of rear bumper) Lane change assistance control module 2 (behind right end of rear bumper) Lane change assistance ind lamp Lane change assistance warning lamp (driver's) Lane change assistance warning lamp (front passenger's) Multi- function indicator Nca Red Steering column electronic systems control module T10av T16a T21 T21a T4sf T4sg T6mr Электросхема навигации GPS, RNS С 10 Каналов (1 из 2) для Volkswagen Touareg TDI 2010 Электросхема навигации GPS, RNS С 10 Каналов (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 30 11a Am/ fm Antenna amplifier Cd changer Computer data lines system Dab Digital radio antenna External audio source connector (if equipped) Fuse 20a Fuse panel c G610 (under front of center console) Hot at all times Left rear window antenna Navigation system antenna/ telephone antenna Nca Operating electronics & telephone control module (under front passenger's seat) Red Right rear window antenna 2 Sat/ r Satellite tuner antenna T12d T12e T16e T1g T1y T54c T8a Telephone microphone Tv/radio/navigation display control module Wiper motor control module Электросхема навигации GPS, RNS С 10 Каналов (2 из 2) для Volkswagen Touareg TDI 2010 Электросхема навигации GPS, RNS С 10 Каналов (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 50 (behind left side of instrument cluster) g32 (center of steering wheel) multi-function steering wheel control module (not used) (under front of center console) g610 12a 33a Air bag spiral spring/return spring w/ slip ring Amplifier (right side of cargo area) Computer data lines system Fuse 15a Fuse 30a Fuse panel b Fuse panel c G678 (steering wheel) Hot at all times Increase volume button Left front bass speaker Left front midrange speaker Left front treble speaker Left rear bass speaker Left rear treble speaker Multi-function buttons Mute switch button Nca Red Reduce volume button Right Right front bass speaker Right front midrange speaker Right front treble speaker Right rear bass speaker Right rear treble speaker Steering column electronic systems control module T12p T12q T16a T23a T24 T4ac T4at T4s T4x T50 T5d T5e T5g T5i T8v Telephone connection button Used) (not Электросхема навигации GPS, RNS С 10 Пассивных Спикеров (1 из 2) для Volkswagen Touareg TDI 2010 Электросхема навигации GPS, RNS С 10 Пассивных Спикеров (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 31 11a 3at/ r Am/ fm Antenna amplifier Cd changer Computer data lines system Dab Digital radio antenna External audio source connector (if equipped) Fm 2 Fuse 20a Fuse panel c G610 (under front of center console) Hot at all times Left rear window antenna Navigation system antenna/ telephone antenna Nca Operating electronics & telephone control module (under front passenger's seat) Red Right rear window antenna 2 Satellite tuner antenna T12d T12e T16e T1g T1y T54c T8a Telephone microphone Tv/radio/navigation display control module Wiper motor control module Электросхема навигации GPS, RNS С 10 Пассивных Спикеров (2 из 2) для Volkswagen Touareg TDI 2010 Электросхема навигации GPS, RNS С 10 Пассивных Спикеров (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 38 (behind left side of instrument cluster) g32 (center of steering wheel) multi-function steering wheel control module 33a Air bag spiral spring/return spring w/ slip ring Computer data lines system Fuse 15a Fuse panel b G678 (steering wheel) Hot at all times Increase Left front bass speaker Left front midrange speaker Left front treble speaker Left rear bass speaker Left rear midrange speaker Multi-function buttons Mute Nca Red Reduce volume button Right Right front bass speaker Right front midrange speaker Right front treble speaker Right rear bass speaker Right rear midrange speaker Steering column electronic systems control module Switch button T12p T12q T16a T4ac T4at T4s T4x T8v Telephone connection button Volume button Электросхема навигации GPS, RNS С 8 Каналов (1 из 2) для Volkswagen Touareg TDI 2010 Электросхема навигации GPS, RNS С 8 Каналов (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 31 11a Am/ fm Antenna amplifier Cd changer Computer data lines system Dab Digital radio antenna External audio source connector (if equipped) Fm2 Fuse 20a Fuse panel c G610 (under front of center console) Hot at all times Left rear window antenna Navigation system antenna/ telephone antenna Nca Operating electronics & telephone control module (under front passenger's seat) Red Right rear window antenna 2 Sat/ r Satellite tuner antenna T12d T12e T16e T1g T1y T54c T8a Telephone microphone Tv/radio/navigation display control module Wiper motor control module Электросхема навигации GPS, RNS С 8 Каналов (2 из 2) для Volkswagen Touareg TDI 2010 Электросхема навигации GPS, RNS С 8 Каналов (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 49 (behind left side of instrument cluster) g32 (not used) (on steering column) multi-function steering wheel control module (under front of center console) g610 12a 33a Air bag spiral spring/return spring w/ slip ring Amplifier (right side of cargo area) Center midrange speaker Computer data lines system Fuse 15a Fuse 30a Fuse panel b Fuse panel c G678 (steering wheel) Hot at all times Increase volume button Left front bass speaker Left front midrange speaker Left front treble speaker Left rear bass speaker Left rear midrange speaker Multi-function buttons Mute switch button Nca Red Reduce volume button Right Right front bass speaker Right front midrange speaker Right front treble speaker Right rear bass speaker Right rear midrange speaker Steering column electronic systems control module T12p T12q T16a T23a T24 T4ac T4at T4s T4x T5d T5e T5g T8v Telephone connection button Tsi Электросхема навигации GPS, RNS2 С 10 Пассивных Спикеров (1 из 3) для Volkswagen Touareg TDI 2010 Электросхема навигации GPS, RNS2 С 10 Пассивных Спикеров (1 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 26 11a Antenna amplifier Cd changer Computer data lines system Fuse 20a Fuse panel c G610 (under front of center console) Hot at all times Left rear window antenna Navigation system antenna/ telephone antenna Nca Operating electronics & telephone control module (under front passenger's seat) Radio/navigation display control module Red Right rear window antenna 2 T12d T12e T16e T1g T54c T8a Telephone microphone W/ cd changer W/ rear view camera W/ sdars tuner Wiper motor control module Электросхема навигации GPS, RNS2 С 10 Пассивных Спикеров (2 из 3) для Volkswagen Touareg TDI 2010 Электросхема навигации GPS, RNS2 С 10 Пассивных Спикеров (2 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 26 Computer data lines system Digital satellite radio tuner (if equipped) External audio source connector (if equipped) Fuse 10a Fuse panel c G606 G610 (under front of center console) Hot at all times Multimedia system control module Nca Radio/navigation display control module Rear view camera system control module (behind luggage compt right side trim panel) Red Satellite tuner antenna T10al T12ce T18e T1y T8ag T8p W/ multimedia interface W/ rear view camera W/ sdars tuner W/o multimedia interface W/o rear view camera W/o sdars tuner Электросхема навигации GPS, RNS2 С 10 Пассивных Спикеров (3 из 3) для Volkswagen Touareg TDI 2010 Электросхема навигации GPS, RNS2 С 10 Пассивных Спикеров (3 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 37 (behind left side of instrument cluster) g32 (on steering column) multi-function steering wheel control module 33a Air bag spiral spring/return spring w/ slip ring Computer data lines system Fuse 15a Fuse panel b G678 (steering wheel) Hot at all times Increase Left front bass speaker Left front midrange speaker Left front treble speaker Left rear bass speaker Left rear midrange speaker Multi-function buttons Mute Nca Red Reduce volume button Right Right front bass speaker Right front midrange speaker Right front treble speaker Right rear bass speaker Right rear midrange speaker Steering column electronic systems control module Switch button T12p T12q T16a T4ac T4at T4s T4x T8v Volume button Электросхема навигации GPS, RNS2, С С 10 каналами (1 из 3) для Volkswagen Touareg TDI 2010 Электросхема навигации GPS, RNS2, С С 10 каналами (1 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 26 11a Antenna amplifier Cd changer Computer data lines system Fuse 20a Fuse panel c G610 (under front of center console) Hot at all times Left rear window antenna Navigation system antenna/ telephone antenna Nca Operating electronics & telephone control module (under front passenger's seat) Radio/navigation display control module Red Right rear window antenna 2 T12d T12e T16e T1f T1g T8a W/ sdars tuner W/0 multimedia interface W/multimedia interface W/o sdars tuner Wiper motor control module Электросхема навигации GPS, RNS2, С С 10 каналами (2 из 3) для Volkswagen Touareg TDI 2010 Электросхема навигации GPS, RNS2, С С 10 каналами (2 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 43 (behind left side of instrument cluster) g32 (center of steering wheel) multi-function steering wheel control module 33a Air bag spiral spring/return spring w/ slip ring Computer data lines system Digital satellite radio tuner (if equipped) External audio source connector (if equipped) Fuse 10a Fuse 15a Fuse panel b Fuse panel c G610 (under front of center console) G678 (steering wheel) Hot at all times Increase Multi-function buttons Multimedia interface control module Mute Nca Radio/navigation display control module Rear view camera system control module (behind luggage compt right side trim panel) Red Reduce volume button Right Satellite tuner antenna Steering column electronic systems control module Switch button T10al T12p T12q T16a T18e T1y T8ag T8p T8v Volume button W/ external audio source connector W/ multimedia interface W/ rear view camera W/ sdars tuner W/0 multimedia interface W/o rear view camera Электросхема навигации GPS, RNS2, С С 10 каналами (3 из 3) для Volkswagen Touareg TDI 2010 Электросхема навигации GPS, RNS2, С С 10 каналами (3 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 32 (not used) (under front of center console) g610 12a Amplifier (right side of cargo area) Computer data lines system Fuse 30a Fuse panel c Hot at all times Left front bass speaker Left front midrange speaker Left front treble speaker Left rear bass speaker Left rear treble speaker Nca Red Right front bass speaker Right front midrange speaker Right front treble speaker Right rear bass speaker Right rear treble speaker T23a T24 T4ac T4at T4s T4x T50 T5d T5e T5g Tsi Used) (not Электросхема навигации GPS, RNS2, С С 8 каналами (1 из 3) для Volkswagen Touareg TDI 2010 Электросхема навигации GPS, RNS2, С С 8 каналами (1 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 27 11a Antenna amplifier Cd changer Computer data lines system Fuse 20a Fuse panel c G610 (under front of center console) Hot at all times Left rear window antenna Navigation system antenna/ telephone antenna Nca Operating electronics & telephone control module Radio/navigation display control module Red Right rear window antenna 2 T12d T12e T16e T1f T1g T54c T8a W/ multimedia interface W/ sdars tuner W/o multimedia interface W/o sdars tuner Wiper motor control module Электросхема навигации GPS, RNS2, С С 8 каналами (2 из 3) для Volkswagen Touareg TDI 2010 Электросхема навигации GPS, RNS2, С С 8 каналами (2 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 43 (behind left side of instrument cluster) g32 (center of steering wheel) multi-function steering wheel control module 33a Air bag spiral spring/return spring w/ slip ring Computer data lines system Digital satellite radio tuner (if equipped) External audio source connector (if equipped) Fuse 10a Fuse 15a Fuse panel b Fuse panel c G610 (under front of center console) G678 (steering wheel) Hot at all times Increase Multi-function buttons Multimedia interface control module Mute Nca Radio/navigation display control module Rear view camera system control module (behind luggage compt right side trim panel) Red Reduce volume button Right Satellite tuner antenna Steering column electronic systems control module Switch button T10al T12p T12q T16a T18e T1v T8ag T8p T8v Volume button W/ external audio source connector W/ multimedia interface W/ rear view camera W/ sdars tuner W/o multimedia interface W/o rear view camera Электросхема навигации GPS, RNS2, С С 8 каналами (3 из 3) для Volkswagen Touareg TDI 2010 Электросхема навигации GPS, RNS2, С С 8 каналами (3 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 32 (not used) (under front of center console) g610 12a Amplifier (right side of cargo area) Center midrange speaker Computer data lines system Fuse 30a Fuse panel c Hot at all times Left front bass speaker Left front midrange speaker Left front treble speaker Left rear bass speaker Left rear midrange speaker Nca Red Right front bass speaker Right front midrange speaker Right front treble speaker Right rear bass speaker Right rear midrange speaker T23a T24 T4ac T4at T4s T4x T50 T5e T5g T5i Used) (not Электросхема парктроников для Volkswagen Touareg TDI 2010 Электросхема парктроников для Volkswagen Touareg TDI 2010 - Список элементов: 30 Computer data lines system Front parking aid display Fuse 5a Fuse panel c G32 (behind left side of instrument cluster) G50 (left side of luggage compt) Hot at all times Interior lights system Left front center parking aid sensor (behind left side of bumper) Left front inner parking aid sensor (behind left side of front bumper) Left front parking aid sensor (behind left end of front bumper) Left rear center parking aid sensor (behind left side of rear bumper) Left rear inner parking aid sensor (behind left side of rear bumper) Left rear parking aid sensor (behind left end of rear bumper) Parking aid button Parking aid control module (base of left "d" pillar) Parking aid loudspeaker Rear parking aid display Red Right front center parking aid sensor (behind right side of bumper) Right front inner parking aid sensor (behind right side of front bumper) Right front parking aid sensor (behind right end of front bumper) Right rear center parking aid sensor (behind right side of rear bumper) Right rear inner parking aid sensor (behind right side of rear bumper) Right rear parking aid sensor (behind right end of rear bumper) T10l T10w T14 T16k T20 Электросхема камеры заднего вида для Volkswagen Touareg TDI 2010 Электросхема камеры заднего вида для Volkswagen Touareg TDI 2010 - Список элементов: 26 (behind luggage compt right side trim panel) (or red) (under front of center console) g610 10a 11a Computer data lines system Fuse 20a Fuse 5a Fuse panel c Hot at all times Nca Radio/navigation display control module Rear view camera Rear view camera system control module (behind luggage compt right side trim panel) Red T10al T10as T16e T18e T1a T1b T26c T2xa Tv tuner (if equipped) W/ radio/navigation system midline W/o radio/navigation system midline
Подогрев стекол и зеркал Электросхема подогрева лобового стекла для Volkswagen Touareg TDI 2010 Электросхема подогрева лобового стекла для Volkswagen Touareg TDI 2010 - Список элементов: 20 39a 53a 54a 87a 9f e Climatronic control module E-box (dash- left) Fuse 30a Fuse 5a Fuse panel c G689 (center front of roof) Heated windshield Hot at all times Left heated windshield relay Nca Red Right windshield heater relay T17 T1d T24cc Электросхема подогрева заднего стекла и зеркал заднего вида для Volkswagen Touareg TDI 2010 Электросхема подогрева заднего стекла и зеркал заднего вида для Volkswagen Touareg TDI 2010 - Список элементов: 37 (right rear cargo area) comfort system central control module 11a 18a 30a 32a 39a 87a Computer data lines system Driver side heated outside mirror Driver's door control module (in driver's door) E-box (dash-left) Exterior lights system Fuse 10a Fuse 15a Fuse 30a Fuse 5a Fuse panel b Fuse panel c G33 (behind right end of dash) G51 (right side of luggage compt) Heated rear window Hot at all times Nca Outside mirror heater switch Passenger side heated outside mirror Passenger's side door control module (in passenger's door) Power mirror switch Rear window defogger relay Suppressor filter T10ae T10ag T12b T16m T16n T26a T6as Vehicle electrical system control module (under left side of dash)
ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG Электросхема подушек безопасности SRS AirBag (1 из 3) для Volkswagen Touareg TDI 2010 Электросхема подушек безопасности SRS AirBag (1 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 23 (below left side of dash) access/start control module 26a Air bag control module (under center console) Air bag spiral spring/return spring (w/ slip ring) Battery switch-off relay Driver's air bag igniter Driver's air bag igniter 2 Driver's head curtain air bag igniter Driver's side rear seat belt tensioner igniter Driver's thorax air bag igniter Front passenger's head curtain air bag igniter Front passenger's side rear seat belt tensioner igniter Fuse 10a Fuse panel b G79 (base of left "b" pillar) Main battery switch Nca Passenger's side air bag igniter 1 (behind right side of dash) Power distribution system Steering column electronics control module T10p T12q T6u Электросхема подушек безопасности SRS AirBag (2 из 3) для Volkswagen Touareg TDI 2010 Электросхема подушек безопасности SRS AirBag (2 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 14 Driver's automatic seat belt solenoid & driver's seat belt tensioner igniter 1 (if equipped) Driver's safety belt switch Front passenger's automatic seat belt solenoid & front passenger's seat tensioner igniter 1 (if equipped) Front passenger's thorax air bag igniter G35 (under front passenger's seat) G720 Nca Passenger occupant detection system control module Passenger occupant detection system pressure sensor Passenger occupant detection system seat belt force sensor Red Solid state T10an T10n Электросхема подушек безопасности SRS AirBag (3 из 3) для Volkswagen Touareg TDI 2010 Электросхема подушек безопасности SRS AirBag (3 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 19 (behind right side of dash) passenger's side air bag igniter 2 Air bag control module (under center console) Air bag indicator lamp Computer data lines system Driver's front air bag crash sensor (left front of vehicle) Driver's side air bag crash sensor Front passenger's air bag disabled indicator lamp Front passenger's seat belt switch G35 (under front passenger's seat) Instrument cluster Instrument cluster control module Left rear side air bag crash sensor (on left "c" pillar) Passenger's front air bag crash sensor (right front of vehicle) Passenger's side air bag crash sensor (below right front seat) Right rear side air bag crash sensor (on right "c" pillar) Solid state State solid T10an T32b
ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ тональная схема для Volkswagen Touareg TDI 2010 тональная схема для Volkswagen Touareg TDI 2010 - Список элементов: 42 40a Air bag control module (under center console) Brake fluid level warning switch Brake system warning ind Cluster) Computer data lines system Driver's automatic seat belt solenoid & driver's seat belt tensioner igniter 1 Driver's seat belt switch Driver's side central locking lock unit Driver's side door control module (in driver's door) Front passenger's door control module (in front passenger's front door) Fuse 5a Fuse panel b G32 (behind left side of instrument G32 (behind left side of instrument cluster) G720 (base of right "b" pillar) Hot at all times Instrument cluster Instrument cluster control module Left rear central locking lock unit Left rear door control module (in left rear door) Multi- function ind Parking brake/ brake pad wear ind Passenger side central locking lock unit Right rear central locking lock unit Right rear door control module (in right rear door) T10ae T10ag T10ah T10ai T10aj T10ak T10ba T10bb T12l T12m T12n T12o T32a T32b W/ access/start control module Warning buzzer Электросхема системы контроля давления в шинах для Volkswagen Touareg TDI 2010 Электросхема системы контроля давления в шинах для Volkswagen Touareg TDI 2010 - Список элементов: 18 (behind left kick panel) (in left rear wheel) 24a Computer data lines system Front wheel) Fuse 5a Fuse panel b G639 Hot at all times Left front left front tire pressure monitor sensor monitoring antenna (in left (left front of vehicle) Left rear left rear tire pressure monitor sensor monitoring antenna (in left rear wheel well) Rear wheel) Red Right front right front tire pressure monitoring antenna monitor sensor (right front (on right wheel well) front wheel) Right rear right rear tire pressure monitor sensor (in right (in right rear wheel well) Tire pressure Tire pressure monitoring antenna Tire pressure monitoring control module (under left side of dash)
ПРИБОРНАЯ ПАНЕЛЬ схема электронного компаса для Volkswagen Touareg TDI 2010 схема электронного компаса для Volkswagen Touareg TDI 2010 - Список элементов: 14 36a Computer data lines system Data bus on board diagnostic interface Fuse 5a Fuse panel c G639 (behind left kick panel) Hot at all times Instrument cluster Roof display unit T10i T32b Vehicle position recognition control module (left rear of roof) W/ auxiliary heater W/o auxiliary heater Электросхема панели приборов для Volkswagen Touareg TDI 2010 Электросхема панели приборов для Volkswagen Touareg TDI 2010 - Список элементов: 59 26a 3.0l turbo diesel 3.6l 40a Abs ind Access/start control module (below left side of dash) Air bag indicator lamp Anti-lock brakes system Anti-theft system Asr/esp ind Brake fluid level warning switch Brake system warning ind Bus on board diagnostic interface Computer data lines system Diesel particulate filter ind (3.0l turbo diesel) Differential control module Differential lock control module (left rear wheel housing) Differential lock ind Electronic power control (epc) warning lamp Engine control module (in right plenum) Engine controls system Engine coolant level (ecl) sensor Fuel gauge & engine coolant temperature (ect) gauge Fuel level sensor (in fuel tank) Fuel level sensor 2 Fuse 10a Fuse 5a Fuse panel b G32 (behind left side of instrument cluster) G645 (right rear of engine compt) Glow plug (3.0l turbo diesel) High beam ind Hot at all times Instrument cluster Instrument cluster control module Lane change assistance ind Multi-function ind Odometer display Oil pressure switch (on oil filter housing) Outside air temperature sensor (behind front bumper) Parking brake contact switch Parking brake/ brake pad wear ind Parking light ind Power sunroof control module (front center of roof) Reduced oil pressure switch Speedometer T10f T14p T17b T32a T32b T47a T47c T6n T6u T94aa Tachometer Warning buzzer & tone Windshield washer fluid level sensor (in front right fender)
ПРИВОД ЗЕРКАЛ Электросхема автозатемнения зеркала заднего вида для Volkswagen Touareg TDI 2010 Электросхема автозатемнения зеркала заднего вида для Volkswagen Touareg TDI 2010 - Список элементов: 19 49a Automatic day/night interior mirror Automatic day/night outside mirror Driver's side power mirror Front interior light Fuse 5a Fuse panel c G639 (behind left kick panel) Passenger's side power mirror T21 T21a T26a T2i T2n T4sf T4sg Vehicle electrical system control module (under left side of dash) W/ lane change assistance W/o lane change assistance Электросхема привода зеркал для Volkswagen Touareg TDI 2010 Электросхема привода зеркал для Volkswagen Touareg TDI 2010 - Список элементов: 37 14a 34a Auto day/ night outside mirror Automatic day/night mirror circuit Computer data lines Defogger system Driver's door control module (in driver's front door) Driver's outside mirror Fold-in mirror motor Fuse 25a Fuse panel b Fuse panel c G33 (behind right end of dash) G638 (top of right kick panel) G639 (behind left kick panel) Hot at all times Illumi- nation Interior lights Mirror adjustment motors Mirror adjustment switch Mirror folding switch Mirror selector switch Outside mirror heater Outside mirror heater switch Passenger's outside mirror Passenger's side door control module (in passenger's front door) Position Power mirror switch System T10ae T10ag T16m T16n T26a T4at T4s Vehicle electrical system control module (under left side of dash)
ПРИВОД ЛЮКА И КРЫШИ Электросхема привода люка или крыши для Volkswagen Touareg TDI 2010 Электросхема привода люка или крыши для Volkswagen Touareg TDI 2010 - Список элементов: 21 42a Comfort system central control module (right rear cargo area) Fuse 30a Fuse panel b G639 (behind left kick panel) Hot at all times Instrument cluster system Interior lights system Nca Power sunroof control module (front center of roof) Sunroof button Sunroof motor Sunroof regulator Sunroof switch Sunroof switch illumination T12b T23 T2al T6c T6dg Vehicle electrical system control module (under left side of dash)
ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Электросхема стеклоподъемников для Volkswagen Touareg TDI 2010 Электросхема стеклоподъемников для Volkswagen Touareg TDI 2010 - Список элементов: 47 11a 15a 34a Active child safety ind Child safety lock switch Computer data lines system Door locks system Driver's door control module (in driver's door) Driver's side power window switch Fuse 15a Fuse 25a Fuse panel b Fuse panel c G638 (top of right kick panel) G639 (behind left kick panel) G720 (base of right "b" pillar) G79 (base of right "b" pillar) Hot at all times Interior lights system Left front window switch Left rear door control module (in left rear door) Left rear window switch Passenger door window switch Passenger's side door control module (in front passenger's door) Push button light Red Right front window switch Right rear door control module (in right rear door) Right rear window switch T10ae T10ag T10aj T10ak T16o T16q T21 T21a T32f T32g T4ac T4at T4ax T4s T5d T5g W/o electric child safety Window motor Электросхема стеклоподъемников задней двери для Volkswagen Touareg TDI 2010 Электросхема стеклоподъемников задней двери для Volkswagen Touareg TDI 2010 - Список элементов: 15 31a Central control module for comfort system (right rear cargo area) Fuse 15a Fuse panel c G51 (right side of luggage compt) G667 (left rear of roof) Hot at all times Rear window lock unit & rear lid remote lock key switch Rear window opening button Rear window unlock unit (center of tailgate) T10ab T12b T23 T2bb T6as
Противоугонная система Сигнализация получите доступ/Начните к Схеме (1 из 2) для Volkswagen Touareg TDI 2010 получите доступ/Начните к Схеме (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 36 (behind right end of dash) g33 20b 20c 20d 20e 39a 87a A/c relay A10 Access/start control module (below left side of dash) Computer data lines system Door locks system E-box (left plenum chamber) (right rear of engine compt) Fuse 40a Fuse 5a Fuse panel d Fuse/ relay panel G32 (behind left side of instrument cluster) Hot at all times Instrument cluster Instrument cluster control module Interior access/start authorization antenna 1 Interior access/start authorization antenna 2 Power distribution system Red Selector lever park position lock switch (under center console) Starting/ charging system T10c T10d T32a T32b T6aa T6bt T6e T81 Vehicle electrical system control module (under left side of dash) получите доступ/Начните к Схеме (2 из 2) для Volkswagen Touareg TDI 2010 получите доступ/Начните к Схеме (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 20 (behind right end of dash) g33 (below left side of dash) access/start control module (under vehicle) multi-function transmission range (tr) switch 26a Access/start authorization antenna Access/start authorization button Antenna amplifier 4 Anti-theft immobilizer reading module, ignition keylock solenoid & access/start authorization switch Central locking & anti-theft alarm system antenna Fuse 10a Fuse panel b Luggage compartment access/start authorization antenna Nca Steering column lock actuator (in steering column) T10c T10s T2xb T2xu T6u T81 Электросхема открывания авто (1 из 4) для Volkswagen Touareg TDI 2010 Электросхема открывания авто (1 из 4) для Volkswagen Touareg TDI 2010 - Список элементов: 46 (behind left side of instrument cluster) g32 (left side of luggage compt) 14a 21a 30a 31a 87a Closing assist relay Comfort system central control module (right rear cargo area) Computer data lines system Driver's door control module (in driver's door) E-box (dash- left) Fuel tank lid unlock motor Fuse 10a Fuse 15a Fuse 20a Fuse 30a Fuse 5a Fuse panel b Fuse panel c G50 G51 (right side of luggage compt) G639 (behind left kick panel) Hot at all times Interior lights system Rear lid handle unlock switch Rear lid lock button Rear lid lock unit Rear lid unlock motor (in tailgate) Rear window lock unit/ rear lid remote lock key switch Rear window unlock unit (center of tailgate) Spare wheel power lock circuit T10ab T10ae T10y T12b T12c T12l T14p T16p T21 T23 T26a T32f T4s Vehicle electrical system control module Электросхема открывания авто (2 из 4) для Volkswagen Touareg TDI 2010 Электросхема открывания авто (2 из 4) для Volkswagen Touareg TDI 2010 - Список элементов: 22 (left side of engine compt) g640 (near right rear wheelwell) vehicle inclination sensor (not used) Alarm horn Driver door central locking lock unit Driver's interior locking button & push button light Driver's interior locking indicator lamp Front hood switch (in front engine compt) Fuel filler/rear lid remote unlocking button illumination G51 (right side of luggage compt) G639 (behind left kick panel) G640 (left side of engine compt) Interior lights system Interior monitoring sensor Interior monitoring switch Nca Power windows system T10ah T14p T2ca W/ access/ start control module W/o access/ start control module Электросхема открывания авто (3 из 4) для Volkswagen Touareg TDI 2010 Электросхема открывания авто (3 из 4) для Volkswagen Touareg TDI 2010 - Список элементов: 28 (not used) 10a Access/start control module (below left side of dash) Antenna Child safety Control module Driver's outside door handle touch sensor/ driver's outside door handle central locking button/ driver's access/start authorization antenna (if equipped) Front passenger's central locking safe indicator lamp Front passenger's interior locking button & switch illumination lamp Fuse 30a Fuse panel b Hot at all times Left rear central locking lock unit Left rear interior locking button & switch illumination lamp Left rear outside door handle touch sensor (on left rear door handle) Power windows system Red T10ba T21 T21b T21c T2cc T4x T81 W/ access/start control module W/ electric W/o access/start W/o electric child safety Электросхема открывания авто (4 из 4) для Volkswagen Touareg TDI 2010 Электросхема открывания авто (4 из 4) для Volkswagen Touareg TDI 2010 - Список элементов: 43 (in right rear door) right rear door control module (not used) 15a 34a Antenna Computer data lines system Front passenger's outside door handle touch sensor (if equipped) (on right front door handle) Fuse 25a Fuse panel c G638 (top of right kick panel) G720 (right "b" pillar) G79 (base of left "b" pillar) Hot at all times Interior lights system Left rear door control module (in left rear door) Passenger door central locking lock unit Passenger's front door control module (in passenger's front door) Red Right rear central locking lock unit Right rear interior locking button & switch illumination lamp Right rear outside door handle touch sensor (on right rear door handle) T10ag T10ai T10aj T10ak T10bb T12m T12n T12o T16o T16q T21a T21c T2cb T2cd T32g T4ac T4at T4x W/ access/start control module W/ electric child safety W/o access/start control module W/o electric child safety
СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS Электросхема антиблокировочной тормозной системы АБС (ABS) (1 из 2) для Volkswagen Touareg TDI 2010 Электросхема антиблокировочной тормозной системы АБС (ABS) (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 37 (in left instrument panel electronics box) servotronic control module (right rear cargo area) comfort system central control module (right side of cargo area) towing sensor control module 38a 50a 56a Abs control module (w/ eld) (right rear of engine compt) Asr/esp button Brake pressure sensor 1 Computer data lines system Esp sensor unit (under center console) Fuse 10a Fuse 30a Fuse 40a Fuse 5a Fuse panel c G646 (right rear of engine compt) Hot at all times Interior lights system Left front abs wheel speed sensor (on left front hub assembly) Left rear abs wheel speed sensor (on left rear wheel hub) Nca Red Right front abs wheel speed sensor (on right front hub assembly) Right rear abs wheel speed sensor (on right rear wheel hub) T12h T23 T4ab T4ae T4g T4h T6ag T6an T6bu T6bv W/ level control system W/o level control system Электросхема антиблокировочной тормозной системы АБС (ABS) (2 из 2) для Volkswagen Touareg TDI 2010 Электросхема антиблокировочной тормозной системы АБС (ABS) (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 30 Abs ind Asr/esp ind Brake pressure release solenoid & brake pressure magnetic coil Brake system ind Can-l Can-r Computer data lines system Differential lock ind G50 (left side of luggage compt) Instrument cluster Left front brake pad wear sensor (on left front caliper) Left rear brake pad wear sensor Nca Parking brake contact switch Parking brake/ brake pad wear ind Right front brake pad wear sensor (on right front caliper) Right rear brake pad wear sensor (on right rear brake caliper) Steering angle sensor (top of steering column) Steering column electronic system control module T32b T4ab T4ae T4g T4h T6ag T6an T6bu T6bv W/ level control system W/o level control system
СИСТЕМА КОНДИЦИОНЕРА Электросхема кондиционера, Двойной Зональный счет (1 из 3) для Volkswagen Touareg TDI 2010 Электросхема кондиционера, Двойной Зональный счет (1 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 30 (behind left side of instrument cluster) 11a 23a 87a A/c compressor regulator valve Center vent adjusting motor & position sensor (top left side of hvac unit) Climatronic control module E-box (left plenum chamber) Engine controls system Footwell flap motor & position sensor Fuse 10a Fuse 15a Fuse panel b Fuse panel c G32 G33 (behind right end of dash) Hot at all times Recirculation flap motor & position sensor & fresh/recirculating air door motor Recirculation pump relay Red Residual heat relay Right temperature flap motor & potentiometer/ actuator Side vent motor & position sensor (top left side of hvac unit) T10f T10i T12cb T24ca T6ma W/ auxiliary heater W/o auxiliary heater Электросхема кондиционера, Двойной Зональный счет (2 из 3) для Volkswagen Touareg TDI 2010 Электросхема кондиционера, Двойной Зональный счет (2 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 33 (behind left side of instrument cluster) (bottom of hvac unit) (bottom of hvac unit) left footwell vent temperature sensor (left front of vehicle) (left side of engine compt) (left side of evaporator) evaporator temperature sensor (left side of hvac unit) left front upper body outlet temperature sensor (right rear of engine compt) (right side of hvac unit) (bitron) front blower regulation motor (right side of hvac unit) right front upper body outlet temperature sensor (top right side of hvac unit) fresh air intake duct temperature sensor 30a 87a Defroster flap motor & position sensor (top left side of hvac unit) E-box (left plenum chamber) G32 G640 G645 Headliner interior temperature sensor Left temperature flap motor & potentiometer/ actuator Nca Recirculation pump Right footwell vent temperature sensor Solar cell separation relay Solar cells Solar operation control module (sunroof spring contacts) T10f T10i T14g T17 T17e W/ auxiliary heater W/o auxiliary heater Электросхема кондиционера, Двойной Зональный счет (3 из 3) для Volkswagen Touareg TDI 2010 Электросхема кондиционера, Двойной Зональный счет (3 из 3) для Volkswagen Touareg TDI 2010 - Список элементов: 58 (behind right end of dash) (bitron) front blower regulation sensor (in left instrument panel electronics box) right heated windshield relay (info not avail) t17 (left front of engine compt) 10a 16a 3.0l turbo diesel 3.6l 51a 56a 87a Air quality sensor Auxiliary engine coolant (ec) pump relay Climatronic Computer data lines system Control Coolant fan Coolant fan 2 Coolant fan control (fc) control module (front of engine compt) Coolant fan control (fc) control module 2 (front of engine compt) E-box (left plenum chamber) Engine control module (in right plenum) Engine controls system Engine coolant temperature (ect) sensor (on radiator) (radiator outlet port) Engine coolant temperature (ect) sensor (right rear of engine) Fuse 10a Fuse 15a Fuse 30a Fuse 40a Fuse 5a Fuse 60a Fuse panel b G12 G33 G33 (behind right end of dash) G647 (left rear of engine compt) High pressure sensor Hot at all times Hot w/ motronic Left heated windshield relay (in left instrument panel electronics box) Module Nca Sunlight photo sensor 2 T10d T10i T10ma T17 T24cc T2ca T4be T4cz T60 T60aa T6k T94 T94aa Ti7 Электросхема кондиционера, Четыре Зональных счета (1 из 4) для Volkswagen Touareg TDI 2010 Электросхема кондиционера, Четыре Зональных счета (1 из 4) для Volkswagen Touareg TDI 2010 - Список элементов: 33 (behind left side of instrument cluster) (w/ auxiliary heater) recirculation pump relay 11a 16a 23a A/c compressor regulator valve Climatronic control module E-box (left plenum chamber) Engine controls system Fuse 10a Fuse 15a Fuse panel b Fuse panel c G32 G33 (behind right end of dash) Hot at all times Left footwell flap motor & position sensor Left front defrost/ upper body shut-off flap motor position sensor & left side vent motor Left front upper body outlet position sensor & left center vent motor (left side of hvac unit) Nca Recirculation flap motor position sensor & fresh/ recirculating air door motor Red Residual heat relay Right temperature flap motor & potentiometer/ actuator (right side of hvac unit) Solar cells T10f T10i T12cb T17 T24ca T6ma W/ auxiliary heater W/o auxiliary heater Электросхема кондиционера, Четыре Зональных счета (2 из 4) для Volkswagen Touareg TDI 2010 Электросхема кондиционера, Четыре Зональных счета (2 из 4) для Volkswagen Touareg TDI 2010 - Список элементов: 35 (bottom of hvac unit) left footwell vent temperature sensor (bottom of hvac unit) right footwell vent temperature sensor (left front of vehicle) recirculation pump (left side of engine compt) (left side of evaporator) evaporator temperature sensor (left side of hvac unit) left front upper body outlet temperature sensor (right rear of engine compt) (right side of hvac unit) (bitron) front blower regulation motor (right side of hvac unit) right front upper body outlet temperature sensor (top left side of hvac unit) (top right side of hvac unit) fresh air intake duct temperature sensor 30a 87a Cluster) Defroster flap motor & position sensor E-box (left plenum chamber) G32 (behind left side of instru- ment G640 G645 Headliner interior temperature sensor Heater Left temperature flap actuator potentiometer & left temperature flap motor Nca Right footwell flap motor & position sensor Right front defrost/ upper body shut-off flap motor position sensor & right side vent motor Right front upper body outlet position sensor & right center vent motor (right side of hvac unit) Solar cell separation relay Solar operation control module (sunroof spring contacts) T10f T10i T14g T17 T17e W/ auxiliary W/o auxiliary Электросхема кондиционера, Четыре Зональных счета (3 из 4) для Volkswagen Touareg TDI 2010 Электросхема кондиционера, Четыре Зональных счета (3 из 4) для Volkswagen Touareg TDI 2010 - Список элементов: 54 (behind right end of dash) (in left instrument panel electronics box) right heated windsheild relay (info not avail) (left front of engine compt) (near front blower motor) (bitron) front blower regulation sensor 10a 3.0l turbo 3.6l 51a 56a Air quality sensor Auxiliary engine coolant (ec) pump relay Climatronic control module Computer data lines system Coolant fan Coolant fan 2 Coolant fan control (fc) control module (front of engine compt) Coolant fan control (fc) control module 2 (front of engine compt) Diesel E-box (left plenum chamber) E-box, left plenum chamber Engine control module (ecm) (in right plenum) Engine controls system Engine coolant temperature (ect) sensor (left side of engine) Engine coolant temperature (ect) sensor (on radiator) (radiator outlet port) Engine coolant temperature (ect) sensor (right rear of engine) Fuse 30a Fuse 40a Fuse 5a Fuse 60a Fuse panel Fuse panel b G12 G33 G33 (behind right end of dash) G647 (left rear of engine compt) High pressure sensor Hot at all times Left heated windshield relay (in left instrument panel electronics box) Nca Sunlight photo sensor 2 T10d T10i T10ma T17 T24cb T24cc T2ca T4cz T60 T60aa T6k T94 T94aa Электросхема кондиционера, Четыре Зональных счета (4 из 4) для Volkswagen Touareg TDI 2010 Электросхема кондиционера, Четыре Зональных счета (4 из 4) для Volkswagen Touareg TDI 2010 - Список элементов: 32 (behind left rear quaterpanel) left rear vent temperature sensor (behind left rear quaterpanel) right rear vent temperature sensor (below rear of driver's seat) (below rear of driver's seat) left b-pillar/footwell shut-off flap motor & position sensor (below rear of front passenger's seat) right b-pillar/footwell shut-off flap motor & position sensor (bitron) rear blower regulation motor (left side of luggage compt) 17ca 25a Computer data lines system Fuse 5a Fuse panel c G33 (behind right end of dash) G50 Hot at all times Left rear air flap position sensor & motor Left rear temper- ature flap position sensor & motor (below rear of driver's seat) Left rear upper body vent position sensor & motor Rear a/c control head (climatronic) Rear blower regulation sensor Rear evaporator temperature sensor Red Right rear air flap position sensor & motor Right rear temperature flap position sensor & motor Right rear upper body vent position sensor & motor T12cd T16ca T16cb T17ca T20ca T2hi T4i
СИСТЕМА КРУИЗКОНТРОЛЯ Электросхема системы круизконтроля (1 из 2) для Volkswagen Touareg TDI 2010 Электросхема системы круизконтроля (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 35 (left rear of engine) (3.6l) engine speed sensor 10a 3.0l turbo diesel 3.6l 51a Abs control module (right rear of engine compt) Accelerator pedal position sensor & accelerator pedal position sensor 2 (top of accelerator pedal) Automatic distance control sensor Brake pressure release solenoid Computer data lines system E-box (right plenum chamber) (right rear of engine compt) Engine control module (ecm) (in right plenum) Fuse 10a Fuse 5a Fuse panel b Fuse/ relay panel G640 (left side of engine compt) G645 (right rear of engine compt) Hot at all times Instrument cluster Instrument cluster control module Multifuction display Red T10e T10ma T14p T32b T60 T60aa T94 T94aa Throttle position (tp) sensor & accelerator pedal position sensor 2 (top of accelerator pedal) Throttle valve control module (3.0l turbo diesel) (on throttle body) Throttle valve control module (3.6l) (on throttle body) Transmission control module (under front passenger's seat) Электросхема системы круизконтроля (2 из 2) для Volkswagen Touareg TDI 2010 Электросхема системы круизконтроля (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 37 (3.0l turbo diesel) engine speed sensor (on steering wheel) right multi-function buttons (right rear of engine compt) g645 (steering wheel) g678 Activation horn signal Advance button Air bag spiral spring/ return spring w/ slip ring Automatic distance control button (if equipped) Board computer reset button Button Button volume Computer data lines system Connection telephone Cruise control main switch Cruise control set button Distance selector switch (w/ adc) G678 (steering wheel) Horn signal activation Increase speed button Increase volume button Left multi- function buttons (on steering wheel) Menu selection return button Multi- function steering wheel control module (on steering column) Mute switch button Nca Reduce Reduce speed button Rotary knob Selection menu Selection- menu Steering column electronic systems control module T12p T12q T14h T16a T8v Temporary cruise control switch-off button
СИСТЕМА ОХЛАЖДЕНИЯ Электросхема системы охлаждения для Volkswagen Touareg TDI 2010 Электросхема системы охлаждения для Volkswagen Touareg TDI 2010 - Список элементов: 40 (left front of engine compt) g12 10a 16a 3.0l 3.6l 87a Air conditioning system Auxiliary engine coolant (ec) pump relay Climatronic control module Coolant fan control (fc) control module (front of engine compt) Coolant fan control (fc) control module 2 (front of engine compt) E-box (left plenum chamber) Engine control module (ecm) (in right plenum) Engine controls system Engine coolant temperature (ect) sensor (3.0l) (right rear of engine) Engine coolant temperature (ect) sensor (3.6l) (left side of engine) Engine coolant temperature (ect) sensor (on radiator) (3.0l) (radiator outlet port) Engine coolant temperature (ect) sensor (on radiator) (3.6l) (radiator outlet port) Fuse 10a Fuse 15a Fuse 30a Fuse 60a Fuse panel b G32 (behind left side of instrument cluster) Hot at all times Nca Recirculation pump relay Red Residual heat relay T10ma T17 T24cc T4be T60 T60aa T6k T94 T94aa W/ auxiliary heater W/o auxiliary heater
СИСТЕМА ПЕРЕДАЧИ ДАННЫХ Электросхема линии передачи данных CAN (1 из 2) для Volkswagen Touareg TDI 2010 Электросхема линии передачи данных CAN (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 32 (behind left kick panel) g639 (below left side of dash) (in right plenum) (3.6l) engine control module (ecm) 51a Abs control module (right rear of engine compt) Access/start control module Air bag control module (under center console) Automatic distance control ground Data bus on board diagnostic interface Data link connector Differential control module Differential lock control module (left rear wheel housing) Engine control module (ecm) (3.0l turbo diesel) (in right plenum) Fuse 5a Fuse panel b Headlamp range/cornering lamp control module (under center of dash) Hot at all times Instrument cluster Lane change assistance control module (behind left end of rear bumper) Left headlight range control module Level control system control module (right rear of vehicle) Right headlight range control module Steering column electronic systems control module T10av T10d T14p T16a T32a T32b T81 T94 Transmission control module (under front passenger's seat) Электросхема линии передачи данных CAN (2 из 2) для Volkswagen Touareg TDI 2010 Электросхема линии передачи данных CAN (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 58 (right side of cargo area) amplifier Climatronic control module Comfort system central control module (right rear cargo area) Control module Digital satellite radio tuner (w/ tuner sdars) Driver side door control module (in driver's door) Driver's seat adjustment control module Front passenger's door control module Heater control module (w/ auxiliary heater) (left front wheelwell) Left rear door control module (in left rear door) Multimedia control module Operating electronics & telephone control module (under front passenger's seat) Parking aid control module (base of left "d" pillar) Passenger memory seat control module (under front passenger's seat) Radio/navigation display Rear a/c control head (climatronic) Rear lid control module (base of left "d" pillar) Rear view camera system control module (behind luggage compt right side trim panel) Right rear door control module Roof display unit Steering column/safety belt height adjustment control module T10ae T10ag T10aj T10ak T10al T10l T10n T10p T10t T12b T12ce T12h T14g T16cb T16e T20 T21 T21a T21b T21c T23 T23a T24cc T26a T4az T4ba T4y T6m T8p Tire pressure monitoring control module (under left side of dash) Towing sensor control module (right side of cargo area) Tv tuner (if equipped) (behind luggage compt right side trim panel) Vehicle electrical system control module (under left side of dash) Vehicle position recognition control module W/ auxiliary heater W/o auxiliary heater Wiper motor control module
СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ
3.0L ТУРБО ДИЗЕЛЬ 3.0L турбо дизель, Электросхема системы управления двигателем (1 из 6) для Volkswagen Touareg TDI 2010 3.0L турбо дизель, Электросхема системы управления двигателем (1 из 6) для Volkswagen Touareg TDI 2010 - Список элементов: 15 (in exhaust) (in exhaust) exhaust gas temperature sensor 3 (in exhaust) exhaust gas temperature sensor 4 (top center of engine) egr temperature sensor Accelerator pedal position sensor & accelerator pedal position sensor 2 (top of accelerator pedal) Engine control module (ecm) (in right plenum) Exhaust gas temperature sensor 1 Exhaust pressure sensor 1 (in exhaust) G645 (right rear of engine compt) Mass air flow sensor (in right air cleaner inlet pipe) Nca T10e T14aa T17b T94aa 3.0L турбо дизель, Электросхема системы управления двигателем (2 из 6) для Volkswagen Touareg TDI 2010 3.0L турбо дизель, Электросхема системы управления двигателем (2 из 6) для Volkswagen Touareg TDI 2010 - Список элементов: 22 (charge pressure actuator position sensor: integral to turbocharger control module 1) charge pressure actuator position sensor/turbocharger control module 1/ turbocharger 1 servo motor (fuel level sensor: in fuel tank) fuel level sensor & fuel pump 1 (if equipped) auxiliary water heater relay (in left plenum chamber electronics box) auxiliary fuel pump relay 19a 19c 19d 19e Automatic glow time control module (in left plenum chamber electronics box) Auxiliary fuel pump (left side of plenum chamber bulkhead) Fuel pump relay G645 (right rear of engine compt) G720 (base of right "b" pillar) Glow plug Red Starting/ charging system T10c T10ma T14aa T6e T6k Vehicle electrical system control module (under left side of dash) 3.0L турбо дизель, Электросхема системы управления двигателем (3 из 6) для Volkswagen Touareg TDI 2010 3.0L турбо дизель, Электросхема системы управления двигателем (3 из 6) для Volkswagen Touareg TDI 2010 - Список элементов: 26 (left front of engine compt) 20a Computer data lines system Coolant fan control module (front of engine compt) Coolant fan control module 1 (front of engine compt) Cylinder 2 combustion chamber pressure sensor & glow plug 2 Cylinder 5 combustion chamber pressure sensor & glow plug 5 Diesel particulate filter ind lamp Electronic power control malfunction ind lamp Engine coolant level sensor Engine coolant temperature gauge Fuel gauge Fuel level sensor 2 G12 G645 (right rear of engine compt) Glow plug ind lamp Instrument cluster Instrument cluster control module Multifunction ind lamp Nca Red Reduced oil pressure switch T10f T14aa T32a T32b 3.0L турбо дизель, Электросхема системы управления двигателем (4 из 6) для Volkswagen Touareg TDI 2010 3.0L турбо дизель, Электросхема системы управления двигателем (4 из 6) для Volkswagen Touareg TDI 2010 - Список элементов: 29 10a 11a 13a 15a 17a 50a Air conditioning system Computer data lines system Cooling fans system Engine control module (ecm) (in right plenum) Fuse 10a Fuse 15a Fuse 20a Fuse 30a Fuse 60a Fuse panel b Fuse/ relay panel G32 (behind left side of instrument cluster) Heated oxygen sensor (ho2s) & oxygen sensor (o2s) heater (upstream of catalytic converter) Nca Oil level thermal sensor Oil pressure switch (on oil filter housing) Starting/ charging system Starting/charging system computer data lines system Steering column electronics control module T10d T10f T17b T94aa 3.0L турбо дизель, Электросхема системы управления двигателем (5 из 6) для Volkswagen Touareg TDI 2010 3.0L турбо дизель, Электросхема системы управления двигателем (5 из 6) для Volkswagen Touareg TDI 2010 - Список элементов: 23 (radiator outlet port) engine coolant temperature (ect) sensor (on radiator) (right rear of engine) engine coolant temperature sensor 26a Climatronic control module Egr vacuum regulator solenoid valve & egr potentiometer Exhaust gas recirculation (egr) cooler pump (right front of engine) Exhaust gas recirculation (egr) cooler switch over valve (top left center of engine) Exhaust gas recirculation (egr) cooler switch over valve 2 Fuel coolant pump Fuel cooling pump relay (in left plenum chamber electronics box) Fuse 10a Fuse panel b G645 (right rear of engine compt) G647 (left rear of engine compt) High pressure sensor Oil pressure regulation valve Red T10d T10i T10ma T17b T24cc Throttle valve control module (on throttle body) 3.0L турбо дизель, Электросхема системы управления двигателем (6 из 6) для Volkswagen Touareg TDI 2010 3.0L турбо дизель, Электросхема системы управления двигателем (6 из 6) для Volkswagen Touareg TDI 2010 - Список элементов: 17 (top front of engine) fuel metering valve (top of right cylinder bank) fuel temperature sensor (top right rear of engine) fuel pressure regulator valve Camshaft position sensor (rear of right cylinder head) Charge air pressure sensor & intake air temperature (iat) sensor (in charge air pipe from intercooler) Engine control module (ecm) (in right plenum) Engine speed (rpm) sensor (left rear of engine) Fuel injector cylinders Fuel pressure sensor (on left fuel rail) G645 (right rear of engine compt) Intake flap motor & intake mainfold runner position sensor (intake flap motor: (in right intake manifold) Intake flap motor 2 & intake mainfold runner position sensor 2 (intake flap motor 2: (in left intake manifold) Nca Red T14aa T17b T60aa
3.6L 3.6L, Электросхема системы управления двигателем (1 из 8) для Volkswagen Touareg TDI 2010 3.6L, Электросхема системы управления двигателем (1 из 8) для Volkswagen Touareg TDI 2010 - Список элементов: 14 Cooling fans system Engine control module (ecm) (in right plenum) Engine coolant temperature (ect) sensor (radiator) (radiator outlet port) G645 (right rear of engine compt) Red Steering column electronic systems control module T10c T10d T10e T10ma T16a T6d T94 Vehicle electrical system control module (under left side of dash) 3.6L, Электросхема системы управления двигателем (2 из 8) для Volkswagen Touareg TDI 2010 3.6L, Электросхема системы управления двигателем (2 из 8) для Volkswagen Touareg TDI 2010 - Список элементов: 12 (below left side of dash) access/start control module 26a 3c a E-box (left plenum chamber) Fuse 10a Fuse panel b Hot at all times Mass air flow (maf) sensor (in air cleaner inlet pipe) Red T10d T16u Terminal 30 wire junction 3.6L, Электросхема системы управления двигателем (3 из 8) для Volkswagen Touareg TDI 2010 3.6L, Электросхема системы управления двигателем (3 из 8) для Volkswagen Touareg TDI 2010 - Список элементов: 11 50a Fuse 10a Fuse panel b G32 (behind left side of instrument cluster) G645 (right rear of engine compt) Oil level thermal sensor Positive crankcase ventilation (pcv) heating element (top of engine) Red T10e T10f Throttle position (tp) sensor & accelerator pedal position sender 2 (top of accelerator pedal) 3.6L, Электросхема системы управления двигателем (4 из 8) для Volkswagen Touareg TDI 2010 3.6L, Электросхема системы управления двигателем (4 из 8) для Volkswagen Touareg TDI 2010 - Список элементов: 26 (beneath left rear passenger compt) fuel pump (in fuel tank) fuel level sensor Computer data lines system Electronic power control (epc) warning lamp Engine control module (ecm) (in right plenum) Engine coolant level (ecl) sensor Engine coolant temperature (ect) gauge Fuel gauge Fuel level sensor 2 Fuel pump control module G39 (under left side of rear bench seat) G720 (base of right "b" pillar) Heated oxygen sensor (ho2s) (in right exhaust manifold) Heated oxygen sensor (ho2s) 2 (in left exhaust manifold) Instrument cluster Instrument cluster control module Nca Oil pressure switch (on oil filter housing) Red Speedometer T10f T32a T32b T6k T94 Tachometer 3.6L, Электросхема системы управления двигателем (5 из 8) для Volkswagen Touareg TDI 2010 3.6L, Электросхема системы управления двигателем (5 из 8) для Volkswagen Touareg TDI 2010 - Список элементов: 22 10a 12a 13a 14a 15a 17a 18a Fuel pressure regulator valve (top right rear rear of engine) Fuse 10a Fuse 15a Fuse 20a Fuse 25a Fuse 30a Fuse 7.5a Fuse panel Leak detection pump (ldp) (right rear wheel well) Nca Oxygen sensor (o2s) 2 behind three way catalytic converter (downstream of left 3-way catalytic converter) Oxygen sensor (o2s) behind three way catalytic converter (downstream of right 3-way catalytic converter) Red T10e T6ma 3.6L, Электросхема системы управления двигателем (6 из 8) для Volkswagen Touareg TDI 2010 3.6L, Электросхема системы управления двигателем (6 из 8) для Volkswagen Touareg TDI 2010 - Список элементов: 7 (front of engine) camshaft position (cmp) sensor (front of engine) camshaft position (cmp) sensor 2 (left side of engine) engine coolant temperature (ect) sensor (on left fuel rail) fuel pressure sensor (on right fuel rail) low fuel pressure sensor T6ma Throttle valve control module (on throttle body) 3.6L, Электросхема системы управления двигателем (7 из 8) для Volkswagen Touareg TDI 2010 3.6L, Электросхема системы управления двигателем (7 из 8) для Volkswagen Touareg TDI 2010 - Список элементов: 9 (front of engine) camshaft adjustment valve 1 (front of engine) camshaft adjustment valve 1 (exhaust) (on intake manifold) intake manifold runner control (imrc) valve Engine speed (rpm) sensor (left rear of engine) Evaporative emission (evap) canister purge regulator valve Knock sensor (ks) 1 (right side of engine) Knock sensor (ks) 2 (left side of engine) Nca Red 3.6L, Электросхема системы управления двигателем (8 из 8) для Volkswagen Touareg TDI 2010 3.6L, Электросхема системы управления двигателем (8 из 8) для Volkswagen Touareg TDI 2010 - Список элементов: 17 (above cylinders) (top of left cylinder bank) fuel injector (top of right cylinder bank) fuel injector Engine control module (ecm) (in right plenum) G18 (right rear of engine, near starter) G645 (right rear of engine compt) Ignition coil 1 w/ power output stage Ignition coil 2 w/ power output stage Ignition coil 3 w/ power output stage Ignition coil 4 w/ power output stage Ignition coil 5 w/ power output stage Ignition coil 6 w/ power output stage Nca Red T60 T6ma To spark plug
СИСТЕМА УСИЛИТЕЛЯ РУЛЯ Электросхема усилителя руля для Volkswagen Touareg TDI 2010 Электросхема усилителя руля для Volkswagen Touareg TDI 2010 - Список элементов: 9 49a Abs control module (w/ edl) (right rear of engine compt) E-box (right rear of engine compt) Fuse 5a Fuse panel b G32 (behind left side of instrument cluster) Servotronic control module Servotronic solenoid valve T47b схема рулевой колонки наклона питания для Volkswagen Touareg TDI 2010 схема рулевой колонки наклона питания для Volkswagen Touareg TDI 2010 - Список элементов: 17 25a 33a Computer data lines system Fuse 15a Fuse panel b G32 (behind left side of instrument cluster) Hot at all times Nca Safety belt height adjustment position sensor/motor Steering column adjustment switch Steering column axial adjustment sensor/motor (axial) (steering column axial adjustment sensor: on steering column) Steering column electronic systems control module Steering column vertical adjustment sensor/motor (axial) (steering column vertical adjustment sensor: in steering column) Steering column/safety belt height adjustment control module T16a T16y T4y
Система Фар Электросхема передних адаптивный фар, С СКРЫТЫЕ Фары (1 из 2) для Volkswagen Touareg TDI 2010 Электросхема передних адаптивный фар, С СКРЫТЫЕ Фары (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 45 (if equipped) cornering 15a 33a 39a 47a 53a 54a 56a 56b Bll Can h Can l Computer data lines system Dynamic cornering light motor (if equipped) Fuse 10a Fuse 15a Fuse 5a Fuse panel b Fuse panel c G32 (behind left side of instrument cluster) G640 (left side of engine compt) G644 (right side of engine compt) Headlamp beam adjustment motor Headlamp dimmer/ flasher switch Headlamp power output stage High intensity gas discharge lamp High- intensity gas discharge lamp control module Hot at all times Left front fog light Left headlamp assembly Park Reflector adjustment solenoid Right front fog light Steering column electronic system control module Swivel module position sensor (if equipped) T14 T14j T16a T26a T6c T6d T6q T6r Turn Vehicle electrical system control module (under left side of dash) Электросхема передних адаптивный фар, С СКРЫТЫЕ Фары (2 из 2) для Volkswagen Touareg TDI 2010 Электросхема передних адаптивный фар, С СКРЫТЫЕ Фары (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 28 (if equipped) cornering 15a 56a 56b Bll Can h Can l Computer data lines system Dynamic cornering light motor (if equipped) Fog lamp button G32 (behind left side of instrument cluster) G644 (right side of engine compt) Headlamp beam adjustment motor Headlamp power output stage Headlamp range/ cornering lamp control module (under center of dash) Headlamp switch illumination High intensity gas discharge lamp High- intensity gas discharge lamp control module Interior lights system Left front level control system sensor (w/o air suspension) (on left front suspension) Left rear level control system sensor (w/o air suspension) (on left rear suspension) Light switch Park Rear fog lamp button Reflector adjustment solenoid Right headlamp assembly Swivel module position sensor (if equipped) Turn Электросхема фар для Volkswagen Touareg TDI 2010 Электросхема фар для Volkswagen Touareg TDI 2010 - Список элементов: 35 33a 53a Computer data lines system Fog lamp button Fuse 15a Fuse 5a Fuse panel b G32 (behind left side of instrument cluster) G640 (left side of engine compt) G644 (right side of engine compt) Headlamp dimmer/ flasher switch Headlamp switch illumination High High beam ind Hot at all times Instrument cluster control module Interior lights system Left front fog light Left headlight assembly Light switch Low Park Rear fog lamp button Right front fog light Right headlight assembly Steering column electronic systems control module T14 T16a T26a T6c T6d T6q T6r Turn Vehicle electrical system control module (under left side of dash)
СИСТЕМЫ ПАМЯТИ Электросхема памяти водительского сиденья, С Корректировка Рулевой колонки для Volkswagen Touareg TDI 2010 Электросхема памяти водительского сиденья, С Корректировка Рулевой колонки для Volkswagen Touareg TDI 2010 - Список элементов: 44 (under driver's seat) 44a Axial Backrest adjustment button Backrest adjustment position sensor & motor Belt height adjustment button Belt height adjustment position sensor & motor (right "b" pillar) Computer data lines system Driver's seat fore/aft adjustment position sensor & motor Driver's seat height adjustment position sensor & motor Driver's seat memory program control Driver's seat tilt adjustment position sensor & motor Fore/aft Fore/aft seat adjustment button Fuse 44 30a Fuse panel b G79 (base of left "c" pillar) Height Hot at all times Inclination adjustment button Lumbar support fore/aft adjustment sensor & curvature adjustment motor Lumbar support height & fore/aft adjustment button Lumbar support height adjustment position sensor & motor Memory seat/ steering column control module Power distribution system Red Seat height adjustment button Seat memory adjustment position button Seat position memory button Steering column adjustment sensor & motor (on steering column) T10p T16j T26b T4az T4dl T6ay T6az T6ba T6bb T6bc T8ab T8dl T8s Vertical Электросхема памяти водительского сиденья, без Корректировка Рулевой колонки для Volkswagen Touareg TDI 2010 Электросхема памяти водительского сиденья, без Корректировка Рулевой колонки для Volkswagen Touareg TDI 2010 - Список элементов: 37 44a Backrest adjustment button Computer data lines system Driver's backrest adjustment sensor & motor Driver's seat adjustment control module Driver's seat fore/aft adjustment sensor & motor Driver's seat height adjustment sensor & motor Driver's seat memory program control Driver's seat tilt adjustment sensor & inclination adjustment motor Fore/aft Fuse 44 30a Fuse panel b G79 (base of left "b" pillar) Height Hot at all times Inclination adjustment button Lumbar support fore/aft adjustment sensor & curvature adjustment motor Lumbar support height & fore/aft adjustment button Lumbar support height adjustment sensor & motor Power distribution system Red Safety belt height adjustment button Seat fore/aft adjustment button Seat height adjustment button Seat memory adjustment position button Seat position memory button T10p T26b T4az T4dl T6ay T6az T6ba T6bb T6bc T8ab T8s Электросхема памяти пассажирского сиденья для Volkswagen Touareg TDI 2010 Электросхема памяти пассажирского сиденья для Volkswagen Touareg TDI 2010 - Список элементов: 37 24a Backrest adjustment button Backrest adjustment position sensor & motor (under passenger's seat) Belt height adjustment button Belt height adjustment position sensor & motor (right "b" pillar) Computer data lines system Driver memory seat button Fore/aft Fore/aft seat adjustment button Front passenger's seat height adjustment position sensor & motor Front seat fore/aft adjustment position sensor & motor Front seat tilt adjustment position sensor & motor Fuse 24 30a Fuse panel c G35 (under front passenger's seat) Height Hot at all times Inclination adjustment button Lumbar support fore/aft adjustment position sensor & motor Lumbar support height & fore/aft adjustment button Lumbar support height adjustment position sensor & motor Passenger memory seat control module (under front passenger's seat) Passenger's seat memory program control Red Seat height adjustment button Seat position memory button T10n T16i T26d T4av T4ba T6bd T6be T6bf T6bg T6bh T8d
СИСТЕМЫ ПОДВЕСКИ Электросхема электроники подвески (1 из 2) для Volkswagen Touareg TDI 2010 Электросхема электроники подвески (1 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 22 (right side of luggage compt) g51 (under vehicle) level control pressure sensor & strut valves 27a 44a 48a 57a Dampening adjustment button & off-road operation switch E-box (dash-left) Fuse 10a Fuse 15a Fuse 40a Fuse 5a Fuse panel c Fuse panel d G33 (behind right end of dash) Headlights system Hot at all times Level control system compressor relay Level control system control head Level control system control module (right rear of vehicle) T8e Tire inflation cut-off control head Электросхема электроники подвески (2 из 2) для Volkswagen Touareg TDI 2010 Электросхема электроники подвески (2 из 2) для Volkswagen Touareg TDI 2010 - Список элементов: 23 (in left front wheel well) (on left front suspension) left front level control system sensor (on left rear suspension) left rear level control system sensor (on right front suspension) right front level control sensor (on right rear suspension) right rear level control system sensor (under left side of dash) vehicle electrical system control module (under vehicle) level control system compressor motor Computer data lines system G35 (under front passenger's seat) Interior lights system Left front body acceleration sensor Left front dampening adjustment valve Left rear dampening adjustment valve Level control pump temperature sensor & system solenoid (under vehicle) Level control system control module (right rear of vehicle) Nca Rear body acceleration sensor (right side of luggage compt) Red Right front body acceleration sensor (in right front wheel well) Right front dampening adjustment valve Right rear dampening adjustment valve T6c T6e
СИСТЕМЫ СИДЕНИЙ Электросхема подогрева передних сидений для Volkswagen Touareg TDI 2010 Электросхема подогрева передних сидений для Volkswagen Touareg TDI 2010 - Список элементов: 36 22a 44a All times Driver's backrest heating element Driver's heated seat adjuster switch Driver's heated seat temperature sensor/ driver's seat heating element Driver's seat backrest side bolster heater Driver's seat side bolster heater Front heated seats control module (behind right sidie of dash) Front passenger's backrest heating element Front passenger's heated seat adjuster switch Front passenger's heated seat temperature sensor/ front passenger seat heating element Front passenger's seat backrest bolster heater Front passenger's seat side bolster heater Fuse 25a Fuse 5a Fuse panel c G32 (behind left side of instrument cluster) G35 (under front passenger's seat) G79 (base of left "b" pillar) Hot at Nca Rear heated seat control module (behind right side of dash) T10n T10p T2de T2df T2dg T2dh T2sb T2se T4bn T4bo T6c T6e Vehicle electrical system control module (under left side of dash) Электросхема привода сидений для Volkswagen Touareg TDI 2010 Электросхема привода сидений для Volkswagen Touareg TDI 2010 - Список элементов: 46 (bottom of passenger's seat) 10a 24a 35a 36a 44a Backrest adjustment switch Driver's seat back adjustment motor (under drive's seat) Driver's seat fore/aft adjustment motor Driver's seat fuse 1 Driver's seat height adjustment motor Driver's seat inclination adjustment motor Driver's seat lumbar support curvature adjustment motor Driver's seat lumbar support height adjustment motor Driver's seat switch Fore/ aft switch Fore/aft adjustment switch Front passenger's seat back adjustment motor Front passenger's seat fore/aft adjustment motor (under front passenger's seat) Front passenger's seat fuse 2 Front passenger's seat height adjustment motor Front passenger's seat inclination adjustment motor Front passenger's seat lumbar support curvature adjustment motor Front passenger's seat lumbar support height adjustment motor Front passenger's seat switch Fuse 10a Fuse 30a Fuse panel b Fuse panel c G35 (under front passenger's seat) G79 (base of left "b" pillar) Height adjustment switch Hot at all times Inclination adjustment switch Lumbar support fore/aft adjustment switch Lumbar support height switch Power distribution system T10n T10p T12j T12k T6da T6db T8i T8m Tilt adjustment switch Электросхема подогрева задних сидений для Volkswagen Touareg TDI 2010 Электросхема подогрева задних сидений для Volkswagen Touareg TDI 2010 - Список элементов: 23 44a 45a All times Front heated seat control module (behind right side of dash) Fuse 30a Fuse 5a Fuse panel b Fuse panel c G33 (behind right end of dash) G720 (base of right "b" pillar) G79 (base of left "b" pillar) Hot at Left rear backrest heating element Left rear heated seat regulating switch Left rear heated seat temperature sensor/ left rear seat heating element Nca Rear heated seats control module (behind right side of dash) Right rear backrest heating element Right rear heated seat regulating switch Right rear heated seat temperature sensor/ right rear seat heating element T6c T6e Vehicle electrical system control module (under left side of dash)
Стартер Генератор
3.0L ТУРБО ДИЗЕЛЬ 3.0L турбо дизель, Электросхема Генератора для Volkswagen Touareg TDI 2010 3.0L турбо дизель, Электросхема Генератора для Volkswagen Touareg TDI 2010 - Список элементов: 20 Battery Climatronic control module Fuse 10a Fuse/relay panel G32 (behind left side of instrument cluster) G34 (below driver's seat) Generator Generator switch-in relay Main battery switch Nca Starter T10d T10f T12cb T17 T26a Terminal 30 (b+) wire junction Terminal 30 (b+) wire junction 2 Terminal 30 (b+) wire junction 3 Vehicle electrical system control module (under left side of dash) 3.0L турбо дизель, Электросхема стартера для Volkswagen Touareg TDI 2010 3.0L турбо дизель, Электросхема стартера для Volkswagen Touareg TDI 2010 - Список элементов: 30 20a 20b 20c 20d 20e 50a Access/start authorization switch Access/start control module (below left side of dash) Anti-theft immobilizer reading module Battery Computer data lines system Engine control module (in right plenum) G34 (below driver's seat) Generator Ignition switch key lock solenoid Main battery switch Nca Red Starter T10c T10d T17b T26a T6u T81 T94aa Terminal 30 (b+) wire junction Terminal 30 (b+) wire junction 2 Terminal 30 (b+) wire junction 3 Vehicle electrical system control module (under left side of dash)
3.6L 3.6L, Электросхема Генератора для Volkswagen Touareg TDI 2010 3.6L, Электросхема Генератора для Volkswagen Touareg TDI 2010 - Список элементов: 25 11a 87a Battery Climatronic control module E-box (right plenum chamber) (w/ generator from 190a) (right rear of engine compt) Fuse 15a Fuse/relay panel G32 (behind left side of instrument cluster) G34 (below driver's seat) Generator Generator switch-in relay Main battery switch Nca Starter T10d T10f T12cb T17 T26a Terminal 30 (b+) wire junction Terminal 30 (b+) wire junction 2 Terminal 30 (b+) wire junction 3 Vehicle electrical system control module (under left side of dash) W/ generator from 190a W/ generator through 190a 3.6L, Электросхема стартера для Volkswagen Touareg TDI 2010 3.6L, Электросхема стартера для Volkswagen Touareg TDI 2010 - Список элементов: 29 20a 20b 20c 20d 20e 50a 87a Access/start authorization switch Access/start control module (below left side of dash) Anti-theft immobilizer reading module Battery E-box (right plenum chamber) (right rear of engine compt) G34 (below driver's seat) Generator Ignition switch key lock solenoid Main battery switch Nca Red Starter T10c T10d T26a T6ma T6u T81 Terminal 30 (b+) wire junction Terminal 30 (b+) wire junction 2 Terminal 30 (b+) wire junction 3 Vehicle electrical system control module (under left side of dash)

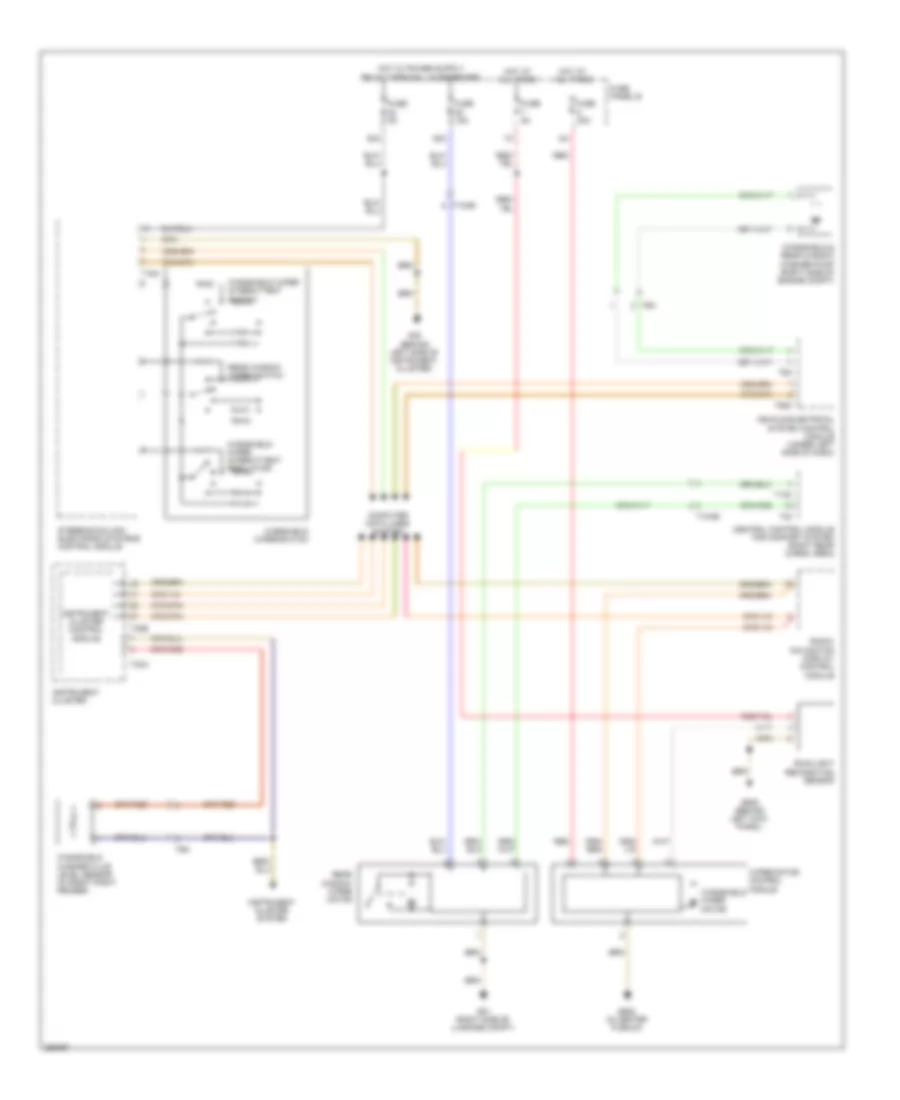

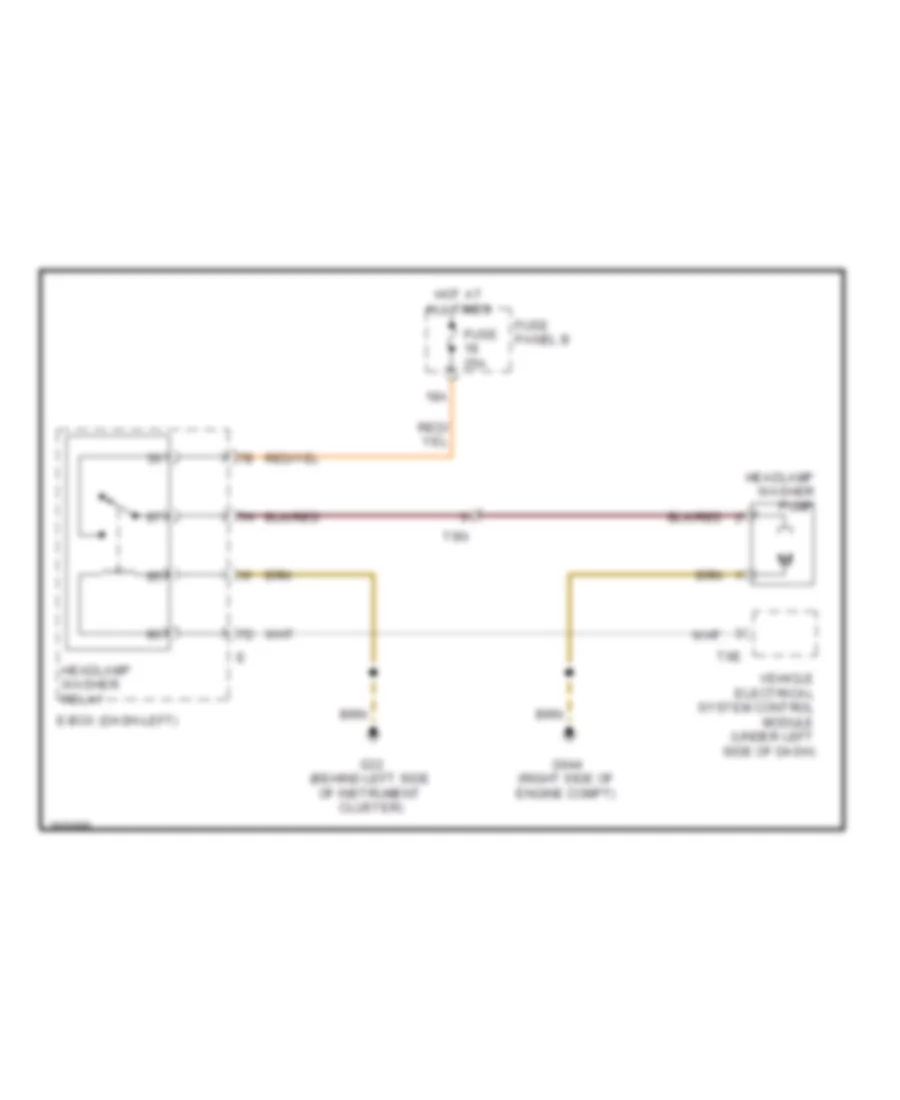

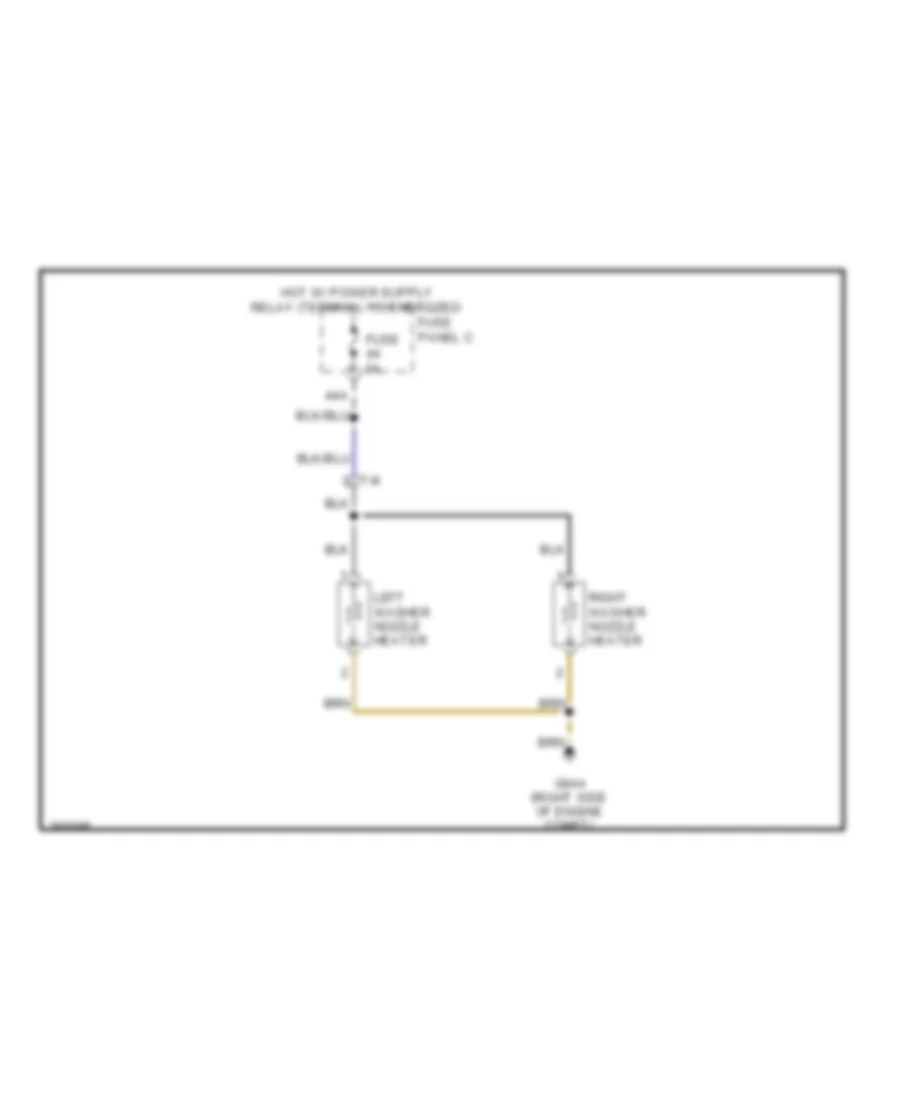

Стеклоочистители и Стеклоомыватели Дворники схема шайбы фары для Volkswagen Touareg TDI 2010 схема шайбы фары для Volkswagen Touareg TDI 2010 - Список элементов: 12 18a E-box (dash-left) Fuse 25a Fuse panel b G32 (behind left side of instrument cluster) G644 (right side of engine compt) Headlamp washer pump Headlamp washer relay Hot at all times T6e T6n Vehicle electrical system control module (under left side of dash) Электросхема быстрого подогрева для Volkswagen Touareg TDI 2010 Электросхема быстрого подогрева для Volkswagen Touareg TDI 2010 - Список элементов: 7 44a Fuse 5a Fuse panel c G644 (right side of engine compt) Left washer nozzle heater Right washer nozzle heater T4i Электросхема стеклоочистителя, дворников и омывателя для Volkswagen Touareg TDI 2010 Электросхема стеклоочистителя, дворников и омывателя для Volkswagen Touareg TDI 2010 - Список элементов: 39 52a 53a Central control module for comfort system (right rear cargo area) Computer data lines system Fuse 15a Fuse 30a Fuse 5a Fuse panel b G32 (behind left side of instrument cluster) G51 (right side of luggage compt) G608 (in center plenum) G639 (behind left kick panel) Hot at all times Instrument cluster Instrument cluster control module Instrument cluster system Radio/ navigation display control module Rain/light recognition sensor Rear window wiper motor Rear window wiper switch Red Steering column electronic systems control module T10ab T12c T16a T23 T26a T32a T32b T6a T6n Vehicle electrical system control module (under left side of dash) Windshield & rear window washer pump (right side of engine compt) Windshield washer fluid level sensor (in front right fender) Windshield wiper intermittent regulator Windshield wiper intermittent switch Windshield wiper motor Windshield wiper switch Wiper motor control module
ЦЕНТРАЛЬНЫЙ ЗАМОК Электросхема центрального замка (1 из 4) для Volkswagen Touareg TDI 2010 Электросхема центрального замка (1 из 4) для Volkswagen Touareg TDI 2010 - Список элементов: 46 (behind left side of instrument cluster) g32 (left side of luggage compt) 14a 21a 30a 31a 87a Closing assist relay Comfort system central control module (right rear cargo area) Computer data lines system Driver's door control module (in driver's door) E-box (dash- left) Fuel tank lid unlock motor Fuse 10a Fuse 15a Fuse 20a Fuse 30a Fuse 5a Fuse panel b Fuse panel c G50 G51 (right side of luggage compt) G639 (behind left kick panel) Hot at all times Interior lights system Rear lid handle unlock switch Rear lid lock button Rear lid lock unit Rear lid unlock motor (in tailgate) Rear window lock unit/ rear lid remote lock key switch Rear window unlock unit (center of tailgate) Spare wheel power lock circuit T10ab T10ae T10y T12b T12c T12l T14p T16p T21 T23 T26a T32f T4s Vehicle electrical system control module Электросхема центрального замка (2 из 4) для Volkswagen Touareg TDI 2010 Электросхема центрального замка (2 из 4) для Volkswagen Touareg TDI 2010 - Список элементов: 22 (left side of engine compt) g640 (near right rear wheelwell) vehicle inclination sensor (not used) Alarm horn Driver door central locking lock unit Driver's interior locking button & push button light Driver's interior locking indicator lamp Front hood switch (in front engine compt) Fuel filler/rear lid remote unlocking button illumination G51 (right side of luggage compt) G639 (behind left kick panel) G640 (left side of engine compt) Interior lights system Interior monitoring sensor Interior monitoring switch Nca Power windows system T10ah T14p T2ca W/ access/ start control module W/o access/ start control module Электросхема центрального замка (3 из 4) для Volkswagen Touareg TDI 2010 Электросхема центрального замка (3 из 4) для Volkswagen Touareg TDI 2010 - Список элементов: 28 (not used) 10a Access/start control module (below left side of dash) Antenna Child safety Control module Driver's outside door handle touch sensor/ driver's outside door handle central locking button/ driver's access/start authorization antenna (if equipped) Front passenger's central locking safe indicator lamp Front passenger's interior locking button & switch illumination lamp Fuse 30a Fuse panel b Hot at all times Left rear central locking lock unit Left rear interior locking button & switch illumination lamp Left rear outside door handle touch sensor (on left rear door handle) Power windows system Red T10ba T21 T21b T21c T2cc T4x T81 W/ access/start control module W/ electric W/o access/start W/o electric child safety Электросхема центрального замка (4 из 4) для Volkswagen Touareg TDI 2010 Электросхема центрального замка (4 из 4) для Volkswagen Touareg TDI 2010 - Список элементов: 43 (in right rear door) right rear door control module (not used) 15a 34a Antenna Computer data lines system Front passenger's outside door handle touch sensor (if equipped) (on right front door handle) Fuse 25a Fuse panel c G638 (top of right kick panel) G720 (right "b" pillar) G79 (base of left "b" pillar) Hot at all times Interior lights system Left rear door control module (in left rear door) Passenger door central locking lock unit Passenger's front door control module (in passenger's front door) Red Right rear central locking lock unit Right rear interior locking button & switch illumination lamp Right rear outside door handle touch sensor (on right rear door handle) T10ag T10ai T10aj T10ak T10bb T12m T12n T12o T16o T16q T21a T21c T2cb T2cd T32g T4ac T4at T4x W/ access/start control module W/ electric child safety W/o access/start control module W/o electric child safety схема центрального замка запасного колеса для Volkswagen Touareg TDI 2010 схема центрального замка запасного колеса для Volkswagen Touareg TDI 2010 - Список элементов: 18 31a 53a Comfort system central control module (right rear cargo area) Computer data lines system Door lock circuit Fuse 15a Fuse 5a Fuse panel b Fuse panel c G50 (left side of luggage compt) G51 (right side of luggage compt) Hot at all times Spare tire unlock button Spare wheel locking motor T12b T23 T8w Valet lock button
