SEAT LEON 2002 — Volumetric alarm . Wiring diagrams, Pin Connector, Location

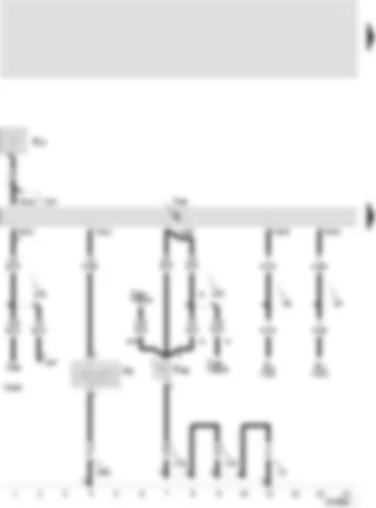

Wiring Diagram SEAT LEON 2002 - Convenience system central control unit - bonnet contact switch - anti-theft alarm system horn

E2	Turn signal switch
F266	Bonnet contact switch
H8	Anti-theft alarm system horn
J285	Control unit with display in dash panel insert
J393	Convenience system central control unit
R47	Central locking and anti-theft alarm system
T12	12-pin connector, turn signals
T15	15-pin connector, behind the centre console
T16	16-pin connector, self-diagnosis
T23	23-pin connector, blue, on dash panel insert
12	Earth point, in engine compartment, left
176	Earth connection, in right headlight wiring harness
179	Earth connection, in left headlight wiring harness
223	Earth connection, in anti-theft alarm system wiring harness
609	Earth point, in plenum chamber, right
A5	Positive (+) connection (right turn signal), in dash panel wiring harness
A6	Positive (+) connection (left turn signal), in dash panel wiring harness
A76	Connection (diagnosis wire K), in dash panel wiring harness
*	Only models with maintenance intermittent extension
**	Only models with immobilizer

Wiring Diagram SEAT LEON 2002 - Comfort system central control unit - interior surveillance deactivation switch - interior surveillance system switch illumination

E267	Interior surveillance deactivation switch, strut B
J393	Comfort system central control unit
L118	Interior surveillance system switch illumination
W	Front interior illumination
W13	Front passenger`s reading lamp
W19	Reading lamp, driver's side
T4y	4-way connector
T15	15-way connector, central console, behind
T23	23-way connector, under the steering wheel
A29	Connection (interior light), instrument panel wiring harness
A144	Connection (interior surveillance), instrument panel wiring harness
B129	Connection (interior light, 31L), interior wiring harness
R6	Positive connection -1-, interior light wiring harness
*	Only vehicles with twin-horn

Wiring Diagram SEAT LEON 2002 - Comfort system central control unit - interior surveillance sensor - reading lamp - rear left - reading lamp - rear right

G273	Interior surveillance sensor
G274	Interior surveillance transmitter
J393	Comfort system central control unit
W11	Reading lamp, rear left
W12	Reading lamp, rear right
T4z	4-way connector
T6v	6-way connector
T15	15-way connector, central console, behind
128	Earth connection -1-, interior lighting wiring harness
B129	Connection (interior light, 31L), interior wiring harness
R33	Positive connection -3-, interior light wiring harness

Wiring Diagram SEAT LEON 2002 - Comfort system central control unit

D	Ignition and starter switch
J393	Comfort system central control unit
S12	Fuse in fuse holder/relay plate
S111	Anti-theft alarm system and immobilizer fuse
S144	Anti-theft alarm system central locking fuse
T15	15-way connector, central console, behind
33	Earth point, behind the instrument panel, on the right
81	Earth connection -1-, instrument panel wiring harness
128	Earth connection -1-, interior lighting wiring harness
135	Earth connection -2-, instrument panel wiring harness
501	Bolted joint -2- (30), on the relay plate
A32	Positive connection (30), instrument panel wiring harness
B111	Positive connection -1- (30a), interior wiring harness

SEAT LEON 2002 Overview of earth points in engine compartment

Overview of earth points in engine compartment

1 -	Earth point, in centre of plenum chamber -608-

q	Location → page 801/2

2 -	Earth point, in plenum chamber -10-

q	Location → page 801/2

3 -	Earth point, on right in plenum chamber -609-

q	Location → page 801/3

4 -	Earth strap, battery - body -1-

q	Location → page 801/3

5 -	Earth points, in left engine compartment -12-

q	Location → page 801/4

6 -	Earth strap, gearbox - body -2-

q	Location → page 801/4

Toledo/León	Fitting Locations	No.  801 / 2

608 Earth point, in centre of plenum chamber ⇒ -arrow-

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

10 Earth point, in plenum chamber ⇒ -arrow-

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

Toledo/León	Fitting Locations	No.  801 / 3

609 Earth point, on right in plenum chamber ⇒ -arrow-

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

1 Earth strap, battery - body ⇒ Arrow A

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

Toledo/León	Fitting Locations	No.  801 / 4

12 Earth points, on left in engine compartment ⇒ -arrow B-

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

2 Earth strap, gearbox - body ⇒ -arrow-

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

Toledo/León	Fitting Locations	No.  801 / 5

Overview of earth points in vehicle interior

1 -	Earth point, lower part of right A-pillar -43-

q	Location → page 801/7

2 -	Earth point, right B-pillar -78-

q	Location → page 801/7

3 -	Earth point, left B-pillar -77-

q	Location → page 801/8

4 -	Earth point, lower part of left A-pillar -44-

q	Location → page 801/8

5 -	Earth point, on right behind dash panel -42-

q	Location → page 801/9

6 -	Earth point, on right behind dash panel -33-

q	Location → page 801/9

Toledo/León	Fitting Locations	No.  801 / 6

7 -	Earth point, on left behind dash panel insert -32-

q	Location → page 801/10

8 -	Earth point, behind dash panel -45-

q	Location → page 801/10

Toledo/León	Fitting Locations	No.  801 / 7

43 Earth point, lower part of right A-pillar ⇒ -arrow-

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

78 Earth point on right B-pillar ⇒ -arrow-

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

Toledo/León	Fitting Locations	No.  801 / 8

77 Earth point on left B-pillar ⇒ -arrow-

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

44 Earth point, lower part of left A-pillar ⇒ -arrow-

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

Toledo/León	Fitting Locations	No.  801 / 9

33 Earth point behind dash panel on right ⇒ -arrow-   42 Same earth point as ⇒ -arrow-

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

Toledo/León	Fitting Locations	No.  801 / 10

32 Earth point behind dash panel on left ⇒ -arrow-

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

45 Earth point, behind dash panel

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

Toledo/León	Fitting Locations	No.  801 / 11

SEAT LEON 2002 Overview of earth points in luggage compartment (Toledo)

Overview of earth points in luggage compartment (Toledo)

1 -	Earth point, on left in luggage compartment -50-

q	Location → page 801/12

Toledo/León	Fitting Locations	No.  801 / 12

50 Earth point, on left in luggage compartment

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

Toledo/León	Fitting Locations	No.  801 / 13

SEAT LEON 2002 Overview of earth points in luggage compartment (León)

Overview of earth points in luggage compartment (León)

1 -	Earth point, left rear pillar -57-

q	Location → page 801/14

Toledo/León	Fitting Locations	No.  801 / 14

57 Earth point, left rear pillar

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

SEAT LEON 2002 Overview of fuses

Overview of fuses

1 -	Fuse in fuse holder left dash panel

q	Location → page 802/2

q	Position of fuses → page 802/3

2 -	Auxiliary fuse above additional relay carrier -S37-, -S45-, -S323-, -S111-, -S144-

q	Location → page 802/7

3 -	Fuse on fuse holder -S162-, -S163-, -S164-, -S176-, -S177-, -S178-, -S179-, -S180-, next to battery

q	Location, up to August 2000: → Page 802/8

q	Location, from September 2000: → Page 802/9

Toledo/León	Fitting Locations	No.  802 / 2

Fuse in fuse holder, dash panel Fuse colours 30 A -  green 25 A -  white 20 A -  yellow 15 A -  blue 10 A -  red 7,5 A -  brown 5 A -  beige 3 A -  purple The fuse electrical connections are shown in the respective current flow diagrams. The fuses for options not mentioned are also shown in the respective Current flow diagrams. Fuses from S 24 are designated with an additional characteristic o. distinctive feature "2" in the Current Flow Diagram, for example: S 40 is designated as S 240.

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

Toledo/León	Fitting Locations	No.  802 / 3

SEAT LEON 2002 Position of fuses in fuse holder, left dash panel

Position of fuses in fuse holder, left dash panel

No.		Current Flow Diagram designation	Nominal value		Function/component	Terminal
1	-	-S1-	10A	-	Glove compartment light, heated washer jets
2	-	-S2-	10A	-	Turn signals
3	-	-S3-	5A	-	Side light warning lamp
4	-	-S4-	5A	-	Number plate light
5	-	-S5-	7.5A	-	Number plate light
6	-	-S6-	5A	-	Electric folding exterior mirror and window regulator (applicable up to October 2001) Convenience system central control unit (applicable from November 2001)
7	-	-S7-	10A	-	Reversing light
8	-	-S8-	5A	-	Telephone
9	-	-S9-	5A	-	ABS/ESP/HALDEX
10	-	-S10-	10A	-	Petrol engine control unit (applicable up to October 2001) Diesel engine control unit (applicable up to October 2001) - S-contact (applicable from November 2001)
11	-	-S11-	5A	-	Dash panel insert
12	-	-S12-	7.5A	-	Diagnosis voltage
13	-	-S13-	10A	-	Brake lights
14	-	-S14-	10A	-	Interior light
15	-	-S15-	5A	-	Dash panel insert, steering angle sender
16	-	-S16-	10A	-	Compressor

Toledo/León	Fitting Locations	No.  802 / 4

SEAT LEON 2002 Position of fuses in fuse holder, left dash panel

Position of fuses in fuse holder, left dash panel

No.		Current Flow Diagram designation	Nominal value		Function/component	Terminal
17	-	-S17-	10A	-	Vacant (applicable up to October 2001) Taxi (applicable from November 2001)
18	-	-S18-	10A	-	Right headlight main beam
19	-	-S19-	10A	-	Left main beam
20	-	-S20-	15A	-	Right dipped beam
21	-	-S21-	15A	-	Left dipped beam
22	-	-S22-	5A	-	Side light right
23	-	-S23-	5A	-	Side light left
24	-	-S224-	20A	-	Windscreen wiper, washer pump
25	-	-S225-	25A	-	Heater blower
26	-	-S226-	25A	-	Heated rear window
27	-	-S227-	15A	-	Rear window wiper
28	-	-S228-	15A	-	Fuel pump
29	-	-S229-	10A	-	Diesel engine control unit
			15A	-	applicable up to October 2001: Petrol engine control unit
			15A	-	applicable from November 2001: Petrol engine control unit, not for AQN, AUE and BDE
			20A	-	applicable from November 2001: Engine control units AQN, AUE and BDE

Toledo/León	Fitting Locations	No.  802 / 5

Position of fuses in fuse holder, left dash panel

No.		Current Flow Diagram designation	Nominal value		Function/component	Terminal
30	-	-S230-	20A	-	Electrical sunroof
31	-	-S231-	20A	-	Automatic gearbox - AG4
			5A	-	Haldex
32	-	-S232-	10A	-	Injectors (petrol)
			30A	-	Diesel engine control unit
33	-	-S233-	20A	-	Headlight washer system (HWS)
34	-	-S234-	10A	-	Diesel engine control unit
			10A	-	Petrol engine control unit
35	-	-S235-	30A	-	Caravan tow coupling delay, luggage compartment power socket
36	-	-S236-	15A	-	Rear fog lights
37	-	-S237-	10A	-	applicable up to October 2001: Signal S (ignition key)
			5A	-	applicable from November 2001: Diesel engine control unit
			20A	-	applicable from November 2001: Petrol engine control unit, not for AUE and BDE
			30A	-	applicable from November 2001: Engine control units AUE and BDE
38	-	-S238-	10A	-	Luggage compartment light, central locking
39	-	-S239-	15A	-	Hazard warning lights system

Toledo/León	Fitting Locations	No.  802 / 6

Position of fuses in fuse holder, left dash panel

No.		Current Flow Diagram designation	Nominal value		Function/component	Terminal
40	-	-S240-	20A	-	Horns
41	-	-S241-	15A	-	Cigarette lighter
42	-	-S242-	15A	-	Radio
43	-	-S243-	10A	-	Petrol engine control unit
			10A	-	Diesel engine control unit
44	-	-S244-	15A	-	Seat heater

Toledo/León	Fitting Locations	No.  802 / 7

Auxiliary fuse above additional relay carrier Right-handdrive vehicles A -  Seat adjustment fuse -S45- (30 A) B -  Vacuum pump fuse (20 A) C -  Window regulator fuse -S37- (30 A) D -  Fuel charging hole fuse -S323- (10 A) E -  Alarm horn fuse -S111- (15 A)  -  Turn signal fuse -S144- (15 A) F -  Taxi fuse (15 A) G -  Vacant H -  Vacant

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

Left-handdrive vehicles: A -  Seat adjustment fuse -S45- (30 A) B -  Vacuum pump fuse (20 A) C -  Window regulator fuse -S37- (30 A) D -  Vacant E -  Taxi fuse (15 A) F -  Alarm horn fuse 1 -S111- (15 A)  -  Turn signal fuse -S144- (15 A) G -  Fuel charging hole fuse -S323- (10 A) H -  Vacant

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

Toledo/León	Fitting Locations	No.  802 / 8

SEAT LEON 2002 Fuse on fuse holder, next to battery (up to August 2000): Fuse on fuse holder, next to battery (up to August 2000): Fuses: S162 -  Glow plug heater 50 A S163 -  Engine control unit 50 A S164 -  Radiator fan 40 A S176 -  Passenger compartment, 110A S177 -  Alternator (90 A), 110 A  -  Alternator (120 A), 150 A S178 -  ABS (pump), 30 A S179 -  ABS, 30 A S180 -  Radiator fan 30 A

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля

Toledo/León	Fitting Locations	No.  802 / 9

SEAT LEON 2002 Fuse on fuse holder, next to battery (from September 2000): Fuse on fuse holder, next to battery (from September 2000): A -  Red wire, 16mm²

Fuses: S162 -  Glow plug heater 50 A S163 -  Engine control unit 50 A S164 -  Radiator fan 40 A S176 -  Passenger compartment, 110A S177 -  Alternator (90 A), 110 A  -  Alternator (120 A), 150 A S178 -  ABS (pump), 30 A S179 -  ABS, 30 A S180 -  Radiator fan 30 A

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO Получить доступ ко всем электросхемам автомобиля
