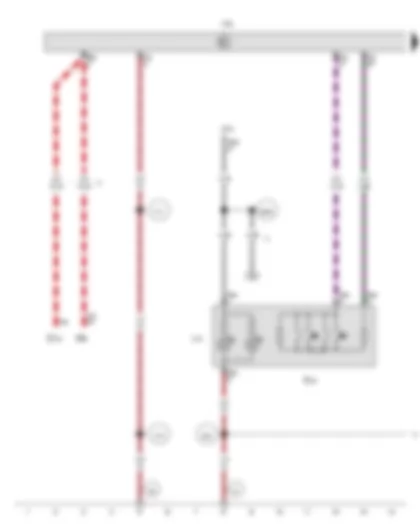

No. | | Current Flow Diagram designation | Nominal value | | Function/component | Terminal |
F1 | - | Fuse 1 on fuse holder C -SC1- | - | - | Not assigned | - |
F2 | - | Fuse 2 on fuse holder C -SC2- | - | - | Not assigned | - |
F3 | - | Fuse 3 on fuse holder C -SC3- | - | - | Not assigned | - |
F4 | - | Fuse 4 on fuse holder C -SC4- | - | - | Not assigned | - |
F5 | - | Fuse 5 on fuse holder C -SC5- | - | - | Not assigned | - |
F6 | - | Fuse 6 on fuse holder C -SC6- | - | - | Not assigned | - |
F7 | - | Fuse 7 on fuse holder C -SC7- | - | - | Not assigned | - |
F8 | - | Fuse 8 on fuse holder C -SC8- | - | - | Not assigned | - |
F9 | - | Fuse 9 on fuse holder C -SC9- | 5 A | - | Airbag control unit -J234- | 15a |
| | | | | Front passenger side airbag deactivated warning lamp -K145- | |
F10 | - | Fuse 10 on fuse holder C -SC10- | - | - | Not assigned | 15a |
F11 | - | Fuse 11 on fuse holder C -SC11- | - | - | Not assigned | 15a |
F12 | - | Fuse 12 on fuse holder C -SC12- | 10 A | - | Control unit for bend lighting and headlight range control -J745- , left | 15a |
F13 | - | Fuse 13 on fuse holder C -SC13- | 5 A | - | Parking aid control unit -J446- | 15a |
| | | | | Park assist steering control unit -J791- | |
| | | | | Climatronic control unit -J255- | |
| | | | | Air conditioning system control unit -J301- | |
| | | | | Heater/heat output switch -E16- | |
| | | | | Fresh air blower relay -J13- | |
| | | | | Fresh air blower switch -E9- | |
| | | | | TCS and ESP button -E256- | |
| | | | | ESP and TCS warning lamp 2 -K216- | |
| | | | | Tyre pressure monitor display button -E492- | |
| | | | | High-pressure sender -G65- | |
| | | | | Reversing light switch -F4- | |
| | | | | Air quality sensor -G238- | |
| | | | | Automatic anti-dazzle interior mirror -Y7- | |
| | | | | Start/stop mode button -F416- | |
F14 | - | Fuse 14 on fuse holder C -SC14- | 10 A | - | Data bus diagnostic interface -J533- | 15a |
| | | | | Control unit in dash panel insert -J285- | |
| | | | | Selector lever -E313- | |
| | | | | Lighting switch -E1- | |
| | | | | TCS and ESP button -E256- | |
| | | | | Tyre pressure monitor display button -E492- | |
| | | | | Brake light switch -F- | |
| | | | | Multifunction switch -F125- | |
| | | | | Tiptronic switch -F189- | |
| | | | | Fuel pump relay -J17- | |
| | | | | Power steering control unit -J500- | |
| | | | | ABS control unit -J104- | |
| | | | | Automatic gearbox control unit -J217- | |
| | | | | Terminal 30 voltage supply relay -J317- | |
| | | | | Terminal 50 voltage supply relay -J682- | |
| | | | | Starter relay 1 -J906-1 | |
| | | | | Starter relay 2 -J907-1
| |
| | | | | Trailer detector control unit -J345- | |
| | | | | Fuel pump control unit -J538- | |
| | | | | Engine control unit -J623- | |
| | | | | Mechatronic unit for dual clutch gearbox -J743- | |
| | | | | DC/AC converter with socket, 12V-230V -U13-1 | |
F15 | - | Fuse 15 on fuse holder C -SC15- | 10 A | - | Headlight range control regulator -E102- | |
| | | | | Air mass meter -G70- | |
| | | | | Crankcase breather heater element -N79- | |
| | | | | Fresh air blower relay -J13- | |
| | | | | Selector lever sensors control unit -J587- | |
| | | | | Control unit for bend lighting and headlight range control -J745- | |
| | | | | 16-pin connector -T16- , diagnosis connection | |
| | | | | Left headlight range control motor -V48- | |
| | | | | Right headlight range control motor -V49- | |
F16 | - | Fuse 16 on fuse holder C -SC16- | 10 A | - | Control unit for bend lighting and headlight range control -J745- , right | 15a |
F17 | - | Fuse 17 on fuse holder C -SC17- | 5 A | - | Control unit in dash panel insert -J285-1 | 30 stabilized |
| | | | | Voltage stabiliser -J532- | |
F18 | - | Fuse 18 on fuse holder C -SC18- | 10 A | - | Mobile telephone operating electronics control unit -J412-1 | 30 stabilized |
| | | | | Voltage stabiliser -J532- | |
F19 | - | Fuse 19 on fuse holder C -SC19- | - | - | Not assigned | - |
F20 | - | Fuse 20 on fuse holder C -SC20- | 10 A | - | Selector lever -E313- | 30a |
| | | | | Automatic gearbox control unit -J217- | |
| | | | | Climatronic control unit -J255- | |
| | | | | Air conditioning system control unit -J301- | |
| | | | | Remote control receiver for auxiliary coolant heater -R149- | |
| | | | | Park assist steering control unit -J791- | |
F21 | - | Fuse 21 on fuse holder C -SC21- | 20 A | - | Onboard supply control unit -J519- | 30a |
| | | | | Rear left door control unit -J388- (central locking) | |
| | | | | Rear right door control unit -J389- (central locking) | |
F22 | - | Fuse 22 on fuse holder C -SC22- | 10 A | - | Interior monitoring sensor -G273- | |
| | | | | Alarm horn -H12- | |
F23 | - | Fuse 23 on fuse holder C -SC23- | 10 A | - | Reversing camera system control unit -J772- | 30a |
| | | | | Lighting switch -E1- | |
| | | | | Rain and light sensor -G397- | |
| | | | | 16-pin connector -T16- , diagnosis connection | |
| | | | | Heated rear window relay -J9- | |
| | | | | Onboard supply control unit -J519- | |
F24 | - | Fuse 24 on fuse holder C -SC24- | 10 A | - | Driver door control unit -J386- (central locking) | 30a |
| | | | | Front passenger door control unit -J387- (central locking) | |
F25 | - | Fuse 25 on fuse holder C -SC25- | - | - | Not assigned | - |
F26 | - | Fuse 26 on fuse holder C -SC26- | 20 A | - | Vacuum pump for brakes -V192- | 15a |
F27 | - | Fuse 27 on fuse holder C -SC27- | - | - | Not assigned | - |
F28 | - | Fuse 28 on fuse holder C -SC28- | - | - | Not assigned | 75a |
F29 | - | Fuse 29 on fuse holder C -SC29- | 20 A | - | Rear window wiper motor -V12- | 75a |
F30 | - | Fuse 30 on fuse holder C -SC30- | 20 A | - | Cigarette lighter -U1- | 75a |
| | | | | 12 V socket -U5- | |
| | | | | Rear cigarette lighter -U9- | |
| | | | | Blocking diode -J29- | |
F31 | - | Fuse 31 on fuse holder C -SC31- | - | - | Not assigned | 75a |
F32 | - | Fuse 32 on fuse holder C -SC32- | - | - | Not assigned | 75a |
F33 | - | Fuse 33 on fuse holder C -SC33- | 40 A | - | Fresh air blower relay -J13- | 75a |
| | | | | Fresh air blower switch -E9- | |
F34 | - | Fuse 34 on fuse holder C -SC34- | - | - | Not assigned | - |
F35 | - | Fuse 35 on fuse holder C -SC35- | - | - | Not assigned | - |
F36 | - | Fuse 36 on fuse holder C -SC36- | - | - | Not assigned | - |
F37 | - | Fuse 37 on fuse holder C -SC37- | - | - | Not assigned | - |
F38 | - | Fuse 38 on fuse holder C -SC38- | - | - | Not assigned | - |
F39 | - | Fuse 39 on fuse holder C -SC39- | - | - | Not assigned | - |
F40 | - | Fuse 40 on fuse holder C -SC40- | 15 A | - | Trailer detector control unit -J345- | 30a |
F41 | - | Fuse 41 on fuse holder C -SC41- | 15 A | - | Trailer detector control unit -J345- | 30a |
F42 | - | Fuse 41 on fuse holder C -SC42- | 20 A | - | Trailer detector control unit -J345- | 30a |
F43 | - | Fuse 43 on fuse holder C -SC43- | 30 A | - | DC/AC converter with socket, 12V-230V -U13- | 30a |
F44 | - | Fuse 44 on fuse holder C -SC44- | 25 A | - | Heated rear window -Z1- | 30a |
| | | | | Fresh air blower relay -J13- | |
F45 | - | Fuse 45 on fuse holder C -SC45- | 30 A | - | Driver door control unit -J386- (window regulator) | 30a |
| | | | | Front passenger door control unit -J387- (window regulator) | |
F46 | - | Fuse 46 on fuse holder C -SC46- | 30 A | - | Rear left door control unit -J388- (window regulator) | 30a- |
| | | | | Rear right door control unit -J389- (window regulator) | |
F47 | - | Fuse 47 on fuse holder C -SC47- | 15 A | - | Fuel system pressurisation pump -G6- | 30a |
| | | | | Fuel pump relay -J17- | |
| | | | | Fuel pump control unit -J538- | |
| | | | | Fuel supply relay -J643- | |
F48 | - | Fuse 48 on fuse holder C -SC48- | 20 A | - | Onboard supply control unit -J519- | 30a |
F49 | - | Fuse 49 on fuse holder C -SC49- | 40 A | - | Fresh air blower control unit -J126- | 30a |
F50 | - | Fuse 50 on fuse holder C -SC50- | 30 A | - | Heated front seats control unit -J774- | 30a |
F51 | - | Fuse 51 on fuse holder C -SC51- | 20 A | - | Sliding sunroof control unit -J245- | 30a |
F52 | - | Fuse 52 on fuse holder C -SC52- | 20 A | - | Headlight washer system relay -J39- | 30a |
F53 | - | Fuse 53 on fuse holder C -SC53- | 15 A | - | Driver seat lumbar support adjustment switch -E176- | 30a |
| | | | | Front passenger seat lumbar support adjustment switch -E177- | |
| | | | | Driver seat lumbar support longitudinal adjustment motor -V125- | |
| | | | | Driver seat lumbar support height adjustment motor -V129- | |
| | | | | Front passenger seat lumbar support longitudinal adjustment motor -V126- | |
| | | | | Front passenger seat lumbar support height adjustment motor -V130- | |
F54 | - | Fuse 54 on fuse holder C -SC54- | 5 A | - | PDA control unit -J378- , special vehicle (driving school vehicle) | |
| | | 15 A | | Special vehicle control unit -J608- (driving aids for disabled persons) | |
F55 | - | Fuse 55 on fuse holder C -SC55- | | - | Not assigned | |
F56 | - | Fuse 56 on fuse holder C -SC56- | 25 A | - | Power socket -U- , special vehicles | |
F57 | - | Fuse 57 on fuse holder C -SC57- | 15 A | - | Radio -R-1 | 30 stabilized |
| | | | | Control unit with display for radio and navigation -J503-1 | |
| | | | | Voltage stabiliser -J532- | |
F58 | - | Fuse 58 on fuse holder C -SC58- | - | - | Not assigned | - |
F59 | - | Fuse 59 on fuse holder C -SC59- | - | - | Not assigned | - |
F60 | - | Fuse 60 on fuse holder C -SC60- | - | - | Not assigned | - |
1 Only with Start/Stop system |
No. | | Current Flow Diagram designation | Nominal value | | Function/component | Terminal |
F1 | - | Fuse 1 on fuse holder C -SC1- | 10 A | - | Entry and start authorisation control unit -J518- | 30a |
F2 | - | Fuse 2 on fuse holder C -SC2- | 10 A | - | Entry and start authorisation control unit -J518- | 30a |
F3 | - | Fuse 3 on fuse holder C -SC3- | - | - | Not assigned | - |
F4 | - | Fuse 4 on fuse holder C -SC4- | - | - | Not assigned | - |
F5 | - | Fuse 5 on fuse holder C -SC5- | - | - | Not assigned | - |
F6 | - | Fuse 6 on fuse holder C -SC6- | - | - | Not assigned | - |
F7 | - | Fuse 7 on fuse holder C -SC7- | - | - | Not assigned | - |
F8 | - | Fuse 8 on fuse holder C -SC8- | - | - | Not assigned | - |
F9 | - | Fuse 9 on fuse holder C -SC9- | 5 A | - | Airbag control unit -J234- | 15a |
| | | | | Front passenger side airbag deactivated warning lamp -K145- | |
F10 | - | Fuse 10 on fuse holder C -SC10- | - | - | Not assigned | 15a |
F11 | - | Fuse 11 on fuse holder C -SC11- | - | - | Not assigned | 15a |
F12 | - | Fuse 12 on fuse holder C -SC12- | 10 A | - | Control unit for bend lighting and headlight range control -J745- , left | 15a |
F13 | - | Fuse 13 on fuse holder C -SC13- | 5 A | - | Parking aid control unit -J446- | 15a |
| | | | | Park assist steering control unit -J791- | |
| | | | | Climatronic control unit -J255- | |
| | | | | Air conditioning system control unit -J301- | |
| | | | | Heater/heat output switch -E16- | |
| | | | | Fresh air blower relay -J13- | |
| | | | | Fresh air blower switch -E9- | |
| | | | | TCS and ESP button -E256- | |
| | | | | ESP and TCS warning lamp 2 -K216- | |
| | | | | Tyre pressure monitor display button -E492- | |
| | | | | High-pressure sender -G65- | |
| | | | | Reversing light switch -F4- | |
| | | | | Air quality sensor -G238- | |
| | | | | Automatic anti-dazzle interior mirror -Y7- | |
| | | | | Start/stop mode button -F416- | |
F14 | - | Fuse 14 on fuse holder C -SC14- | 10 A | - | Data bus diagnostic interface -J533- | 15a |
| | | | | Control unit in dash panel insert -J285- | |
| | | | | Selector lever -E313- | |
| | | | | Lighting switch -E1- | |
| | | | | TCS and ESP button -E256- | |
| | | | | Tyre pressure monitor display button -E492- | |
| | | | | Brake light switch -F- | |
| | | | | Multifunction switch -F125- | |
| | | | | Tiptronic switch -F189- | |
| | | | | Fuel pump relay -J17- | |
| | | | | Power steering control unit -J500- | |
| | | | | ABS control unit -J104- | |
| | | | | Automatic gearbox control unit -J217- | |
| | | | | Terminal 30 voltage supply relay -J317- | |
| | | | | Terminal 50 voltage supply relay -J682- | |
| | | | | Starter relay 1 -J906-1 | |
| | | | | Starter relay 2 -J907-1
| |
| | | | | Trailer detector control unit -J345- | |
| | | | | Fuel pump control unit -J538- | |
| | | | | Engine control unit -J623- | |
| | | | | Mechatronic unit for dual clutch gearbox -J743- | |
| | | | | DC/AC converter with socket, 12V-230V -U13-1 | |
F15 | - | Fuse 15 on fuse holder C -SC15- | 10 A | - | Headlight range control regulator -E102- | |
| | | | | Air mass meter -G70- | |
| | | | | Crankcase breather heater element -N79- | |
| | | | | Fresh air blower relay -J13- | |
| | | | | Selector lever sensors control unit -J587- | |
| | | | | Control unit for bend lighting and headlight range control -J745- | |
| | | | | 16-pin connector -T16- , diagnosis connection | |
| | | | | Left headlight range control motor -V48- | |
| | | | | Right headlight range control motor -V49- | |
F16 | - | Fuse 16 on fuse holder C -SC16- | 10 A | - | Control unit for bend lighting and headlight range control -J745- , right | 15a |
F17 | - | Fuse 17 on fuse holder C -SC17- | 5 A | - | Control unit in dash panel insert -J285-1 | 30 stabilized |
| | | | | Voltage stabiliser -J532- | |
F18 | - | Fuse 18 on fuse holder C -SC18- | 10 A | - | Mobile telephone operating electronics control unit -J412-1 | 30 stabilized |
| | | | | Voltage stabiliser -J532- | |
F19 | - | Fuse 19 on fuse holder C -SC19- | - | - | Not assigned | - |
F20 | - | Fuse 20 on fuse holder C -SC20- | 10 A | - | Selector lever -E313- | 30a |
| | | | | Automatic gearbox control unit -J217- | |
| | | | | Climatronic control unit -J255- | |
| | | | | Air conditioning system control unit -J301- | |
| | | | | Remote control receiver for auxiliary coolant heater -R149- | |
| | | | | Park assist steering control unit -J791- | |
F21 | - | Fuse 21 on fuse holder C -SC21- | 20 A | - | Onboard supply control unit -J519- | 30a |
| | | | | Rear left door control unit -J388- (central locking) | |
| | | | | Rear right door control unit -J389- (central locking) | |
F22 | - | Fuse 22 on fuse holder C -SC22- | 10 A | - | Interior monitoring sensor -G273- | |
| | | | | Alarm horn -H12- | |
F23 | - | Fuse 23 on fuse holder C -SC23- | 10 A | - | Reversing camera system control unit -J772- | 30a |
| | | | | Lighting switch -E1- | |
| | | | | Rain and light sensor -G397- | |
| | | | | 16-pin connector -T16- , diagnosis connection | |
| | | | | Heated rear window relay -J9- | |
| | | | | Onboard supply control unit -J519- | |
F24 | - | Fuse 24 on fuse holder C -SC24- | 10 A | - | Driver door control unit -J386- (central locking) | 30a |
| | | | | Front passenger door control unit -J387- (central locking) | |
F25 | - | Fuse 25 on fuse holder C -SC25- | - | - | Not assigned | - |
F26 | - | Fuse 26 on fuse holder C -SC26- | 20 A | - | Vacuum pump for brakes -V192- | 15a |
F27 | - | Fuse 27 on fuse holder C -SC27- | - | - | Not assigned | - |
F28 | - | Fuse 28 on fuse holder C -SC28- | - | - | Not assigned | 75a |
F29 | - | Fuse 29 on fuse holder C -SC29- | 20 A | - | Rear window wiper motor -V12- | 75a |
F30 | - | Fuse 30 on fuse holder C -SC30- | 20 A | - | Cigarette lighter -U1- | 75a |
| | | | | 12 V socket -U5- | |
| | | | | Rear cigarette lighter -U9- | |
| | | | | Blocking diode -J29- | |
F31 | - | Fuse 31 on fuse holder C -SC31- | - | - | Not assigned | 75a |
F32 | - | Fuse 32 on fuse holder C -SC32- | - | - | Not assigned | 75a |
F33 | - | Fuse 33 on fuse holder C -SC33- | 40 A | - | Fresh air blower relay -J13- | 75a |
| | | | | Fresh air blower switch -E9- | |
F34 | - | Fuse 34 on fuse holder C -SC34- | - | - | Not assigned | - |
F35 | - | Fuse 35 on fuse holder C -SC35- | - | - | Not assigned | - |
F36 | - | Fuse 36 on fuse holder C -SC36- | - | - | Not assigned | - |
F37 | - | Fuse 37 on fuse holder C -SC37- | - | - | Not assigned | - |
F38 | - | Fuse 38 on fuse holder C -SC38- | - | - | Not assigned | - |
F39 | - | Fuse 39 on fuse holder C -SC39- | - | - | Not assigned | - |
F40 | - | Fuse 40 on fuse holder C -SC40- | 15 A | - | Trailer detector control unit -J345- | 30a |
F41 | - | Fuse 41 on fuse holder C -SC41- | 15 A | - | Trailer detector control unit -J345- | 30a |
F42 | - | Fuse 41 on fuse holder C -SC42- | 20 A | - | Trailer detector control unit -J345- | 30a |
F43 | - | Fuse 43 on fuse holder C -SC43- | 30 A | - | DC/AC converter with socket, 12V-230V -U13- | 30a |
F44 | - | Fuse 44 on fuse holder C -SC44- | 25 A | - | Heated rear window -Z1- | 30a |
| | | | | Fresh air blower relay -J13- | |
F45 | - | Fuse 45 on fuse holder C -SC45- | 30 A | - | Driver door control unit -J386- (window regulator) | 30a |
| | | | | Front passenger door control unit -J387- (window regulator) | |
F46 | - | Fuse 46 on fuse holder C -SC46- | 30 A | - | Rear left door control unit -J388- (window regulator) | 30a- |
| | | | | Rear right door control unit -J389- (window regulator) | |
F47 | - | Fuse 47 on fuse holder C -SC47- | 15 A | - | Fuel system pressurisation pump -G6- | 30a |
| | | | | Fuel pump relay -J17- | |
| | | | | Fuel pump control unit -J538- | |
| | | | | Fuel supply relay -J643- | |
F48 | - | Fuse 48 on fuse holder C -SC48- | 20 A | - | Onboard supply control unit -J519- | 30a |
F49 | - | Fuse 49 on fuse holder C -SC49- | 40 A | - | Fresh air blower control unit -J126- | 30a |
F50 | - | Fuse 50 on fuse holder C -SC50- | 30 A | - | Heated front seats control unit -J774- | 30a |
F51 | - | Fuse 51 on fuse holder C -SC51- | 20 A | - | Sliding sunroof control unit -J245- | 30a |
F52 | - | Fuse 52 on fuse holder C -SC52- | 20 A | - | Headlight washer system relay -J39- | 30a |
F53 | - | Fuse 53 on fuse holder C -SC53- | 15 A | - | Driver seat lumbar support adjustment switch -E176- | 30a |
| | | | | Front passenger seat lumbar support adjustment switch -E177- | |
| | | | | Driver seat lumbar support longitudinal adjustment motor -V125- | |
| | | | | Driver seat lumbar support height adjustment motor -V129- | |
| | | | | Front passenger seat lumbar support longitudinal adjustment motor -V126- | |
| | | | | Front passenger seat lumbar support height adjustment motor -V130- | |
F54 | - | Fuse 54 on fuse holder C -SC54- | 5 A | - | PDA control unit -J378- , special vehicle (driving school vehicle) | |
| | | 15 A | | Special vehicle control unit -J608- (driving aids for disabled persons) | |
F55 | - | Fuse 55 on fuse holder C -SC55- | | - | Not assigned | |
F56 | - | Fuse 56 on fuse holder C -SC56- | 25 A | - | Power socket -U- , special vehicles | |
F57 | - | Fuse 57 on fuse holder C -SC57- | 15 A | - | Radio -R-1 | 30 stabilized |
| | | | | Control unit with display for radio and navigation -J503-1 | |
| | | | | Voltage stabiliser -J532- | |
F58 | - | Fuse 58 on fuse holder C -SC58- | - | - | Not assigned | - |
F59 | - | Fuse 59 on fuse holder C -SC59- | - | - | Not assigned | - |
F60 | - | Fuse 60 on fuse holder C -SC60- | - | - | Not assigned | - |
1 Only with Start/Stop system |
No. | | Current Flow Diagram designation | Nominal value | | Function/component | Terminal |
F1 | - | Fuse 1 on fuse holder C -SC1- | 10 A | - | Entry and start authorisation control unit -J518- | 30a |
F2 | - | Fuse 2 on fuse holder C -SC2- | 10 A | - | Entry and start authorisation control unit -J518- | 30a |
F3 | - | Fuse 3 on fuse holder C -SC3- | - | - | Not assigned | - |
F4 | - | Fuse 4 on fuse holder C -SC4- | - | - | Not assigned | - |
F5 | - | Fuse 5 on fuse holder C -SC5- | - | - | Not assigned | - |
F6 | - | Fuse 6 on fuse holder C -SC6- | - | - | Not assigned | - |
F7 | - | Fuse 7 on fuse holder C -SC7- | - | - | Not assigned | - |
F8 | - | Fuse 8 on fuse holder C -SC8- | - | - | Not assigned | - |
F9 | - | Fuse 9 on fuse holder C -SC9- | 5 A | - | Airbag control unit -J234- | 15a |
| | | | | Front passenger side airbag deactivated warning lamp -K145- | |
F10 | - | Fuse 10 on fuse holder C -SC10- | - | - | Not assigned | 15a |
F11 | - | Fuse 11 on fuse holder C -SC11- | - | - | Not assigned | 15a |
F12 | - | Fuse 12 on fuse holder C -SC12- | 10 A | - | Control unit for bend lighting and headlight range control -J745- , left | 15a |
F13 | - | Fuse 13 on fuse holder C -SC13- | 5 A | - | Parking aid control unit -J446- | 15a |
| | | | | Park assist steering control unit -J791- | |
| | | | | Climatronic control unit -J255- | |
| | | | | Air conditioning system control unit -J301- | |
| | | | | Heater/heat output switch -E16- | |
| | | | | Fresh air blower relay -J13- | |
| | | | | Fresh air blower switch -E9- | |
| | | | | TCS and ESP button -E256- | |
| | | | | ESP and TCS warning lamp 2 -K216- | |
| | | | | Tyre pressure monitor display button -E492- | |
| | | | | High-pressure sender -G65- | |
| | | | | Reversing light switch -F4- | |
| | | | | Air quality sensor -G238- | |
| | | | | Automatic anti-dazzle interior mirror -Y7- | |
| | | | | Start/stop mode button -F416- | |
F14 | - | Fuse 14 on fuse holder C -SC14- | 10 A | - | Data bus diagnostic interface -J533- | 15a |
| | | | | Control unit in dash panel insert -J285- | |
| | | | | Selector lever -E313- | |
| | | | | Lighting switch -E1- | |
| | | | | TCS and ESP button -E256- | |
| | | | | Tyre pressure monitor display button -E492- | |
| | | | | Brake light switch -F- | |
| | | | | Multifunction switch -F125- | |
| | | | | Tiptronic switch -F189- | |
| | | | | Fuel pump relay -J17- | |
| | | | | Power steering control unit -J500- | |
| | | | | ABS control unit -J104- | |
| | | | | Automatic gearbox control unit -J217- | |
| | | | | Terminal 30 voltage supply relay -J317- | |
| | | | | Terminal 50 voltage supply relay -J682- | |
| | | | | Starter relay 1 -J906-1 | |
| | | | | Starter relay 2 -J907-1
| |
| | | | | Trailer detector control unit -J345- | |
| | | | | Fuel pump control unit -J538- | |
| | | | | Engine control unit -J623- | |
| | | | | Mechatronic unit for dual clutch gearbox -J743- | |
| | | | | DC/AC converter with socket, 12V-230V -U13-1 | |
F15 | - | Fuse 15 on fuse holder C -SC15- | 10 A | - | Headlight range control regulator -E102- | |
| | | | | Air mass meter -G70- | |
| | | | | Crankcase breather heater element -N79- | |
| | | | | Fresh air blower relay -J13- | |
| | | | | Selector lever sensors control unit -J587- | |
| | | | | Control unit for bend lighting and headlight range control -J745- | |
| | | | | 16-pin connector -T16- , diagnosis connection | |
| | | | | Left headlight range control motor -V48- | |
| | | | | Right headlight range control motor -V49- | |
F16 | - | Fuse 16 on fuse holder C -SC16- | 10 A | - | Control unit for bend lighting and headlight range control -J745- , right | 15a |
F17 | - | Fuse 17 on fuse holder C -SC17- | 5 A | - | Control unit in dash panel insert -J285-1 | 30 stabilized |
| | | | | Voltage stabiliser -J532- | |
F18 | - | Fuse 18 on fuse holder C -SC18- | 10 A | - | Mobile telephone operating electronics control unit -J412-1 | 30 stabilized |
| | | | | Voltage stabiliser -J532- | |
F19 | - | Fuse 19 on fuse holder C -SC19- | - | - | Not assigned | - |
F20 | - | Fuse 20 on fuse holder C -SC20- | 10 A | - | Selector lever -E313- | 30a |
| | | | | Automatic gearbox control unit -J217- | |
| | | | | Climatronic control unit -J255- | |
| | | | | Air conditioning system control unit -J301- | |
| | | | | Remote control receiver for auxiliary coolant heater -R149- | |
| | | | | Park assist steering control unit -J791- | |
F21 | - | Fuse 21 on fuse holder C -SC21- | 20 A | - | Onboard supply control unit -J519- | 30a |
| | | | | Rear left door control unit -J388- (central locking) | |
| | | | | Rear right door control unit -J389- (central locking) | |
F22 | - | Fuse 22 on fuse holder C -SC22- | 10 A | - | Interior monitoring sensor -G273- | |
| | | | | Alarm horn -H12- | |
F23 | - | Fuse 23 on fuse holder C -SC23- | 10 A | - | Reversing camera system control unit -J772- | 30a |
| | | | | Lighting switch -E1- | |
| | | | | Rain and light sensor -G397- | |
| | | | | 16-pin connector -T16- , diagnosis connection | |
| | | | | Heated rear window relay -J9- | |
| | | | | Onboard supply control unit -J519- | |
F24 | - | Fuse 24 on fuse holder C -SC24- | 10 A | - | Driver door control unit -J386- (central locking) | 30a |
| | | | | Front passenger door control unit -J387- (central locking) | |
F25 | - | Fuse 25 on fuse holder C -SC25- | - | - | Not assigned | - |
F26 | - | Fuse 26 on fuse holder C -SC26- | 20 A | - | Vacuum pump for brakes -V192- | 15a |
F27 | - | Fuse 27 on fuse holder C -SC27- | - | - | Not assigned | - |
F28 | - | Fuse 28 on fuse holder C -SC28- | - | - | Not assigned | 75a |
F29 | - | Fuse 29 on fuse holder C -SC29- | 20 A | - | Rear window wiper motor -V12- | 75a |
F30 | - | Fuse 30 on fuse holder C -SC30- | 20 A | - | Cigarette lighter -U1- | 75a |
| | | | | 12 V socket -U5- | |
| | | | | Rear cigarette lighter -U9- | |
| | | | | Blocking diode -J29- | |
F31 | - | Fuse 31 on fuse holder C -SC31- | - | - | Not assigned | 75a |
F32 | - | Fuse 32 on fuse holder C -SC32- | - | - | Not assigned | 75a |
F33 | - | Fuse 33 on fuse holder C -SC33- | 40 A | - | Fresh air blower relay -J13- | 75a |
| | | | | Fresh air blower switch -E9- | |
F34 | - | Fuse 34 on fuse holder C -SC34- | - | - | Not assigned | - |
F35 | - | Fuse 35 on fuse holder C -SC35- | - | - | Not assigned | - |
F36 | - | Fuse 36 on fuse holder C -SC36- | - | - | Not assigned | - |
F37 | - | Fuse 37 on fuse holder C -SC37- | - | - | Not assigned | - |
F38 | - | Fuse 38 on fuse holder C -SC38- | - | - | Not assigned | - |
F39 | - | Fuse 39 on fuse holder C -SC39- | - | - | Not assigned | - |
F40 | - | Fuse 40 on fuse holder C -SC40- | 15 A | - | Trailer detector control unit -J345- | 30a |
F41 | - | Fuse 41 on fuse holder C -SC41- | 15 A | - | Trailer detector control unit -J345- | 30a |
F42 | - | Fuse 41 on fuse holder C -SC42- | 20 A | - | Trailer detector control unit -J345- | 30a |
F43 | - | Fuse 43 on fuse holder C -SC43- | 30 A | - | DC/AC converter with socket, 12V-230V -U13- | 30a |
F44 | - | Fuse 44 on fuse holder C -SC44- | 25 A | - | Heated rear window -Z1- | 30a |
| | | | | Fresh air blower relay -J13- | |
F45 | - | Fuse 45 on fuse holder C -SC45- | 30 A | - | Driver door control unit -J386- (window regulator) | 30a |
| | | | | Front passenger door control unit -J387- (window regulator) | |
F46 | - | Fuse 46 on fuse holder C -SC46- | 30 A | - | Rear left door control unit -J388- (window regulator) | 30a- |
| | | | | Rear right door control unit -J389- (window regulator) | |
F47 | - | Fuse 47 on fuse holder C -SC47- | 15 A | - | Fuel system pressurisation pump -G6- | 30a |
| | | | | Fuel pump relay -J17- | |
| | | | | Fuel pump control unit -J538- | |
| | | | | Fuel supply relay -J643- | |
F48 | - | Fuse 48 on fuse holder C -SC48- | 20 A | - | Onboard supply control unit -J519- | 30a |
F49 | - | Fuse 49 on fuse holder C -SC49- | 40 A | - | Fresh air blower control unit -J126- | 30a |
F50 | - | Fuse 50 on fuse holder C -SC50- | 30 A | - | Heated front seats control unit -J774- | 30a |
F51 | - | Fuse 51 on fuse holder C -SC51- | 20 A | - | Sliding sunroof control unit -J245- | 30a |
F52 | - | Fuse 52 on fuse holder C -SC52- | 20 A | - | Headlight washer system relay -J39- | 30a |
F53 | - | Fuse 53 on fuse holder C -SC53- | 15 A | - | Driver seat lumbar support adjustment switch -E176- | 30a |
| | | | | Front passenger seat lumbar support adjustment switch -E177- | |
| | | | | Driver seat lumbar support longitudinal adjustment motor -V125- | |
| | | | | Driver seat lumbar support height adjustment motor -V129- | |
| | | | | Front passenger seat lumbar support longitudinal adjustment motor -V126- | |
| | | | | Front passenger seat lumbar support height adjustment motor -V130- | |
F54 | - | Fuse 54 on fuse holder C -SC54- | 5 A | - | PDA control unit -J378- , special vehicle (driving school vehicle) | |
| | | 15 A | | Special vehicle control unit -J608- (driving aids for disabled persons) | |
F55 | - | Fuse 55 on fuse holder C -SC55- | | - | Not assigned | |
F56 | - | Fuse 56 on fuse holder C -SC56- | 25 A | - | Power socket -U- , special vehicles | |
F57 | - | Fuse 57 on fuse holder C -SC57- | 15 A | - | Radio -R-1 | 30 stabilized |
| | | | | Control unit with display for radio and navigation -J503-1 | |
| | | | | Voltage stabiliser -J532- | |
F58 | - | Fuse 58 on fuse holder C -SC58- | - | - | Not assigned | - |
F59 | - | Fuse 59 on fuse holder C -SC59- | - | - | Not assigned | - |
F60 | - | Fuse 60 on fuse holder C -SC60- | - | - | Not assigned | - |
1 Only with Start/Stop system |
