Электросхемы БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА Ford Freestar 2005

БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА

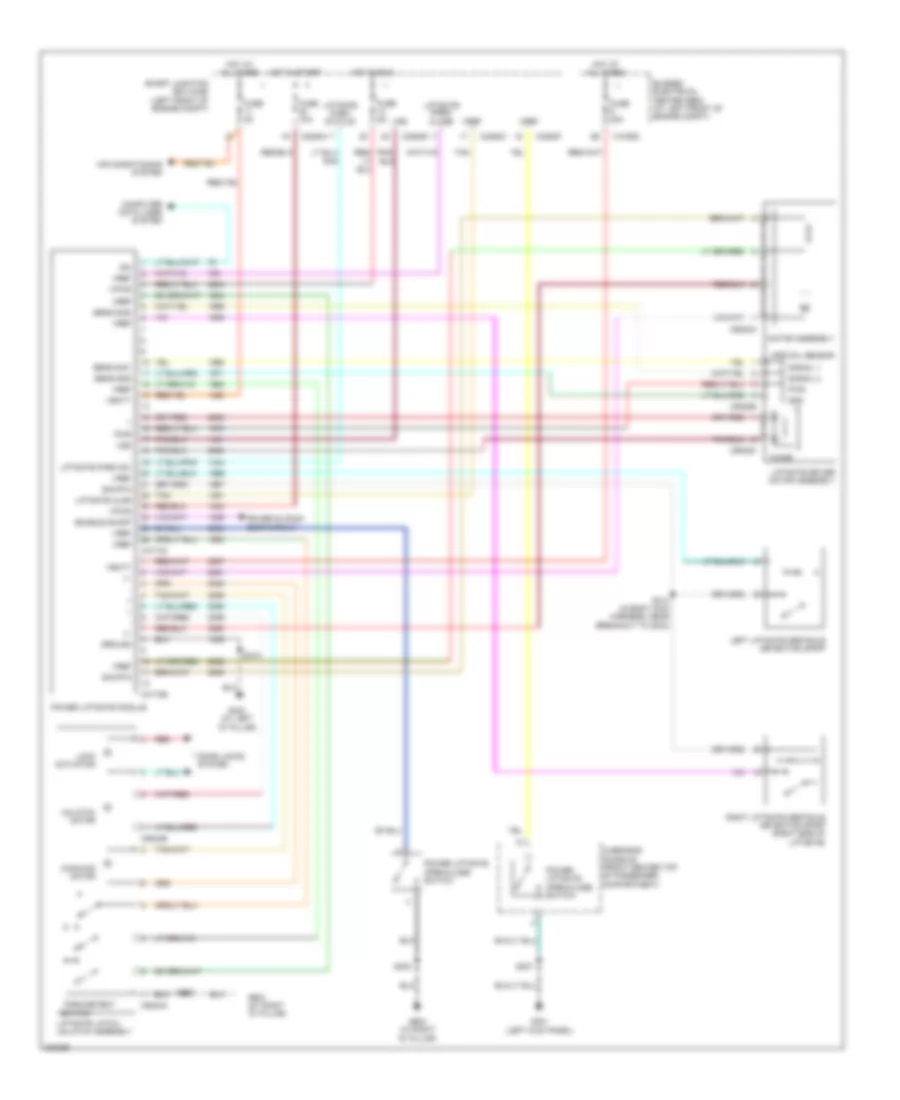

Электросхема привода багажника для Ford Freestar 2005

https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO

Электросхема привода багажника для Ford Freestar 2005 - Список элементов:

• +/-
• Air conditioning system
• Bussed electrical center (bec) (at left front of engine compt)
• C1035d
• C2280c
• C2280d
• C2280f
• C2280h
• C4174a
• C4174b
• C9022a
• C9022b
• C9022c
• C9024a
• C9024b
• Chime
• Cinching motor
• Computer data lines system
• Door locks system
• Enable on/off
• Fork/detent
• Fuse 10a
• Fuse 30a
• Fuse 5a
• G301 (left kick panel)
• G400 (at left "d" pillar)
• G904 (at right "d" pillar)
• Gnd
• Ground
• Hot at all times
• Hot in run
• Hot in start
• Iso
• Left liftgate obstacle detection strip
• Liftgate ajar
• Liftgate driver motor assembly
• Liftgate latch/ unlatch assembly
• Liftgate open/ close
• Liftgate park status
• Liftgate park sw
• Lock actuator
• Motor assembly
• Optical sensor
• Overhead console (front center top of passenger compartment)
• Power liftgate module
• Power liftgate open/close switch
• Power sliding door circuit
• Pwr
• Red
• Right liftgate obstacle detection strip (right side of liftgate)
• S307
• S310
• S314 (in body main harness, near breakout to g303)
• S402
• Sens gnd
• Sens sig1
• Sens sig2
• Sig rtn
• Signal 1
• Signal 2
• Smart junction box (sjb) (left front of engine compt)
• Switch
• Tan
• Unlatch motor
• Vbatt
• Vpwr
• Vref
• Vss

схема раздвижной двери питания для Ford Freestar 2005

https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO

Få åtkomst till alla kopplingsscheman bil

схема раздвижной двери питания для Ford Freestar 2005 - Список элементов:

• (at left "d" pillar)
• (in body main harness, near breakout to g300) s308
• (left kick panel) g301
• (rear of left rear door)
• (right rear door window regulator harness, near breakout to latch reverse actuator) s700
• (right rear door window regulator harness, near breakout to latch reverse actuator) s800
• +/-
• Actuator ctrl
• Bussed electrical center (bec) (at left side of engine compt)
• C1035d
• C2280c
• C2280d
• C2280f
• C2280h
• C3071a
• C3071b
• C3071c
• C3071d
• C3071e
• C3072a
• C3072b
• C3072c
• C3072d
• C3072e
• C384
• C399
• C4174a
• C706
• C806
• Computer data lines system
• Enable on/off
• Fuel door interlock switch (left rear of vehicle)
• Fuse 30a
• Fuse 5a
• G303
• G305 (on floor, behind driver seat)
• G400
• G400 (at left "d" pillar)
• Ground
• Hot at all times
• Hot in run
• Hot in start or run
• Illumination
• Iso
• Left detent switch
• Left power sliding door clutch
• Left power sliding door latch reverse actuator (front of left power sliding door)
• Left power sliding door motor (in left quarterpanel)
• Left power sliding door position sensor
• Left power sliding door switch (left "b" pillar)
• Left pwr sliding dr sw
• Left side power sliding door module
• Left sliding door ajar switch (bottom left "b" pillar)
• Left sliding door contact switch (left "b" pillar)
• Open/close sw
• Overhead console (front center top of passenger compt)
• Park status
• Power liftgate module
• Pwr
• Rear pwr sliding dr sw
• Red
• Return
• Right detent switch (rear of right rear door)
• Right power sliding door clutch
• Right power sliding door latch reverse actuator (front of right sliding door)
• Right power sliding door motor (in right quarterpanel)
• Right power sliding door position sensor
• Right power sliding door switch (right "b" pillar)
• Right pwr sliding dr sw
• Right side power sliding door module (above right rear wheelwell)
• Right sliding door ajar switch (right "c" pillar)
• Right sliding door contact switch (right "b" pillar)
• S201
• S302
• S310
• S904
• Sensor signal
• Sig rtn
• Sliding door open/ close sw
• Sliding door park status
• Smart junction box (sjb) (behind left side of dash)
• Tan/red
• Vbatt
• Vpwr
• Vref
• Vss
