AIR CONDITIONING – Honda Odyssey EX 1997 – SYSTEM WIRING DIAGRAMS

  1. Home
  2. >HONDA
  3. >Honda 1997
  4. >Honda Odyssey EX 1997
  5. >Honda Odyssey EX 1997 - ALL WIRING DIAGRAMS

Download PDF file

AIR CONDITIONING

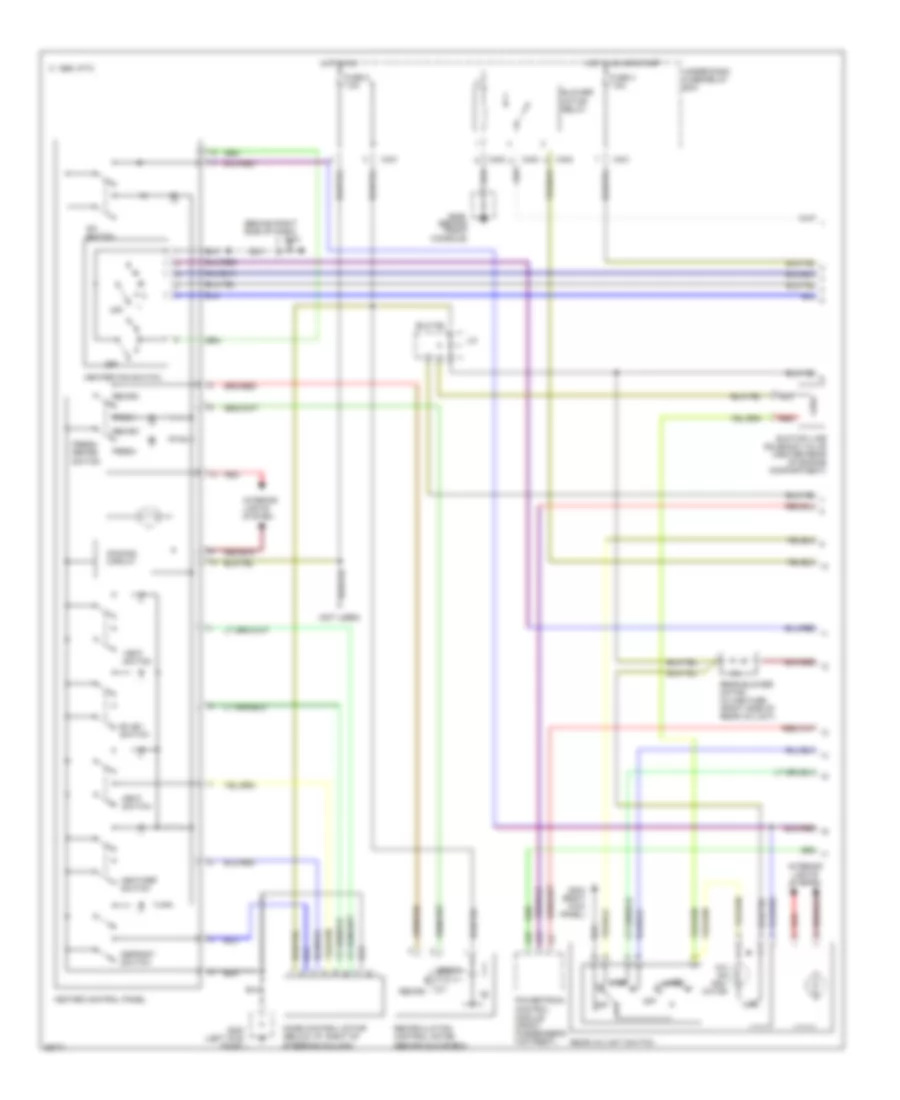

Air Conditioning Wiring Diagrams (1 of 2) for Honda Odyssey EX 1997

Air Conditioning Wiring Diagrams (1 of 2) for Honda Odyssey EX 1997 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file

List of elements for Air Conditioning Wiring Diagrams (1 of 2) for Honda Odyssey EX 1997:

  • (behind
  • (behind glove box)
  • (behind right side of dash)
  • (left kick
  • (not used)
  • A/c on indi- cator
  • A/c switch
  • A17
  • A27
  • Bi-lev switch
  • Blower motor relay
  • C 1995 vftc
  • C401
  • C402
  • C403
  • C404
  • Console)
  • Defrost switch
  • Dimming circuit
  • Fresh
  • Fresh/ recirc switch
  • Front
  • Fuse 4 7.5a
  • Fuse 8 7.5a
  • G200
  • G201
  • G203 (right kick panel)
  • G206
  • Heat switch
  • Heat/def switch
  • Heater control panel
  • Heater fan switch
  • Hot in on
  • Hot in on or start
  • Interior lights system
  • J/c
  • Med
  • Mode control motor (below i/p, right of steering column)
  • Off
  • Panel)
  • Powertrain control module (front passenger's footrest)
  • Rear a/c unit switch
  • Rear blower motor in-line fuse (right side of rear a/c unit)
  • Recirc
  • Recirculation control motor
  • Red
  • Suction line solenoid valve (center rear of engine compartment)
  • Under-dash fuse/relay box
  • Vent switch

Air Conditioning Wiring Diagrams (2 of 2) for Honda Odyssey EX 1997

Air Conditioning Wiring Diagrams (2 of 2) for Honda Odyssey EX 1997 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
获取访问所有汽车的接线图Download PDF file

List of elements for Air Conditioning Wiring Diagrams (2 of 2) for Honda Odyssey EX 1997:

  • (above left kick panel) a/c diode
  • (behind glove box)
  • (left front of engine compt)
  • A/c compressor clutch
  • A/c compressor clutch relay
  • A/c pressure switch (right side of engine compartment)
  • A/c thermostat (behind glove box)
  • Battery
  • Blower motor
  • Blower resistor
  • C 1995 vftc
  • C262
  • C263
  • C264
  • C265
  • Condenser fan motor
  • Condenser fan relay (left front of engine compt)
  • Fuse 17 40a
  • Fuse 21 20a
  • Fuse 34 20a
  • G100 (behind left side of front bumper)
  • G101 (behind right side of front bumper)
  • G114 (left rear of engine)
  • G200 (behind left kick panel)
  • Ground
  • High
  • Hot at all times
  • J/c
  • Low
  • Nca
  • Power
  • Radiator fan control module (behind glove box)
  • Radiator fan motor
  • Radiator fan relay
  • Radiator fan switch a (right side of engine)
  • Radiator fan switch b (right front of engine)
  • Rear blower motor
  • Rear blower motor resistor (right side of rear a/c unit)
  • Red
  • Relay ctrl
  • Temp sw in
  • Thermistor
  • Transmission control module
  • Under-hood fuse/relay box
