ACTIVE BODYWORKS

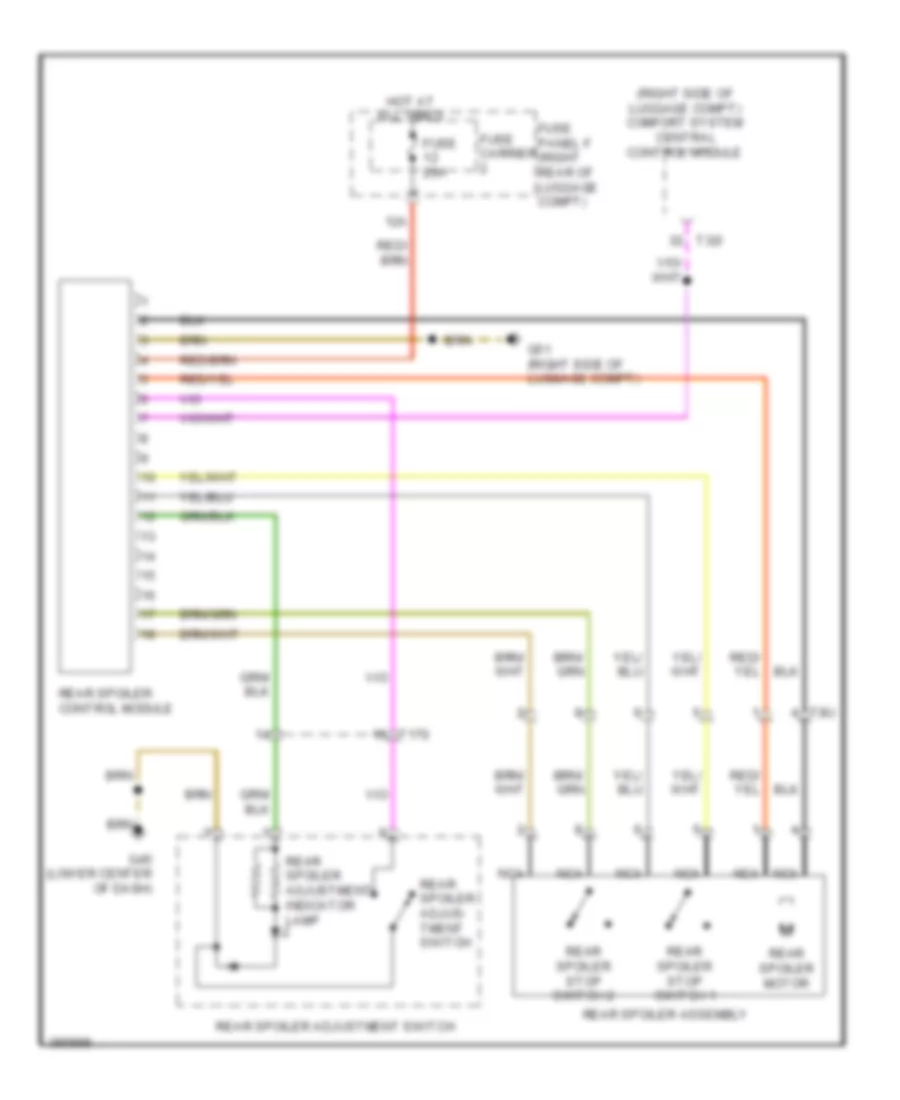

Active Bodyworks Wiring Diagram for Audi A7 2012

Active Bodyworks Wiring Diagram for Audi A7 2012 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Active Bodyworks Wiring Diagram for Audi A7 2012:

  • (right side of luggage compt) comfort system central control module
  • 12a
  • Fuse 20a
  • Fuse carrier
  • Fuse panel f (right rear of luggage compt)
  • G45 (lower center of dash)
  • G51 (right side of luggage compt)
  • Hot at all times
  • Nca
  • Rear spoiler adjus- tment switch
  • Rear spoiler adjustment indicator lamp
  • Rear spoiler adjustment switch
  • Rear spoiler assembly
  • Rear spoiler control module
  • Rear spoiler motor
  • Rear spoiler stop switch 1
  • Rear spoiler stop switch 2
  • T170
  • T32i
  • T8u
