COOLING FAN – Cadillac Eldorado 1992 – SYSTEM WIRING DIAGRAMS

COOLING FAN

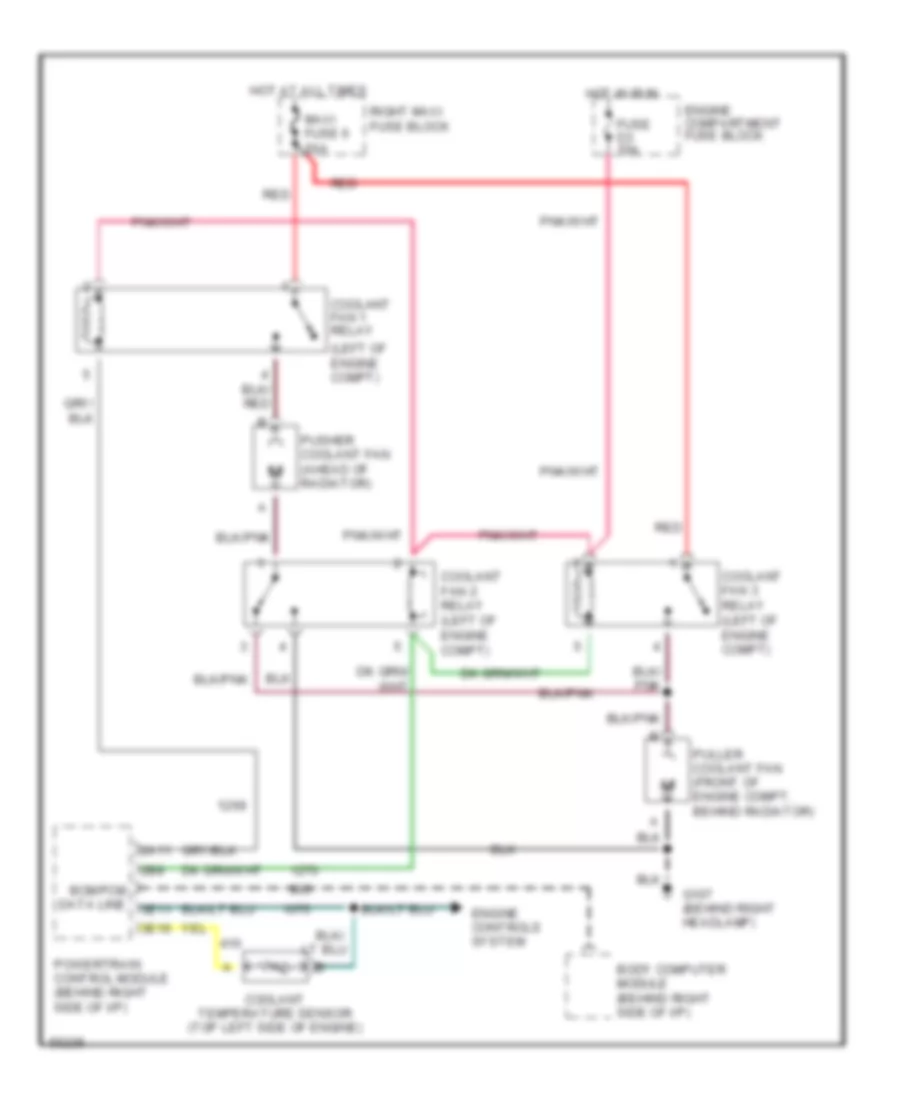

Cooling Fan Wiring Diagram for Cadillac Eldorado 1992

List of elements for Cooling Fan Wiring Diagram for Cadillac Eldorado 1992:

• (left of engine compt)
• 2a11
• 2b8
• 3e11
• 3e16
• Bcm/pcm data line
• Body computer module (behind right side of i/p)
• Coolant fan 1 relay
• Coolant fan 2 relay (left of engine compt)
• Coolant fan 3 relay (left of engine compt)
• Coolant temperature sensor (top left side of engine)
• Engine compartment fuse block
• Engine controls system
• Fuse d3 10a
• G107 (behind right headlamp)
• Hot at all times
• Hot in run
• Maxi fuse 6 50a
• Powertrain control module (behind right side of i/p)
• Puller coolant fan (front of engine compt, behind radiator)
• Pusher coolant fan (ahead of radiator)
• Red
• Right maxi fuse block
