COOLING FAN – BMW 735i 1990 – SYSTEM WIRING DIAGRAMS

COOLING FAN

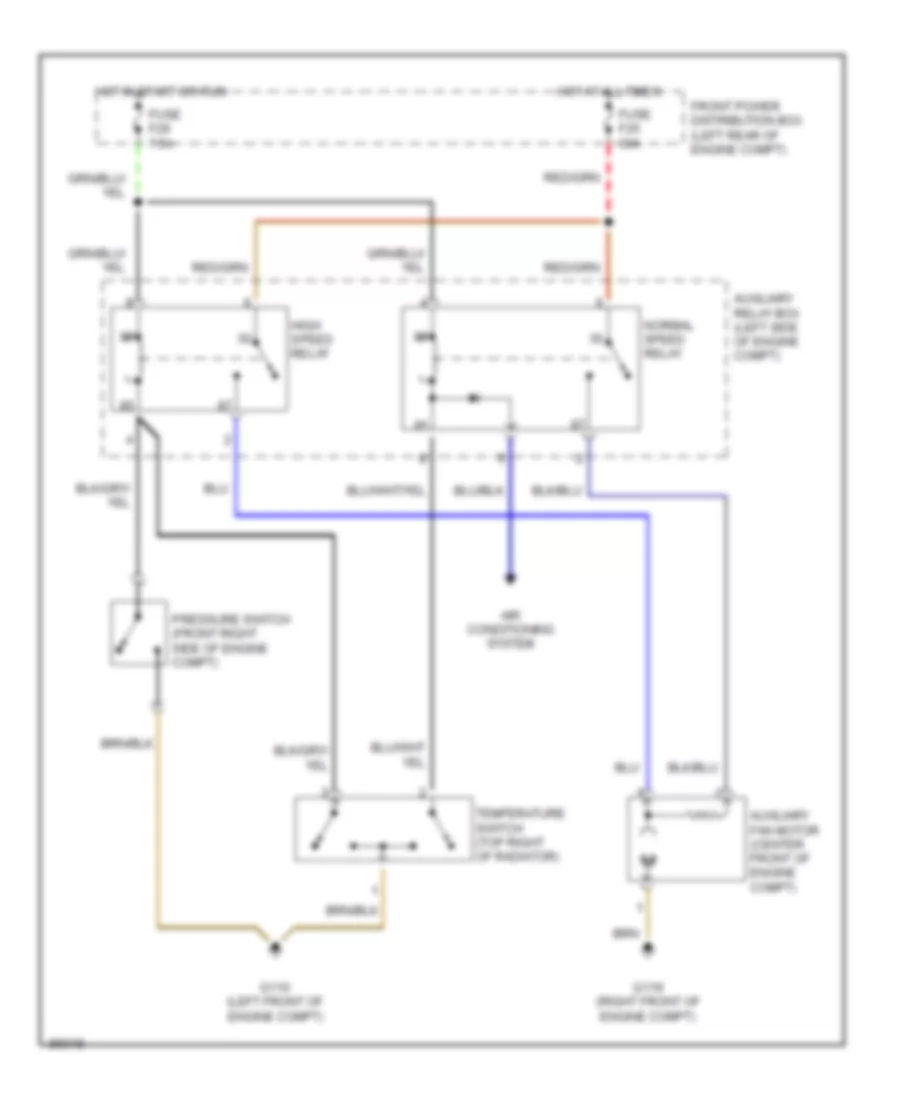

Auxiliary Cooling Fan Wiring Diagram for BMW 735i 1990

List of elements for Auxiliary Cooling Fan Wiring Diagram for BMW 735i 1990:

• Air conditioning system
• Auxiliary fan motor (center front of engine compt)
• Auxiliary relay box (left side of engine compt)
• Front power distribution box (left rear of engine compt)
• Fuse f25 30a
• Fuse f29 7.5a
• G110 (left front of engine compt)
• G119 (right front of engine compt)
• High speed relay
• Hot at all times
• Hot in start or run
• Normal speed relay
• Pressure switch (front right side of engine compt)
• Temperature switch (top right of radiator)

Electrical Box Fan Wiring Diagram for BMW 735i 1990

List of elements for Electrical Box Fan Wiring Diagram for BMW 735i 1990:

• (not used)
• Diagnostic connector (right rear of engine compt)
• E-box fan (not in usa) (in e-box)
• Front power distribution box (left rear of engine compt)
• Fuse f17 7.5a
• Fuse f28 15a
• G117 (right rear of engine compt)
• Hot in start or run
• Instrument cluster
• Oil pressure switch (top rear of engine)
• Oil warning ind
• Servotronic control unit (left kick panel)
