INTERIOR LIGHTS – Mitsubishi Lancer GT 2014 – SYSTEM WIRING DIAGRAMS

INTERIOR LIGHTS

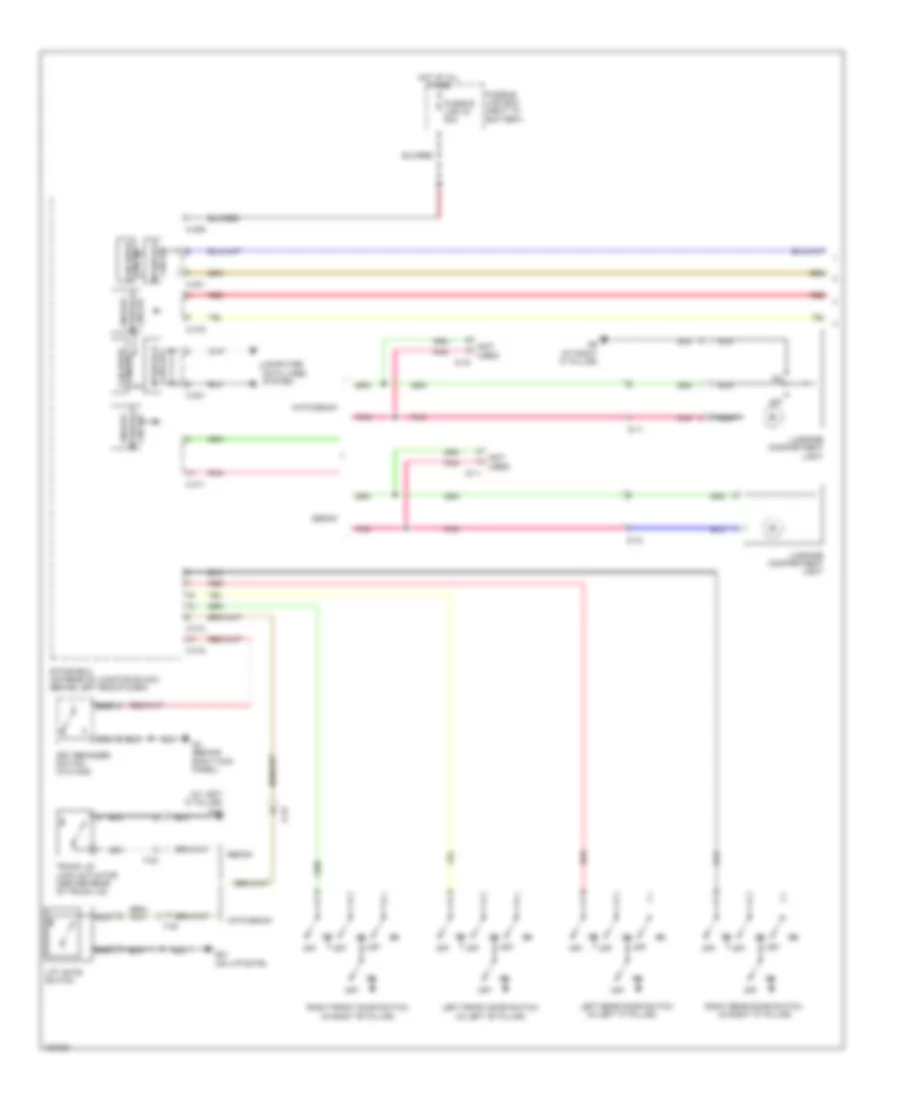

Courtesy Lamps Wiring Diagram, Evolution (1 of 2) for Mitsubishi Lancer GT 2014

Courtesy Lamps Wiring Diagram, Evolution (1 of 2) for Mitsubishi Lancer GT 2014 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file

List of elements for Courtesy Lamps Wiring Diagram, Evolution (1 of 2) for Mitsubishi Lancer GT 2014:

  • (in left "c" pillar)
  • (left "c" pillar) g11
  • Analog
  • C-301
  • C-309
  • C-311
  • C-313
  • C-315
  • C-316
  • Can drive circuit
  • Circuit can drive
  • Circuit interface
  • Circuit interface analog
  • Computer data lines system
  • D-16
  • Etacs-ecu (on rear of junction block behind left end of dash)
  • F-27
  • Fusible link 34 80a
  • Fusible link box (next to battery)
  • G4 (behind right kick panel)
  • Hot at all times
  • Ig1 relay
  • Interface circuit
  • Key reminder switch
  • Left front door switch (in left "b" pillar)
  • Left rear door switch
  • Luggage compartment light
  • Nca
  • Off
  • Pnk
  • Red
  • Right front door switch (in right "b" pillar)
  • Right rear door switch (in right "c" pillar)
  • Trunk lid latch

Courtesy Lamps Wiring Diagram, Evolution (2 of 2) for Mitsubishi Lancer GT 2014

Courtesy Lamps Wiring Diagram, Evolution (2 of 2) for Mitsubishi Lancer GT 2014 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Courtesy Lamps Wiring Diagram, Evolution (2 of 2) for Mitsubishi Lancer GT 2014:

  • C-105
  • Can transceiver circuit
  • Combination meter
  • Cpu
  • Door
  • Front dome light
  • G4 (behind right kick panel)
  • Joint connector (can1) (c-06) (left side of dash)
  • Lcd (each door)
  • Off
  • Pnk
  • Rear dome light (w/o sunroof)
  • Red

Courtesy Lamps Wiring Diagram, Except Evolution (1 of 2) for Mitsubishi Lancer GT 2014

Courtesy Lamps Wiring Diagram, Except Evolution (1 of 2) for Mitsubishi Lancer GT 2014 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Courtesy Lamps Wiring Diagram, Except Evolution (1 of 2) for Mitsubishi Lancer GT 2014:

  • (at left "c" pillar) g10
  • (in left "c" pillar)
  • (not used)
  • C-301
  • C-309
  • C-311
  • C-313
  • C-315
  • C-316
  • Can drive circuit
  • Circuit
  • Circuit interface
  • Circuit interface analog
  • Computer data lines system
  • D-11
  • D-15
  • Etacs-ecu (on rear of junction block, behind left end of dash)
  • F-23
  • F-30
  • Fusible link 34 80a
  • Fusible link box (next to battery)
  • G21 (on liftgate)
  • G4 (behind right kick panel)
  • G9 (at right "c" pillar)
  • Hatchback
  • Hot at all times
  • Interface analog
  • Interface circuit
  • Key reminder switch (w/o kos)
  • Left front door switch (in left "b" pillar)
  • Left rear door switch
  • Lift gate switch
  • Luggage compartment light
  • Nca
  • Off
  • Pnk
  • Red
  • Right front door switch (in right "b" pillar)
  • Right rear door switch (in right "c" pillar)
  • Sedan
  • Trunk lid lock actuator (center rear of trunk lid)

Courtesy Lamps Wiring Diagram, Except Evolution (2 of 2) for Mitsubishi Lancer GT 2014

Courtesy Lamps Wiring Diagram, Except Evolution (2 of 2) for Mitsubishi Lancer GT 2014 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Courtesy Lamps Wiring Diagram, Except Evolution (2 of 2) for Mitsubishi Lancer GT 2014:

  • C-06
  • Can transceiver circuit
  • Combination meter
  • Cpu
  • Door
  • Front dome light
  • G4 (behind right kick panel)
  • G7 (top left side of headliner)
  • J/c (can1) (c-06) (left side of dash)
  • Lcd (each door)
  • Off
  • Pnk
  • Rear dome light (w/o sunroof)
  • Red

Instrument Illumination Wiring Diagram, Evolution for Mitsubishi Lancer GT 2014

Instrument Illumination Wiring Diagram, Evolution for Mitsubishi Lancer GT 2014 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Instrument Illumination Wiring Diagram, Evolution for Mitsubishi Lancer GT 2014:

  • (not used)
  • (on top of steering column) column switch-ecu
  • A/c control panel
  • Asc off switch
  • Awc switch (w/ steering wheel audio remote control switch)
  • Awc switch (w/o steering wheel audio remote control switch)
  • C-107
  • C-128
  • C-130
  • C-145
  • C-202
  • C-205
  • C-206
  • C-301
  • C-315
  • C-317
  • C-33
  • Center panel unit
  • Clock spring (in steering column)
  • Column ecu
  • Combination meter
  • Cpu
  • Cruise control switch
  • Etacs-ecu (on rear of junction block, behind left end of dash)
  • Fuse 30a
  • Fuse 7.5a
  • Fuse 9 15a
  • G4 (behind right kick panel)
  • G6 (behind center of dash)
  • Head
  • Heated seat switch
  • Hot at all times
  • Hot w/ ig1 relay energized
  • Ignition key hole illumination light (w/ kos)
  • Ill
  • Interface circuit
  • J/c 1 (c-101)
  • Key reminder switch
  • Led drive circuit
  • Lighting switch
  • Lin drive circuit
  • Nca
  • Pnk
  • Power window main switch
  • Radio & cd player (w/o mmcs) multi-vision display (w/ mmcs)
  • Rheostat
  • Shift lever (center console)
  • Shift lever position indicator panel
  • Steering wheel audio remote control switch
  • Steering wheel voice control switch
  • Tail
  • Twin clutch sport shift transaxle control mode switch
  • W/ mmcs
  • W/o mmcs

Instrument Illumination Wiring Diagram, Except Evolution (1 of 2) for Mitsubishi Lancer GT 2014

Instrument Illumination Wiring Diagram, Except Evolution (1 of 2) for Mitsubishi Lancer GT 2014 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Instrument Illumination Wiring Diagram, Except Evolution (1 of 2) for Mitsubishi Lancer GT 2014:

  • (not used)
  • A/c control panel (automatic a/c)
  • Asc off switch
  • Automatic a/c
  • Awc switch
  • C-104
  • C-105
  • C-127
  • C-146
  • C-147
  • C-204
  • C-205
  • C-26
  • C-315
  • C-317
  • C-49
  • Center panel unit
  • Clock spring (in steering column)
  • Combination meter
  • Cpu
  • Drive mode selector (awd)
  • Etacs-ecu (on rear of junction block, behind left end of dash)
  • Fuse 30a
  • Fuse 7.5a
  • G4 (behind right kick panel)
  • Heated seat switch
  • Heater control panel (manual a/c)
  • Hot at all times
  • Ill
  • Interface circuit
  • Led drive circuit
  • Manual a/c
  • Multi-vision display (w/ mmcs) radio & cd player (w/o mmcs)
  • Nca
  • Pnk
  • Rheostat
  • Shift lever (center console)
  • Shift lever position indicator panel
  • Shift switch assembly (w/ sport mode) (center console)
  • Twin clutch sport shift transaxle control mode switch
  • W/ mmcs
  • W/o mmcs

Instrument Illumination Wiring Diagram, Except Evolution (2 of 2) for Mitsubishi Lancer GT 2014

Instrument Illumination Wiring Diagram, Except Evolution (2 of 2) for Mitsubishi Lancer GT 2014 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Instrument Illumination Wiring Diagram, Except Evolution (2 of 2) for Mitsubishi Lancer GT 2014:

  • (not used)
  • (w/o kos) ignition key hole illumination light
  • C-125
  • C-209
  • C-301
  • C-315
  • C-317
  • Column ecu
  • Column switch-ecu (on top of steering column)
  • Cpu
  • Cruise control switch
  • Dimmer
  • Etacs-ecu (on rear of junction block, behind left end of dash)
  • Fuse 15a
  • Fuse 7.5a
  • G4 (behind right kick panel)
  • G5 (behind instrument cluster)
  • Head
  • Hot at all times
  • Hot w/ ig1 relay energized
  • Interface circuit
  • J/c 1 (c-03) (right end of dash)
  • Key reminder switch
  • Lighting switch
  • Lin drive circuit
  • Nca
  • Power window main switch
  • Steering wheel audio remote control switch
  • Steering wheel voice control switch
  • Tail
