POWER MIRRORS

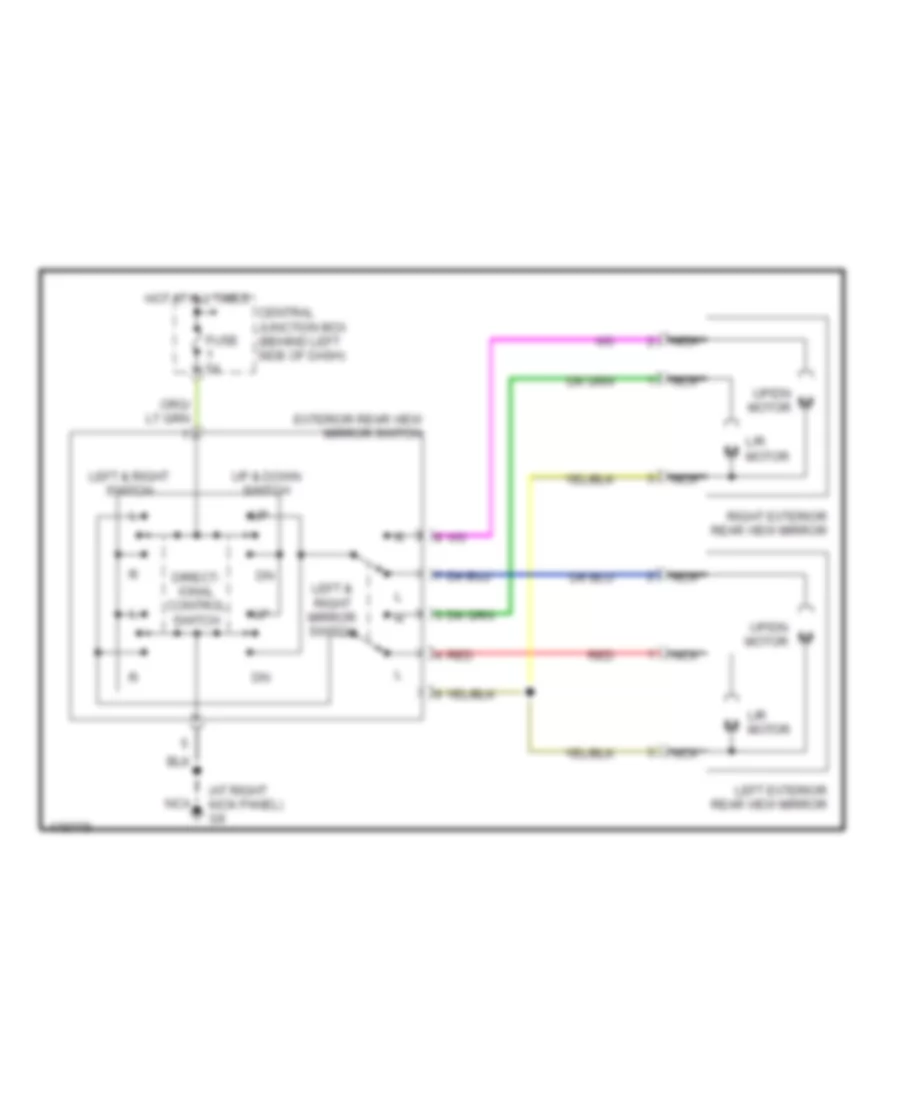

Power Mirrors Wiring Diagram for Mazda B3000 Dual Sport 2003

Power Mirrors Wiring Diagram for Mazda B3000 Dual Sport 2003 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Power Mirrors Wiring Diagram for Mazda B3000 Dual Sport 2003:

  • (at right kick panel) g9
  • Central junction box (behind left side of dash)
  • Direct- ional control switch
  • Exterior rear view mirror switch
  • Fuse 5a
  • Hot at all times
  • L/r motor
  • Left & right mirror switch
  • Left & right switch
  • Left exterior rear view mirror
  • Nca
  • Red
  • Right exterior rear view mirror
  • Up & down switch
  • Up/dn motor
