DEFOGGERS

Heated Mirrors Wiring Diagram for Volkswagen Jetta Wolfsburg Edition 2003

Heated Mirrors Wiring Diagram for Volkswagen Jetta Wolfsburg Edition 2003 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file

List of elements for Heated Mirrors Wiring Diagram for Volkswagen Jetta Wolfsburg Edition 2003:

  • Driver's side door control module
  • Driver's side power mirror
  • Fuse 15a
  • Fuse panel (behind left side of dash)
  • G43 (behind right kick panel)
  • G44 (behind left kick panel)
  • Heating element
  • Hot at all times
  • Nca
  • Passenger's side door control module
  • Passenger's side power mirror

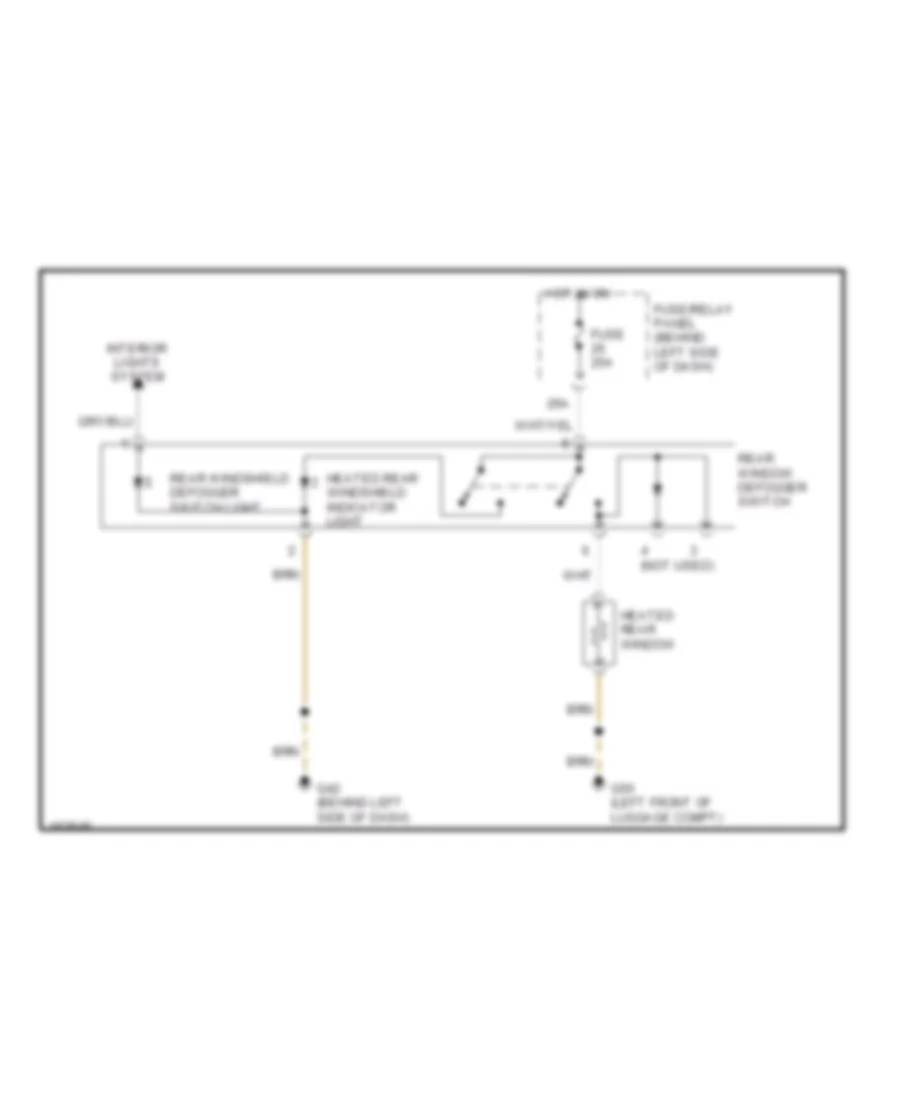

Rear Defogger Wiring Diagram for Volkswagen Jetta Wolfsburg Edition 2003

Rear Defogger Wiring Diagram for Volkswagen Jetta Wolfsburg Edition 2003 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Rear Defogger Wiring Diagram for Volkswagen Jetta Wolfsburg Edition 2003:

  • (not used)
  • 26a
  • Fuse 25a
  • Fuse/relay panel (behind left side of dash)
  • G42 (behind left side of dash)
  • G50 (left front of luggage compt)
  • Heated rear window
  • Heated rear windshield indicator light
  • Hot in on
  • Interior lights system
  • Rear window defogger switch
  • Rear windshield defogger switch light
