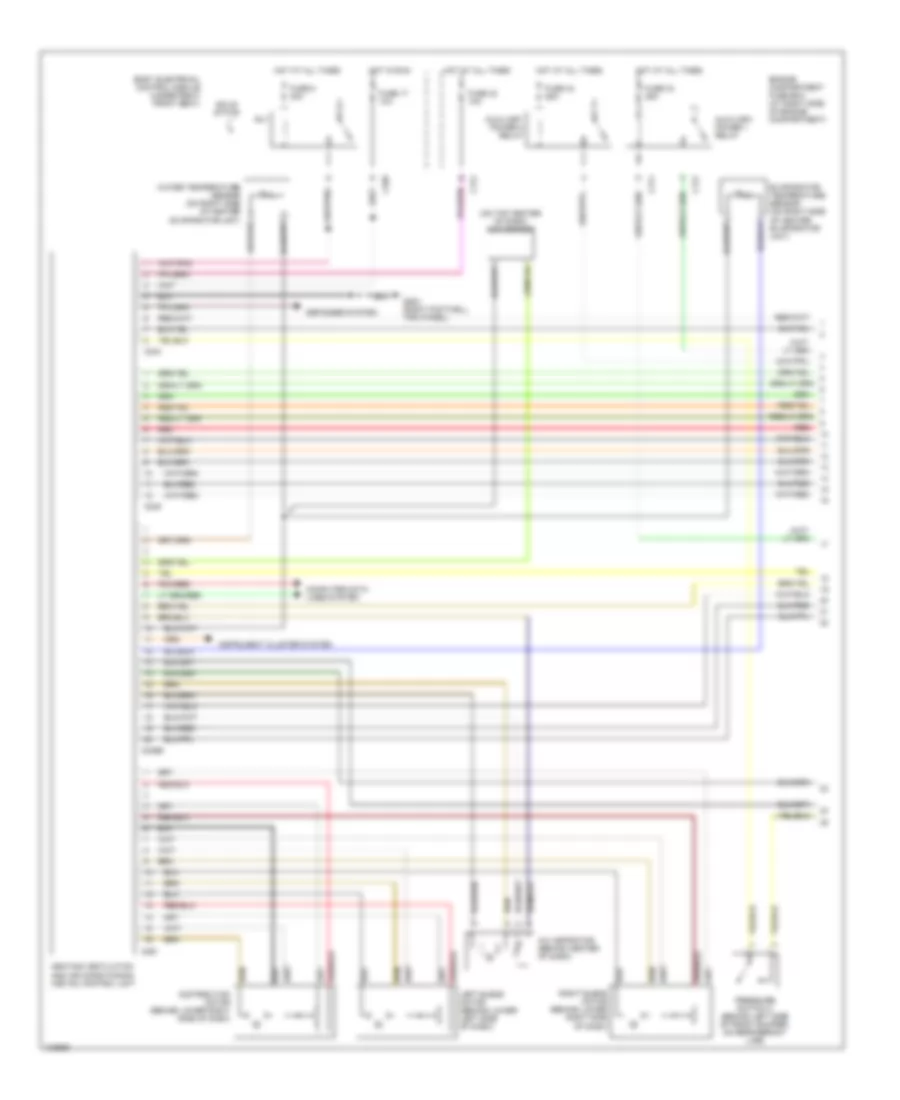

AIR CONDITIONING Air Conditioning Wiring Diagrams (1 of 2) for Land Rover Range Rover HSE 1998 List of elements for Air Conditioning Wiring Diagrams (1 of 2) for Land Rover Range Rover HSE 1998: 32 (on top center of dash) sun sensor A/c aspirator (behind center of dash) Auxiliary power 1 relay Auxiliary power 2 relay Body electrical control module (under right front seat) C172 C174 C244 C245 C246b C258 C261 Computer data lines system Defogger system Engine compartment fuse box (at right side of engine compartment) Evaporator temperature sensor (on right side of heater evaporator unit) Fuse 17 10a Fuse 34 25a Fuse 42 10a Fuse 43 25a Fuse 8 30a G203 (right footwell trim panel) Heating ventilation and air conditioning (hevac) control unit Hot at all times Hot in run Instrument cluster system Left blend motor (behind lower left side of dash) Pnk/red Pressure switch 2 (behind left side of front bumper, on refrigerant line) Red Rl7 Solid state Air Conditioning Wiring Diagrams (2 of 2) for Land Rover Range Rover HSE 1998 List of elements for Air Conditioning Wiring Diagrams (2 of 2) for Land Rover Range Rover HSE 1998: 47 (lower left side of dash) (right side of engine compartment) g101 (right side of engine compt) 1997 model 1998 model A/c condenser fan 1 relay A/c condenser fan 2 relay A/c control relay A/c dual pressure switch (behind left side of front bumper, in refrigerant line) Body electrical control module (under right front seat) C112 C172 C175 C176 C177 C203 C206 C239 C240 C255 C258 C505 C507 C508 Compressor clutch Engine compartment fuse box (at right side of engine compartment) Engine control module (ecm) (at right front of engine compt) Engine controls system Engine main control relay Fuse 31 30a Fuse 36 30a Fuse 37 20a G101 G105 (right rear of engine compt) G203 (right footwell trim panel) Hot at all times Hot in run Left blower motor Left blower motor (lower left side of dash) Left condenser fan motor (behind front grille) Left recirculating motor (behind lower left side of dash) Nca Red Right blower motor (lower right side of dash) Right condenser fan motor (behind front grille) Right recirculating motor (behind lower right side of dash) Solid state
ANTI-LOCK BRAKES Anti-lock Brake Wiring Diagrams for Land Rover Range Rover HSE 1998 List of elements for Anti-lock Brake Wiring Diagrams for Land Rover Range Rover HSE 1998: 50 (1997) (1998) (left front of eng compt) (left rear of eng compt) (left side of eng compt, top of brake fluid reservoir) brake fluid level switch (right rear of eng compt) Abs booster unit 1-left front 2-right front 4-left rear 5-right rear 6-traction control 7-demanual (left rear of eng compt) Abs hydraulic pump (left rear of eng compt) Abs power relay Abs pressure switch unit (left side of eng compt) Abs pump relay Anti-lock brake system ecu (behind lower right side of dash) Body electrical control module (beneath right front seat) C112 C114 C172 C173 C176 C177 C248 C285 C507 Computer data lines system Cruise control system Data link connector (obd ii) (behind left side of dash, right of steering column) Electronic suspension system Engine compartment fuse box (right front of eng compt) Engine control module (ecm) (right side of eng compt) Fuse 10a Fuse 30a Fuse 5a G100 G104 G105 G203 (right footwell trim panel) Hot at all times Hot in run & start (when ignition relay energized) Hot in run & start (when rl10 relay energized) Left front wheel speed sensor (behind left front wheel) Left rear wheel speed sensor (behind left rear wheel) Maxi fuse 3 40a Nca Ohms Pnk Pnk/red Red Resistor (under left side of dash) Right front wheel speed sensor (behind right front wheel) Right rear wheel speed sensor (behind right rear wheel) Solid state Stop lamp switch (on brake support)
ANTI-THEFT Anti-theft Wiring Diagram (1 of 2) for Land Rover Range Rover HSE 1998 List of elements for Anti-theft Wiring Diagram (1 of 2) for Land Rover Range Rover HSE 1998: 55 (behind right footwell trim panel) (left front side of luggage compt) (left side of luggage compt) (left side of luggage compt) g400 (right front side of luggage compt) (right side of luggage compt) (right side of luggage compt) g401 Alarm rf aerial module (right side of luggage compt) Antenna Body electrical control module (beneath right front seat) C112 C257 C323 C325 C326 C361 C362 C507 C755l C755r C758l C758r C762l C762r C763l C763r C901a C907 Cdl motor Cdl sw Door ajar sw Engine control module (right side of eng compt) Fuse 20a Fuse 30a G203 G400 G401 Hot at all times Ignition switch Iii Key sw Left front door lock actuator (front door trim panel) Left front door outstation (behind front door trim panel) Left front window motor (behind front door trim panel) Left rear window motor (behind front door trim panel) Nca Red Right front door lock actuator (front door trim panel) Right front door outstation (behind front door trim panel) Right front window motor (behind front door trim panel) Right rear window motor (behind front door trim panel) Solid state Superlock Ultrasonic module (top of left "b "pillar) W/ memory seat Anti-theft Wiring Diagram (2 of 2) for Land Rover Range Rover HSE 1998 List of elements for Anti-theft Wiring Diagram (2 of 2) for Land Rover Range Rover HSE 1998: 54 (left side of luggage compt) (right rear of eng compt) (right side of eng compt) (right side of luggage compt) Alarm sounder (right side of eng compt) Battery back up alarm sounder (right side of eng compt) Body electrical control module (beneath right front seat) C114 C120 C133 C255 C256 C258 C323 C324 C325 C326 C361 C362 C625 Cdl motor Closed on impack Door ajar sw Engine controls system Exterior lights system (side lamps) Exterior lights system (turn/ hazard lamps) Fuel pump Fuel tank module (top of fuel tank) G101 G105 G105 (right rear of eng compt) G203 (right footwell trim panel) G400 G401 G401 (right side of luggage compt) Headlamp system Hood switch (near right horn) Inertia fuel shut-off switch (behind right footwell trim panel) Interior lights system Key-in switch (in steering lolumn) Left rear door lock actuator (top of left rear door) Nca Passive immobilization coil (underside of steering column) Pnk Red Right rear door lock actuator (top of right rear door) Right tailgate lamps Solid state Sunroof anti-trap (front center of roof) Superlock Tailgate switch (center of tailgate) Theft alarm led W/ battery back up alarm sounder W/o battery back up alarm sounder
COMPUTER DATA LINES Computer Data Lines for Land Rover Range Rover HSE 1998 List of elements for Computer Data Lines for Land Rover Range Rover HSE 1998: 29 (not used) (right footwell trim panel) (right side of eng compt) Air bag diagnostic control module (beneth center console) Air suspension delay turn off timer (beneath left front seat) Air suspension ecu (beneath left front seat) Anti-lock brake system ecu (right side of dash) Auto gear box control unit (beneath left front seat) Body electrical control module (beneath right front seat) C106 C172 C246a C246b C255 C626 Connector (obdii) (left side Data link Engine compartment fuse box (right side of eng compt) Engine control module (right front of eng compt) Fuse 5a G101 G203 Heating ventilation/ air condi- tioning control unit (center of dash) Hot at all times Of dash, right of steering column) Pnk Pnk/red W/ a/c W/o a/c
COOLING FAN Cooling Fan Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Cooling Fan Wiring Diagram for Land Rover Range Rover HSE 1998: 26 (right rear side of eng compt) (right side of eng compt) A/c condenser fan 1 relay A/c condenser fan 2 relay A/c control relay A/c dual pressure switch (close- 305 psi open- 247 psi) (left side front bumper) C172 C175 C176 C177 C505 C508 C509 Engine compartment fuse box (right side of eng compt) Engine control module (right side of eng compt) Engine main control relay Fuse 20a Fuse 30a G101 G105 Hot at all times Hot in run & start (when ignition relay energized) Left condenser fan motor Nca Right condenser fan motor Short- ing link 6
CRUISE CONTROL Cruise Control Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Cruise Control Wiring Diagram for Land Rover Range Rover HSE 1998: 32 (beneath right front seat) (pins 11-15 not used) (right footwell trim panel) A/t only Anti-lock brakes system Body electrical control unit (beneath right front seat) Brake switch vent valve (on brake pedal support) C112 C255 C285 C505 Clock spring (top of steering column) Clutch pedal position switch (left side of dash) Cruise control converter/ inverter module (right of steering column) Cruise control module (right of steering column) Cruise control switch Cruise control switches Cruise control vacuum pump (left rear corner of eng compt) of eng compt) Engine control module (behind battery) Fuse 10a G203 G301 Gear box position switch (left side of transmission) Hot in run & start Interior lights system M/t only Nca Red Res/ decel Set/ accel Solid state Stop lamp switch (on brake pedal support)
DEFOGGERS Heated Windshield Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Heated Windshield Wiring Diagram for Land Rover Range Rover HSE 1998: 29 (center rear of eng compt) (right rear of eng compt) Body electrical control module (beneath right front seat) C114 C128 C130 C172 C173 C244 C246a C246b C255 C507 Engine compartment fuse box (right side of eng compt) Engine control module (right side of eng compt) Fuse 30a G121 G167 Generator Heated windshield Heating ventilation/ air conditioning control unit (center of dash) Hot at all times Hot in run & start (when ignition relay energized) Left heated windshield relay Nca Right heated windshield relay Solid state W/ a/c W/o a/c Rear Defogger & Heated Mirrors Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Rear Defogger & Heated Mirrors Wiring Diagram for Land Rover Range Rover HSE 1998: 35 (left side of luggage compt) (right side of luggage compt) C114 C246a C246b C255 C323 C324 C326 C361 C362 C754l C754r C755l C755r C868 C873 Engine compartment fuse box (right side of eng compt) Fuse 20a Fuse 30a G400 G401 Generator Heating ventilation/ air conditioning control unit (center of dash) Hot at all times Left front door outstation (behind front door trim panel) Left mirror actuator Rear defogger Red Right front door outstation (behind front door trim panel) Right mirror actuator Rl11 Solid state W/ a/c W/o a/c
ELECTRONIC SUSPENSION Electronic Suspension Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Electronic Suspension Wiring Diagram for Land Rover Range Rover HSE 1998: 43 (below left front seat) air suspension delay timer (left rear of engine compt) air suspension compressor (left side of dash, right of steering column) (right rear of engine compt) g105 Air susp ind Air suspension compressor relay Air suspension ecu (beneath left front seat) Air suspension inhibit switch (center of dash) Air valve block (left side of engine compt) Anti-lock brakes system Body electrical control module (below right front seat) C112 C114 C172 C174 C176 C258 C326 C362 Ctrl unit Data link connector (obdii) Door locks system Dwn Engine compartment fuse box (right side of eng compt) Engine controls system Fuse 10a Fuse 5a G100 (left front of engine compt) G101 (right side of engine compt) G104 (left rear of engine compt) Hot at all times Hot in run or acc Instrument cluster Interior lights system Left front height sensor (beneath left side of vehicle, on chassis) Left rear height sensor (beneath left side of vehicle, on chassis) Maxi fuse 30a Red Ride height switch (center of dash) Right front height sensor (beneath right side of vehicle, on chassis) Right rear height sensor (beneath right side of vehicle, on chassis) Solid state Stop lamp switch (on brake pedal support)
ENGINE PERFORMANCE
4.0L 4.0L, Engine Performance Wiring Diagrams (1 of 2) for Land Rover Range Rover HSE 1998 List of elements for 4.0L, Engine Performance Wiring Diagrams (1 of 2) for Land Rover Range Rover HSE 1998: 42 (1997) (1998) (from vin 370859) (not used) 1 & 6 2 & 3 4 & 7 5 & 8 A/c control relay Air conditioning system Auto gear box control unit (under left front seat) Body electrical control module (under right front seat) C114 C117 C172 C502 (right side of engine compt) C505 C508 C509 Crankshaft position sensor (lower left rear of eng) Engine compat- ment fuse box (right side of eng compt) Engine control module (ecm) (right front of eng compt, behind battery) Engine main control relay Evaporative emission canister purge valve (left side of eng compt) Evaporative emission canister vent seal valve (left rear corner of eng compt) Fuel injectors Fuel pump Fuel pump module (top of fuel tank) Fuel pump relay Fuse 10a Fuse 20a G103 (right side of eng compt) G105 (right rear of eng compt) Hot at all times Hot in run & start Idle air control valve (on throttle body) Ignition coils Inertia fuel shut-off switch (behind right footwell trim panel) Nca Red Shorting link 1 Shorting link 6 4.0L, Engine Performance Wiring Diagrams (2 of 2) for Land Rover Range Rover HSE 1998 List of elements for 4.0L, Engine Performance Wiring Diagrams (2 of 2) for Land Rover Range Rover HSE 1998: 42 (1998) (behind left side of dash) data link connector A/t Air conditioning system Air suspension ecu (under left front seat) Anti-lock brake system (ecu) (behind lower right side of dash) Body electrical control module (under right front seat) C112 C114 C242 C255 C256 C258 C507 Camshaft position sensor (left front of eng) Control unit & message center display Defogger system Engine control module (ecm) (right front of eng compt, behind battery) Engine coolant temperature sensor (left side of eng) Engine fuel temperature sensor (left side of eng) Fuel pressure sensor (1998) (top of fuel tank) Fuse 10a G103 (right side of eng compt) Gear box position switch (left side of transmission) Hot at all times Instrument cluster Intake air temperature sensor (left side of eng compt, on air cleaner) Left heated oxygen sensor (behind left exhaust manifold, on exhaust pipe) Left heated oxygen sensor (post catalyst) (downstream of catalytic convert) Left knock sensor (lower left side of eng) M/t Malfunction indicator lamp (check engine) Mass air flow sensor (on intake air duct) Nca Pnk/red Red Right heated oxygen sensor (behind right exhaust manifold, on exhaust pipe) Right heated oxygen sensor (post catalyst) (downstream of catalytic convert) Right knock sensor (lower right side of eng) Service reminder indicator (service engine) Throttle position sensor (on throttle body) Transfer gear box ecu (under left front seat)
4.6L 4.6L, Engine Performance Wiring Diagrams (1 of 2) for Land Rover Range Rover HSE 1998 List of elements for 4.6L, Engine Performance Wiring Diagrams (1 of 2) for Land Rover Range Rover HSE 1998: 42 (1997) (1998) (from vin 370859) (not used) 1 & 6 2 & 3 4 & 7 5 & 8 A/c control relay Air conditioning system Auto gear box control unit (under left front seat) Body electrical control module (under right front seat) C114 C117 C172 C502 (right side of engine compt) C505 C508 C509 Crankshaft position sensor (lower left rear of eng) Engine compat- ment fuse box (right side of eng compt) Engine control module (ecm) (right front of eng compt, behind battery) Engine main control relay Evaporative emission canister purge valve (left side of eng compt) Evaporative emission canister vent seal valve (left rear corner of eng compt) Fuel injectors Fuel pump Fuel pump module (top of fuel tank) Fuel pump relay Fuse 10a Fuse 20a G103 (right side of eng compt) G105 (right rear of eng compt) Hot at all times Hot in run & start Idle air control valve (on throttle body) Ignition coils Inertia fuel shut-off switch (behind right footwell trim panel) Nca Red Shorting link 1 Shorting link 6 4.6L, Engine Performance Wiring Diagrams (2 of 2) for Land Rover Range Rover HSE 1998 List of elements for 4.6L, Engine Performance Wiring Diagrams (2 of 2) for Land Rover Range Rover HSE 1998: 42 (1998) (behind left side of dash) data link connector A/t Air conditioning system Air suspension ecu (under left front seat) Anti-lock brake system (ecu) (behind lower right side of dash) Body electrical control module (under right front seat) C112 C114 C242 C255 C256 C258 C507 Camshaft position sensor (left front of eng) Control unit & message center display Defogger system Engine control module (ecm) (right front of eng compt, behind battery) Engine coolant temperature sensor (left side of eng) Engine fuel temperature sensor (left side of eng) Fuel pressure sensor (1998) (top of fuel tank) Fuse 10a G103 (right side of eng compt) Gear box position switch (left side of transmission) Hot at all times Instrument cluster Intake air temperature sensor (left side of eng compt, on air cleaner) Left heated oxygen sensor (behind left exhaust manifold, on exhaust pipe) Left heated oxygen sensor (post catalyst) (downstream of catalytic convert) Left knock sensor (lower left side of eng) M/t Malfunction indicator lamp (check engine) Mass air flow sensor (on intake air duct) Nca Pnk/red Red Right heated oxygen sensor (behind right exhaust manifold, on exhaust pipe) Right heated oxygen sensor (post catalyst) (downstream of catalytic convert) Right knock sensor (lower right side of eng) Service reminder indicator (service engine) Throttle position sensor (on throttle body) Transfer gear box ecu (under left front seat)
EXTERIOR LIGHTS Back-up Lamps Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Back-up Lamps Wiring Diagram for Land Rover Range Rover HSE 1998: 14 (beneath right front seat) (right side of luggage compt) A/t Body electrical control module (beneath right front seat) C325 C626 G301 G401 Gear box position switch (left side of transmission) Left tailgate lamps M/t Reverse switch (left footwell trim panel) Right tailgate lamps Transmissions system Exterior Lamps Wiring Diagram (1 of 2) for Land Rover Range Rover HSE 1998 List of elements for Exterior Lamps Wiring Diagram (1 of 2) for Land Rover Range Rover HSE 1998: 47 (behind right foowell trim panel) (left front of eng compt) (right footwell trim panel) (right rear of eng compt) Body electrical control module (beneath right front seat) C113 C120 C242 C255 C256 C257 C323 C325 C361 Control unit/message center display Dim decrease Dim increase Fuse 10a G100 (left front of eng compt) G101 (right side of eng compt) G105 G203 G252 (right footwell trim panel) Hazard switch Headlamp flash Headlight system (rear fog guard lamps) Hot at all times Instrument cluster Interior lights system Left front lamp assembly Left repeater lamp Left turn Left turn ind Main beam Main light switch Mode Overspeed Rear fog guard lamps switch Right front lamp assembly Right repeater lamp Right turn Right turn ind Side lamp Solid state Trailer tow warning ind Turn lamp Turn signal indicator switch Exterior Lamps Wiring Diagram (2 of 2) for Land Rover Range Rover HSE 1998 List of elements for Exterior Lamps Wiring Diagram (2 of 2) for Land Rover Range Rover HSE 1998: 45 (beneath right front seat) (not used) A/t Anti-lock brakes system Base Batt + Body electrical control module (beneath right front seat) C258 C361 Center mounted stop lamp Fuse 10a Fuse 20a Fuse 30a G301 G400 (left side of luggage compt) G401 (right side of luggage compt) Gear box position switch (left side of transmission) Gnd Hot at all times Hot in run & start (when rl10 relay energized) Left antenna amplifier (left side of luggage compt) Left license plate lamp Left rear lamp assembly Left turn Lr side lmps M/t Nca Rear fog lmps Red Reverse switch (left footwell trim panel) Right license plate lamp Right rear lamp assembly Right turn Rl7 Rr side lmps Solid state Stop Stop lamp switch (on brake pedal support) Stop lmps Tail Trailer auxiliary connector (beneath center rear of vehicle) Trailer main connector (beneath center rear of vehicle) Transmissions system Trim level 3 Turn
GROUND DISTRIBUTION Ground Distribution Wiring Diagram (1 of 4) for Land Rover Range Rover HSE 1998 List of elements for Ground Distribution Wiring Diagram (1 of 4) for Land Rover Range Rover HSE 1998: 57 (not used) (right side of eng compt) A/c condenser fan 1 relay A/c dual pressure switch Abs booster unit Abs hydraulic pump Abs power relay Abs pressure unit Air bag diagnostic control module Air suspension compressor Air suspension compressor relay Air suspension delay turn off timer Air suspension ecu Air valve block Alarm sounder Anti-lock brake ecu Automatic transmission oil temper- ature switch Battery Battery back up alarm sounder C172 C176 C231 Compressor clutch Engine compartment fuse box Front wiper control relay Front wiper motor Fuel pump module G100 (left front of eng compt) G101 G104 (left rear of eng compt) G105 (right rear of eng compt) G119 (right front of eng) G120 (right side of eng) G127 (under left rear hood) Headlamps washer/wiper relay Hood switch Ignition relay Left front fog lamp Left front lamp assembly Left headlamp Left headlamp wiper motor Left horn Left repeater lamp Nca Rear window washer pump Right condenser fan motor Right front fog lamp Right front lamp assembly Right headlamp wiper motor Right headlamps Right heated windshield relay Right horn Right repeater lamp W/ battery back up alarm sounder W/o battery back up alarm sounder Windshield washer fluid level switch Windshield washer pump Ground Distribution Wiring Diagram (2 of 4) for Land Rover Range Rover HSE 1998 List of elements for Ground Distribution Wiring Diagram (2 of 4) for Land Rover Range Rover HSE 1998: 38 Air suspension inhibit switch C242 C244 Clock Clock spring Clutch pedal position switch Cruise control ecu Cruise control switch Data link connector (obdii) From vin Front fog lamp switch Fuel door release switch G121 (center rear of eng compt) G203 (right footwell trim panel) G302 (front of center console, behind heater & a/c control panel) Glove box lamp Hazard switch Heated windshield Heating ventilation/ air conditioning control unit Ignition key lock solenoid Ignition switch Instrument cluster Key-in switch Left blower motor Main light switch Nca Passive immobilization coil Radio Rear fog guard lamps switch Resistor Ride height switch Right blower motor Steering wheel switches Theft alarm led Turn signal switch Up to vin W/ shift inter-lock up to vin Washer/ wiper switch Ground Distribution Wiring Diagram (3 of 4) for Land Rover Range Rover HSE 1998 List of elements for Ground Distribution Wiring Diagram (3 of 4) for Land Rover Range Rover HSE 1998: 61 "h" gate sensor module A/t A/t with shift interlock Alarm rf aerial module Auto gear box control unit (a/t) Body electrical control module (becm) C873 Center console switch pack outstation Center mounted stop lamp Cigar lighter Driver's seat buckle switch Electronic rear view mirror Front interior roof lamp Fuel door actuator Fuse 30a G301 (beneath right front seat) G400 (left side of luggage compt) G401 (right side of luggage compt) Gear box position switch Home link connector Left front door outstation Left front door speaker amplifier Left interior lamps Left license plate lamp Left rear door lock actuator Left rear door puddle lamp Left rear door speaker amplifier Left rear lamp amplifier Left rear window door switch Left rear window motor Left tailgate lamps M/t Model only Nca Park brake switch Rear defogger Rear wiper mptor Right front door outstation Right front door speaker amplifier Right interior lamps Right license plate lamp Right rear door lock actuator Right rear door puddle lamp Right rear door speaker amplifier Right rear lamp assembly Right rear window door switch Right rear window motor Right tailgate lamps Solid state Subwoofer amplifier Sun-visor lamp 1 Sun-visor lamp 2 Sunroof anti-trap Tailgate switch Trailer auxiliary connector Trailer main connector Transfer gear box ecu Transfer micro switch/ shift lock solenoid Transfer switch manual Ultrasonic module Vehicle speed sensor shield Ground Distribution Wiring Diagram (4 of 4) for Land Rover Range Rover HSE 1998 List of elements for Ground Distribution Wiring Diagram (4 of 4) for Land Rover Range Rover HSE 1998: 29 A/t C507 C509 C566 Crankshaft position sensor shield Engine control module (ecm) Engine coolant temperature gauge sensor G103 (right side of eng compt) G301 (beneath right front seat) Gear box position switch Left heated seat Left heated oxygen sensor shield Left knock sensor shield Left oxygen sensor shield (post catalyst) Left seat outstation Left seat switch M/t Nca Neutral switch Reverse switch Right heated oxygen sensor shield Right heated seat Right knock sensor shield Right oxygen sensor shield (post catalyst) Right seat outstation Right seat switch Transfer box oil transfer switch W/ power seat W/o power seat
HEADLIGHTS Headlight Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Headlight Wiring Diagram for Land Rover Range Rover HSE 1998: 49 (behind right foowell trim panel) (in steering column) (right side of eng compt) Body electrical control module (beneath right front seat) C113 C120 C242 C255 C256 C257 C325 Control unit/mess- age center display Dipped beam Fog Front fog lamps switch Fuse 10a G100 (left front of eng compt) G101 G101 (right side of eng compt) G203 G203 (right footwell trim panel) G252 (right footwell trim panel) G401 (right side of luggage compt) Headlamp Headlamp flash Hi beam Hi beam ind Hot at all times Ignition switch Iii Instrument cluster Interior lights system Key-in switch Left front fog lamp Left headlamp Left tailgate lights Lo beam ind Main beam Main beam 2 Main light switch Nca Rear fog guard lamps switch Reverse Right front fog lamp Right headlamp Right tailgate lights Side lamp Solid state Turn signal indicator switch
HORN Horn Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Horn Wiring Diagram for Land Rover Range Rover HSE 1998: 16 (beneath right front seat) body electrical control module C120 C174 C257 Clock spring (in steering column) Engine compartment fuse box (right side of eng compt) Fuse 20a G100 (left front of eng compt) G101 (right side of eng compt) G203 (right footwell trim panel) Horn relay Horn switch Hot at all times Left horn Right horn Steering wheel switches
INSTRUMENT CLUSTER Instrument Cluster Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Instrument Cluster Wiring Diagram for Land Rover Range Rover HSE 1998: 100 (3 bulbs) (beneath right front seat) g301 (left front of eng compt) (on transfer box) transfer box oil temperature switch (right footwell trim panel) (right rear of eng compt) (right side of eng compt) A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 Abs ind Air bag diagnostic control module (beneath center console) Air conditioning system Air suspension ind Anti-lock brake system ecu (right side of dash) Anti-lock brakes system Automatic transmission oil temperature switch (left front of eng compt) Body electrical control module (beneath right front seat) Brake warning ind Buzzer C112 C114 C175 C216 C217 C242 C255 C256 C257 C258 C323 C325 C361 C402 C505 C565 C566 C626 Charge ind Clock Control unit/ message center display Cruise control ind Cruise control system Driver's seat buckle switch (in seat belt buckle head) Electronic suspension system Engine compartment fuse box (right side of eng compt) Engine control module (right side of eng compt) Engine coolant temper- ature gauge sensor (top left front of eng) Engine coolant temperature ind Exterior lights system Exterior lights system (trailer connector) Exterior lights sytem (turn signal lamps) Fasten seat belt ind Fuel gauge Fuel level sensor Fuel pump module (top of fuel tank) Fuse 10a G100 G101 G103 G103 (right side of eng compt) G105 G203 G203 (right footwell trim panel) Headlight system Hi beam ind Hot at all times Hot in run & start Illumination Interior lights system Key-in switch (right of steering column) Left turn ind Lo beam ind Low fuel warning ind Malfucntion ind lamp (mil) Nac Nca Oil pressure switch (lower right side of eng) Oil pressure warning ind Park brake switch (on brake handle lever) Right turn ind Service remider ind (service engine) Solid state Speedometer Srs ind 1 Srs ind 2 Starting/ charging system Tachometer Temperature gauge Traction control ind Trailer tow warning ind Windshield wash fluid level switch (behind right side of front bumper)
INTERIOR LIGHTS Courtesy Lamps Wiring Diagram (1 of 2) for Land Rover Range Rover HSE 1998 List of elements for Courtesy Lamps Wiring Diagram (1 of 2) for Land Rover Range Rover HSE 1998: 42 Body electrical control module (under right front seat) C229 C249 C258 C311 C315 C323 C324 C325 C326 C329 C361 C362 C363 C613 C625 C714l C714r C814 C816 Footwell lamp 1 Footwell lamp 2 Front interior roof lamp Fuse f1 10a Fuse f13 20a Fuse f15 20a Fuse f6 10a G400 (left side of luggage compt) G401 (right side of luggage compt) Hot at all times Hot w/ rl10 relay energized Left interior light Left rear door lock actuator Model Nca Rear footwell lamp Red Right rear door lock actuator Right tailgate lights Sun visor lamp 1 Sun visor lamp 2 Tailgate switch Courtesy Lamps Wiring Diagram (2 of 2) for Land Rover Range Rover HSE 1998 List of elements for Courtesy Lamps Wiring Diagram (2 of 2) for Land Rover Range Rover HSE 1998: 32 C205 C319 C708l C708r C755l C755r C757l C757r C758l C758r C762l C762r C763l C763r C863 C864 G101 (right side of engine compartment) G400 (left side of luggage compt) G401 (right side of luggage compt) Glove box lamp Left front door lock actuator Left front door out- station Left front puddle lamp Left rear puddle lamp Nca Rear load space lamp Red Right front door lock actuator Right front door out- station Right front puddle lamp Right interior light Right rear puddle lamp Instrument Illumination Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Instrument Illumination Wiring Diagram for Land Rover Range Rover HSE 1998: 46 "h" gate sensor module Air suspension inhibit switch Body electrical control module (under right front seat) C211 C212 C213 C214 C215 C216 C217 C219 C220 C226 C236 C242 C244 C256 C257 C258 C614 C617 C618 C619 C625 C635 Center console switch pack outstation Clock Cruise control switch Dimmer decrease Dimmer increase Direction indicator Front fog lamps switch G101 (right side of engine compt) G203 (right footwell trim panel) G301 (under right front seat) Hazard switch Heating ventilation/ air conditioning control unit (hevac) (center of dash) I/p cigar lighter Illum Instrument cluster Main light switch Radio Rear fog guard lamps switch Ride height switch Side lamps Transfer switch manual
MEMORY SYSTEMS Memory Mirrors Wiring Diagram (1 of 2) for Land Rover Range Rover HSE 1998 List of elements for Memory Mirrors Wiring Diagram (1 of 2) for Land Rover Range Rover HSE 1998: 29 A/t Body electrical control module (under passenger's seat) C362 C626 C754l C755l C901 C997 Center console switch pack outstation Fuse f1 10a Fuse f20 30a Fuse f22 30a Fuse f9 20a G103 (beneath right front seat) G301 (beneath right front seat) G400 (left side of luggage compartment) Gear box position switch (top of gear box) Hot at all times L/r Left front door outstation Left memory mirror Left memory switch Left seat outstation (under left seat) M/t Model only Pnk/red Red Reverse switch (top of gear box) U/d Memory Mirrors Wiring Diagram (2 of 2) for Land Rover Range Rover HSE 1998 List of elements for Memory Mirrors Wiring Diagram (2 of 2) for Land Rover Range Rover HSE 1998: 23 Body electrical control module (under passenger's seat) C326 C754l C755r C902 C907 C912 C997 Fuse f20 30a Fuse f22 30a Fuse f9 20a G103 (beneath right front seat) G401 (right side of luggage compartment) Hot at all times L/r Model only Pnk/red Red Right front door outstation Right memory mirror Right memory switch Right seat outstation (under right seat) U/d Memory Seat Wiring Diagram (1 of 2) for Land Rover Range Rover HSE 1998 List of elements for Memory Seat Wiring Diagram (1 of 2) for Land Rover Range Rover HSE 1998: 37 (1997) (1998) 1997 model only Alarm aerial module Back for/ Body electrical control module (under passenger's seat) C326 C901a C907 C912 C962l C971l C998 Fore-aft sensor Fuse f20 30a G103 (beneath right front seat) Headrest motor Headrest potentiometer Hot at all times Left lumbar pump Left memory switch Left seat outstation (under right seat) Left seat switch Lumbar Pnk Pnk/red Rear up/dn Recline motor and potentiometer Red Rest back Rest head Seat base motor Seat front height motor Seat potentiometer front motor Seat potentiometer rear motor Seat rear height motor Up/dn front Memory Seat Wiring Diagram (2 of 2) for Land Rover Range Rover HSE 1998 List of elements for Memory Seat Wiring Diagram (2 of 2) for Land Rover Range Rover HSE 1998: 37 (1998) (1997) 1997 model only Alarm aerial module Back for/ Body electrical control module (under passenger's seat) C326 C902a C907 C912 C962r C971r C999 C9o2a Fore-aft sensor Fuse f10 30a G103 (beneath right front seat) Headrest motor Headrest potentiometer Hot at all times Lumbar Pnk Pnk/red Rear up/dn Recline motor and potentiometer Red Rest back Rest head Right lumbar pump Right memory switch Right seat outstation (under right seat) Right seat switch Seat base motor Seat front height motor Seat potentiometer front motor Seat potentiometer rear motor Seat rear height motor Up/dn front
POWER DISTRIBUTION Power Distribution Wiring Diagram (1 of 4) for Land Rover Range Rover HSE 1998 List of elements for Power Distribution Wiring Diagram (1 of 4) for Land Rover Range Rover HSE 1998: 65 "h" gate sensor module (1997) (1998) (a/t) (m/t) (not used) Abs pump relay Air bag diagnostic control module Air suspension compressor relay Air suspension inhibitor switch Auto gear box control unit Battery Body electrical control module (beneath right front seat) C120 C172 C173 C226 C244 C256 C258 C323 C324 C624 C625 Center console switch pack outsta- tion Clock E167 E252 Electro- chromic rear view mirror Engine compartment fuse box (right side of eng compt) Engine controls system Footwell lamp 1 Footwell lamp 2 From vin Fuse Fuse 10a Fuse 30a Fuse 30a 5a Generator Heating ventilation/ air condi- tioning control unit Ignition relay Igntion switch Iii Instrument cluster Key illumination Maxi fuse 1 60a Maxi fuse 2 30a Maxi fuse 3 40a Maxi fuse 4 60a Model only Nca Radio Rear footwell lamp Red Ride height switch Rl10 Solid state Starter relay Starter solenoid Stop lamp switch Sun- visor lamp 1 Sun- visor lamp 2 To fuse (diagram 2 of 4) To fuse 12 in becm (diagram 4 of 4) To fuse 5 in eng compt fuse box (diagram 2 of 4) Transfer gear box ecu Power Distribution Wiring Diagram (2 of 4) for Land Rover Range Rover HSE 1998 List of elements for Power Distribution Wiring Diagram (2 of 4) for Land Rover Range Rover HSE 1998: 55 (beneath right front seat) (beneath right front seat) body electrical control module (not used) 30a Air bag diagnostic control module Air supsension relay turn off timer Anti-lock brake ecu C175 C176 C323 C361 C402 C508 C509 C618 C619 C625 C912 Cigar lighter Engine compartment fuse box (right side of eng compt) Engine control module (ecm) From a battery, in eng compt fuse box (diagram 1 of 4) From ignition relay, in eng b compt fuse box (diagram 1 of 4) Front wiper control relay Front wiper interval relay Fuse Fuse 10a Fuse 20a Fuse 30a Fuse 5a G301 Ignition coil Instrument cluster Interior lights system Left front door outstation Left heated oxygen sensor Left heated oxygen sensor (post catalyst) Left lumbar pump Left power seat relay Left seat outstation Maxi fuse 5 60a Nca Right front door outstation Right heated oxygen sensor Right heated oxygen sensor (post catalyst) Right lumbar pump Right power seat relay Right seat outstation Rl7 Shorting link Solid state To fuse 27 in eng compt fuse box (diagram 3 of 4) To fuse 35 in eng compt fuse box (diagram 3 of 4) W/ memory W/o memory Power Distribution Wiring Diagram (3 of 4) for Land Rover Range Rover HSE 1998 List of elements for Power Distribution Wiring Diagram (3 of 4) for Land Rover Range Rover HSE 1998: 44 (not used) (right side of engine compt) engine compartment fuse box A/c condenser fan 1 relay A/c condenser fan 2 relay Abs power relay Abs pump relay Air suspension delay turn off timer Air suspension power relay Auxiliary power 1 relay Auxiliary power 2 relay Battery backed up alarm sounder C172 C173 C174 C177 C231 C244 C508 Data link connection (obdii) Engine main control relay From e battery in eng compt fuse box (diagram 2 of 4) From ignition relay, in eng compt fuse box (diagram 2 of 4) From vin Fuel pump relay Fuse 10a Fuse 20a Fuse 25a Fuse 30a Fuse 5a Headlamps washer/wiper relay Heating ventilation/ air conditioning control unit (hevac) Horn relay Ignition key lock solenoid Left condenser fan motor Left headlamp wiper motor Left heated windshield relay Nca Right headlamp wiper motor Right heated windshield relay Shorting link Spare relay Starter relay Starter solenoid Up to vin Power Distribution Wiring Diagram (4 of 4) for Land Rover Range Rover HSE 1998 List of elements for Power Distribution Wiring Diagram (4 of 4) for Land Rover Range Rover HSE 1998: 44 (installed when towing vehicle) 20a 30a Alarm rf aerial module Body electrical control module (beneath right front seat) C258 C323 C324 C325 C361 C376 C603 C625 Compt fuse box (diagram 1 of 4) From battery, in eng c Front interior roof lamp Fuse Fuse 20a Fuse 30a G301 (beneath right front seat) Home link connector Ignition key lock solenoid Left interior lamps Left rear door speaker amplifier Model only Nca Rear load space lamp Rear wiper control relay (rl8) Red Right interior lamps Right rear door speaker amplifier Rl11 Rl2 Rl3 Rl5 Rl6 Solid state Subwoofer amplifier Sun- visor lamp Tailgate lock actuator Trailer auxiliary connector Transfer gear box ecu Transfer micro switch/ shift interlock Up to vin
POWER DOOR LOCKS Power Door Lock Wiring Diagram (1 of 2) for Land Rover Range Rover HSE 1998 List of elements for Power Door Lock Wiring Diagram (1 of 2) for Land Rover Range Rover HSE 1998: 55 (behind right footwell trim panel) (left front side of luggage compt) (left side of luggage compt) (left side of luggage compt) g400 (right front side of luggage compt) (right side of luggage compt) (right side of luggage compt) g401 Alarm rf aerial module (right side of luggage compt) Antenna Body electrical control module (beneath right front seat) C112 C257 C323 C325 C326 C361 C362 C507 C755l C755r C758l C758r C762l C762r C763l C763r C901a C907 Cdl motor Cdl sw Door ajar sw Engine control module (right side of eng compt) Fuse 20a Fuse 30a G203 G400 G401 Hot at all times Ignition switch Iii Key sw Left front door lock actuator (front door trim panel) Left front door outstation (behind front door trim panel) Left front window motor (behind front door trim panel) Left rear window motor (behind front door trim panel) Nca Red Right front door lock actuator (front door trim panel) Right front door outstation (behind front door trim panel) Right front window motor (behind front door trim panel) Right rear window motor (behind front door trim panel) Solid state Superlock Ultrasonic module (top of left "b "pillar) W/ memory seat Power Door Lock Wiring Diagram (2 of 2) for Land Rover Range Rover HSE 1998 List of elements for Power Door Lock Wiring Diagram (2 of 2) for Land Rover Range Rover HSE 1998: 54 (left side of luggage compt) (right rear of eng compt) (right side of eng compt) (right side of luggage compt) Alarm sounder (right side of eng compt) Battery back up alarm sounder (right side of eng compt) Body electrical control module (beneath right front seat) C114 C120 C133 C255 C256 C258 C323 C324 C325 C326 C361 C362 C625 Cdl motor Closed on impack Door ajar sw Engine controls system Exterior lights system (side lamps) Exterior lights system (turn/ hazard lamps) Fuel pump Fuel tank module (top of fuel tank) G101 G105 G105 (right rear of eng compt) G203 (right footwell trim panel) G400 G401 G401 (right side of luggage compt) Headlamp system Hood switch (near right horn) Inertia fuel shut-off switch (behind right footwell trim panel) Interior lights system Key-in switch (in steering lolumn) Left rear door lock actuator (top of left rear door) Nca Passive immobilization coil (underside of steering column) Pnk Red Right rear door lock actuator (top of right rear door) Right tailgate lamps Solid state Sunroof anti-trap (front center of roof) Superlock Tailgate switch (center of tailgate) Theft alarm led W/ battery back up alarm sounder W/o battery back up alarm sounder
POWER MIRRORS Electrochromic Mirror Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Electrochromic Mirror Wiring Diagram for Land Rover Range Rover HSE 1998: 16 (beneath right front seat) A/t Body electrical control module (beneath right front seat) C323 C326 C626 Electrochromic rear view mirror Fuse 10a G301 G401 (right side of luggage compt) Gear box position switch (left side of transmission) Hot in run & start (when rl10 relay energized) M/t Reverse switch (left footwell trim panel) Solid state Transmissions system Power Mirrors Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Power Mirrors Wiring Diagram for Land Rover Range Rover HSE 1998: 21 C323 C326 C361 C362 C754l C754r C755l C755r Defogger system (heated mirror) Engine compartent fuse box (right side of eng compt) Fuse 20a Fuse 30a G401 (right side of luggage compt) Hot at all times L/r Left mirror actuator (left front door) Red Right front door outstation (behind front door panel) Right mirror actuator (right front door) Solid state U/d
POWER SEATS Heated Seats Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Heated Seats Wiring Diagram for Land Rover Range Rover HSE 1998: 18 (beneath right front seat) (w/ a/c) (w/o a/c) Body electrical control module (beneath right front seat) C246a C246b C255 C912 Fuse 30a G301 Heating ventilation/ air conditioning control unit (center of dash) Hot at all times Left heated seat Nca Right heated seat Solid state W/ power seat W/o power seat Power Seats Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Power Seats Wiring Diagram for Land Rover Range Rover HSE 1998: 43 Backrest Backward Body electrical control module (beneath right front seat) C912 C956l C956r C957l C957r C9595 C959l C9605 C960l C964r C965l C965r Forward Front d Front u Fuse 30a G301 (beneath right front seat) Headrest Headrest motor (right side of seat squab frame) Hot at all times Left lumbar pump (right side of seat squab frame) Left power seat relay 1 (under left front seat) Left power seat relay 2 (under left front seat) Left seat switch Lumbar down Lumbar up Nca Pnk Rear d Rear u Red Right lumbar pump (right side of seat squab frame) Right power seat relay 1 (under left front seat) Right power seat relay 2 (under left front seat) Right seat switch Seat base motor (underside of respective front seat) Seat height front motor (underside of respective front seat) Seat height rear motor (underside of respective front seat) Seat recline motor (underside of respective front seat) Solid state
POWER TOP/SUNROOF Power Top/Sunroof Wiring Diagrams for Land Rover Range Rover HSE 1998 List of elements for Power Top/Sunroof Wiring Diagrams for Land Rover Range Rover HSE 1998: 25 (beneath right front seat) Alarm rf aerial module (right side of laggage compt) Antenna Body electrical control module (beneath right front seat) C323 C324 C325 C326 C625 C626 Center console switch pack outstation (in center console) Fuse 10a Fuse 20a G301 G301 (beneath right front seat) G401 (right side of luggage compt) Hot at all times Interior lights system Red Rl3 Rl5 Solid state Sunroof anti-trap Sunroof backward Sunroof forward
POWER WINDOWS Power Window Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Power Window Wiring Diagram for Land Rover Range Rover HSE 1998: 46 (beneath right front seat) (left front side of luggage compt) (left side of luggage compt) g400 (right front side of luggage compt) (right side of luggage compt) g401 Alarm rf aerial module (right side of luggage compt) Antenna Body electrical control module (beneath right front seat) C323 C325 C326 C361 C362 C625 C626 C755l C755r Center console switch pack outstation (in center console) Fuse 10a Fuse 20a Fuse 30a G301 G400 G401 G401 (right side of luggage compt) Hot at all times Interior lights system Left front door outstation (behind front door trim panel) Left front window motor (behind front door trim panel) Left rear window door switch Left rear window motor (behind front door trim panel) Lf dn Lf up Lr dn Lr up Rear wnd isolation Red Rf dn Rf up Right front door outstation (behind front door trim panel) Right front window motor (behind front door trim panel) Right rear window door switch Right rear window motor (behind front door trim panel) Rr dn Rr up Solid state
RADIO Radio Wiring Diagrams, Base for Land Rover Range Rover HSE 1998 List of elements for Radio Wiring Diagrams, Base for Land Rover Range Rover HSE 1998: 26 Antenna Body electrical control module (under right front seat) C224a C226 C258 C325 Coax Console, behind heater & a/c control panel) From vin 359269 Fuse 10a Fuse 30a G203 (right footwell trim panel) G302 (front of center Hot at all times Left front bass speaker Left front tweeter Left rear bass speaker Nca Radio Red Right antenna amplifier (right side of luggage compt, behind trim panel) Right front bass speaker Right front tweeter Right rear bass speaker Rl7 Up to vin 359268 Radio Wiring Diagrams, Highline for Land Rover Range Rover HSE 1998 List of elements for Radio Wiring Diagrams, Highline for Land Rover Range Rover HSE 1998: 58 (behind rear door trim panel) (left side of luggage compt, behind trim panel) (right footwell trim panel) (right side of luggage compt) 15 k homs 4.7 k homs Body electrical control module (under right front seat) C224b C226 C258 C323 C325 C361 C755l C755r Cd changer Clock spring Coax Din cable From vin 359269 Fuse 1 10a Fuse 20a Fuse 8 30a G203 G302 (front of center console, behind heater & a/c control panel) G400 (left side of luggage compt) G401 Homs Hot at all times Left antenna aplifier Left front bass speaker Left front door out- c755l Left front door speaker amplifier (behind rear door trim panel) Left front midrange speaker Left front tweeter Left rear bass speaker Left rear door speaker amplifier (behind rear door trim panel) Left rear midrange speaker Left side window antenna Nca Radio Red Right antenna aplifier (right side of luggage compt, behind trim panel) Right front bass speaker Right front door out- station (behind front door trim panel) Right front door speaker amplifier (behind rear door trim panel) Right front tweeter Right midrange speaker Right rear bass speaker Right rear door speaker amplifier Right rear midrange speaker Right side window antenna Rl7 Station (behind front door trim panel) Steering wheel switch 1- increase 2- decrease 3- mode select 4- volume up 5- volume down Subwoofer Subwoofer amplifier (left side of luggage compt) Up to vin 359268 Radio Wiring Diagrams, Midline for Land Rover Range Rover HSE 1998 List of elements for Radio Wiring Diagrams, Midline for Land Rover Range Rover HSE 1998: 31 Antenna Body electrical control module (under right front seat) C224a C226 C258 C325 Capacitor Coax Console, behind heater & a/c control panel) From vin 359269 Fuse 10a Fuse 30a G203 (right footwell trim panel) G302 (front of center Hot at all times Left front bass speaker Left front midrange speaker Left front tweeter Left rear bass speaker Left rear midrange speaker Nca Radio Red Right antenna amplifier (right side of luggage compt, behind trim panel) Right front bass speaker Right front midrange speaker Right front tweeter Right rear bass speaker Right rear midrange speaker Rl 7 Up to vin 359268
SHIFT INTERLOCKS Shift Interlock Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Shift Interlock Wiring Diagram for Land Rover Range Rover HSE 1998: 33 (beneath right front seat) (right footwell trim panel) (right footwell trim panel) g203 (right of steering column) ignition key-lock solenoid (right of steering column) key-in switch Body electrical control module (beneath right front seat) C172 C255 C256 C258 C625 C626 From vin Fuse 10a Fuse 20a G203 G301 Gear box position switch (left side of transmission) Hot at all times Hot in run & start (when rl10 relay energized) I ii Ignition switch Iii Nca Park switch Shift lock solenoid Solid state Stop lamp switch (on brake pedal support) Transfer micro switch Transfer micro switch/ shift lock solenoid (beneath center console) Transmissions system Transmissions system (transfer gear box) Up to vin
STARTING/CHARGING Charging Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Charging Wiring Diagram for Land Rover Range Rover HSE 1998: 17 (behind right footwell trim panel) (right side of eng compt) Battery Body electrical control module (beneath right front seat) C114 C256 C258 Charge indicator Control unit/mess- age center display Fuse 10a G101 G203 Generator Hot at all times Instrument cluster Red Starter solenoid Starting Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Starting Wiring Diagram for Land Rover Range Rover HSE 1998: 21 (behind right footwell trim panel) (not used) Battery Body electrical control module (beneath right front seat) C113 C177 C257 C508 Engine compartment fuse box (right side of eng compt) G101 (right side of eng compt) G203 Generator Hot at all times Ignition switch Iii Maxi fuse 2 30a Nca Red Starter motor Starter solenoid Stater relay
TRANSMISSION 4WD Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for 4WD Wiring Diagram for Land Rover Range Rover HSE 1998: 50 (beneath right front seat) (beneath right front seat) g301 (from vin 370859 only) (installed when towing) (m/t only) (right side of eng compt) (under center console) 0=open 1=close A/t Automatic gear box Body electrical control module (under right front seat) C507 C624 C625 C626 Change sw Engine control module (ecm) (right front of eng compt, behind battery) Fuse 30a Fuse 6 10a G103 G301 G301 (beneath right front seat) Gearbox position switch (left side of transmission) Hi mode Hot at all times Hot in run & start Illum Instrument cluster sytsem Left hi mode Left stop Lo mode Lo range sw Low range ind M/t Nca Neutral mode Neutral switch (left side of trans- mission) Park sw Pnk/red Right hi mode Right stop Shift interlock system Shit lock lock sol Transfer gear box ecu (under left front seat) Transfer box driver/ motor/encoder (on rear of transfer box) Transfer micro switch/shift lock solenoid (a/t only) Transfer switch manual (m/t only) (center of facia) Vehicle speed sensor (on rear of tranfer box) Zone 1 Zone 2 A/T Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for A/T Wiring Diagram for Land Rover Range Rover HSE 1998: 43 "h" sensor module (in center console) (1998) (1997) (beneath right front seat) (beneath right front seat) g301 (not used) (right side of eng compt) Auto gear box control unit (under left front seat) Body electrical control module (under right front seat) C505 C507 C509 C625 C626 Converter lock up solenoid Engine control module (ecm) (right front of eng compt, behind battery) Engine coolant temperature sensor (left side of eng) Fuse 5a 30a Fuse 6 10a G103 G301 Gear box case Gear box position switch (left side of transmission) Gnd Hot at all times Hot in run & start Ign Illum Interior lights system Manual Mes1 Mes2 Mode (mes) sw Mv1 sole- noid Mv2 sole- noid Nca Output shaft speed sensor Pnk Pressure regulator solenoid Red S/e/m Sport Throttle position sensor (on throttle body) Transfer gear box ecu (under left front seat)
TRUNK, TAILGATE, FUEL DOOR Trunk, Tailgate, Fuel Door Wiring Diagrams for Land Rover Range Rover HSE 1998 List of elements for Trunk, Tailgate, Fuel Door Wiring Diagrams for Land Rover Range Rover HSE 1998: 18 Body electrical control module (beneath right front seat) C257 C323 C325 Fuel door actuator (right side of luggage compt) Fuel door release switch Fuse 14 20a Fuse 20a G203 (right footwell trim panel) G301 (beneath right front seat) G401 (right side of luggage compt) Hot at all times Right front door lock actuator (in top rear of right front door) Right front door outstation (behind front door trim panel) Rl6 Solid state Tailgate lock actuator (center of tailgate) Tailgate unlock switch
WARNING SYSTEMS Warning System Wiring Diagrams for Land Rover Range Rover HSE 1998 List of elements for Warning System Wiring Diagrams for Land Rover Range Rover HSE 1998: 18 (behind right foowell trim panel) Body electrical control module (beneath right front seat) Buzzer C242 C255 C256 C626 Control unit/mess- age center display Driver's seat buckle switch (inside driver's seat belt buckle switch assembly) Fuse 10a G203 G203 (right footwell trim panel) G301 (beneath right front seat) Hot at all times Instrument cluster Key-in switch (right of steering column) Nca Seat belt warning ind
WIPER/WASHER Front & Rear Wiper/Washer Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Front & Rear Wiper/Washer Wiring Diagram for Land Rover Range Rover HSE 1998: 45 (beneath right front seat) (left rear corner of eng compt) front wiper motor (left rear of eng compt) A/t Anti-lock brake system ecu (right side of dash) Body electrical control module (beneath right front seat) C113 C114 C120 C172 C175 C257 C325 C326 Engine compartment fuse box (right front of eng compt) Front washer Front wiper control relay Front wiper interval relay Front wiper switch 1 Front wiper switch 2 Front wiper switch 3 Fuse 20a Fuse 30a G101 (right side of eng compt) G104 G105 (right rear of eng compt) G203 (right footwell trim panel) G301 G301 (beneath right front seat) G401 (right side of luggage compt) Gear box position switch (left side of transmission) Hot at all times Intermittent M/t Nca Rear washer Rear window washer pump (behind right side of front bumper) Rear window wiper motor (top center of windshield, behind trim panel) Rear wiper Rear wiper control relay (rl8) Reverse switch (left footwell trim panel) Solid state Transmissions system Washer/wiper switch Windshield wiper motor (behind right side of front bumper) Headlamp Wiper/Washer Wiring Diagram for Land Rover Range Rover HSE 1998 List of elements for Headlamp Wiper/Washer Wiring Diagram for Land Rover Range Rover HSE 1998: 24 (left front of eng compt) (right footwell trim panel) (right side of eng compt) Body electrical control module (beneath right front seat) C113 C172 C175 C176 C177 C257 Engine compartment fuse box (right side of eng compt) Fuse 10a G100 G101 G105 (right rear of eng compt) G203 Headlamp washer pump (behind right side of front pumper) Headlamp washer/ wiper relay Hot in run & start (when ignition relay energized) Left headlamp wiper motor (left front of vehicle) Main light switch Red Right headlamp wiper motor (right front of vehicle) Solid state
