Diagram sections — 31 (52 total)
AIR CONDITIONING ANTI-LOCK BRAKES ANTI-THEFT BODY COMPUTER COMPUTER DATA LINES COOLING FAN CRUISE CONTROL DEFOGGERS ELECTRONIC POWER STEERING ENGINE PERFORMANCE EXTERIOR LIGHTS GROUND DISTRIBUTION HEADLIGHTS HORN INSTRUMENT CLUSTER INTERIOR LIGHTS MEMORY SYSTEMS PASSIVE RESTRAINTS POWER ANTENNA POWER DISTRIBUTION POWER MIRRORS POWER SEATS POWER TOP/SUNROOF POWER WINDOWS RADIO STARTING/CHARGING SUPPLEMENTAL RESTRAINTS TRANSMISSION TRUNK, TAILGATE, FUEL DOOR WARNING SYSTEMS WIPER/WASHER
AIR CONDITIONING

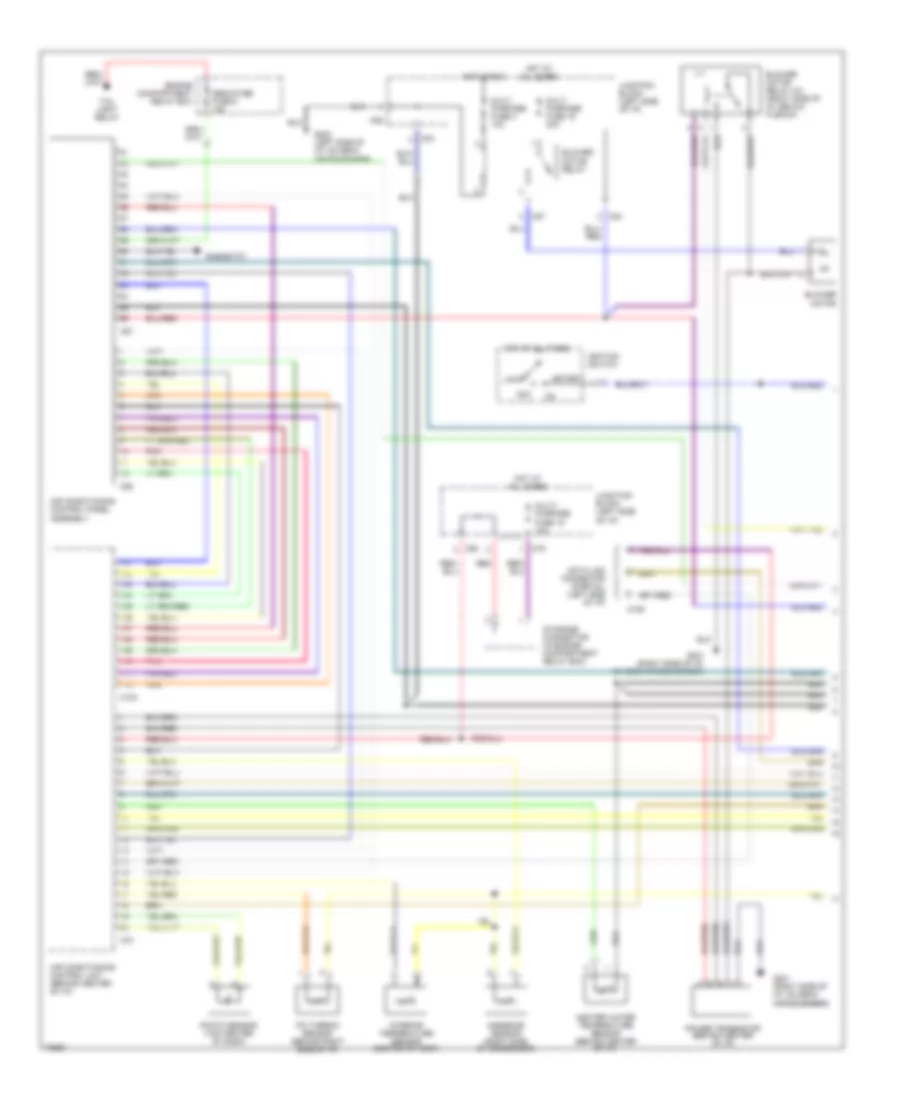

3.0L 3.0L DOHC, Air Conditioning Wiring Diagrams (1 of 2) for Mitsubishi Diamante 1995 List of elements for 3.0L DOHC, Air Conditioning Wiring Diagrams (1 of 2) for Mitsubishi Diamante 1995: 41 Acc Air conditioning control panel assembly Air conditioning control unit (behind center of i/p) Ambience sensor (right side of condenser) Blower motor Blower motor relay Blower motor relay (hi) (right side of i/p, below plenum) C103 C109 C57 C58 C70 C75 C84 C85 C87 C88 Data link connector (partial) (left side of i/p) Dedicated fuse 5 15a Engine compartment relay box Fin thermo sensor (behind right side of i/p) G201 (right side of i/p, on deck crossmember) G202 (left side of i/p, on deck crossmember) Heater water temperature sensor (behind center of i/p) Hot at all times Hot in run Ignition switch Interior temperature sensor (center of roof) Junction block (left side of i/p) Lock Mult- purpose fuse 16 30a Mult- purpose fuse 3 10a Multi- purpose fuse 19 10a Photo sensor (top center of dash) Pnk Power transistor (behind center of i/p) Red Rheostat Start Storage connector (in engine compartment relay box) Tail light relay 3.0L DOHC, Air Conditioning Wiring Diagrams (2 of 2) for Mitsubishi Diamante 1995 List of elements for 3.0L DOHC, Air Conditioning Wiring Diagrams (2 of 2) for Mitsubishi Diamante 1995: 37 (to left of condenser) A55 A59 Air conditioning belt lock controller (behind right side of i/p) Air conditioning control unit (behind center of i/p) Air mixing damper potentiometer & motor (behind center of i/p) Air selection damper control motor (behind right side of i/p) C108 C21 C23 C71 Compressor clutch relay (engine compartment relay box) Compressor magnetic clutch Condenser fan motor Condenser fan motor relay (hi) Condenser fan motor relay (lo) Condenser fan resistor Dedicated fuse 1 10a Dedicated fuse 7 30a Diode (near junction block) Dual pressure switch Engine compart- ment relay box Engine compartmemt relay box Engine control module (behind right side of i/p) Fusible link 4 40a G100 (left front fender, behind headlamp) Hot at all times Mode selection damper potentiometer & motor (behind center of i/p) Off Power transistor (ignition) Radiator fan motor Radiator fan motor relay (hi) Radiator fan motor relay (lo) Radiator fan resistor Revolution sensor (on a/c compressor) Thermostat (on a/c compressor, opposite pulley) Transaxle control module 3.0L SOHC, Air Conditioning Wiring Diagrams (1 of 2) for Mitsubishi Diamante 1995 List of elements for 3.0L SOHC, Air Conditioning Wiring Diagrams (1 of 2) for Mitsubishi Diamante 1995: 41 Acc Air conditioning control panel assembly Air conditioning control unit (behind center of i/p) Ambience sensor (right side of condenser) Blower motor Blower motor relay Blower motor relay (hi) (right side of i/p, below plenum) C103 C109 C57 C58 C70 C75 C84 C85 C87 C88 Data link connector (partial) (left side of i/p) Dedicated fuse 5 15a Engine compartment relay box Fin thermo sensor (behind right side of i/p) G201 (right side of i/p, on deck crossmember) G202 (left side of i/p, on deck crossmember) Heater water temperature sensor (behind center of i/p) Hot at all times Hot in run Ignition switch Interior temperature sensor (center of roof) Junction block (left side of i/p) Lock Mult- purpose fuse 16 30a Mult- purpose fuse 3 10a Multi- purpose fuse 19 10a Photo sensor (top center of dash) Pnk Power transistor (behind center of i/p) Red Rheostat Start Storage connector (in engine compartment relay box) Tail light relay 3.0L SOHC, Air Conditioning Wiring Diagrams (2 of 2) for Mitsubishi Diamante 1995 List of elements for 3.0L SOHC, Air Conditioning Wiring Diagrams (2 of 2) for Mitsubishi Diamante 1995: 33 (to left of condenser) A55 A59 Air conditioning control unit (behind center of i/p) Air mixing damper potentiometer & motor (behind center of i/p) Air selection damper control motor (behind right side of i/p) C21 C23 C71 Compressor clutch relay (engine compartment relay box) Compressor magnetic clutch Condenser fan motor Condenser fan motor relay (hi) Condenser fan motor relay (lo) Condenser fan resistor Dedicated fuse 1 10a Dedicated fuse 7 30a Diode (near junction block) Dual pressure switch Engine compart- ment relay box Engine compartment relay box Engine control module (behind right side of i/p) Fusible link 4 40a G100 (left front fender, behind headlamp) Hot at all times Mode selection damper potentiometer & motor (behind center of i/p) Off Radiator fan motor Radiator fan motor relay (hi) Radiator fan motor relay (lo) Radiator fan resistor Thermostat (on a/c compressor, opposite pulley) Transaxle control module
ANTI-LOCK BRAKES Anti-Lock Brakes Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Anti-Lock Brakes Wiring Diagram for Mitsubishi Diamante 1995: 53 (left side of i/p, above junction block) * w/ traction control only A42 A43 A44 Abs control unit (left side of trunk) Abs hydraulic unit (left front of engine compartment) Abs indicator Abs motor relay (left front of engine compartment) Abs valve relay (left front of engine compartment) C109 C76 C84 C89 Charge indicator & alternator Data link connector (partial) (under left side of i/p) Diagnostic trouble code erasure connector (near abs control unit) Diode Electronic power steering system & electronic suspension system Engine compartment relay box (right side of engine compt.) Engine controls system (dohc only) Fusible link 6 60a G100 (left front fender, behind headlamp) G24 G26 G27 G28 G29 G402 (lower left side of trunk) Hot at all times Hot in on Hot in on or start Instrument cluster Junction block (left side of i/p) Left front exhaust valve Left front intake valve Left front wheel speed sensor Left rear wheel speed sensor Lpws Multi- purpose fuse 11 10a Multi- purpose fuse 17 10a Multi- purpose fuse 2 10a Pcsw Rear exhaust valve Rear intake valve Red Right front exhaust valve Right front intake valve Right front wheel speed sensor Right rear wheel speed sensor Stop lamps Stop light switch Tcl module (* w/ traction control only) (left side of trunk) Traction Control Wiring Diagram (1 of 2) for Mitsubishi Diamante 1995 List of elements for Traction Control Wiring Diagram (1 of 2) for Mitsubishi Diamante 1995: 43 * w/o electronic ** w/ electronic A/t selector lever position indicator (r) (instrument cluster) Abs control unit (left side of trunk) C109 C110 C75 C76 C84 C86 Control suspension (ecs) Data link connector (partial) (below left side of i/p) Electronic control suspension control unit (right side of trunk) G11 G12 G13 G26 G27 G28 G29 G402 (lower left side of trunk) G402 (upper left side of trunk) Hot at all times Hot in on Hot in on or start Instrument cluster Junction block (left side of i/p) Left rear speed sensor Multi- purpose fuse 11 10a Multi- purpose fuse 7 10a Multi-purpose fuse 19 10a Park/ neutral position switch (top of transaxle) Red Right rear speed sensor Steering column switch assembly Steering wheel sensor Storage connector (in engine compartment relay box) Tcl Tcl module (left side of trunk) Tcl off Trace off W/ ecs W/o ecs Traction Control Wiring Diagram (2 of 2) for Mitsubishi Diamante 1995 List of elements for Traction Control Wiring Diagram (2 of 2) for Mitsubishi Diamante 1995: 32 1994 calif.; 1995 & 1996 models 1994 federal model Accelerator position sensor (next to throttle body) C108 C16 C17 C21 C22 C23 Ctp switch Dedicated fuse 8 20a Elc 4-speed automatic transaxle control module (behind center of i/p) Engine compartment relay box (right side of engine compt.) Engine control module (dohc) (right side of i/p) Engine control system G201 (right side of i/p, on deck crossmember) G206 (below center of i/p) G402 (upper left side of trunk) Hot at all times Illum lamp Interior lights system Multiport fuel injection relay (right side of i/p) Nca Off Pulse generator b (on top of transaxle) Red Shift control solenoid valve a (valve body) Shift control solenoid valve b (valve body) Tcl switch Throttle position sensor (on side of throttle body) Traction control vacuum solenoid (center of firewall) Traction control ventilation solenoid (center of or firewall)
ANTI-THEFT Anti-theft Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Anti-theft Wiring Diagram for Mitsubishi Diamante 1995: 47 (sedan) 15a Anti-theft system circuit diode (behind junction block) C109 C35 C36 C75 C76 C84 C86 C88 C97 Data link connector (partial) (below left side of dash) Dedicated fuse 14 (in-line fuse near junction block) Door locks system Door locks system (keyless entry) Etacs unit (below center of dash) F24 G100 (left front fender, behind headlamp) G201 (behind right side of dash, on deck crossmember) G202 (behind left side of dash, on deck crossmember) Headlight system Hood switch (left front of engine compartment) Horns system Hot at all times Hot in acc or run Instrument cluster Interior lights system Junction block (left side of dash) Key reminder switch (ignition switch) Left front door control unit Left front door switch Left rear door switch Luggage compartment light switch Multi- purpose fuse 19 10a Multi- purpose fuse 4 10a Power tops system Red Right front door switch Right rear door switch Security indicator Starting/ charging system (starter relay) Storage connector (engine compt relay box) Theft- alarm horn (along left front fender) Theft-alarm horn relay (along right front fender) Theft-alarm system circuit diode (behind junction block) Trunk lid key cylinder switch
BODY COMPUTER Body Computer Wiring Diagrams for Mitsubishi Diamante 1995 List of elements for Body Computer Wiring Diagrams for Mitsubishi Diamante 1995: 51 (below center of i/p) (electronic time & alarm control system) Anti-theft system (hood switch) Anti-theft system (security indicator) Anti-theft system (trunk lid key cylinder switch) C35 C36 C75 C76 C84 C85 C88 Computer data lines system Defogger system Door locks & anti-theft systems Door locks system (keyless entry) Door locks system, (keyless entry) Engine controls, transmissions, computer data lines, electronic power steering, cruise control & seats systems Etacs unit G201 (behind right side of i/p, on deck crossmember) G202 (behind left side of i/p, on deck crossmember) Headlights & anti-theft systems Headlights system Hot at all times Hot in acc and on Hot in on or start Instrument cluster Interior lights & anti-theft systems Interior lights system Interior lights system (dome light) Interior lights system (ignition key illumination) Junction block (left side of i/p) Left front door switch Left rear door switch Multi- purpose fuse 11 10a Multi- purpose fuse 19 10a Multi- purpose fuse 4 10a Power tops system Power window system Power window system (relay) Power windows, door locks & anti-theft systems (door control units) Red Right front door switch Right rear door switch Starting/charging system (starter relay) Storage connector (engine compt relay box) Theft-alarm system circuit diode (behind junction block) Vehicle speed sensor Warning system Warning system (key reminder switch) Wiper/washer system
COMPUTER DATA LINES Computer Data Lines for Mitsubishi Diamante 1995 List of elements for Computer Data Lines for Mitsubishi Diamante 1995: 46 (dohc) (sohc) Abs control unit (left side of trunk) Air conditioning control unit (center of i/p) C108 C109 C110 C16 C23 C35 C36 C70 C71 C75 C76 C88 Cruise control unit (right side of i/p) Data link Data link connector (below left i/p) Diagnostic trouble code erasure connector (near abs control unit) E63 Elc 4-speed automatic transaxle control module (center of of i/p) Electronic control power steering control unit (center of i/p) Engine control module (right side of i/p) Etacs unit (below center of i/p) F24 G201 (right side of i/p, on deck crossmember) G202 (left side of i/p, on deck crossmember) G202 left side of i/p, on deck crossmember) G29 Hot at all times Instrument cluster Junction block (left side of i/p) Left door control unit (door switch assembly) Left power seat Logic ground Multi- purpose fuse 19 10a Multiplex circuit Power seat control unit Red Right door control unit (door switch assembly) Srs diagnosis unit (below center console, between front seats) Storage connector (in engine compartment relay box) Tcl module (left side of trunk) Vehicle speed sensor (reed switch) (behind speedometer) Vss
COOLING FAN Cooling Fan Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Cooling Fan Wiring Diagram for Mitsubishi Diamante 1995: 30 (1995 sohc) (1996 sohc, all dohc) A59 Acc Air conditioning belt lock controller (behind glove compartment) Air conditioning control unit (behind center of i/p) C21 C70 C71 Condenser fan motor (behind left side of radiator) Condenser fan motor relay (hi) Condenser fan motor relay (lo) Condensor fan resistor (below condensor fan motor) Dedicated fuse 7 30a Diode (left side of i/p, front of junction block) Engine compartment relay box Engine control module (right side of i/p) Fusible link 4 40a G100 (left front fender, behind headlamp) Hot at all times Hot in on Ignition switch Lock Nca Radiator fan motor (behind right side of radiator) Radiator fan motor relay (hi) Radiator fan motor relay (lo) Radiator fan resistor (above radiator fan motor) Start W/ dohc engine W/ sohc engine
CRUISE CONTROL Cruise Control Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Cruise Control Wiring Diagram for Mitsubishi Diamante 1995: 59 (accelerator position sensor) (w/ tcl) (below center of i/p) (below left i/p, near junction block) Acc C109 C75 C76 C79 C84 C88 C90 Cancel Clock spring Control module Control valve Cruise Cruise control actuator (right rear of engine compartment) Cruise control main switch (instrument panel) Cruise control switch (steering wheel) Cruise control unit (center of i/p) Data link connector Elc 4-speed automatic transaxle c17 Engine compartment relay box (right side of engine compartment) Engine controls system (throttle position sensor) (w/o tcl) G201 (behind right side of i/p, on deck crossmember) Hot at all times Hot in on Hot in on or acc Hot in on or start Ignition switch Illumination lamp Ind Instrument cluster Interior lights system Interior lights system (instrument illumination circuit) Junction block (left side of i/p) Lock Multi- purpose fuse 11 10a Multi- purpose fuse 17 20a Multi- purpose fuse 19 10a Multi- purpose fuse 4 10a Multi- purpose fuse 7 10a Nca Od off Off Overdrive switch (center console) Red Release valve Resume Rheostat Run Sedan Set Start Starting/ charging system (park/ neutral position switch) Stop light switch Storage connector Vehicle speed sensor (reed switch) Wagon
DEFOGGERS Defogger Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Defogger Wiring Diagram for Mitsubishi Diamante 1995: 41 "on" indicator (1996) (1995) (w/ dohc engine) C109 C35 C36 C75 C84 C86 C88 Data link connector (partial) (left i/p) Dedicated fuse 11 10a Dedicated fuse 12 30a Defogger Defogger relay (below (center of i/p) Defogger switch Engine control module (dohc) (right side of i/p) Etacs unit (center (of i/p) G201 (behind right side of i/p, on deck crossmember) G202 (behind left side of i/p, on deck crossmember) Hot at all times Hot at all times Hot in on or acc Hot in on or start Idle up Idle-up diode (behind junction block, strapped to harness) Illum- ination lamp Interior lights system (junction block) Interior lights system (rheostat) Junction block (left i/p) Junction block (left side (of i/p) Left remote controlled mirror Mirror heater Multi- purpose fuse 11 10a Multi- purpose fuse 19 10a Multi- purpose fuse 3 10a Nca Passenger compartment relay box (left side of i/p) Red Right remote controlled mirror Storage connector (in engine compartment relay box)
ELECTRONIC POWER STEERING Electronic Power Steering Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Electronic Power Steering Wiring Diagram for Mitsubishi Diamante 1995: 13 C109 C86 C89 D-02 Data link connector (under left side of dash) Electronic control power steering control unit (behind center of dash) Electronic control power steering solenoid valve (on steering gear box assembly) G202 (behind left side of dash, on deck crossmember) Hot in run Instrument cluster Junction block (left side of dash) Multi- purpose fuse 2 10a Vehicle speed sensor (reed switch)
ENGINE PERFORMANCE
3.0L 3.0L DOHC, Engine Performance Wiring Diagrams (1 of 3) for Mitsubishi Diamante 1995 List of elements for 3.0L DOHC, Engine Performance Wiring Diagrams (1 of 3) for Mitsubishi Diamante 1995: 35 (in underhood fuse block) (left of engine) Air conditioning compressor clutch relay Air conditioning compressor thermostat B19 B20 C16 C21 C23 Check engine indicator Coil Dedicated fuse 8 20a Elec-4at control module (behind radio) Engine speed detection connector (right side of safety wall) Fuel injectors (top of engine) G121 (center of safety wall) G121 (left side of safety wall) Hot at all times Ignition coil Ignition power transistor (near ignition coil) Instrument cluster Multiport fuel injection relay (behind right side of i/p) Nca Noise condenser (near ignition coil) Power steering pressure switch Powertrain control module (behind right end of i/p) Red Spark plugs 1 & 4 Spark plugs 2 & 5 Spark plugs 3 & 6 Tachometer Traction control vacuum solenoid (w/ traction control) (center of safety wall) Traction control ventilation solenoid (w/ traction control) (center of safety wall) Under- hood fuse block W/ traction control 3.0L DOHC, Engine Performance Wiring Diagrams (2 of 3) for Mitsubishi Diamante 1995 List of elements for 3.0L DOHC, Engine Performance Wiring Diagrams (2 of 3) for Mitsubishi Diamante 1995: 28 (right side of engine, below throttle body) idle speed control motor Acc B11 B12 C73 C76 C88 Dedicated fuse 5 15a Defogger relay Diode (left kick panel) Fuel pump Fuel pump check connector (left side of safety wall) G202 (left side of i/p) Hot at all times Hot in on or start Ignition switch Junction block Junction block (left side of i/p) Lock Multi- purpose fuse 11 10a Park/neutral position switch (side of transmission) Red Run Start Stoplight switch Taillight relay Under- hood fuse block Variable induction control motor (left side of engine) 3.0L DOHC, Engine Performance Wiring Diagrams (3 of 3) for Mitsubishi Diamante 1995 List of elements for 3.0L DOHC, Engine Performance Wiring Diagrams (3 of 3) for Mitsubishi Diamante 1995: 51 (after catalytic converter) (before catalytic converter) (center of safety wall) (left side (left side of engine) crankshaft position sensor (right side of engine) * w/ traction control Accelerator position sensor or throttle position sensor Atmospheric sensor Block C108 C22 C75 C84 Camshaft position sensor (left side of engine) D02 Data link connector (partial) (below i/p, left of steering column) Egr solenoid Egr temperature sensor (center rear of engine) Engine coolant temperature sensor (right side of engine) Evaporative emission purge solenoid G203 (behind right side of i/p) G403 (left trunk wall) Hot at all times Ignition timing adjustment connector (center of safety wall) Instrument cluster Intake air temp sens Junction Junction block Knock Left bank heated oxygen sensor (front) Left bank heated oxygen sensor (rear) Module (left trunk wall) Multi- purpose fuse 19 10a Nca Of i/p) Off Powertrain control module (behind right end of i/p) Red Right bank heated oxygen sensor (front) Right bank heated oxygen sensor (rear) Sensor (front of engine) Storage connector Tcl * Throttle position sensor Traction control Vehicle speed sensor (reed switch) Volume air flow sensor (right center of engine compt) W/ traction control W/ w/o traction control W/o traction control 3.0L SOHC, Engine Performance Wiring Diagrams (1 of 3) for Mitsubishi Diamante 1995 List of elements for 3.0L SOHC, Engine Performance Wiring Diagrams (1 of 3) for Mitsubishi Diamante 1995: 29 (partial) (below i/p, right of steering column) (right side of safety wall, near wiper motor) ignition timing adjustment connector A/c compressor C46 C52 C54 Check engine indicator Compressor clutch relay Cooling fan relay (hi) Cooling fan relay (lo) Data link connector Dedicated fuse 8 20a Distributor (top left side of engine) Elec-4at control module (behind radio) Fuel injectors (top front of engine) G123 (right side of safety wall, near wiper motor) G206 (center of i/p, Hot at all times Ignition coil (left side of intake maifold) Ignition power transistor (left side of intake maifold) Instrument cluster Multiport fuel injection relay (under right center of dash) Nca Power steering pressure switch (left of engine) Powertrain control module (below right side of i/p) Red Spark plugs Under- hood fuse block Variable induction control motor (left side of engine) 3.0L SOHC, Engine Performance Wiring Diagrams (2 of 3) for Mitsubishi Diamante 1995 List of elements for 3.0L SOHC, Engine Performance Wiring Diagrams (2 of 3) for Mitsubishi Diamante 1995: 18 (right side of engine, on intake manifold) idle air control motor Acc C71 Fuel pump Fuel pump check connector (right side of safety wall, near wiper motor) G407 (center rear of trunk) Hot at all times Hot in on or start Ignition switch Junction block (left side of i/p) Lock Multi- function fuse 11 10a Multi- function fuse 12 15a Nca Park/neutral position switch (on transaxle) Red Run Start 3.0L SOHC, Engine Performance Wiring Diagrams (3 of 3) for Mitsubishi Diamante 1995 List of elements for 3.0L SOHC, Engine Performance Wiring Diagrams (3 of 3) for Mitsubishi Diamante 1995: 34 (behind catalytic converter) (center of safety wall) (front of catalytic converter) Atmospheric sensor C53 C70 red Camshaft position Crankshaft position Crankshaft position sensor & camshaft position sensor (left side of engine) Egr solenoid valve Egr temperature sensor (center rear of engine) Engine coolant temperature sensor (right side of engine) Evaporative emission purge solenoid G123 (right side of safety wall, near wiper motor) Ground Hot at all times Intake air temp sens Iod or storage connector (in underhood fuse block) Junction block (left side of i/p) Knock sensor (center rear of engine) Left bank heated oxygen sensor (front) Left bank heated oxygen sensor (rear) Multi- purpose fuse 19 10a Nca Off Pnk Power Powertrain control module (below right side of i/p) Red Right bank heated oxygen sensor (front) Right bank heated oxygen sensor (rear) Throttle position sensor (right side of engine) Vehicle speed sensor (reed switch) (behind speedometer) Volume air flow sensor (right side of engine compartment)
EXTERIOR LIGHTS Back-up Lamps Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Back-up Lamps Wiring Diagram for Mitsubishi Diamante 1995: 8 C86 G202 (behind left side of i/p, on deck crossmember) Hot in on or start Junction block (left side of i/p) Left back-up light Multi- purpose fuse 18 10a Park/ neutral position switch (right side of engine, top of transaxle) Right back-up light Exterior Lamps Wiring Diagram (1 of 2) for Mitsubishi Diamante 1995 List of elements for Exterior Lamps Wiring Diagram (1 of 2) for Mitsubishi Diamante 1995: 43 Automatic light shut-off unit (below center of i/p) C48 C73 C76 C85 C86 C88 Column switch Dedicated fuse 5 15a Dedicated fuse 9 15a Engine compartment relay box Fusible link 5 40a G100 (left front fender, behind headlamp) G101 (right front fender, behind headlamp) G202 (behind left side of i/p, on deck crossmember) Hazard switch Head Headlight switch Headlights system Hot at all times Hot in on or start Illumination lamp Instrument cluster Interior lights system Junction block (left side of i/p) Left front door switch Left front side marker light Left front turn signal light Left turn Left turn signal indicator Multi- purpose fuse 12 10a Nca Off Red Rheostat Right front side marker light Right front turn signal light Right turn Right turn signal indicator Tail Tail light relay Turn signal & hazard flasher unit (interior relay box) (right side of i/p) Turn signal switch Exterior Lamps Wiring Diagram (2 of 2) for Mitsubishi Diamante 1995 List of elements for Exterior Lamps Wiring Diagram (2 of 2) for Mitsubishi Diamante 1995: 23 (no connection) C21 C73 C84 C88 Cruise control system Engine control module (dohc only) (right side of i/p) G202 (behind left side of i/p, on deck crossmember) Hight mount stop light Hot at all times Idle-up diode (behind junction block) Junction block (left side of i/p) Left license plate light Left rear combination light Left rear lid light (tail/stop) Multi- purpose fuse 17 20a Nca Right license plate light Right rear combination light Right rear lid light (tail/stop) Stop light switch Tail/ stop lamps Turn signal lamps
GROUND DISTRIBUTION Ground Distribution Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Ground Distribution Wiring Diagram for Mitsubishi Diamante 1995: 25 Abs control unit & tcl module & shield Battery Column switch, sunroof control unit, sunroof motor, sunroof switch (dome light), left rear door lock actuator, right rear door lock actuator, trunk lid key cylinder switch, cruise control unit, tcl switch, right door control unit, automatic anti-glare inside rear view mirror, blower motor relay (hi), instrument cluster, power transistor (a/c), backup lamps, license plate lamps, rear lid lights, rear personal lights, ashtray illumination lamp (front), cigarette lighter, rear ashtray illumination lamps, right power seat, etacs unit, high mount stoplamp, right door key cylinder switch, data link connector & right remote controlled mirror (heater) Condenser assembly shield (sohc) pulse generator shield, elc 4-speed automatic transaxle & control module & shield Defogger (element) G100 (left front fender, behind headlamp) G101 (right front fender, behind headlamp) G101 (right side of engine compt., behind battery) G119 (right front of engine, on transaxle stud) G121 (center of safety wall) G201 (behind right side of i/p, on deck crossmember) G202 (behind left side of i/p, on deck crossmember) G203 (top of right kick panel) G206 (below center of i/p) G402 (lower left side of trunk) G402 (upper left side of trunk) G407 (center rear of trunk) G904 (left c-pillar) Heated oxygen sensor shields knock sensor shields, elc 4-speed automatic transaxle control module & ignition shield (1996 sohc) Ignition power transistor, crankshaft position sensor, camshaft position sensor, engine control module & brake fluid level sensor Left horn (hi) & right horn (lo) Rear combination lights Return pump relay (ecs), return pump (ecs), compressor relay (ecs), compressor (ecs), exhaust solenoid valve (ecs), flow control valve (ecs), condenser fan motor relay (hi), radiator fan relay (hi), condenser fan resistor, radiator fan resistor, washer fluid level sensor, washer motor, front side marker lamps, front turn signal lamps, front side marker/parking lamps, theft-alarm horn hood switch, abs valve relay, abs hydraulic unit & headlamps Tcl module & tcl shield Turn signal/hazard flasher unit, fuel pump, fuel gauge unit, trunk lid opener switch, keyless entry control unit, left door key cylinder switch, door key illumination assembly (w/o rke) left door control unit, left rear power window unit, right rear power window unit, srs diagnosis unit, ecs switch, front solenoid valve (ecs), rear solenoid valve (ecs), electronic control suspension control unit, active-ecs power relay, seat belt switches, left front door lock actuator right front door lock actuator, air conditioning control panel assembly, air conditioning belt lock controller (dohc), air conditioning control unit, heater water temperature sensor, blower motor relay, instrument cluster, vehicle speed sensor, rheostat, clock electronic control power steering control unit, defogger switch, left power seat, power seat memory switch, motor antenna assembly, spare connector (cd auto changer), data link connector & left remote controlled mirror (heater)
HEADLIGHTS Headlight Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Headlight Wiring Diagram for Mitsubishi Diamante 1995: 40 Anti-theft system Automatic light shut-off unit (below center of i/p) C36 C46 C48 C73 C75 red C76 C85 Column switch Dedicated fuse 3 10a Dimmer/ passing switch Engine compartment relay box (right side of engine compt.) Etacs unit (below center of i/p) Fusible link 5 40a G100 (left front fender, behind headlamp) G202 (behind left side of i/p, on deck crossmember) Head Headlight relay Headlight switch Hi-beam indicator Hi-beams Horn system (junction block, pin 14-c89) Hot at all times Hot in on or start Instrument cluster Interior & exterior lights systems Junction block (left side of i/p) Left front door switch Left headlamp Multi- purpose fuse 11 10a Multi- purpose fuse 19 10a Nca Off Pass Red Right headlamp Storage connector (engine compt. relay box) Tail Theft-alarm diode (behind junction block)
HORN Horn Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Horn Wiring Diagram for Mitsubishi Diamante 1995: 19 (front of right Anti-theft system (if equipped) C36 C85 C89 C90 Clock spring Etacs unit (below center of i/p) G101 front fender) Horn relay Horn switch Hot at all times Junction block (left side of i/p) Left horn (hi) Multi-purpose fuse 14 20a Nca Red Right horn (lo) Theft- alarm system circuit diode (behind junction block)
INSTRUMENT CLUSTER Instrument Cluster Wiring Diagram (1 of 2) for Mitsubishi Diamante 1995 List of elements for Instrument Cluster Wiring Diagram (1 of 2) for Mitsubishi Diamante 1995: 54 (6 bulbs) Abs Beam Brake Brake fluid level sensor (master cylinder) C73 C75 C76 Charge Check engine Combination meter Cruise Dedicated fuse 3 10a Dedicated fuse 5 15a Dimmer circuit Door Economy Engine compartment relay box Engine coolant temperature gauge unit (top left side of engine) Fuel Fuel gauge Fuel gauge unit (in fuel tank) G201 (behind right side of dash, on deck crossmember) Hot at all times Hot in on or start Hot in park or head Hot with headlights switched on Illumination Interior lights system Iod or storage connector (engine compartment relay box) Junction block (left side of dash) Left turn Multi- purpose fuse 11 10a Multi- purpose fuse 19 10a Nca Od off Oil Oil pressure switch (rear of engine) Parking brake switch (center console) Power Red Rheostat Right turn Seat belt Security Speedometer Srs Tachometer Tcl Tcl off Temperature gauge Trace off Vehicle speed sensor Washer Instrument Cluster Wiring Diagram (2 of 2) for Mitsubishi Diamante 1995 List of elements for Instrument Cluster Wiring Diagram (2 of 2) for Mitsubishi Diamante 1995: 21 Anti-lock brakes system Anti-lock brakes system (traction control) Body computer system Body computer system electronic suspension system, electronic power steering system, cruise control system, computer data lines system, seats system, transmission system & engine controls system C76 C86 Cruise control system Diode (behind junction block, strapped to harness) Engine controls system Exterior lights system G201 (right side of dash, on deck crossmember) Headlights system Junction block (left side of dash) Left front door switch Left rear door switch Red Right front door switch Right rear door switch Starting/charging system Transmission system Wiper/washer system
INTERIOR LIGHTS Courtesy Lamps Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Courtesy Lamps Wiring Diagram for Mitsubishi Diamante 1995: 68 (right side of engine compartment) (right side of i/p, on deck crossmember) 10 sec. timer 6 sec. timer Automatic light shut- off unit (below center of i/p) C35 C36 C74 C75 C84 C86 Constant voltage circuit Dedicated fuse 13 Diode (left side of i/p, near junction block) Dome lamp Dome lamp assembly Door Door handle switch Door inputs Door key illumination assembly Door sw in Engine compartment relay box Etacs unit (below center of i/p) F10 F17 F24 F25 Fusible link 1 30a G201 G202 (left side of i/p, on deck crossmember) G35 Gnd Hot at all times Hot at all times Hot in on or start Ignition key illumination lamp Illum ctrl Junction block (left side of i/p) Keyless entry control unit (center of rear deck) Left door control unit Left front door lamp Left front door switch Left rear door lamp Left rear door switch Left rear personal lamp Left rear power window unit Luggage compartment lamp Luggage compartment lamp switch Map lamps Multi comm Multi- purpose fuse 11 10a Multi- purpose fuse 19 10a Multi- purpose fuse 6 15a Nca Off Power tops system (sunroof control unit) & warning system (buzzer) Power window main switch Power window relay Red Relay ctrl Right door control unit Right front door lamp Right front door switch Right rear door lamp Right rear door switch Right rear personal lamp Right rear power window unit Storage connector (engine compt. relay box) Instrument Illumination Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Instrument Illumination Wiring Diagram for Mitsubishi Diamante 1995: 56 (3 bulbs) (left side of i/p, on deck crossmember) A/t selector lever position illumination lamp A/t selector lever position indicators Air conditioning control panel Ashtray illumination lamp Automatic anti-glare inside rear view mirror C41 C57 C73 C74 C76 C84 C85 C88 C89 Cigarette lighter Clock Column switch Cruise control main switch Dedicated fuse 5 15a Defogger switch Ecs switch Engine compartment relay box Engine controls system Fusible link 5 40a G201 (right side of i/p, on deck crossmember) G202 G202 (left side of i/p, on deck crossmember) Glove compartment illumination lamp Glove compartment illumination lamp switch Hazard switch Head Headlamp switch Hot at all times Instrument cluster Junction block (left side of i/p) Left rear ashtray illumination lamp Left vanity mirror Light automatic shut-off unit (below center of i/p) Mirror open Off Overdrive switch Park Power seat memory switch Power/ economy changeover switch Radio cassette player Red Rheostat Right rear ashtray illumination lamp Right vanity mirror Tail light relay Tcs switch W/ analog clock only W/ ecs W/o ecs
MEMORY SYSTEMS Memory Seat Wiring Diagram (1 of 2) for Mitsubishi Diamante 1995 List of elements for Memory Seat Wiring Diagram (1 of 2) for Mitsubishi Diamante 1995: 72 (left side of dash, on deck crossmember) (not used) +12v Bwd C75 C84 C86 C88 Down E58 E59 E60 E62 E63 E64 E65 Emergency stop Front height Front height down Front height motor Front height position sensor Front height up Frt height dwn limit Frt height pos sens Frt height up limit Fwd G202 Ground Hot at all times Hot in run Hot in run or start Ignition Instrument cluster system vehicle speed sensor Junction block (left side of dash) Left power seat switch Memory setting Multi- purpose fuse 11 10a Multi- purpose fuse 19 15a Multi- purpose fuse 3 10a Multi- purpose fuse 7 10a Park/neutral position switch (right side of engine, top of transaxle) Playback forbidden Playback operation Power seat control unit (under left front seat) Power source Rear height Rear height down Rear height motor Rear height position sensor Rear height up Recline Recline backward Recline forward Recline front limit Recline motor Recline pos sensor Recline rear limit Reclining position sensor Red Rr height dwn limit Rr height pos sens Rr height up limit Slide Slide backward Slide forward Slide front limit Slide motor Slide pos sensor Slide position sensor Slide rear limit Speed input Storage connector (in engine compartment relay box) Memory Seat Wiring Diagram (2 of 2) for Mitsubishi Diamante 1995 List of elements for Memory Seat Wiring Diagram (2 of 2) for Mitsubishi Diamante 1995: 22 Bwd C86 Circuit breaker Dwn Engine compartment relay box Front height limit switch Front height motor Fusible link 1 30a Fwd Hot at all times Illumination lamp Interior lights system Nca Power seat memory switch (overhead console) Rear height limit switch Rear height motor Reclining limit switch Reclining motor Red Slide limit switch Slide motor Stop
PASSIVE RESTRAINTS Electric Tension Reducer Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Electric Tension Reducer Wiring Diagram for Mitsubishi Diamante 1995: 9 Dedicated fuse 13 10a G202 (behind left side of i/p, on deck crossmember) Interior relay box (left side of i/p) Left front seat belt solenoid (left "b" pillar) Left front seat belt switch Nca Power distribution system (power window relay) Right front seat belt solenoid (right "b" pillar) Right front seat belt switch
POWER ANTENNA Power Antenna Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Power Antenna Wiring Diagram for Mitsubishi Diamante 1995: 27 (left side of i/p) (left side of i/p, (left side of trunk, above wheel) spare connector (cd changer) Antenna feeder cable C41 C75 C86 C88 Down G202 on deck crossmember) G34 Hot at all times Hot in on or acc Hot in on or start Junction block Junction block (left side of i/p) Lock sensing circuit Motor antenna assembly Motor antenna control unit Multi- purpose fuse 11 10a Multi- purpose fuse 19 10a Multi- purpose fuse 4 10a Nca Pnk Radio/ cassette player Red Storage connector (in engine compartment relay box)
POWER DISTRIBUTION Power Distribution Wiring Diagram (1 of 3) for Mitsubishi Diamante 1995 List of elements for Power Distribution Wiring Diagram (1 of 3) for Mitsubishi Diamante 1995: 41 Abs motor relay & abs valve relay Air conditioning compressor clutch relay Battery Condenser fan motor Dedicated fuse 1 10a Dedicated fuse 12 (interior relay box) (diagram 2 of 3) Dedicated fuse 2 15a Dedicated fuse 3 10a Dedicated fuse 5 15a Dedicated fuse 7 30a Dedicated fuse 8 20a Dedicated fuse 9 15a Engine compartment relay box (right side of engine compt.) Fusible link 1 30a Fusible link 2 50a Fusible link 3 (ignition switch) (diagram 2 of 3) Fusible link 4 40a Fusible link 5 40a Fusible link 6 60a Fusible link 7 100a Fusible link 8 60a G101 (right side of engine compt., behind battery) G119 (right front of engine, on transaxle stud) Generator Generator (* w/ sohc only) Generator (w/ dohc only) Hazard switch Headlamps Headlight relay Instrument cluster Multi-port fuel injection relay Multi-purpose fuse 6 (junction block) (diagram 2 of 3) Power seats Power window relay (junction block) (diagram 2 of 3) Power/economy changeover switch, hazard switch, defogger switch, tcs switch, ecs switch, cruise control main switch, overdrive switch, power seat memory switch, rheostat, idle-up diode (dohc only), glove compartment illumination lamp, instrument cluster, air conditioning control panel, radio/cassette player, clock, automatic anti-glare inside rear view mirror, vanity mirrors, front parking/side marker lamps, rear combination lights, rear lid lights & license plate lamps Radiator fan motor Red Return pump relay & compressor relay Solenoid valve relay Starter Tail light relay Power Distribution Wiring Diagram (2 of 3) for Mitsubishi Diamante 1995 List of elements for Power Distribution Wiring Diagram (2 of 3) for Mitsubishi Diamante 1995: 69 (left side of i/p) junction block (not used) (sedan only) 15a Acc Amplifier (radio) Automatic light shut-off unit, keyless entry control unit, door control units & electronic control suspension control unit Blower motor relay C72 C74 C75 C76 C84 C86 C88 C89 C90 Data link connector, etacs unit, left power seat, cruise control unit & air conditioning control unit Dedicated fuse 11 10a Dedicated fuse 12 30a Dedicated fuse 13 10a Dedicated fuse 14 (inline fuse near junction block) Defogger relay (below center of i/p) Defogger switch idle-up diode (dohc) defogger Dome lamp (map lamps) Ecs power relay Elc 4-speed automatic transaxle control module, engine control module & tcl module Engine compartment relay box (right side of engine compt.) Fusible link 1 (engine compt. relay box) (diagram 1 of 3) Fusible link 3 30a Fusible link 6 (diagram 1 of 3) Fusible link 8 (engine compt. relay box) (diagram 1 of 3) Horn relay Ignition key illumination lamp Ignition switch Instrument cluster & clock Interior relay box (left side of i/p) Junction block (left side of i/p) Lock Multi- purpose fuse 1 position Multi- purpose fuse 13 20a Multi- purpose fuse 14 20a Multi- purpose fuse 15 20a Multi- purpose fuse 16 30a Multi- purpose fuse 17 20a Multi- purpose fuse 19 10a Multi- purpose fuse 6 15a Multi-port fuel injection relay, engine control module, ignition coil, condenser assembly (sohc), condenser (dohc) & ignition power transistor (dohc) Multi-purpose fuse 18 (junction block) (diagram 3 of 3) Multi-purpose fuse 3 (junction block) (diagram 3 of 3) Multi-purpose fuse 4 (junction block) (diagram 3 of 3) Nca Park/neutral position switch & cruise control switch Power window relay Power window units door control units Radiator fan motor relay (lo), radiator fan motor relay (hi) & condenser fan motor relay (hi) Radio/cassette player, spare connector (cd auto changer) & motor antenna assembly Rear personal lights, key reminder switch & luggage compartment lamp Red Remote controlled mirrors Seat belt solenoids Sedan only Side mirror heaters Start Stop light switch Storage connector (engine compt. relay box) Sunroof control unit Theft-alarm horn relay Trunk lid opener relay Power Distribution Wiring Diagram (3 of 3) for Mitsubishi Diamante 1995 List of elements for Power Distribution Wiring Diagram (3 of 3) for Mitsubishi Diamante 1995: 44 (not used) Abs control unit & abs valve relay Air conditioning control unit, air conditi0ning belt lock controller (dohc), air conditioning control panel assembly, blower motor relay (hi) & defogger relay Blower motor relay C73 C75 C76 C84 C87 C88 C89 C90 Cigarette lighter Clock (digital) Column switch (wipers) & wiper motor Cruise control unit & overdrive switch Ecs power relay & electronic control power steering control unit Etacs unit, keyless entry unit, automatic anti-glare inside rear view mirror, left door control unit (side mirrors), cruise control unit, cruise control switch, radio/cassette player & radio remote control switch Etacs unit, sunroof control unit & automatic light shut-off unit G202 (left side of i/p, on deck crossmember) Generator relay (engine compartment relay box) & cruise control main switch Ignition switch (acc/on) (diagram 2 of 3) Ignition switch (on) (diagram 2 of 3) Ignition switch (on/start) (diagram 2 of 3) Instrument cluster Junction block (left side of i/p) Motor antenna assembly Motor antenna assembly & left power seat Multi- purpose fuse 11 10a Multi- purpose fuse 12 10a Multi- purpose fuse 18 10a Multi- purpose fuse 5 20a Multi- purpose fuse 9 20a Multi-purpose fuse 10 position (not used) Multi-purpose fuse 2 10a Multi-purpose fuse 3 10a Multi-purpose fuse 4 10a Multi-purpose fuse 7 10a Multi-purpose fuse 8 position (not used) Park/neutral position switch Park/nuetral position switch, elc 4-speed automatic transaxle control module, power/economy changeover switch & tcl module Srs diagnosis unit Srs diagnosis unit & hazard switch Storage connector (engine compt. relay box)
POWER MIRRORS Photochromic Mirror Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Photochromic Mirror Wiring Diagram for Mitsubishi Diamante 1995: 24 Auto Auto on ind Automatic anti-glare inside rear view mirror Automatic sensitivity adjustment circuit C75 C88 Constant voltage circuit Day Day on ind E34 Electrochromatic drive circuit Front photo sensor G202 (behind left side of i/p, on deck crossmember) Hot in acc or on Illum Interior lights system Junction block (left side of i/p) Multi- purpose fuse 4 10a Nca Night Night on ind Rear photo sensor Reflectivity select switch Storage connector (in engine compt relay box) Power Mirror Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Power Mirror Wiring Diagram for Mitsubishi Diamante 1995: 33 (1995) (1996) (behind right side of i/p, on deck crossmember) Automatic anti-glare inside rear view mirror C75 C84 C86 C90 Constant voltage circuit Down F24 F25 G201 G201 (behind left side of i/p, on deck crossmember) Gnd Hot at all times Hot in acc or on Junction block (left side of i/p) Left Left door control unit (under door switch assembly) Left mirror Multi- purpose fuse 19 10a Multi- purpose fuse 4 10a Multiple communication circuit Nca Off Red Remote controlled mirror switch Right Right door control unit (under door switch assembly) Right mirror Right side/ left side changeover switch Storage connector (in engine compartment relay box)
POWER SEATS Passenger Power Seat Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Passenger Power Seat Wiring Diagram for Mitsubishi Diamante 1995: 21 Bwd C86 Circuit breaker Down Engine compartment relay box Front height Front height limit switch Front height motor Fusible link 1 30a Fwd G202 (left side of dash, on deck crossmember) Hot at all times Rear height Rear height limit switch Rear height motor Recline Reclining motor Red Right power seat switch (right side of seat) Slide Slide motor
POWER TOP/SUNROOF Power Top/Sunroof Wiring Diagrams for Mitsubishi Diamante 1995 List of elements for Power Top/Sunroof Wiring Diagrams for Mitsubishi Diamante 1995: 18 C74 C84 Clse Dwn G201 (behind right side of dash, on deck crossmember) Hot at all times Hot in run and start Junction block (behind left side of dash) Left front door switch Limit switches Multi-purpose fuse 11 10a Multi-purpose fuse 15 20a Open Red Rotation sensor Sunroof control unit (right side of dome lamp assembly, inside headliner) Sunroof motor (inside headliner) Sunroof switch
POWER WINDOWS Power Window Wiring Diagram (1 of 2) for Mitsubishi Diamante 1995 List of elements for Power Window Wiring Diagram (1 of 2) for Mitsubishi Diamante 1995: 44 Auto down Auto switch C35 C36 C75 C84 C88 C90 Circuit breaker Constant voltage circuit Down Engine compartment relay box Etacs unit (below center of dash) F24 F25 Fusible link 1 30a G201 (behind right side of dash, on deck crossmember) G202 (behind left side of dash, on deck crossmember) Hot at all times Hot in run or start Illumination (4) Junction block (left side of dash) Left door control unit (in left front door panel) Left front power window motor Left front switch Left rear switch Lock Lock ind Lock switch Multi- purpose fuse 1 10a Multi- purpose fuse 11 10a Multi- purpose fuse 19 10a Multiple communication circuit Nca Power window main switch Power window relay Red Right door control unit (in right front door panel) Right front power window motor Right front power window switch Right front switch Right rear switch Storage connector (in engine compartment relay box) Timer circuit Power Window Wiring Diagram (2 of 2) for Mitsubishi Diamante 1995 List of elements for Power Window Wiring Diagram (2 of 2) for Mitsubishi Diamante 1995: 17 multiple communication circuit C35 C36 Circuit breaker Down Etacs unit (below center of dash) G201 (behind right side of dash, on deck crossmember) G202 (behind left side of dash, on deck crossmember) Left front door switch Left rear power window motor Left rear power window switch Left rear power window unit Nca Right front door switch Right rear power window motor Right rear power window switch Right rear power window unit
RADIO Radio Wiring Diagrams, with Amplifier for Mitsubishi Diamante 1995 List of elements for Radio Wiring Diagrams, with Amplifier for Mitsubishi Diamante 1995: 37 (behind left side of dash, on deck crossmember) g202 Amplifier Antenna feeder cable Antenna motor (in left side of luggage compartment) C41 C42 C75 C84 C86 C88 C89 Clock spring (in steering wheel) G202 (left side of dash, on deck crossmember) G402 (upper left side of trunk) Glass antenna Hot at all times Hot in acc & run Hot in run & start Interior lights system Junction block (behind left side of dash) Left door speaker Left front speaker Left rear speaker Multi- purpose fuse 11 10a Multi- purpose fuse 19 10a Multi- purpose fuse 4 10a Multi- purpose fuse 6 15a Nca Pnk Radio with cassette player Red Red spare connector (cd auto changer) (left side of trunk, above wheel) Right door speaker Right front speaker Right rear speaker Steering remote control switch Storage connector (in eng compt relay box) Radio Wiring Diagrams, without Amplifier for Mitsubishi Diamante 1995 List of elements for Radio Wiring Diagrams, without Amplifier for Mitsubishi Diamante 1995: 32 Antenna feeder cable Antenna motor (in left side of luggage compartment) C41 C42 C75 C84 C86 C88 Clock spring (in steering wheel) G202 (left side of dash, on deck crossmember) Glass antenna Hot at all times Hot in acc & run Hot in run & start Interior lights system Junction block (behind left side of dash) Left door speaker Left front speaker Left rear speaker Multi- purpose fuse 11 10a Multi- purpose fuse 19 10a Multi- purpose fuse 4 10a Nca Pnk Radio with cassette player Red Red spare connector (cd auto changer) (left side of trunk, above wheel) Right door speaker Right front speaker Right rear speaker Steering remote control switch Storage connector (in eng compt relay box)
STARTING/CHARGING Charging Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Charging Wiring Diagram for Mitsubishi Diamante 1995: 26 (1992) (1992) (1993-96) (1993-96) Abs control unit (left side of trunk) Alternator Alternator relay Battery C76 C90 Charge indicator Electronic control suspension control unit (right side of trunk) Engine compartment relay box Fusible link 5 40a Fusible link 7 100a G101 (near battery tray) G12 G130 (on trans- axle) G27 Hot in run or start Instrument cluster Junction block (left side of dash) Multi-purpose fuse 11 10a Red Starter W/ dohc engine W/ sohc engine Starting Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Starting Wiring Diagram for Mitsubishi Diamante 1995: 32 (1993-96) (1992) 1993-96 Acc Alternator (sohc only) Battery C35 C36 C75 C86 Diode (left side of dash) Engine compartment relay box Etacs unit (below center of dash) Fusible link 3 30a G101 (near battery tray) G130 (on trans- axle) Hot at all times Ign key input Ignition switch Junction block (left side of dash) Key reminder switch (part of ignition sw cylinder) Key removed Lock Mult-purpose fuse 10a Nca Park/ neutral position switch (top of transaxle) Red Srs diagnosis unit Start Starter Starter disable Starter relay (right front of engine compt, along inner fender) Storage connector (in engine compt relay box)
SUPPLEMENTAL RESTRAINTS Supplemental Restraint Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Supplemental Restraint Wiring Diagram for Mitsubishi Diamante 1995: 41 (left side of i/p, on deck crossmember) (left side of i/p) Acc C76 C86 Clock spring Connector lock switch Data link Data link connector Driver side air bag module E25 E26 E28 Fuse 10a G202 Ground Hot at all times Hot in on or start Ignition Ignition switch Instrument cluster Junction block (left side of i/p) Left front impact sensor Lock Locked Nca P/n Park/neutral position switch Passenger side air bag module Return Right front impact sensor Run Safing out Sens gnd Sensor in Srs diagnosis unit (under center console, between front seats) Srs ind Srs ind. Start Starting system Unlocked
TRANSMISSION Transmission Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Transmission Wiring Diagram for Mitsubishi Diamante 1995: 62 (below center of dash) 2 indic A-14x A/t fluid temperature sensor (on valve body) A/t selector lever position illumination light Air conditioning system Anti-lock brakes system (traction control) Auto- cruise control unit (below center of dash) C-109 C-75 C-84 C-86 C-88 Condenser assembly (wagon & sohc sedan) D indic Data link connector (below left dash) Economy indic Elc 4-speed automatic transaxle control module Electronic suspension system Engine compartment relay box (right engine compartment) Engine control module (behind right dash) Engine controls system (ignition power transistor (dohc) or Exterior lights system Fuse 10a Fuse 10a (sedan) 15a (wagon) G201 (behind right dash, on cross- member) G202 (behind left dash, on crossmember) G203 (right kick panel) G206 (below left of glove box) Hot at all times Hot in on Hot in on or start Illum. Instru- ment cluster system Interior lights system Junction block (left dash) Kickdown servo switch (front of transaxle) L indic N indic Nca O/d off indic Off Oil pressure control solenoid Overdrive switch P indic P r Park/neutral position switch (right engine compartment) Power indic Power/economy changeover switch Pulse generator a (top rear of transaxle) Pulse generator b (top front of transaxle) R indic Red Reed switch Seats system Shift control solenoid a Shift control solenoid b Starting/ charging system Storage connector Throttle position sensor or accelerator position sensor (on throttle body) Torque convertor clutch solenoid Valve body assembly
TRUNK, TAILGATE, FUEL DOOR Trunk Release Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Trunk Release Wiring Diagram for Mitsubishi Diamante 1995: 16 (not used) C89 G202 (behind left side of i/p, on deck crossmember) G35 Hot at all times Junction block (left side (of i/p) Keyless entry control unit (under left side of rear shelf) Multi- purpose fuse 6 15a Nca Trunk lid opener main switch (in glove box) Trunk lid opener relay (left side of i/p) Trunk lid opener switch Trunk lid solenoid Trunk release With keyless entry Without keyless entry
WARNING SYSTEMS Warning System Wiring Diagrams for Mitsubishi Diamante 1995 List of elements for Warning System Wiring Diagrams for Mitsubishi Diamante 1995: 29 (behind junction block) Belt fastened Buzzer (center of i/p, right of climate controls) C35 C36 C75 C76 C84 C86 Door input Etacs unit (below center (of i/p) Exterior lights system (automatic light shut-off unit) & power tops system (sunroof control unit) Hot at all times Hot in on or start Instrument cluster Junction block (left side (of i/p) Key reminder switch Key removed Left front door switch Mult-purpose fuse 19 10a Multi-purpose fuse 11 10a Red Seat belt indicator Seat belt switch Seat belt warning circuit diode Starting system & door locks system Storage connector (in engine compartment relay box) Timer/ pulse circuit Timer/ pulse power
WIPER/WASHER Wiper/Washer Wiring Diagram for Mitsubishi Diamante 1995 List of elements for Wiper/Washer Wiring Diagram for Mitsubishi Diamante 1995: 50 (behind left side of i/p) g202 (behind right side of i/p) (left front fender, behind headlamp) g100 (left side of i/p) Auto C109 C35 C36 C75 C76 C84 C85 C87 C88 Column switch Constant voltage 5v Data link Data link connector (left side of i/p) Etacs unit (below center of i/p) Fast G201 Gnd Hot at all times Hot in on or acc Hot in on or start Instrument cluster Intermittent wiper switch Junction block Junction block (left side of i/p) Low washer fluid indicator Multi- purpose fuse 19 10a Multi- purpose fuse 4 10a Multi- purpose fuse 9 20a Multi-purpose fuse 11 10a Off Red Slow Storage connector (in engine compartment relay box) Timer circuit Vehicle speed detector circuit Vehicle speed response circuit Vehicle speed sensor (reed switch) Washer fluid level sensor Washer motor Washer switch Washer switch on interval detector circuit Wiper motor Wiper relay Wiper switch
