All Wiring Diagrams for Volkswagen R32 2008 model

AIR CONDITIONING

Automatic A/C Wiring Diagram, with Climatronic (1 of 3) for Volkswagen R32 2008

List of elements for Automatic A/C Wiring Diagram, with Climatronic (1 of 3) for Volkswagen R32 2008:

27

(behind left side of dash)
14a
22a
A/c compressor regulator valve
Air quality sensor
Climatronic control module
Computer data lines system
Evaporator temperature sensor (middle of hvac unit)
Fresh air blower control module (on fresh air blower motor)
Fuse 10a
Fuse 40a
Fuse 5a
Fuse panel c
G47
G602
G605
G655 (below left headlight assembly)
High pressure sensor
Hot at all times
Left footwell vent temperature sensor (left side of hvac unit)
Left temperature flap potentiometer/ actuator & motor
Right footwell vent temperature sensor (under center of dash)
Seats system
T16c
T20c
W/ auxiliary heater
W/o auxiliary heater

Automatic A/C Wiring Diagram, with Climatronic (2 of 3) for Volkswagen R32 2008

List of elements for Automatic A/C Wiring Diagram, with Climatronic (2 of 3) for Volkswagen R32 2008:

15

(behind left end of dash) left vent temperature sensor
(behind right end of dash) right vent temperature sensor
(under left side of dash) vehicle electrical system control module
(under top center of dash) sunlight photo sensor
Back pressure flap motor & position sensor
Center flap motor & position sensor (middle of hvac unit)
Climatronic control module
Defroster flap motor & position sensor (under left side of dash)
Fuse 40a
Fuse panel b (behind left side of dash)
Hot at all times
Recirculation flap motor & position sensor
Right temperature flap potentiometer/ actuator & motor
T16d
T40

Automatic A/C Wiring Diagram, with Climatronic (3 of 3) for Volkswagen R32 2008

List of elements for Automatic A/C Wiring Diagram, with Climatronic (3 of 3) for Volkswagen R32 2008:

33

(2.ol bpy) (3.2l)
2.0l bpy
2.0l ccta, cbfa
2.5l
3.2l
After-run coolant pump (lower left side of eng)
Auxiliary engine coolant pump relay (3.2l & 2.0l bpy)
Computer data lines system
Coolant circulation pump relay (2.0l ccta & cbfa)
Coolant fan 2 (behind radiator)
Coolant fan control (fc) module
Coolant pump (lower left side of eng)
Engine control module (ecm) (right rear of eng compt)
Engine coolant temperature sensor (radiator) (right rear of eng)
Fuse 10a
Fuse 10a 5a
Fuse 50a
Fuse 5a
Fuse panel a (behind left side of dash)
Fuse panel b (behind left side of dash)
G607 (2.0l bpy) (in plenum, by left front strut tower)
G607 (in plenum, by left front strut tower)
G642 (3.2l) (left side of engine compt)
G642 (left side of eng compt)
Hot at all times
Nca
Red
T121
T26
T2v
T40
T4x
T94

Automatic A/C Wiring Diagram, without Climatronic (1 of 2) for Volkswagen R32 2008

List of elements for Automatic A/C Wiring Diagram, without Climatronic (1 of 2) for Volkswagen R32 2008:

41

14a
40a
A/c compressor regulator valve
A/c control module
A/c switch
A/c warning light
Auxiliary heater operation relay (on relay panel)
Center outlet temperature sensor (behind left end of dash)
Computer data lines system
Driver's heated seat adjuster
Evaporator vent temperature sensor (middle of hvac unit)
Footwell outlet temperature sensor
Fresh air & recirculating air mode ind light
Fresh air blower (under right side of dash)
Fresh air blower relay (on relay panel)
Fresh air blower series resistance (w/fuse)
Fresh air blower switch
Fresh air regulator light
Fresh air/ recirculating flap switch
Front passenger's heated seat adjuster
Fuse 10a
Fuse 40a
Fuse 5a
Fuse panel c (behind left side of dash)
G47 (behind right kick panel)
G602
G605
G655 (below left headlight assembly)
Heated rear window button
High pressure sensor
Hot at all times
Hot w/ load reduction relay energized
Rear window defogger light
Recirculation flap motor
Seats system
T16e
T20c
Temp selector knob potentiometer
Temperature regulator flap motor & potentionmeter/ actuator
W/ auxiliary heater
W/o auxiliary heater

Automatic A/C Wiring Diagram, without Climatronic (2 of 2) for Volkswagen R32 2008

List of elements for Automatic A/C Wiring Diagram, without Climatronic (2 of 2) for Volkswagen R32 2008:

34

(2.ol bpy) (3.2l)
2.0l bpy
2.0l ccta, cbfa
2.5l
3.2l
3.2l & 2.5l
After-run coolant pump (lower left side of eng)
Auxiliary engine coolant pump relay (3.2l & 2.0l bpy)
Computer data lines system
Coolant circulation pump relay (2.0l ccta & cbfa)
Coolant fan 2 (behind radiator)
Coolant fan control (fc) module
Coolant pump (lower left side of eng)
Engine control module (ecm) (right rear of eng compt)
Engine coolant temperature sensor (radiator) (right rear of eng)
Fuse 10a
Fuse 10a 5a
Fuse 50a
Fuse 5a
Fuse panel a (behind left side of dash)
Fuse panel b (behind left side of dash)
G607 (2.0l bpy) (in plenum, by left front strut tower)
G607 (in plenum, by left front strut tower)
G642 (3.2l) (left side of engine compt)
G642 (left side of eng compt)
Hot at all times
Nca
Red
T121
T26
T2v
T40
T4x
T94

ANTI-LOCK BRAKES

Anti-lock Brakes Wiring Diagram, with ESP, EDL & ASR for Volkswagen R32 2008

List of elements for Anti-lock Brakes Wiring Diagram, with ESP, EDL & ASR for Volkswagen R32 2008:

54

(if equipped) tire pressure monitor- ing display button
(top of brake pedal assembly) brake light switch
14a
Abs control module (right rear corner of engine compt)
Abs hydraulic pump
Abs warning ind
Asr/esp control lamp
Asr/esp switch
Brake booster vacuum sensor (if equipped)
Brake fluid level warning switch (on brake fluid reservoir)
Brake pressure sensor 1
Brake system warning ind
Computer data lines system
Computer data lines system g638 (behind right kick panel)
Driving dynamics regulation sw vlv 1
Esp sensor unit
Fuse 10a
Fuse 30a
Fuse 5a
Fuse panel b
Fuse panel c
G44 (behind left kick panel)
G47 (behind right kick panel)
G638 (behind right kick panel)
G655 (below left headlight assembly)
Hand- brake warning switch
High pressure switch valve 1
Hot at all times
Instrument cluster control module
Interior lights system
Left front abs inlet valve
Left front abs outlet valve
Left front abs wheel speed sensor (left front hub assembly)
Left front brake pad wear sensor (if equipped)
Left rear abs inlet valve
Left rear abs outlet valve
Left rear abs wheel speed sensor (left rear hub assembly)
Nca
Red
Right front abs inlet valve
Right front abs outlet valve
Right front abs wheel speed sensor (right front hub assembly)
Right rear abs inlet valve driving dynamics regulation sw vlv 2
Right rear abs outlet valve
Right rear abs wheel speed sensor (right rear hub assembly)
Steering angle sensor
Steering column electronic systems control module (on steering column)
T20d
T40
Tpm display lamp
W/ 15" wheels
W/ 15/16" wheels
W/ 17" wheels
Warning buzzer

Anti-lock Brakes Wiring Diagram, with ESP, EDS & ASR for Volkswagen R32 2008

List of elements for Anti-lock Brakes Wiring Diagram, with ESP, EDS & ASR for Volkswagen R32 2008:

52

(if equipped) tire pressure monitor- ing display button
(top of brake pedal assembly) brake light switch
Abs control module (right rear corner of engine compt)
Abs hydraulic pump
Abs warning ind
Asr/esp control lamp
Asr/esp switch
Brake fluid level warning switch (on brake fluid reservoir)
Brake pressure sensor 1
Brake system warning ind
Computer data lines system
Driving dynamics regulation sw vlv 1
Esp sensor unit
Fuse 10a
Fuse 30a
Fuse 5a
Fuse panel b
Fuse panel c
G44 (behind left kick panel)
G47 (behind right kick panel)
G638 (behind right kick panel)
G655 (below left headlight assembly)
Hand- brake warning switch
High pressure switch valve 1
High pressure switch valve 2
Hot at all times
Instrument cluster control module
Interior lights system
Left front abs inlet valve
Left front abs outlet valve
Left front abs wheel speed sensor (left front hub assembly)
Left front brake pad wear sensor (if equipped)
Left rear abs inlet valve
Left rear abs outlet valve
Left rear abs wheel speed sensor (left erar hub assembly)
Nca
Red
Right front abs inlet valve
Right front abs outlet valve
Right front abs wheel speed sensor (right front hub assembly)
Right rear abs inlet valve driving dynamics regulation sw vlv 2
Right rear abs outlet valve
Right rear abs wheel speed sensor (right rear hub assembly)
Steering angle sensor
Steering column electronic systems control module (on steering column)
T20d
T40
Tpm display lamp
W/ 15" wheels
W/ 15/16" wheels
W/ 17" wheels
Warning buzzer

Anti-lock Brakes Wiring Diagram, without ESP for Volkswagen R32 2008

List of elements for Anti-lock Brakes Wiring Diagram, without ESP for Volkswagen R32 2008:

43

(if equipped) tire pressure monitor- ing display button
(right front hub assembly)
Abs control module (right rear corner of engine compt)
Abs hydraulic pump
Abs warning ind
Asr/esp switch
Brake fluid level warning switch (on brake fluid reservoir)
Brake system warning ind
Brake- light switch (top of brake pedal assembly)
Computer data lines system
Driving dynamics regulation sw vlv 1
Driving dynamics regulation sw vlv 2
Fuse 10a
Fuse 30a
Fuse 5a
Fuse panel b
Fuse panel c
G44 (behind left kick panel)
G47 (behind right kick panel)
G638 (behind right kick panel)
G655 (below left headlight assembly)
Hand- brake warning switch
Hot at all times
Instrument cluster control module
Interior lights system
Left front abs inlet valve
Left front abs outlet valve
Left front abs wheel speed sensor (left front hub assembly)
Left front brake pad wear sensor (if equipped)
Left rear abs inlet valve
Left rear abs outlet valve
Left rear abs wheel speed sensor (left rear hub assembly)
Red
Right front abs inlet valve
Right front abs outlet valve
Right front abs wheel speed sensor
Right rear abs inlet valve
Right rear abs outlet valve
Right rear abs wheel speed sensor (right rear hub assembly)
T40
Tpm display lamp
Traction control lamp
Warning buzzer

ANTI-THEFT

Anti-theft Wiring Diagram (1 of 3) for Volkswagen R32 2008

List of elements for Anti-theft Wiring Diagram (1 of 3) for Volkswagen R32 2008:

20

23a
Computer data lines system
Driver's central locking safe indicator lamp
Driver's door central locking lock unit
Driver's door control module (in driver's door)
Driver's interior lock switch
Front passenger's door central locking lock unit
Front passenger's door control module (in front passenger's door)
Front passenger's interior lock switch
Fuse 30a
Fuse panel c
G44 (behind left kick panel)
G47 (behind right kick panel)
Hot at all times
Interior lights system
Nca
T20a
T20b
T32a
T32b

Anti-theft Wiring Diagram (2 of 3) for Volkswagen R32 2008

List of elements for Anti-theft Wiring Diagram (2 of 3) for Volkswagen R32 2008:

16

(not used)
26a
Fuse 30a
Fuse panel c
G44 (behind left kick panel)
G47 (behind right kick panel)
Hot at all times
Interior lights system
Left rear central locking lock unit
Left rear door control module (if equipped)
Left rear interior lock switch
Right rear central locking lock unit
Right rear door control module (if equipped)
Right rear interior lock switch
T18c
T18d

Anti-theft Wiring Diagram (3 of 3) for Volkswagen R32 2008

List of elements for Anti-theft Wiring Diagram (3 of 3) for Volkswagen R32 2008:

30

17a
24a
Alarm horn (above splash shield in right front wheelwell)
Alarm horn relay (w/ 4-doors)
Anti theft immobilizer control module
Anti theft immobilizer reading coil
Central locking & anti-theft alarm system antenna
Comfort system central control module (behind right side of dash)
Computer data lines system
Front hood switch (front of engine compt)
Fuse 20a
Fuse 5a
Fuse panel c
G47 (behind right kick panel)
G656 (below right headlight assembly)
G662
Hot at all times
Instrument cluster
Interior lights system
Nca
Power tops system
Rear lid handle unlock switch
Rear lid lock unit (center rear of trunk lid)
T18
T36
T8n
Trunk, tailgate, fuel doors system
Vehicle electrical system control module (under left side of dash)
W/ 4 doors
W/o 4 doors

BODY CONTROL MODULES

Steering Column Electronic Systems Control Module Wiring Diagram (1 of 2) for Volkswagen R32 2008

List of elements for Steering Column Electronic Systems Control Module Wiring Diagram (1 of 2) for Volkswagen R32 2008:

28

(not used)
(under steering wheel) air bag spiral spring/ return spring (w/ slip ring)
Cbfa
Computer data lines system
Cruise control switch
Engine controls system
Except cbfa
Fuse 5a
Fuse panel b
G44 (behind left kick panel)
Headlight dimmer/ flasher switch
Horns system
Hot at all times
Red
Starting/charging system
Steering angle sensor
Steering column electronic systems control module (on steering column)
T10x
T12j
T12k
T20d
T40
T4k
Transmissions system
Turn signal switch
Turn signal switch/ headlight dimmer/flasher switch
Vehicle electrical system control module (under left side of dash)
Windshield wiper/washer switch

Steering Column Electronic Systems Control Module Wiring Diagram (2 of 2) for Volkswagen R32 2008

List of elements for Steering Column Electronic Systems Control Module Wiring Diagram (2 of 2) for Volkswagen R32 2008:

10

Horns system
Left multi-function buttons
Multi-function steering wheel control module
Nca
Right multi-function buttons
T10y
T12i
T5k
Tiptronic downshift switch
Tiptronic upshift switch

Vehicle Electrical System Control Module Wiring Diagram (1 of 2) for Volkswagen R32 2008

List of elements for Vehicle Electrical System Control Module Wiring Diagram (1 of 2) for Volkswagen R32 2008:

32

(6-speed a/t)
(m/t)
(or red)
3.2l
Dual washer pump relay 1
Dual washer pump relay 2
Engine controls system
Except 3.2l
Exterior lights & mirror system
Exterior lights system
Exterior lights, engine controls, transmissions & anti-lock brakes systems
Fuse 15a
Fuse 30a
Fuse 40a
Fuse 50a
Fuse 5a
Fuse panel b
Fuse panel f
G44 (behind left kick panel)
Headlights system
Heated outside mirror relay
Hot at all times
Interior lights system
Interior lights, sound & transmissions systems
Power distribution system
Red
Seats system
T2ao
T40
Transmissions systems
Vehicle electrical system control module (under left side of dash)
Wiper/washer system

Vehicle Electrical System Control Module Wiring Diagram (2 of 2) for Volkswagen R32 2008

List of elements for Vehicle Electrical System Control Module Wiring Diagram (2 of 2) for Volkswagen R32 2008:

27

15a
25a
Air conditioning system
Anti-theft system
Cbfa
Computer data lines system
Defogger system
Dual horn relay
Except cbfa
Exterior lights system
Fuse 25a
Fuse 7.5a
Fuse panel c
G44 (behind left kick panel)
G47 (behind right kick panel)
Horns system
Hot at all times
Interior lights & sound systems
Interior lights system
Load reduction relay
Power distribution system
Rear window defogger relay
Starting/charging system
Steering column electronic systems control module (on steering column)
T20d
Vehicle electrical system control module (under left side of dash)
Wiper/washer system

COMPUTER DATA LINES

Computer Data Lines Wiring Diagram (1 of 2) for Volkswagen R32 2008

List of elements for Computer Data Lines Wiring Diagram (1 of 2) for Volkswagen R32 2008:

64

(under left side of dash) vehicle electrical system control module
13a
2.0l
A/c control module
Abs control module (right rear corner of engine compt)
Air bag control module (under front of center console)
All-wheel drive control module
Automatic a/c
Auxiliary air heater control module
Climatronic control module
Comfort system central control module (behind right side of dash)
Data bus on board diagnostic interface (above accelerator pedal)
Data link connector
Direct shift gearbox mechatronic (on front of transmission)
Driver's door control module (in driver's door)
Except 2.0l
Front passenger's door control module (in front passenger's door)
Fuse 10a
Fuse 5a
Fuse panel b
Fuse panel c
G43 (behind right kick panel)
G44 (behind left kick panel)
Hot at all times
Instrument cluster control module
Left rear door control module
Manual a/c
Motronic engine control module (at base of winshield, in center of plenum)
Parking aid control module (right side of luggage compt)
Power steering control module (below steering rack)
Rain/light recognition sensor
Right rear door control module
Selector lever sensor system control module (base of gear selector assembly)
Special purpose control vehicle module (under front passenger's seat)
Steering column electronic systems control module (on steering column)
T10s
T121
T12h
T16h
T18
T18c
T18d
T20
T20a
T20b
T20c
T20e
T26a
T3ae
T40
T47
T47a
T4h
T4q
T52
T5h
T75
T88
T8s
T94
Towing recognition control module (left side of luggage compt)
Transmission control module (behind left front wheelwell)
W/ esp, edl & asr w/ esp, eds & asr w/o esp
Wiper motor control module (in left plenum)

Computer Data Lines Wiring Diagram (2 of 2) for Volkswagen R32 2008

List of elements for Computer Data Lines Wiring Diagram (2 of 2) for Volkswagen R32 2008:

20

Alarm horn (above splash shield in right front wheelwell)
Amplifier (under driver's seat)
Auxiliary heater control module
Compass magnetic field sensor (center rear of roof)
Interior monitoring sensor
Operating electronic & telephone control module (under front passenger's seat)
Radio
Radio/ navigation display control module
Satellite radio (under front passenger's seat)
T16b
T18b
T20k
T23
T4ap
T4j
T8a
T8f
Vehicle inclination sensor (behind right side of dash)
W/ navigation
W/o navigation

COOLING FAN

Cooling Fan Wiring Diagram for Volkswagen R32 2008

List of elements for Cooling Fan Wiring Diagram for Volkswagen R32 2008:

34

(2.ol bpy) (3.2l)
2.0l bpy
2.0l ccta, cbfa
2.5l
3.2l
3.2l & 2.5l
After-run coolant pump (lower left side of eng)
Auxiliary engine coolant pump relay (3.2l & 2.0l bpy)
Computer data lines system
Coolant circulation pump relay (2.0l ccta & cbfa)
Coolant fan 2 (behind radiator)
Coolant fan control (fc) module
Coolant pump (lower left side of eng)
Engine control module (ecm) (right rear of eng compt)
Engine coolant temperature sensor (radiator) (right rear of eng)
Fuse 10a
Fuse 10a 5a
Fuse 50a
Fuse 5a
Fuse panel a (behind left side of dash)
Fuse panel b (behind left side of dash)
G607 (2.0l bpy) (in plenum, by left front strut tower)
G607 (in plenum, by left front strut tower)
G642 (3.2l) (left side of engine compt)
G642 (left side of eng compt)
Hot at all times
Nca
Red
T121
T26
T2v
T40
T4x
T94

CRUISE CONTROL

3.2L

3.2L, Cruise Control Wiring Diagram for Volkswagen R32 2008

List of elements for 3.2L, Cruise Control Wiring Diagram for Volkswagen R32 2008:

20

Accelerator pedal position sensor 2/throttle position sensor (under accelerator pedal assembly)
Brake light switch (top of brake pedal assembly)
Computer data lines system
Cruise control indicator
Cruise control set button & cruise control switch
Direct shift gearbox (dsg) mechatronic (on front of transmission)
Engine control module (right rear of engine compartment)
Engine speed (rpm) sensor
Fuse 10a
Fuse 15a
Fuse panel b
Fuse panel c
G605
Hot at all times
Instrument cluster control module
Nca
Steering column electronic systems control module (on steering column)
T20d
T40
Throttle valve control module (left side of engine)

DEFOGGERS

Heated Mirrors Wiring Diagram for Volkswagen R32 2008

List of elements for Heated Mirrors Wiring Diagram for Volkswagen R32 2008:

25

2.0l bpy
2.5l, 2.0l
3.2l
Ccta & cbfa
Computer data lines system
Driver's door control module (in driver's door)
Driver's outside mirror
Exterior lights system
Front passenger's door control module
Front passenger's outside mirror
Fuse 40a
Fuse panel b
Heated outside mirror relay
Hot at all times
Interior lights system
Mirror heater
Outside mirror heating switch
Outside mirror switch
T16a
T16g
T20a
T20b
T32a
T40
Vehicle electrical system control module (under left side of dash)

Rear Defogger Wiring Diagram for Volkswagen R32 2008

List of elements for Rear Defogger Wiring Diagram for Volkswagen R32 2008:

32

(not used)
2.0l bpy
2.5l, 2.0l
3.2l
A/c control module (manual a/c)
Am frequency filter (w/ telephone)
Antenna
Antenna assembly
Ccta & cbfa
Climatronic control module (automatic a/c)
Computer data lines system
Defogger lamp
Fm frequency filter (+)
Fm frequency filter (-)
Fuse 40a
Fuse panel b
G662
G682 (right side of luggage compartment)
Heated rear window
Heated rear window switch
Hot at all times
Radio antenna
Rear window defogger relay
Sound systems
T1c
T1d
T20c
T2b
T40
Vehicle electrical system control module (under left side of dash)
W/ telephone
W/o telephone

ELECTRONIC POWER STEERING

Electronic Power Steering Wiring Diagram for Volkswagen R32 2008

List of elements for Electronic Power Steering Wiring Diagram for Volkswagen R32 2008:

19

Computer data lines system
Electro- mechanical power steering lamp
Fuse 10a
Fuse 80a
Fuse panel a
Fuse panel c
G640 (left side of engine compt)
Hot at all times
Instrument cluster
Power steering control module (below steering rack)
Red
Steering angle sensor
Steering column electronic systems control module (on steering column)
Steering torque sensor (in power steering rack)
T20d
T2a
T36
T5g
T5h

ENGINE PERFORMANCE

3.2L

3.2L, Engine Performance Wiring Diagram (1 of 5) for Volkswagen R32 2008

List of elements for 3.2L, Engine Performance Wiring Diagram (1 of 5) for Volkswagen R32 2008:

24

Anti-lock brakes system
Auxiliary engine coolant (ec) pump relay
Computer data lines system
Cruise control system
Engine control module (right rear of engine compt)
Fuse 10a
Fuse 15a
Fuse 20a
Fuse 40a
Fuse 5a
Fuse panel b
G607 (in plenum, by left front strut tower)
Hot at all times
Nca
Oxygen sensor (o2s) heater (integral to oxygen sensor (o2s))
Oxygen sensor (o2s) heater 1 (integral to oxygen sensor (o2s))
Oxygen sensor (o2s) heater 2
Oxygen sensor (o2s) heater 2 (behind three way catalytic converter)
Red
Starting/charging system
T26
T40
Throttle position (tp) sensor and accelerator pedal position sensor (under accelerator pedal assembly)
Vehicle electrical system control module (under left side of dash)

3.2L, Engine Performance Wiring Diagram (2 of 5) for Volkswagen R32 2008

List of elements for 3.2L, Engine Performance Wiring Diagram (2 of 5) for Volkswagen R32 2008:

18

(in electronics box low) secondary air injection (air) pump relay
(lower left side of engine) coolant pump
(on lower left side of engine) secondary air injection pump motor
Brake light switch & brake pedal switch (top of brake pedal assembly)
Cooling fans system
Engine coolant temperature (ect) sensor (radiator)
Exhaust flap valve 1
Fuse 10a
Fuse panel c
G44 (behind left kick panel)
G642 (left side of engine compt)
G655 (below left headlight assembly)
Leak detection pump (ldp) (in right rear wheelwell)
Mass airflow (maf) sensor (in intake air duct)
Positive crankcase ventilation (pcv) heating element
Secondary air injection (air) solenoid valve (right rear of engine)
Secondary air injection (air) solenoid valve 2
Secondary injection air sensor 1

3.2L, Engine Performance Wiring Diagram (3 of 5) for Volkswagen R32 2008

List of elements for 3.2L, Engine Performance Wiring Diagram (3 of 5) for Volkswagen R32 2008:

15

(under left side of dash) vehicle electrical system control module
27a
Camshaft position sensor
Camshaft position sensor 2 (top front of engine)
Engine coolant temperature (ect) sensor
Engine speed (rpm) sensor
Fuel pump (fp) relay (on relay panel)
Fuse 10a
Fuse 15a
Fuse panel c
Hot at all times
Knock sensor (ks) 1
Knock sensor (ks) 2
Nca
Red

3.2L, Engine Performance Wiring Diagram (4 of 5) for Volkswagen R32 2008

List of elements for 3.2L, Engine Performance Wiring Diagram (4 of 5) for Volkswagen R32 2008:

20

(above accelerator pedal) data bus on board diagnostic interface
(in coolant reservoir) engine coolant level (ecl) sensor
(on oil pump housing) oil pressure switch
Coil
Computer data lines system
Engine coolant level/temp warning
Engine coolant temp
Engine electronics indicator
Fuel level
Fuel reserve warning
G15
G642 (left side of engine compt)
Ignition coils w/ power output stage
Instrument cluster control module
Nca
Oil pressure warning
Red
Speedometer
Throttle valve control module (left side of engine)
To spark plugs

3.2L, Engine Performance Wiring Diagram (5 of 5) for Volkswagen R32 2008

List of elements for 3.2L, Engine Performance Wiring Diagram (5 of 5) for Volkswagen R32 2008:

16

Camshaft adjustment valve 1
Camshaft adjustment valve 1 (exhaust)
Cooling fans system
Engine control module (right rear of engine compt)
Evaporative emission (evap) canister purge regulator valve 1
Fuel injectors
Fuel level sensor & fuel pump
Fuse 10a
Fuse 15a
Fuse panel b
G682 (right side of luggage compt)
Hot at all times
Intake manifold tuning (imt) valve
Red
T26
T40

EXTERIOR LIGHTS

Backup Lamps Wiring Diagram, A/T for Volkswagen R32 2008

List of elements for Backup Lamps Wiring Diagram, A/T for Volkswagen R32 2008:

13

30a
Computer data lines system
Fuse 20a
Fuse panel c
G655 (below left headlight assembly)
G662
Left backup lamp
Mirrors system
Multi-function transmission range switch (on automatic transmission)
Nca
Right backup lamp
Transmission control module (behind left front wheelwell)
Vehicle electrical system control module (under left side of dash)

Backup Lamps Wiring Diagram, M/T for Volkswagen R32 2008

List of elements for Backup Lamps Wiring Diagram, M/T for Volkswagen R32 2008:

9

Backup light switch
Computer data lines system
Fuse 5a
Fuse panel c
G662
Left backup lamp
Mirrors system
Right backup lamp
Vehicle electrical system control module (under left side of dash)

Exterior Lamps Wiring Diagram (1 of 2) for Volkswagen R32 2008

List of elements for Exterior Lamps Wiring Diagram (1 of 2) for Volkswagen R32 2008:

51

13a
2.0l early production
2.0l late production
2.5l & 3.2l
Anti-lock brakes system
Brake light switch (top of brake pedal assembly)
Computer data lines system
Data bus on board diagnostic interface (above accelerator pedal)
Driver's door control module (in driver's door)
Driver's outside mirror
Engine control module (right rear of engine compt)
Front passenger's door control module (in front passenger's door)
Front passenger's outside mirror
Fuse 10a
Fuse 2a 10a
Fuse panel c
G44 (behind left kick panel)
G655 (below left headlight assembly)
G656 (below right headlight assembly)
Headlight/ fog light switch
Hot at all times
Instrument cluster
Instrument cluster control module
Left exterior mirror turn signal lamp
Left front side marker lamp
Left front turn signal lamp
Left parking lamp
Left turn signal indicator
Mirrors system
Pnk
Red
Right exterior mirror turn signal lamp
Right front side marker lamp
Right front turn signal lamp
Right parking lamp
Right turn signal indicator
Steering column electronic systems control module (on steering column)
T10y
T121
T16a
T16g
T20
T20a
T20b
T20d
T2ac
T2ah
T94
Turn signal switch
Turn signal switch & headlamp dimmer/flasher switch
Vehicle electrical system control module (under left side of dash)

Exterior Lamps Wiring Diagram (2 of 2) for Volkswagen R32 2008

List of elements for Exterior Lamps Wiring Diagram (2 of 2) for Volkswagen R32 2008:

12

Emergency flasher switch
G47 (behind right kick panel)
G662
G682 (right side of luggage compartment)
High- mount brake light
Left brake/ tail lamp
Left taillamp assembly
Left turn signal lamp
License plate lights
Right brake/ tail lamp
Right taillamp assembly
Right turn signal lamp

GROUND DISTRIBUTION

Ground Distribution Wiring Diagram (1 of 3) for Volkswagen R32 2008

List of elements for Ground Distribution Wiring Diagram (1 of 3) for Volkswagen R32 2008:

100

(2.0l) vehicle electrical system control module
(6-speed) selector lever park position lock switch
(direct shift) selector levers sensors control module
(m/t) clutch position sensor
(w/ 2 doors) driver's door control module
(w/ 2 doors) front passenger's door control module
2.5l
3.2l
A/c or climatronic control module
Amplifier
Asr/esp button
Automatic day/night interior mirror
Battery
Blocking diode
Brake light switch
Cd changer
Cd changer shield
Cigarette lighter
Comfort system central control module
Data bus on board diagnostic interface
Data link connector
Digital satellite radio tuner
Direct shift gearbox mechatronic
Driver's backrest heating element
Driver's door control module
Driver's make-up mirror light contact switch
Driver's seat heating element/ temperature sensor
Emergency flasher button
Front heated seats control module
Front interior light
Front passenger's backrest heating element
Front passenger's door control module
Front passenger's make-up mirror light contact switch
Front passenger's seat heating element/ temperature sensor
G1 (ground strap) (left side of engine compt)
G12 (at left rear of engine compt)
G15
G44 (behind left kick panel)
G45
G47 (behind right kick panel)
G605
Garage door opener
Glove compar- tment light
Hand- brake warning switch
Headlamp range control module
Heater/ heat output switch
High pressure sensor
Ignition coil 1
Ignition coil 2
Ignition coil 3
Ignition coil 4
Ignition coil 5
Ignition coil 6
Instrument cluster control module
Instrument panel illumination dimmer switch
Left footwell light
Left front brake pad wear sensor
Left rear door control module
Left washer nozzle heater
Light switch
M/t
Nca
Power sunroof control module
Radio/ navigation display control module or radio
Rain/light recognition sensor
Rear cigarette lighter
Rear interior light
Red
Right footwell light
Right rear door control module
Right washer nozzle heater
Steering column electronic systems control module
T10s
T12d
T16
T16b
T18
T18c
T18d
T20
T20a
T20b
T20c
T20d
T20e
T23
T26b
T2d
T2e
T36
T4l
T4m
T6c
T8b
T8z
Tire pressure monitoring display button
Vehicle electrical system control module
W/ 4 doors
W/ climatronic
W/o climatronic

Ground Distribution Wiring Diagram (2 of 3) for Volkswagen R32 2008

List of elements for Ground Distribution Wiring Diagram (2 of 3) for Volkswagen R32 2008:

58

(2.0l) coolant pump
(2.0l) engine control module (ecm)
(2.0l) mass air flow (maf) sensor
(2.0l) oil level thermal sensor
(2.5l) engine control module (ecm)
(2.5l) ignition coil 5
(w/ esp) abs control module
(w/o esp) abs control module
A/c compressor regulator valve
Brake fluid level warning switch
Coolant fan control module
Driver's seat lumbar support adjustment switch
Fresh air blower
Fresh air blower control module
Front passenger's seat lumbar support adjustment switch
G602
G607 (in plenum, by left front strut tower)
G638 (behind right kick panel)
G640 (left side of engine compt)
G642 (left side of engine compt)
G655 (below left headlight assembly)
G77
G78
Hid headlights
Ignition coil 1
Ignition coil 2
Ignition coil 3
Ignition coil 4
Left front fog lamp
Left front side marker lamp
Left front turn signal lamp
Left high beam head- lamp
Left high- intensity gas discharge lamp control module
Left low beam head- lamp
Left low beam reflector motor
Left parking lamp
Low tone horn
Multi-function transmission range switch
Nca
Oil pressure switch
Power steering control module
Right front fog lamp
Right front side marker lamp
Secondary air injection pump motor
Standard headlights
T10q
T121
T26a
T2a
T47
T52
T94
Transmission control module
W/ climatronic
W/ heated seats
W/o climatronic
W/o heated seats
Wiper motor control module

Ground Distribution Wiring Diagram (3 of 3) for Volkswagen R32 2008

List of elements for Ground Distribution Wiring Diagram (3 of 3) for Volkswagen R32 2008:

32

(2.0l) fuel pump control module
(2.5l) fuel pump
(w/o telephone) heated rear window
12v socket
Alarm horn
All wheel drive control module
Am frequency filter
Front hood switch
Fuel tank lid unlock motor
G656 (below right headlight assembly)
G662
G682 (right side of luggage compt)
Headlamp washer pump
Hid headlights
High tone horn
High- mount brake light
Left backup lamp
Left taillamp assembly
License plate light
Magnetic field sensor
Rear lid handle unlock switch
Rear lid lock unit
Rear window wiper motor
Right backup lamp
Right front turn signal lamp
Right high beam head- lamp
Right high- intensity gas discharge lamp control module
Right low beam head- lamp
Right low beam reflector motor
Right parking lamp
Right taillamp assembly
Standard headlights

HEADLIGHTS

Headlights Wiring Diagram, with High Intensity Gas Discharge Headlights (1 of 2) for Volkswagen R32 2008

List of elements for Headlights Wiring Diagram, with High Intensity Gas Discharge Headlights (1 of 2) for Volkswagen R32 2008:

26

13a
Computer data lines system
Cruise control switch/ turn signal switch/ headlamp dimmer/ flasher switch
Fog lamp switch
Fuse 10a
Fuse panel c
G655 (below left headlight assembly)
Headlamp dimmer/ flasher switch
High beam indicator
Hot at all times
Instrument cluster control module
Interior lights system
Left front fog lamp (if equipped)
Left high beam headlamp
Left high-intensity gas discharge (hid) lamp
Left high-intensity gas discharge lamp control module
Left low beam reflector motor
Light switch
Nca
Rear fog lamp indicator
Red
Right front fog lamp (if equipped)
Steering column electronic systems control module (on steering column)
T10y
T20d
Vehicle electrical system control module (under left side of dash)

Headlights Wiring Diagram, with High Intensity Gas Discharge Headlights (2 of 2) for Volkswagen R32 2008

List of elements for Headlights Wiring Diagram, with High Intensity Gas Discharge Headlights (2 of 2) for Volkswagen R32 2008:

13

Computer data lines system
G47 (behind right kick panel)
G656 (below right headlight assembly)
Headlight range control module (right side of glove compt)
Left front level control system sensor
Left headlamp beam adjustment motor
Left rear level control system sensor
Red
Right headlamp beam adjustment motor
Right high beam headlamp
Right high-intensity gas discharge lamp
Right high-intensity gas discharge lamp control module
Right low beam reflector motor

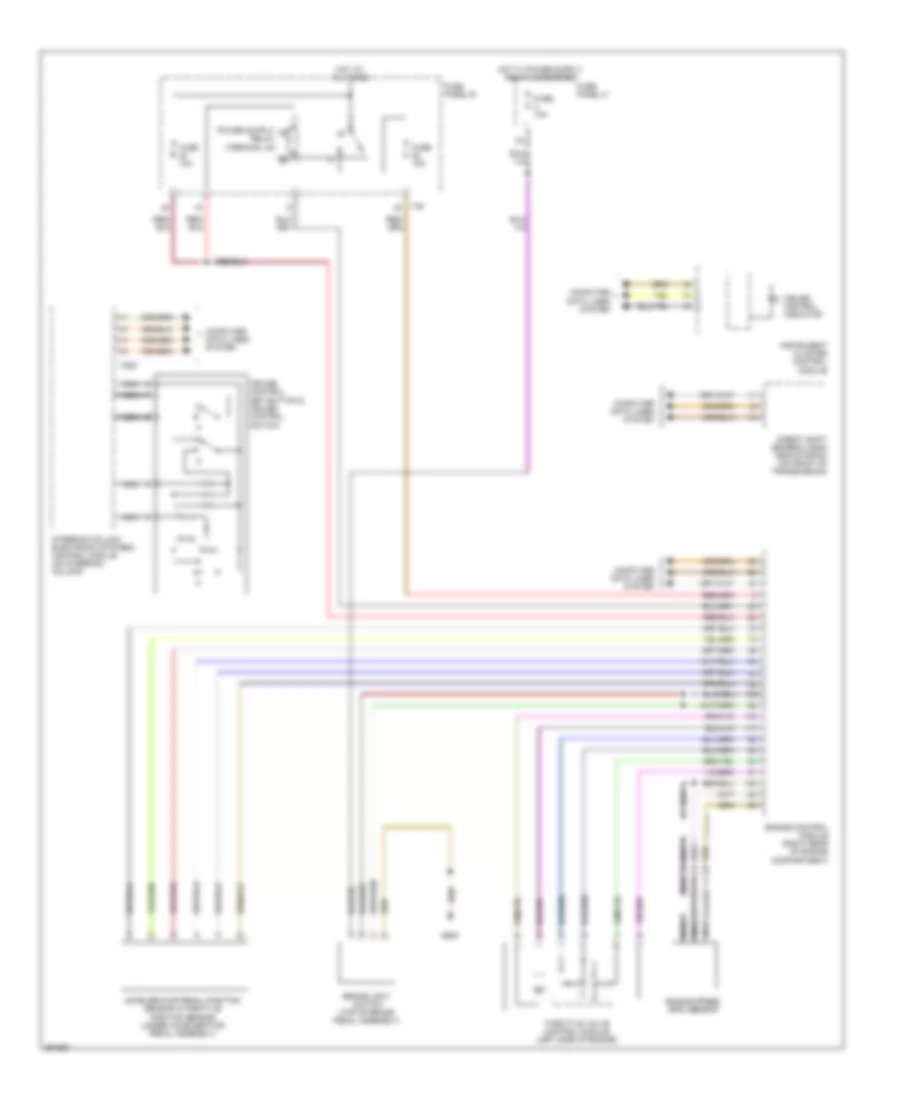

Headlights Wiring Diagram, without High Intensity Gas Discharge Headlights for Volkswagen R32 2008

List of elements for Headlights Wiring Diagram, without High Intensity Gas Discharge Headlights for Volkswagen R32 2008:

29

13a
Computer data lines system
Cruise control switch/ turn signal switch/ headlamp dimmer/ flasher switch (late production)
Fog lamp switch
Fuse 10a
Fuse panel c
G655 (below left headlight assembly)
G656 (below right headlight assembly)
Headlamp dimmer/ flasher switch
High beam indicator
Hot at all times
If equipped
Instrument cluster control module
Interior lights system
Left front fog lamp (if equipped)
Left high beam headlamp
Left low beam headlamp
Light switch
Nca
Rear fog lamp indicator
Red
Right front fog lamp (if equipped)
Right high beam headlamp
Right low beam headlamp
Steering column electronic systems control module (on steering column)
T10y
T20d
Turn signal switch/ headlamp dimmer/ flasher switch (early production)
Vehicle electrical system control module (under left side of dash)

HORN

Horn Wiring Diagram for Volkswagen R32 2008

List of elements for Horn Wiring Diagram for Volkswagen R32 2008:

22

(under steering wheel) airbag spiral spring/return spring w/slip ring
Computer data lines system
Dual horn relay
Fuse 5a
Fuse panel b
G44 (behind left kick panel)
G655 (below left headlight assembly)
G656 (below right headlight assembly)
High tone horn
Hot at all times
Low tone horn
Multi-function steering wheel control module
Signal horn activation
Steering column electronic systems control module (on steering column)
T10x
T12k
T20d
T40
T5k
Vehicle electrical system control module (under left side of dash)
W/ multi-function steering wheel controls
W/o multi-function steering wheel controls

INSTRUMENT CLUSTER

Electronic Compass Wiring Diagram for Volkswagen R32 2008

List of elements for Electronic Compass Wiring Diagram for Volkswagen R32 2008:

9

13a
Compass magnetic field sensor (center rear of roof)
Computer data lines system
Fuse 10a
Fuse panel c
G662
Hot at all times
Instrument cluster
Multi- function indicator

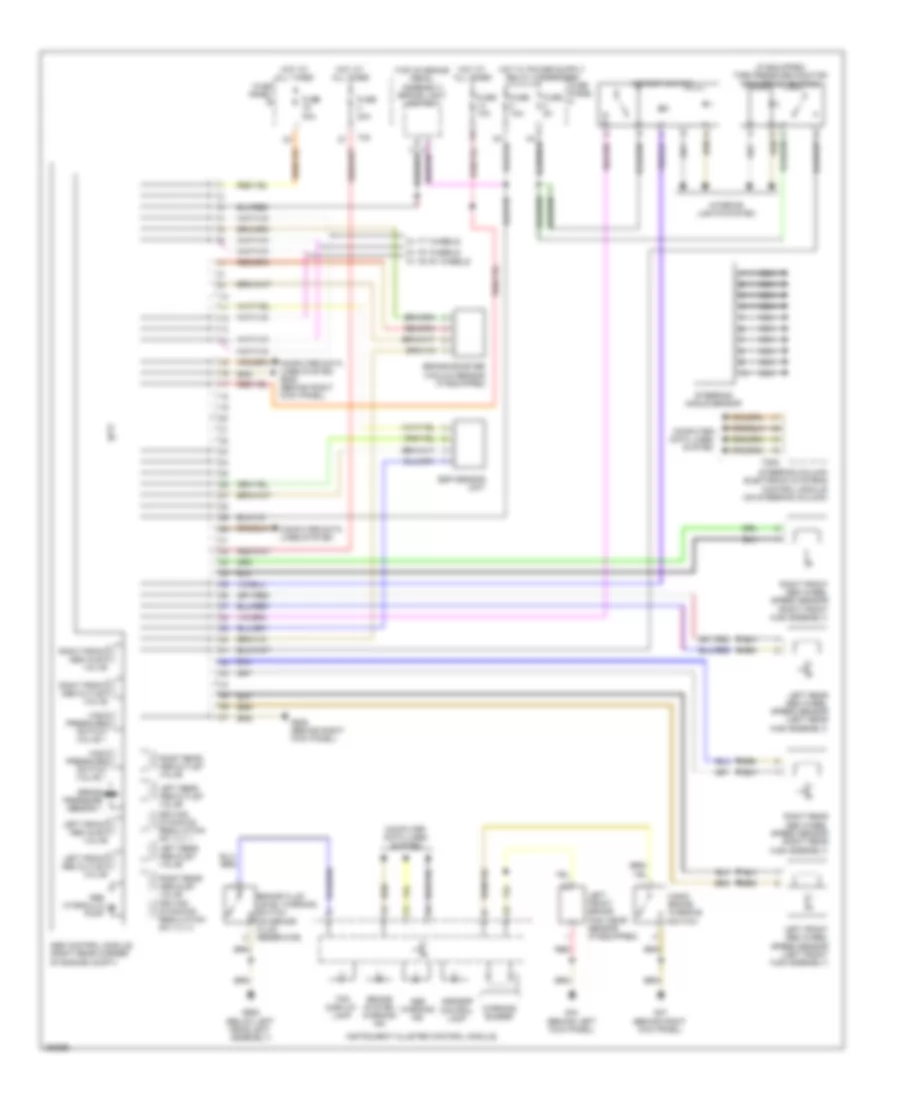

Instrument Cluster Wiring Diagram (1 of 2) for Volkswagen R32 2008

List of elements for Instrument Cluster Wiring Diagram (1 of 2) for Volkswagen R32 2008:

57

(2.0l)
(2.5l)
(on fuel delivery unit) fuel pump control module
Abs warning lamp
Airbag malfunction indicator
Anti-theft immbolizer warning lamp
Anti-theft immobilizer control module
Anti-theft immobilizer reading coil
Asr/esp control lamp
Brake pad wear indicator
Brake system warning lamp
Computer data lines system
Coolant temp gauge
Cruise control indicator
Door ajar indicator
Electro-mechanical power steering indicator
Electronic power control warning lamp
Engine controls system
Engine coolant level sensor (in coolant reservoir)
Engine coolant level/temperature (ecl/ect) warning lamp
Engine electronics warning indicator
Front hood open warning lamp
Fuel gauge
Fuel reserve warning lamp
Fuse 10a
Fuse 5a
Fuse panel b
Fuse panel c
G605
Generator warning lamp
High beam indicator
Hot at all times
Instrument cluster
Instrument cluster control module
Lamp failure indicator
Left turn signal indicator
Low windshield washer fluid level indicator
Mal- function indicator
Multi- function indicator
Odometer display
Oil pressure switch (on oil pump housing)
Oil pressure warning lamp
Outside air temperature sensor (behind left side of front grill)
Parking light indicator lamp
Power distribution system
Power sunroof control module (under roof console)
Rear fog lamp indicator
Right turn signal indicator
Safety belt warning lamp
Speedometer
T40
Tachometer
Tire pressure monitoring display indicator
Traction control indicator lamp
Vehicle electrical system control module (under left side of dash)
Warning buzzer
Windshield washer fluid level sensor

Instrument Cluster Wiring Diagram (2 of 2) for Volkswagen R32 2008

List of elements for Instrument Cluster Wiring Diagram (2 of 2) for Volkswagen R32 2008:

19

Brake fluid level warning switch (on brake fluid reservoir)
Computer data lines system
Door contact switch
Driver's door central locking lock unit
Driver's door control module (in driver's door)
Front passenger's door central locking lock unit
Front passenger's door control module (in front passenger's door)
G44 (behind left kick panel)
G47 (behind right kick panel)
G655 (below left headlight assembly)
Hand- brake warning switch
Left front brake pad wear sensor
Left rear central locking lock unit
Left rear door control module
Red
Right rear central locking lock unit
Right rear door control module
T20a
T20b

INTERIOR LIGHTS

Courtesy Lamps Wiring Diagram (1 of 2) for Volkswagen R32 2008

List of elements for Courtesy Lamps Wiring Diagram (1 of 2) for Volkswagen R32 2008:

35

(behind left kick panel)
Automatic day/night interior mirror
Computer data lines system
Door contact switch
Driver's door central locking lock unit
Driver's door control module (in driver's door)
Driver's entry lamp
Driver's map/ reading light
Driver's outside mirror
Front interior lamp
Front interior light
Front passenger's door central locking lock unit
Front passenger's door control module (in front passenger's door)
Front passenger's entry lamp
Front passenger's map/ reading light
Front passenger's outside mirror
Fuse 25a
Fuse 30a
Fuse 5a
Fuse panel c
G44
G44 (behind left kick panel)
G47 (behind right kick panel)
Glove compartment lamp switch (behind glove compartment)
Glove compartment light
Hot at all times
Mirrors system
Nca
T16a
T16g
T20a
T20b
Vehicle electrical system control module (under left side of dash)
W/ 4 doors
W/o external audio connector

Courtesy Lamps Wiring Diagram (2 of 2) for Volkswagen R32 2008

List of elements for Courtesy Lamps Wiring Diagram (2 of 2) for Volkswagen R32 2008:

26

(behind right side of dash) comfort system central control module
Computer data lines system
Door contact switch
Driver's illuminated make-up mirror light
Driver's make-up mirror light contact switch
Front passenger's illuminated make-up mirror light
Front passenger's make-up mirror light contact switch
G44 (behind left kick panel)
G47 (behind right kick panel)
G662
Left footwell light
Left rear central locking lock unit
Left rear door control module
Left rear reading light
Luggage compartment light
Luggage compartment light switch
Nca
Rear courtesy/ reading lights
Rear interior light
Rear lid lock unit (center rear of trunk lid)
Right footwell light
Right rear central locking lock unit
Right rear door control module
Right rear reading light
T18
W/ 2 door anti- theft alarm system

Instrument Illumination Wiring Diagram (1 of 2) for Volkswagen R32 2008

List of elements for Instrument Illumination Wiring Diagram (1 of 2) for Volkswagen R32 2008:

24

(if equipped) cd changer
(w/ 6-speed) tiptronic switch
(w/ direct shift) selector lever sensors control module
13a
3.2l
Asr/ esp button
Bulbs
Cigarette lighter
Computer data lines system
Except 3.2l
Fuse 10a
Fuse 5a
Fuse panel b
Fuse panel c
Fuse panel f
G47 (behind right kick panel)
Heater/heat output switch
Hot at all times
Instrument cluster control module
Instrument panel lamp dimmer switch
Light switch
T40
Tire pressure monitoring display button (if equipped)
Vehicle electrical system control module (under left side of dash)

Instrument Illumination Wiring Diagram (2 of 2) for Volkswagen R32 2008

List of elements for Instrument Illumination Wiring Diagram (2 of 2) for Volkswagen R32 2008:

32

Computer data lines system
Driver's door control module (in driver's door)
Driver's interior locking button
Front interior lamp
Front passenger's door control module (in front passenger's door)
Front passenger's interior locking switch
Fuse 30a
Fuse panel c
G44 (behind left kick panel)
G47 (behind right kick panel)
Hot at all times
Left front window regulator switch
Left rear door control module
Left rear window switch
Outside mirror switch
Rear lid remote unlock switch/ fuel tank lid unlock switch
Red
Right front door window switch
Right rear door control module
Right rear window switch
Sunroof switch illumination (if equipped)
T18c
T18d
T20a
T20b
T2t
T32a
T32b
T6b
W/ 2-door
W/ 4 doors
W/ 4-door

NAVIGATION

Navigation Wiring Diagram, with Amplifier & CD Changer (1 of 2) for Volkswagen R32 2008

List of elements for Navigation Wiring Diagram, with Amplifier & CD Changer (1 of 2) for Volkswagen R32 2008:

35

(in rear lid) am frequency filter
(not used) t5a
Antenna
Antenna/ satellite tuner antenna
Cd changer
Computer data lines system
Defogger systems
Digital satellite radio tuner
Fm frequency filter
Fuse 15a
Fuse 30a
Fuse panel b
G45
G662
G682 (right side of luggage compt)
Heated rear window
Hot at all times
Nca
Operating electronics & telephone control module (under front passenger's seat)
Radio antenna
Radio/navigation display control module
Right antenna module
Satellite antenna/ navigation system antenna
T12
T12g
T16b
T1c
T1d
T2b
T40
T8a
T8b
Vehicle electrical system control module (under left side of dash)
W/ telephone
W/o telephone

Navigation Wiring Diagram, with Amplifier & CD Changer (2 of 2) for Volkswagen R32 2008

List of elements for Navigation Wiring Diagram, with Amplifier & CD Changer (2 of 2) for Volkswagen R32 2008:

16

(not used)
Amplifier
Computer data lines system
G45
Left front bass speaker
Left front midrange speaker
Left front treble speaker
Left rear bass speaker
Left rear treble speaker
Right front bass speaker
Right front midrange speaker
Right front treble speaker
Right rear bass speaker
Right rear treble speaker
T23
T24

Navigation Wiring Diagram, with Amplifier & IPOD (1 of 2) for Volkswagen R32 2008

List of elements for Navigation Wiring Diagram, with Amplifier & IPOD (1 of 2) for Volkswagen R32 2008:

39

(in rear lid) am frequency filter
(not
Antenna
Antenna/ satellite tuner antenna
Computer data lines system
Defogger systems
Digital satellite radio tuner
External audio connector
Fm frequency filter
Fuse 15a
Fuse 30a
Fuse panel b
G45
G662
G682 (right side of luggage compt)
Heated rear window
Hot at all times
Nca
Operating electronics & telephone control module (under front passenger's seat)
Radio antenna
Radio/navigation display control module
Right antenna module
Satellite antenna/ navigation system antenna
T12
T12g
T16b
T18g
T1c
T1d
T2b
T40
T5a
T8a
T8b
Used)
W/ navig- ation
W/ telephone
W/o navig- ation
W/o telephone

Navigation Wiring Diagram, with Amplifier & IPOD (2 of 2) for Volkswagen R32 2008

List of elements for Navigation Wiring Diagram, with Amplifier & IPOD (2 of 2) for Volkswagen R32 2008:

16

(not used)
Amplifier
Computer data lines system
G45
Left front bass speaker
Left front midrange speaker
Left front treble speaker
Left rear bass speaker
Left rear treble speaker
Right front bass speaker
Right front midrange speaker
Right front treble speaker
Right rear bass speaker
Right rear treble speaker
T23
T24

Navigation Wiring Diagram, without Amplifier with CD Changer (1 of 2) for Volkswagen R32 2008

List of elements for Navigation Wiring Diagram, without Amplifier with CD Changer (1 of 2) for Volkswagen R32 2008:

34

(in rear lid) am frequency filter
(not used) t5a
Antenna
Antenna/ satellite tuner antenna
Cd changer
Computer data lines system
Defogger systems
Digital satellite radio tuner
Fm frequency filter
Fuse 15a
Fuse panel b
G45
G662
G682 (right side of luggage compt)
Heated rear window
Hot at all times
Nca
Operating electronics & telephone control module (under front passenger's seat)
Radio antenna
Radio/navigation display control module
Right antenna module
Satellite antenna/ navigation system antenna
T12
T12g
T16b
T1c
T1d
T2b
T40
T8a
T8b
Vehicle electrical system control module (under left side of dash)
W/ telephone
W/o telephone

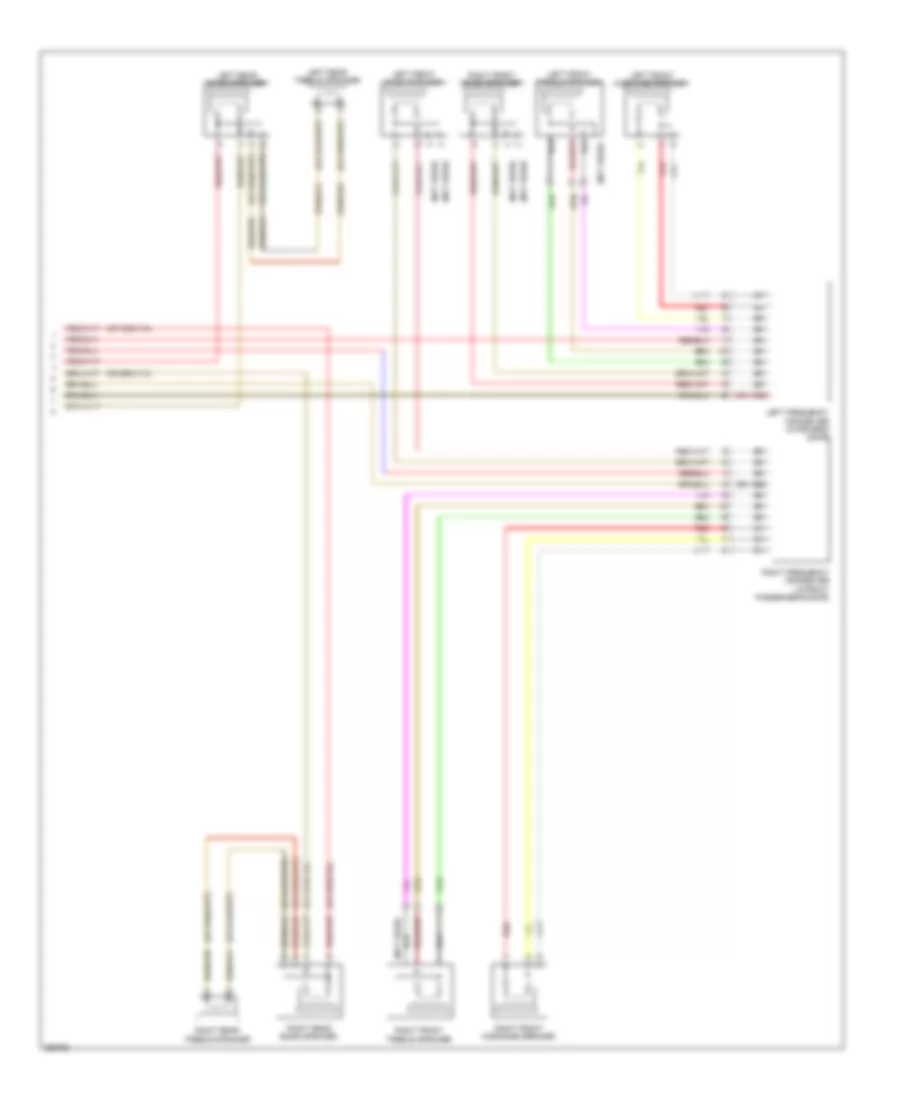

Navigation Wiring Diagram, without Amplifier with CD Changer (2 of 2) for Volkswagen R32 2008

List of elements for Navigation Wiring Diagram, without Amplifier with CD Changer (2 of 2) for Volkswagen R32 2008:

14

(not used)
Left frequency crossover (in driver's door)
Left front bass speaker
Left front midrange speaker
Left front treble speaker
Left rear bass speaker
Left rear treble speaker
Red
Right frequency crossover (in front passenger's door)
Right front bass speaker
Right front midrange speaker
Right front treble speaker
Right rear bass speaker
Right rear treble speaker

Navigation Wiring Diagram, without Amplifier with IPOD (1 of 2) for Volkswagen R32 2008

List of elements for Navigation Wiring Diagram, without Amplifier with IPOD (1 of 2) for Volkswagen R32 2008:

36

(in rear lid) am frequency filter
(not used) t5a
Antenna
Antenna/ satellite tuner antenna
Computer data lines system
Defogger systems
Digital satellite radio tuner
External audio connector
Fm frequency filter
Fuse 15a
Fuse panel b
G45
G662
G682 (right side of luggage compt)
Heated rear window
Hot at all times
Nca
Operating electronics & telephone control module (under front passenger's seat)
Radio antenna
Radio/navigation display control module
Right antenna module
Satellite antenna/ navigation system antenna
T12
T12g
T16b
T18g
T1c
T1d
T2b
T40
T8a
T8b
W/ navig- ation
W/ telephone
W/o navig- ation
W/o telephone

Navigation Wiring Diagram, without Amplifier with IPOD (2 of 2) for Volkswagen R32 2008

List of elements for Navigation Wiring Diagram, without Amplifier with IPOD (2 of 2) for Volkswagen R32 2008:

14

(not used)
Left frequency crossover (in driver's door)
Left front bass speaker
Left front midrange speaker
Left front treble speaker
Left rear bass speaker
Left rear treble speaker
Red
Right frequency crossover (in front passenger's door)
Right front bass speaker
Right front midrange speaker
Right front treble speaker
Right rear bass speaker
Right rear treble speaker

POWER DISTRIBUTION

Power Distribution Wiring Diagram (1 of 3) for Volkswagen R32 2008

List of elements for Power Distribution Wiring Diagram (1 of 3) for Volkswagen R32 2008:

63

(not used)
Air bag control module
Auxiliary engine coolant pump relay
Battery
Battery interrupt igniter
Camshaft adjustment valve 1
Camshaft adjustment valve 1 (exhaust)
Coolant fan control
Coolant pump
Cylinder 1
Cylinder 2
Cylinder 3
Cylinder 4
Cylinder 5
Cylinder 6
Engine control module (ecm)
Evaporative emission canister purge regulator valve 1
Exhaust flap valve 1
Fuel injectors
Fuel pump
Fuel pump (fp) relay
Fuse 10a
Fuse 125a
Fuse 15a
Fuse 20a
Fuse 30a
Fuse 40a
Fuse 5a
Fuse 80a
Fuse panel b
Fuse panel f
G655 (below left headlight assembly)
G701
Ignition coil 1
Ignition coil 2
Ignition coil 3
Ignition coil 4
Ignition coil 5
Ignition coil 6
Instrument cluster control module
Intake manifold tuning valve
J234
Mass air flow sensor
Oxygen sensor heater
Oxygen sensor heater 1
Oxygen sensor heater 2
Red
Secondary air injection pump relay
Starter
T121
T26
T36
T40
T4x
Terminal wire junction
To fuse 1 (diagram 2 of 3)
To fuse 4 (diagram 2 of 3)
To fuse 43 (diagram 1 of 3)
To fuse panel a (diagram 2 of 3)
To fuse panel c (diagram 2 of 3)
To fuse panel c (diagram 3 of 3)
To vehicle electrical system control module (diagram 3 of 3)
Vehicle electrical system control module

Power Distribution Wiring Diagram (2 of 3) for Volkswagen R32 2008

List of elements for Power Distribution Wiring Diagram (2 of 3) for Volkswagen R32 2008:

85

12a
12v socket
13a
14a
15a
17a
22a
23a
24a
25a
26a
27a
4 doors
40a
41a
42a
A/c control module (w/o climatronic)
Abs control module
Blocking diode
Cigarette lighter
Climatronic control module
Comfort system central control module
Coolant fan control (fc) control module
Data link connector
Direct shift gearbox mechatronic
Driver's door control module
Fresh air blower control module
From f fuse 23 (diagram 1 of 3)
From fuse panel f (diagram 1 of 3)
From terminal 30 wire junction (diagram 1 of 3)
Front passenger's door control module
Fuel pump (fp) relay
Fuse 10a
Fuse 15a
Fuse 200a
Fuse 20a
Fuse 25a
Fuse 30a
Fuse 40a
Fuse 50a
Fuse 5a
Fuse 7.5a
Fuse 80a
Fuse panel a
Fuse panel b
Fuse panel c
G47 (behind right kick panel)
G682 (right side of luggage compt)
Generator
Heater/ heat output switch or a/c control module
Heater/heat output switch
Interior lights system
Left rear door control module
Light switch
Magnetic field sensor
Power steering control module
Rain/light recognition sensor
Rear cigarette lighter
Rear window wiper motor
Red
Right rear door control module
Selector lever park position lock switch (w/ 6-speed)
Selector lever sensors control module (w/ direct shift)
T10h
T10s
T18
T18c
T18d
T20a
T20b
T20c
T25
T26a
T2fn
T40
T47a
T4x
T52
To vehicle electrical system control module (diagram 3 of 3)
Transmission control module
Vehicle electrical system control module
W/ climatronic & w/ auxiliary heater
W/ climatronic & w/o auxiliary heater
W/ esp
W/o esp

Power Distribution Wiring Diagram (3 of 3) for Volkswagen R32 2008

List of elements for Power Distribution Wiring Diagram (3 of 3) for Volkswagen R32 2008:

67

(diagram 3 of 3)
30a
A/c control module
Abs control module
Air bag control module
Asr/esp button
Automatic day/night interior mirror
Backup light switch
Brake light switch
Climatronic control module
Data bus on board diagnostic interface
Direct shift gearbox mechatronic
Engine control module (ecm)
From fuse 4 j
From fuse panel b (diagram 1 of 3)
From fuse panel c (diagram 2 of 3)
Front passenger's air bag disabled indicator
Fuel pump relay
Fuse
Fuse 10a
Fuse 20a
Fuse 5a
Fuse panel c
G44 (behind left kick panel)
Garage door opener module
Headlamp range control module
Heater/ heat output switch
High pressure sensor
Instrument cluster control module
Left washer nozzle heater
Light switch
Load reduction relay
Mass air flow sensor
Multi- function transmission range switch
Nca
Oil level thermal sensor
Positive crankcase ventilation heating element
Power steering control module
Red
Right washer nozzle heater
Seat occupied recognition control module
Selector lever park position lock switch (w/ 6-speed)
Selector lever sensors control module (w/ direct shift)
Starting/ charging system
T10h
T10q
T10s
T121
T18f
T20
T20c
T20e
T26a
T26b
T36
T47a
T52
T5h
T75
Tire pressure monitoring display button
To fuse 2 (diagram 3 of 3)
Transmission control module
Vehicle electrical system control module
W/ climatronic & w/ auxiliary heater
W/ climatronic & w/o auxiliary heater
W/ esp
W/o esp

POWER DOOR LOCKS

Power Door Locks Wiring Diagram (1 of 3) for Volkswagen R32 2008

List of elements for Power Door Locks Wiring Diagram (1 of 3) for Volkswagen R32 2008:

20

23a
Computer data lines system
Driver's central locking safe indicator lamp
Driver's door central locking lock unit
Driver's door control module (in driver's door)
Driver's interior lock switch
Front passenger's door central locking lock unit
Front passenger's door control module (in front passenger's door)
Front passenger's interior lock switch
Fuse 30a
Fuse panel c
G44 (behind left kick panel)
G47 (behind right kick panel)
Hot at all times
Interior lights system
Nca
T20a
T20b
T32a
T32b

Power Door Locks Wiring Diagram (2 of 3) for Volkswagen R32 2008

List of elements for Power Door Locks Wiring Diagram (2 of 3) for Volkswagen R32 2008:

16

(not used)
26a
Fuse 30a
Fuse panel c
G44 (behind left kick panel)
G47 (behind right kick panel)
Hot at all times
Interior lights system
Left rear central locking lock unit
Left rear door control module (if equipped)
Left rear interior lock switch
Right rear central locking lock unit
Right rear door control module (if equipped)
Right rear interior lock switch
T18c
T18d

Power Door Locks Wiring Diagram (3 of 3) for Volkswagen R32 2008

List of elements for Power Door Locks Wiring Diagram (3 of 3) for Volkswagen R32 2008:

30

17a
24a
Alarm horn (above splash shield in right front wheelwell)
Alarm horn relay (w/ 4-doors)
Anti theft immobilizer control module
Anti theft immobilizer reading coil
Central locking & anti-theft alarm system antenna
Comfort system central control module (behind right side of dash)
Computer data lines system
Front hood switch (front of engine compt)
Fuse 20a
Fuse 5a
Fuse panel c
G47 (behind right kick panel)
G656 (below right headlight assembly)
G662
Hot at all times
Instrument cluster
Interior lights system
Nca
Power tops system
Rear lid handle unlock switch
Rear lid lock unit (center rear of trunk lid)
T18
T36
T8n
Trunk, tailgate, fuel doors system
Vehicle electrical system control module (under left side of dash)
W/ 4 doors
W/o 4 doors

POWER MIRRORS

Automatic Day/Night Mirror Wiring Diagram for Volkswagen R32 2008

List of elements for Automatic Day/Night Mirror Wiring Diagram for Volkswagen R32 2008:

12

Automatic day/night interior mirror
Day/ night
Driver's door control module (in driver's door)
Driver's outside mirror
Exterior lights system
Fuse 5a
Fuse panel c
G44 (behind left kick panel)
Interior lights system
T16a
T20a
Vehicle electrical system control module (under left side of dash)

Power Mirrors Wiring Diagram for Volkswagen R32 2008

List of elements for Power Mirrors Wiring Diagram for Volkswagen R32 2008:

41

(in front passenger's door) passenger's door control module
12a
23a
Adjustment motors
Automatic day/night mirror circuit
Computer data lines system
Day/night
Defogger system
Driver's door control module (in driver's door)
Driver's outside mirror
Entry
Exterior lights system
Fold-in motor
Front passenger's outside mirror
Fuse 10a
Fuse 30a
Fuse panel c
G44 (behind left kick panel)
G47 (behind right kick panel)
Heater
Hot at all times
Interior lights system
Mirror adjustment switch
Mirror folding switch
Mirror selector switch
Outside mirror heater switch
Outside mirror switch
Red
T16a
T16g
T20a
T20b
T2ab
T2ac
T2ae
T2ah
T32a
T3g
Turn
W/ automatic mirror adjustment
W/o automatic mirror adjustment

POWER SEATS

Heated Seats Wiring Diagram for Volkswagen R32 2008

List of elements for Heated Seats Wiring Diagram for Volkswagen R32 2008:

19

37a
A/c control module
Auto a/c
Climatronic control module
Driver's backrest heating element
Driver's heated seat temperature sensor/heating element
Front passenger's backrest heating element
Front passenger's heated seat control module (under front passenger's seat)
Front passenger's heated seat temperature sensor/heating element
Fuse 30a
Fuse 5a
Fuse panel c (behind left side of dash)
G44 (behind left kick panel)
G47 (behind right kick panel)
Hot at all times
Manual a/c
Nca
T20c
Vehicle electrical system control module (under left side of dash)

Power Seats Wiring Diagram for Volkswagen R32 2008

List of elements for Power Seats Wiring Diagram for Volkswagen R32 2008:

14

34a
Driver's seat lumbar support adjustment switch
Driver's seat lumbar support curvature adjustment motor
Driver's seat lumbar support height adjustment motor
Front passenger seat lumbar support curvature adjustment motor
Front passenger seat lumbar support height adjustment motor
Front passenger's seat lumbar support adjustment switch
Fuse 15a
Fuse panel c
G77
G78
Hot at all times
Nca
W/ heated seats

POWER TOP/SUNROOF

Power Top/Sunroof Wiring Diagram for Volkswagen R32 2008

List of elements for Power Top/Sunroof Wiring Diagram for Volkswagen R32 2008:

17

33a
Comfort system central control module (behind right of dash)
Fuse 20a
Fuse panel c
G44 (behind left kick panel)
Hot at all times
Instrument cluster system
Interior lights system
Power sunroof control module (under roof console)
Red
Sunroof motor
Sunroof regulator
Sunroof switch
T18
T6c
T6i
T8n

POWER WINDOWS

Power Windows Wiring Diagram, 2 Door for Volkswagen R32 2008

List of elements for Power Windows Wiring Diagram, 2 Door for Volkswagen R32 2008:

24

(behind right kick panel)
(in front passenger's door)
12a
23a
Computer data lines system
Door locks & interior lights systems
Driver's door door control module (in driver's door)
Driver's side power window switch
Front passenger's door control module
Fuse 10a
Fuse 30a
Fuse panel c
G44 (behind left kick panel)
G47
Hot at all times
Interior lights system
Left front window switch
Right front door window switch
Right front window switch
T20a
T20b
T32a
T32b
Window motor

Power Windows Wiring Diagram, 4 Door for Volkswagen R32 2008

List of elements for Power Windows Wiring Diagram, 4 Door for Volkswagen R32 2008:

34

(behind right kick panel)
(in driver's door) driver's door control module
(in front passenger's door)
12a
23a
26a
Child safety switch
Computer data lines system
Door locks & interior lights systems
Driver's side power window switch
Front passenger's door control module
Fuse 10a
Fuse 30a
Fuse panel c
G44 (behind left kick panel)
G47
Hot at all times
Interior lights system
Left front window switch
Left rear door control module
Left rear door window switch
Left rear window switch
Right front door window switch
Right front window switch
Right rear door control module
Right rear door window switch
Right rear window switch
T18c
T18d
T20a
T20b
T32a
T32b
Window motor

RADIO

Base Radio Wiring Diagram, with CD Changer for Volkswagen R32 2008

List of elements for Base Radio Wiring Diagram, with CD Changer for Volkswagen R32 2008:

39

(in rear lid) am frequency filter
(not used) t5a
Antenna
Cd changer
Defogger systems
Early production
Fm frequency filter
Fuse 15a
Fuse panel b
G45
G662
G682 (right side of luggage compt)
Heated rear window
Hot at all times
Late production
Left front bass speaker
Left front treble speaker
Left rear bass speaker
Left rear treble speaker
Nca
Operating electronics & telephone control module (under front passenger's seat)
Radio
Radio antenna
Red
Right antenna module
Right front bass speaker
Right front treble speaker
Right rear bass speaker
Right rear treble speaker
T12
T12g
T16b
T1c
T1d
T2b
T40
Vehicle electrical system control module (under left side of dash)
W/ telephone
W/o telephone

Base Radio Wiring Diagram, without CD Changer for Volkswagen R32 2008

List of elements for Base Radio Wiring Diagram, without CD Changer for Volkswagen R32 2008:

38

(in rear lid) am frequency filter
(not used) t5a
Antenna
Defogger systems
Early produ- ction
External audio connector
Fm frequency filter
Fuse 15a
Fuse panel b
G45
G662
G682 (right side of luggage compt)
Heated rear window
Hot at all times
Late produ- ction
Left front bass speaker
Left front treble speaker
Left rear bass speaker
Left rear treble speaker
Nca
Operating electronics & telephone control module (under front passenger's seat)
Radio
Radio antenna
Red
Right antenna module
Right front bass speaker
Right front treble speaker
Right rear bass speaker
Right rear treble speaker
T12
T12g
T16b
T1c
T1d
T2b
T40
W/ telephone
W/o telephone

Premium Radio Wiring Diagram, with Amplifier & CD Changer (1 of 2) for Volkswagen R32 2008

List of elements for Premium Radio Wiring Diagram, with Amplifier & CD Changer (1 of 2) for Volkswagen R32 2008:

35

(in rear lid) am frequency filter
(not used) t5a
Antenna
Antenna/ satellite tuner antenna
Cd changer
Computer data lines system
Defogger systems
Digital satellite radio tuner
Fm frequency filter
Fuse 15a
Fuse 30a
Fuse panel b
G45
G662
G682 (right side of luggage compt)
Heated rear window
Hot at all times
Nca
Operating electronics & telephone control module (under front passenger's seat)
Radio antenna
Radio/navigation display control module
Right antenna module
Satellite antenna/ navigation system antenna
T12
T12g
T16b
T1c
T1d
T2b
T40
T8a
T8b
Vehicle electrical system control module (under left side of dash)
W/ telephone
W/o telephone

Premium Radio Wiring Diagram, with Amplifier & CD Changer (2 of 2) for Volkswagen R32 2008

List of elements for Premium Radio Wiring Diagram, with Amplifier & CD Changer (2 of 2) for Volkswagen R32 2008:

16

(not used)
Amplifier
Computer data lines system
G45
Left front bass speaker
Left front midrange speaker
Left front treble speaker
Left rear bass speaker
Left rear treble speaker
Right front bass speaker
Right front midrange speaker
Right front treble speaker
Right rear bass speaker
Right rear treble speaker
T23
T24

Premium Radio Wiring Diagram, with Amplifier & IPOD (1 of 2) for Volkswagen R32 2008

List of elements for Premium Radio Wiring Diagram, with Amplifier & IPOD (1 of 2) for Volkswagen R32 2008:

39

(in rear lid) am frequency filter
(not
Antenna
Antenna/ satellite tuner antenna
Computer data lines system
Defogger systems
Digital satellite radio tuner
External audio connector
Fm frequency filter
Fuse 15a
Fuse 30a
Fuse panel b
G45
G662
G682 (right side of luggage compt)
Heated rear window
Hot at all times
Nca
Operating electronics & telephone control module (under front passenger's seat)
Radio antenna
Radio/navigation display control module
Right antenna module
Satellite antenna/ navigation system antenna
T12
T12g
T16b
T18g
T1c
T1d
T2b
T40
T5a
T8a
T8b
Used)
W/ navig- ation
W/ telephone
W/o navig- ation
W/o telephone

Premium Radio Wiring Diagram, with Amplifier & IPOD (2 of 2) for Volkswagen R32 2008

List of elements for Premium Radio Wiring Diagram, with Amplifier & IPOD (2 of 2) for Volkswagen R32 2008:

16

(not used)
Amplifier
Computer data lines system
G45
Left front bass speaker
Left front midrange speaker
Left front treble speaker
Left rear bass speaker
Left rear treble speaker
Right front bass speaker
Right front midrange speaker
Right front treble speaker
Right rear bass speaker
Right rear treble speaker
T23
T24

Premium Radio Wiring Diagram, without Amplifier with CD Changer (1 of 2) for Volkswagen R32 2008

List of elements for Premium Radio Wiring Diagram, without Amplifier with CD Changer (1 of 2) for Volkswagen R32 2008:

34

(in rear lid) am frequency filter
(not used) t5a
Antenna
Antenna/ satellite tuner antenna
Cd changer
Computer data lines system
Defogger systems
Digital satellite radio tuner
Fm frequency filter
Fuse 15a
Fuse panel b
G45
G662
G682 (right side of luggage compt)
Heated rear window
Hot at all times
Nca
Operating electronics & telephone control module (under front passenger's seat)
Radio antenna
Radio/navigation display control module
Right antenna module
Satellite antenna/ navigation system antenna
T12
T12g
T16b
T1c
T1d
T2b
T40
T8a
T8b
Vehicle electrical system control module (under left side of dash)
W/ telephone
W/o telephone

Premium Radio Wiring Diagram, without Amplifier with CD Changer (2 of 2) for Volkswagen R32 2008

List of elements for Premium Radio Wiring Diagram, without Amplifier with CD Changer (2 of 2) for Volkswagen R32 2008:

14

(not used)
Left frequency crossover (in driver's door)
Left front bass speaker
Left front midrange speaker
Left front treble speaker
Left rear bass speaker
Left rear treble speaker
Red
Right frequency crossover (in front passenger's door)
Right front bass speaker
Right front midrange speaker
Right front treble speaker
Right rear bass speaker
Right rear treble speaker

Premium Radio Wiring Diagram, without Amplifier with IPOD (1 of 2) for Volkswagen R32 2008

List of elements for Premium Radio Wiring Diagram, without Amplifier with IPOD (1 of 2) for Volkswagen R32 2008:

36

(in rear lid) am frequency filter
(not used) t5a
Antenna
Antenna/ satellite tuner antenna
Computer data lines system
Defogger systems
Digital satellite radio tuner
External audio connector
Fm frequency filter
Fuse 15a
Fuse panel b
G45
G662
G682 (right side of luggage compt)
Heated rear window
Hot at all times
Nca
Operating electronics & telephone control module (under front passenger's seat)
Radio antenna
Radio/navigation display control module
Right antenna module
Satellite antenna/ navigation system antenna
T12
T12g
T16b
T18g
T1c
T1d
T2b
T40
T8a
T8b
W/ navig- ation
W/ telephone
W/o navig- ation
W/o telephone

Premium Radio Wiring Diagram, without Amplifier with IPOD (2 of 2) for Volkswagen R32 2008

List of elements for Premium Radio Wiring Diagram, without Amplifier with IPOD (2 of 2) for Volkswagen R32 2008:

14

(not used)
Left frequency crossover (in driver's door)
Left front bass speaker
Left front midrange speaker
Left front treble speaker
Left rear bass speaker
Left rear treble speaker
Red
Right frequency crossover (in front passenger's door)
Right front bass speaker
Right front midrange speaker
Right front treble speaker
Right rear bass speaker
Right rear treble speaker

SHIFT INTERLOCK

A/T Wiring Diagram for Volkswagen R32 2008

List of elements for A/T Wiring Diagram for Volkswagen R32 2008:

21

(not used)
(under left side of dash) vehicle electrical system control module
14a
Brake light switch (top of brake pedal assembly)
Computer data lines system
Fuse 10a
Fuse panel c
G47 (behind right kick panel)
Hot at all times
Interior lights system
Red
Selector lever park position lock switch
Shift lock solenoid (on selector lever assembly)
Steering column electronic systems control module (on steering column)
T10s
T10v
T20d
T2p
Tiptronic switch (integral to shift mechanism)
Transmission control module (behind left front wheelwell)
Transmission range (tr) display

Direct Shift A/T Wiring Diagram for Volkswagen R32 2008

List of elements for Direct Shift A/T Wiring Diagram for Volkswagen R32 2008:

21

(not used)
(under left side of dash) vehicle electrical system control module
14a
Brake light switch (top of brake pedal assembly)
Computer data lines system
Direct shift gearbox (dsg) mechatronic (on front of transmission)
Fuse 10a
Fuse panel c
G47 (behind right kick panel)
Hot at all times
Interior lights system
Red
Selector lever park position lock switch
Selector lever sensor system control module (base of gear selector assembly)
Shift lock solenoid (on selector lever assembly)
Steering column electronic systems control module (on steering column)
T10s
T10v
T20d
T2p
Transmission range (tr) display

STARTING/CHARGING

Charging Wiring Diagram for Volkswagen R32 2008

List of elements for Charging Wiring Diagram for Volkswagen R32 2008:

17

(under front of center console) air bag control module
Battery
Battery interrupt igniter
Computer data lines system
Engine control module (right rear of engine compt)
Fuse 200a
Fuse panel a
Fuse panel f
G655 (below left headlight assembly)
G701
Generator
Generator warning lamp
Instrument cluster
Starter
T2an
Terminal 30 wire junction & suppressor
Vehicle electrical system control module (under left side of dash)

Starting Wiring Diagram for Volkswagen R32 2008

List of elements for Starting Wiring Diagram for Volkswagen R32 2008:

28

(under front of center console) air bag control module
Battery
Battery interrupt igniter
Charging circuit
Computer data lines system
Engine control module (right rear of engine compt)
Fuse 5a
Fuse panel b
Fuse panel f
G44 (behind left kick panel)
G44 (behind right kick panel)
G655 (behind left head- light assembly)
G701
Hot at all times
Ignition switch key lock solenoid (6 speed a/t/ direct shift gear box)
Ignition/starter switch
Nca
Power distribution system
Red
Starter
Steering column electronic systems control module (on sterring column)
T12j
T20d
T2an
T40
Terminal 30 wire junction & suppressor
Vehicle electrical system control module (under left side of dash)
W/ 90a/120a generator

SUPPLEMENTAL RESTRAINTS

Supplemental Restraints Wiring Diagram (1 of 3) for Volkswagen R32 2008

List of elements for Supplemental Restraints Wiring Diagram (1 of 3) for Volkswagen R32 2008:

23

Air bag spiral spring/return spring (w/slip ring)
Airbag control module
Driver's airbag igniter
Driver's head curtain airbag igniter
Driver's side airbag igniter
Front passenger's airbag disabled indicator lamp
Front passenger's airbag igniter
Fuse 5a
Fuse panel c
Hot at all times
Igniter
Igniter 1
Igniter 2
Nca
Rear passenger's side airbag (driver's side) igniter
Rear passenger's side airbag (front passenger's side) igniter
Red
Steering column electronic systems control module
T10x
T12k
T4g
T4k
T75

Supplemental Restraints Wiring Diagram (2 of 3) for Volkswagen R32 2008

List of elements for Supplemental Restraints Wiring Diagram (2 of 3) for Volkswagen R32 2008:

11

Driver's safety belt tensioner igniter 1
Front passenger's head curtain airbag igniter
Front passenger's safety belt tensioner igniter 1
Front passenger's side airbag igniter
Nca
Rear safety belt (driver's side) tensioner igniter
Rear safety belt (front passenger's side) tensioner igniter
Red
Seat occupied recognition belt force sensor
Seat occupied recognition control module
Seat occupied recognition pressure sensor

Supplemental Restraints Wiring Diagram (3 of 3) for Volkswagen R32 2008

List of elements for Supplemental Restraints Wiring Diagram (3 of 3) for Volkswagen R32 2008:

17

Airbag control module
Airbag malfunction indicator
Computer data lines system
Driver's front air- bag crash sensor
Driver's safety belt switch
Driver's side air- bag crash sensor
Front passenger's front airbag crash sensor
Front passenger's safety belt switch
Front passenger's side airbag crash sensor
Instrument cluster
Instrument cluster control module
Left rear side air- bag crash sensor
Red
Right rear side air bag crash sensor
Safety belt warning indicator
State solid
T75

TRANSMISSION

A/T Wiring Diagram for Volkswagen R32 2008

List of elements for A/T Wiring Diagram for Volkswagen R32 2008:

29

(on automatic transmission) multi-function transmission range (tr) switch
(under left side of dash) vehicle electrical system control module
14a
Computer data lines system
Data link connector (below left side of dash)
Fuse 10a
Fuse 20a
Fuse panel c
G47 (behind right kick panel)
G655 (below left headlight assembly)
Hot at all times
Instrument cluster control module
Interior lights system
Multi-function indicator
Nca
Red
Selector lever park position lock switch
Shift lock solenoid (on selector lever assembly)
Solenoid valves (in automatic transmission valve body)
Steering column electronic systems control module (on steering column)
T10s
T10v
T20d
Tiptronic switch (integral to shift mechanism)
Transmission control module (tcm) (behind left front wheelwell)
Transmission fluid temperature sensor (in automatic transmission)
Transmission input speed (rpm) sensor (in automatic transmission)
Transmission output speed (rpm) sensor (in transmission)
Transmission range (tr) display

Direct Shift A/T Wiring Diagram for Volkswagen R32 2008

List of elements for Direct Shift A/T Wiring Diagram for Volkswagen R32 2008:

45

(below left side of dash) data link connector
(on left frame rail) g652
(under left side of dash) vehicle electrical system control module
14a
Clutch pedal position (ccp) sensor 1
Clutch pedal position (ccp) sensor 2
Computer data lines system
Direct shift gearbox (dsg) mechatronic (on front of transmission)
Fuse 10a
Fuse 15a
Fuse 30a
Fuse panel b
Fuse panel c
G47 (behind right kick panel)
Gear position distance sensors
Hot at all times
Hydraulic pressure sensor
Hydraulic pump motor
Instrument cluster control module
Interior lights system
Red
Selector lever
Selector lever park position lock switch
Shift lock solenoid (on selector lever assembly)
Steering column electronic systems control module (on steering column)
Sub- transmission 1 valve 1
Sub- transmission 1 valve 2
Sub- transmission 1 valve 3
Sub- transmission 1 valve 4
Sub- transmission 2 valve 1
Sub- transmission 2 valve 2
Sub- transmission 2 valve 3
Sub- transmission 2 valve 4
T10s
T10v
T20d
T25
T2p
T40
Temperature sensor (control module)
Transmission input speed (rpm) sensor
Transmission input speed (rpm) sensor 1
Transmission input speed (rpm) sensor 2
Transmission input speed (rpm) sensor 3
Transmission range (tr) display

TRUNK, TAILGATE, FUEL DOOR

Trunk & Fuel Door Release Wiring Diagram for Volkswagen R32 2008

List of elements for Trunk & Fuel Door Release Wiring Diagram for Volkswagen R32 2008:

25

12a
23a
24a
Comfort system central control module (behind right side of dash)
Computer data lines system
Driver's door control module (in driver's door)
Fuel tank lid unlock motor
Fuel tank lid unlock switch
Fuel tank lid unlock switch/rear lid remote unlock switch
Fuse 10a
Fuse 20a
Fuse 30a
Fuse panel c
G44 (behind left kick panel)
G47 (behind right kick panel)
G662
G682 (right side of luggage compt)
Hot at all times
Interior lights system
Rear lid lock unit (center rear of trunk lid)
Rear lid remote control unlock switch
T18
T20a
T32a
T8n

WARNING SYSTEMS

Warning Systems Wiring Diagram for Volkswagen R32 2008

List of elements for Warning Systems Wiring Diagram for Volkswagen R32 2008:

36

Air bag control module (under front of center console)
Brake system warning lamp
Computer data lines system
Door ajar ind lamp
Driver's central locking lock unit
Driver's door contact switch
Driver's door control module (in driver's door)
Driver's safety belt switch
Front passenger's central locking lock unit
Front passenger's door contact switch
Front passenger's door control module (in front passenger's door)
Front passenger's safety belt switch
Fuse 5a
Fuse panel b
Fuse panel c
G47 (behind right kick panel)
Handbrake warning switch
Hot at all times
Instrument cluster
Instrument cluster control module w/ display unit
Safety belt warning lamp
T20a
T20b
T26a
T47
T47a
T47b
T75
Tire pressure monitoring display button (if equipped)
Tpm display ind lamp
Vehicle electrical system control module (under left side of dash)
W/ esp, eds & asr
W/ hill start assistance
W/o esp
W/o hill start assistance
Warning buzzer

WIPER/WASHER

Wiper/Washer Wiring Diagram for Volkswagen R32 2008

List of elements for Wiper/Washer Wiring Diagram for Volkswagen R32 2008:

47

(2.0l) (2.5l)
13a
36a
41a
Computer data lines
Computer data lines system
Dual washer pump relay 1
Dual washer pump relay 2
Electrical
Fuse 10a
Fuse 20a
Fuse 30a
Fuse 5a
Fuse panel b
Fuse panel c
G44 (behind left kick panel)
G47 (behind right kick panel)
G655 (below left headlight assembly)
G656 (below right headlight assembly)
G662
Headlamp washer pump (in washer fluid reservoir)
Headlight washer relay (on relay panel)
Hot at all times
Instrument cluster
Instrument cluster system
Left side of dash)
Left washer nozzle heater
Low windshield washer fluid level ind
Multi-function indicator call-up button
Multi-function indicator memory switch
Multi-function switch
Rain/light recognition sensor
Rear window wiper motor
Rear window wiper switch/windshield & headlamp washer pump switch
Right washer nozzle heater
Steering column electronic systems control module (on steering column)
System
System control module (under
T20d
T40
Vehicle
W/ static headlamp range regulation
Windshield & rear window washer pump (in washer fluid reservoir)
Windshield washer fluid level sensor
Windshield wiper intermittent regulator
Windshield wiper intermittent switch
Windshield wiper motor
