VW VOYAGE 2013 – 1.6l petrol engine, CFZA . Wiring diagrams, Pin Connector, Location
Wiring Diagram VW VOYAGE 2013 - Battery - Starter - Alternator - Voltage regulator - Onboard supply control unit https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO

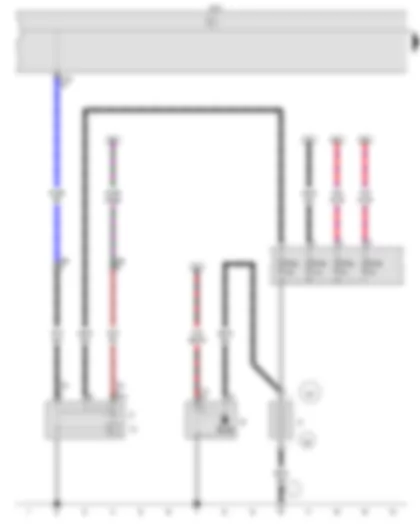

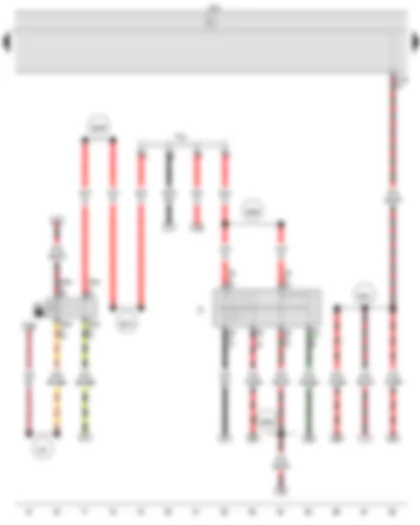

Automotive Electricians Portal FZCO A Battery B Starter C Alternator C1 Voltage regulator J519 Onboard supply control unit S162 Fuse 1 (30), in battery fuse holder S163 Fuse 2 (30), in battery fuse holder S164 Fuse 3 (30), in battery fuse holder S180 Fuse 8 (30), in battery fuse holder T1b Single connector T2n 2-pin connector, in engine compartment T2u 2-pin connector T73a 73-pin connector 507 Threaded connection (30), on battery fuse holder

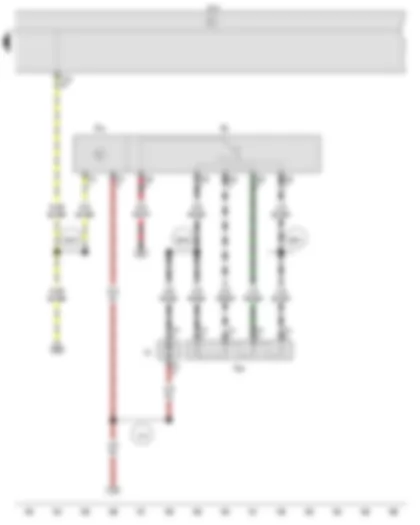

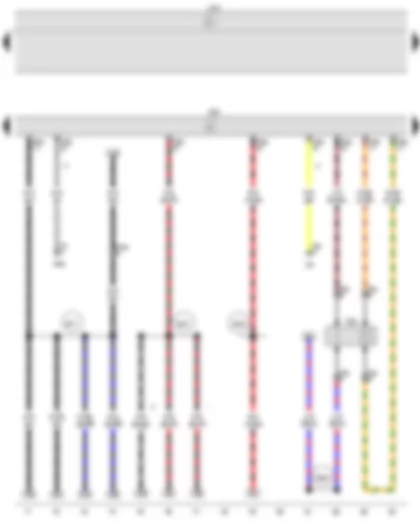

Wiring Diagram VW VOYAGE 2013 - Ignition/starter switch - X-contact relief relay - Onboard supply control unit - Terminal 30 wiring junction D Ignition/starter switch J59 X-contact relief relay J519 Onboard supply control unit T6t 6-pin connector T64a 64-pin connector T73a 73-pin connector TV2 Terminal 30 wiring junction 367 Earth connection 2, in main wiring harness B272 Positive connection (30), in main wiring harness B299 Positive connection 3 (30), in main wiring harness B491 Positive connection (75), in interior wiring harness B499 Connection 2 (53c), in interior wiring harness B539 Connection 30, in main wiring harness * Only models with automated manual gearbox

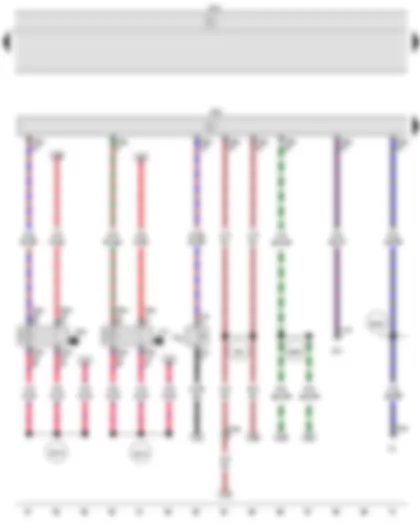

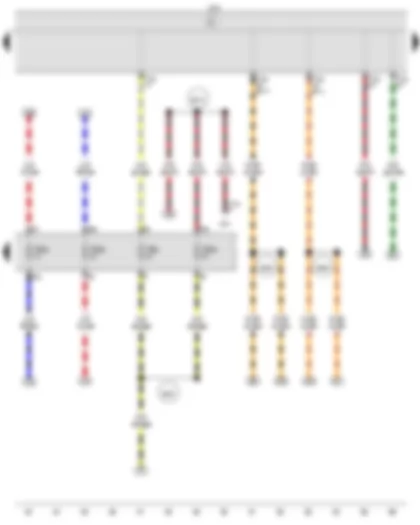

Wiring Diagram VW VOYAGE 2013 - Onboard supply control unit J519 Onboard supply control unit SA2 Fuse 2 in fuse holder A SA7 Fuse 7 in fuse holder A SA22 Fuse 22 in fuse holder A SA24 Fuse 24 in fuse holder A SA26 Fuse 26 in fuse holder A SA36 Fuse 36 in fuse holder A SA40 Fuse 40 in fuse holder A T73a 73-pin connector B273 Positive connection (15), in main wiring harness B322 Positive connection 8 (30a) in main wiring harness B354 Positive connection 5 (87a) in main wiring harness * Up to April 2013 *2 From April 2013

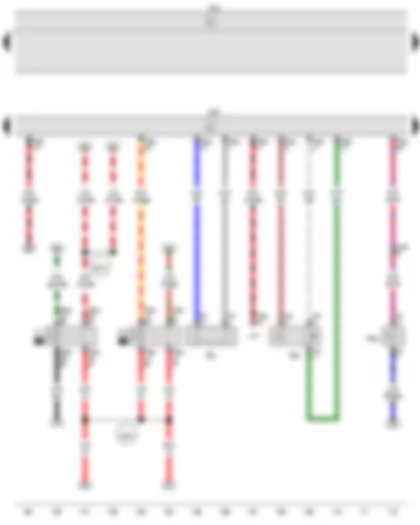

Wiring Diagram VW VOYAGE 2013 - Onboard supply control unit J301 Air conditioning system control unit J519 Onboard supply control unit SA6 Fuse 6 in fuse holder A SA29 Fuse 29 in fuse holder A SA30 Fuse 30 in fuse holder A SA38 Fuse 38 in fuse holder A T10d 10-pin connector T73a 73-pin connector B383 Connection 1 (powertrain CAN bus, high), in main wiring harness B390 Connection 1 (powertrain CAN bus, low), in main wiring harness B467 Connection 3, in main wiring harness B470 Connection 6, in main wiring harness

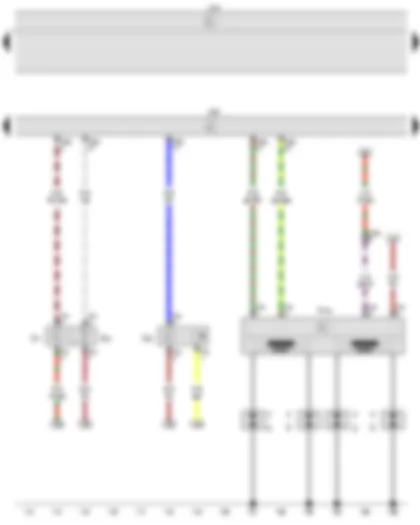

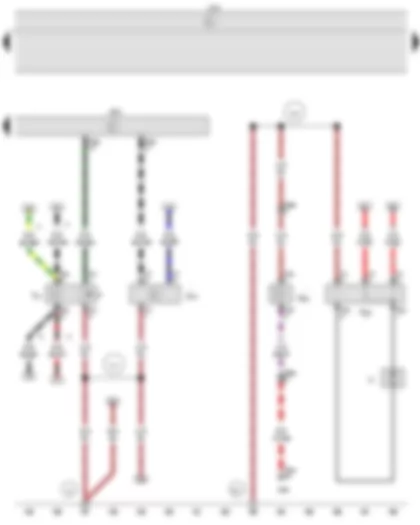

Wiring Diagram VW VOYAGE 2013 - Clutch pedal switch - Radiator fan 2nd speed relay - Fresh air blower and radiator fan relay - Onboard supply control unit - Engine control unit F4 Reversing light switch F36 Clutch pedal switch J101 Radiator fan 2nd speed relay J209 Fresh air blower and radiator fan relay J301 Air conditioning system control unit J519 Onboard supply control unit J623 Engine control unit T2aq 2-pin connector T4g 4-pin connector T10d 10-pin connector T14a 14-pin connector, on left in engine compartment T56a 56-pin connector T64a 64-pin connector 366 Earth connection 1, in main wiring harness B316 Positive connection 2 (30a) in main wiring harness B319 Positive connection 5 (30a) in main wiring harness B336 Connection 2 (54), in main wiring harness B465 Connection 1, in main wiring harness

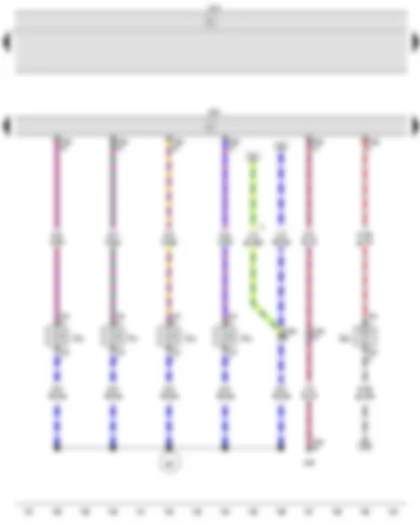

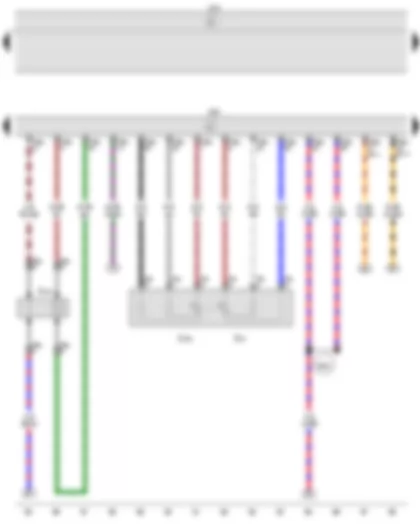

Wiring Diagram VW VOYAGE 2013 - Lambda probe - Onboard supply control unit - Engine control unit G39 Lambda probe J53 Starter motor relay J519 Onboard supply control unit J623 Engine control unit J695 Starter motor relay 2 T4d 4-pin connector T9e 9-pin connector T9f 9-pin connector T14a 14-pin connector, on left in engine compartment T56a 56-pin connector B277 Positive connection 1 (15a) in main wiring harness B320 Positive connection 6 (30a) in main wiring harness B337 Connection 3 (54), in main wiring harness B634 Positive connection 2 (87), in main wiring harness * Up to September 2012 *2 Only models with automated manual gearbox *3 From September 2012

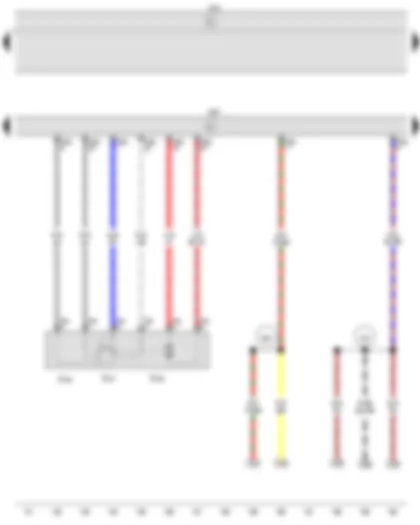

Wiring Diagram VW VOYAGE 2013 - Accelerator position sender - Lambda probe after catalytic converter - Accelerator position sender 2 - Onboard supply control unit - Engine control unit G79 Accelerator position sender G130 Lambda probe after catalytic converter G185 Accelerator position sender 2 J519 Onboard supply control unit J623 Engine control unit T4e 4-pin connector T6c 6-pin connector T56a 56-pin connector B353 Positive connection 4 (87a) in main wiring harness
Wiring Diagram VW VOYAGE 2013 - Engine speed sender - Knock sensor 1 - Fuel pump relay - Onboard supply control unit - Engine control unit - Voltage supply relay 1 - Activated charcoal filter solenoid valve 1 Wiring Diagram VW VOYAGE 2013 - Hall sender - Intake air temperature sender - Intake manifold pressure sender - Onboard supply control unit - Engine control unit - Ignition transformer - Spark plug connector - Spark plugs G40 Hall sender G42 Intake air temperature sender G71 Intake manifold pressure sender J519 Onboard supply control unit J623 Engine control unit N152 Ignition transformer P Spark plug connector Q Spark plugs T3a 3-pin connector T4a 4-pin connector T4b 4-pin connector T14a 14-pin connector, on left in engine compartment T56b 56-pin connector

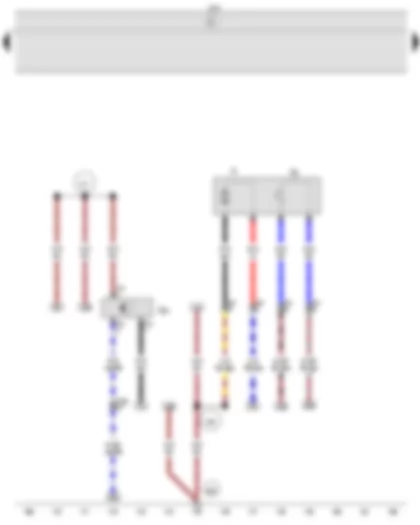

Wiring Diagram VW VOYAGE 2013 - Coolant temperature sender - Onboard supply control unit - Engine control unit - Injector - cylinder 1 - Injector - cylinder 2 - Injector - cylinder 3 - Injector - cylinder 4 G62 Coolant temperature sender J365 Air conditioning system switch-off relay J519 Onboard supply control unit J623 Engine control unit N30 Injector, cylinder 1 N31 Injector, cylinder 2 N32 Injector, cylinder 3 N33 Injector, cylinder 4 T2b 2-pin connector T2c 2-pin connector T2d 2-pin connector T2e 2-pin connector T14a 14-pin connector, on left in engine compartment T56b 56-pin connector T64a 64-pin connector E67 Connection 1 (87a) in injection system wiring harness * Up to April 2013 *2 From April 2013
Wiring Diagram VW VOYAGE 2013 - Throttle valve drive for electric throttle - Throttle valve drive angle sender 1 for electric throttle - Throttle valve drive angle sender 2 for electric throttle - Onboard supply control unit - Engine control unit G186 Throttle valve drive for electric throttle G187 Throttle valve drive angle sender 1 for electric throttle G188 Throttle valve drive angle sender 2 for electric throttle J519 Onboard supply control unit J623 Engine control unit T6a 6-pin connector T56b 56-pin connector 339 Earth connection (sender earth), in injection system wiring harness E46 Positive connection 1 (5 Volt) in injection system wiring harness
Wiring Diagram VW VOYAGE 2013 - Brake light switch - Brake pedal switch - Pressure sensor - Onboard supply control unit - Engine control unit - Air conditioning system magnetic clutch - Radiator fan series resistor - Radiator fan F Brake light switch F47 Brake pedal switch G16 Pressure sensor J365 Air conditioning system switch-off relay J519 Onboard supply control unit J623 Engine control unit N25 Air conditioning system magnetic clutch N39 Radiator fan series resistor T2ah 2-pin connector, in engine compartment T2ai 2-pin connector T2aj 2-pin connector T3f 3-pin connector T3i 3-pin connector T4c 4-pin connector T56a 56-pin connector T64a 64-pin connector V7 Radiator fan 371 Earth connection 6, in main wiring harness 372 Earth connection 7, in main wiring harness * Only models with air conditioning system *2 Up to September 2012 *3 Up to April 2013 *4 From April 2013 *5 From September 2012
Wiring Diagram VW VOYAGE 2013 - Fuel gauge sender - Fuel system pressurisation pump - Speedometer sender - Onboard supply control unit G Fuel gauge sender G6 Fuel system pressurisation pump G22 Speedometer sender J519 Onboard supply control unit T3c 3-pin connector T4f 4-pin connector T14a 14-pin connector, on left in engine compartment 331 Earth connection, in injection system wiring harness 396 Earth connection 31, in main wiring harness
Wiring Diagram VW VOYAGE 2013 - Fresh air blower switch - Heater/heat output switch - Onboard supply control unit - Fresh air blower series resistor with overheating fuse - Fresh air blower E9 Fresh air blower switch E16 Heater/heat output switch J519 Onboard supply control unit N24 Fresh air blower series resistor with overheating fuse T2v 2-pin connector T4j 4-pin connector T4k 4-pin connector T5e 5-pin connector T73a 73-pin connector V2 Fresh air blower 370 Earth connection 5, in main wiring harness B340 Connection 1 (58d), in main wiring harness B351 Positive connection 2 (87a) in main wiring harness B352 Positive connection 3 (87a) in main wiring harness

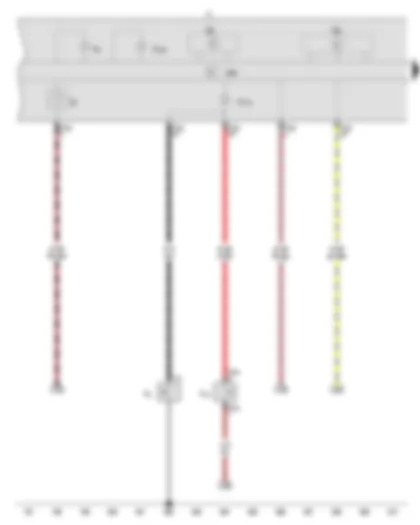

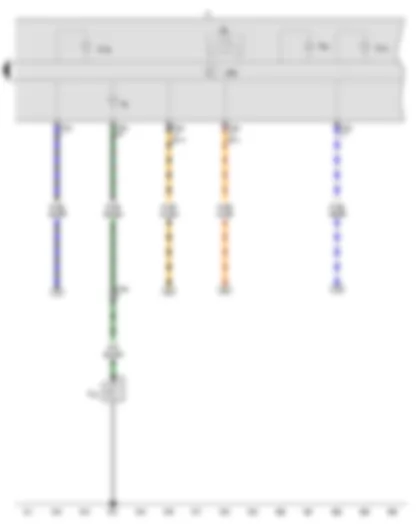

Wiring Diagram VW VOYAGE 2013 - Handbrake warning switch - Brake fluid level warning contact - Fuel gauge - Rev. counter - Speedometer - Control unit in dash panel insert - Dash panel insert - Alternator warning lamp - Brake system warning lamp - Electronic power control fault lamp F9 Handbrake warning switch F34 Brake fluid level warning contact G1 Fuel gauge G5 Rev. counter G21 Speedometer J285 Control unit in dash panel insert K Dash panel insert K2 Alternator warning lamp K118 Brake system warning lamp K132 Electronic power control fault lamp T1e Single connector T2ao 2-pin connector T32a 32-pin connector
Wiring Diagram VW VOYAGE 2013 - Oil pressure switch - Coolant temperature gauge - Control unit in dash panel insert - Dash panel insert - Oil pressure warning lamp - Coolant temperature warning lamp (too cold) - Reserve fuel warning lamp - Malfunction warning lamp F22 Oil pressure switch G3 Coolant temperature gauge J285 Control unit in dash panel insert K Dash panel insert K3 Oil pressure warning lamp K43 Coolant temperature warning lamp (too cold) K105 Reserve fuel warning lamp K121 Malfunction warning lamp T1a Single connector T14a 14-pin connector, on left in engine compartment T32a 32-pin connector
VW VOYAGE 2013 Instrument cluster indicator control unit J285 Instrument cluster indicator control unit -J285-
– Next to the instrument cluster steering column - Arrow -
A - Instrument cluster indicator control unit -J285-
B - 32-pin fitting connector, in the control unit with instrument cluster indicator -T32a-
3 - Terminal 31 for sensors
7 - Terminal 56a - Headlights
13 - Terminal can-bus ''Low''
14 - Terminal can-bus ''High''
16 - Onboard network control unit
21 - Multifunctional (MFA) enter
22 - Multifunctional (MFA) below
23 - Multifunctional (MFA) above
25 - Handbrake control switch
26 - Brake oil level warning contact
31 - Immobilizer reading coil
32 - Immobilizer reading coil
Onboard network control unit -J519-
– Behind the dash panel, to the left of the steering column -Arrow-
A - Onboard network control unit -J519-
B - 73-pole fitting connector in the onboard control unit -T73a-
Engine control unit -J623-
– To the left of the engine compartment- Arrow -
A - Engine control unit -J623-
B - 56-pin fitting connector, in the engine control unit -T56a-
C - 56-pin fitting connector, in the engine control unit -T56b-
– To the left of the engine compartment- Arrow -
A - Engine control unit -J623-
B - 28-pin fitting connector, in the engine control unit -T80a-
C - 52-pin fitting connector, in the engine control unit -T80a-
– To the left of the engine compartment- Arrow -
A - Engine control unit -J623-
B - 56-pin fitting connector, in the engine control unit -T56a-
C - 56-pin fitting connector, in the engine control unit -T56b-
– To the right of the engine compartment - Arrow -
A - ABS control unit -J104-
B - 38-pin fitting connector, in the ABS control unit -T38a-
Airbag control unit -J234-
– Under the central console, next to the selector lever - Arrow -
A - Airbag control unit -J234-
B - 75-pin fitting connector in the airbag control unit -T75a-
Air conditioning control unit -J301-
– Under the front centre console -Arrow-
A - Air conditioning control unit -J301-
B - 10-pin fitting connector in the air conditioning control unit -T10d-
Central control unit for window control -J1015-
– Behind the dash panel, to the left of the steering column - Arrow -
A - Central control unit for window control -J1015-
B - 12-pole fitting connector in the window control central control unit -T12a-
C - 23-pole fitting connector in the window control central control unit -T23b-
Parking assist control unit -J446-
– To the right of the dash panel, behind the glove compartment -Arrow-
A - Parking assist control unit -J446-
B - 12-pin fitting connector in the parking assist control unit -T12d-
C - 16-pin fitting connector in the parking assist control unit -T16c-
– To the right of the engine compartment-Arrow-
A - Automatic gearbox control unit -J217-
B/C - 80-pin connector, in the automatic gearbox control unit -T80b-
– Under the centre console-Arrow-
A - 10-pin connector in the selector lever sensors control unit -T10e-
VW VOYAGE 2013 VW VOYAGE 2013 Engine compartment earth points Engine compartment earth points
13 Engine comp. right earth points
55 Earth points next to the ABS control unit
12 Engine comp. left earth points
29 Earth point, next to the battery
1 Ground cable, battery-body
671 Earth point 1 on the front left side member
Ground cable, battery-body- Arrow A -
Earth points, next to the battery - Arrow B -
Earth points to the left of the engine comp.-Arrow-
Earth points to the right of the engine comp.- Arrow -
Earth points next to the ABS control unit - Arrow -
Earth point 1 on the front left side member - Arrow -
Vehicle interior earth points
605 Earth point on the upper steering column region
606 Earth point under the central console, next to the selector lever
678 Steering wheel earth point
Earth point on the upper steering column region - Arrow -
Earth point under the central console, next to the selector lever- Arrows -
Steering wheel earth point- Arrow -
Earth points in the rear vehicle area
705 Fuel tank earth point
50 Left boot earth points
Left boot earth points-Arrow -
Fuel tank earth point - Arrow -
VW VOYAGE 2013 Relay plate to the left, behind the dash panel Relay plate to the left, behind the dash panel
2 - Voltage input relay 1 -J701-
4 - Air conditioning system cut-off relay -J365-
6 - Cold start device relay -J41-
8 - Low beam relay -J331-
10 - Alarm horn relay -J641-
13 - Relief relay of terminal 15 -J404-
16 - Gearbox hydraulic pump relay -J510-
Relay to the right, behind the dash panel
B - External side mirror folding control unit -J351-
