Wiring Diagram VW POLO 1997 - Alternator - starter
| A | Battery |
| B | Starter |
| C | Alternator |
| C1 | Voltage regulator |
| D | Ignition/starter switch |
| T1a | Single connector, behind the relay plate |
| T2 | 2-pin connecctor, near starter |
| 18 | Earth point, on engine block |
| 131 | Earth connection -2-, in engine compartment wiring harness |

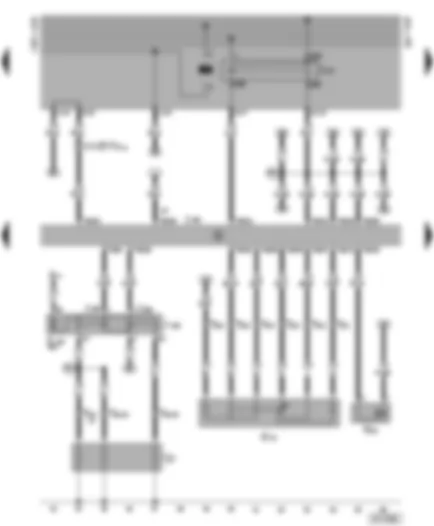

Wiring Diagram VW POLO 1997 - Diesel direct injection system control unit - engine speed sender - air mass meter
| F | Brake light switch |
| F47 | Cruise cont. sys. brake pedal switch (diesel direct inj. system) |
| G28 | Engine speed sender |
| G42 | Intake air temperature sender |
| J248 | Diesel direct injection system control unit, left in plenum chamber |
| J362 | Immobilizer control unit |
| T6 | 6-pin connector, on immobilizer control unit |
| T68 | 68-pin connector, diesel direct injection system control unit |
| M9 | Brake light bulb, left |
| M10 | Brake light bulb, right |
| 156 | Earth connection, in diesel direct injection wiring harness |
| 220 | Earth connection (sender earth), in engine wiring harness |
| B131 | Connection (54), in interior wiring harness |

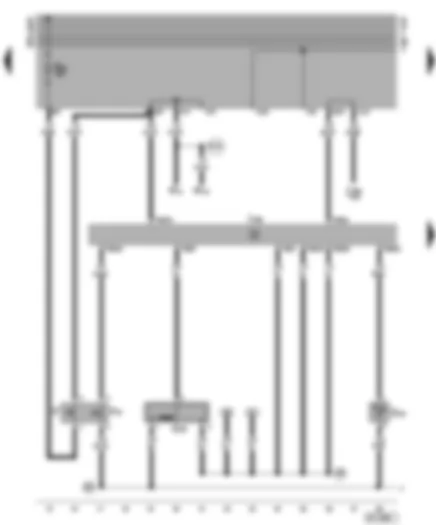

Wiring Diagram VW POLO 1997 - Diesel direct injection system control unit - needle lift sender - modulating piston movement sender
| F36 | Clutch pedal switch |
| G80 | Needle lift sender |
| G81 | Fuel temperature sender |
| G149 | Modulating piston movement sender |
| J248 | Diesel direct injection system control unit, left in plenum chamber |
| N146 | Metering adjuster |
| T8 | 8-pin connector |
| T24 | 24-pin connector, on engine |
| T68 | 68-pin connector, diesel direct injection system control unit |
| 18 | Earth point, on engine block |
| 220 | Earth connection (sender earth), in engine wiring harness |
Wiring Diagram VW POLO 1997 - Diesel direct injection system control unit - accelerator pedal position sender - exhaust gas recirculation valve - glow plug coolant
| A | Battery |
| G79 | Accelerator pedal position sender |
| J248 | Diesel direct injection system control unit, left in plenum chamber |
| J317 | Terminal 30 voltage supply relay |
| J325 | Coolant heater element relay, on centre of bulkhead |
| J359 | Low heat output relay |
| J360 | High heat output relay |
| N18 | Exhaust gas recirculation valve, front right in engine compartment |
| Q7 | Coolant heating elements |
| S109 | Coolant heater element fuse |
| T6 | 6-pin connector, front left in footwell |
| T24 | 24-pin connector, left on engine |
| T68 | 68-pin connector, on control unit |
| TV13 | Speed signal junction box |
| F25 | Connection -1-, in diesel direct injection system wiring harness |
| F32 | Connection (glow plugs - coolant), in diesel direct injection system wiring harness |
Wiring Diagram VW POLO 1997 - Glow plug relay - diesel direct injection system control unit - commencement of injection valve - throttle valve - fuel shut-off valve
| J52 | Glow plug relay |
| J248 | Diesel direct injection system control unit, left in plenum chamber |
| N108 | Commencement of injection valve |
| N109 | Fuel shut-off valve |
| N211 | Throttle butterfly valve, print-out on fault reader VAG 1551 is: V60 |
| Q6 | Glow plugs - (engine) |
| S39 | Glow plug motor strip fuse |
| T3 | 3-pin connector |
| T24 | 24-pin connector, left on engine |
| T68 | 68-pin connector, on control unit |
| TV2 | Terminal 30 junction box |
| F26 | Connection -2-, in diesel direct injection system wiring harness |
| F31 | Connection (glow plugs - engine), in diesel direct injection system wiring harness |

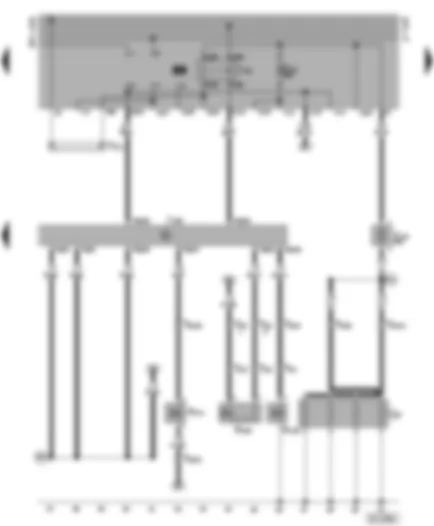

Wiring Diagram VW POLO 1997 - Engine temperature sender - oil pressure switch - speedometer sender
| F1 | Oil pressure switch * |
| F22 | Oil pressure switch (0.3 bar) |
| G | Fuel gauge sender |
| G2 | Coolant temerature sender |
| G22 | Speedometer sender (Hall sender on gearbox) |
| G27 | Engine temperature sender |
| G32 | Coolant shortage indicator sender |
| T24 | 24-pin connector, left on engine |
| 85 | Earth connection -1-, in engine compartment wiring harness |
| 15 | Earth point, on cylinder head |
| * | For switching points, see Workshop Manual |

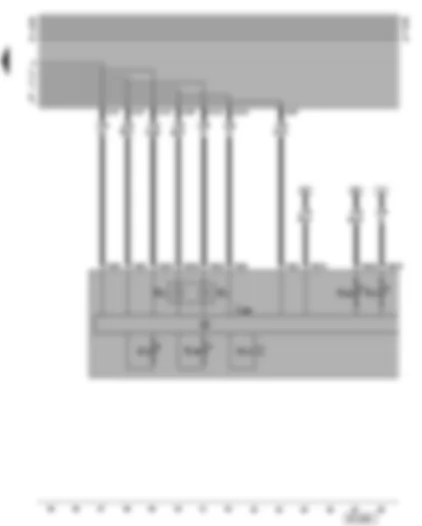

Wiring Diagram VW POLO 1997 - Dash panel insert - fuel gauge - coolant shortage and coolant temperature warning/gauge - optical and acoustic oil pressure warning
| G1 | Fuel gauge |
| G3 | Coolant temperature gauge |
| H11 | Oil pressure warning buzzer |
| J285 | Control unit with display in dash panel insert |
| K2 | Alternator warning lamp |
| K3 | Oil pressure warning lamp |
| K28 | Coolant temperature/coolant shortage warning lamp |
| K29 | Glow period warning lamp |
| T28 | 28-pin connector, on dash panel insert |
