VW POLO 1997 – Anti-locking brake system (ABS), RHD only . Wiring diagrams, Pin Connector, Location

  1. Home
  2. >VW
  3. >VW POLO
  4. >VW POLO 1997
  5. >VW POLO 1997 ALL WIRING DIAGRAMS - ENGLISH

Download PDF file

Wiring Diagram VW POLO 1997 - ABS control unit - brake light switch



Wiring Diagram VW POLO 1997 - ABS control unit - brake light switch https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file
FBrake light switch
J104ABS control unit, left in engine compartment
J285Control unit with display in dash panel insert
K47ABS warning lamp
K75Airbag warning lamp
M9Brake light bulb, left
M10Brake light bulb, right
N99ABS inlet valve, front right
N100ABS outlet valve, front right
N101ABS inlet valve, front left
N102ABS outlet valve, front left
T2d2-pin connector, on ABS control unit
T7a7-pin connector, on ABS warning lamp
T2525-pin connector, on ABS control unit
T2828-pin connector, in dash panel insert
V64ABS hydraulic pump, on ABS control unit
   29 Earth point, near battery
   100 Earth connection -1-, in ABS wiring harness
   135 Earth connection -2-, in dash panel wiring harness
   A2 Positive (+) connection (15), in dash panel wiring harness
*Wiring connector only on vehicles with airbag

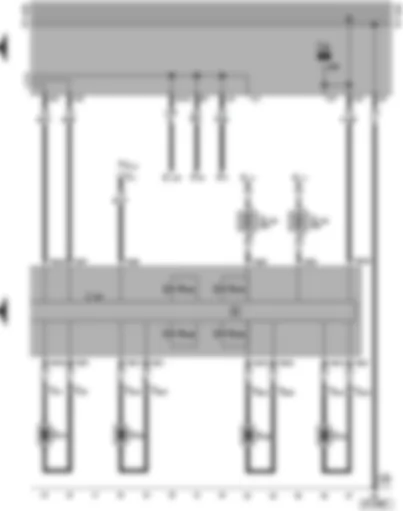

Wiring Diagram VW POLO 1997 - ABS control unit - injectors



Wiring Diagram VW POLO 1997 - ABS control unit - injectors https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
ABattery
F9Handbrake warning switch
F34Brake fluid level warning contact
G44Rear right speed sensor
G45Front right speed sensor
G46Rear left speed sensor
G47Front left speed sensor
J59X contact relief relay
J104ABS control unit, left in engine compartment
K118Brake system warning lamp, in dash panel insert
N133ABS inlet valve, rear right
N134ABS inlet valve, rear left
N135ABS outlet valve, rear right
N136ABS outlet valve, rear left
S123ABS control unit fuse 1
S124ABS control unit fuse 2
T1vSingle connector
T22-pin connector, behind left suspension strut
T2a2-pin connector, behind right suspension strut
T2b2-pin connector, under rear seat bench
T2c2-pin connector, under rear seat bench
T2525-pin connector, on ABS control unit
TV14Self-diagnosis junction box, above the relay plate
   135 Earth connection -2-, in dash panel wiring harness
