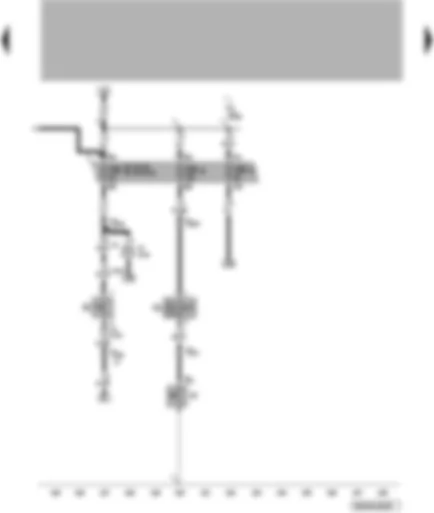

| A | Battery |
| B | Starter |
| D | Ignition/starter switch |
| J59 | X-contact relief relay |
| J207 | Starter inhibitor relay |
| SA2 | Fuse 2 (30), on battery fuse holder |
| SB41 | Fuse in relay plate fuse holder |
| SB48 | Fuse in relay plate fuse holder |
| T10a | 10-pin connector, green, coupling station under relay carrier¹) |
| 1 | Earth strap, battery - body |
| 3 | Earth strap, engine - body |
| 277 | Earth connection 3, in interior wiring harness |
| 500 | Screw connection 1 (30), on relay plate¹) |
| 501 | Screw connection 2 (30), on relay plate¹) |
| 502 | Screw connection 3 (30), on relay plate¹) |
| B111 | Positive connection 1 (30a), in interior wiring harness |
| B138 | Positive connection (X), in interior wiring harness |
| * | Not with automatic gearbox |
| ** | Only models with an automatic gearbox |
| ¹) | Connections, see section "Fitting locations" |
| C | Alternator |
| E24 | Driver side belt switch |
| G5 | Rev. counter (00662) |
| J125 | Side lights and radio buzzer |
| J234 | Airbag control unit |
| J285 | Control unit with display in dash panel insert (01317) |
| K2 | Alternator warning lamp |
| K19 | Seat belt warning system warning lamp |
| L75 | Digital display illumination bulb |
| SB16 | Fuse in fuse holder |
| T2t | 2-pin connector, under driver seat |
| T10d | 10-pin connector, red, coupling station under relay carrier¹) |
| T32 | 32-pin connector, blue, on dash panel insert |
| Y4 | Trip counter |
| B102 | Earth connection, in front left interior wiring harness |
| B109 | Earth connection, in rear left interior wiring harness |
| B158 | Connection (S), in interior wiring harness |
| * | Not with all levels of equipment |
| ¹) | Connections, see section "Fitting locations" |
| F9 | Handbrake warning switch (01114) |
| F34 | Brake fluid level warning contact |
| J6 | Voltage stabiliser |
| J285 | Control unit with display in dash panel insert (01317) |
| K1 | Main beam warning lamp |
| K7 | Dual circuit brakes/handbrake warning lamp (01047) |
| K13 | Rear fog light warning lamp |
| K65 | Left turn signal warning lamp |
| K94 | Right turn signal warning lamp |
| K118 | Brake system warning lamp |
| L10 | Dash panel insert illumination bulb |
| T10a | 10-pin connector, green, coupling station under relay carrier¹) |
| T10b | 10-pin connector, black, coupling station under relay carrier¹) |
| T32 | 32-pin connector, blue, on dash panel insert |
| Y2 | Digital clock |
| 131 | Earth connection 2, in engine compartment wiring harness |
| 277 | Earth connection 3, in interior wiring harness |
| A59 | Connection (sender), in dash panel wiring harness |
| * | Not with ABS |
| ** | Only models with a petrol engine |
| *** | Only models with a diesel engine |
| ¹) | Connections, see section "Fitting locations" |
| E1 | Light switch |
| E18 | Rear fog light switch |
| L9 | Light switch illumination bulb |
| T10b | 10-pin connector, black, coupling station under relay carrier¹) |
| T17 | 17-pin connector, black, on light switch¹) |
| 76 | Earth point, near selector mechanism |
| 238 | Earth connection 1, in interior wiring harness |
| 278 | Earth connection 4, in interior wiring harness |
| B102 | Earth connection, in front left interior wiring harness |
| B145 | Positive connection (58b), in interior wiring harness |
| ¹) | Connections, see section "Fitting locations" |
| L20 | Rear fog light bulb |
| M2 | Right tail light bulb |
| M4 | Left tail light bulb |
| M6 | Rear left turn signal bulb |
| M8 | Rear right turn signal bulb |
| M9 | Left brake light bulb |
| M10 | Right brake light bulb |
| M16 | Left reversing light bulb |
| M17 | Right reversing light bulb |
| M25 | High level brake light bulb |
| T2g | 2-pin connector, black, in rear lid wiring harness |
| T5c | 5-pin connector, black, in rear lid feeder wiring harness¹) |
| T6b | 6-pin connector, black, on left rear light |
| T6c | 6-pin connector, black, on rear right tail light |
| 59 | Earth point, near left tail light |
| 277 | Earth connection 3, in interior wiring harness |
| 287 | Earth connection, in rear lid feeder wiring harness |
| B109 | Earth connection, in rear left interior wiring harness |
| B131 | Connection (54), in interior wiring harness |
| B152 | Connection (BL), in interior wiring harness |
| B153 | Connection (RTS), in interior wiring harness |
| ¹) | Connections, see section "Fitting locations" |
| E2 | Turn signal switch (00886) |
| E4 | Headlight dipper and flasher switch |
| E19 | Parking light switch |
| M1 | Left side light bulb |
| L1 | Left twin filament bulb |
| SB4 | Fuse in relay plate fuse holder |
| SB12 | Fuse in relay plate fuse holder |
| SB13 | Fuse in relay plate fuse holder |
| SB43 | Fuse in relay plate fuse holder |
| SB44 | Fuse in relay plate fuse holder |
| T5 | 5-pin connector, black, behind steering column switch trim |
| T7 | 7-pin connector, red, behind steering column switch trim |
| T8e | 8-pin connector, black, on left headlight |
| T10b | 10-pin connector, black, coupling station under relay carrier¹) |
| T10c | 10-pin connector, blue, coupling station under relay carrier¹) |
| 167 | Earth connection 4, in engine compartment wiring harness |
| B152 | Connection (BL), in interior wiring harness |
| B153 | Connection (RTS), in interior wiring harness |
| D152 | Positive connection 1 (56b), in engine compartment wiring harness |
| ¹) | Connections, see section "Fitting locations" |
| L2 | Right twin filament bulb |
| M3 | Right side light bulb |
| M5 | Front left turn signal bulb |
| M7 | Front right turn signal bulb |
| M18 | Left side repeater turn signal bulb |
| M19 | Right side repeater turn signal bulb |
| SB5 | Fuse in relay plate fuse holder |
| T8f | 8-pin connector, black, near left headlight |
| T10b | 10-pin connector, black, coupling station under relay carrier¹) |
| T10c | 10-pin connector, blue, coupling station under relay carrier¹) |
| 131 | Earth connection 2, in engine compartment wiring harness |
| 167 | Earth connection 4, in engine compartment wiring harness |
| 201 | Earth connection 5, in engine compartment wiring harness |
| B152 | Connection (BL), in interior wiring harness |
| B153 | Connection (RTS), in interior wiring harness |
| D153 | Positive connection 2 (56b), in engine compartment wiring harness |
| * | Only models with a petrol engine |
| ** | Only models with a diesel engine |
| *** | Other wiring colours are possible depending on equipment. |
| ¹) | Connections, see section "Fitting locations" |
| E3 | Hazard warning light switch |
| J1 | Turn signal relay |
| K6 | Hazard warning light system warning lamp |
| T5c | 5-pin connector, black, in rear lid feeder wiring harness¹) |
| T8c | 8-pin connector, black, on hazard warning light switch |
| T10d | 10-pin connector, red, coupling station under relay carrier¹) |
| Z1 | Heated rear window (00975) |
| 278 | Earth connection 4, in interior wiring harness |
| 287 | Earth connection, in rear lid feeder wiring harness |
| A82 | Connection (window heater), in dash panel wiring harness |
| B152 | Connection (BL), in interior wiring harness |
| B153 | Connection (RTS), in interior wiring harness |
| * | Only models with a petrol engine |
| ** | Only models with a diesel engine |
| ¹) | Connections, see section "Fitting locations" |

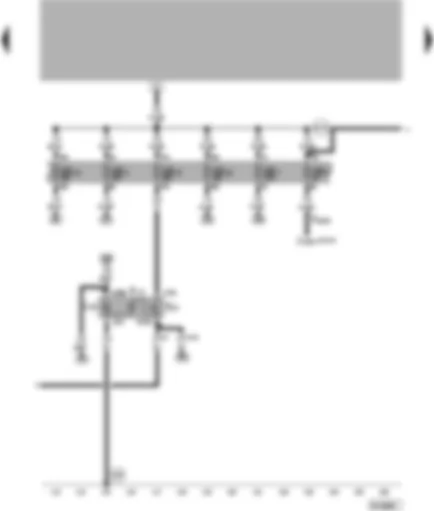

| E15 | Heated rear window switch (00973) |
| J104 | ABS control unit, on left in engine compartment |
| K10 | Heated rear window warning lamp (00911) |
| L39 | Heated rear window switch illumination bulb |
| SB6 | Fuse in relay plate fuse holder |
| SB7 | Fuse in relay plate fuse holder |
| SB8 | Fuse in relay plate fuse holder |
| SB42 | Fuse in relay plate fuse holder |
| SB47 | Fuse in relay plate fuse holder |
| SB50 | Fuse in relay plate fuse holder |
| T10a | 10-pin connector, green, coupling station under relay carrier¹) |
| 278 | Earth connection 4, in interior wiring harness |
| B173 | Positive connection 2 (X), in interior wiring harness |
| * | Only models with a petrol engine |
| ** | Only models with a diesel engine |
| *** | Only with ABS |
| ¹) | Connections, see section "Fitting locations" |
| E20 | Switch and instrument illumination regulator |
| E102 | Headlight range control regulator |
| L54 | Headlight range control regulator illumination bulb |
| L105 | Illumination regulator illumination bulb |
| SB9 | Fuse in relay plate fuse holder |
| T8e | 8-pin connector, black, near left headlight |
| T8f | 8-pin connector, black, near left headlight |
| T10c | 10-pin connector, blue, coupling station under relay carrier¹) |
| V48 | Left headlight range control motor |
| V49 | Right headlight range control motor |
| 131 | Earth connection 2, in engine compartment wiring harness |
| B102 | Earth connection, in front left interior wiring harness |
| * | Only models with engine code AHW, AKQ |
| ¹) | Connections, see section "Fitting locations" |
| E9 | Fresh air blower switch |
| E159 | Fresh air/air recirculation flap switch |
| K114 | Fresh air and air recirculation warning lamp |
| L16 | Fresh air regulator illumination bulb |
| N24 | Fresh air blower series resistor with overheating fuse |
| T4 | 4-pin connector, black, behind dash panel |
| T4e | 4-pin connector, black, on fresh air blower series resistor |
| T6a | 6-pin connector, black, on fresh air blower switch |
| V2 | Fresh air blower |
| V154 | Fresh air/recirculated air flap control motor |
| 43 | Earth point, lower part of right A-pillar |
| 162 | Earth connection, in blower motor wiring harness |
| 278 | Earth connection 4, in interior wiring harness |

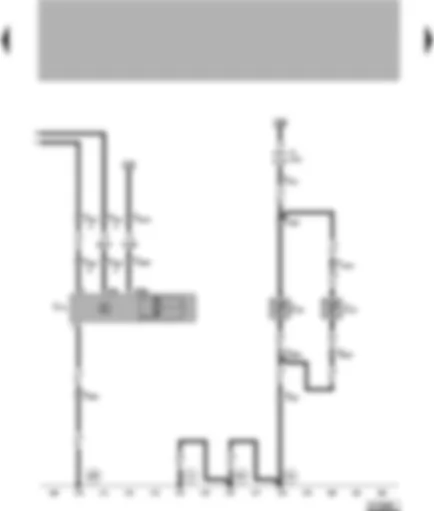

| E22 | Intermittent wiper switch |
| E34 | Rear wiper switch |
| J31 | Automatic intermittent wash and wipe relay |
| T4a | 4-pin connector, black, behind steering column switch trim |
| T5e | 5-pin connector, black, behind steering column switch trim |
| T10 | 10-pin connector, white, coupling station under relay carrier¹) |
| T10b | 10-pin connector, black, coupling station under relay carrier¹) |
| V | Windscreen wiper motor |
| V59 | Windscreen and rear window washer pump |
| 131 | Earth connection 2, in engine compartment wiring harness |
| 277 | Earth connection 3, in interior wiring harness |
| A36 | Connection (75a), in dash panel wiring harness |
| B102 | Earth connection, in front left interior wiring harness |
| ¹) | Connections, see section "Fitting locations" |

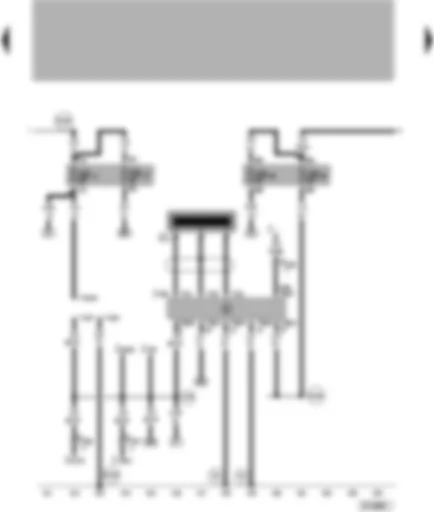

| T2 | 2-pin connector, black, in left plenum chamber |
| T2d | 2-pin connector, black, on left on engine compartment lid |
| T2e | 2-pin connector, black, on right on engine compartment lid |
| T5c | 5-pin connector, black, in rear lid feeder wiring harness¹) |
| T5d | 5-pin connector, black, in rear lid¹) |
| V12 | Rear window wiper motor |
| Z20 | Left washer jet heater element |
| Z21 | Right washer jet heater element |
| 12 | Earth point, on left in engine compartment |
| 131 | Earth connection 2, in engine compartment wiring harness |
| 167 | Earth connection 4, in engine compartment wiring harness |
| 287 | Earth connection, in rear lid feeder wiring harness |
| * | Only models with a petrol engine |
| ** | Only models with a diesel engine |
| ¹) | Connections, see section "Fitting locations" |
| F2 | Driver door contact switch |
| F3 | Front passenger door contact switch |
| J379 | Central locking and anti-theft alarm system control unit |
| SB2 | Fuse in relay plate fuse holder |
| T4c | 4-pin connector, black, in interior light wiring harness |
| T5g | 5-pin connector, black, on right C-pillar |
| T10e | 10-pin connector, black, left A-pillar coupling station¹) |
| T10f | 10-pin connector, black, right A-pillar coupling station¹) |
| W | Front interior light |
| X | Registration plate light |
| 277 | Earth connection 3, in interior wiring harness |
| 278 | Earth connection 4, in interior wiring harness |
| B109 | Earth connection, in rear left interior wiring harness |
| B117 | Connection (58a, right), in interior wiring harness |
| B154 | Connection 1 (DCt), in interior wiring harness |
| * | Only with central locking |
| ¹) | Connections, see section "Fitting locations" |
| F | Brake light switch (00526) |
| J248 | Diesel direct injection system control unit, on right in plenum chamber |
| SB14 | Fuse in relay plate fuse holder |
| SB15 | Fuse in relay plate fuse holder |
| SB45 | Fuse in relay plate fuse holder |
| T10 | 10-pin connector, white, coupling station under relay carrier¹) |
| T10b | 10-pin connector, black, coupling station under relay carrier¹) |
| U1 | Cigarette lighter |
| 238 | Earth connection 1, in interior wiring harness |
| B150 | Positive connection 2 (30a), in interior wiring harness |
| * | Only models with a diesel engine |
| ** | Only models with a petrol engine |
| ¹) | Connections, see section "Fitting locations" |

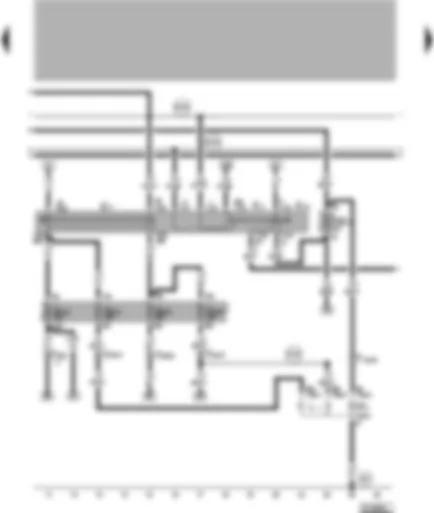

| D2 | Immobilizer reader coil (01128) |
| J... | Injection system control units |
| J104 | ABS control unit |
| J217 | Automatic gearbox control unit |
| J234 | Airbag control unit |
| J362 | Immobiliser control unit |
| J379 | Central locking and anti-theft alarm system control unit |
| SB10 | Fuse in relay plate fuse holder |
| SB11 | Fuse in relay plate fuse holder |
| SB28 | Fuse in relay plate fuse holder |
| SB29 | Fuse in relay plate fuse holder |
| T3 | 3-pin connector, black, on immobilizer control unit |
| T8b | 8-pin connector, black, on immobilizer control unit |
| T10c | 10-pin connector, blue, coupling station under relay carrier¹) |
| T10d | 10-pin connector, red, coupling station under relay carrier¹) |
| T10g | 10-pin connector, brown, coupling station under relay carrier¹) |
| T16 | 16-pin connector, self-diagnosis connector¹) |
| 76 | Earth point, near selector mechanism |
| A76 | Connection (K-diagnosis wire), in dash panel wiring harness |
| B102 | Earth connection, in front left interior wiring harness |
| B149 | Positive connection 2 (15a), in interior wiring harness |
| B150 | Positive connection 2 (30a), in interior wiring harness |
| ¹) | Connections, see section "Fitting locations" |
| F4 | Reversing light switch |
| H | Horn plate (00889) |
| H1 | Horn/dual tone horn (00906) |
| SB20 | Fuse in relay plate fuse holder |
| SB27 | Fuse in relay plate fuse holder |
| SB30 | Fuse in relay plate fuse holder |
| T10 | 10-pin connector, white, coupling station under relay carrier |
| T10d | 10-pin connector, black, coupling station under relay carrier |
| B135 | Connection 1 (15a), in interior wiring harness |
| * | Only models with a petrol engine |
| ** | Only models with a diesel engine |
| *** | To October 1998 |
| **** | From October 1998, see "Basic equipment" |

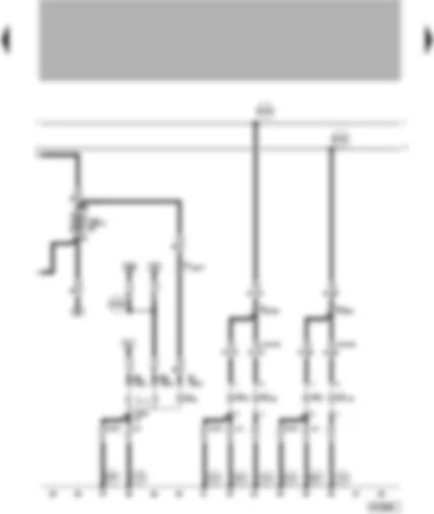

| R | Radio |
| R11 | Aerial |
| R20 | Front left treble loudspeaker |
| R21 | Front left bass loudspeaker |
| R22 | Front right treble loudspeaker |
| R23 | Front right bass loudspeaker |
| R24 | Aerial amplifier |
| T1b | Single connector, black, on lower part of left A-pillar |
| T8 | 8-pin connector, black, on radio |
| T8a | 8-pin connector, brown, on radio |
| T10e | 10-pin connector, black, left A-pillar coupling station¹) |
| T10f | 10-pin connector, black, right A-pillar coupling station¹) |
| 238 | Earth connection 1, in interior wiring harness |
| B189 | Connection (front right loudspeaker, positive), in interior wiring harness |
| B190 | Connection (front right loudspeaker, negative), in interior wiring harness |
| B191 | Connection (front left loudspeaker, positive), in interior wiring harness |
| B192 | Connection (front left loudspeaker, negative), in interior wiring harness |
| * | Not with all levels of equipment |
| ¹) | Connections, see section "Fitting locations" |
Čeština
Dansk
Deutsch
Ελληνικά
English
Español
Suomi
Français
Français
עברית
Hrvatski
Magyar
Italiano
日本語
한국어
Nederlands
Polski
Português
Português
Română
Русский
Slovenčina
Slovenščina
Svenska
Türkçe
中文 (中国)
